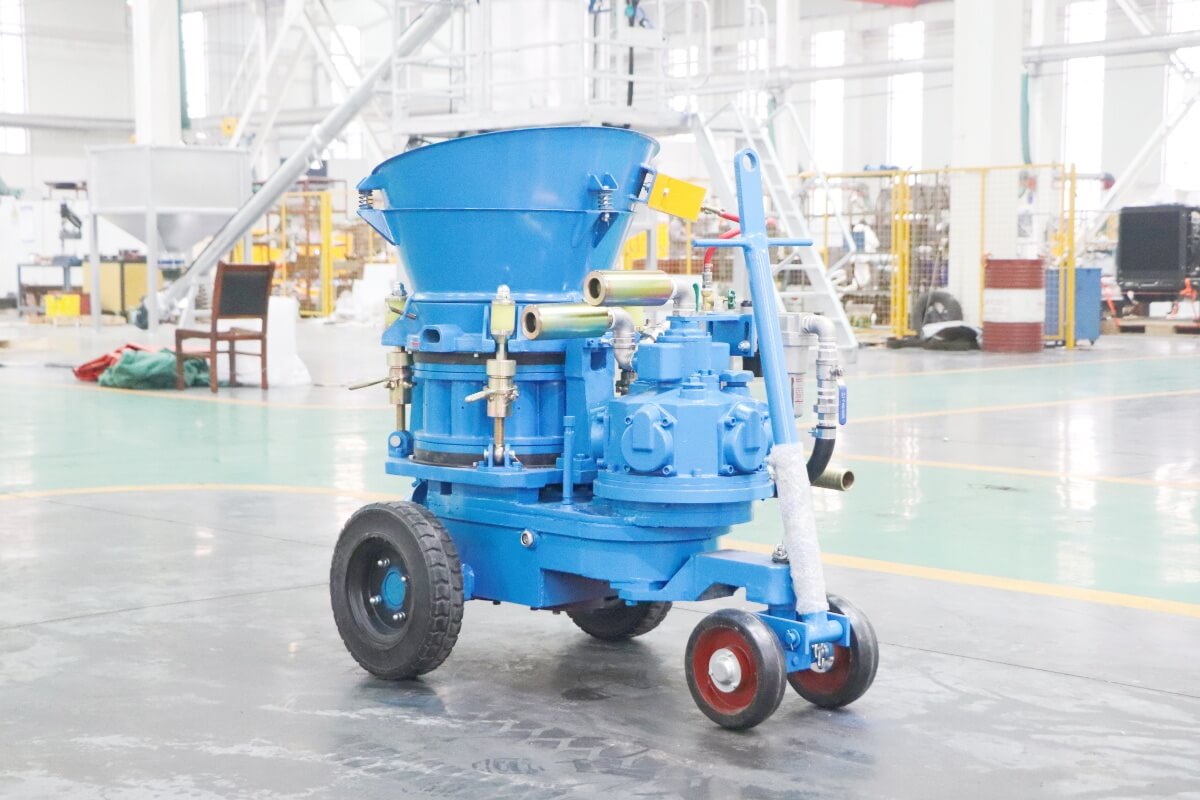

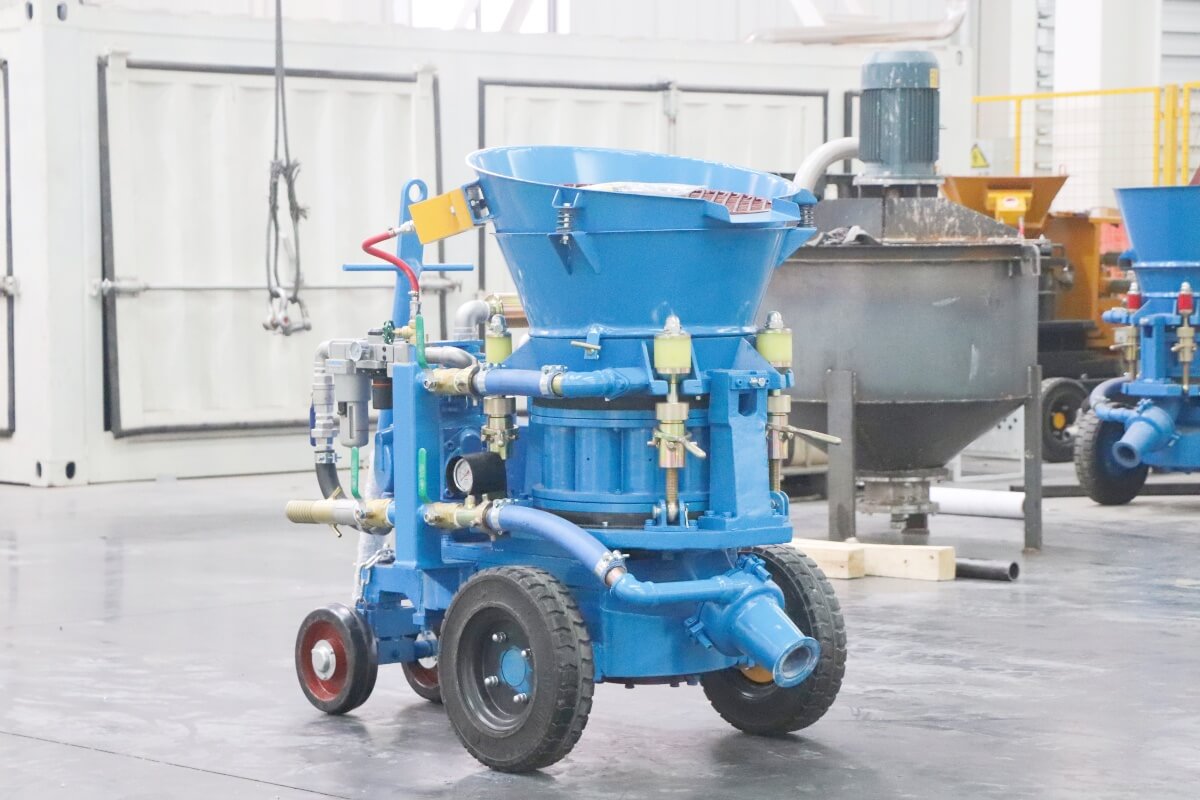

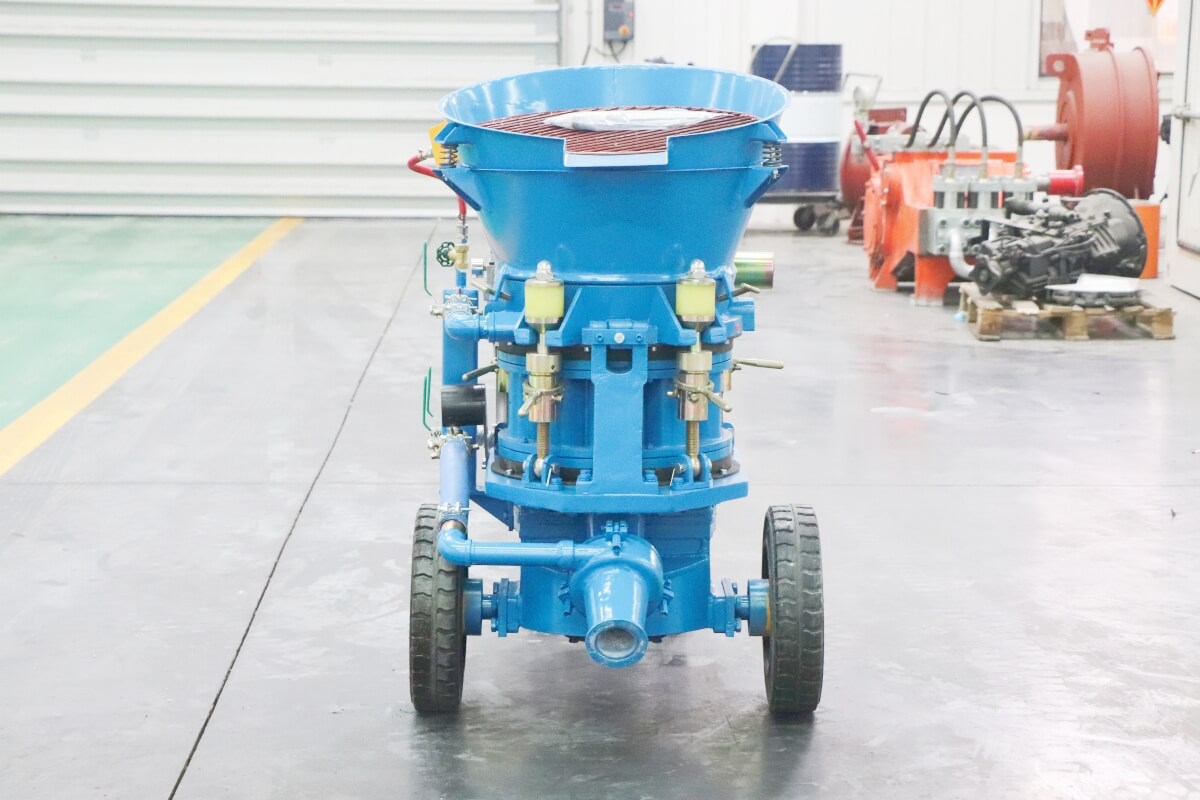

The dry mix refractory spraying machine is a professional spraying equipment specifically designed for the construction and maintenance of linings in high-temperature industrial kilns and thermal equipment. Widely used in metallurgy, building materials, petrochemicals, and power industries, it boasts advantages such as stable conveying, uniform spraying, strong adhesion, and low rebound rate, making it a highly efficient, reliable, and economical core equipment in modern refractory lining engineering.

I. What is a dry mix refractory spraying machine?
The dry mix refractory spraying machine uses compressed air as power to transport dry refractory mixtures through pipelines to the nozzle position. At the nozzle, the mixture is mixed with atomized water and sprayed at high speed onto the target surface, rapidly forming a dense, high-strength, high-temperature-resistant refractory protective layer.
The equipment mainly consists of a main unit, a rotor-type spraying system, a pneumatic feeding system, an atomizing water supply system, an electrical control system, and a frame. With its compact structure, stable operation, and ease of use, the dry mix refractory spraying machine plays a crucial role in refractory spraying, furnace and kiln maintenance, and thermal equipment lining repair. It is particularly suitable for complex locations, high-altitude operations, and long-distance construction, significantly improving construction efficiency and lining quality.

II. Core Advantages of the Dry Mix Refractory Spraying Machine
1. Low Rebound Rate, High Material Utilization: Optimized spraying structure and airflow ratio effectively reduce rebound, minimize refractory material waste, and significantly lower construction costs.
2. Low Dust, More Environmentally Friendly Operation: Combined with nozzle atomization and water addition, and a fully sealed design, it effectively suppresses dust, improves the on-site construction environment, and meets safety and environmental protection requirements.
3. High Construction Efficiency, Fast Repair Speed: Long conveying distance and continuous, stable material output enable rapid completion of localized furnace and kiln repairs and large-area lining construction, shortening downtime.
4. High Bonding Strength, Dense and Durable Lining: The dry material is instantly mixed and sprayed at the nozzle, resulting in strong adhesion, tight bonding with the furnace wall, high overall density, and excellent high-temperature resistance and erosion resistance.
5. High adaptability, suitable for various refractory materials
It can be used with various dry refractory spray coatings such as high-alumina, clay, corundum, and magnesia to meet the needs of different kiln conditions.
6. Reliable structure, simple maintenance
Core components are durable and easy to replace, with a low failure rate and convenient daily maintenance, making it suitable for long-term continuous industrial use.

III. Typical Application Scenarios of Dry Mix Refractory Spraying Machine
This equipment is suitable for the construction, repair, spraying, and reinforcement of refractory linings for various high-temperature industrial furnaces and kilns. Main applications include:
* Metallurgical Industry: Repair and spraying of converters, electric furnaces, ladles, tundishes, heating furnaces, etc.
* Cement Industry: Repair of linings for rotary kilns, preheaters, decomposition furnaces, coolers, etc.
* Petrochemical Industry: Construction of refractory linings for pyrolysis furnaces, heating furnaces, reactors, and tubular furnaces.
* Power and Boiler Industry: Repair of linings for power plant boilers, waste incinerators, hot blast stoves, etc.
* Other High-Temperature Kilns: Moldless spraying construction for carbon furnaces, heat treatment furnaces, kiln cars, and irregularly shaped furnace bodies, etc.

IV. Dry vs. Wet Refractory Spraying Machines: How to Choose?
In actual engineering projects, dry and wet spraying machines have different applicable scenarios. The following comparison can be used as a reference when choosing:
* Mixing Method: Dry spraying involves conveying dry materials and adding water at the nozzle for mixing; wet spraying involves mixing the materials into a slurry inside the machine and then pumping it for spraying.
* Construction Flexibility: Dry refractory gunning is more suitable for emergency repairs, long-distance work, confined spaces, and localized repairs; wet refractory gunning is suitable for large-scale new construction projects.
* Material Adaptability: Dry refractory gunning is more adaptable to different types and proportions of refractory materials; wet refractory gunning requires higher slurry fluidity.
* Equipment Cost: Dry refractory gunning requires lower initial investment, simpler maintenance, and easier relocation; wet refractory gunning systems are more complex and more expensive.
* Applicable Working Conditions: Dry refractory gunning is preferred for: furnace and kiln repairs, high-altitude operations, frequent site relocation, and diverse material types.

V. Dry Mix Refractory Gunning Machine Operation Specifications and Safety Precautions
To ensure stable equipment operation, construction quality, and personnel safety, please follow these guidelines:
Pre-start Inspection: Check the air source, power supply, and water supply for proper functioning; ensure vulnerable parts and seals are intact; conduct a no-load test run to confirm no abnormalities.
Operation Process: Add materials evenly, adjust air pressure and water volume appropriately, maintain nozzle angle and spray distance, apply in layers, and ensure the lining is uniform and dense.
Shutdown Procedure: First, stop feeding material, continue air supply to clear the pipeline, then turn off the water and power supply, and promptly clean any residual material from the hopper and nozzles.
Safety Precautions: Operators must wear protective equipment; nozzles must never be pointed at people; regularly check pipeline sealing to prevent blockages and bursts; ensure proper heat insulation during high-temperature construction; ensure electrical equipment is properly grounded.

VI. How to Choose a Suitable Dry Mix Gunning Machine for Refractory:
When purchasing equipment, consider your specific working conditions and needs:
Construction Scale: For small-scale maintenance, choose a lightweight model; for large furnaces and long-term projects, choose a high-capacity model.
Refractory Material Type: Confirm the equipment's compatibility with aggregate size and refractory type to ensure smooth spraying without jamming.
Mobility and Installation: For fixed construction, choose a stationary type; for multiple furnaces used in rotation, choose a wheeled mobile type or a vehicle-mounted type.
Power Configuration: If industrial electricity is available, choose an electric type; for scenarios without power, choose pneumatic or diesel drive.
Manufacturers and After-Sales Service: Choose professional manufacturers with R&D, production, and service capabilities to ensure quality, spare parts supply, and technical support.
Budget and Cost-Effectiveness: Consider equipment price, service life, and maintenance costs; choose stable, durable models with lower overall costs.

VII. Company Introduction
Our company is a professional manufacturer of refractory equipment integrating R&D, production, sales, and service. For many years, we have focused on the R&D and manufacturing of refractory shotcrete machines, spraying machines, spraying equipment, and related accessories. With mature technology, strict quality control, and comprehensive service, our products are widely used in high-temperature industrial fields such as metallurgy, building materials, petrochemicals, power, and environmental protection, and are sold to domestic and international markets, winning the long-term trust and cooperation of many customers.
We adhere to technology as the core, quality as life, and service as the guarantee, focusing on solving the problems of refractory construction, maintenance, and emergency repair of industrial furnaces and kilns, providing customers with stable, efficient, and durable refractory equipment and overall solutions.

VIII. Professional Manufacturer and Customized Solutions
As a professional manufacturer of refractory shotcrete machines, we offer standardized models and personalized customization services:
* Customizable parameters: spray volume, conveying distance, motor power, mobility method, explosion-proof configuration, etc.
* Customizable types: electric, pneumatic, mobile, vehicle-mounted, low-dust, etc.
* Full-process service: equipment selection, on-site commissioning, operator training, supply of vulnerable parts, and one-stop after-sales maintenance support.
* Quality assurance: core components are precision-manufactured, and the entire machine undergoes rigorous testing, ensuring stability, reliability, and a long service life.

We are committed to providing customers with efficient, durable, and cost-effective dry refractory shotcrete machines, helping to improve kiln construction quality, extend equipment life, and reduce overall operation and maintenance costs.
