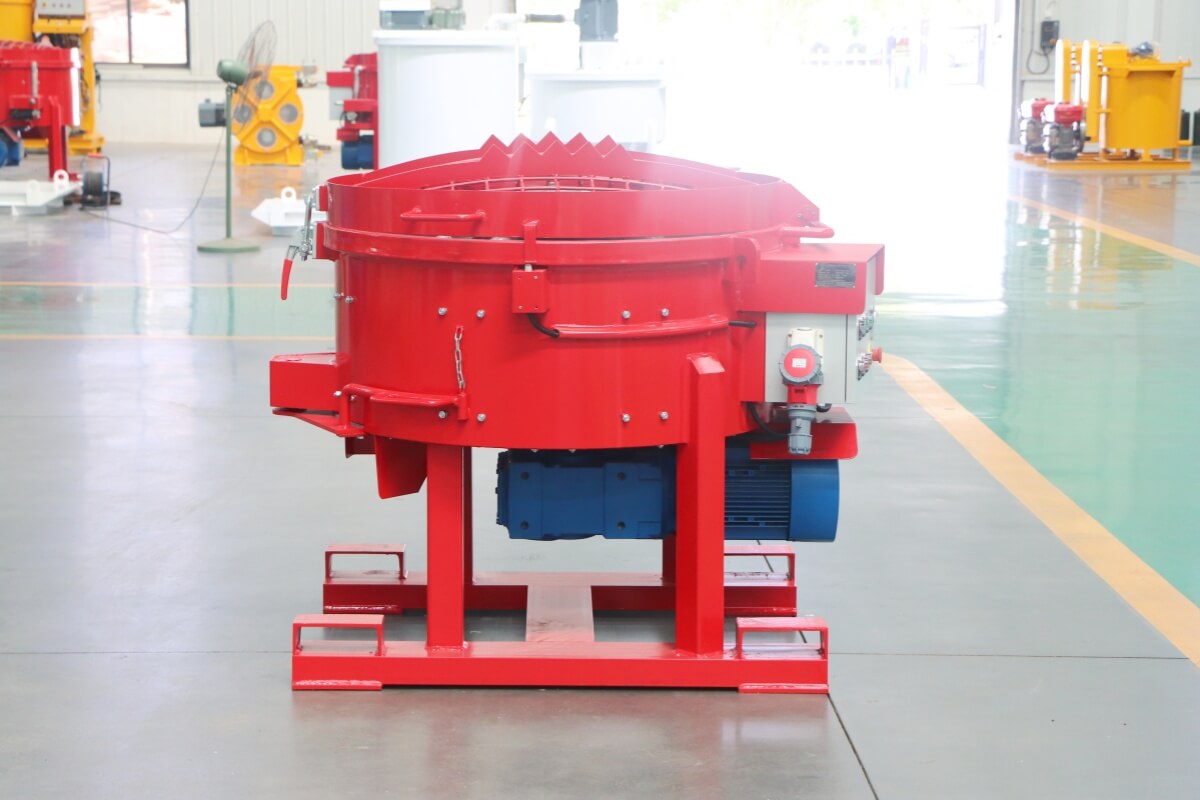

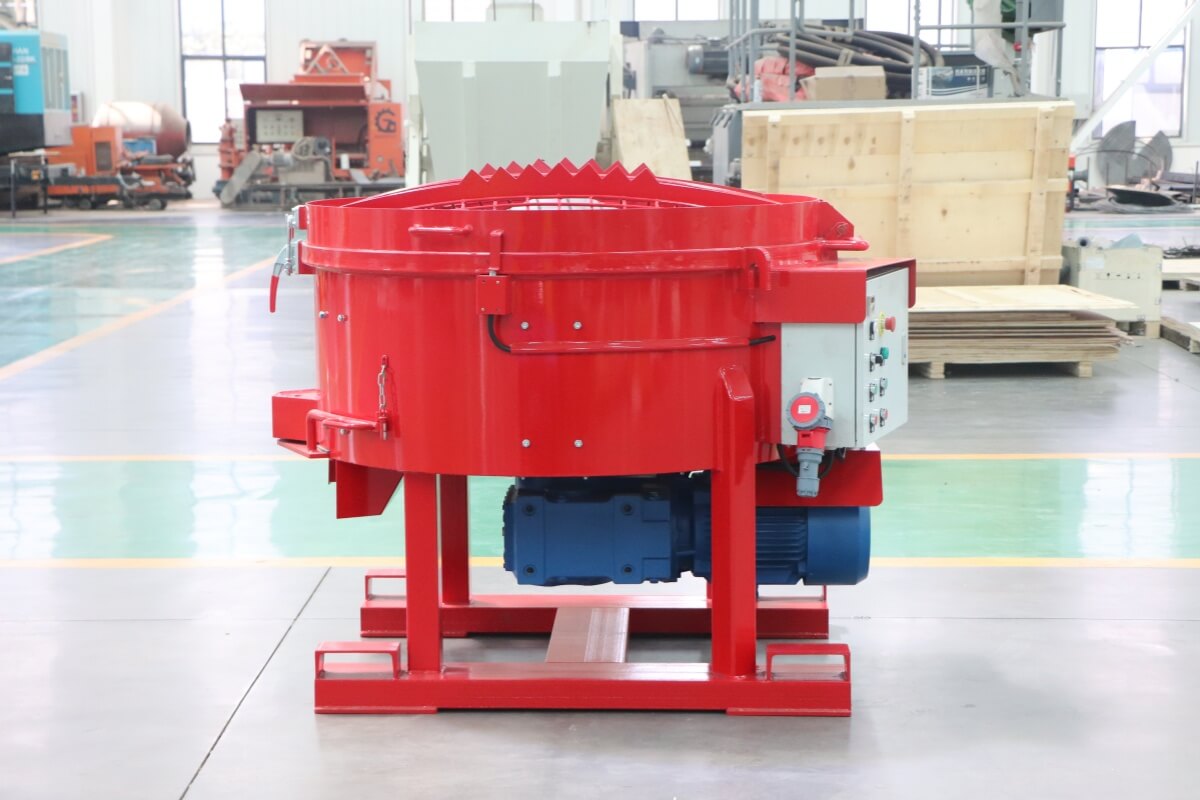

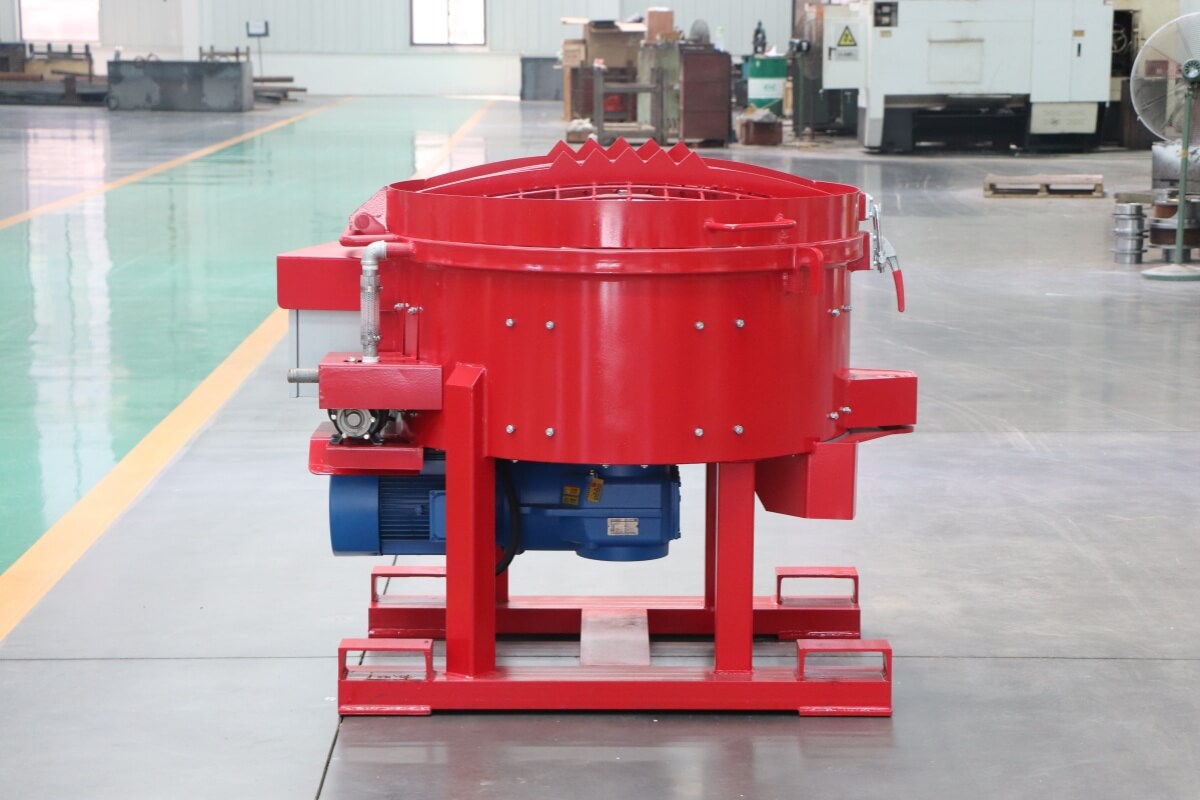

Today, we completed the construction of a 250kg refractory pan mixer at our factory. This mixer has a mixing capacity of 250kg and can process 250kg of refractory materials per batch. Refractory pan mixers are used in industrial applications, such as mixing refractory concrete, castables, mortars, or ceramic materials. These mixers are commonly used in foundries, steel plants, and kiln maintenance.





Feature	Details
Batch Capacity	250 kg (working load, dry material)
Type	Pan-type mixer
Mixing Pan Material	Wear-resistant steel with replaceable liners

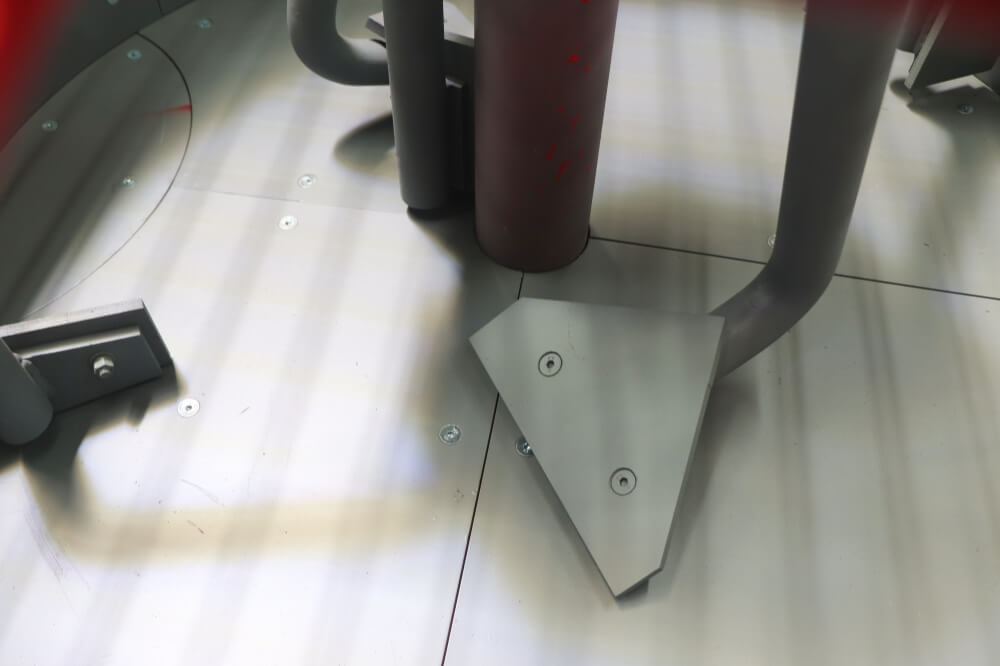

Mixing Blades/Arms	Hard-faced alloy or chilled cast iron, adjustable

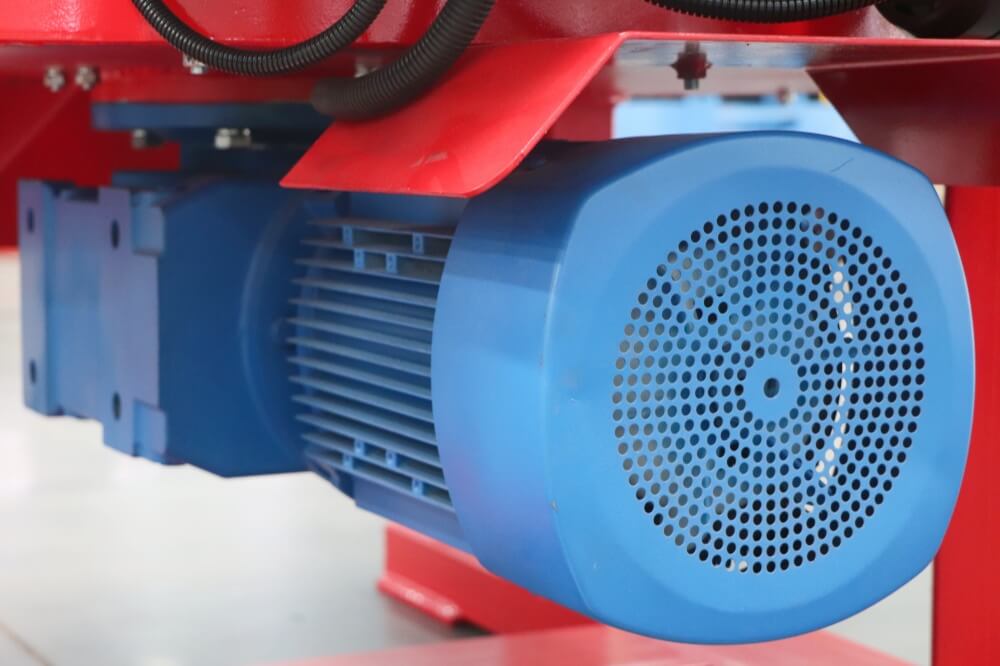

Drive System	Electric motor + gearbox (reduction gear)
Motor Power	15–22 kW (20–30 HP) depending on material density
Voltage	380V / 3-phase / 50Hz (customizable)
Mixing Speed	20–30 RPM (pan rotation), paddles counter-rotate
Discharge	Manual slide gate or pneumatic/hydraulic bottom discharge
Frame	Heavy-duty steel base, possibly with shock mounts
Dust Cover	Optional (for dry mixing)
Certifications	CE, ISO (industrial standards)

We are a manufacturer and supplier of refractory pan mixers and can provide you with a quotation and information on high-quality 250kg refractory pan mixers. Email address: sales1@leadcrete.com
