This inquiry focuses not only on grout preparation and delivery but also on equipment integration, monitoring of grouting parameters, and logistics for delivery to Saudi Arabia.
High-shear colloidal mixing meets the requirements for rock void grouting
The client specified the use of a high-shear colloidal mixer and a water-to-cement ratio of 2:1, while also requesting clarification on whether this ratio is based on weight or volume. Since the actual mix composition differs depending on the measurement method, the basis for the ratio must be standardized before finalizing equipment capacity and the mixing process.
For cement-based grouts, high-shear colloidal mixers utilize intense mixing and circulation to promote the wetting and dispersion of cement particles and minimize agglomeration, thereby producing a homogeneous grout for subsequent injection. Regarding the client's proposed mix design, grout stability must be evaluated by considering factors such as cement type, admixtures, and site-specific requirements. While high-shear mixing improves dispersion, the grout's bleeding and sedimentation characteristics still need to be verified through the specific mix design and trial mixing results.
The integrated system can be configured with grout storage and agitation tanks tailored to the operational workflow; this ensures that prepared grout remains agitated while awaiting pumping and facilitates a seamless transition to the next batch of mixing.
Rock void grouting requires balancing filling efficiency with pressure control
The size and connectivity of rock voids, as well as the condition of surrounding fractures, influence grout volume requirements and the injection process. For areas with large voids and high grout absorption rates, it is essential to properly balance mixing capacity, storage volume, and pumping flow rate. Furthermore, as filling progresses and injection resistance changes, grouting parameters must be adjusted in accordance with construction requirements. Therefore, when selecting rock cavity grouting equipment, maximum pressure should not be the sole criterion. Factors such as the grouting pump's output flow rate at actual operating pressure, its adaptability to the grout mix, and its adjustability are equally critical in determining whether the equipment suits the specific site conditions. As specific pressure and flow values were not stipulated in the initial inquiry, final equipment selection will be confirmed based on the client's specific construction requirements.
Flow meters and pressure gauges facilitate monitoring of the grouting process
The client explicitly requested the inclusion of flow meters and pressure gauges, which are key components of this colloidal grout plant configuration.
Flow meters are used to monitor the grout delivery rate; a configuration with a totalizer function can be selected if tracking the cumulative grouting volume is required. Pressure gauges monitor pipeline pressure at the installation point, helping operators track changes in pumping load and injection resistance. Combining these two data points helps assess the grout supply status and provides essential data for construction records.
When configuring instrumentation, it is necessary to verify measurement ranges, installation locations, and compatibility with cement grout—particularly the flow meter's ability to handle grout containing solid particles. Furthermore, pump outlet pressure should not be equated directly to down-hole pressure; on-site calculations must account for pressure losses caused by pipeline transport.
Skid-mounted integrated structure for easy transport and on-site setup

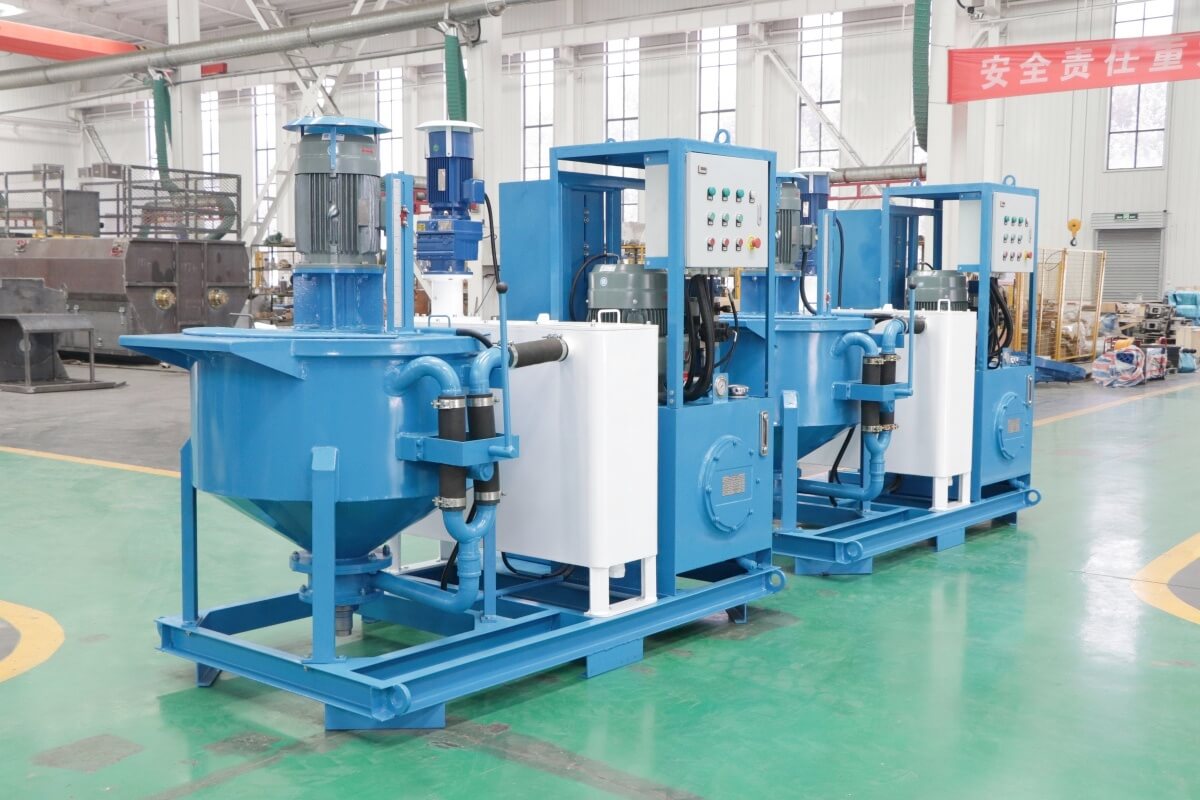

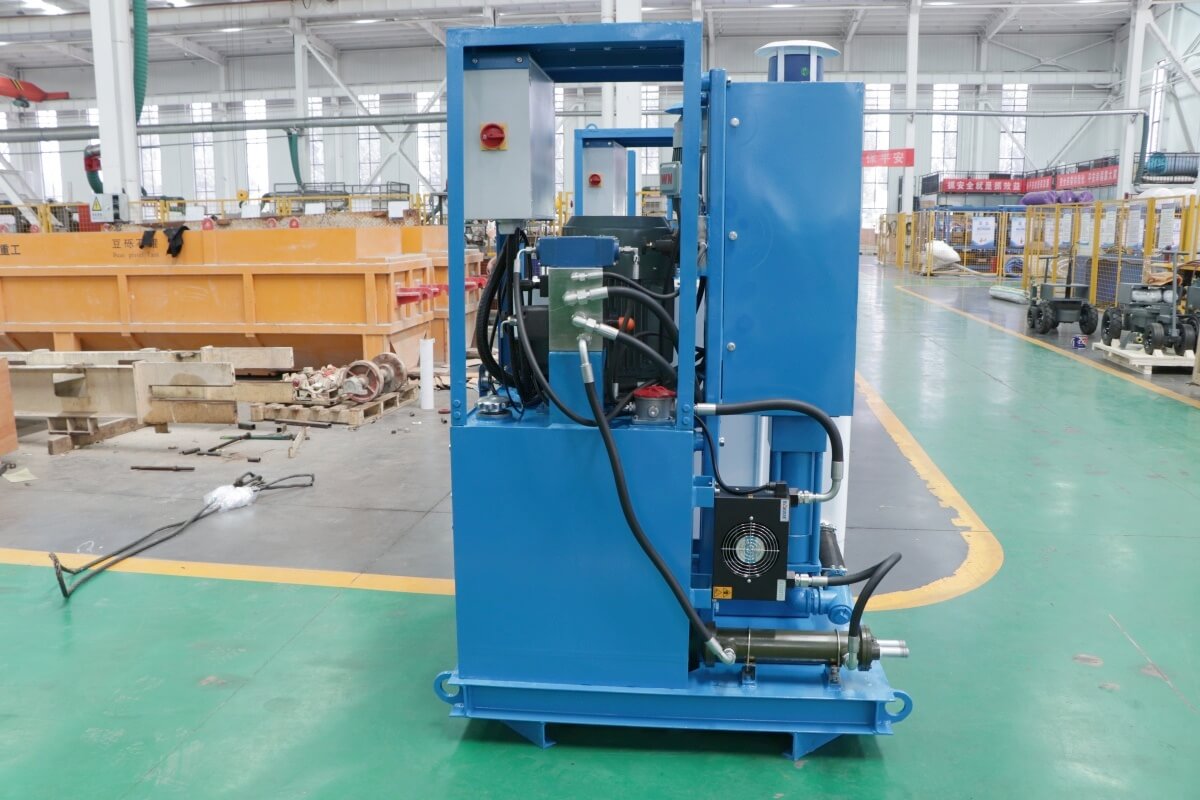

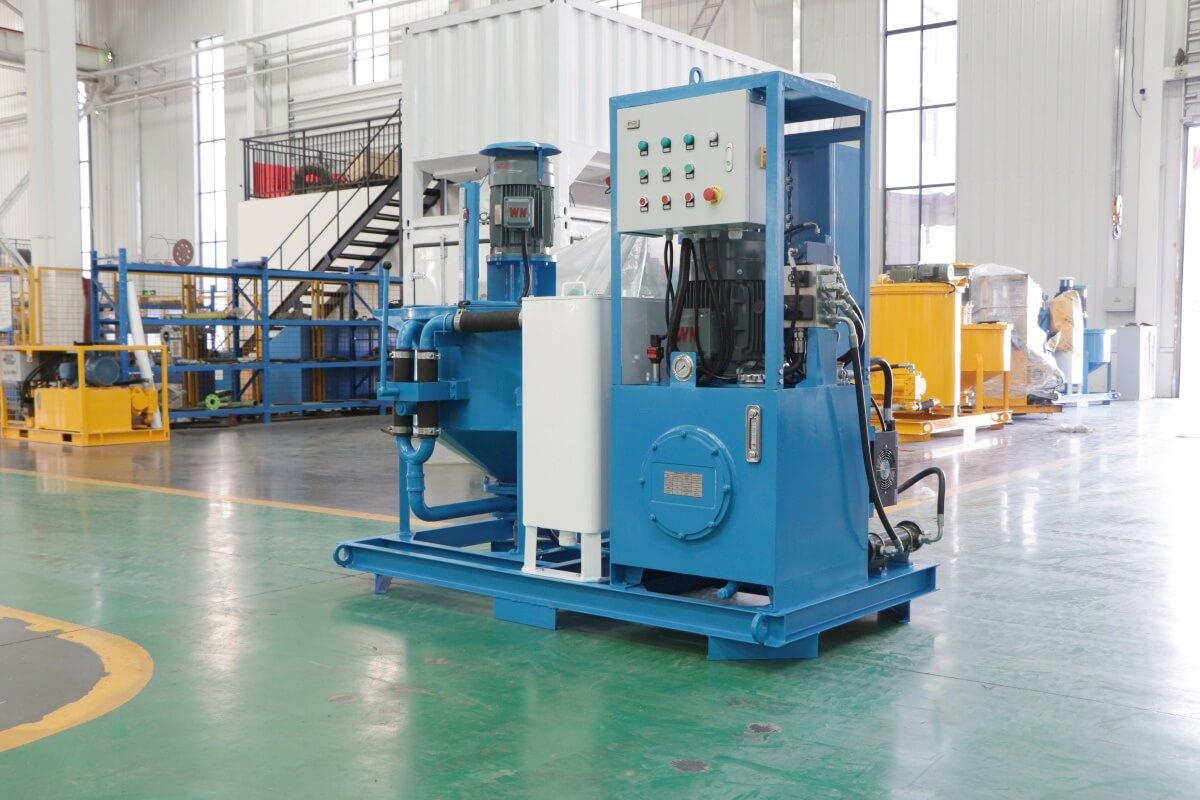

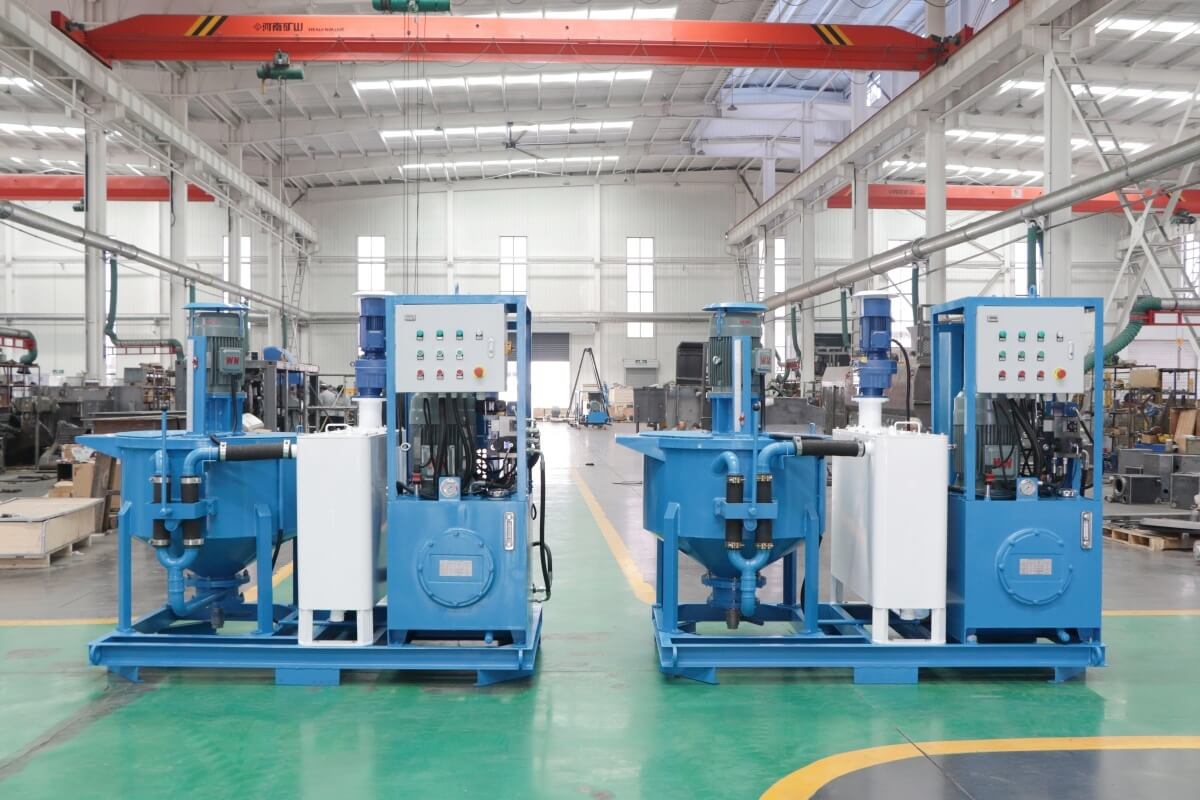

The client prefers a complete, skid-mounted grouting station. Integrating grout mixing, storage/agitation, pumping, and control components into a single unit minimizes on-site assembly work and simplifies transport, lifting, and positioning within the work area.
For the Saudi project, Lead Equipment will verify site-specific factors—such as power supply conditions, ambient temperatures, available space, and delivery distances—to tailor the power, cooling, and piping configurations accordingly. The technical proposal and quotation will detail equipment capacity, grouting pressure and flow ranges, power requirements, instrumentation, and the scope of supply, while also outlining delivery arrangements based on destination requirements.
As a professional supplier of grouting equipment, Lead Equipment offers comprehensive equipment selection and customization services tailored to specific needs, including rock cavity filling, rock fissure grouting, and foundation treatment. If you are looking for grouting machines for rock cavities, please contact us with details regarding the grout mix design, target pressure and flow rate, site conditions, and delivery location to receive technical specifications and a quotation. Email address: sales1@leadcrete.com
