LGP300/300/75 PI-E China compact grout plant
LGP300/300/75 PI-E China compact grout plant is mainly suitable for mixing and pumping water, cement, sand, bentonite, filler, clay power, silicates and other additives
7.5Kw, 50Hz, 380V
Product Details
Technical data

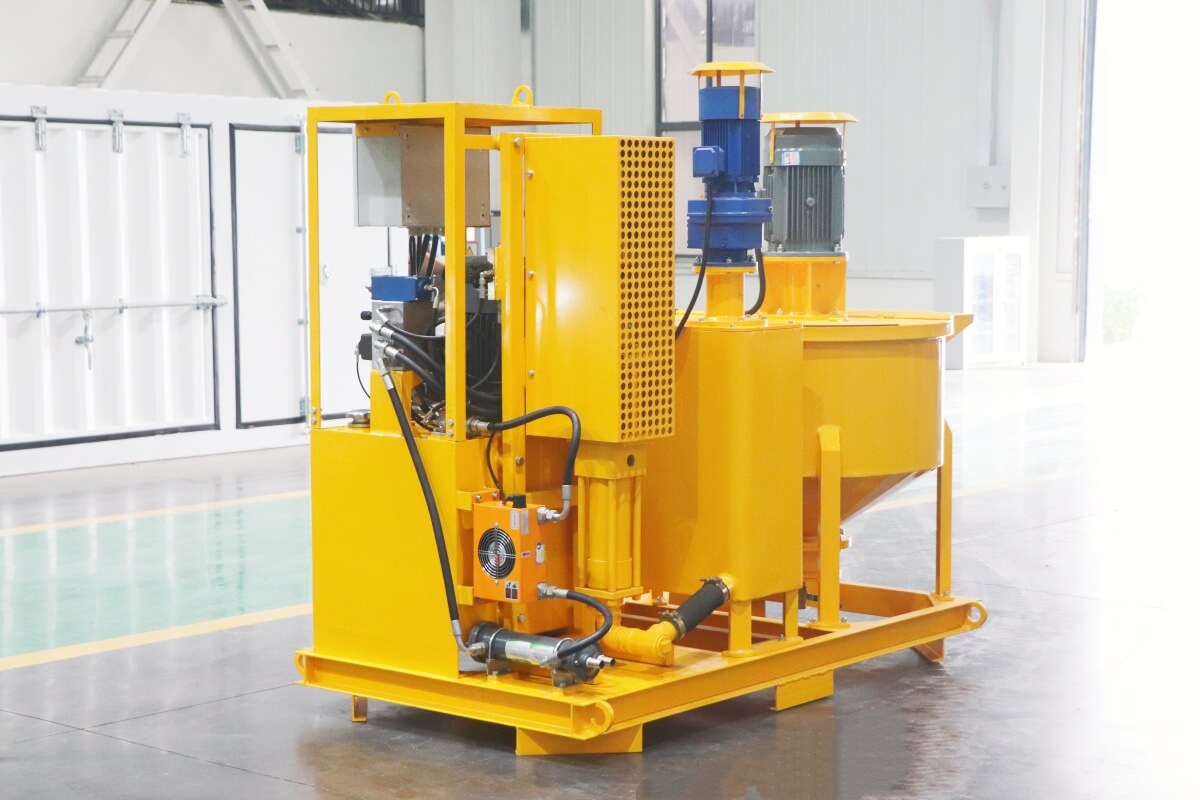

LGP300/300/75 PI-E China compact grout plant is mounted with grout mixer, agitator and grout pump all in one grout plant. This compact grout plant includes a grout mixing tanks(300 liters), a grout agitator (300 liters) and a piston grout pump.

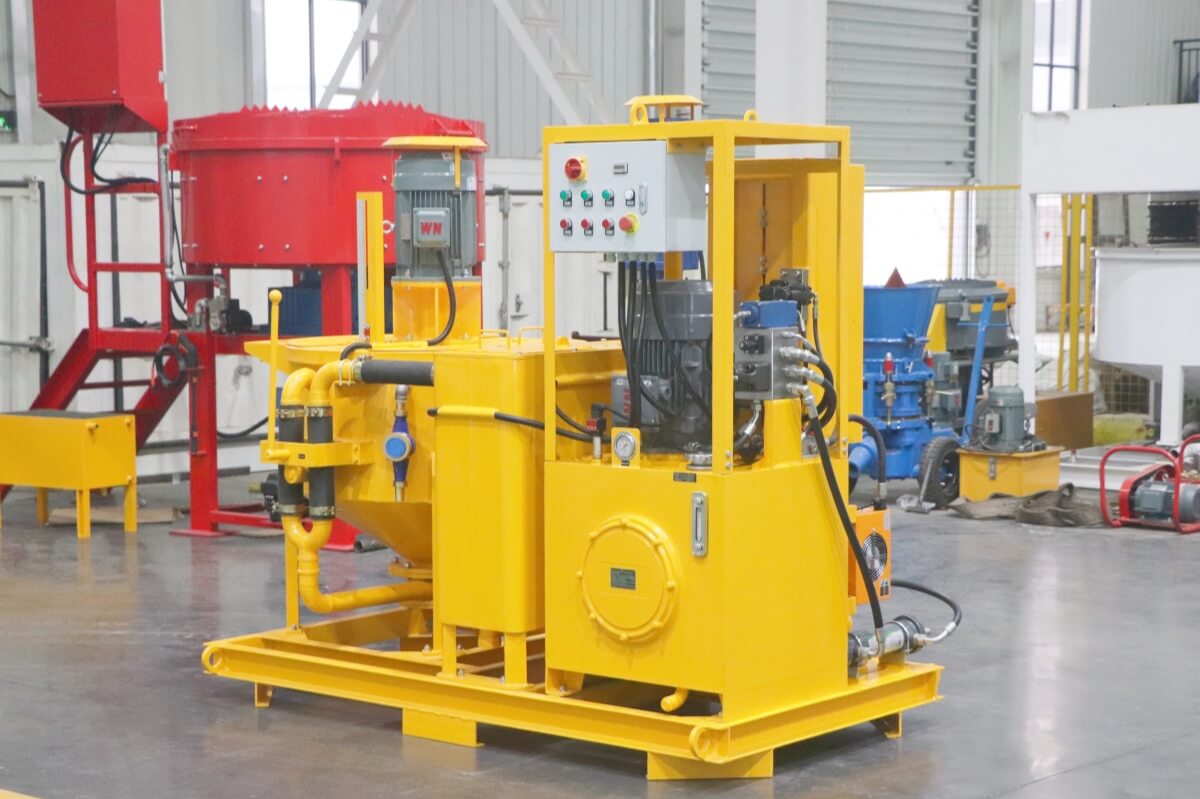

compact grout mixing plant

The unique double mix tank design permits continuous pumping as each mix tank alternates feeding the pump. Each grout mixer is equipped with baffles, bag breakers and variable speed high-efficiency paddles that provide rapid mixing. The tank outlets are large slide gates that allow viscous grouting materials to flow quickly into the removable holding hopper.

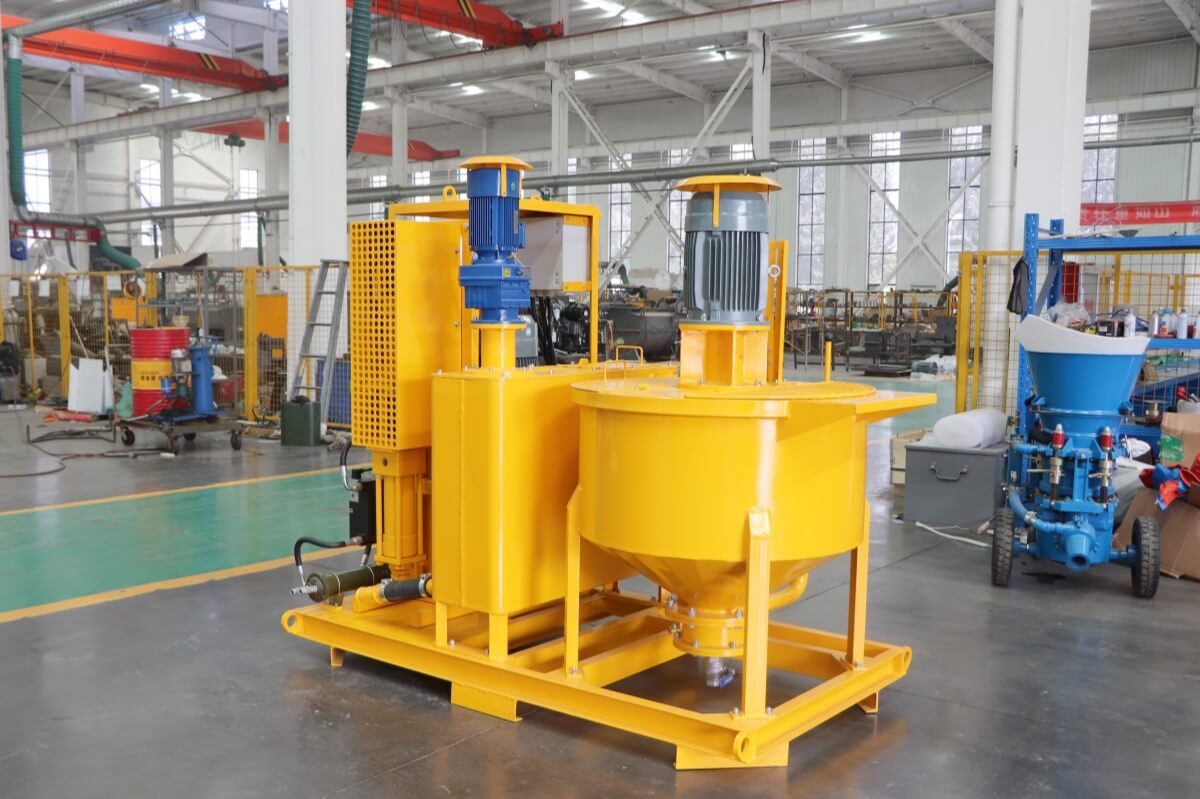

compact grout pump with mixer

LGP300/300/75 PI-E China compact grout plant is mainly suitable for mixing and pumping water, cement, sand, bentonite, filler, clay power, silicates and other additives. LGP300/300/75 PI-E compact grout plant is mainly used in highway, railway, hydropower, construction, mining and other ground and underground construction.

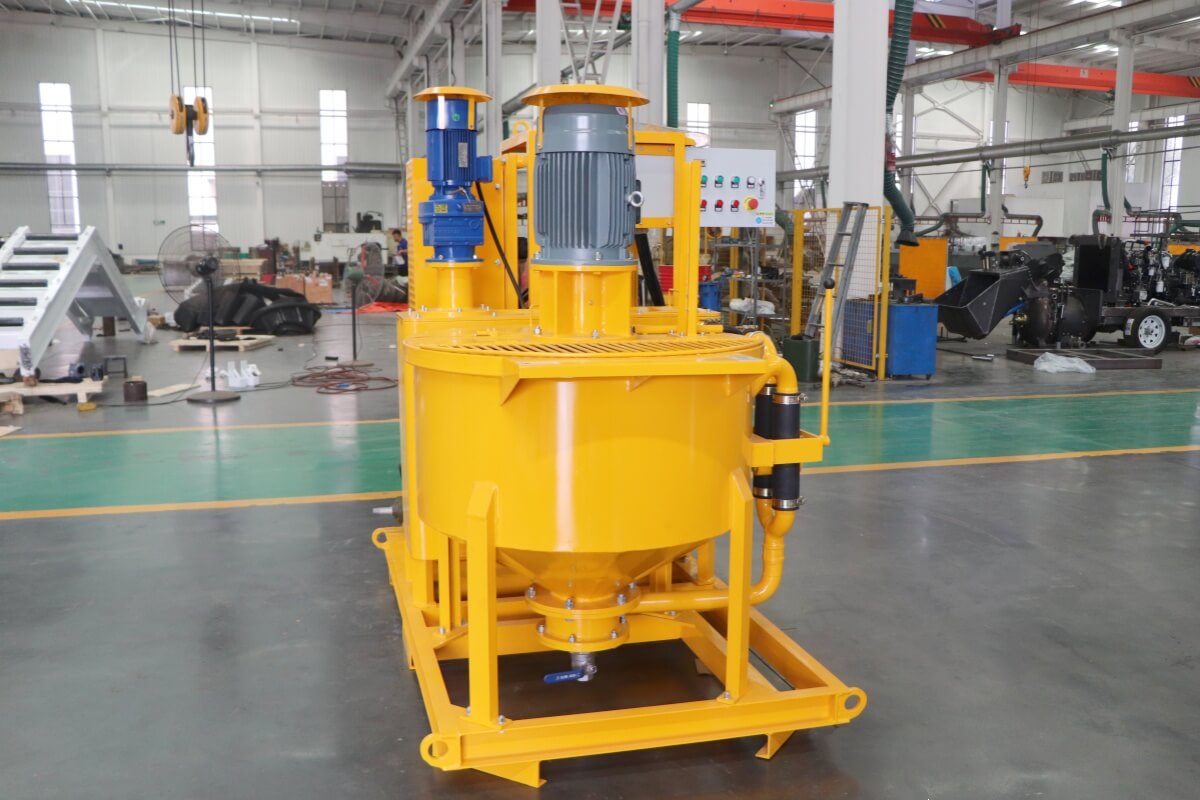

compact grout pump with mixer

High speed vortex mixer ensures mix quickly and evenly. Water, cement and other media are quickly mixed into a homogeneous slurry. Then the mixed slurry was delivered to the agitator. Grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations. The grouting pump grouting pressure and displacement is stepless adjustable and has fasteners that dramatically reduce disassembly time for cleaning and maintenance. Operator controls are centrally located for efficient production. Compact size and it is easy to operate. It also takes up a small space. Leadcrete is a China grout plant supplier and manufacturer, we manufacture grout plant in China for 20 years, we can according to your requirements to customize.
Application of China compact grout plant:
1. The compact grout plant can be used for civil engineering - dam, tunnel, subway, mine, soil nailing wall, curtain, anchor, cable trench and anchor grouting.
2. The China grout plant can be used for building structure - building and bridge repair, foundation reinforcement, slope support, soil compaction, terrg grouting.
3. The China grout station can be used for engineering - underwater foundation, offshore platform, coast foundation grouting reinforcement.
4. The compact grout station can be used for mine application - roadway reinforcement, backfill, waterproof grouting.
5. The grout station can be used for geotechnical - deep well casing, monitor wells, well sealing and abandonment.
6. The compact grout station is acted as a grouting plant in the pipe jacking machine.

compact grout plant application

Compact grout plant cases:
compact grout plant for underground
China grout plant for underground projects


LGP300/300/75 PI-E Compact grout plant features:
1. Hydraulic reversing and hydraulic drive for vertical grouting pump.
2. Grouting pressure and output of China compact grout plant are step-less adjustable.
3. Using rectangular agitator, makes the compact grout station has compact structure, small size.
4. With high speed and low speed, by rotating ball valve switch.
5. With function of record and display grouting pump reciprocating times by a counter.

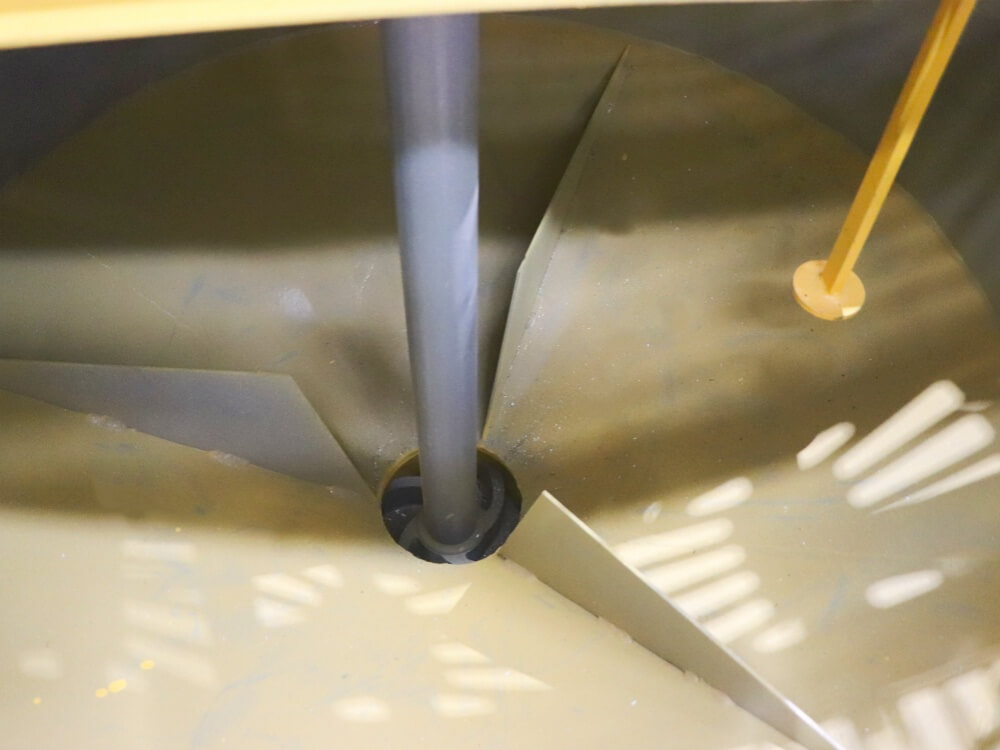

6. High speed vortex mixer ensures mix cement quickly and evenly.
7. Manufacture grout plant in China switch by using squeeze handle, it is safe, reliable and easy to operate.
8. The motor of China grout station has an overload protection function. Hydraulic system with oil temperature overheating protection.

Product Details
Agitator can open and clean
Circular hose

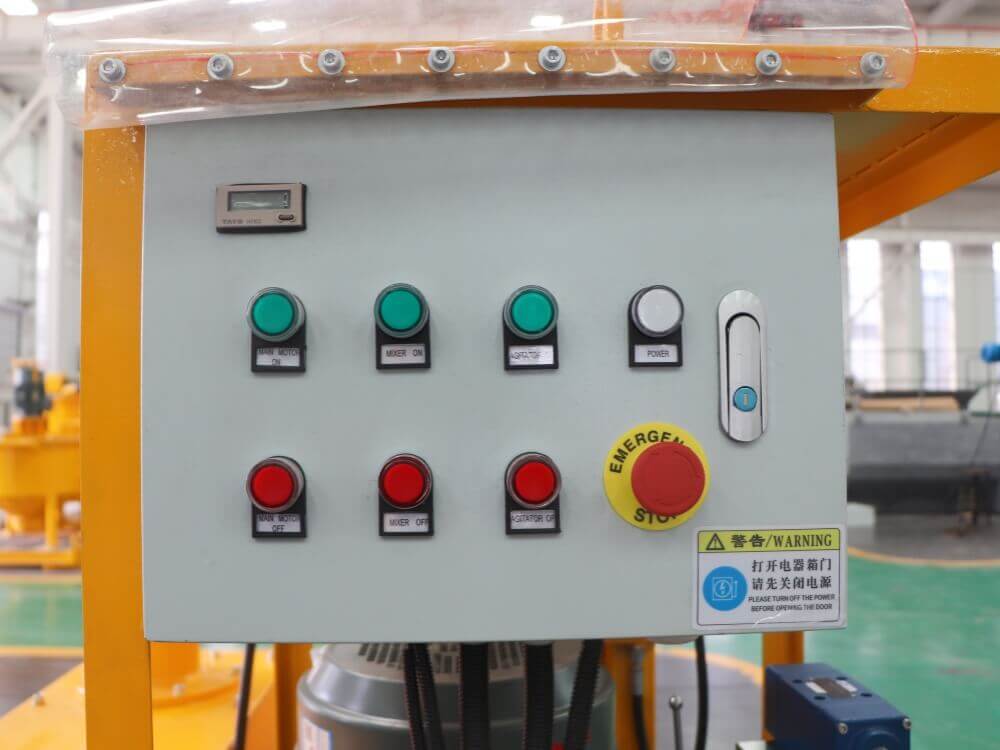

Electric cabinet

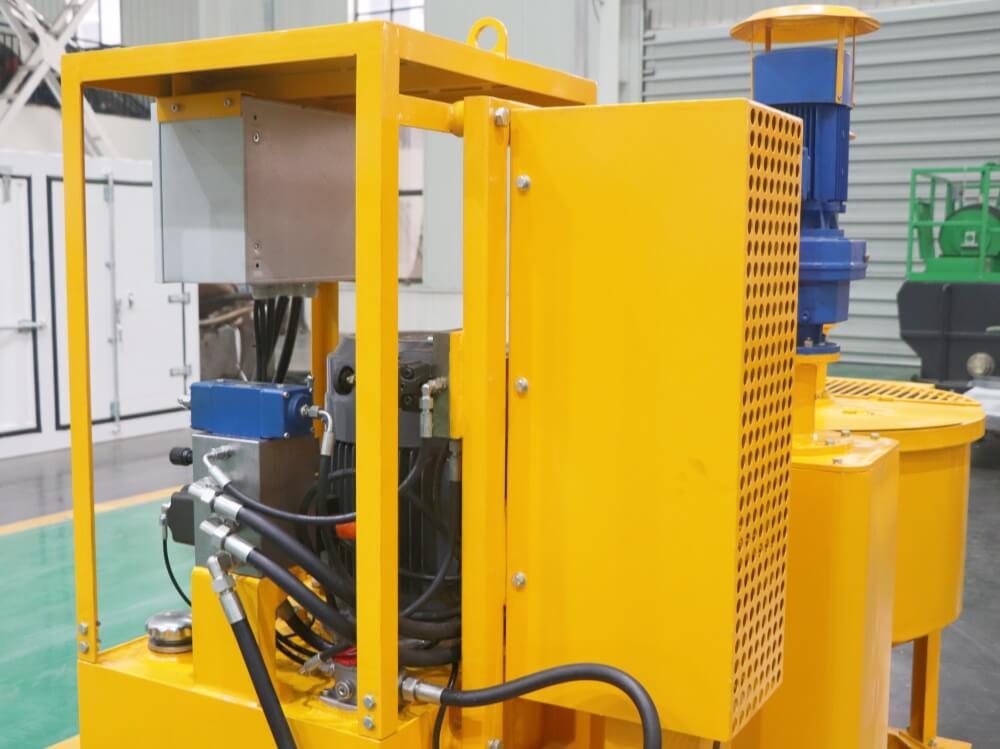

Flow and pressure adjustable

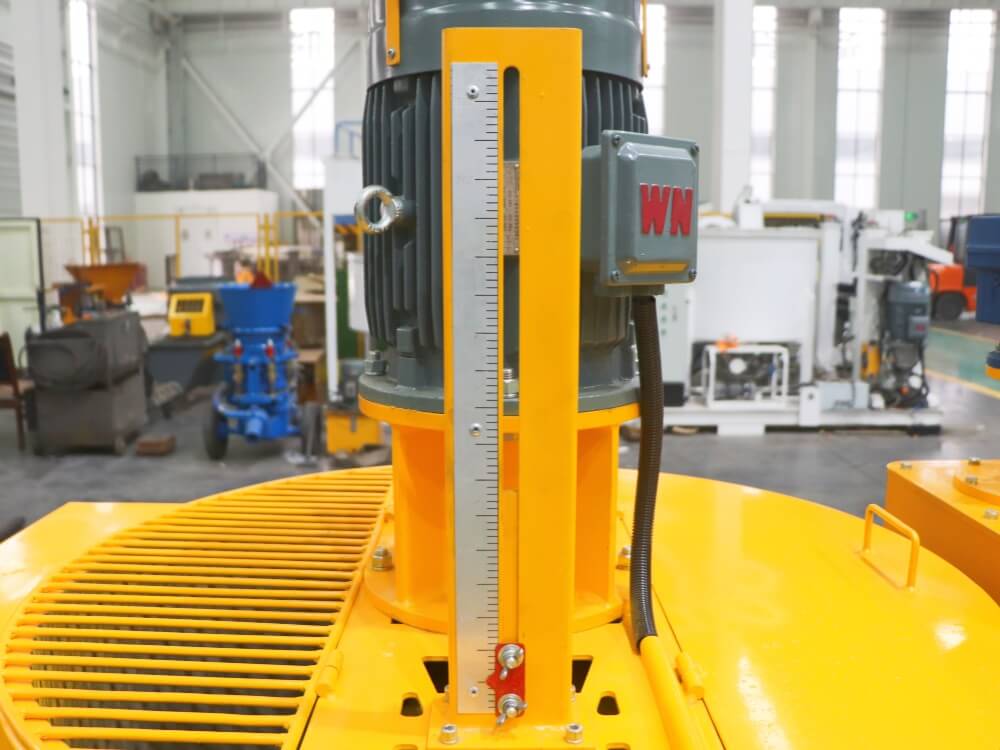

High shear mixer

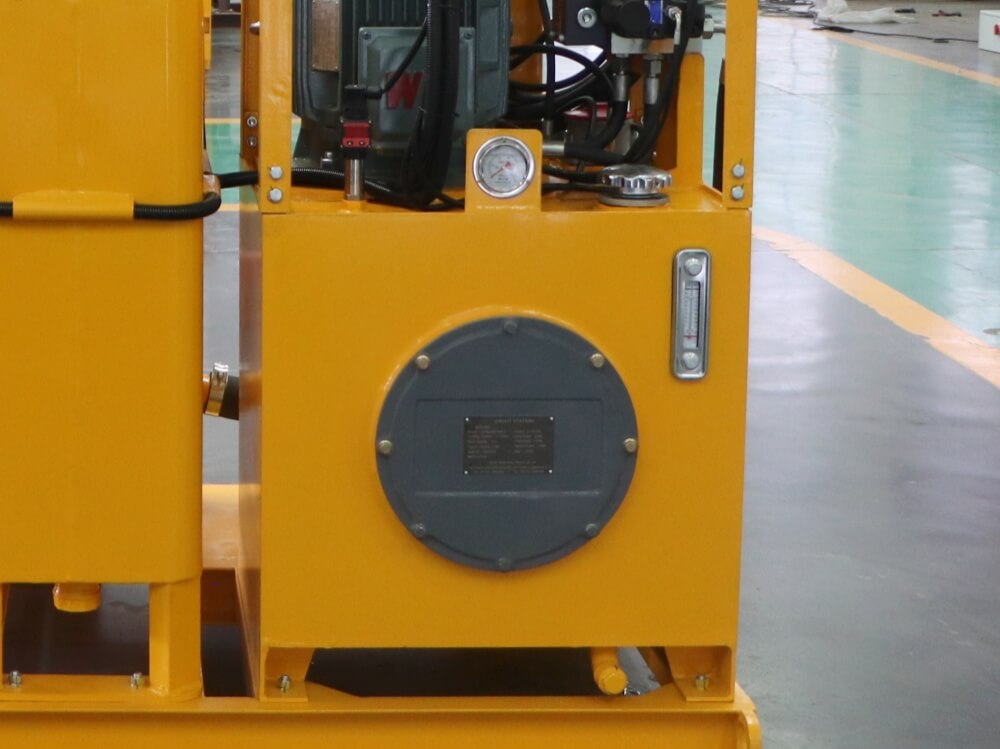

Oil tank
Technical Parameters
Technical Data
Description Data
China compact grout plant model LGP300/300/75PI-E
Dimensions 2330x1260x1790mm
Weight 1125kg
Capacity 300L
Output 4.5m3/h
Power 7.5Kw, 50Hz, 380V
Rated Rev 1450rpm
W/C ≥0.5~1
Capacity 300L
Rated Rev. 36rpm
Power 1.5KW, 50Hz, 380V
Output and pressure 0-75L/min, 0-50Bar (high-speed)
0-38L/min, 0-100bar (low-speed)
Power 11kw, 50Hz, 380V
