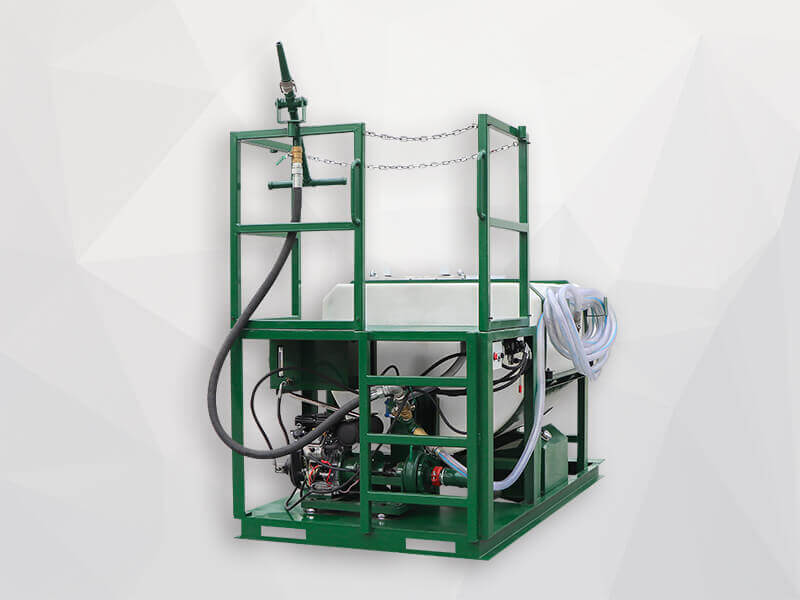

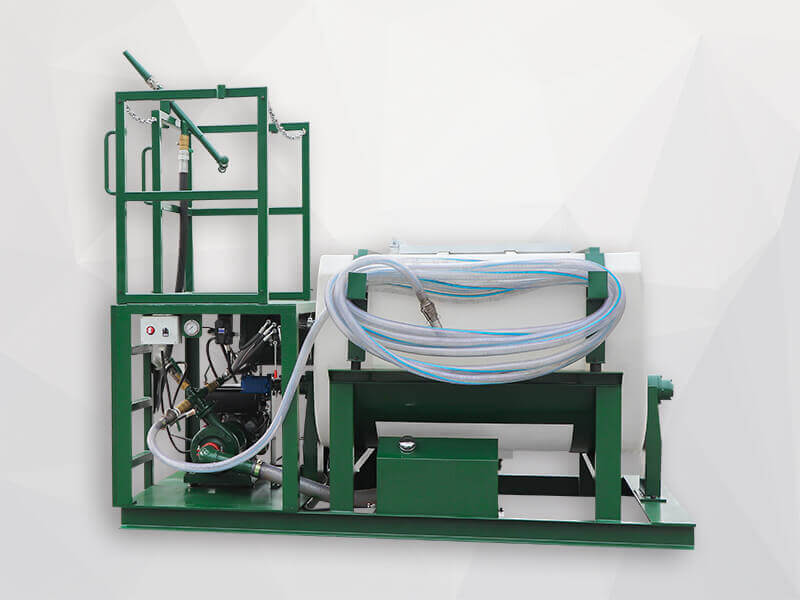

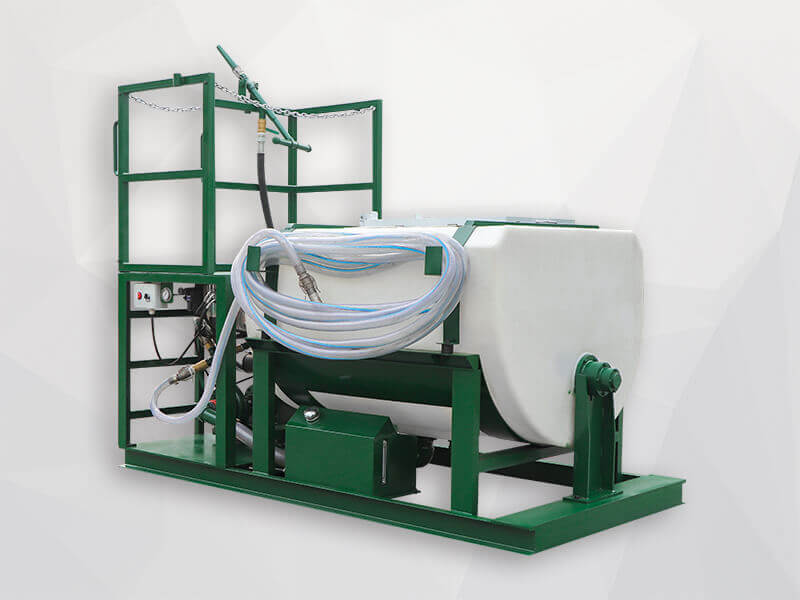

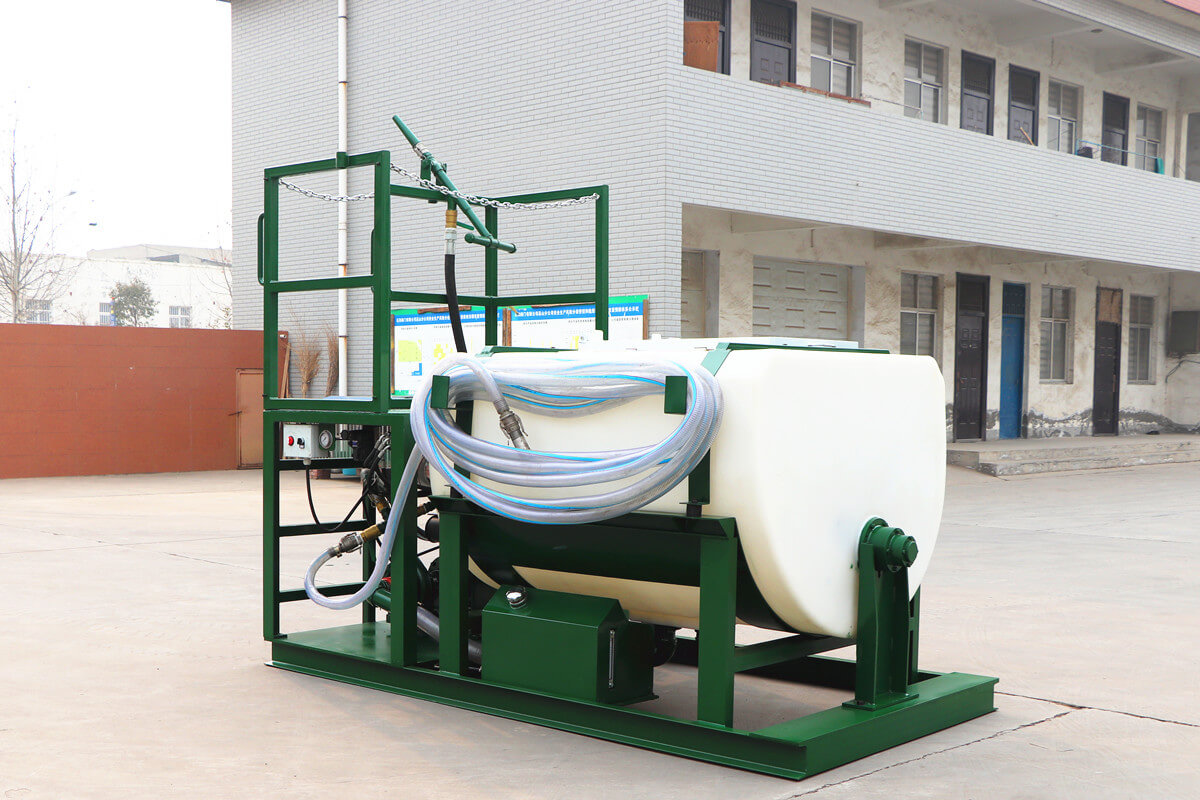

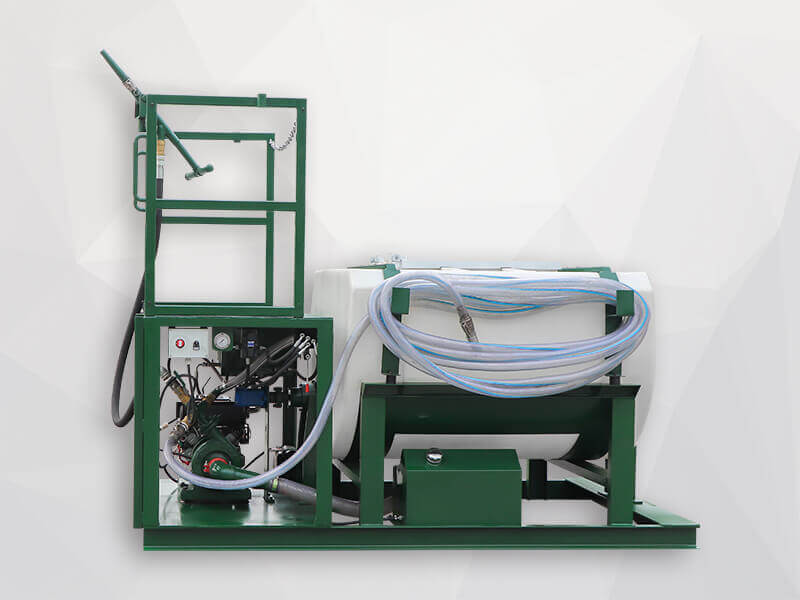

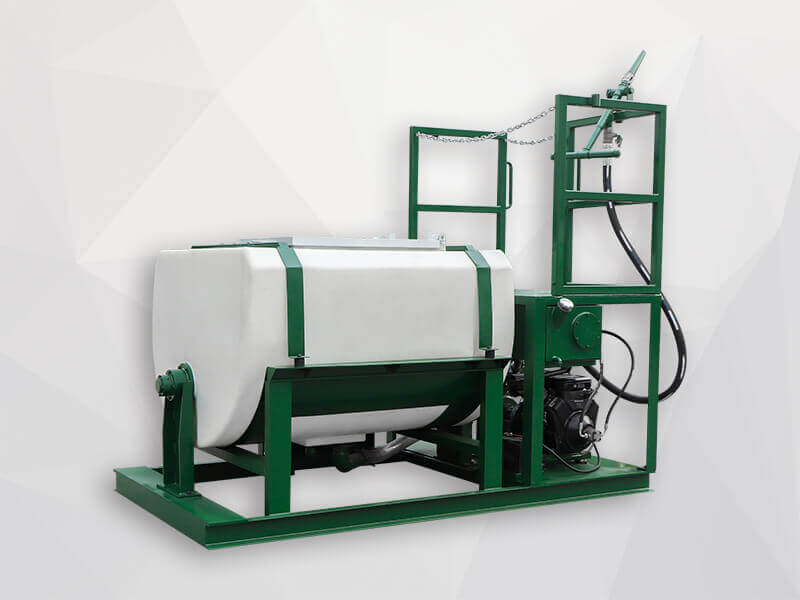

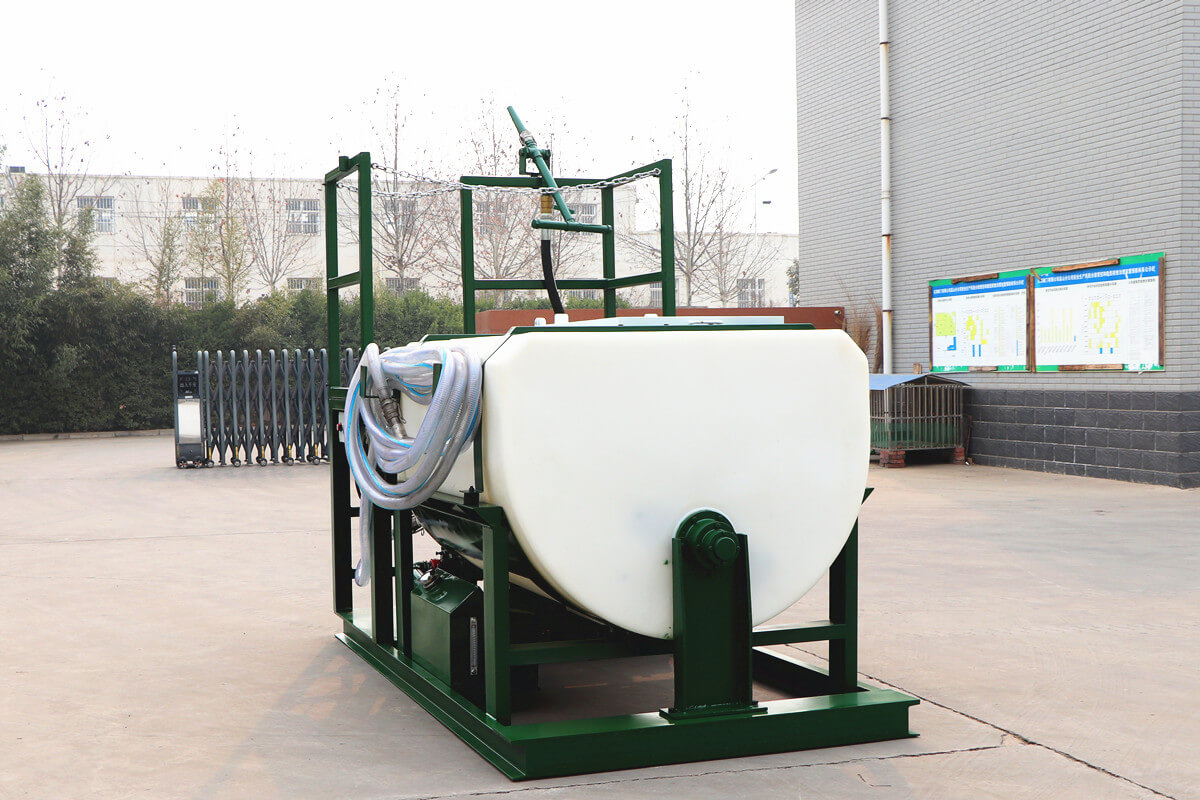

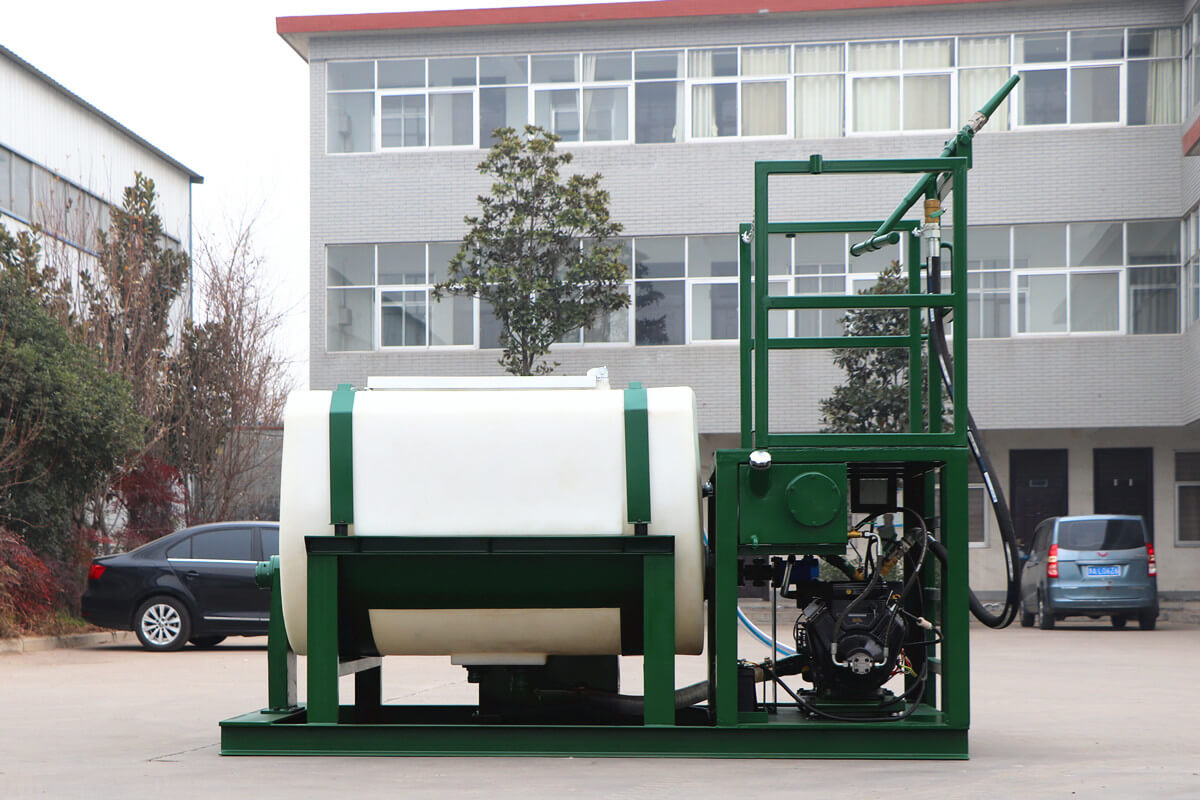

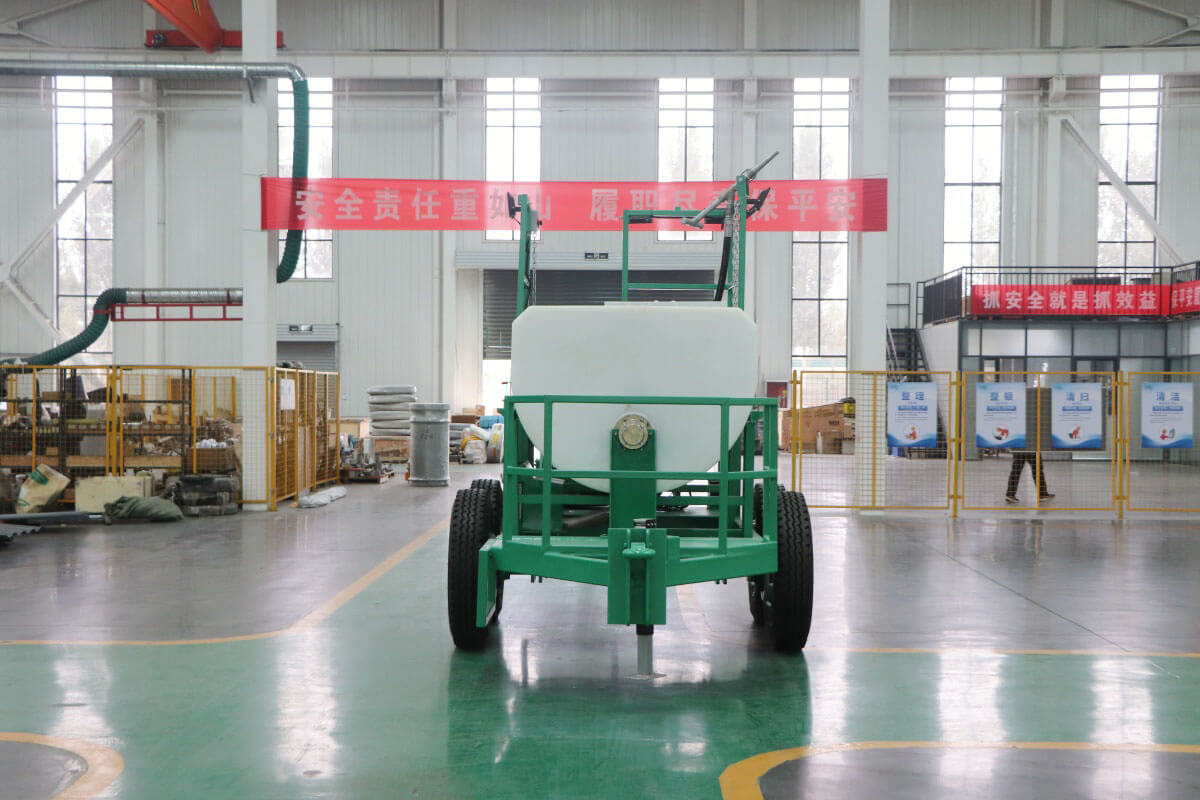

LHS0217PT 500 Gallon hydro seeding unit with poly tank represents an indispensable machine for those tackling the challenge of spraying difficult materials and heavy slurries. This unit seamlessly merges the most advantageous features of both jet and mechanical hydroseeders, offering exceptional versatility and performance.


At its core, the LHS0217PT is powered by a robust 23 H.P. BRIGGS & STRATTON gasoline engine, proudly made in the USA. This engine is directly linked to a high-volume, high-pressure centrifugal pump (measuring 3" X 1.5") and an oil gear pump, which in turn drives a highly efficient and aggressive mixing paddle.

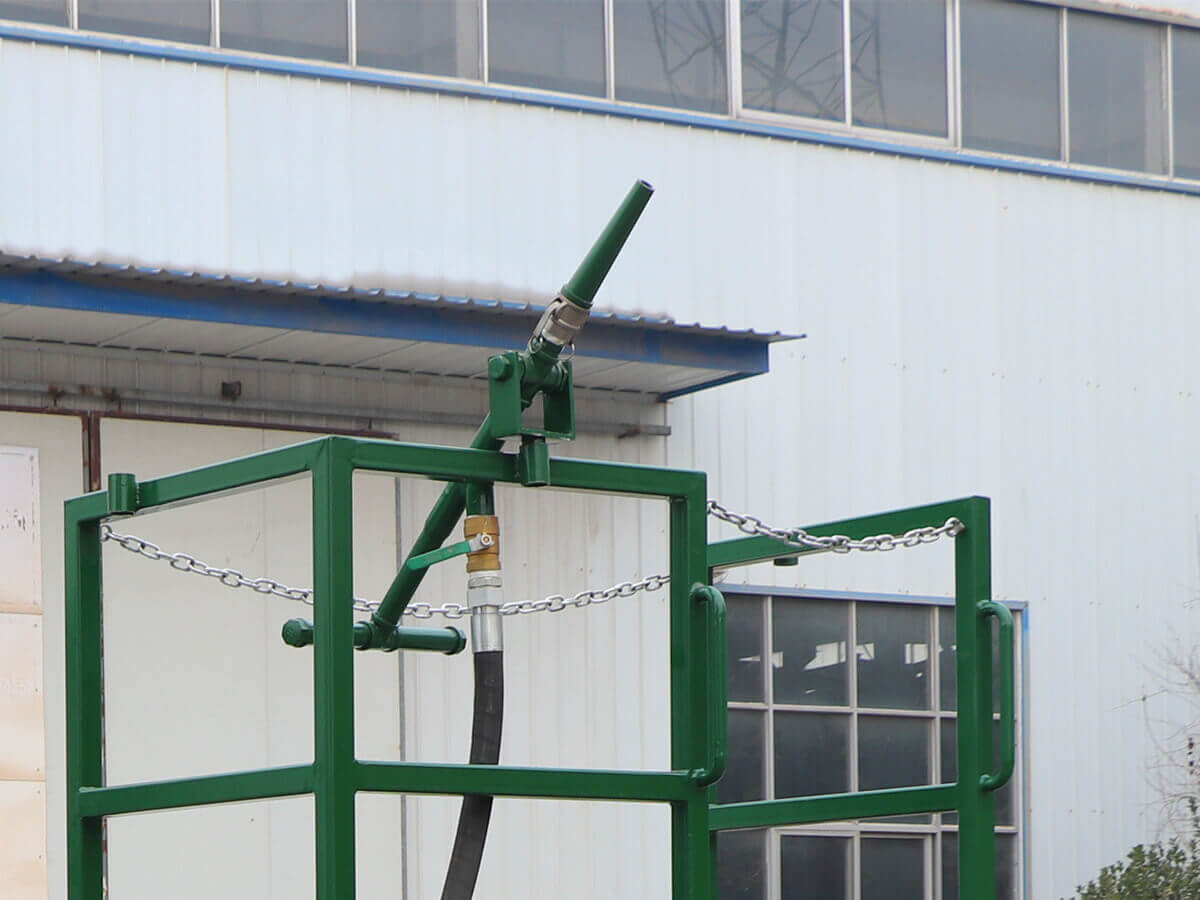

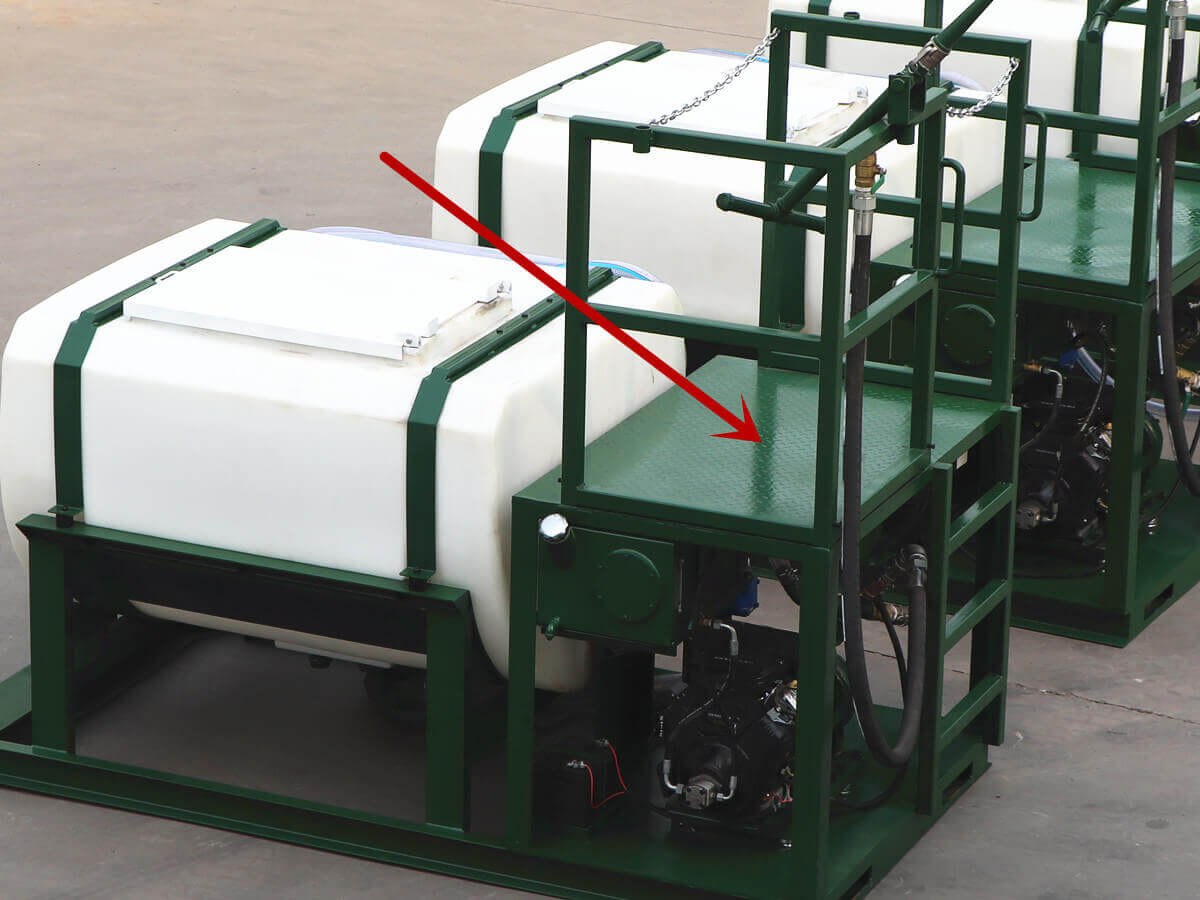

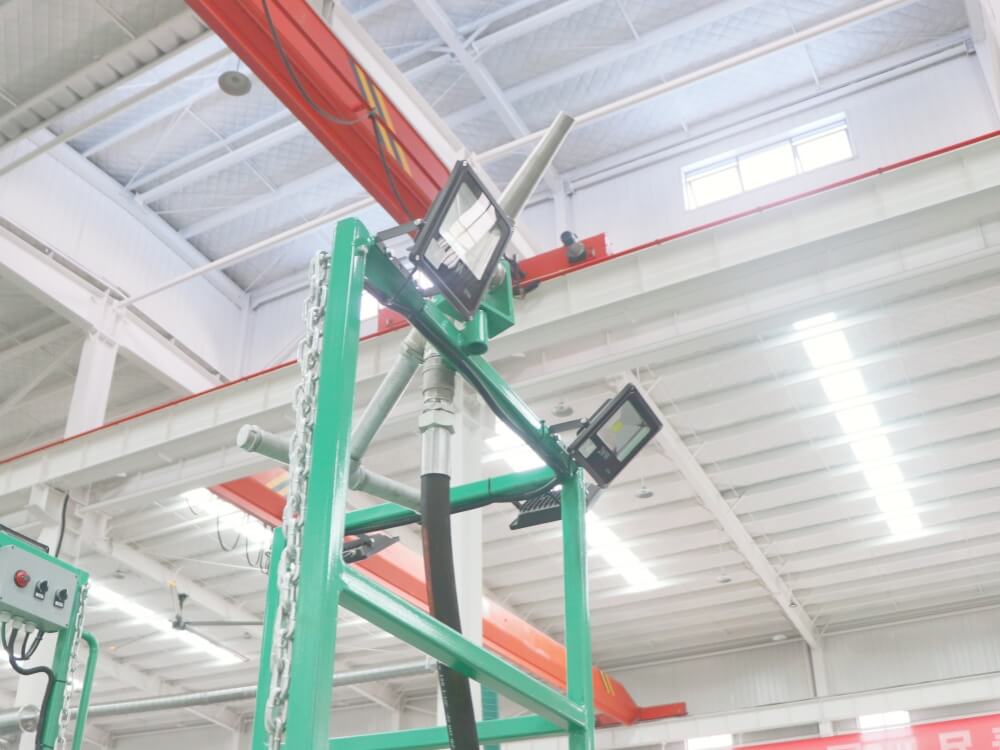

Notably, the LHS0217PT comes equipped with both a platform and a tower gun as standard features. It also includes a generous 60 meters of DN32 hose with free flow couplings, thoughtfully mounted on hose holders situated on the side of the tank. In addition, three nozzles are provided, offering versatility in your hydroseeding endeavors. These include one wide hydroseeding nozzle, one straight distance nozzle, and one trim nozzle. The tower gun, with an impressive spray distance of approximately 28 meters, further enhances the unit's capabilities.


A standout feature of the LHS0217PT is its high-pressure centrifugal pump, which has the capability to operate the unit independently as an agitator, achieving self-circulation when needed. Additionally, the gear pump relies on the hydraulic system to drive the paddles, ensuring reliable and straightforward operation while also simplifying maintenance in case of any issues.

In summary, the LHS0217PT 500 Gallon hydro seeding unit with poly tank is a versatile and reliable solution for professionals dealing with challenging materials and demanding hydroseeding tasks, providing both power and efficiency for successful outcomes.

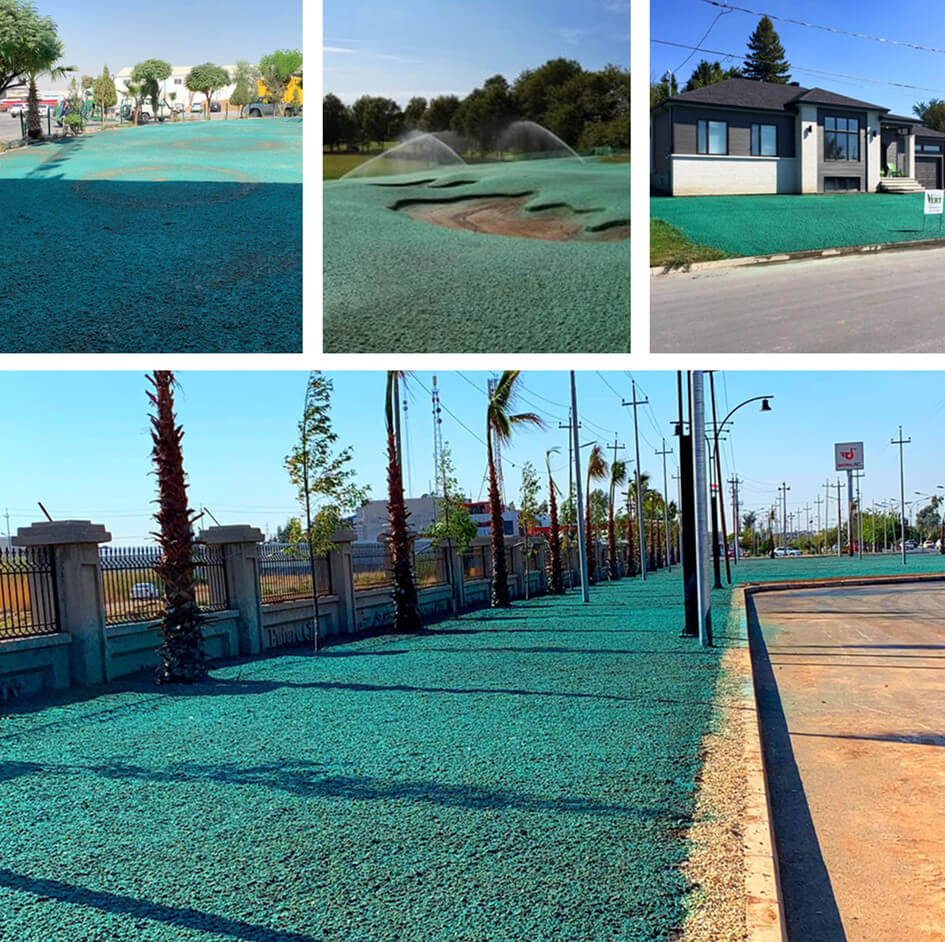

LHS0217PT 500 Gallon hydro seeding unit with poly tank can be used for landscaper doing residential and commercial seeding, roadside work, erosion control work, and any hydroseeding job.

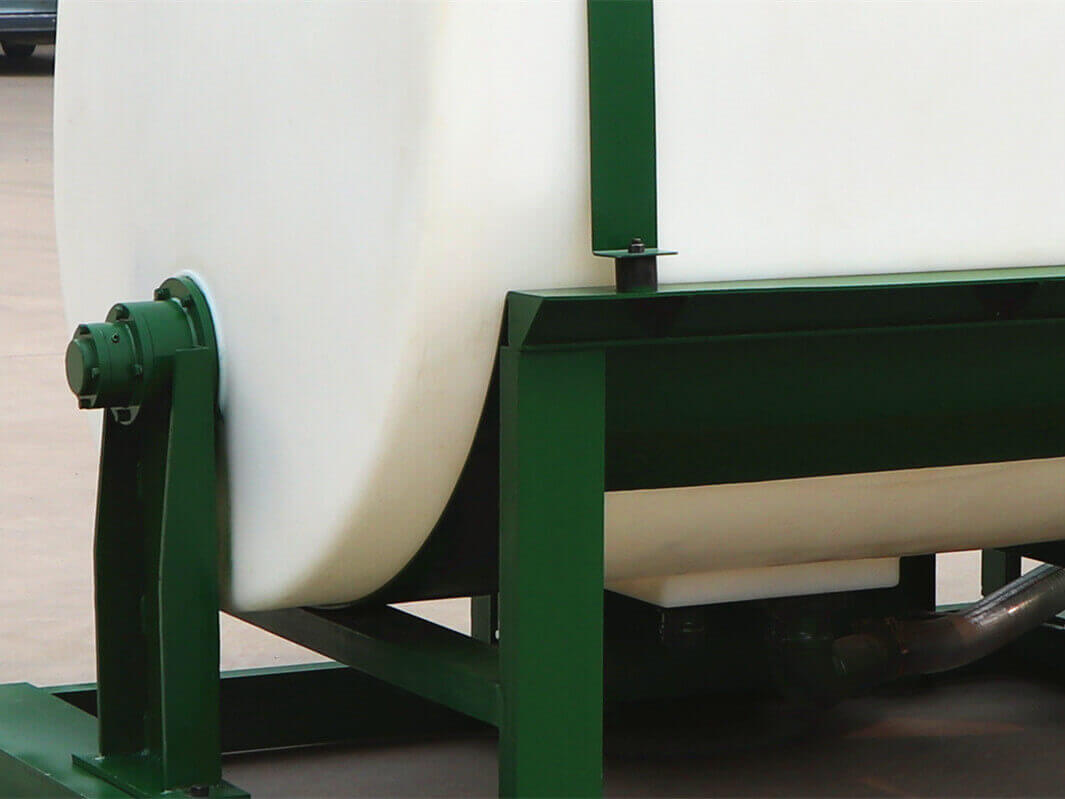

The polyethylene used in the tank ensures that hydroseeder does not rust.  LHS0217PT 500 Gallon hydro seeding unit with poly tank is designed so that the rugged poly tank serves only as a carrier for the slurry. Besides, the bearings and agitator shaft are supported completely by heavy structural steel supports. There is no stress whatsoever on the tank and the entire mixing system would run without the tank even being present. This mixing system is made to last and to have the lowest maintenance requirements of any unit on the market.

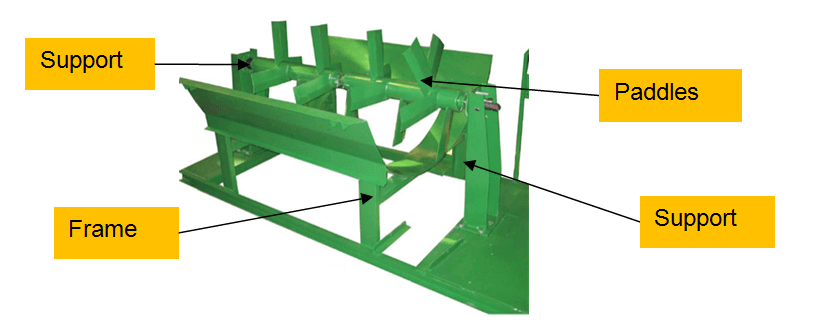

1. Paddles( reliable and more uniform)
Hydraulic motor drives paddles to achieve positive and negative mixing, which is more conducive to material mixing and elimination.
Paddles are supported completely by a heavy steel frame and put stress on the tank.
Paddle agitation quickly mixes a lot of materials.
No need to break the seeder up.
Jets are equipped with a quick coupler for easy service in the unlikely event of a problem.

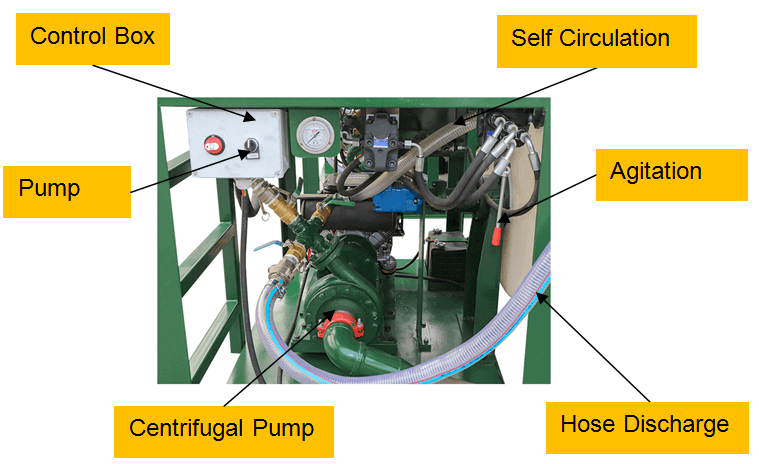

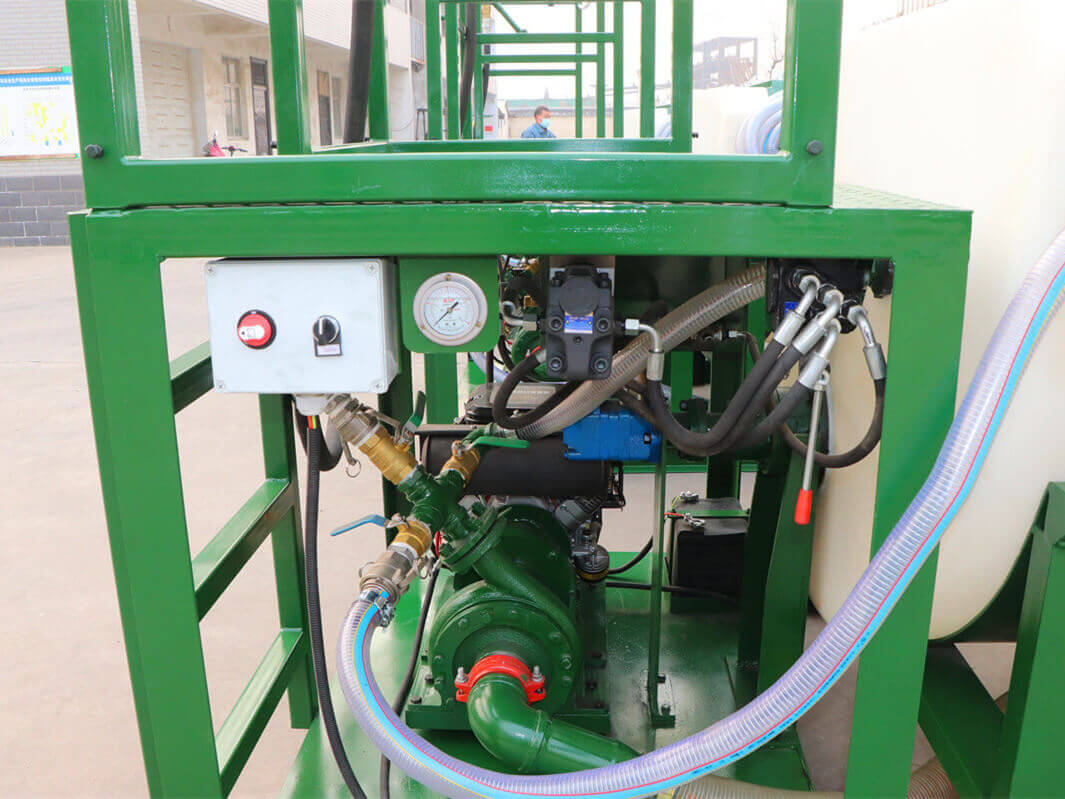

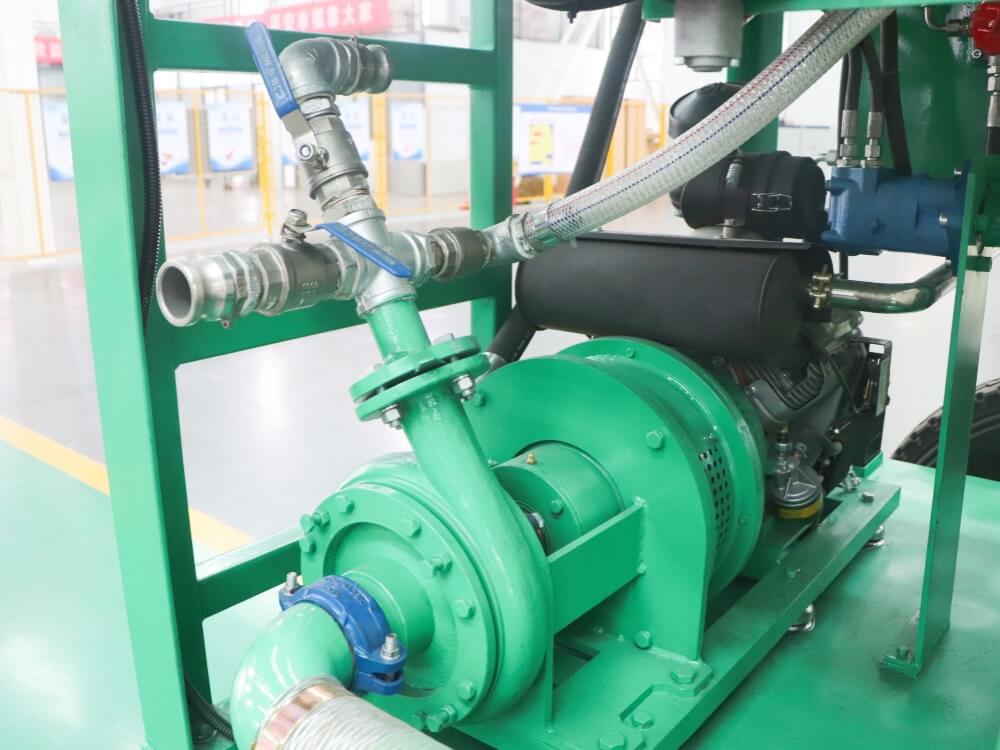

2. 3″ X 1.5″ centrifugal pump
Electromagnetic clutch control centrifugal pump.
Outlet 3 pipelines: town gun, self circulation, DN32 hose.
Fully mixed materials by self circulation system.
Long injection distance, high efficiency and high factor of safety.
Easy and convenient maintenance and replacement of vulnerable parts.
3. Power unit
BRIGGS STRATTON 23 hp made in the USA with electric start.
The electromagnetic clutch controls the action of the centrifugal pump.
Provide power to the hydraulic system.

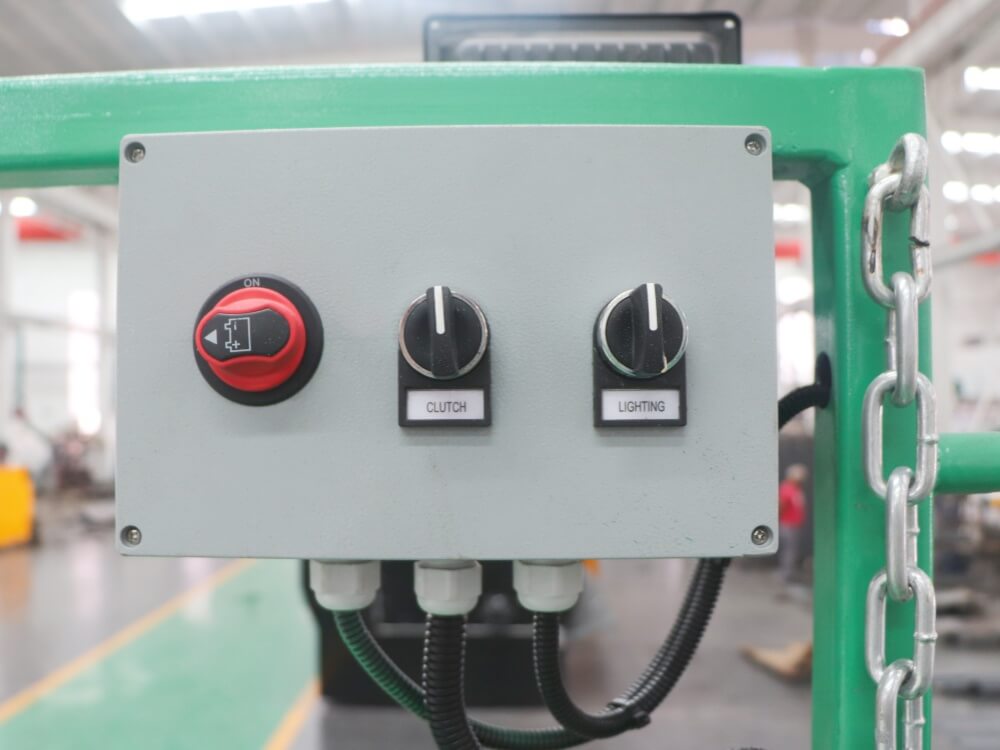

4. Control system (safe, and easy to operate)

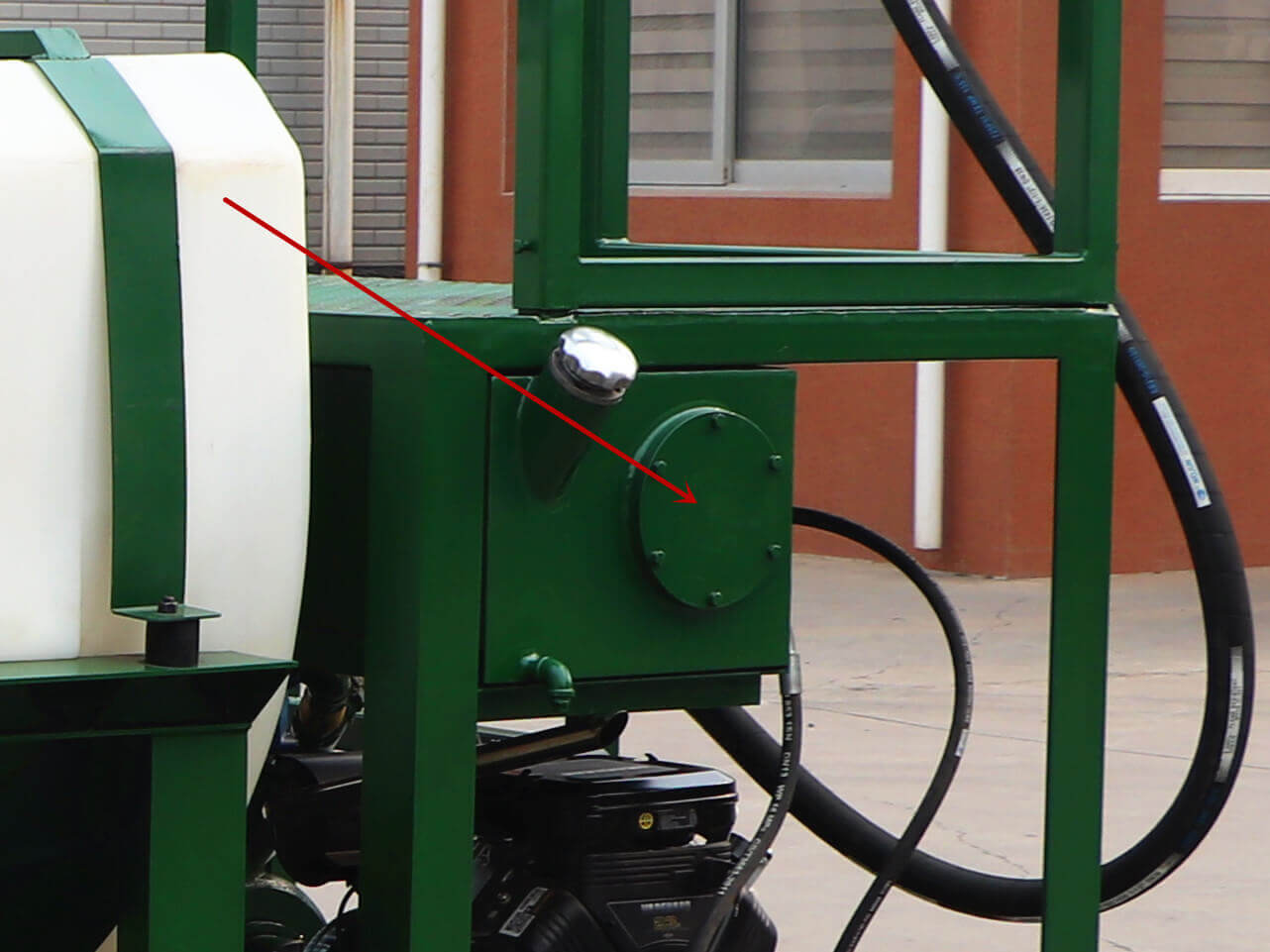

Hydraulic control system.
Electrical control system.
One button for the pump, one lever for the paddles.
5. Hose discharge
Hose is light weight and easy to handle.
Jets are equipped with a quick coupler for easy service in the unlikely event of a problem.
A quick disconnect for the discharge hose, and a bale tray for easy loading.

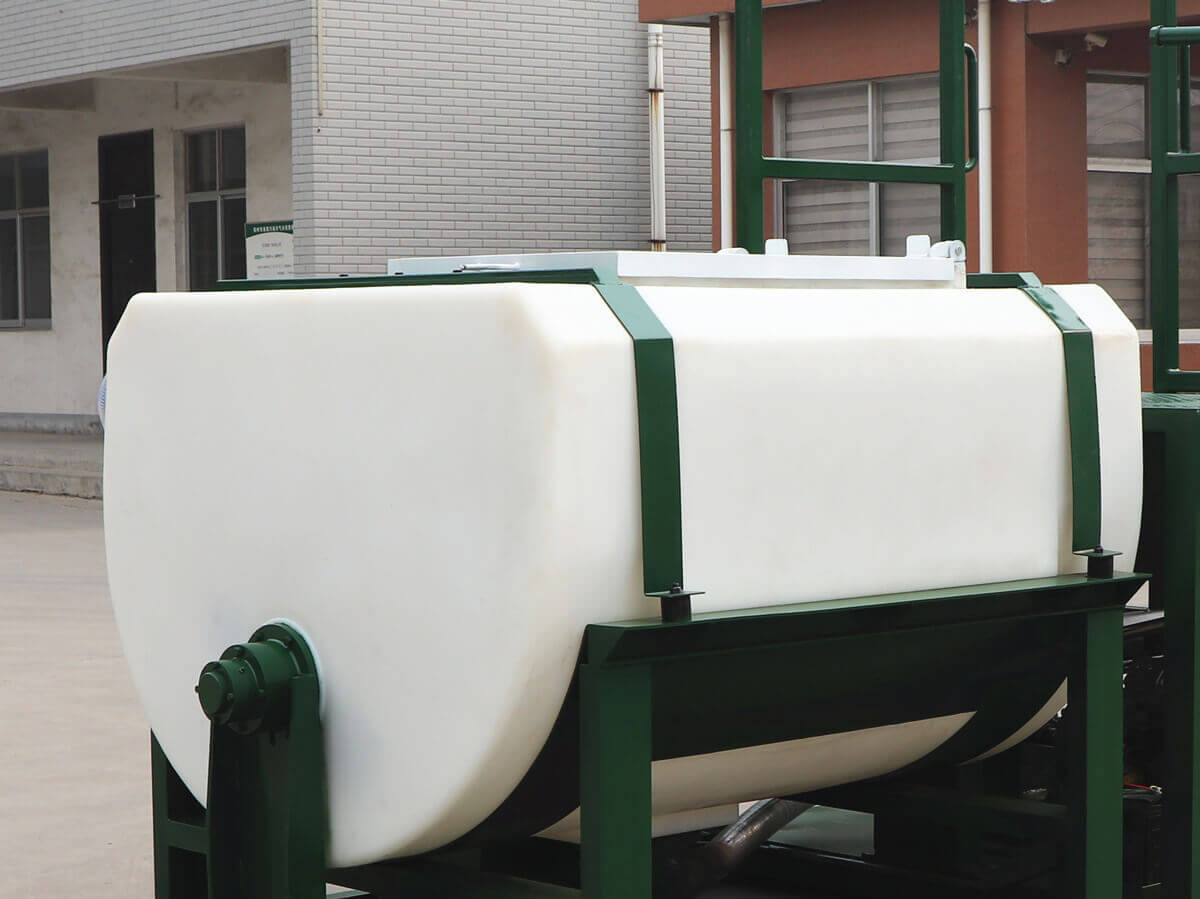

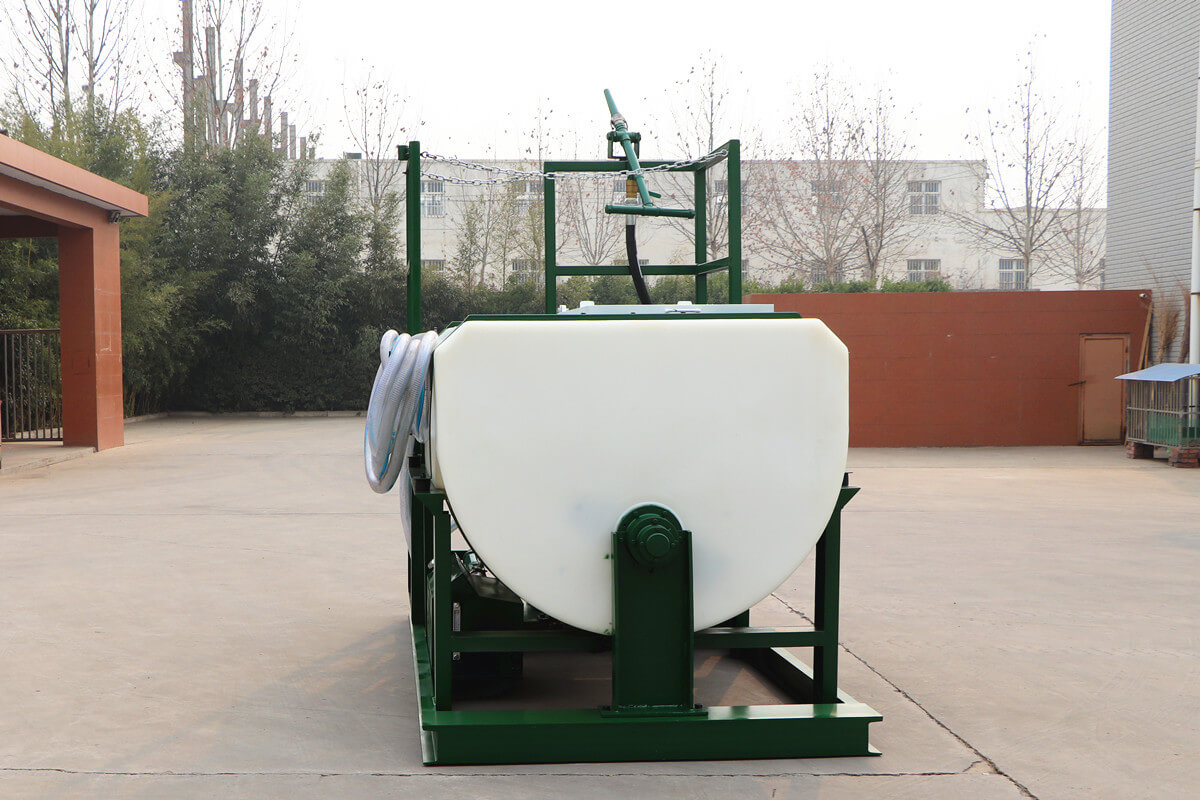

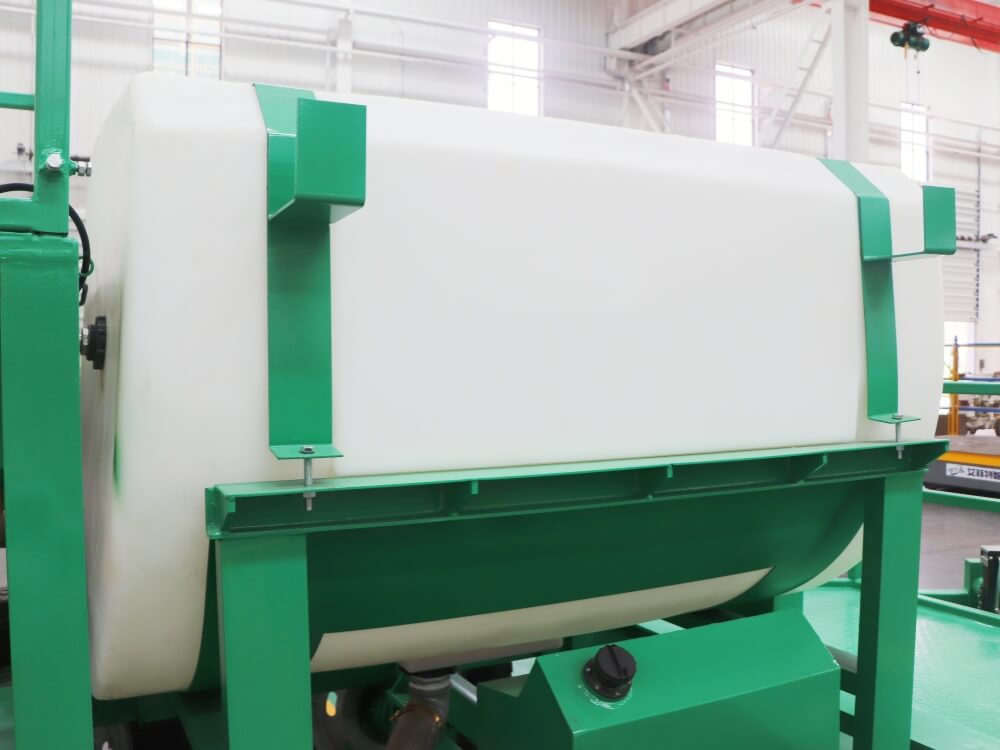

6. Poly tank
Only as a carrier for fluid, fast clean up, never rust.
