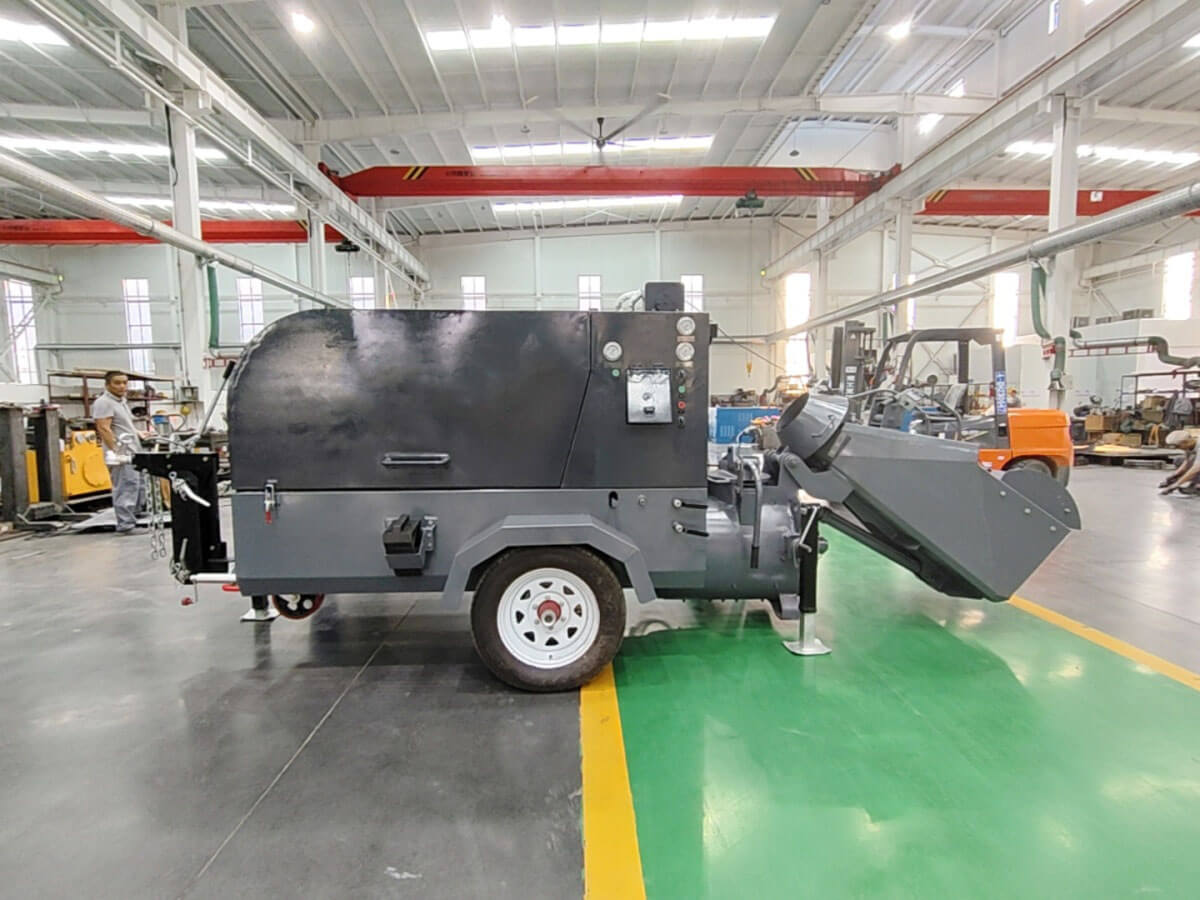

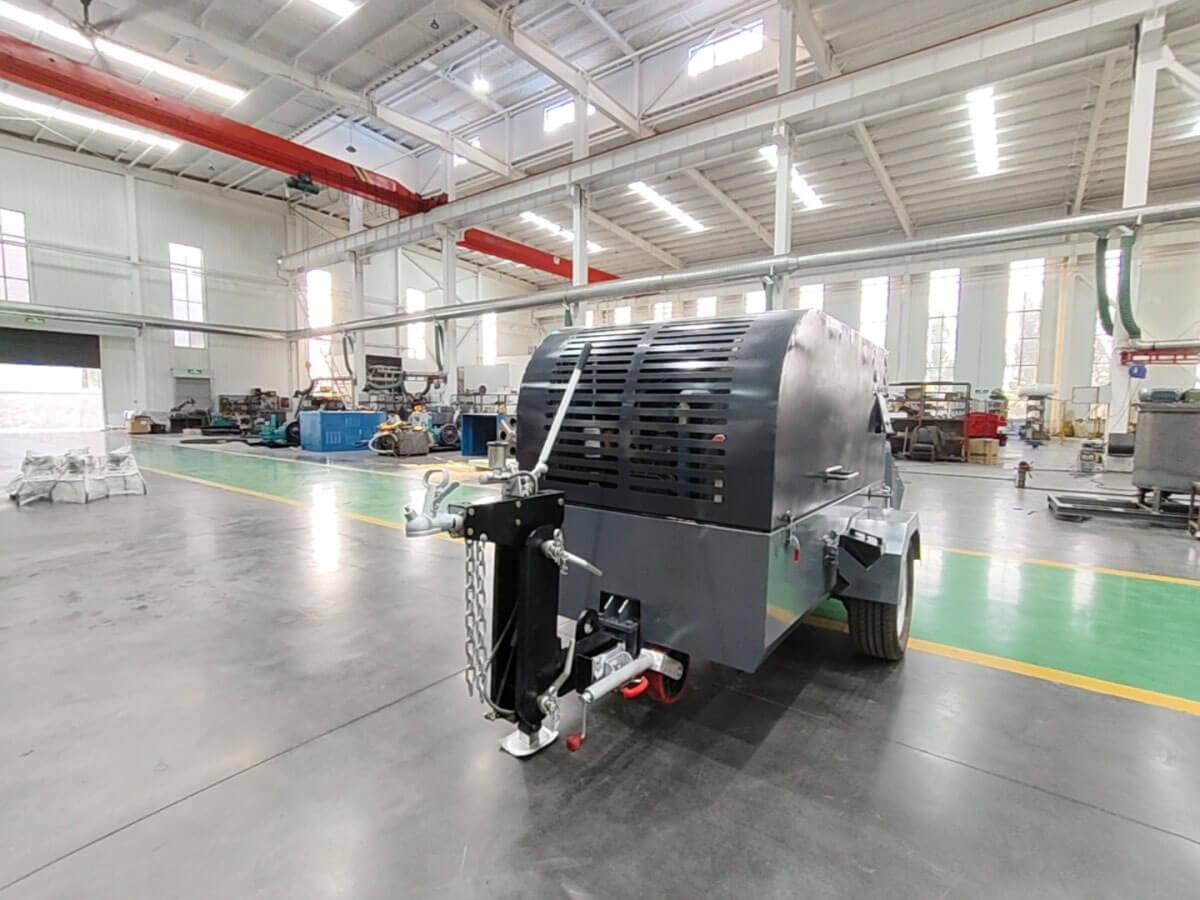

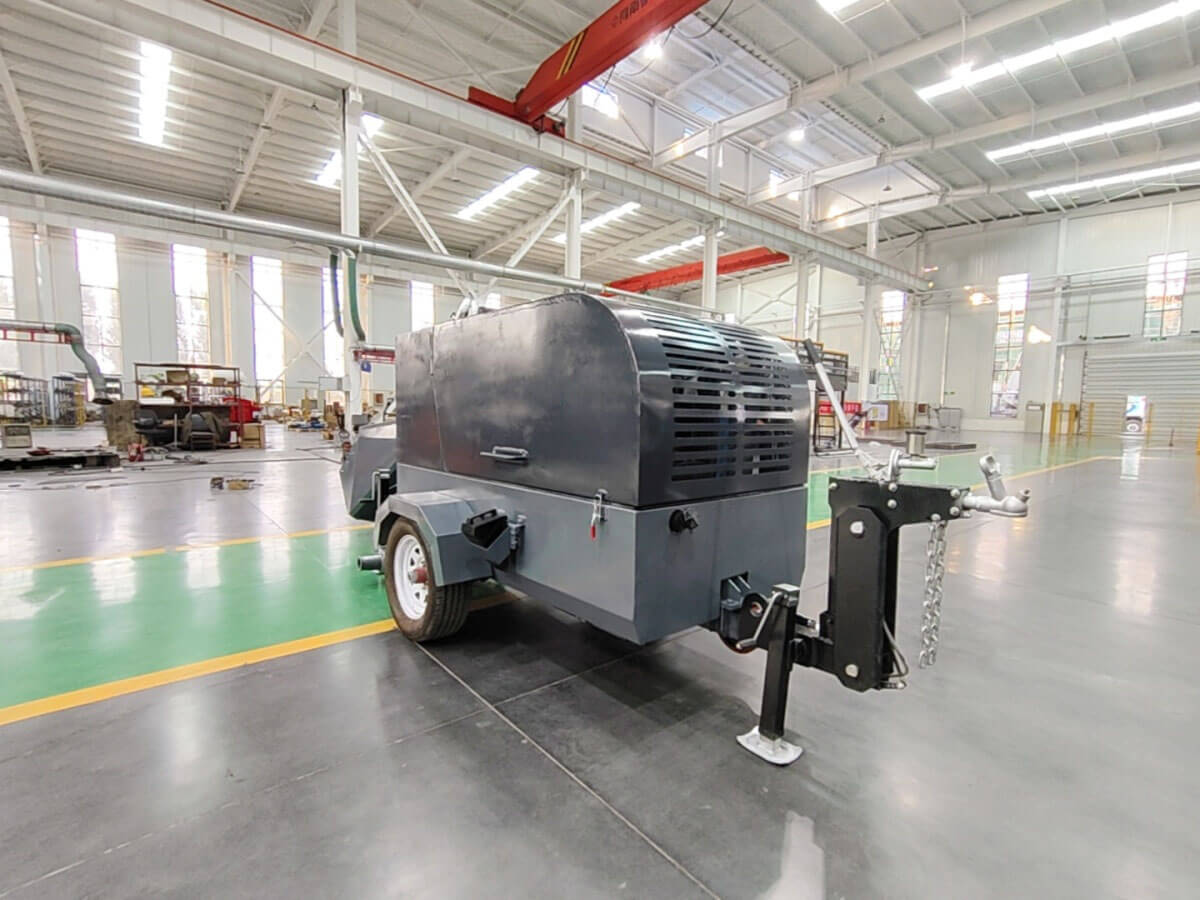

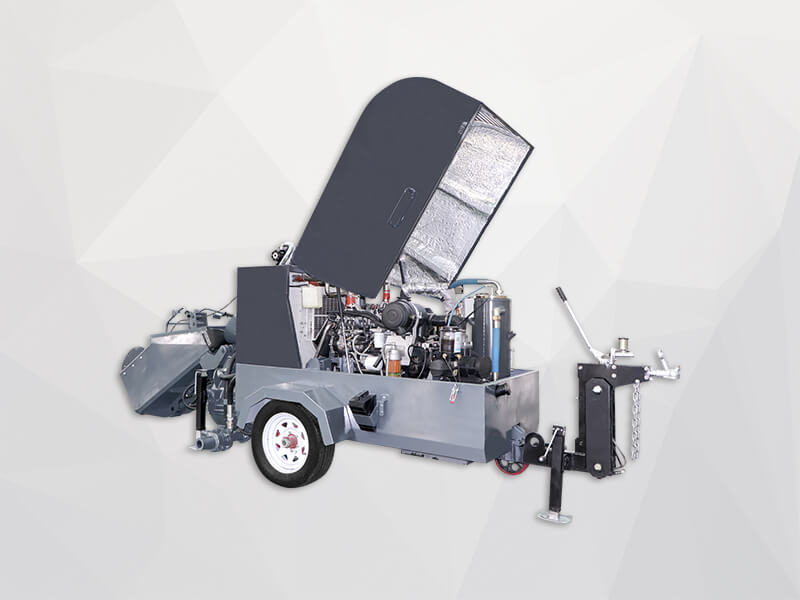

LPXT200-D/A Screed machine-Mortar Mixer And Transfer Machine With Air Pressure
LPXT200-D/A Screed machine-Mortar Mixer And Transfer Machine With Air Pressure is designed to deliver smooth, reliable power to convey the type of construction material continuously.
LPXT200-D/A
60KW
Gross 260L / Net 200L
5m³/h
Horizontal 220m, Vertical 50 Floor
4-8bar
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description
LPXT200-D/A Screed machine-Mortar Mixer and Transfer Machine With Air Pressure is designed for mixing and transporting screed. It is compact and easy to use with its button control panel. It operates with a self-lubricating hydraulic system. The 4-cylinder engine options have been developed with an electronic display where all necessary parameters can be monitored and an easy-to-maintain component layout.
The new LPXT200-D/A screed machine can convey mortar material both horizontally and vertically. The built-in air compressor generates strong pressure and airflow, ensuring the smooth transportation of material within the working range. With the use of an efficient mortar machine, you can complete leveling applications more easily, faster and in less time than traditional applications.
The new LPXT200-D/A screed machine can convey mortar material both horizontally and vertically. The built-in air compressor generates strong pressure and airflow, ensuring the smooth transportation of material within the working range. With the use of an efficient mortar machine, you can complete leveling applications more easily, faster and in less time than traditional applications.

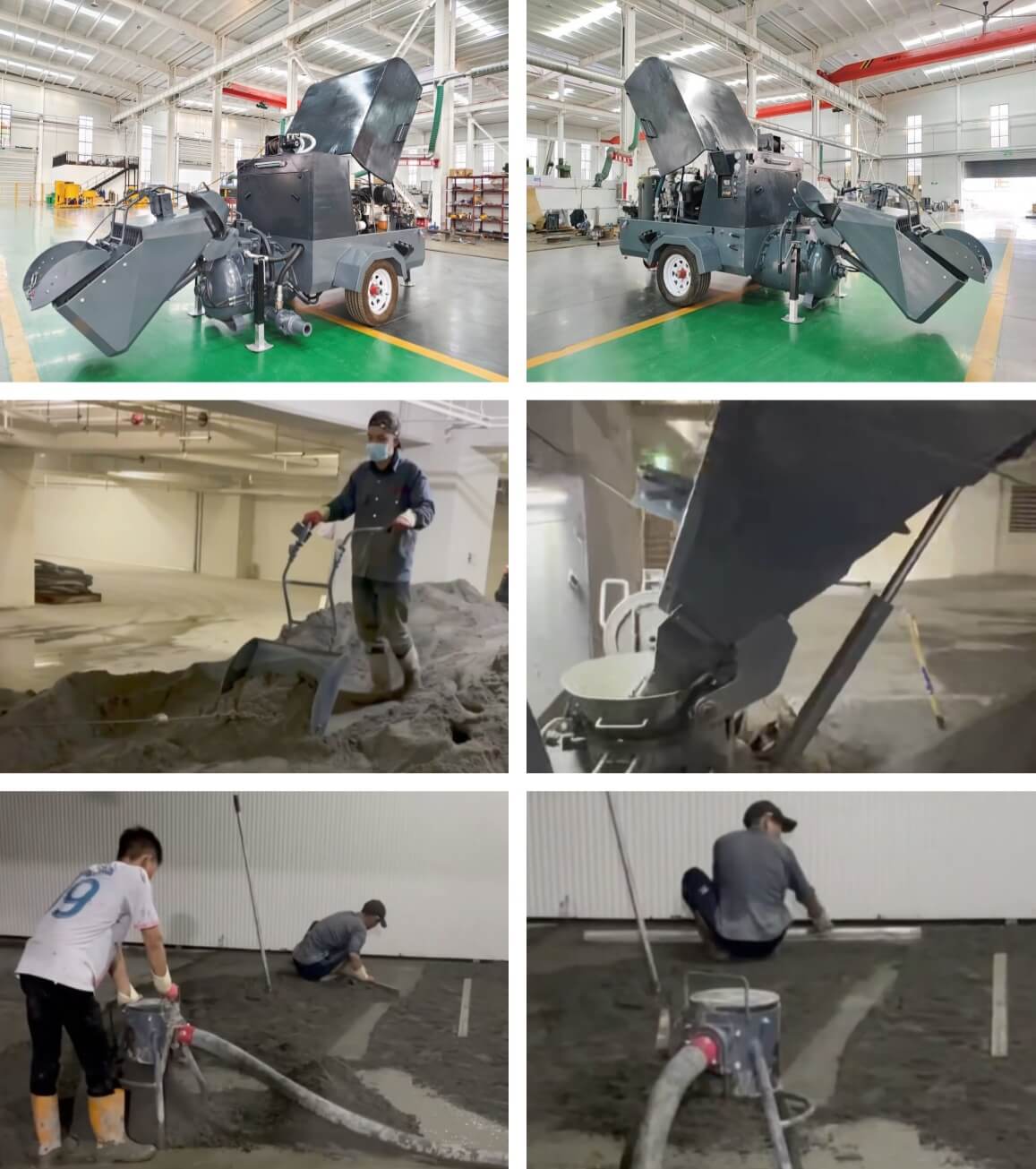

Application
LPXT200-D/A Screed machine is designed to deliver smooth, reliable power to convey the type of construction mortar material continuously.

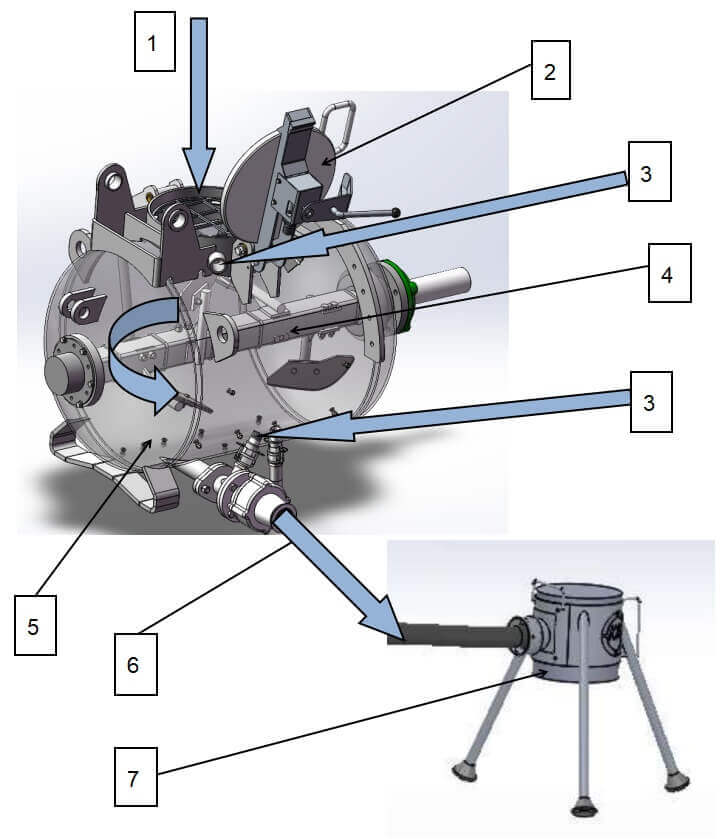

Operating Principle of LPXT200-D/A Screed machine:
① Add material 1 to mixing tank 6.
② Put on the sealing cover 2 and press it down firmly.
③ The materials are fully stirred in the mixing tank 6.
④The air compressor starts to generate compressed air with sufficient
pressure, which enters the mixing tank 6 and the upper pipeline 3. When the pressure inside the tank reaches a certain level, the material begins to be transported.
⑤The material is discharged from discharge port 7, passes through the conveying hose, reaches the discharge point, and is discharged at discharge port 8.
⑥If you want to transport long-distance or high-rise materials, you need to open the lower intake pipe 5..jpg)

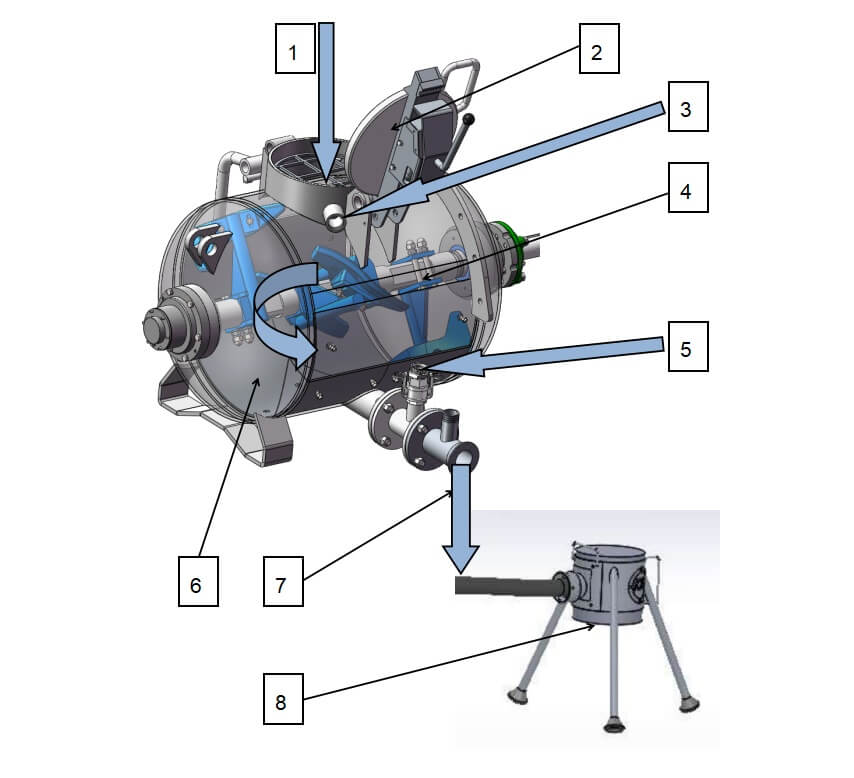

Operating Principle of LPXT200-D/A Screed machine:
① Add material 1 to mixing tank 6.
② Put on the sealing cover 2 and press it down firmly.
③ The materials are fully stirred in the mixing tank 6.
④The air compressor starts to generate compressed air with sufficient
pressure, which enters the mixing tank 6 and the upper pipeline 3. When the pressure inside the tank reaches a certain level, the material begins to be transported.
⑤The material is discharged from discharge port 7, passes through the conveying hose, reaches the discharge point, and is discharged at discharge port 8.
⑥If you want to transport long-distance or high-rise materials, you need to open the lower intake pipe 5.

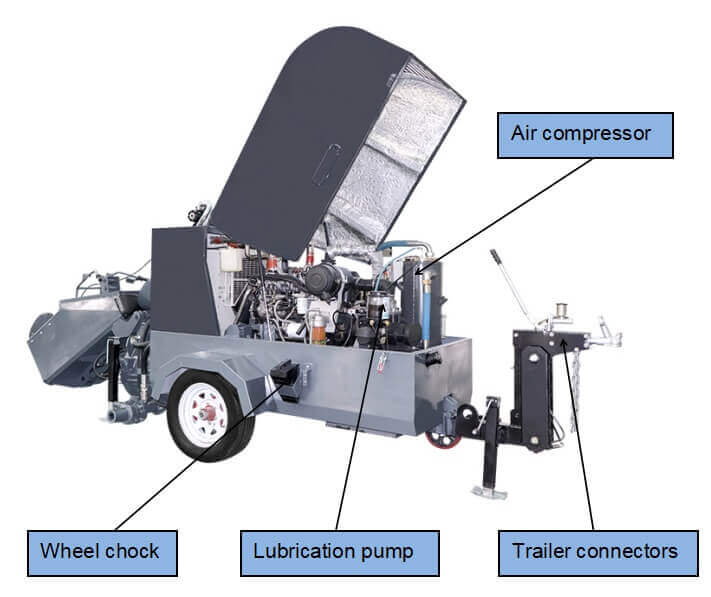

Features
1. Hydraulic-driven feeding device for easy loading.
2. Visual operation parameter display screen.
3. 60KW diesel engine.
4. Air compressor and mixer integrated.
5. Adjustable trailer connectors.
6. 4 wear-resistant mixing blades.
7. Replaceable wear-resistant lining plate.
2. Visual operation parameter display screen.
3. 60KW diesel engine.
4. Air compressor and mixer integrated.
5. Adjustable trailer connectors.
6. 4 wear-resistant mixing blades.
7. Replaceable wear-resistant lining plate.
Product Details
-

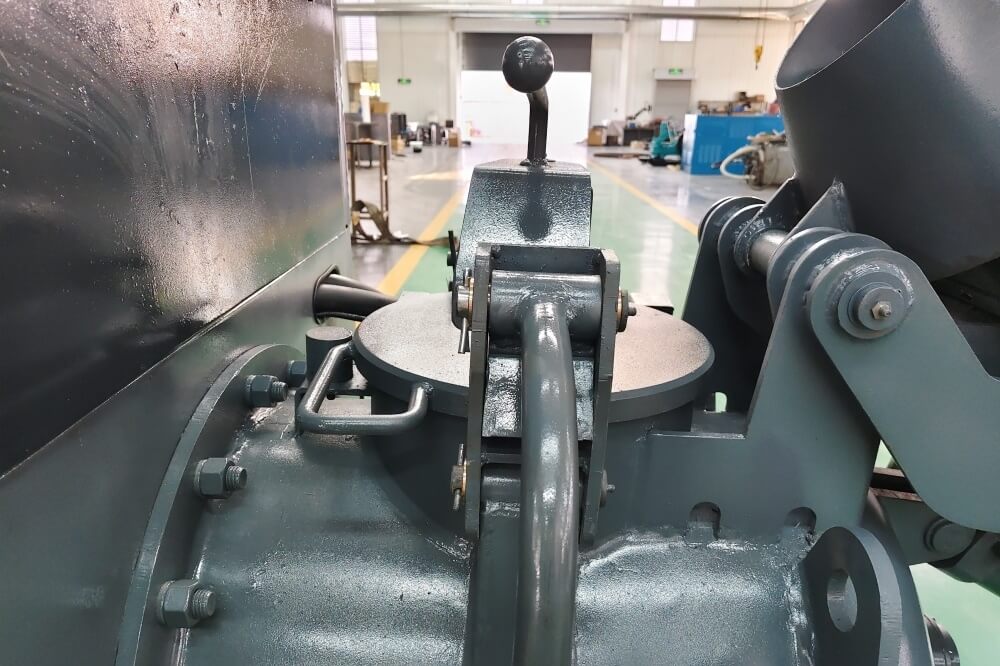

Feed port -

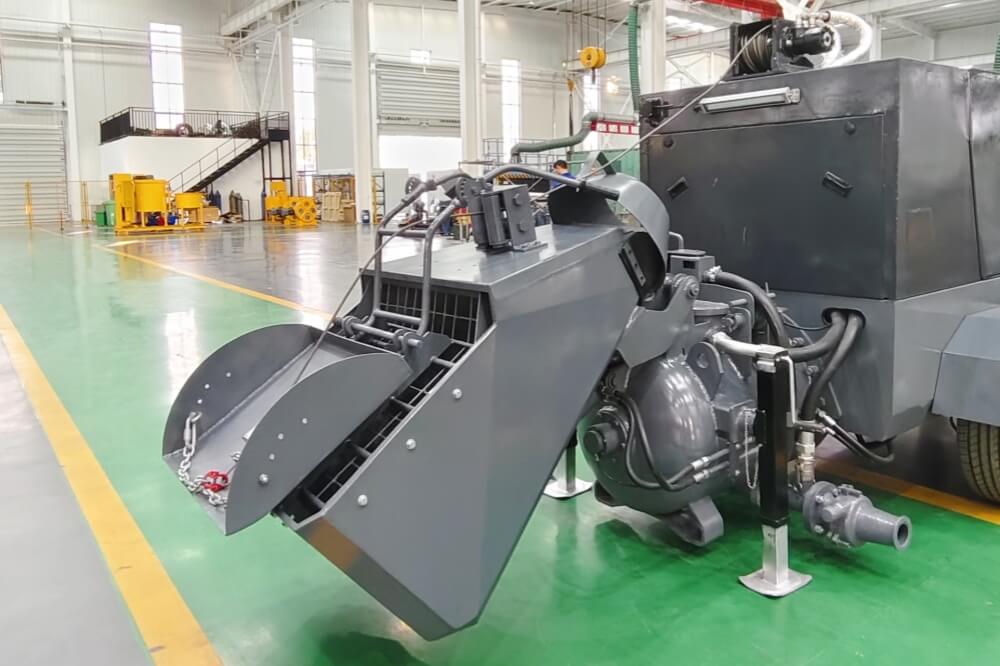

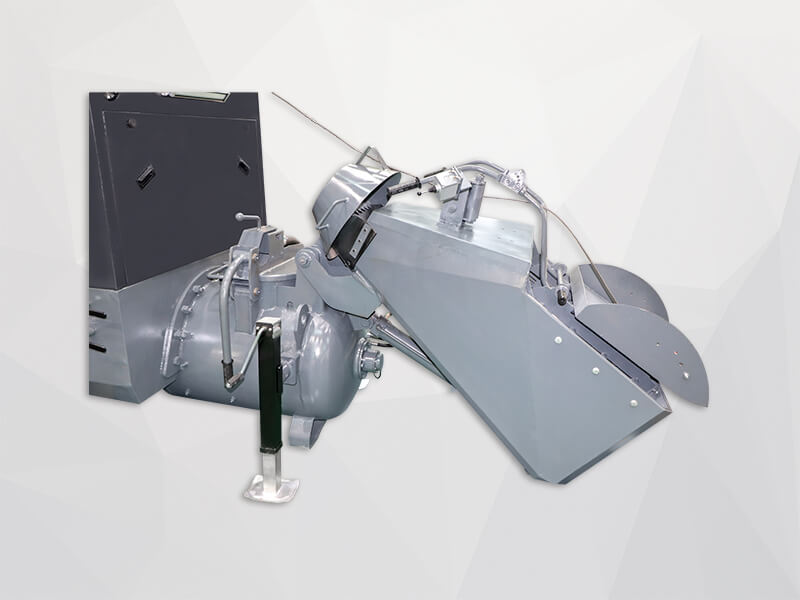

Hopper of semi-dry screed mixer pump -

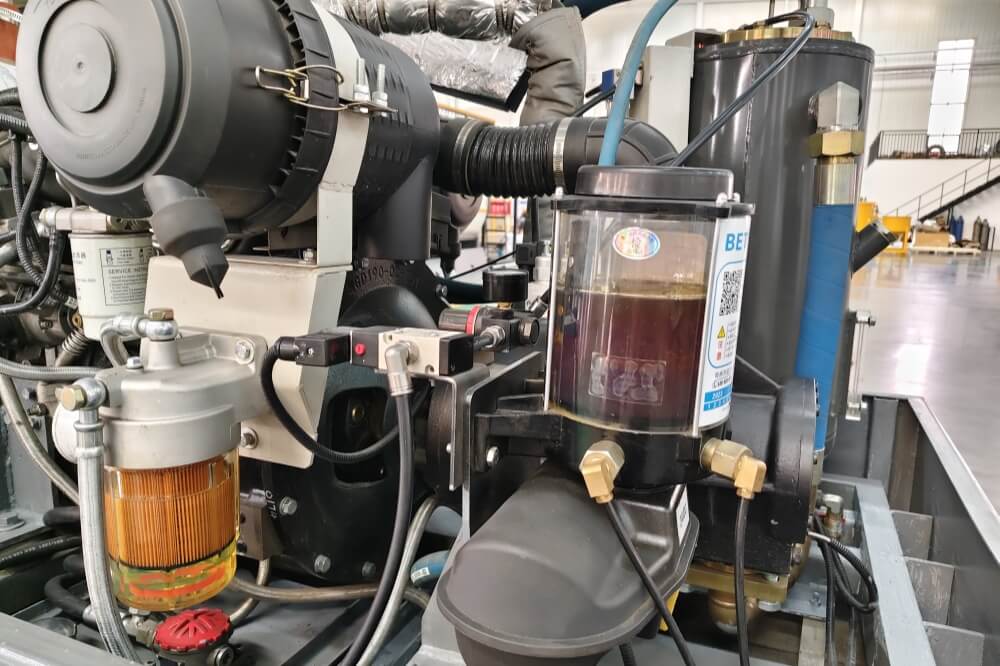

Lubrication pump -

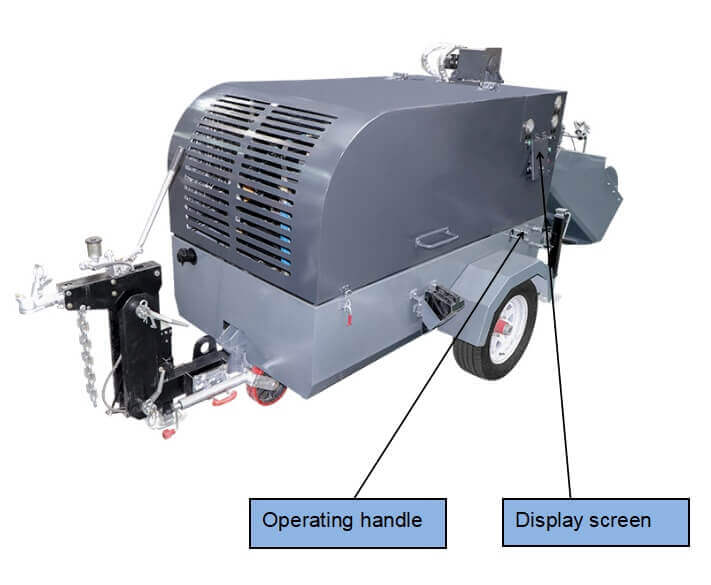

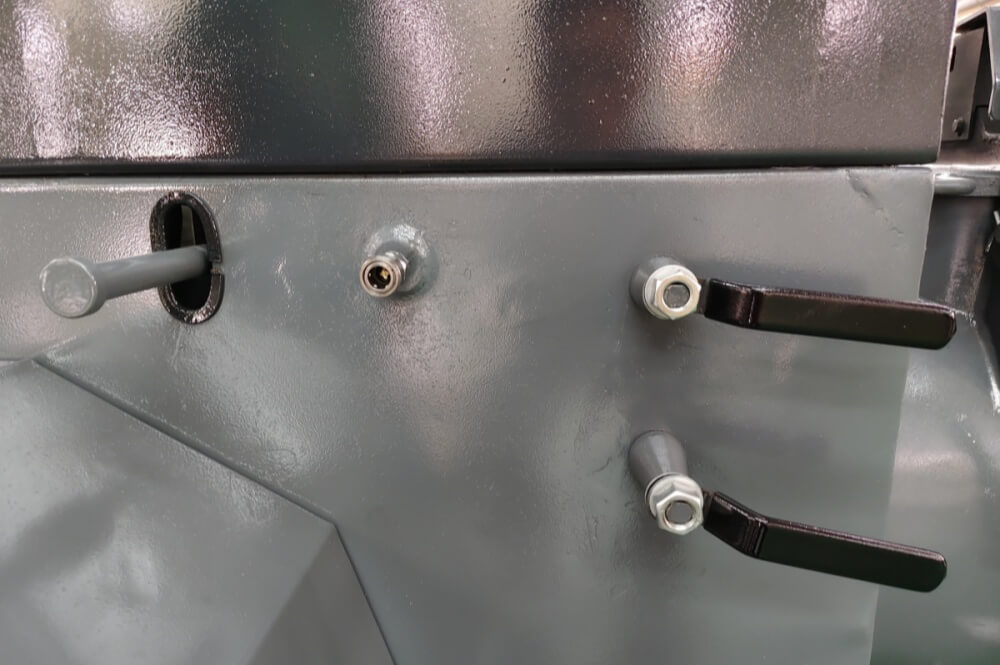

Operating handle -

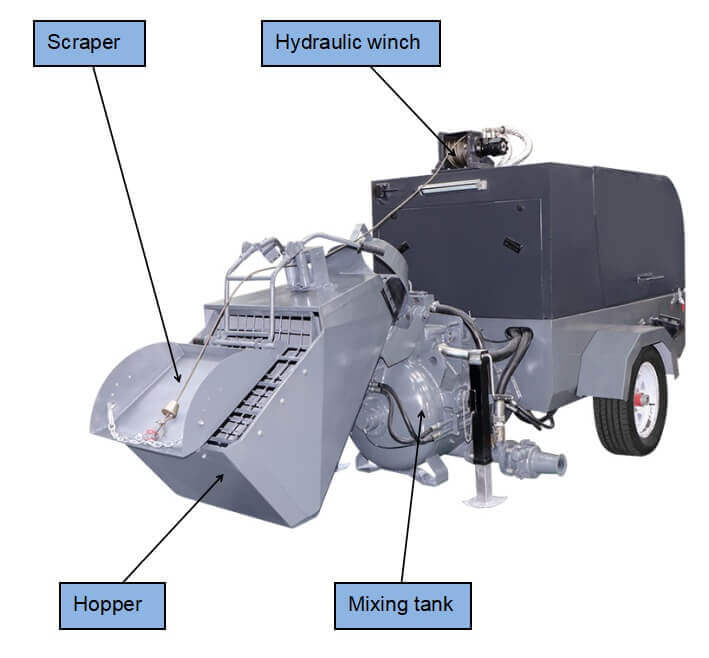

Scraper -

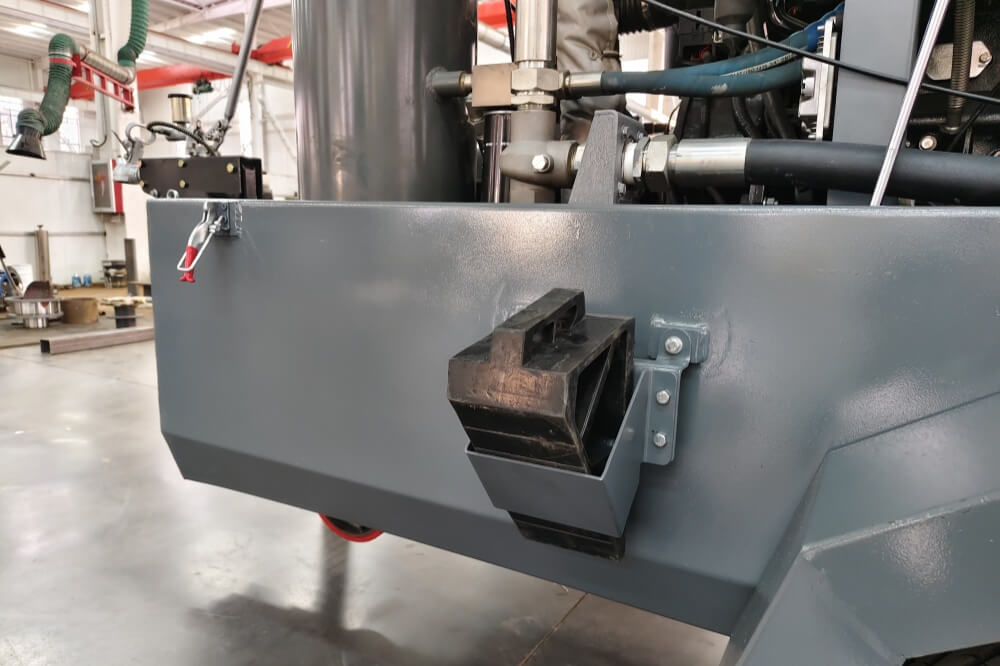

Wheel chock
Technical Parameters
Technical Data
| Model | LPXT200-D/A Screed pump |
| Diesel Engine | 60KW |
| Vessel Capacity | Gross 260L / Net 200L |
| Output Capacity | 5m³/h |
| Transfer Range | Horizontal 220m, Vertical 50 Floors |
| Operating Pressure | 4-8 bar |
| Max. Pressure | 10bar |
| Compressor Flow Rate | 6m³/min |
| Lubrication System | Central Automatic |
| Aggregate Size | 16mm |
| Chassis Tow Connection | Ball Coupling |
| Fuel Tank | 50L |
| Dimension L×W×H | 5320×1700×2000mm |
| Weight | 2415kg |
