LGM80/50PLD-E Double plunger hydraulic grout pump
LGM50/80PLD-E Double-Plunger hydraulic Grout Pump is designed with two low-wear plungers pump. With the features of double acting, ball valves, low pressure surge, variable pressure and flow. Therefore, this pump is suitable for all grouting work, up to 8mm particle size , such as, for the pumping of backfill mortar behind tunnel liners, grouting in soil, earth foundation stabilization, waterproofing, tunnel lining, underwater foundations, bridge decks, deep well casing, slope line grouting, etc.
0-80L/Min
0-50bar
≥0.5:1
85mm
190mm
8mm
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description
LGM50/80PLD-E Double-Plunger hydraulic Grout Pump is designed with two low-wear plungers pump. With the features of double acting, ball valves, low pressure surge, variable pressure and flow. Therefore, this pump is suitable for all grouting work, up to 8mm particle size , such as, for the pumping of backfill mortar behind tunnel liners, grouting in soil, earth foundation stabilization, waterproofing, tunnel lining, underwater foundations, bridge decks, deep well casing, slope line grouting, etc.

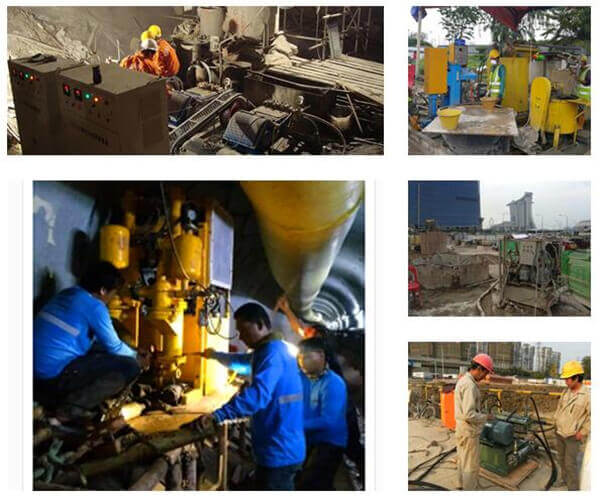

Application
LGM80/50PLD-E medium pressure hydraulic grouting pump is suitable for all grouting work, up to 8mm particle size, such as, for the pumping of backfill mortar behind tunnel liners, grouting in soil, earth foundation stabilization, waterproofing tunnel lining, underwater foundations bridge decks deep well casing slope line grouting, etc.
Features
★ Ball valve.
★ Hydraulic drive. Safely releasing pressure when pumping block.
★ Double Plungers and acting.
★ Vertical type pump with compact size.
★ Up to 8mm particle size.
★ Low wear plunger system.
★ Low flow pressure surge system.
★ The Plunger Pump System.
Comparing with the piston pump system, the plunger system does not require any close tolerance parts such as cylinders or precise piston seals etc. The plunger is sealed by a simple maintenance-free seal.
★ Hydraulic drive. Safely releasing pressure when pumping block.
★ Double Plungers and acting.
★ Vertical type pump with compact size.
★ Up to 8mm particle size.
★ Low wear plunger system.
★ Low flow pressure surge system.
★ The Plunger Pump System.
Comparing with the piston pump system, the plunger system does not require any close tolerance parts such as cylinders or precise piston seals etc. The plunger is sealed by a simple maintenance-free seal.
Product Details
-

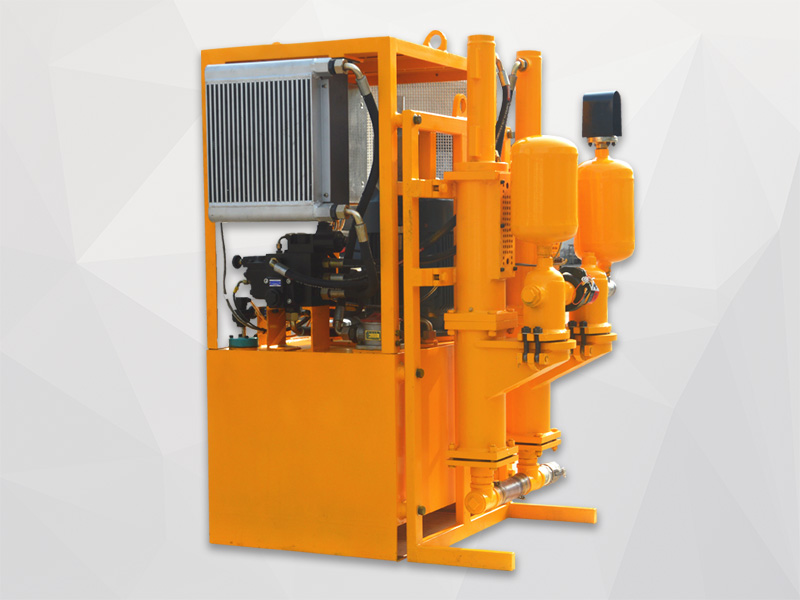

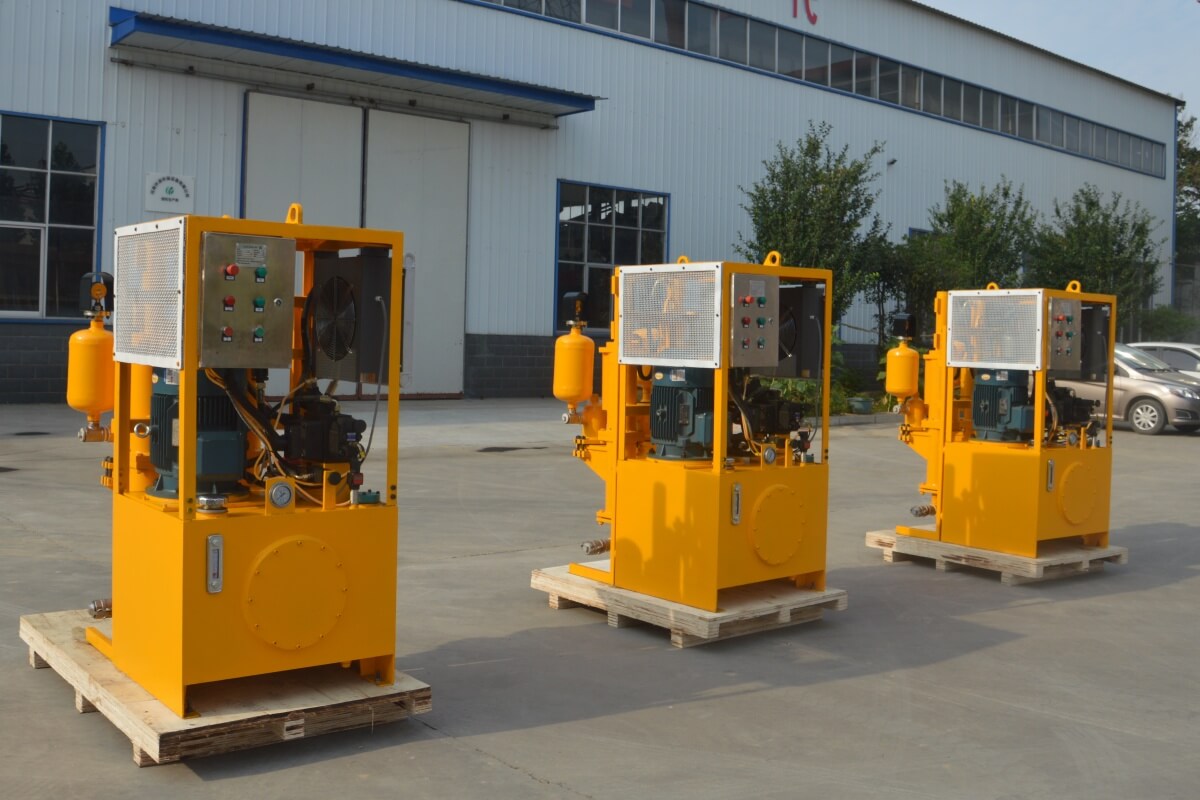

Double plunger hydraulic grout pump factory -

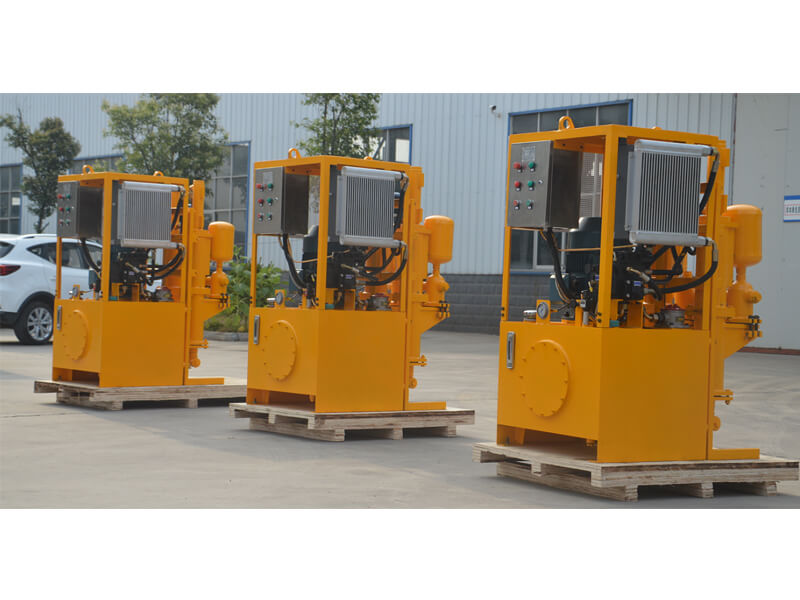

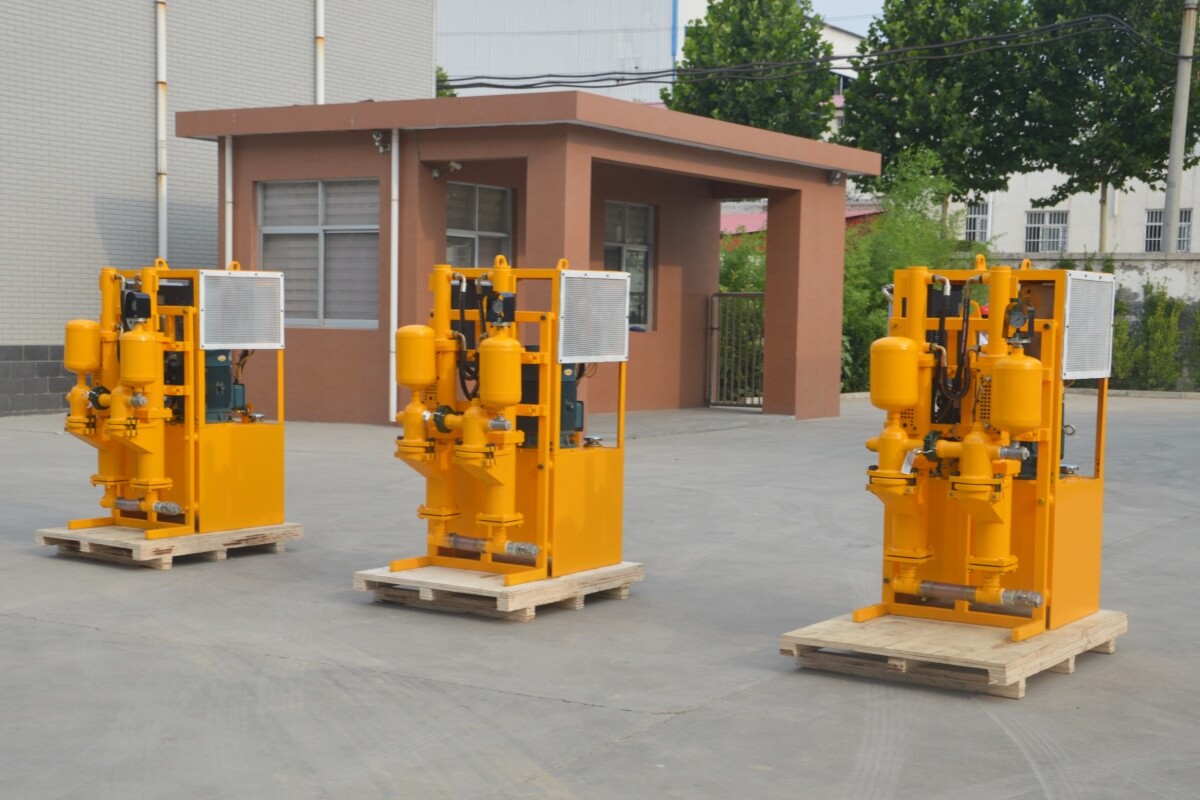

Medium pressure hydraulic grouting pump -

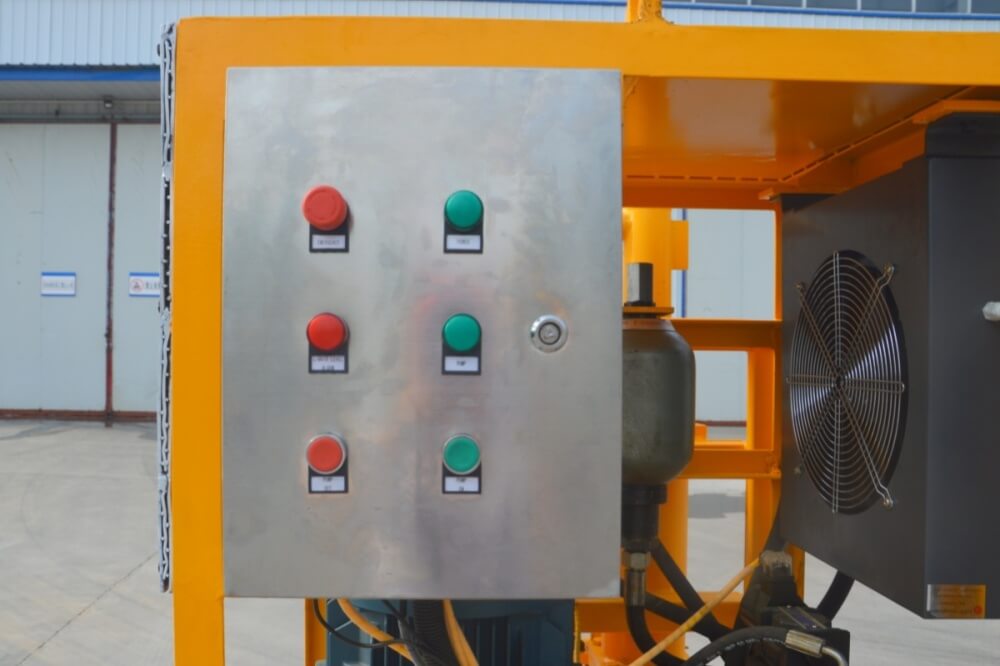

Stainless steel frame electric box with water proof button -

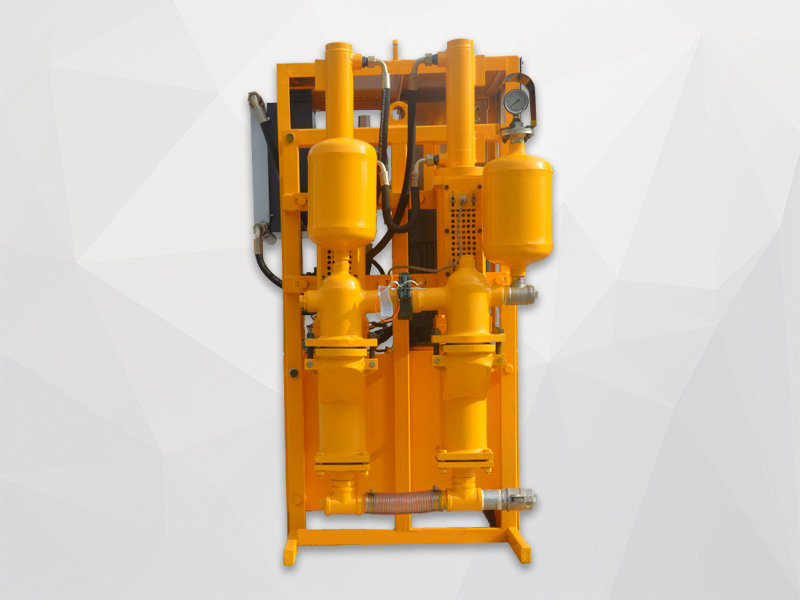

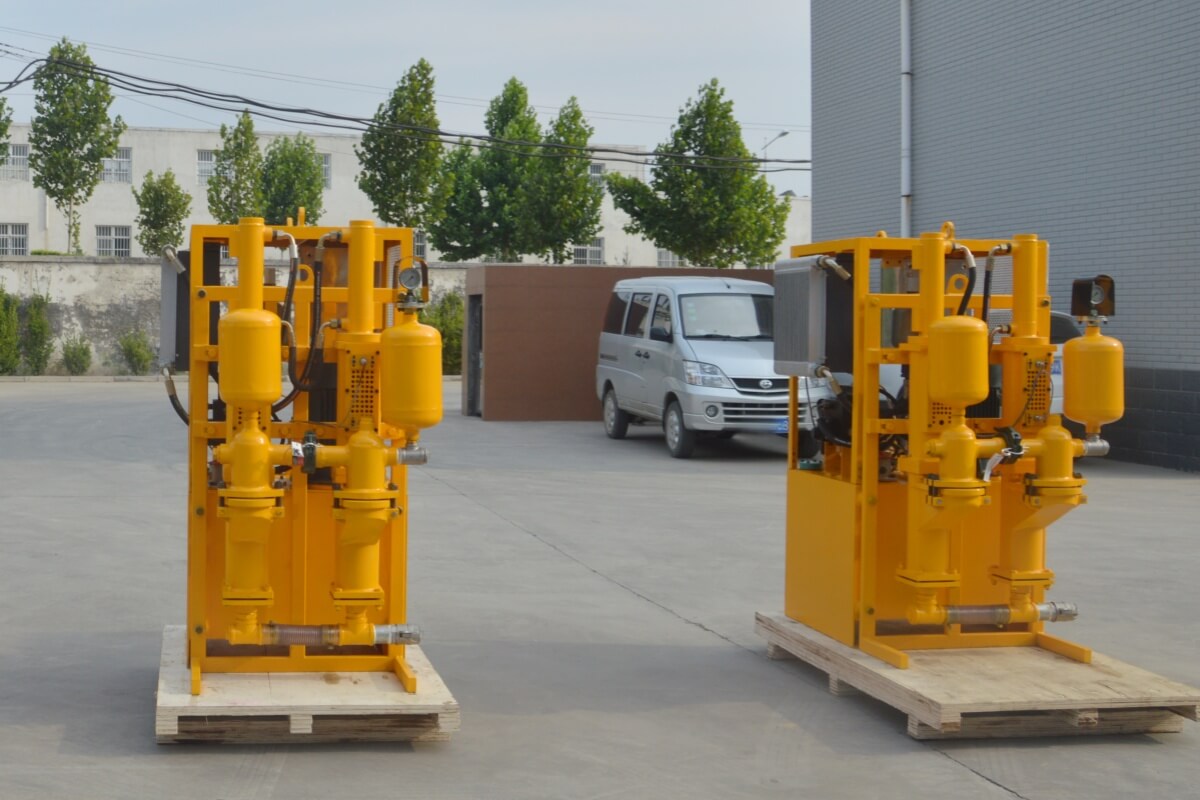

Double-plunger hydraulic grout pump -

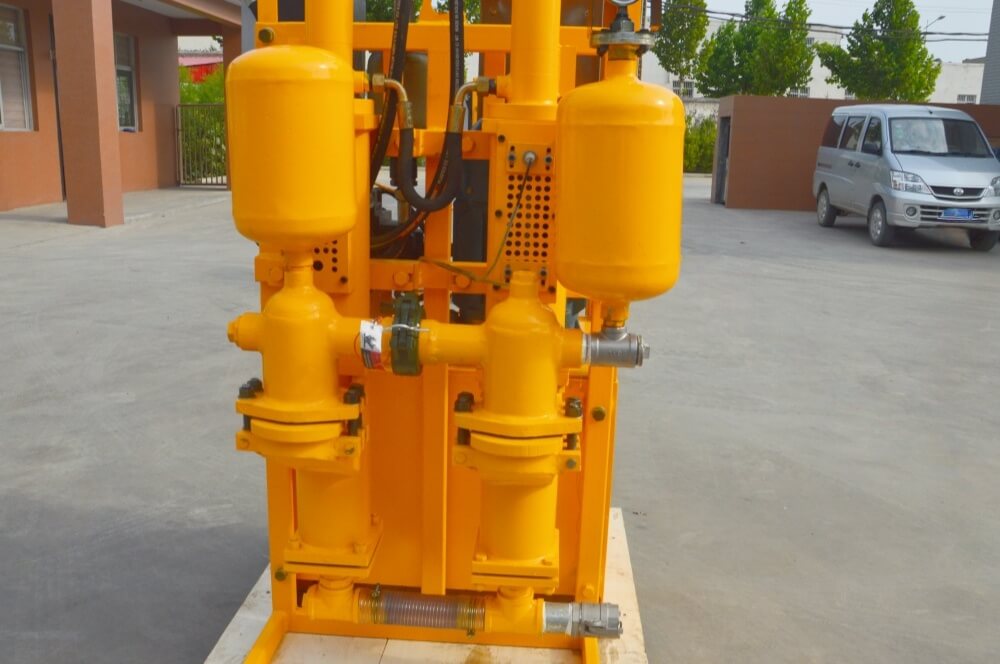

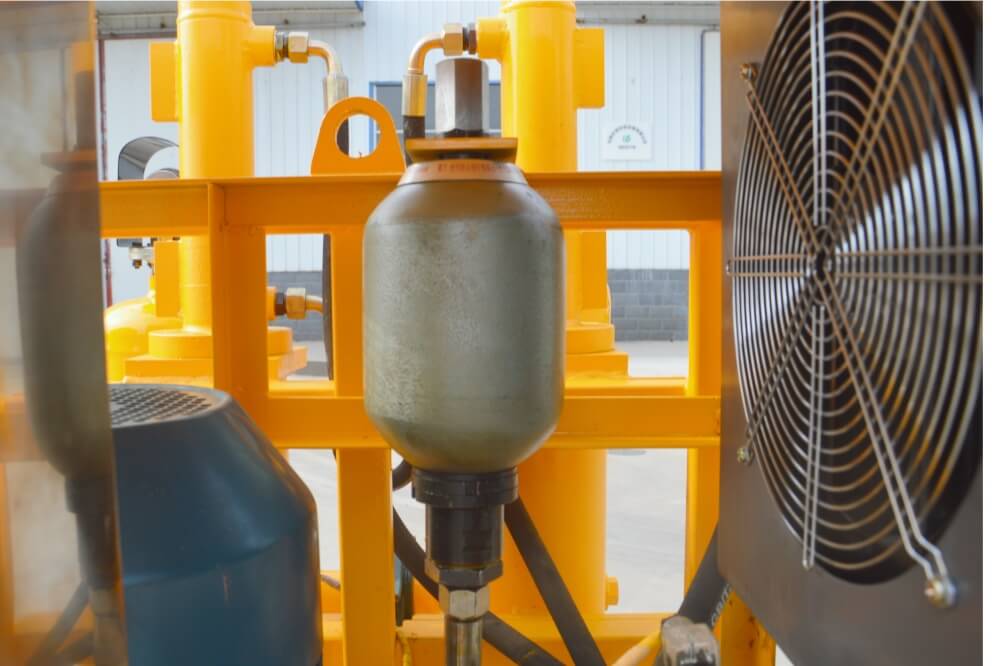

Double plunger plus two pulsation damper -

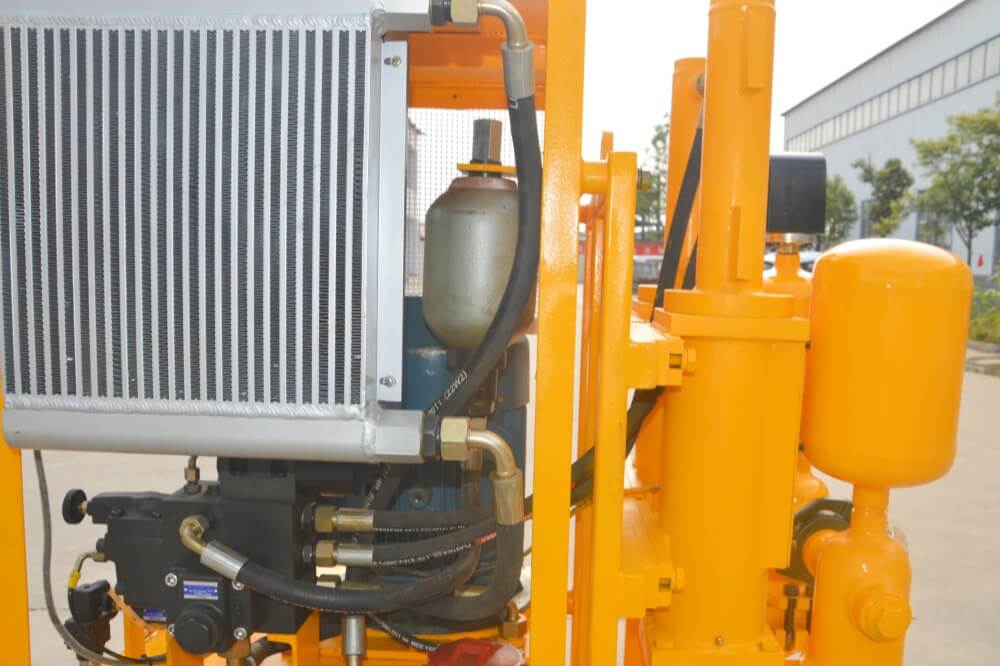

Hydraulic oil air cooler
Technical Parameters
Technical Data
| Item | LGM80/5OPLD-E |
| Rated Output | 0-80L/Min |
| Rated Pressure | 0-50bar |
| W/C ratio | ≥0.5:1 |
| Plunger Dia. | 85mm |
| Stroke | 190mm |
| Inlet Dia. | 2'' |
| Outlet Dia. | BSPL.5" |
| Power Unit | 11kw |
| Transmission | Hydraulic drive |
| Max. particle size | 8mm |
| Chassis | Skid |

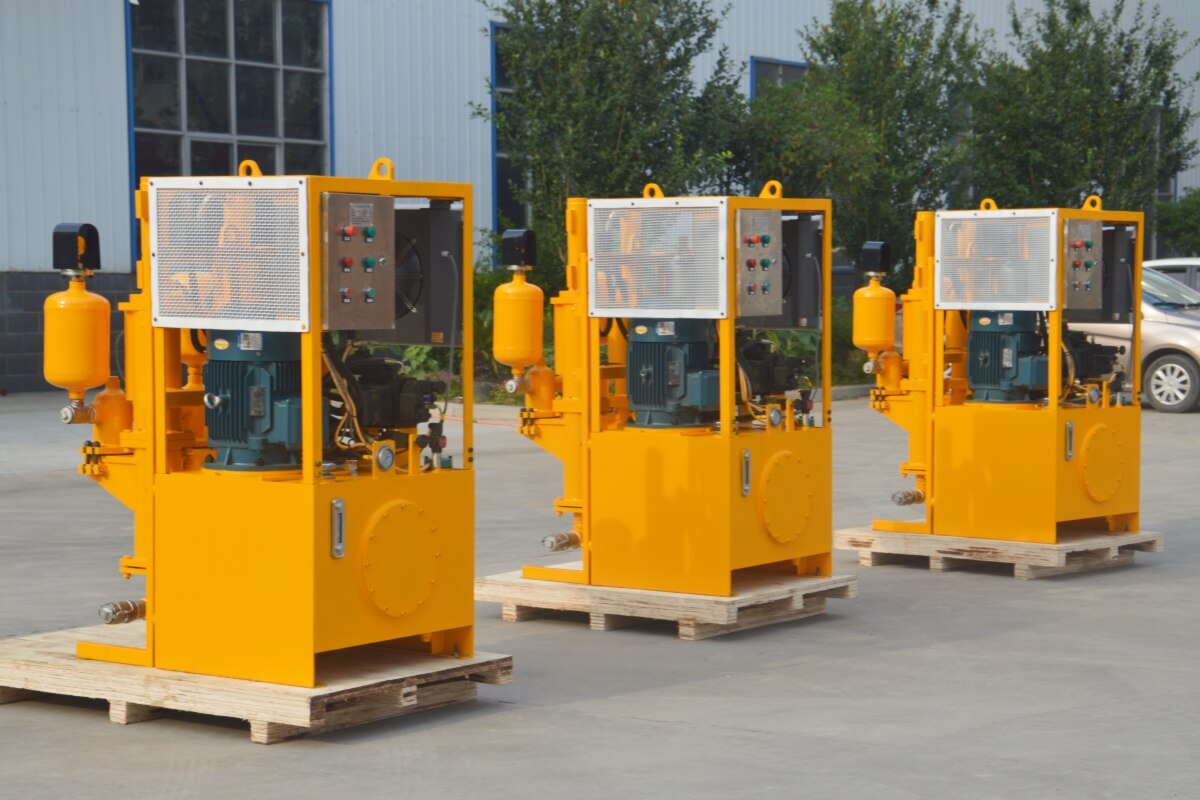

| Note: Double cylinders double plunger vertical type pump. Pressure and flow could be adjustable stepess. |
|
