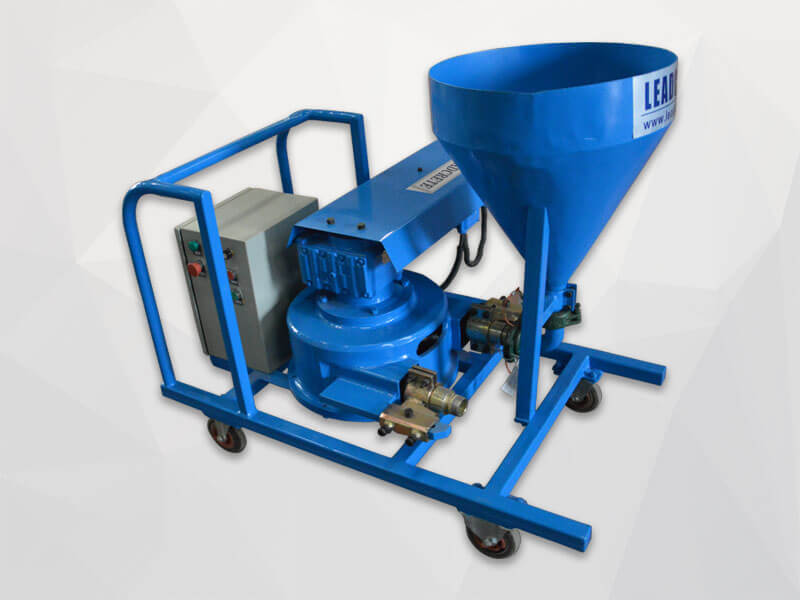

LH32H Mortar Spraying Machine for Sale
LH32H mortar spraying machine for sale is a micro-mortar transport, spraying equipment, which is designed based on the combination spraying characteristics of hose pumps and mortar(or similar materials)pumping.
5-20l/min
1. 5mpa
LH32-330
32r/min
KF57
2. 2KW 380V 50HZ 3phase
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description
LH32H mortar spraying machine for sale is a micro-mortar transport, spraying equipment, which is designed based on the combination spraying characteristics of hose pumps and mortar(or similar materials)pumping.
Equipped with a special spraying gun, LH32H mortar spraying machine for sale can be used for spraying glass fiber mortar, mortar, gypsum, putty and other viscous, difficult to transport materials. Spray uniform and continuous, widely used in construction and crafts production areas
Equipped with a special spraying gun, LH32H mortar spraying machine for sale can be used for spraying glass fiber mortar, mortar, gypsum, putty and other viscous, difficult to transport materials. Spray uniform and continuous, widely used in construction and crafts production areas
Application
LH32H mortar spraying machine for sale is widely used for indoor and outdoor ceiling roof coatings, gap leaks, settlement joint leaks, underground tunnel leaks, mine blockages, air defense project blockages, dam leak blockages, floors, cracks, hollow reinforcement, cement mortar spraying, mortar Spraying, waterproof grouting and waterproof surface coatings, waterproof coatings, fillers, ceiling coatings, wall coatings, paint spraying, landscape coatings, sound-absorbing material spraying, etc. Spray uniform and continuous, widely used in construction and crafts production areas.
Features
1. LH32H mortar spraying machines no valve, suitable for pumping mortar with glass fiber and other viscous slurry:
2. Variable output with ABB variable frequency:
3. High self-priming ability, no backflow, stable flow;
4. LH32H mortar spraying machines easy to clean, online cleaning, no need to remove the pipeline;
5. Less wearing parts, only the hose is wearing parts, easy maintenance;
6. Machine structure is compact, suitable for small space work;
7. Spraying uniform and continuous.
2. Variable output with ABB variable frequency:
3. High self-priming ability, no backflow, stable flow;
4. LH32H mortar spraying machines easy to clean, online cleaning, no need to remove the pipeline;
5. Less wearing parts, only the hose is wearing parts, easy maintenance;
6. Machine structure is compact, suitable for small space work;
7. Spraying uniform and continuous.
Product Details
-
ABB Variable Frequency -
Application of Mortar Spraying Machine -
Special spraying gun of mortar spraying machine
Technical Parameters
| LH32H Mortar Spraying Machine | |
| Output | 5-20l/min |
| Working Pressure | 1.5Mpa |
| Squeeze pump Model | LH32-330 |
| Rotor Speed | 32r/min |
| Gearbox | KF57 |
| Electric Motor Power | 2.2KW 380V 50HZ 3phase |
| Squeeze Hose ID | 32mm |
| Hopper Capacity | 56L |
| Conveying Horizontal Distance | 30m |
| Air Consumption | 250L/min |
| Materal Charging Height | 1000mm |
| Overall Dimension | 1200×940×1000mm |
| Net weght | 240kg |
