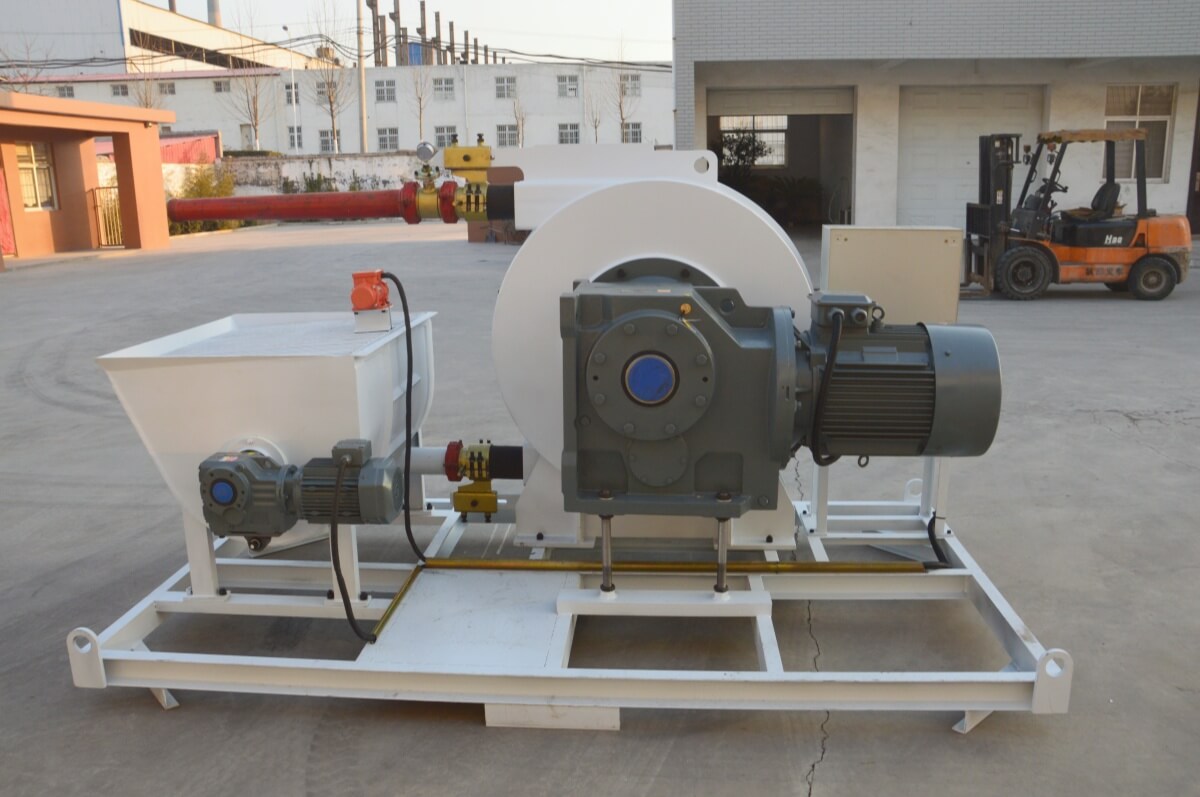

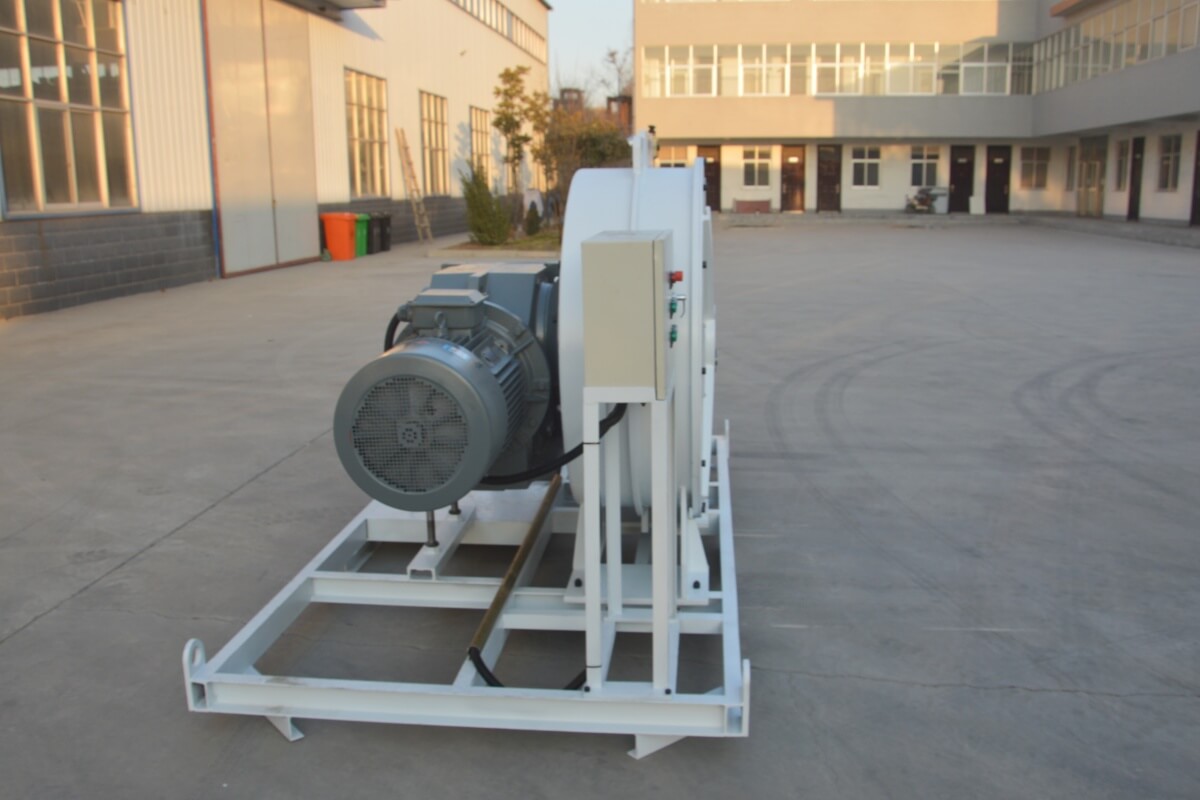

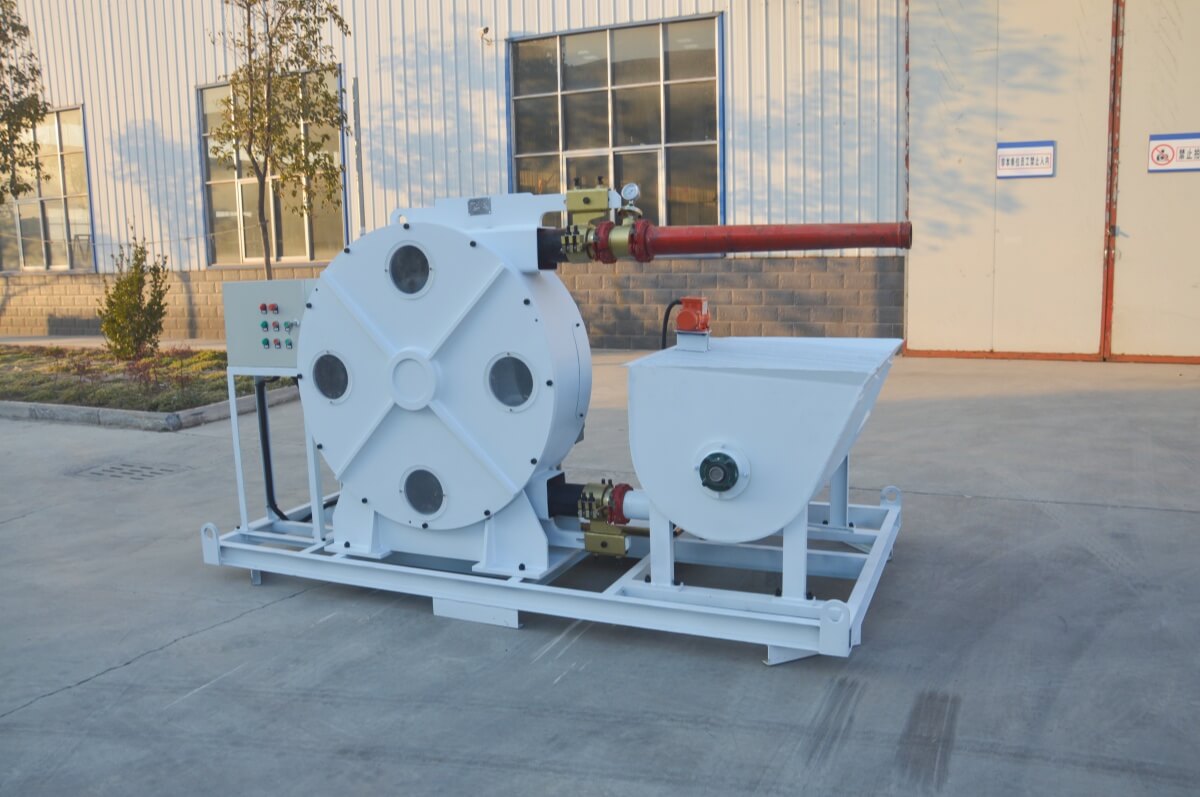

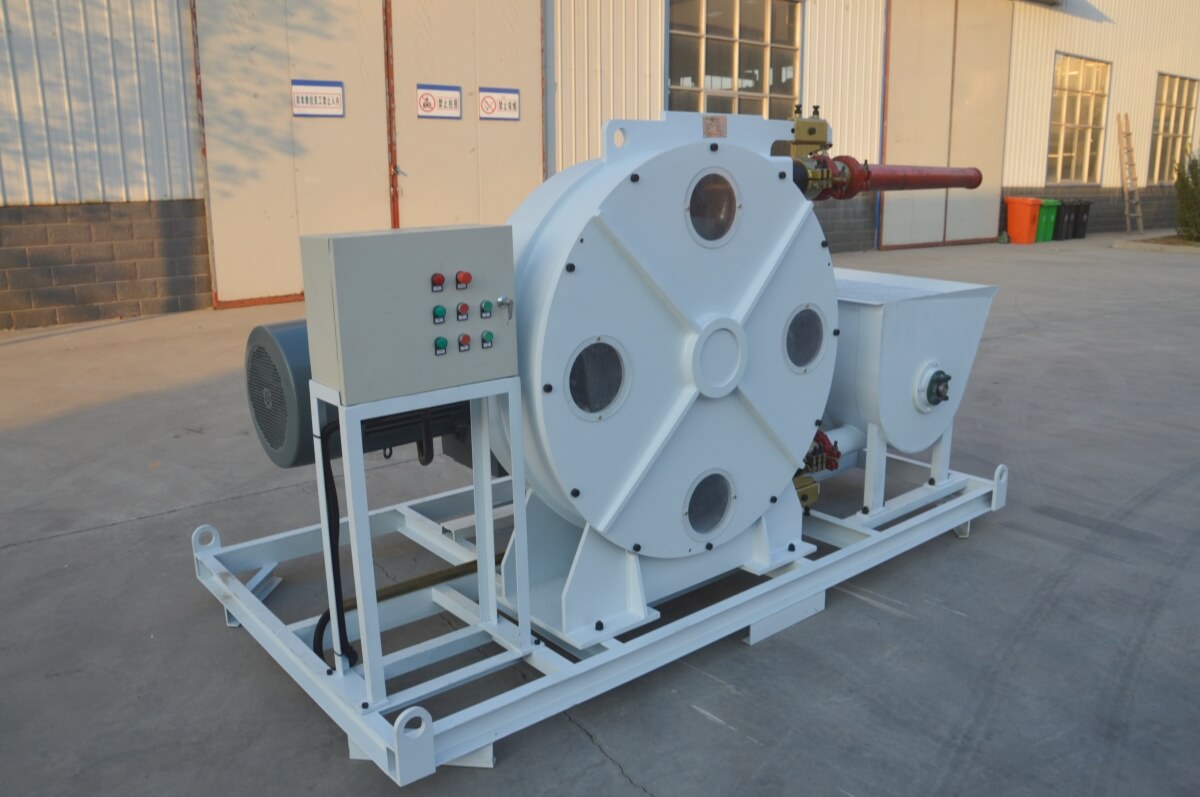

LCP40H-E Industrial Hose Pump Supplier
LCP40H-E industrial hose pump is based on the hose pump by industrial hose pump supplier Lead Equipment. LCP40H-E industrial hose pump uses high-pressure wear-resistant extruded tube with a pressure of 2.5Mpa and a production capacity of 45m3 / h. More widely used for pumping foam concrete, lightweight concrete, mortar and refractory materials. LCP40H-E industrial hose pump can also be used to spray or grout concrete or refractory materials.
parameter
LH100-1050
100mm (Trelleborg Squeeze hose)
39rpm
45m3/h
2.5Mpa
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description
LCP40H-E industrial hose pump is based on the hose pump by industrial hose pump supplier Lead Equipment. LCP40H-E industrial hose pump uses high-pressure wear-resistant extruded tube with a pressure of 2.5Mpa and a production capacity of 45m3 / h. More widely used for pumping foam concrete, lightweight concrete, mortar and refractory materials. LCP40H-E industrial hose pump can also be used to spray or grout concrete or refractory materials.
Lead Equipment as a supplier of LCP40H-E industrial hose pump, we have strict control over the quality of our products. LCP40H-E industrial hose pump meets national standards, has strong self-priming ability, unique structure, and adopts a unique seal to prevent leakage. It meets the requirements of work site management.

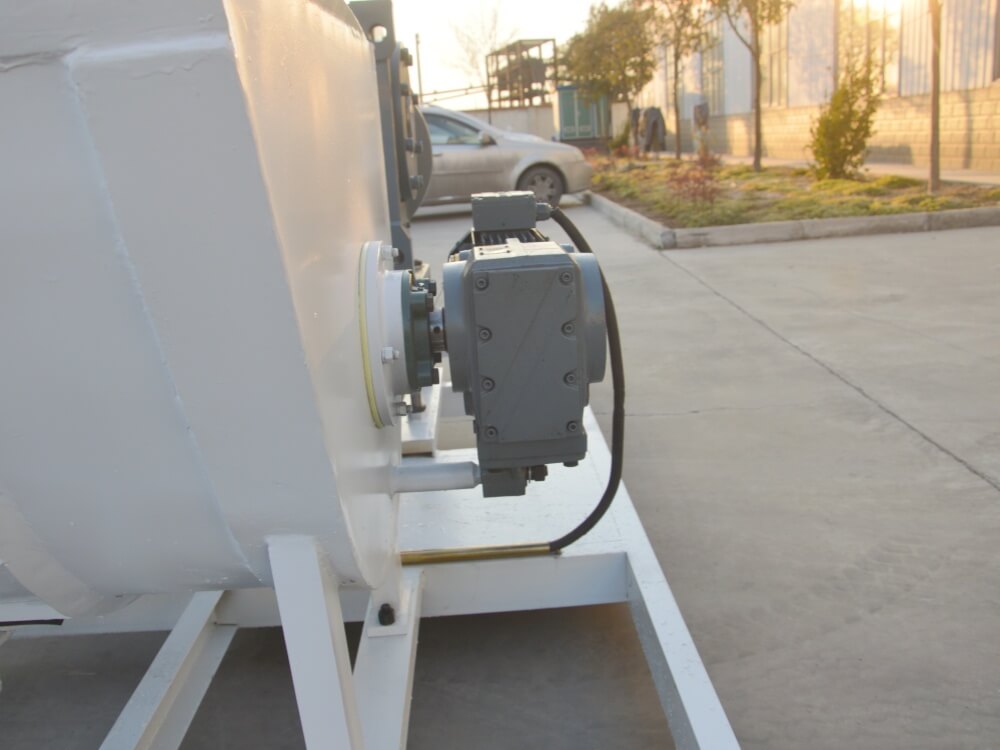

Heavy-duty gearbox

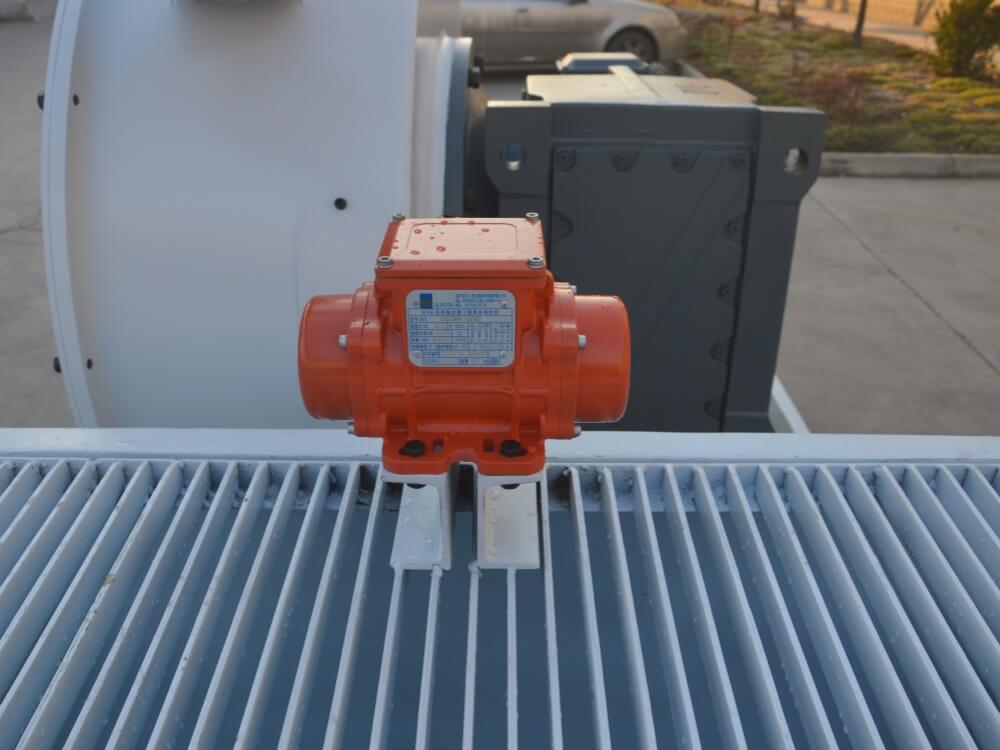

IP65 waterproof vibrator
Lead Equipment as a supplier of LCP40H-E industrial hose pump, we have strict control over the quality of our products. LCP40H-E industrial hose pump meets national standards, has strong self-priming ability, unique structure, and adopts a unique seal to prevent leakage. It meets the requirements of work site management.
Heavy-duty gearbox
IP65 waterproof vibrator
Application
Lead Equipment is China's leading supplier of industrial hose pumps. Our LCP40H-E industrial hose pump has been exported to South Africa, the United States, Canada, India, Malaysia, Pakistan, South Korea, Bahrain and Nepal, and are used in many large projects such as tunnels. Excavation, subway construction, bridge construction, sewage treatment, mining, etc.

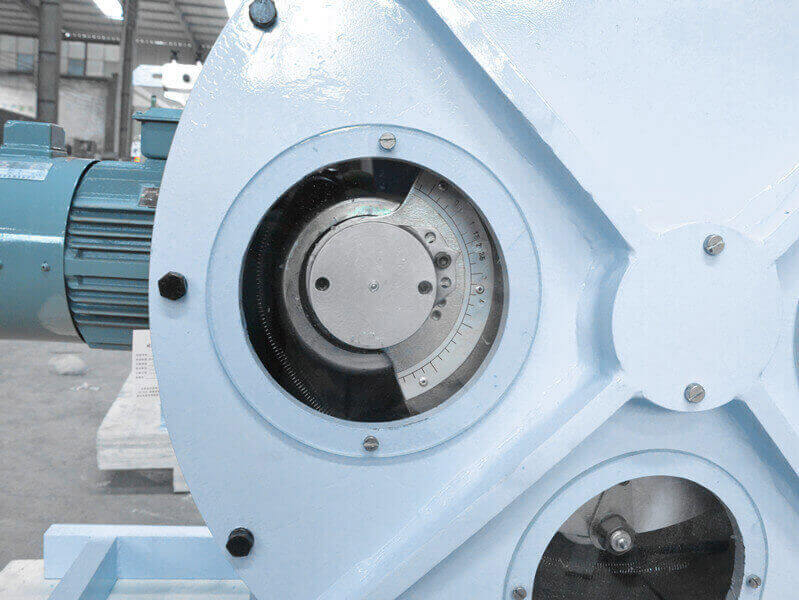

The gap size between roller and Pump house is sited by the below scale, then by locked by screw.
Almost no residual concrete
Nearly 100 % of the concrete in the hopper can be delivered to the construction site. I.e. no more concrete residue, and expensive concrete residue disposal can also be avoided.
The gap size between roller and Pump house is sited by the below scale, then by locked by screw.
Almost no residual concrete
Nearly 100 % of the concrete in the hopper can be delivered to the construction site. I.e. no more concrete residue, and expensive concrete residue disposal can also be avoided.
Features
As an industrial hose pump supplier with 20 years of experience, our company's LCP40H-E industrial hose pump has performance advantages that cannot be ignored, and its main features are:

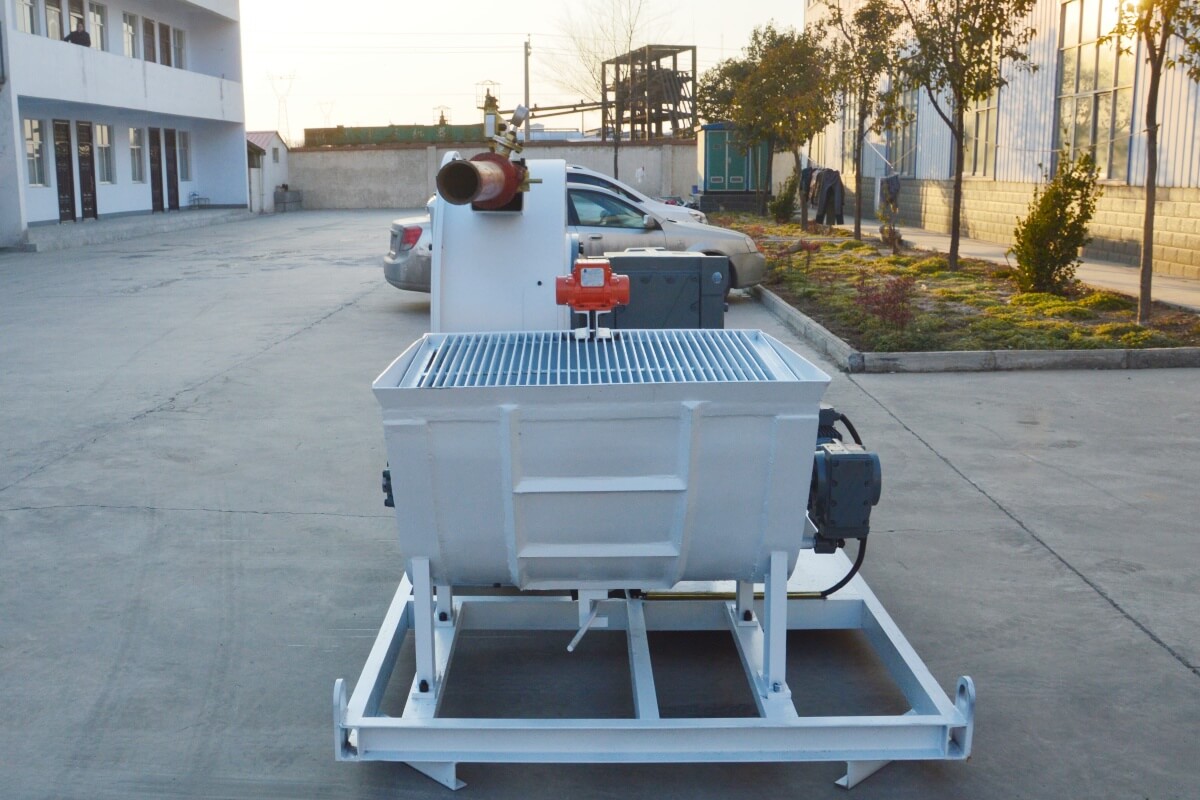

1. Compact size: hopper with agitator, hose pump, power combined in a base frame.
2. Soft start: electric motor smoothly start and protect the motor
3. Low wear: the squeeze hose is the only wear part of the pump and can be replaced very quickly
4. Delivers even the most difficult materials
5. Quiet pumping process
6. Forwards and reverse, easily to removal the block.
7. Clean on the line: Quick and easy cleaning
8. No residual concrete remains in the system
Delivers even the most difficult materials
Delivers even the most difficult of materials: steel fibre concrete, broken material, screed, foamed concrete, fluid concrete, lightweight concrete up to a particle distribution of 20 mm.
1. Compact size: hopper with agitator, hose pump, power combined in a base frame.
2. Soft start: electric motor smoothly start and protect the motor
3. Low wear: the squeeze hose is the only wear part of the pump and can be replaced very quickly
4. Delivers even the most difficult materials
5. Quiet pumping process
6. Forwards and reverse, easily to removal the block.
7. Clean on the line: Quick and easy cleaning
8. No residual concrete remains in the system
Delivers even the most difficult materials
Delivers even the most difficult of materials: steel fibre concrete, broken material, screed, foamed concrete, fluid concrete, lightweight concrete up to a particle distribution of 20 mm.
Product Details
-
electric squeeze hose pump -

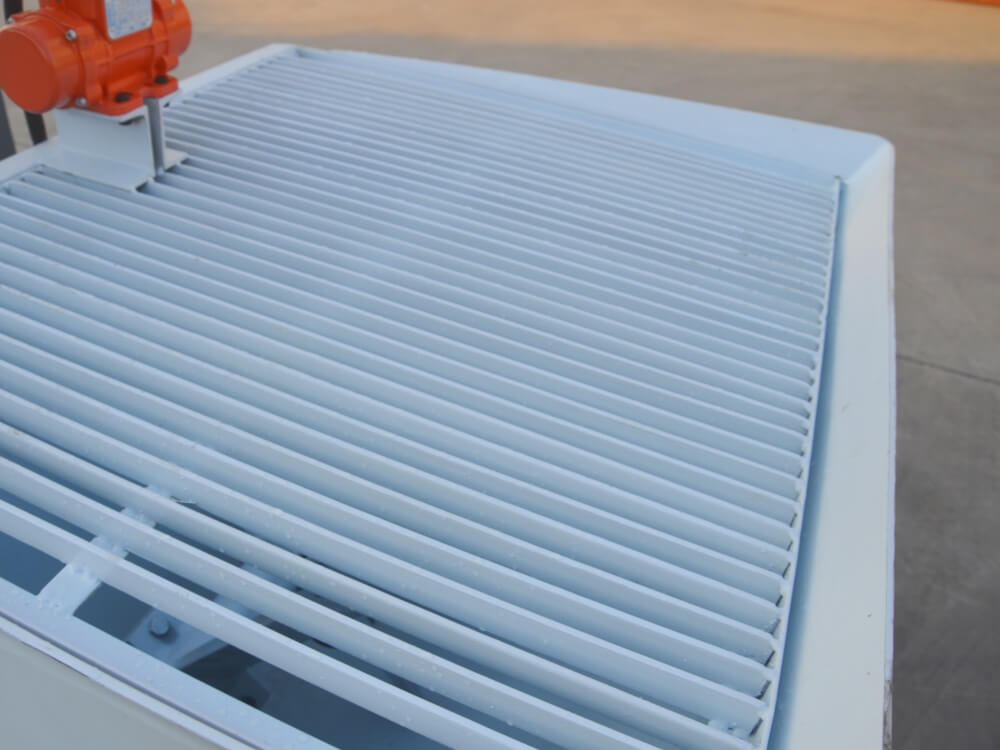

IP65 waterproof vibrator -
Almost no residual concrete
Technical Parameters
| Description | parameter |
| Hose Pump | LH100-1050 |
| Hose ID | 100mm (Trelleborg Squeeze hose) |
| Pump Speed | 39rpm |
| Rated Output | 45m3/h |
| Pressure | 2.5Mpa |
| Max. Aggregate size | <15mm |
| Concrete Slump | 15-23cm |
| Hopper Capacity | 400L |
| Hopper mixing speed | 37rpm |
| Power Voltage | 45KW 50HZ IP55 3~380V |
| Overall Dimension | 3080x1560x1730mm |
| Weight | 2840kg |
Inquiry
Please feel free to submit your inquiry information to us. We will contact with you as soon as possible.
