LH10-200 Peristaltic Hose Metering Pump
LH10-200 peristaltic hose metering pump can be used for metering of additives in the pharmaceutical industry, for adding chemical media containing acidic and corrosive substances in the chemical industry, and for metering pumps for environmentally-friendly industrial water treatment.
Item
LH 10-200
12-60rpm
60-300L/h
6bar
20L
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description
LH10-200 peristaltic hose metering pump can be used for metering of additives in the pharmaceutical industry, for adding chemical media containing acidic and corrosive substances in the chemical industry, and for metering pumps for environmentally-friendly industrial water treatment.
LH10-200 peristaltic hose metering pump has simple structure, easy maintenance, no damage during idling, low speed, and no noise. The flow rate can be adjusted steplessly within the range of 0-100%, and the flow rate stability accuracy can reach ± 1%, which is especially suitable for the metering and pumping of pharmaceutical or chemical media.
577.png)
LH10-200 peristaltic hose metering pump has simple structure, easy maintenance, no damage during idling, low speed, and no noise. The flow rate can be adjusted steplessly within the range of 0-100%, and the flow rate stability accuracy can reach ± 1%, which is especially suitable for the metering and pumping of pharmaceutical or chemical media.
Application
LH10-200 peristaltic hose metering pump can be used for drinking water disinfection, pH adjustment in drinking water and industrial wastewater treatment, industrial cooling water preparation, flocculant, beneficiation-agent addition, disinfection laboratory, etc.
LH10-200 peristaltic hose metering pumps have many advantages: they have the good self-priming ability, almost perfect vacuum to absorb liquid; transport contains foam, bubbles without air resistance; conveying high viscosity, shear sensitive medium is also strong; The fixed displacement is independent of the outlet pressure and is a natural peristaltic hose metering pump.
♦LH10-200 peristaltic hose metering pump speed indicator and output diagrams Detailed Parts
LH10-200 peristaltic hose metering pumps have many advantages: they have the good self-priming ability, almost perfect vacuum to absorb liquid; transport contains foam, bubbles without air resistance; conveying high viscosity, shear sensitive medium is also strong; The fixed displacement is independent of the outlet pressure and is a natural peristaltic hose metering pump.
♦LH10-200 peristaltic hose metering pump speed indicator and output diagrams Detailed Parts
Features
LH10-200 peristaltic hose metering pump is widely used because of its unique advantages:
1. No valves, perfect pump for high viscosity fluids, simple structure, easy to clean.
2. High measurement accuracy, repeatability ± 1%.
3. LH10-200 peristaltic hose metering pump self-priming ability, suction height.
4. Uniform continuous pumping, pulse small
5. No bear, easy to clean and maintain.
6. Less wear parts, the only hose is wear part, low cost.
7. Flow infinitely adjustable for different requirements.
8. Just replace the different hose, can pump the different material.
♦Compared LH10-200 peristaltic hose metering pump with other pump
Other pump discharge slurry
LH10-200 peristaltic hose metering pump discharge slurry
1. No valves, perfect pump for high viscosity fluids, simple structure, easy to clean.
2. High measurement accuracy, repeatability ± 1%.
3. LH10-200 peristaltic hose metering pump self-priming ability, suction height.
4. Uniform continuous pumping, pulse small
5. No bear, easy to clean and maintain.
6. Less wear parts, the only hose is wear part, low cost.
7. Flow infinitely adjustable for different requirements.
8. Just replace the different hose, can pump the different material.
♦Compared LH10-200 peristaltic hose metering pump with other pump
Other pump discharge slurry
LH10-200 peristaltic hose metering pump discharge slurry

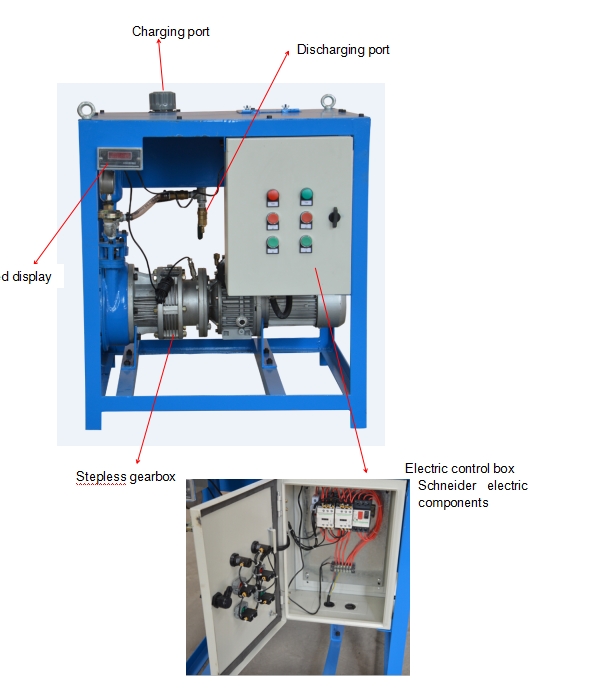

Product Details
-
Anti-shock pressure gauge -
Electric control box -
Inside of electric control box -

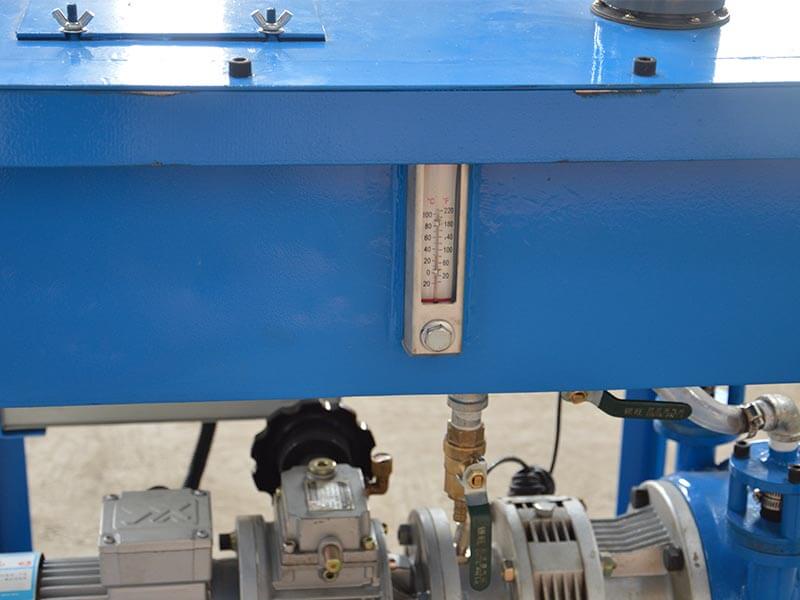

Level Meter -
Stepless gearbox -
peristaltic hose metering pump
Technical Parameters
| Description | Item |
| Dosing Pump | LH10-200 |
| Speed | 12-60rpm |
| Output | 60-300L/h |
| Pressure | 6bar |
| Hopper Capacity | 20L |
| Power | 0.75Kw |
| Reducer Model | MBNL07-Y0.75-XL3-17-SX-B5 |
| Overall Dimension | 700×700×850mm |
| Weight | 75kg |
