LH32-450C Peristaltic Hose Pump for Sale
LH32-450C peristaltic hose pump for sale is a kind of peristaltic pump. An elastomeric tube is squeezed along a length by rollers that push the fluid contained within. The tube’s restitution after squeezing produces a vacuum that draws fluid continuously into the tube. This creates a gentle pumping action that doesn’t cause any damage to the product. Contaminations are avoided because the fluid is contained within the tube.
LH32-450C
30L/min ( at 0.3Mpa, 50HZ)
36RPM
32mm
1.5Mpa
3 phase, 380V, 50HZ
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description
LH32-450C peristaltic hose pump for sale is a kind of peristaltic pump. An elastomeric tube is squeezed along a length by rollers that push the fluid contained within. The tube’s restitution after squeezing produces a vacuum that draws fluid continuously into the tube. This creates a gentle pumping action that doesn’t cause any damage to the product. Contaminations are avoided because the fluid is contained within the tube.

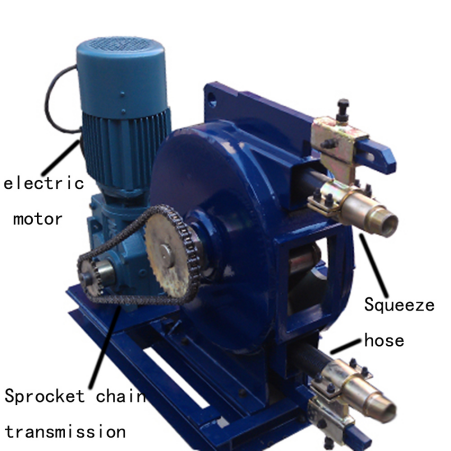

LH32-450C peristaltic hose pump for sale employs a rotor with rollers mounted on it that continually compress and occlude some portion of the tube. This action moves the fluid through the tube with a constant rate of displacement for each revolution of the rotor, enabling a precise measurement of the volume of fluid pumped through the tube.
LH32-450C peristaltic hose pump for sale employs a rotor with rollers mounted on it that continually compress and occlude some portion of the tube. This action moves the fluid through the tube with a constant rate of displacement for each revolution of the rotor, enabling a precise measurement of the volume of fluid pumped through the tube.
Application

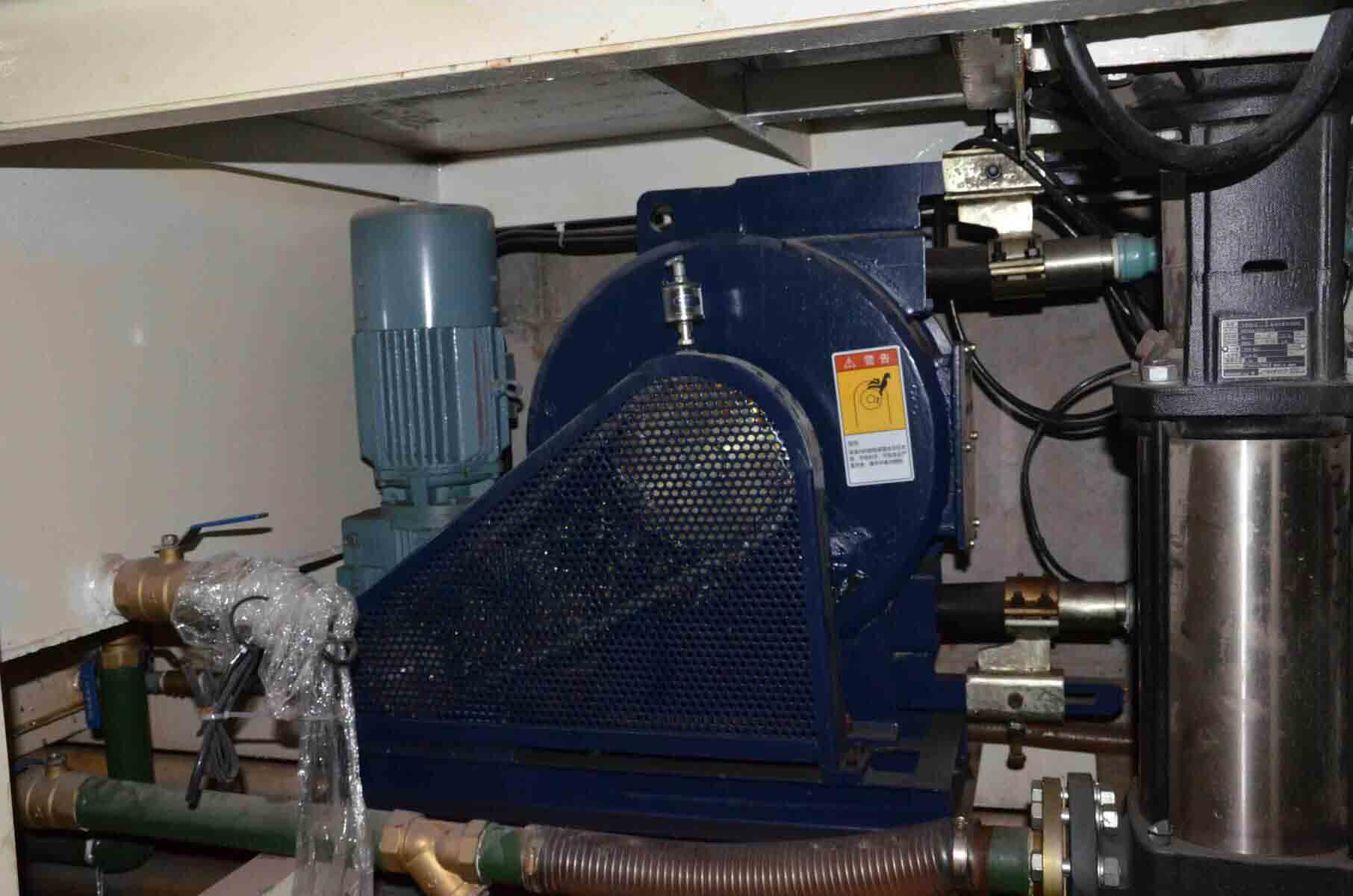

LH32-450C peristaltic hose pumps for sale are mainly applied in distant conveying, grouting and dosing ofviscous slurries in construction, mining, food, papermaking, ceramic,etc
LH32-450C peristaltic hose pumps for sale can be used in following field: Construction, pharmacy, textilemill, dye making, water treatment, paper making, mining, ceramic brewery and beverage,underground engineering, etc. It's perfect to pump corrosive, abrasives, shear sensitive fluids,high viscosity fluids, high density fluids large solids, metering(+1%), high pressure(3mpa).LHseries industrial hose pump are mainly applied in distant conveying grouting and dosing of viscous slurries in construction, mining, food, papermaking, ceramic, etc.
LH32-450C peristaltic hose pumps for sale can be used in following field: Construction, pharmacy, textilemill, dye making, water treatment, paper making, mining, ceramic brewery and beverage,underground engineering, etc. It's perfect to pump corrosive, abrasives, shear sensitive fluids,high viscosity fluids, high density fluids large solids, metering(+1%), high pressure(3mpa).LHseries industrial hose pump are mainly applied in distant conveying grouting and dosing of viscous slurries in construction, mining, food, papermaking, ceramic, etc.
Features
LH32-450C peristaltic hose pump for sale is a new type of hose pump produced by Lead Equipment Co., Ltd., which absorbs advanced technology at home and abroad and has unique performance advantages. The main features of LH32-450C peristaltic hose pump are:
- Reversibility
- Sealessness and valveless
- Abrasion resistance
- Self priming with high suction
- With 1% repeat precision
- Corrosion-resistant
- Easy to clean
- LH32-450C peristaltic hose pump can run dry without damage
- Peristaltic tube is the only consumption part
Product Details
-
application of peristaltic hose pump -
LH32-450C peristaltic hose pump cost -
LH32-450C peristaltic hose pumps -
peristaltic hose pump application -
peristaltic hose pump for sale -
peristaltic hose pump
Technical Parameters
| Type | LH32-450C |
| Max. ouput | 30L/min ( at 0.3Mpa, 50HZ) |
| Rotation | 36RPM |
| Squeeze hose ID | 32mm |
| Max. pressure | 1.5Mpa |
| Voltage | 3 phase, 380V, 50HZ |
| Power | 3KW |
