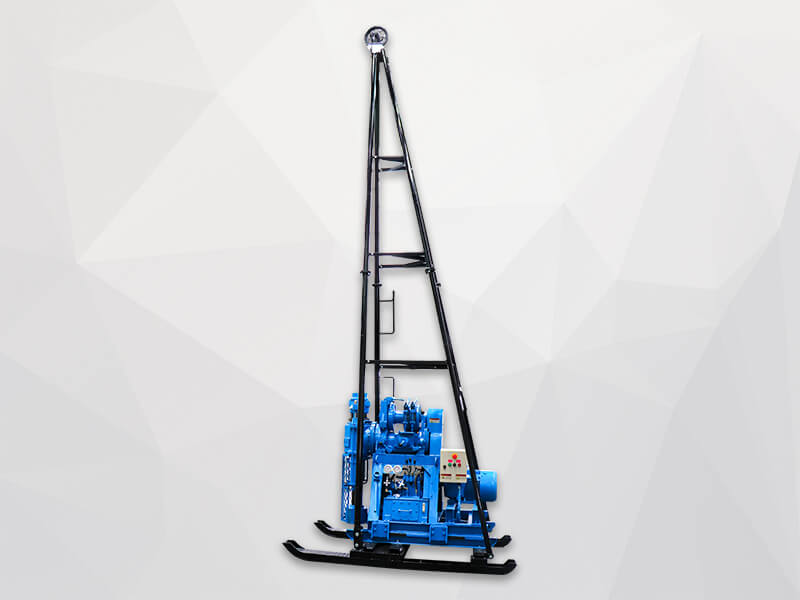

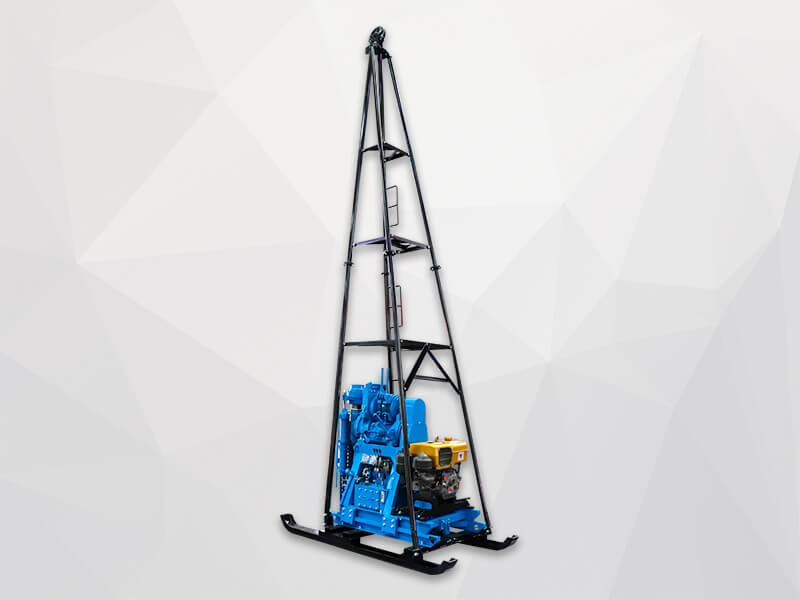

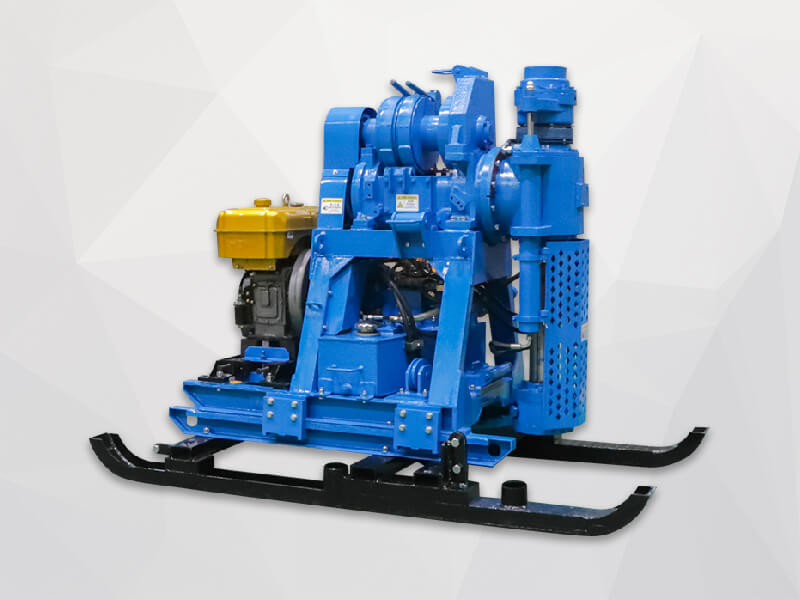

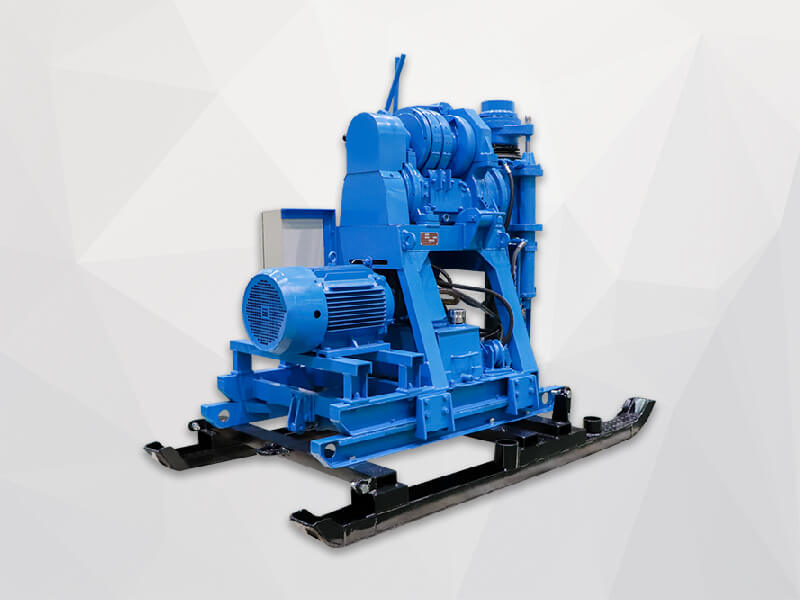

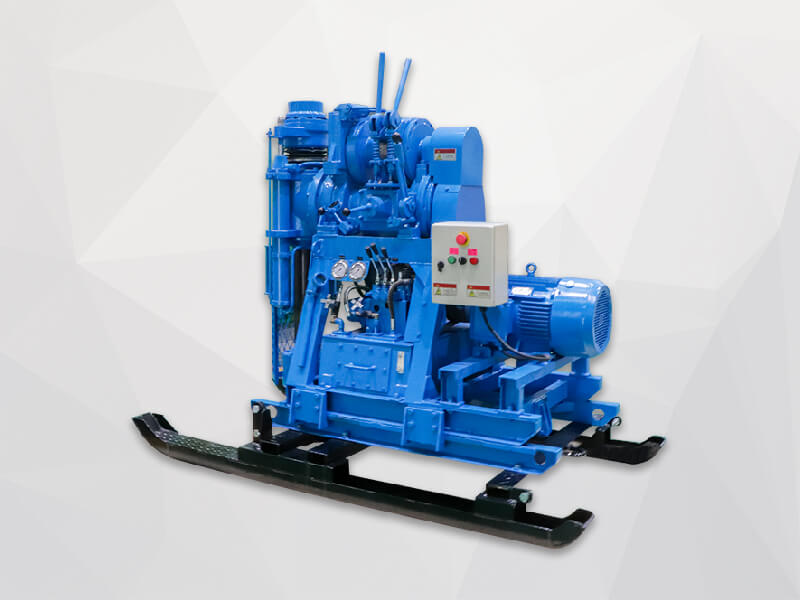

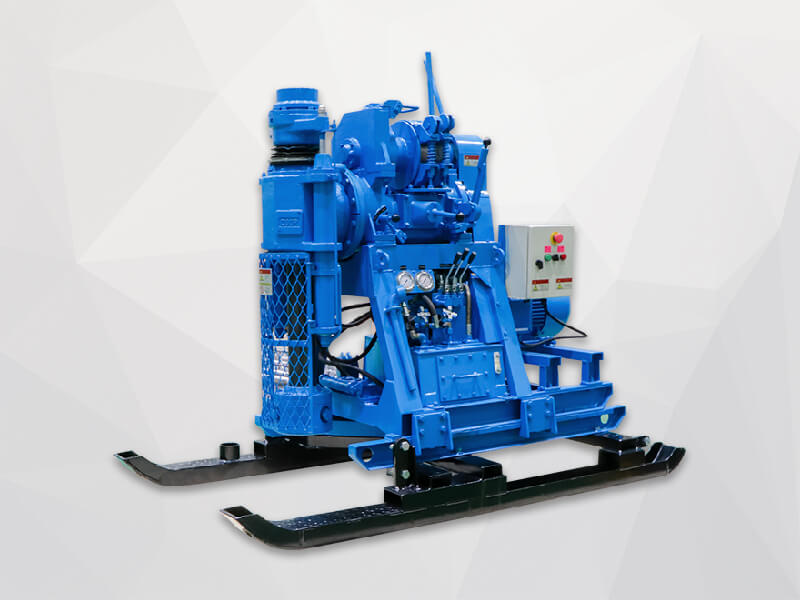

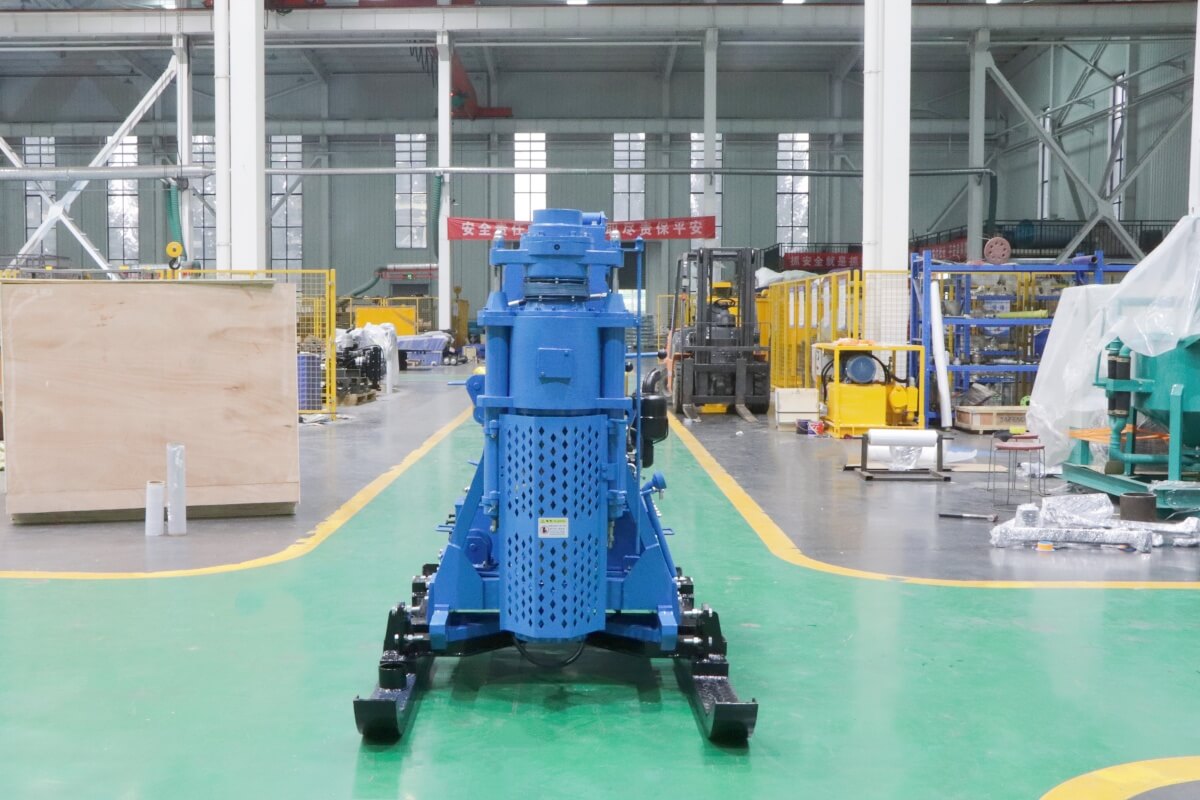

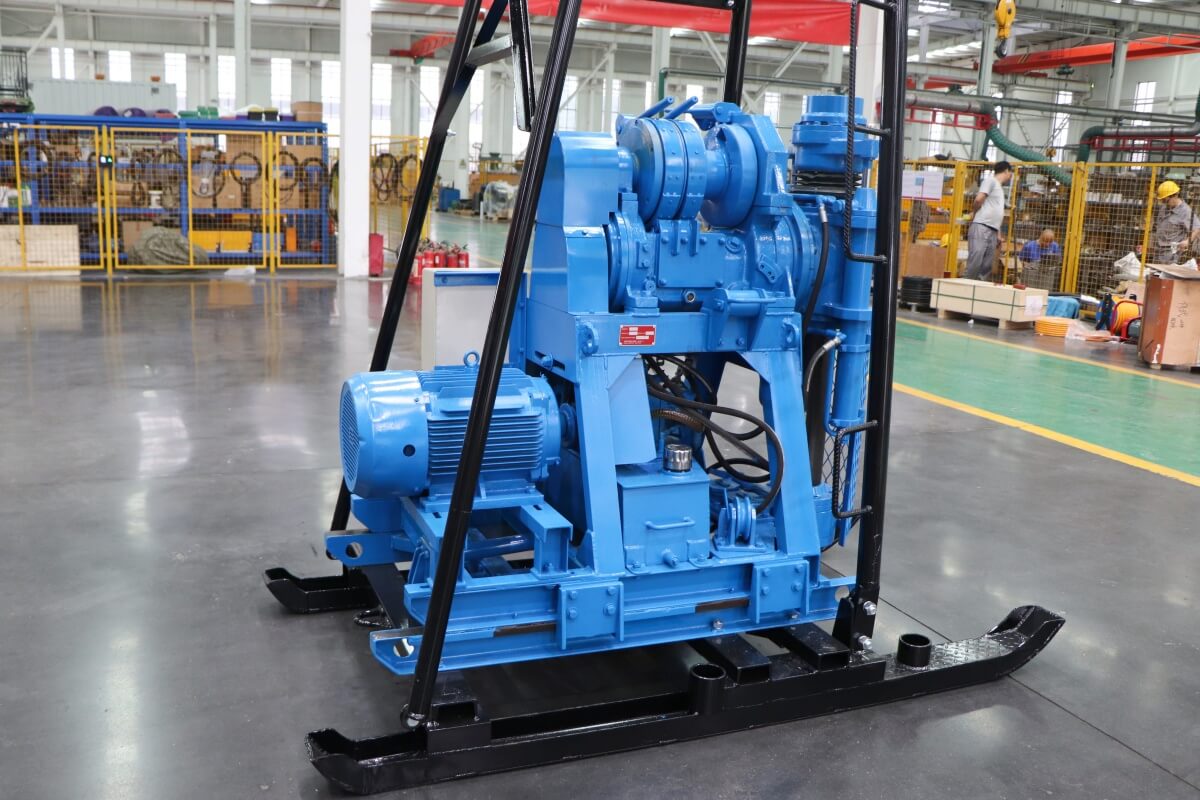

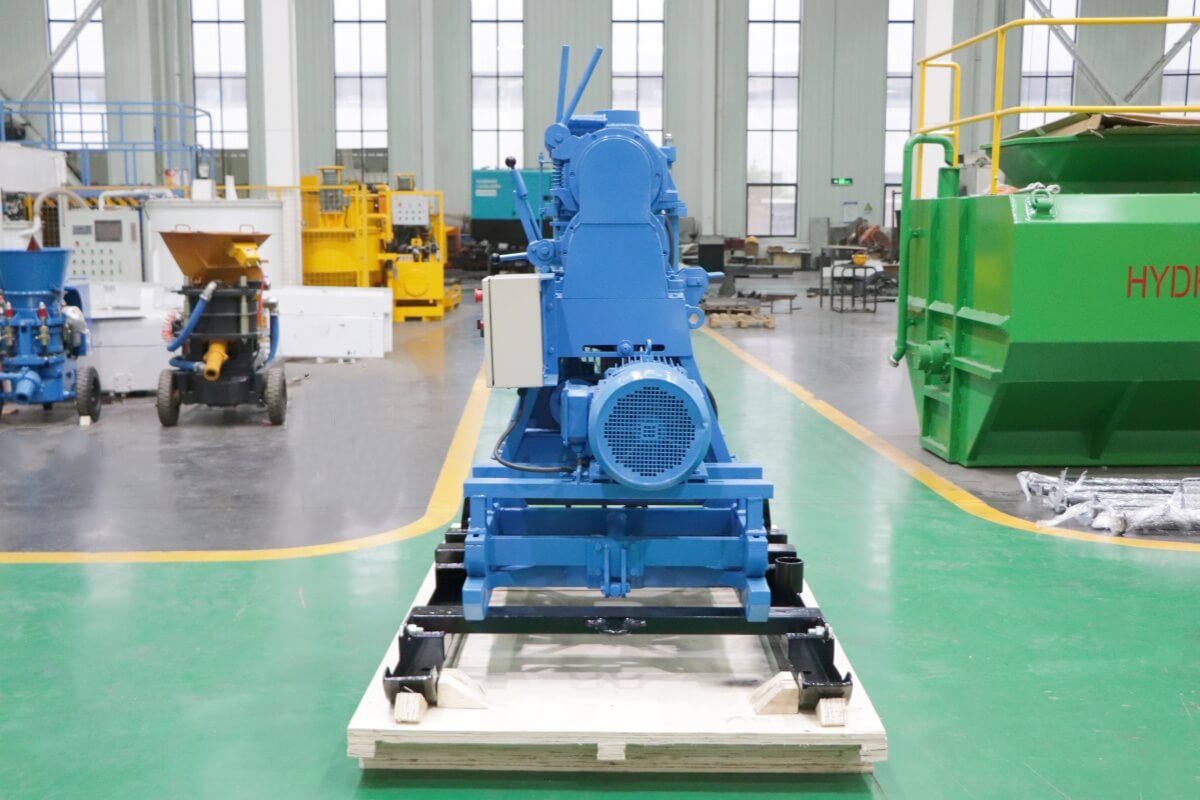

LE90R Small portable core drill rig with diesel or electric power
LE90R Small portable core drill rig is suitable for geotechnical investigation, geological surveys, mineral exploration, foundation testing, and rock or soil core sampling.
100m (NW Casing)
Spindle type, hydraulic feed
360°
Description
92mm(NW Casing)
Operation Side
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
(R) Right-Standard, (L) Left-Optional

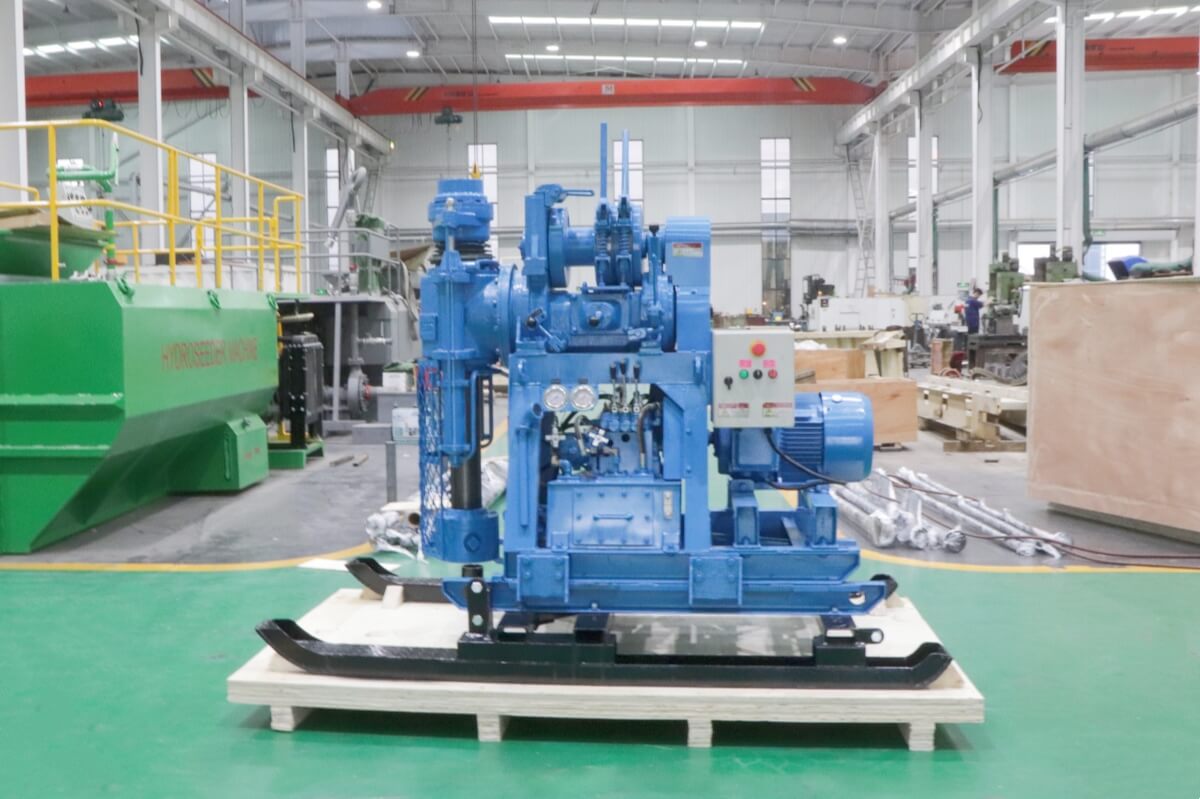

The LE90R small portable core drill rig is a field-ready drilling system developed for soil investigation, diamond core recovery and geotechnical exploration. Its main components—including the drill head, hoist, hydraulic controls, transmission and mast—are assembled on a strong steel drag skid, creating a compact unit that can be relocated between drilling points.
The rig is available with diesel or electric power to suit different jobsite conditions. A 15 HP diesel engine is the standard option for remote locations, while an electric motor can be selected for sites with a suitable power supply. A four-speed transmission drives both the drilling head and planetary hoist, helping operators match the working speed to changing formations and lifting requirements.
Two hydraulic feed cylinders provide continuously variable feed control and generate an upward force of 5,580 kgf at 103 bar. The drill head can be swiveled to perform vertical or inclined drilling. A variable-volume vane pump supplies hydraulic power, while the 30 L oil reservoir supports stable operation. For easier borehole alignment, the hydraulic slide provides 370 mm of travel, and three drag pulleys assist with onsite repositioning.
The rig is available with diesel or electric power to suit different jobsite conditions. A 15 HP diesel engine is the standard option for remote locations, while an electric motor can be selected for sites with a suitable power supply. A four-speed transmission drives both the drilling head and planetary hoist, helping operators match the working speed to changing formations and lifting requirements.
Two hydraulic feed cylinders provide continuously variable feed control and generate an upward force of 5,580 kgf at 103 bar. The drill head can be swiveled to perform vertical or inclined drilling. A variable-volume vane pump supplies hydraulic power, while the 30 L oil reservoir supports stable operation. For easier borehole alignment, the hydraulic slide provides 370 mm of travel, and three drag pulleys assist with onsite repositioning.
Application
The LE90R diesel or electric core drill rig is suitable for:
Diamond core drilling
Geotechnical soil investigation
Geological survey and exploration
Soil and rock core recovery
Mineral prospecting projects
Foundation ground investigation
Civil engineering site assessment
Vertical and inclined exploration holes
Remote-area drilling with diesel power
Electrically powered drilling at fixed jobsites
Diamond core drilling
Geotechnical soil investigation
Geological survey and exploration
Soil and rock core recovery
Mineral prospecting projects
Foundation ground investigation
Civil engineering site assessment
Vertical and inclined exploration holes
Remote-area drilling with diesel power
Electrically powered drilling at fixed jobsites
Features
Diesel engine or electric motor power options

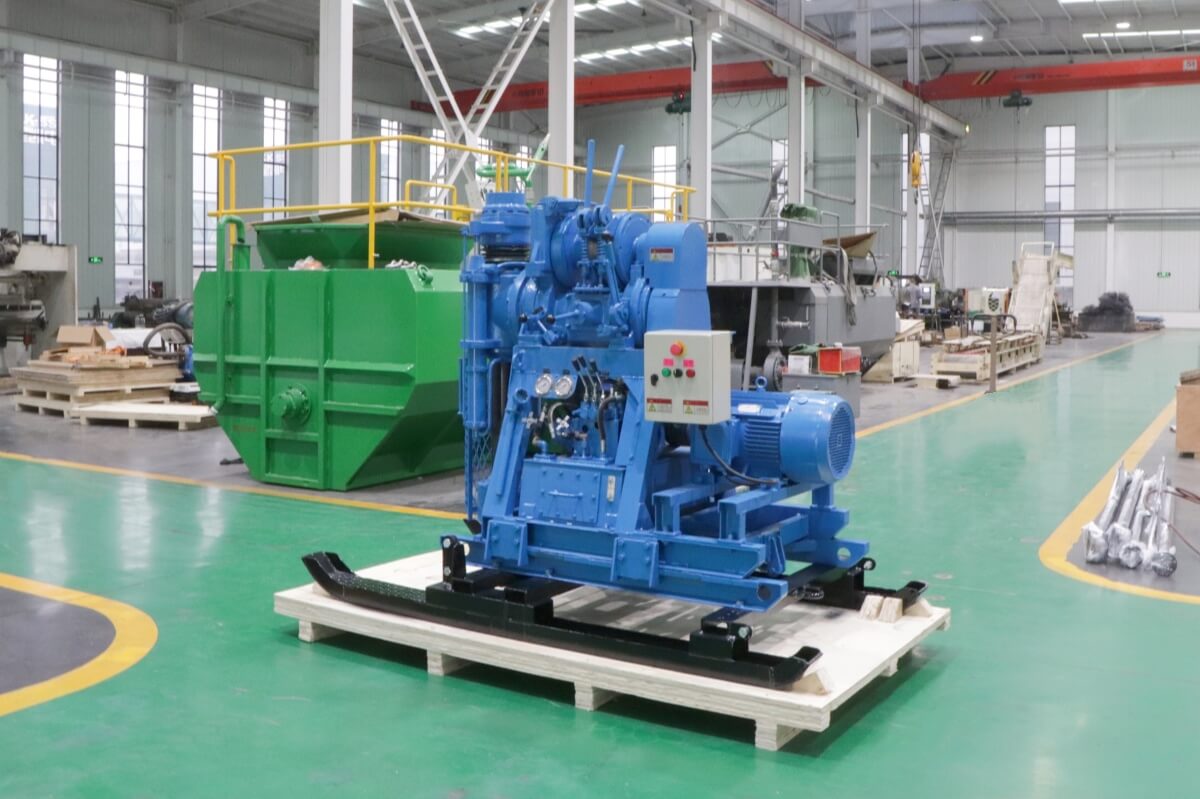

Compact steel-skid structure for field deployment
Four-speed drive system for drilling and hoisting

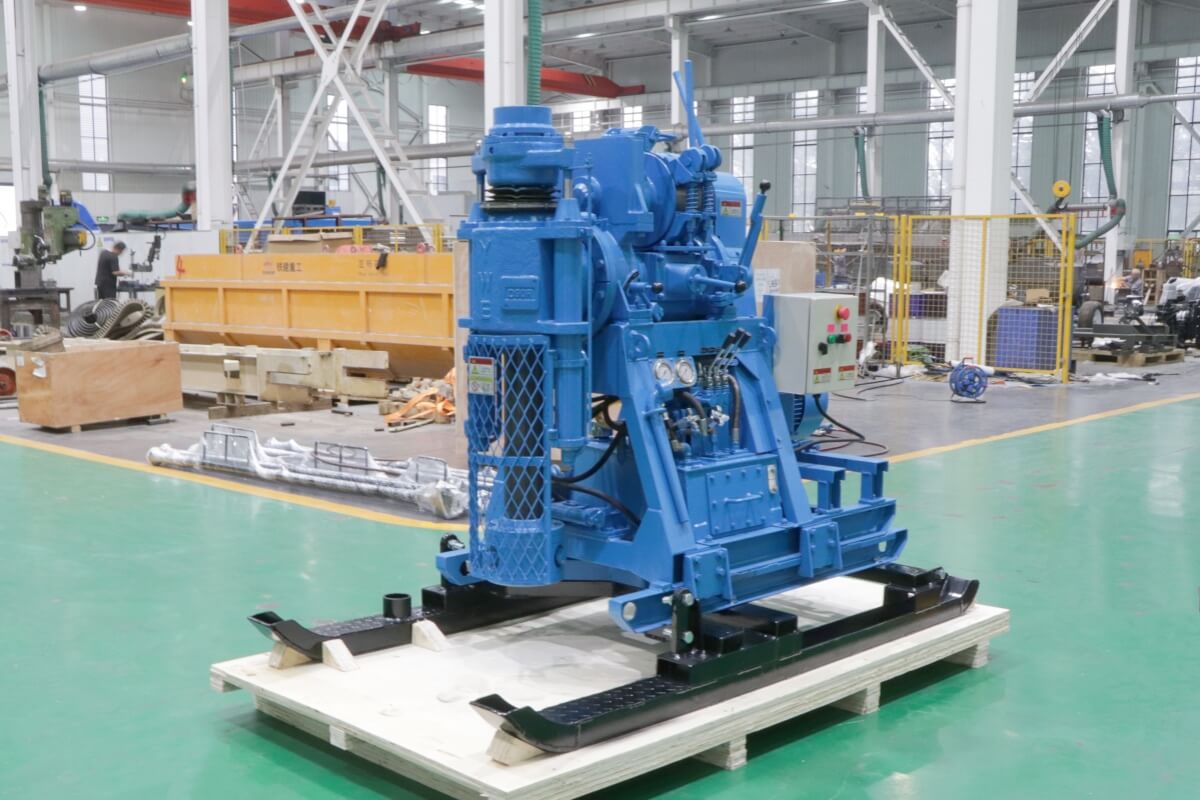

Planetary hoist with hand-operated brake and clutch
Continuously adjustable hydraulic drill feed
Up to 5,580 kgf upward force at 103 bar

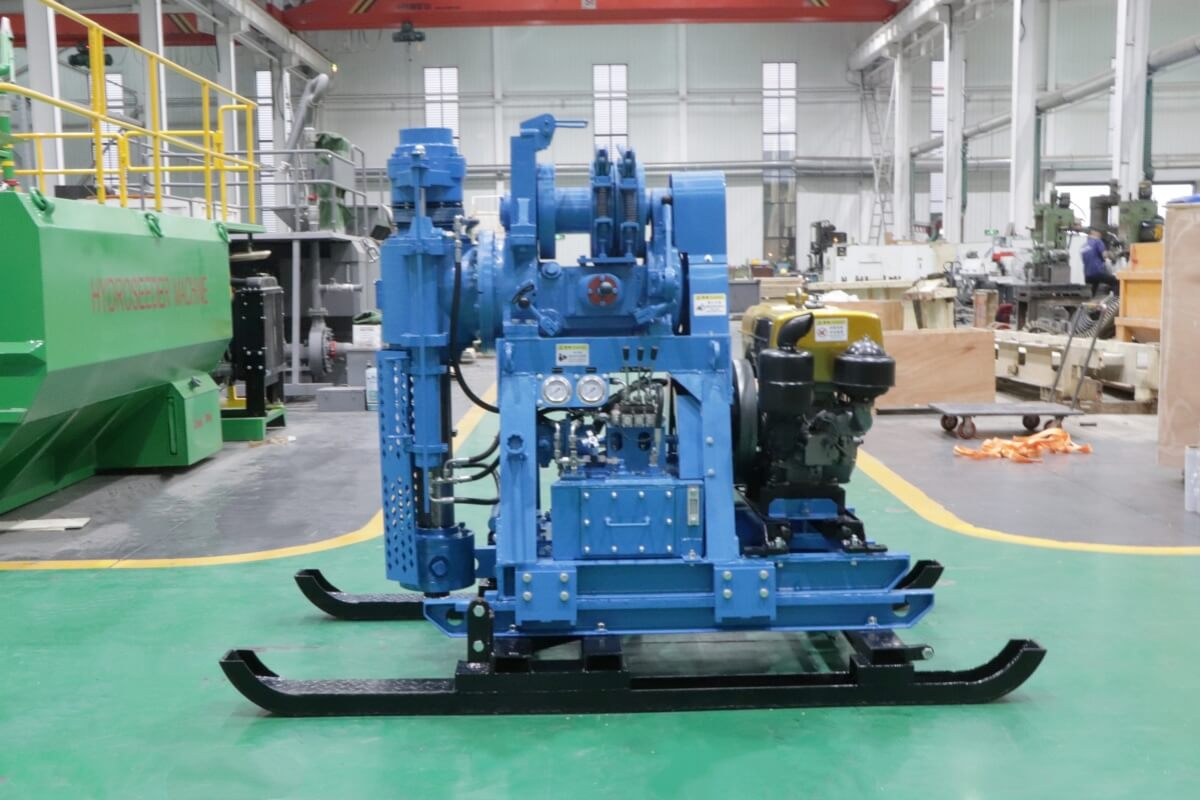

Swiveling drill head for angled boreholes
Engine-driven variable-volume hydraulic vane pump
Integrated 30 L hydraulic oil reservoir

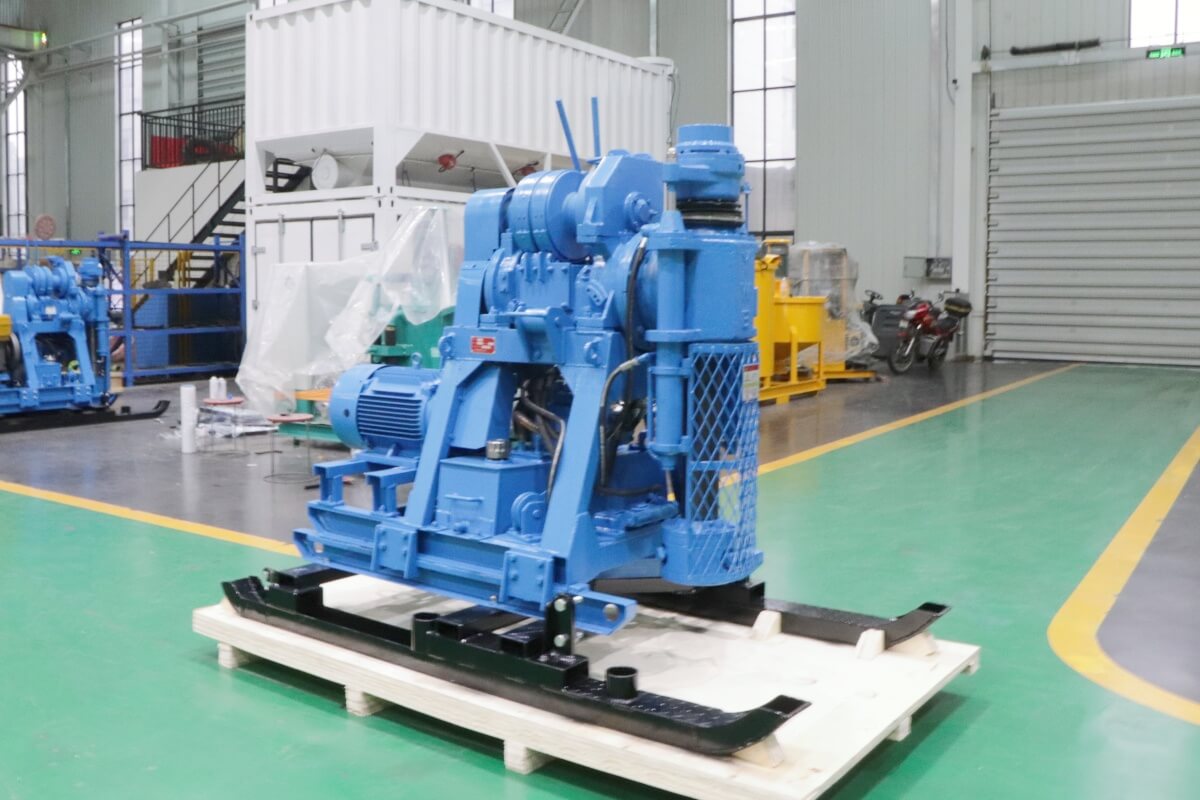

370 mm hydraulic slide for accurate hole alignment
Three drag pulleys for movement between boreholes

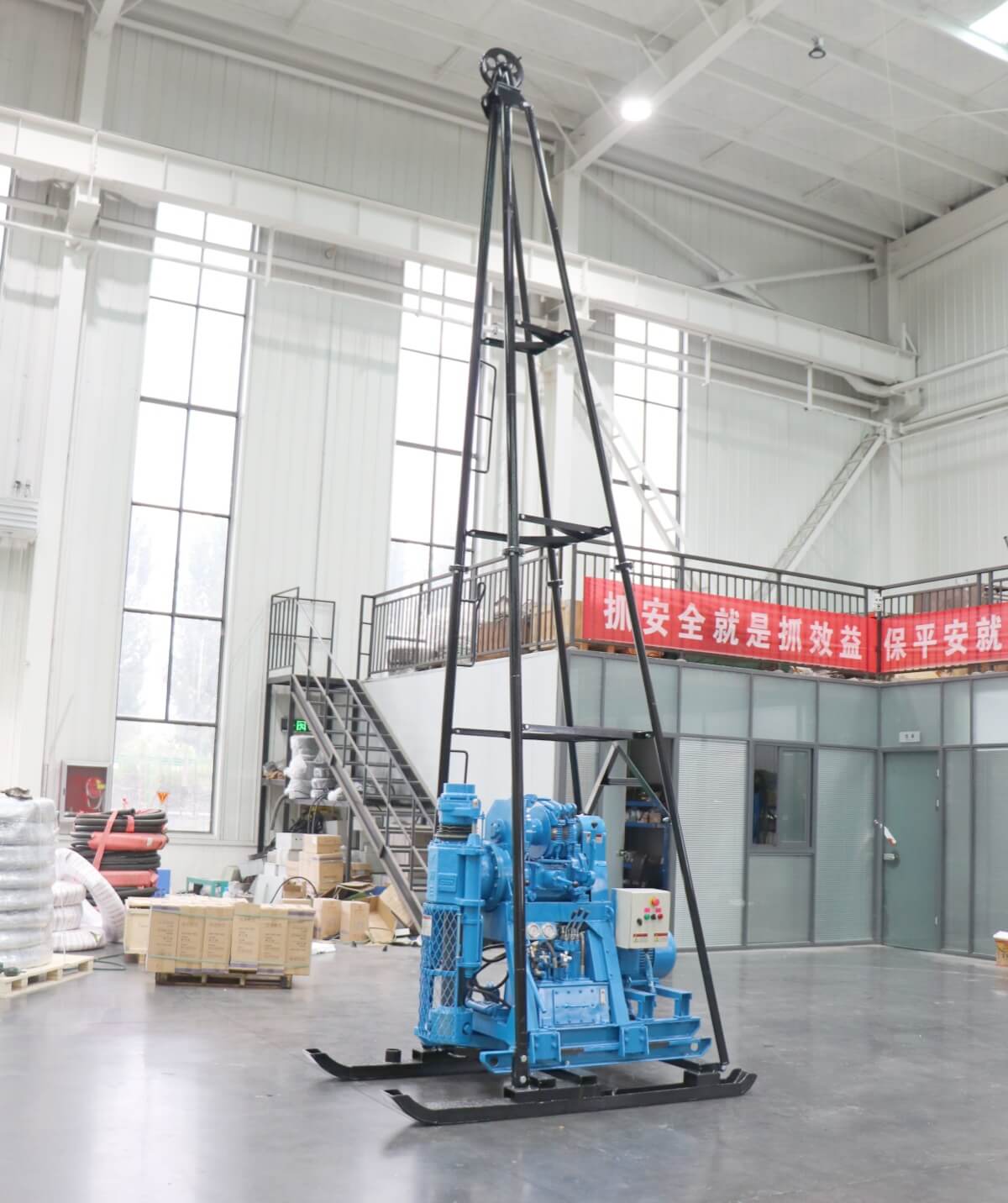

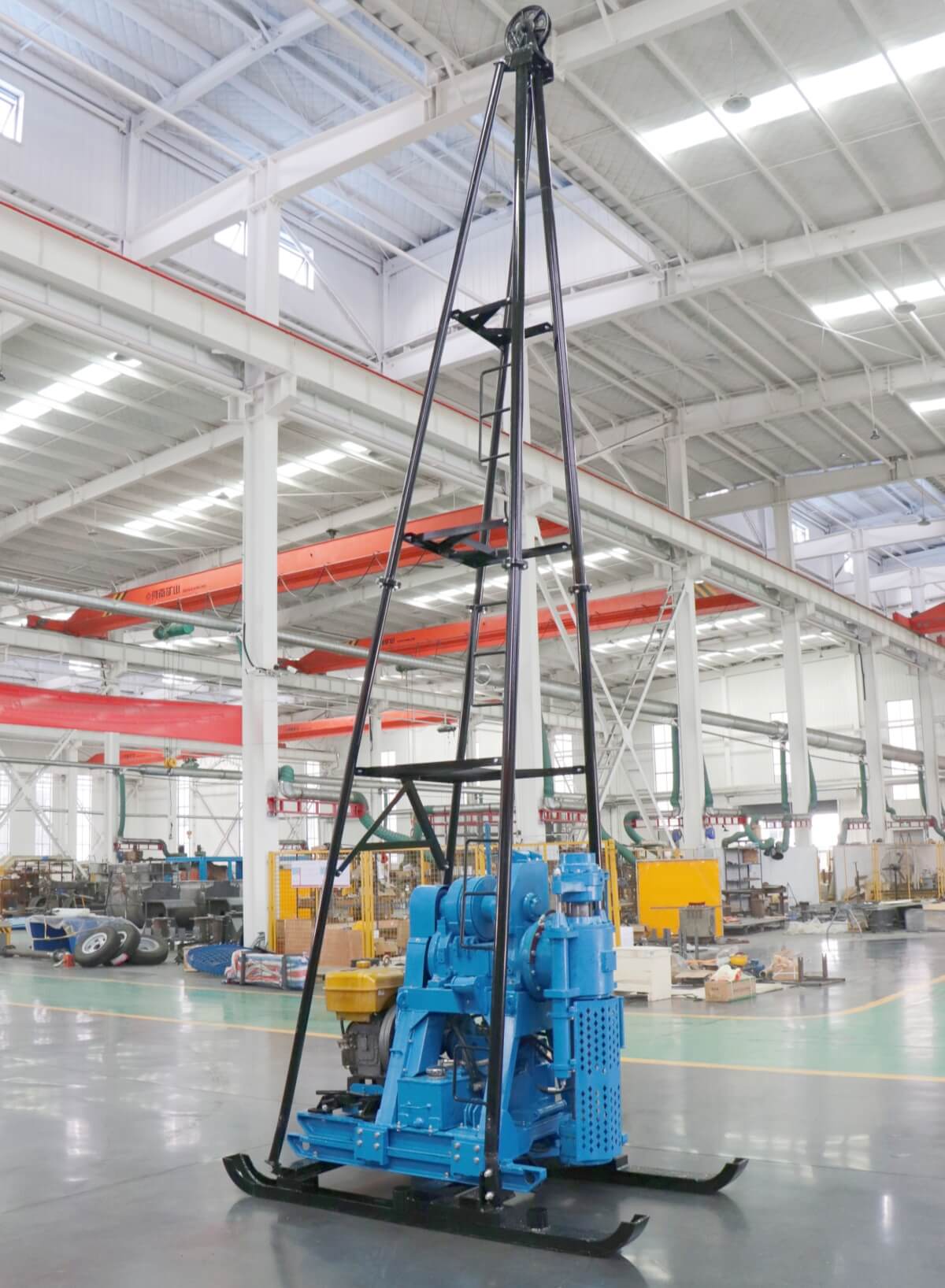

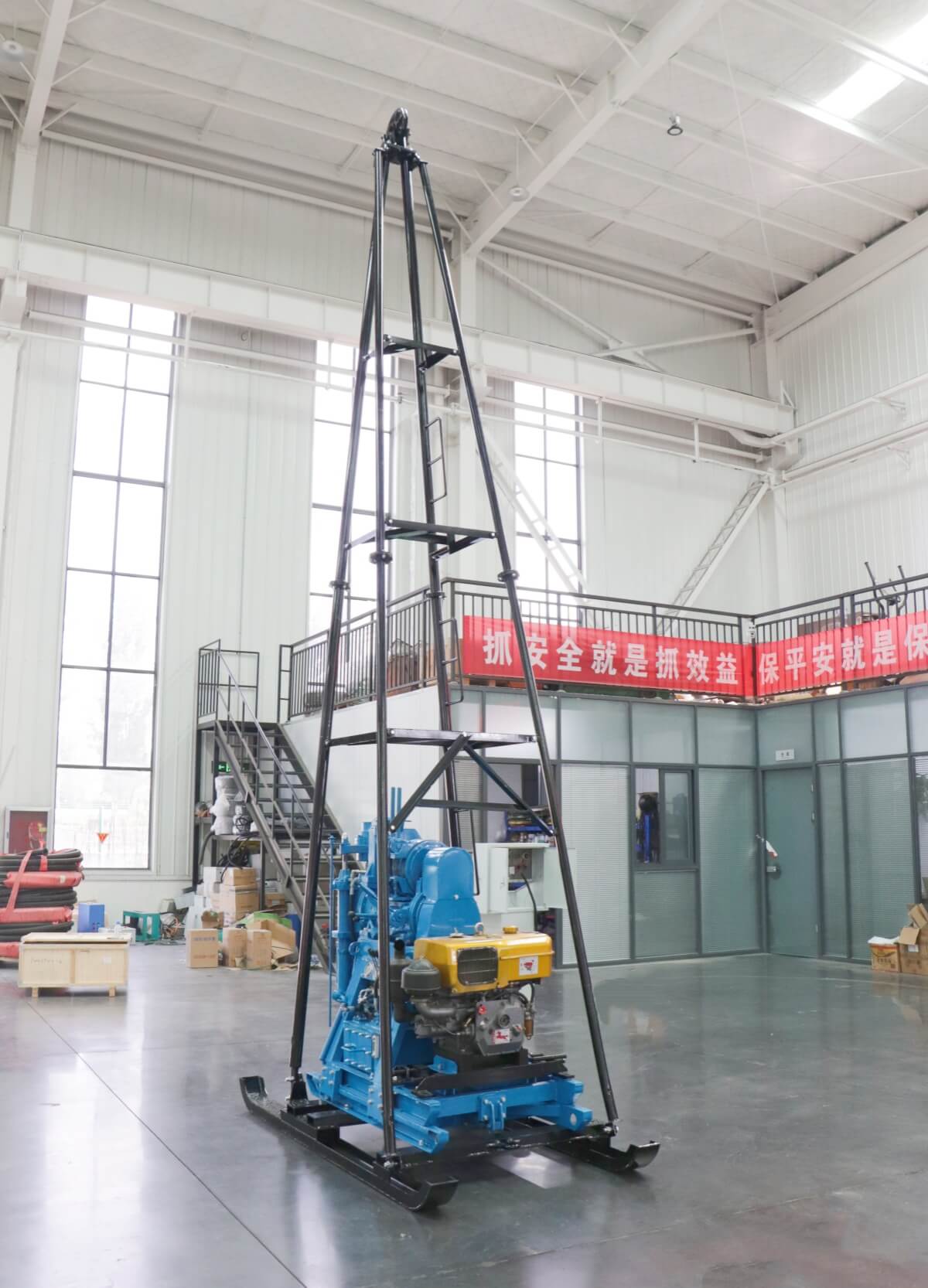

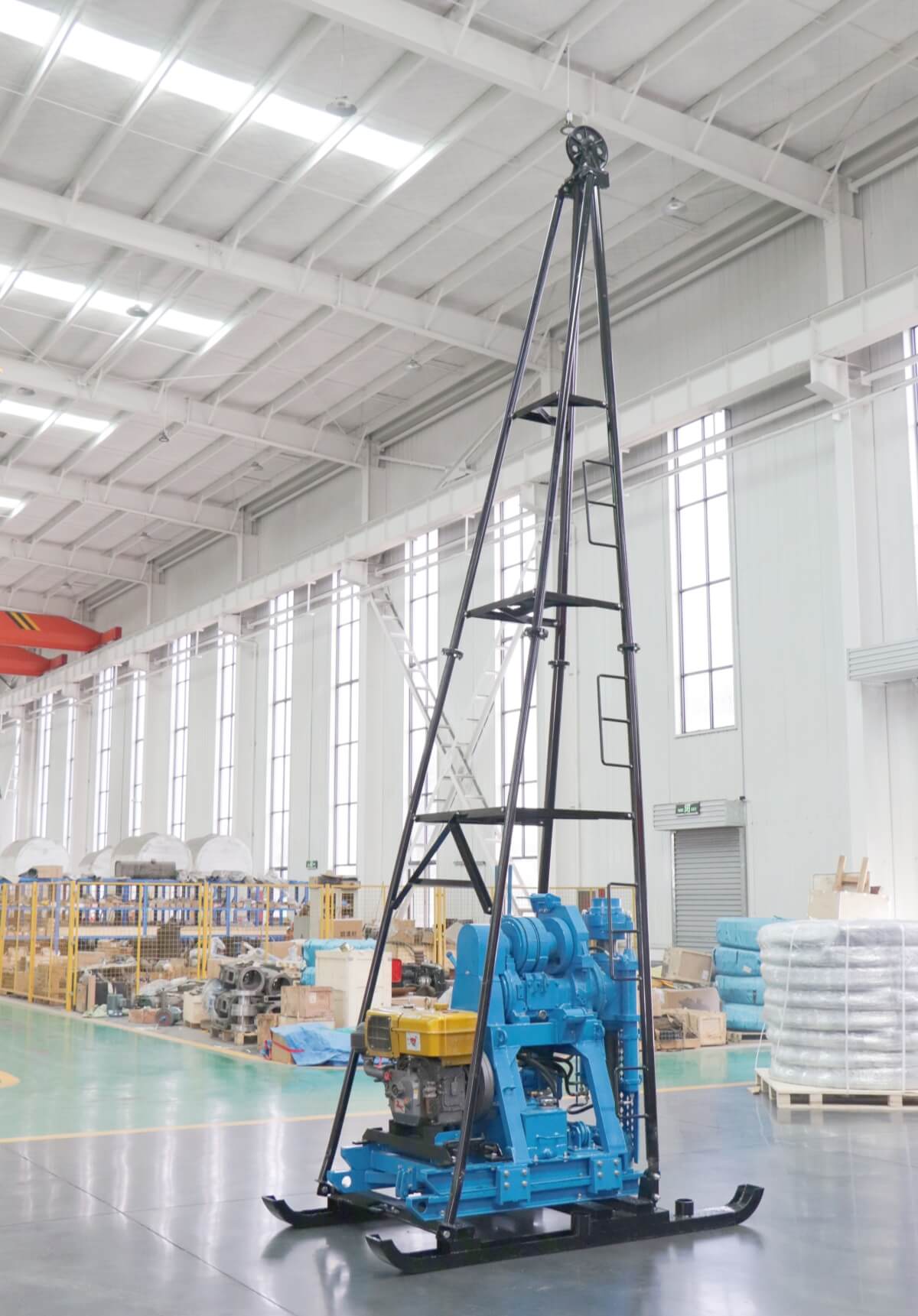

Braced four-pole mast with approximately 5.6 m lifting height
Compact steel-skid structure for field deployment
Four-speed drive system for drilling and hoisting
Planetary hoist with hand-operated brake and clutch
Continuously adjustable hydraulic drill feed
Up to 5,580 kgf upward force at 103 bar
Swiveling drill head for angled boreholes
Engine-driven variable-volume hydraulic vane pump
Integrated 30 L hydraulic oil reservoir
370 mm hydraulic slide for accurate hole alignment
Three drag pulleys for movement between boreholes
Braced four-pole mast with approximately 5.6 m lifting height
Product Details
-

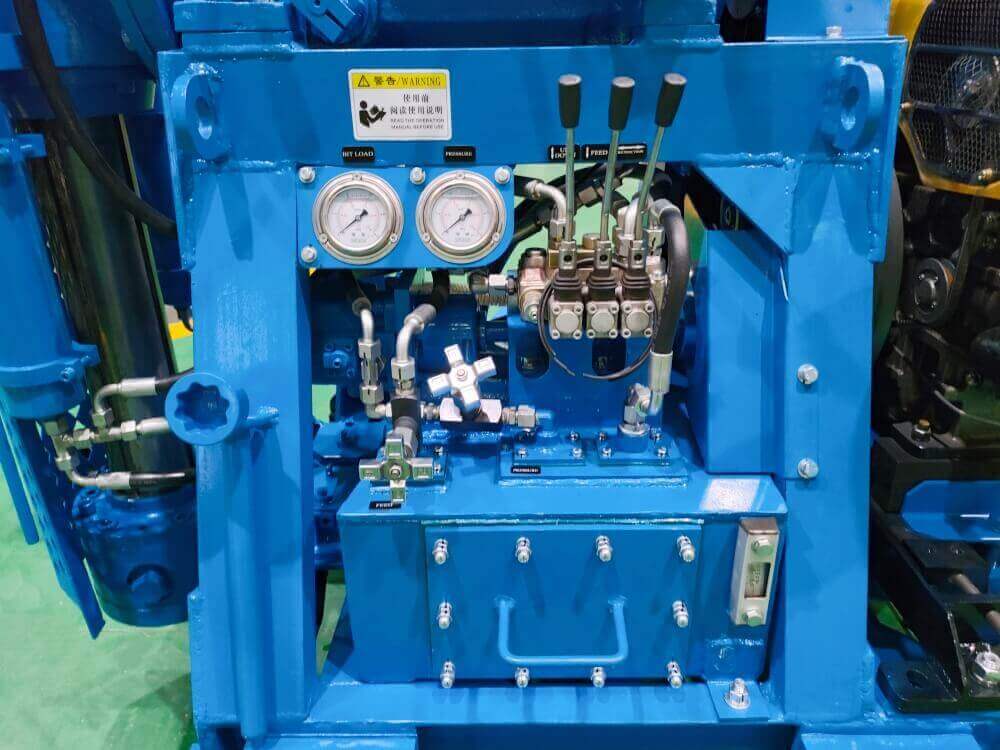

Hydraulic -

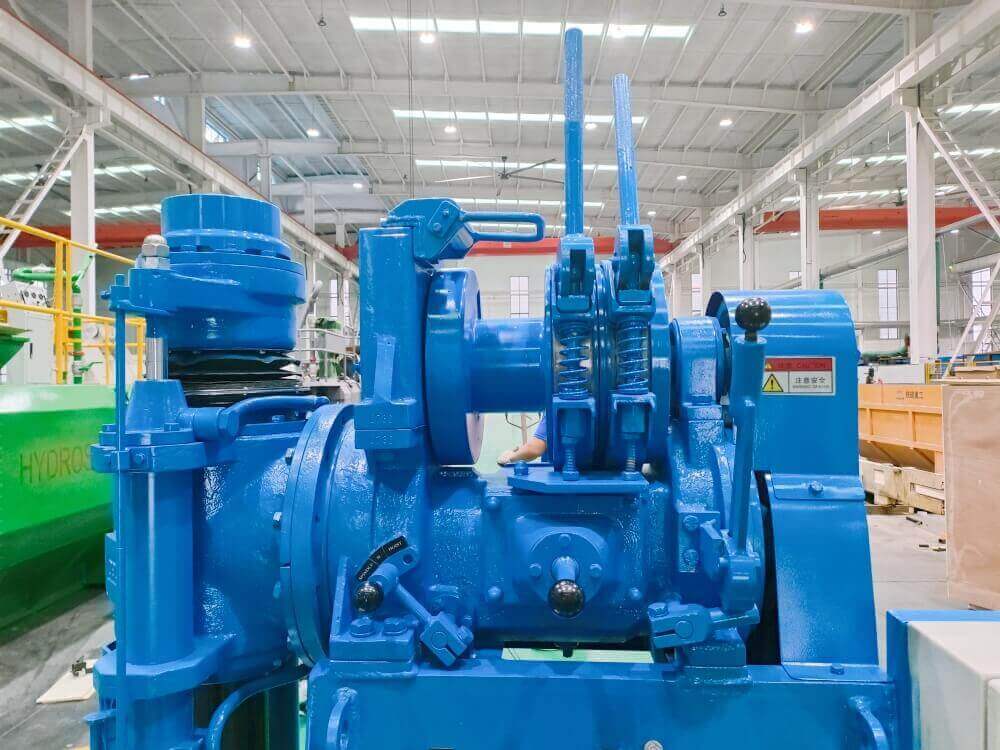

Hoist of electric motor core drilling rig -

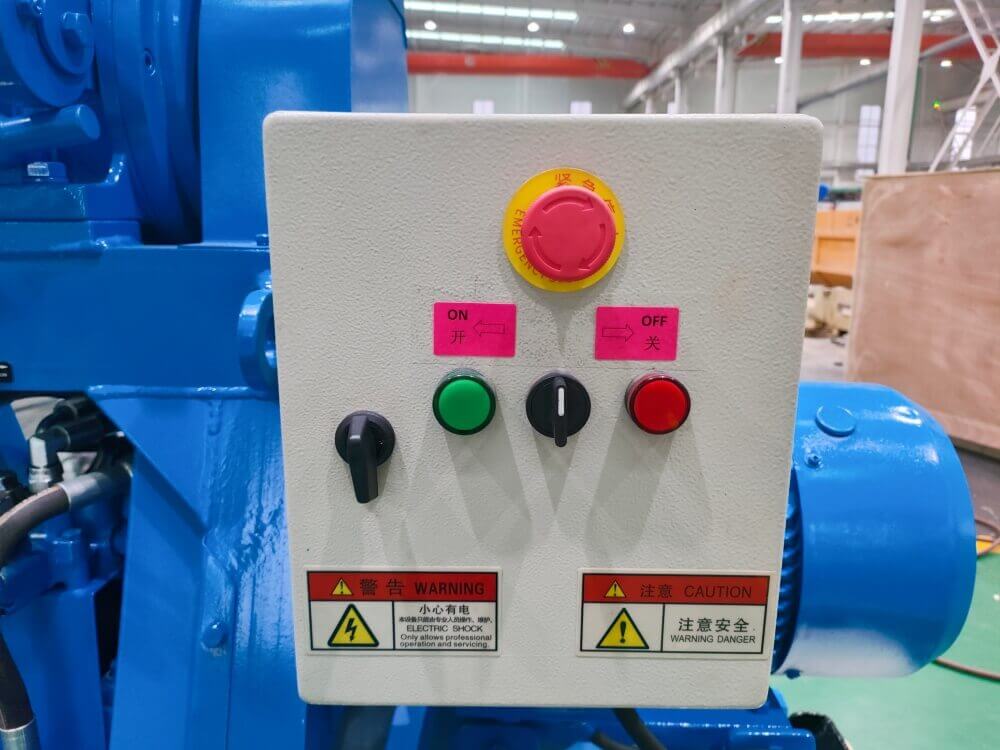

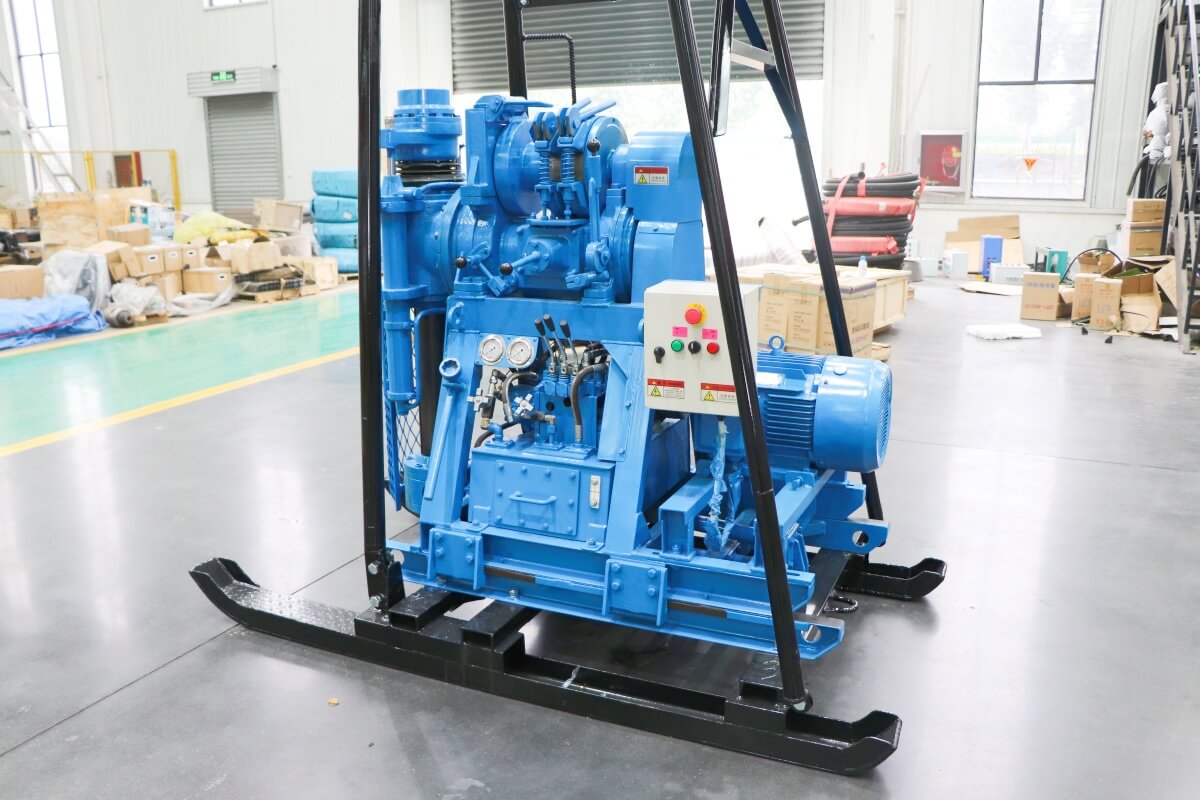

Electric control box -

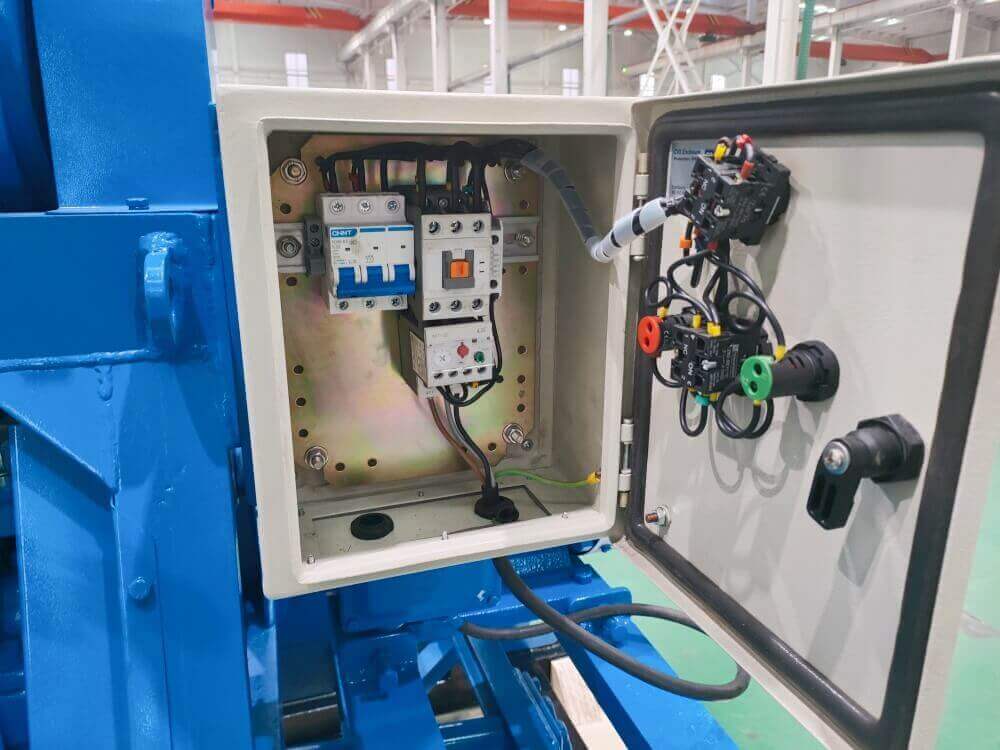

Electric control box inner -

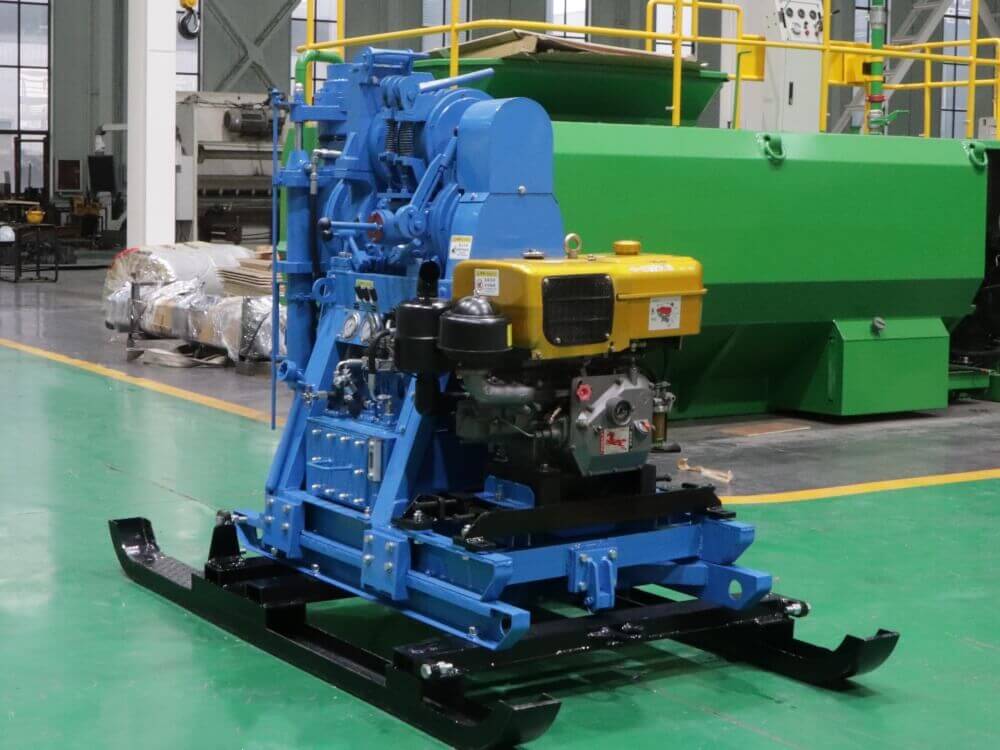

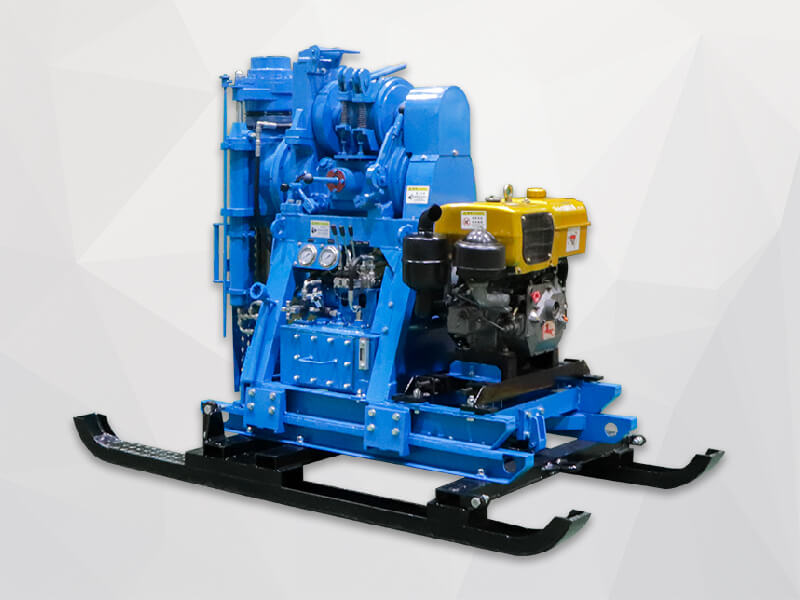

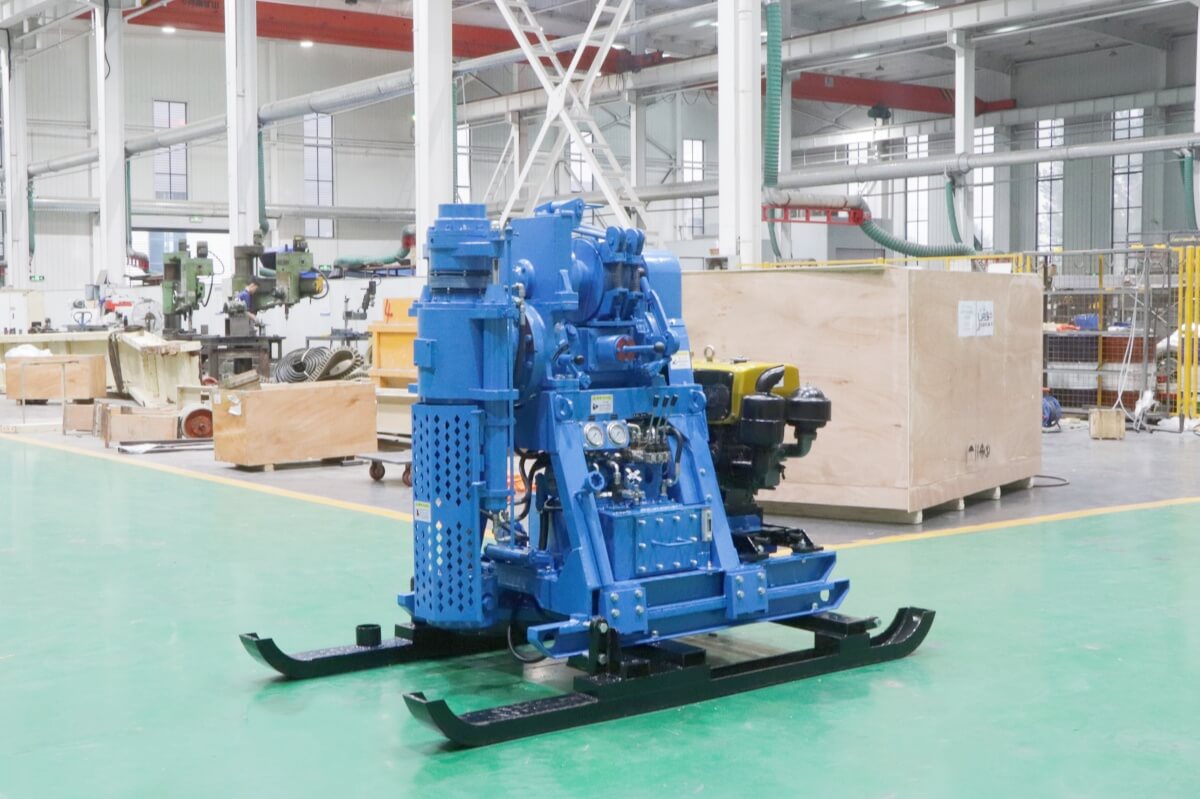

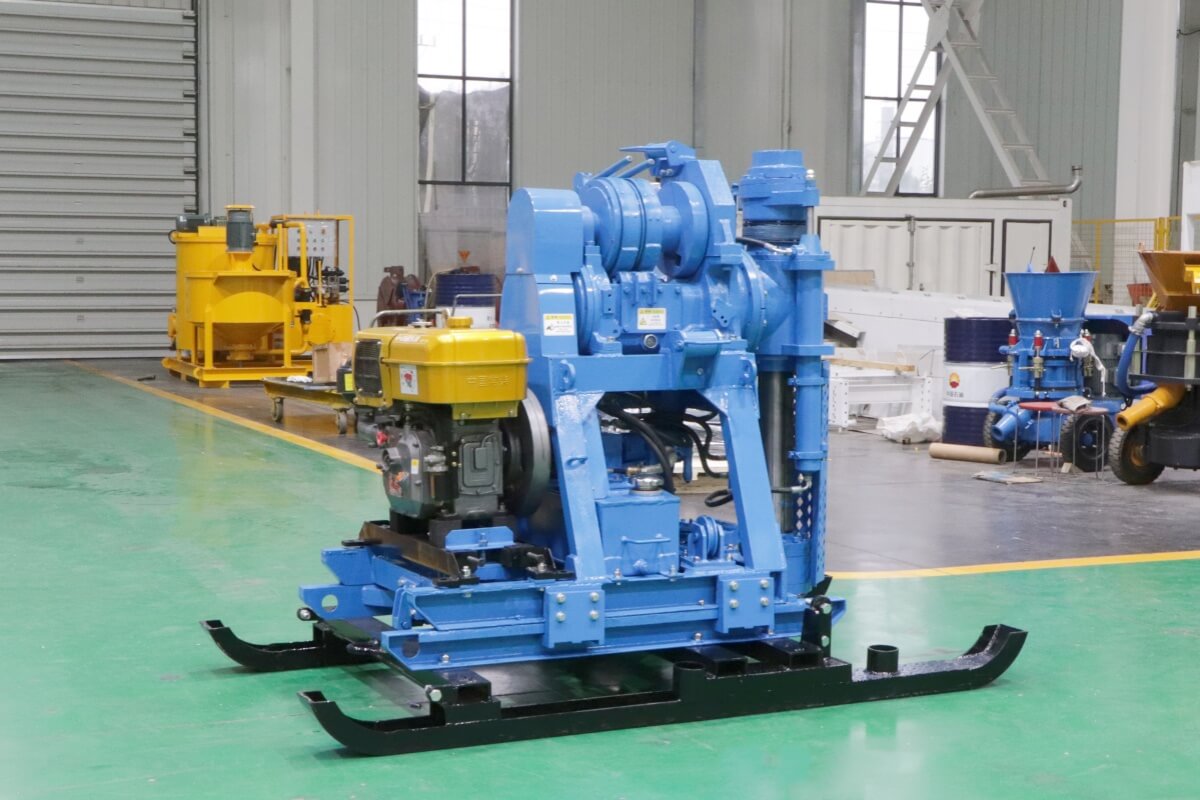

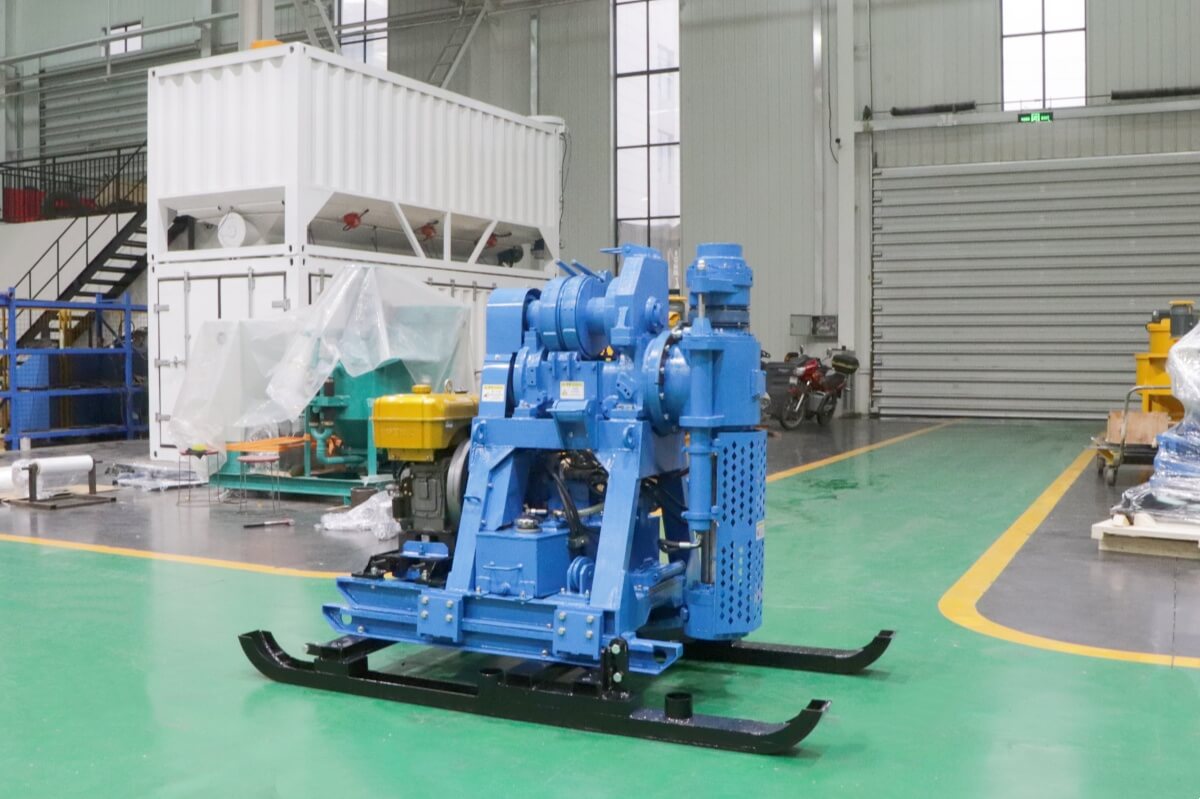

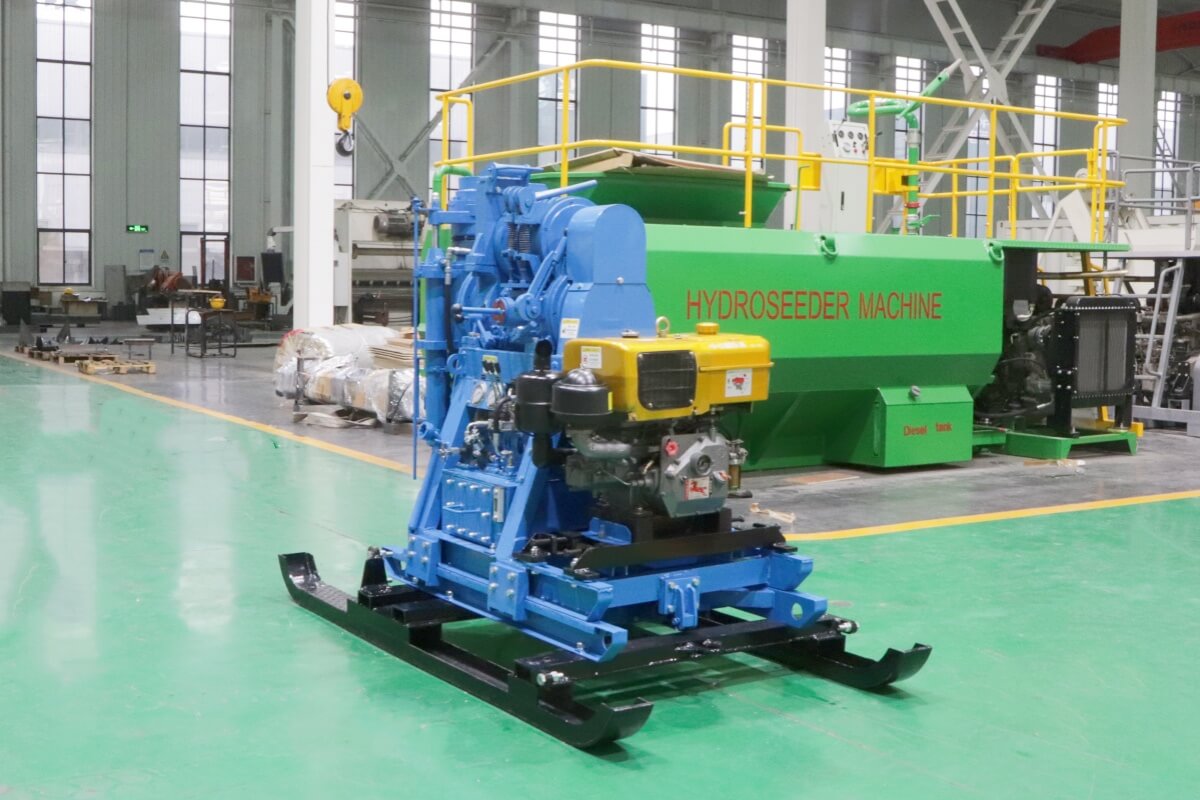

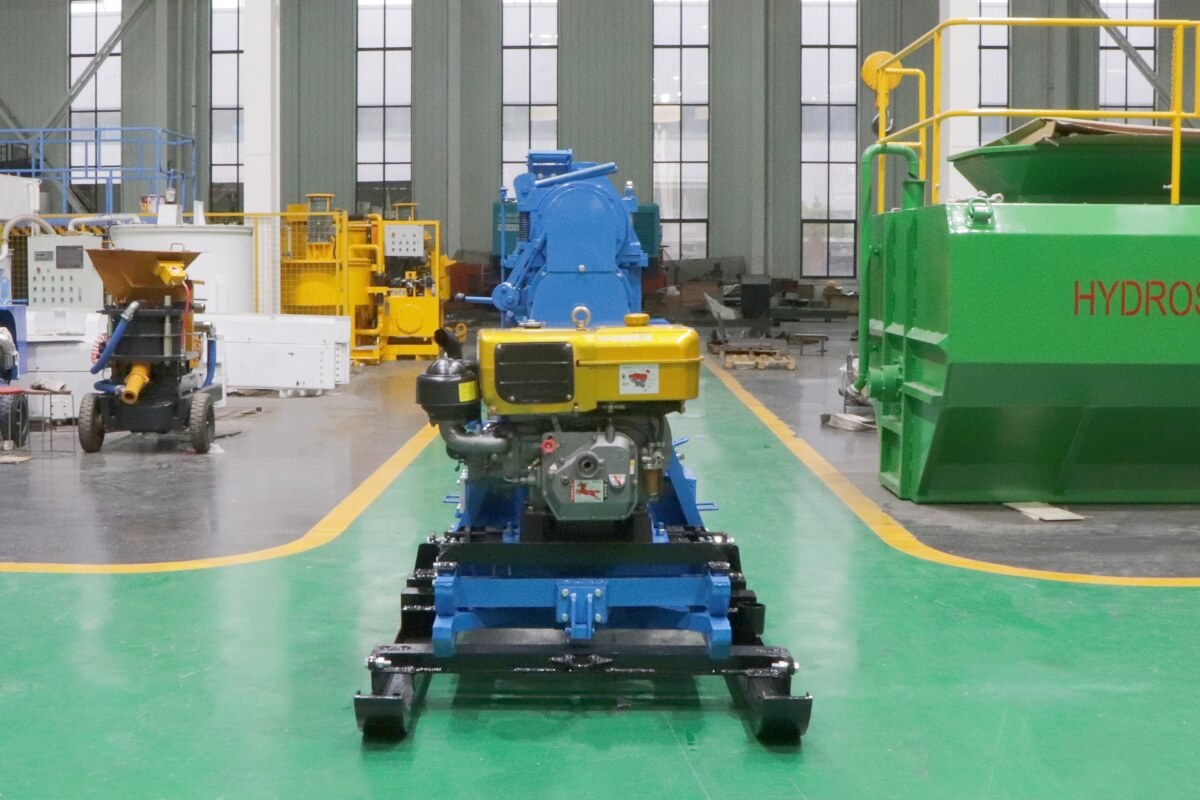

Diesel engine core drilling rig -

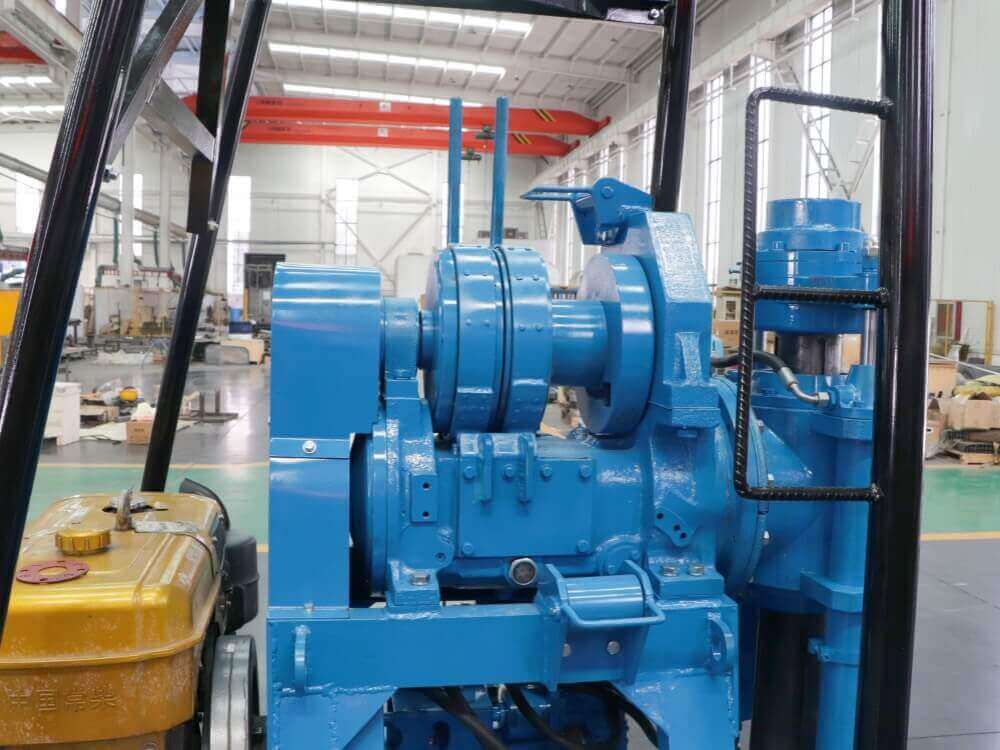

Core drill rig details
Technical Parameters
Technical Data
| Technical data | ||
| Drill Head |
Drilling Capacity | 100m (NW Casing) |
| Type | Spindle type, hydraulic feed | |
| Drilling Angle | 360° | |
| Operation Side | (R) Right-Standard, (L) Left-Optional | |
| Spindle Bore | 92mm(NW Casing) | |
| Feed Stroke | 500mm | |
| Spindle Speed | 91/340/524rpm, 77rpm (reverse) | |
| Spindle Torque | 79/21/14kgf-m, 93kgf-m (reverse) | |
| Thrust | 5,580kgf (at hydraulic pressure 105kg/cm²) | |
| Chuck | Manual, 3-jaw type | |
| Main Clutch | Single plate, dry disc type | |
| Transmission | Sliding gear, 3 forward & 1 reverse | |
| Hydraulics | Pump | Vane type, variable volume |
| Delivery Capacity | 25 litre/min. at 1,500 rpm | |
| Maximum Pressure | 105kg/cm² | |
| Hoist | Type | Planetary gear, operated by over-centre cam hand lever |
| Hoisting Capacity | 1,500kg | |
| Rope Speed | 17/65/101m/min. (average) | |
| Drum Capacity | Dia.10mm wire rope x 35m long (or Dia.12mm x 25m) | |
| Retraction | Hydraulic | Slide 370mm |
| Power Unit | Condensing Diesel Engine | 15HP at 2,400 rpm |
| Motor | AC380V, 15kW | |
| Mast | Type | 4-pole, mounted on skid, with bracing at 3 levels |
| Construction | Steel pipes Dia.60mm (front) and Dia.48mm (rear) | |
| Sheave Size | Dia. 280mm | |
| Weight (mast) | 170kg | |
| Dimension (mast) | 1,250mm W x 1,260mm L x 5,750mm H (Height taken from the ground to top of crown sheave) |
|
| Weight | With Skid & Engine H16 | 1300kg |
| Machine Dimension | W x L x H | 1,140mm x 2,186mm x 1,585mm |
