LPD100H-D/E Hydraulic drive portable borehole DTH drilling rig
Portable borehole drilling rig is mainly used for geothermal drilling, farm irrigation, house yard, gardens and water well drilling.
LPD100H-D/E
60~120mm
25m
12KN
90~120rpm
1000NM
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description

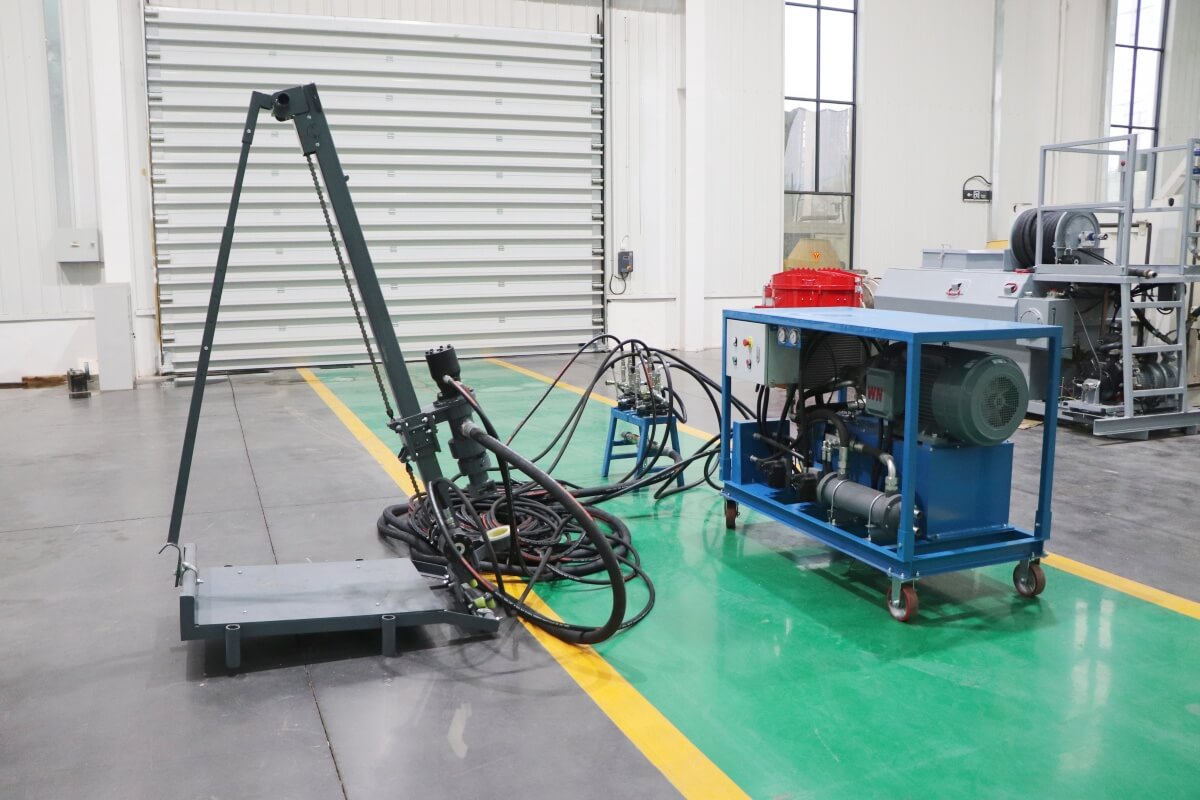

LPD100H-D/E DTH drilling rig is a portable hydraulic chain feed drilling rig, suitable for all light drilling operations, it is a new type of energy-saving and efficient drilling equipment. This borehole drilling rig is designed for easy installation on any type of scaffolding and is suitable for wall work. It is very light and convenient.

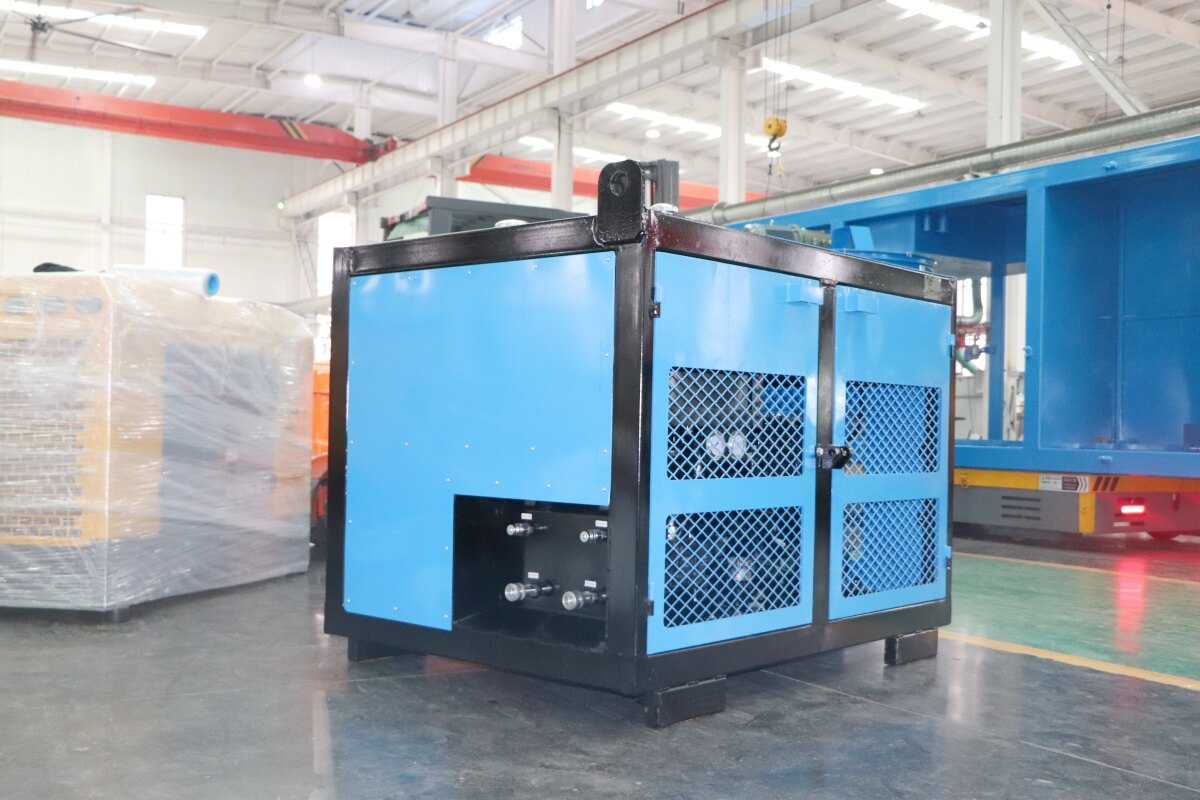

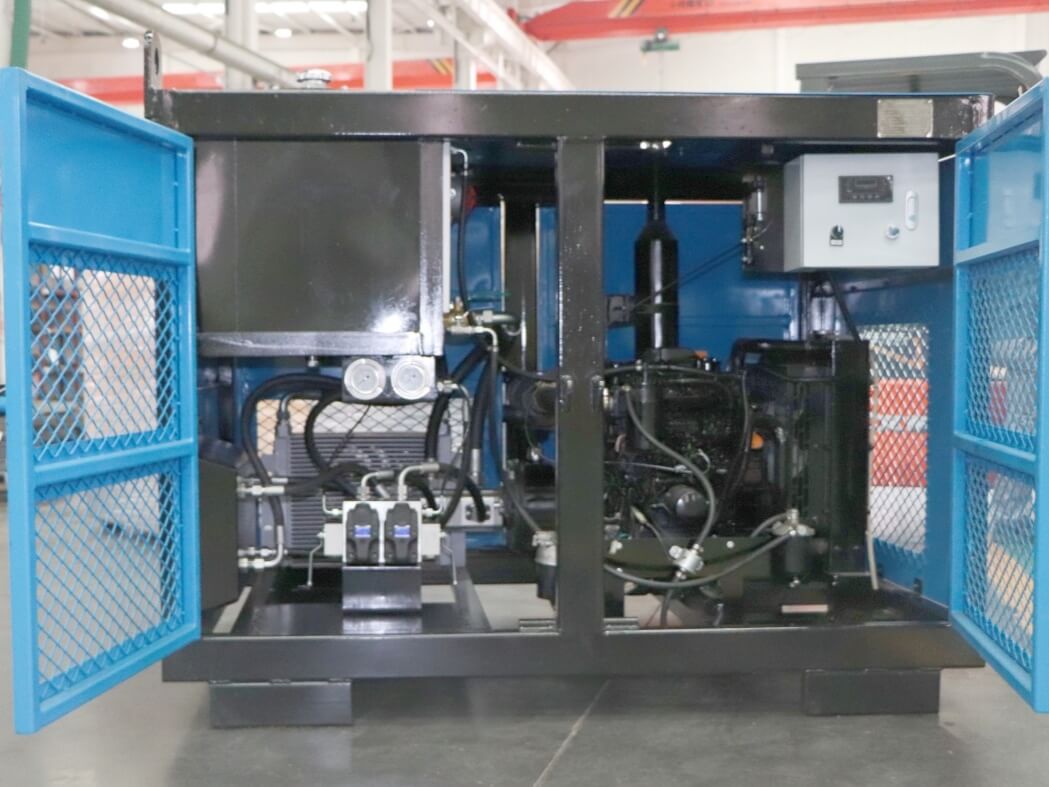

Diesel drive hydraulic power station:
All hydraulic pumping station is driven by diesel engine. It is equipped with cooling system, filtration system, pressure regulating system, pressure and temperature indication and valve control.
The BHPP15/55X2-26D hydraulic station is compact, easy to operate and does not take up space.

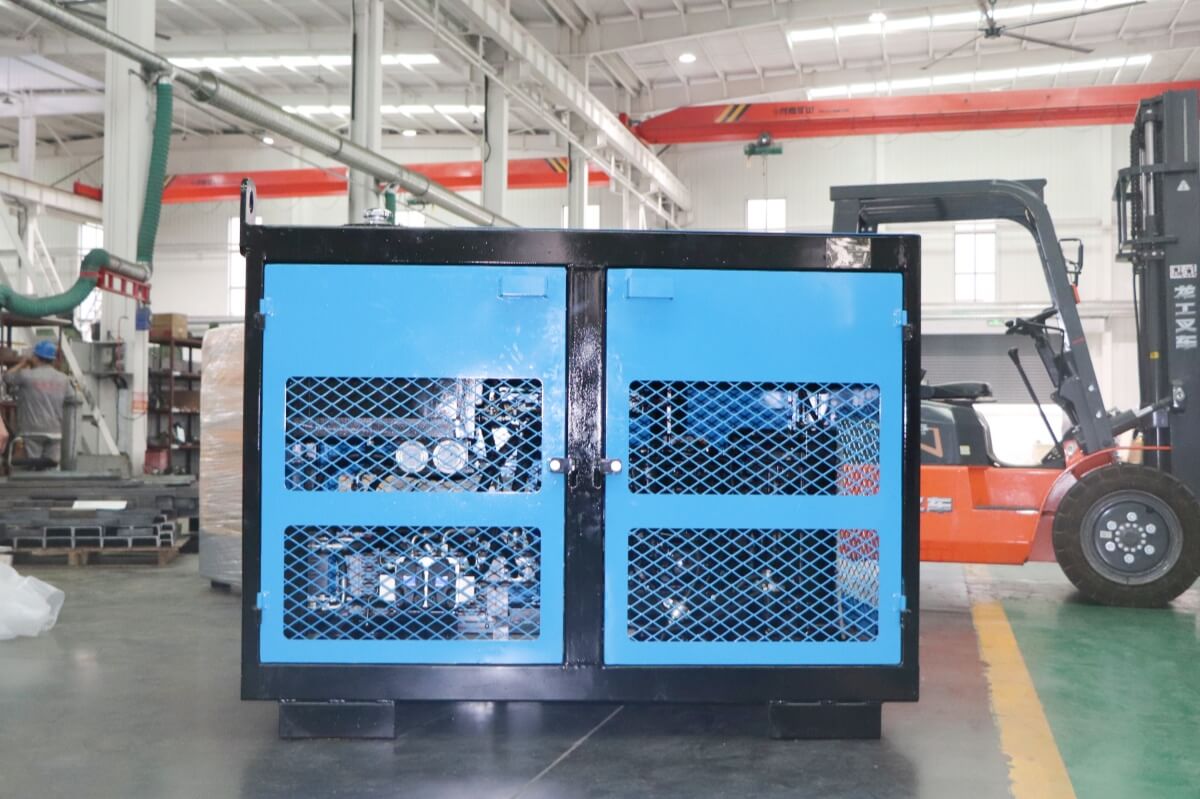

Diesel drive hydraulic power station:
All hydraulic pumping station is driven by diesel engine. It is equipped with cooling system, filtration system, pressure regulating system, pressure and temperature indication and valve control.
The BHPP15/55X2-26D hydraulic station is compact, easy to operate and does not take up space.

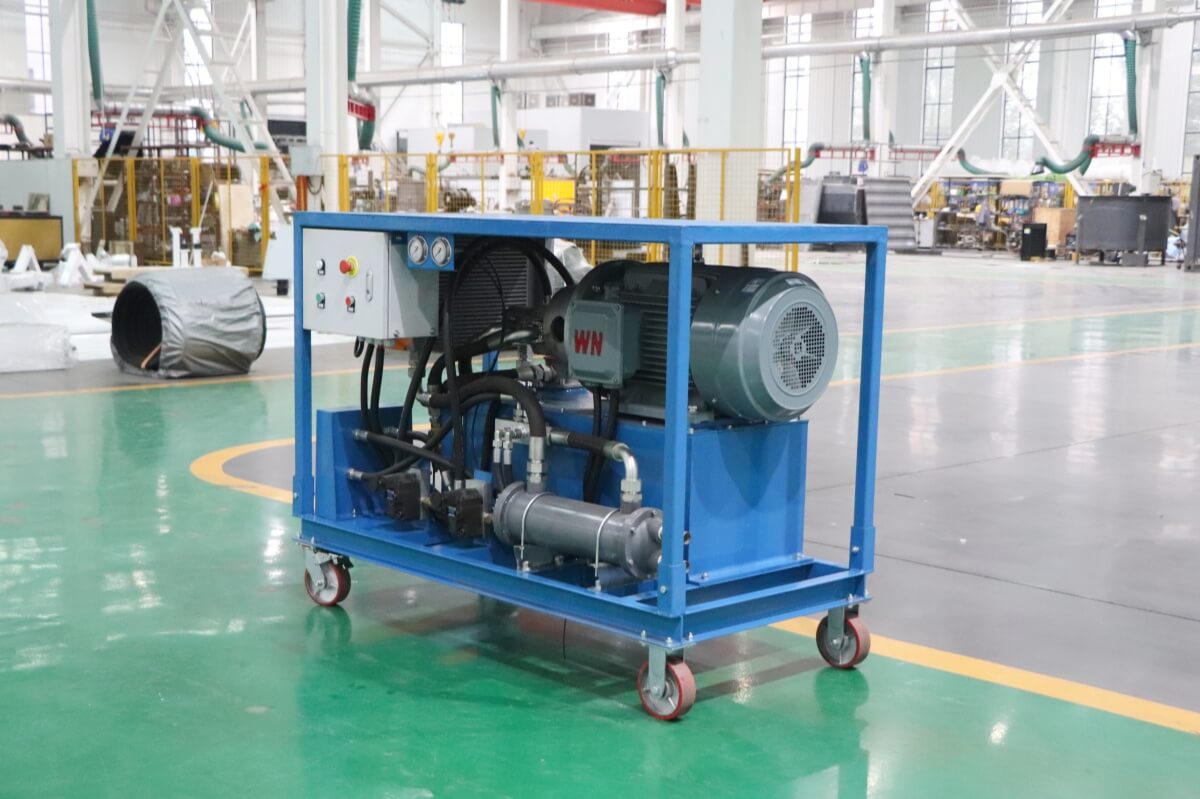

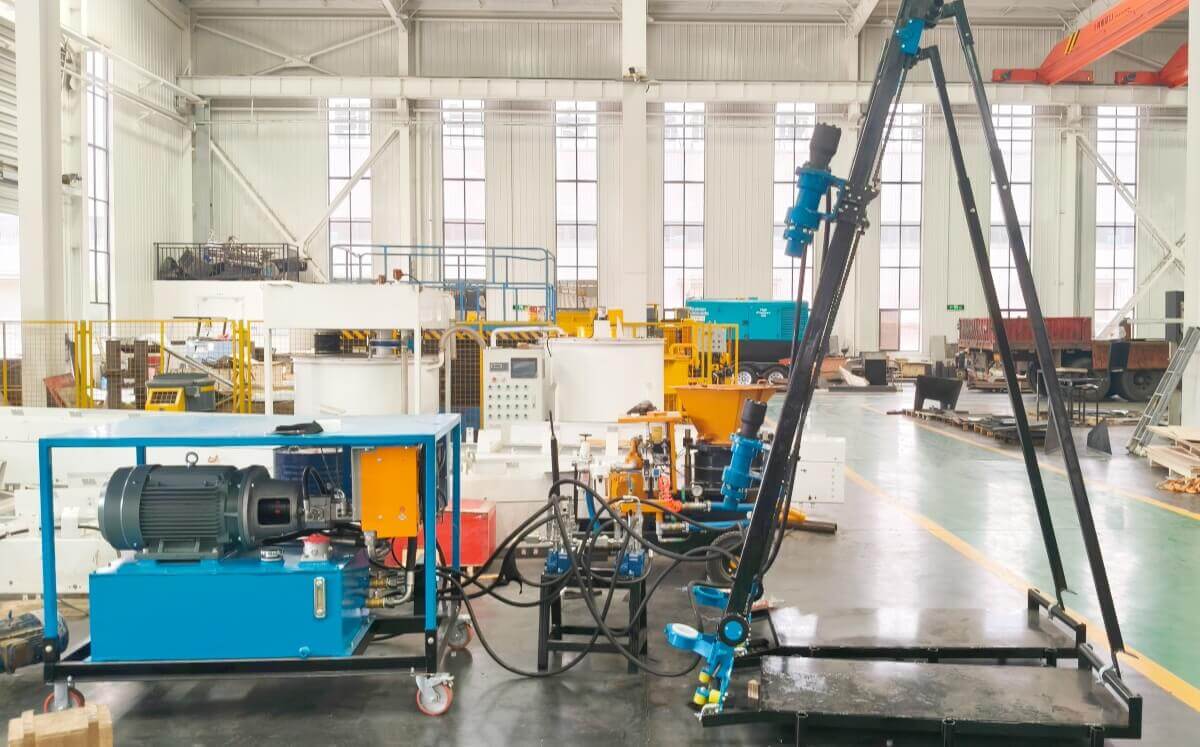

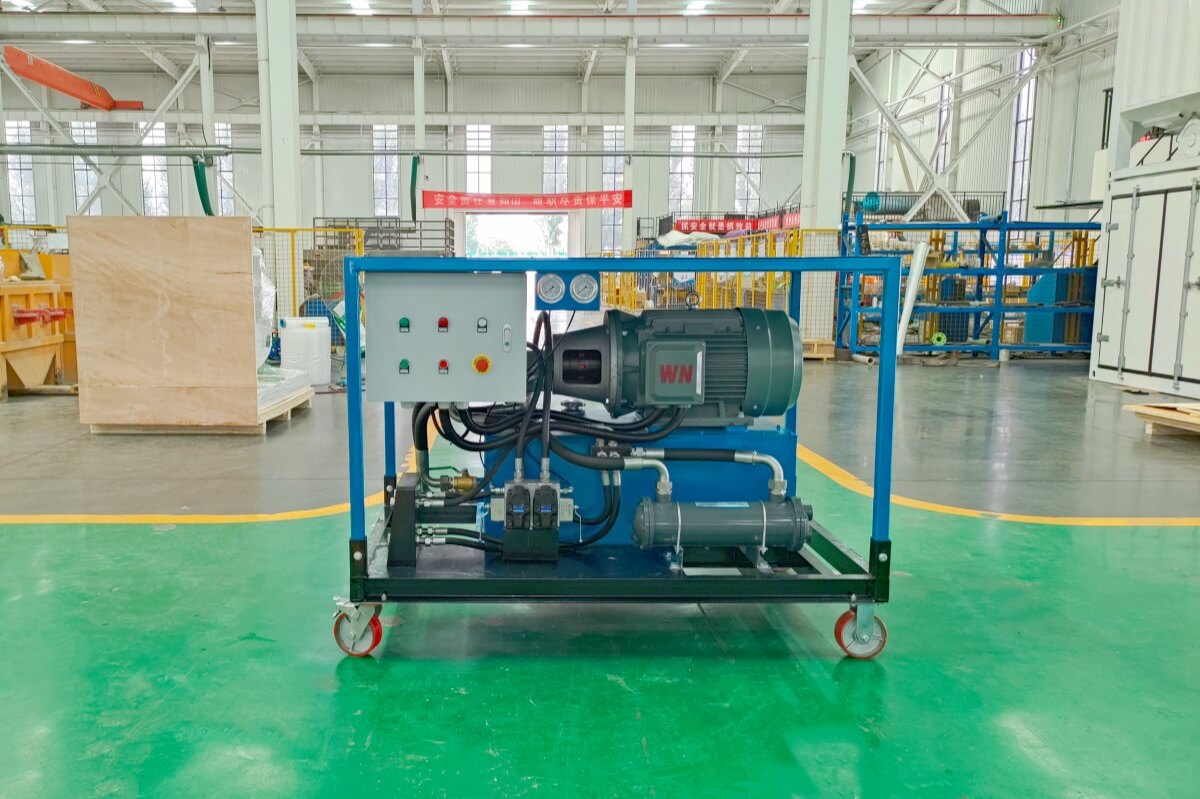

Electric motor powered hydraulic station:
This hydraulic station is powered by an electric motor and comes complete with a cooling mechanism, a filtration setup, a pressure regulation system, as well as pressure and temperature display features and valve control capabilities. The product boasts a compact design, is user-friendly, and occupies minimal space.

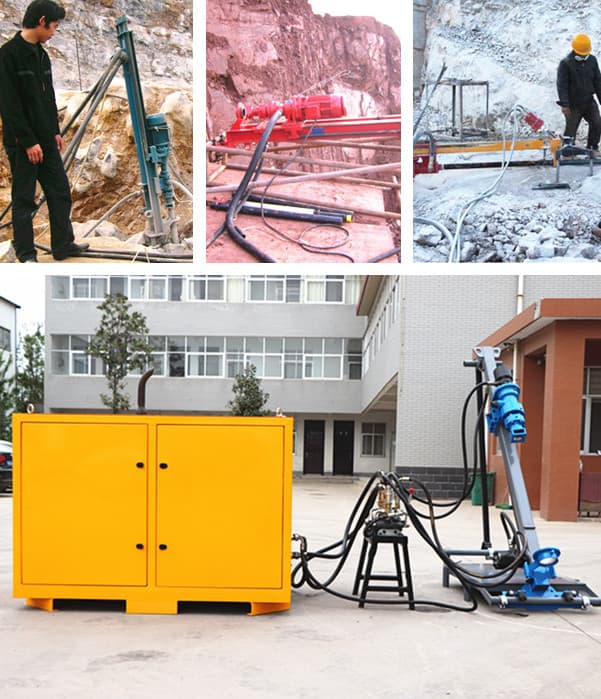

Application
LPD100H-D/E hydraulic drive portable borehole drilling rig can be used with DTH hammers and drill hammers, and can also be used for coring drilling.
Hydraulic drive borehole drilling rig is widely used in small and medium-sized mines and deep hole drilling operations in road construction, national defense, water conservancy, stone materials and other projects. It is an indispensable drilling equipment for open-pit mining, especially suitable for rough terrain.
In open-pit mining, severe conditions such as high slopes, a poor working environment, and many obstacles are often encountered. A portable drilling rig can solve these problems well. The hydraulic drive portable drilling rig is not only easy to move, but also uses a spur gear reducer with large rotary torque and high drilling efficiency.
Hydraulic drive borehole drilling rig is widely used in small and medium-sized mines and deep hole drilling operations in road construction, national defense, water conservancy, stone materials and other projects. It is an indispensable drilling equipment for open-pit mining, especially suitable for rough terrain.
In open-pit mining, severe conditions such as high slopes, a poor working environment, and many obstacles are often encountered. A portable drilling rig can solve these problems well. The hydraulic drive portable drilling rig is not only easy to move, but also uses a spur gear reducer with large rotary torque and high drilling efficiency.
Features
LPD100H-D/E Hydraulic drive portable borehole drilling rig is with compact simple structure, light, easy to be operated, easy to move, high speed, high efficiency, good machine detachable, and transportation is extremely convenient.
Super portable, Super lightweight:
Super portable, Super lightweight:
Product Details
-

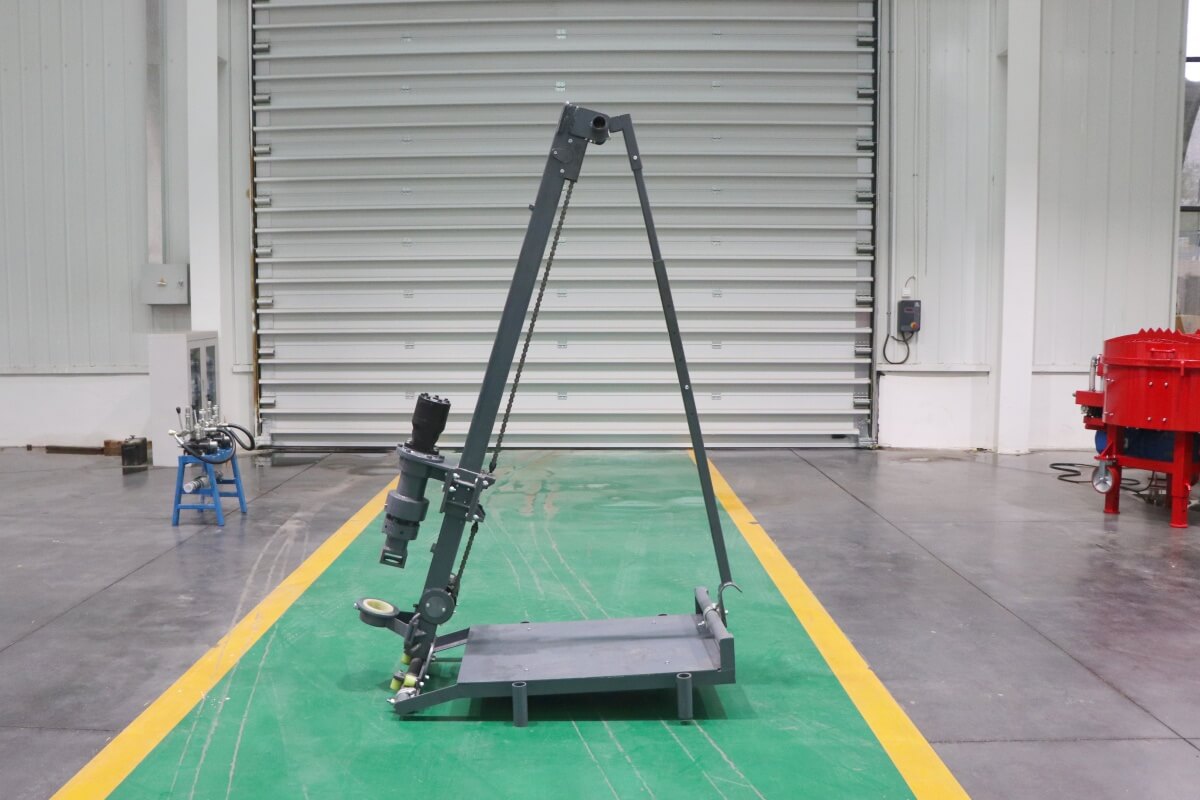

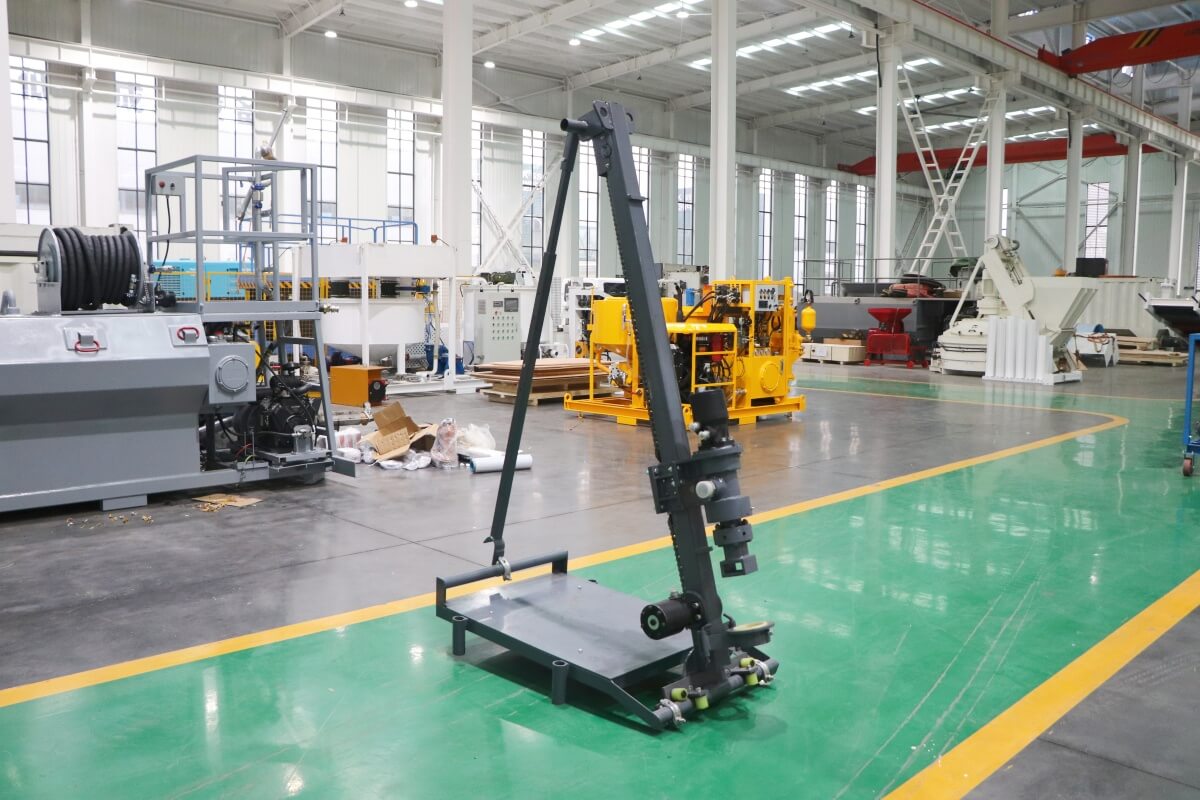

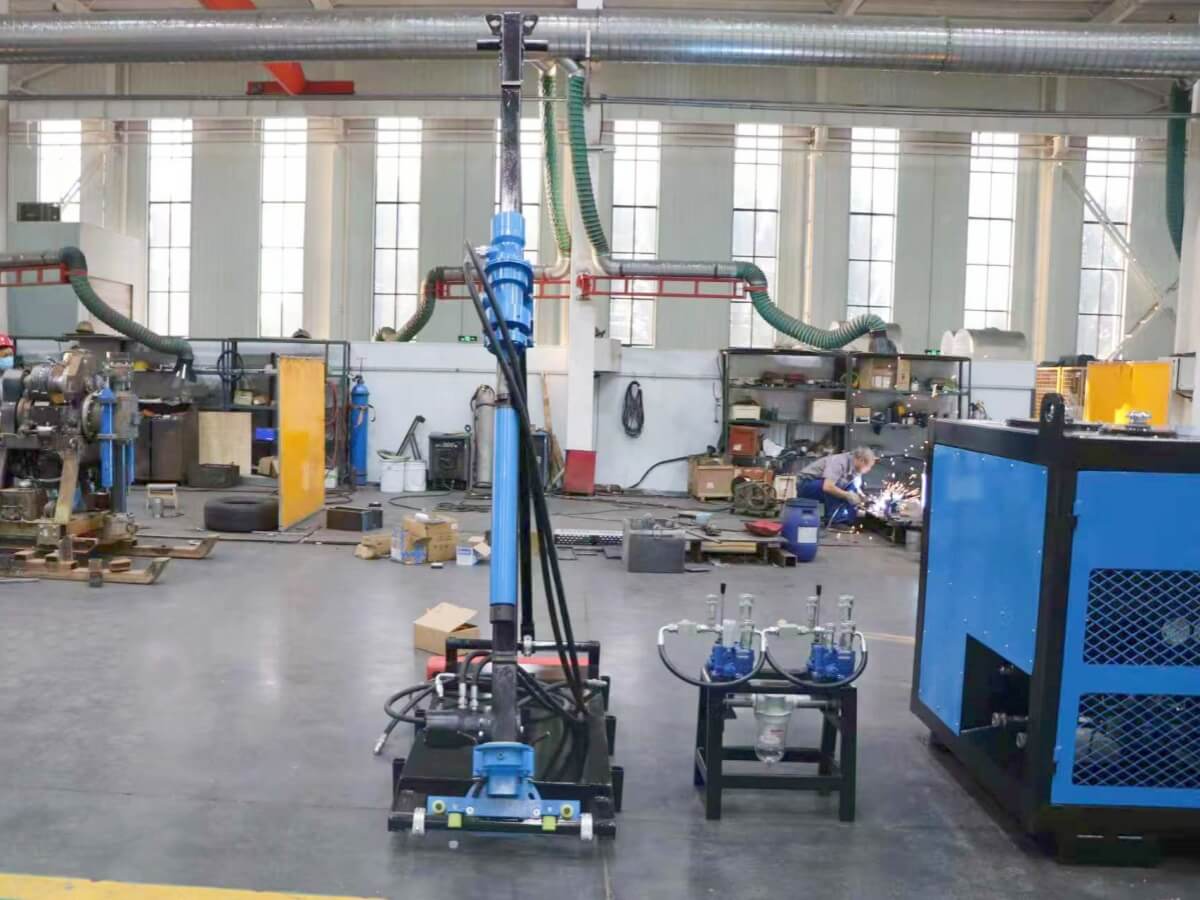

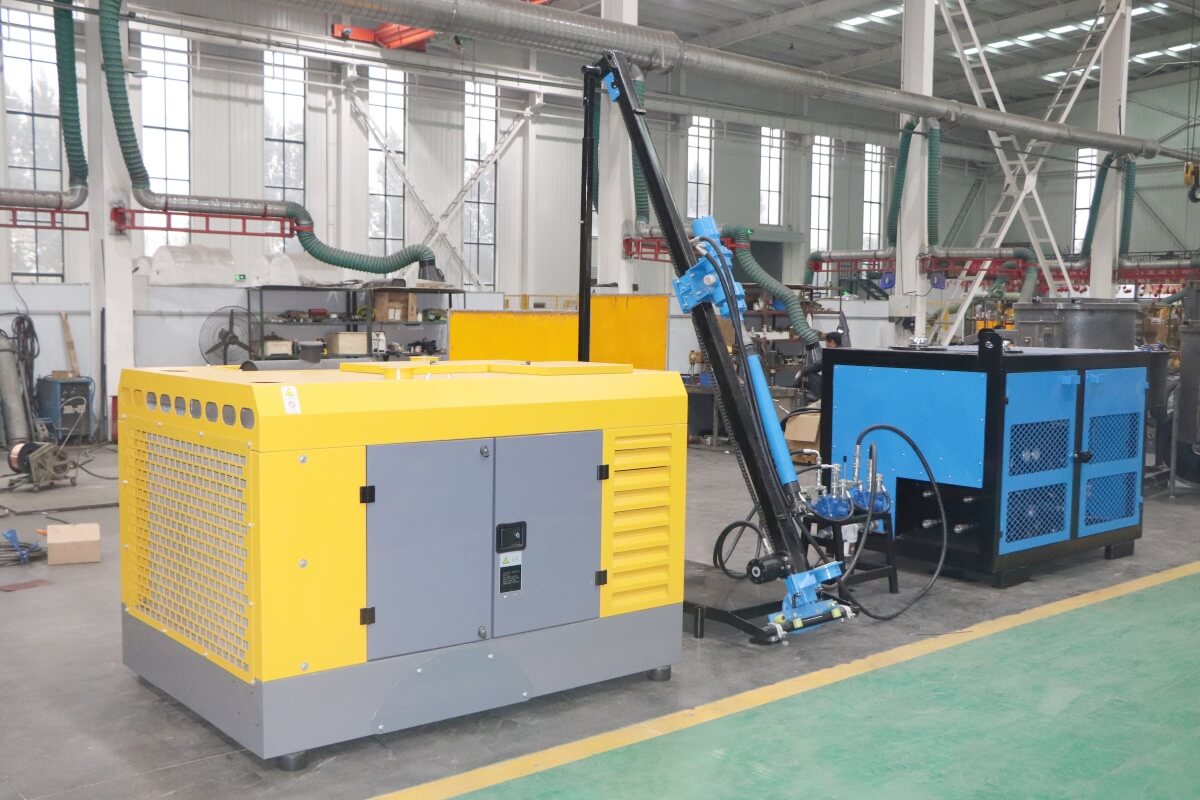

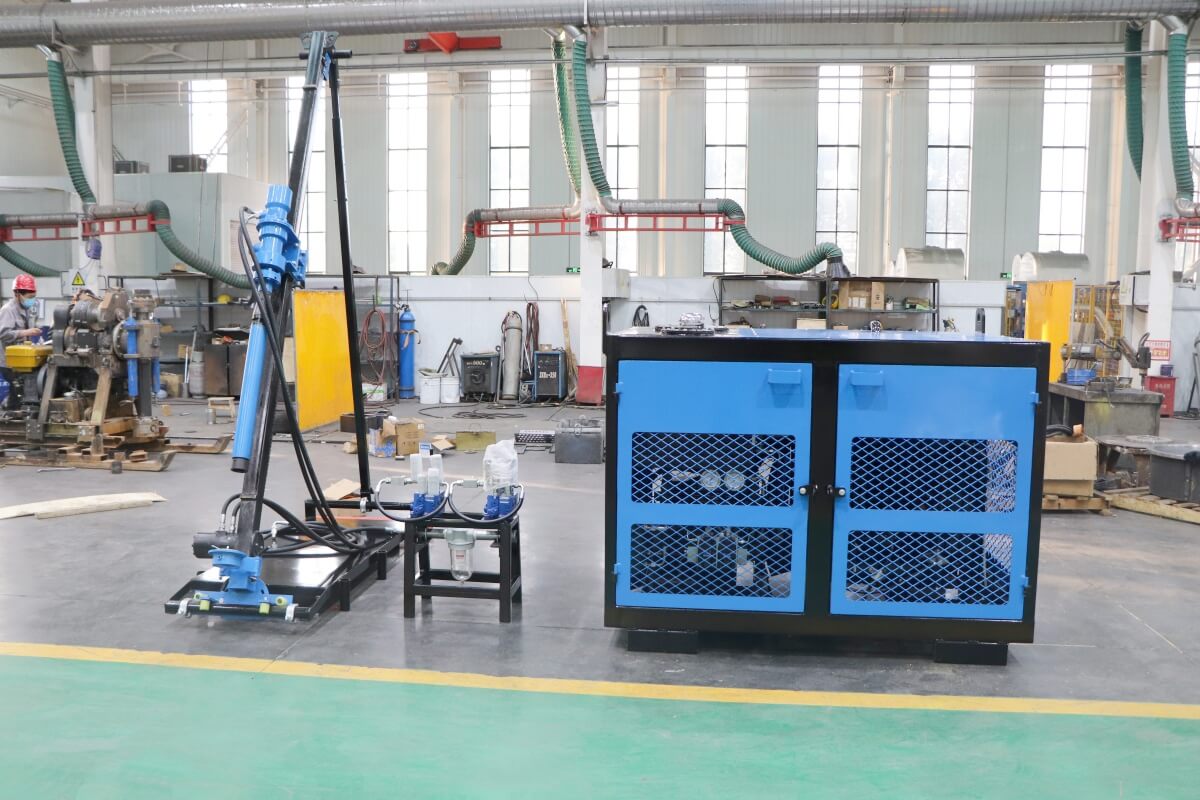

DTH portable drilling rig manufacturers -

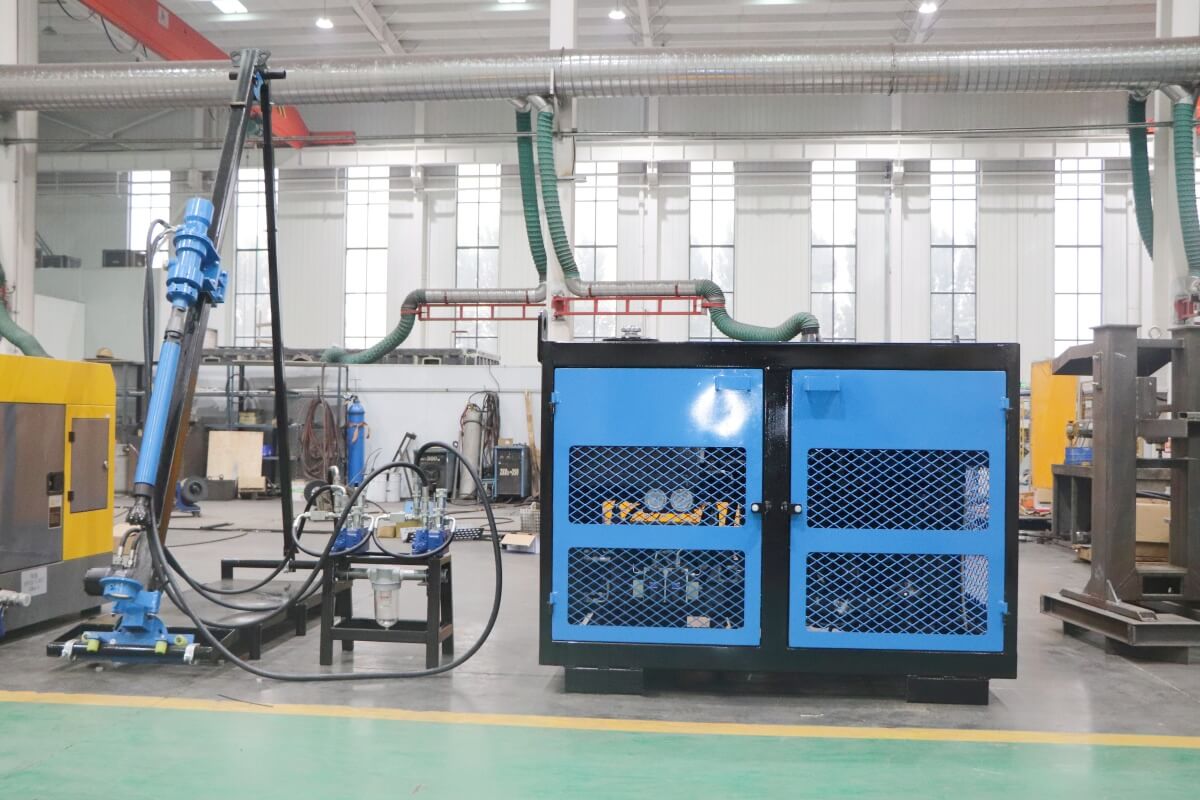

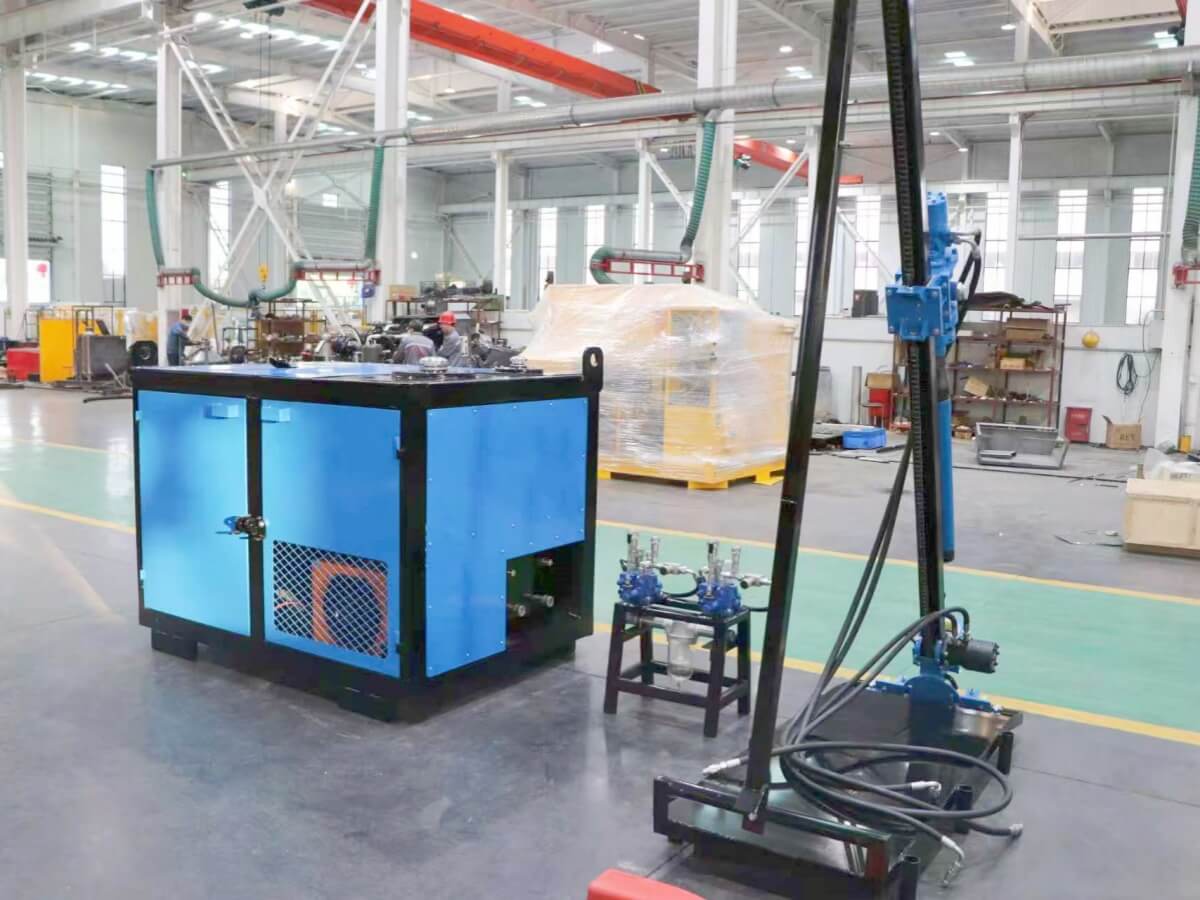

DTH drilling rig supplier -

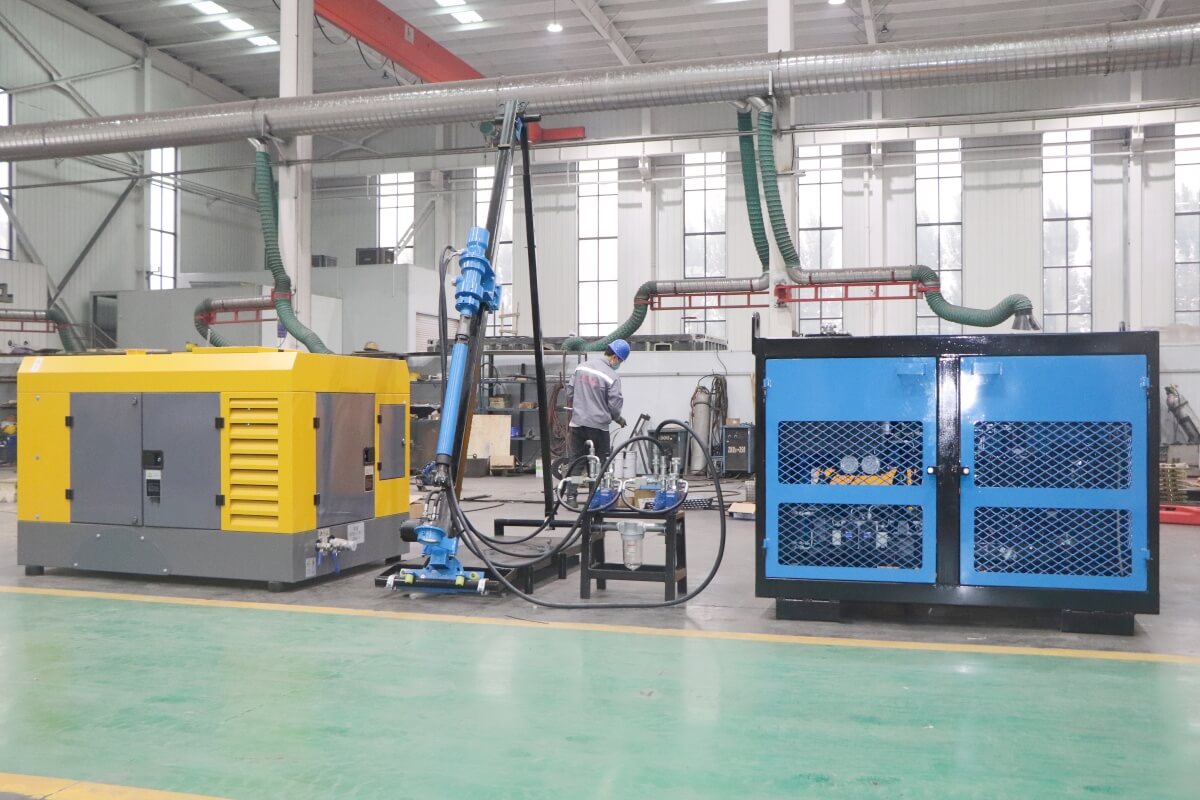

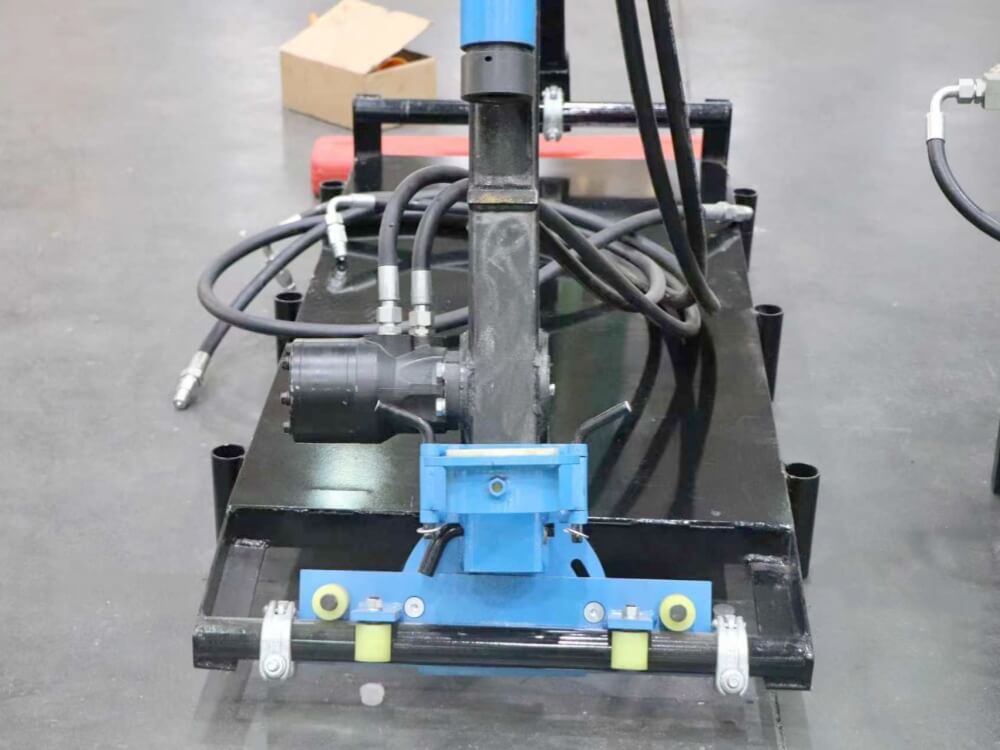

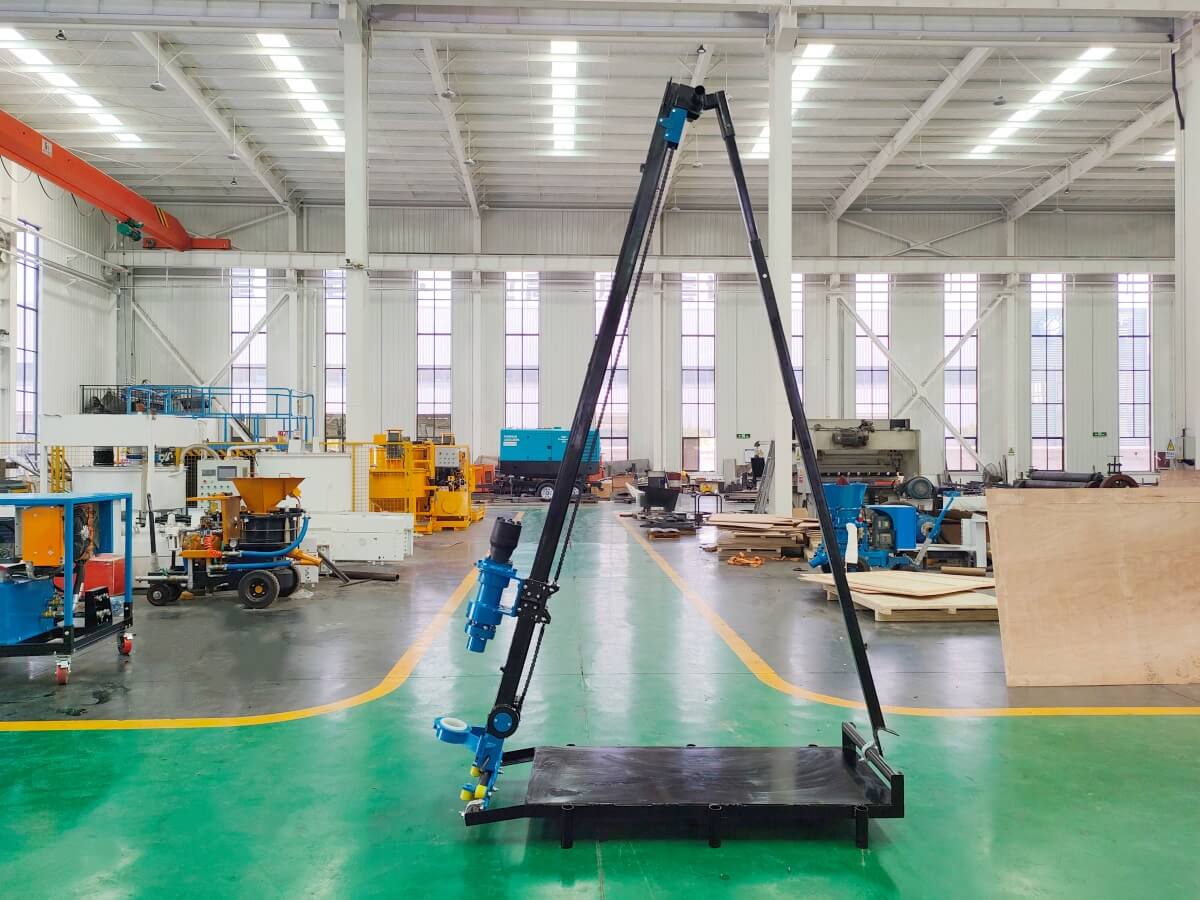

Hydraulic drilling rig -

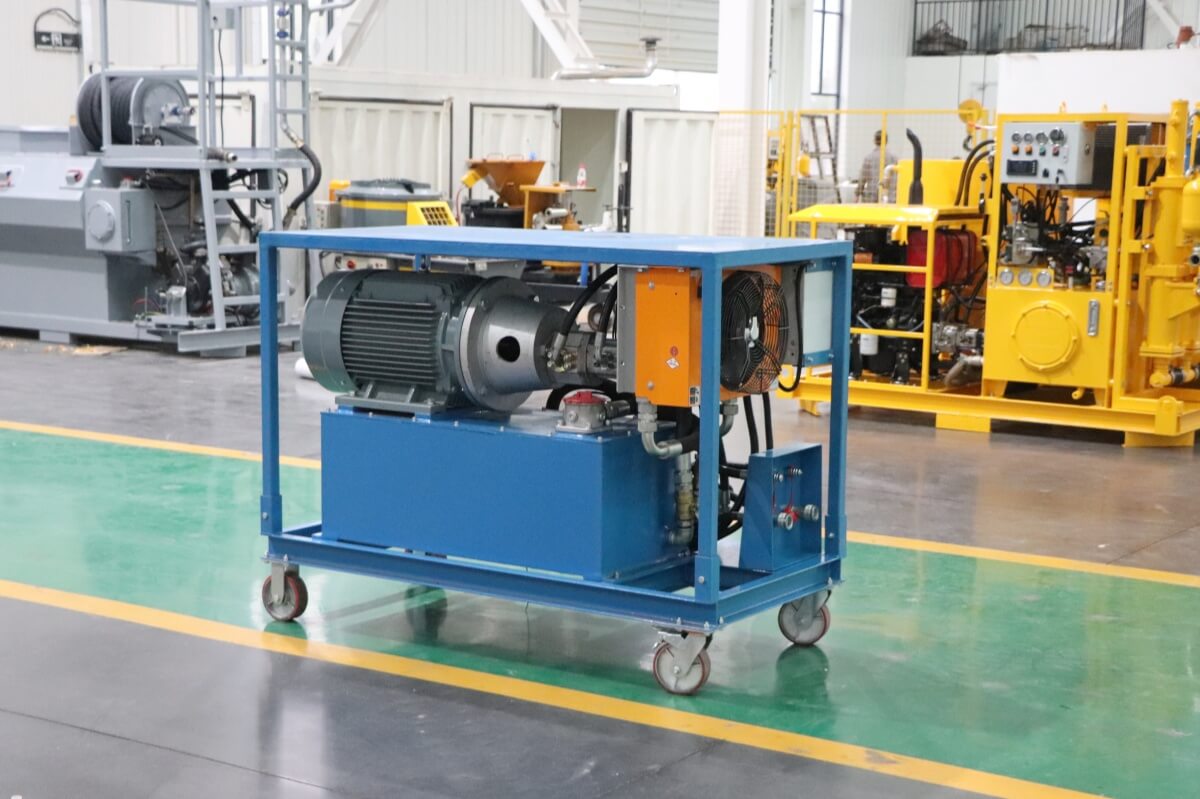

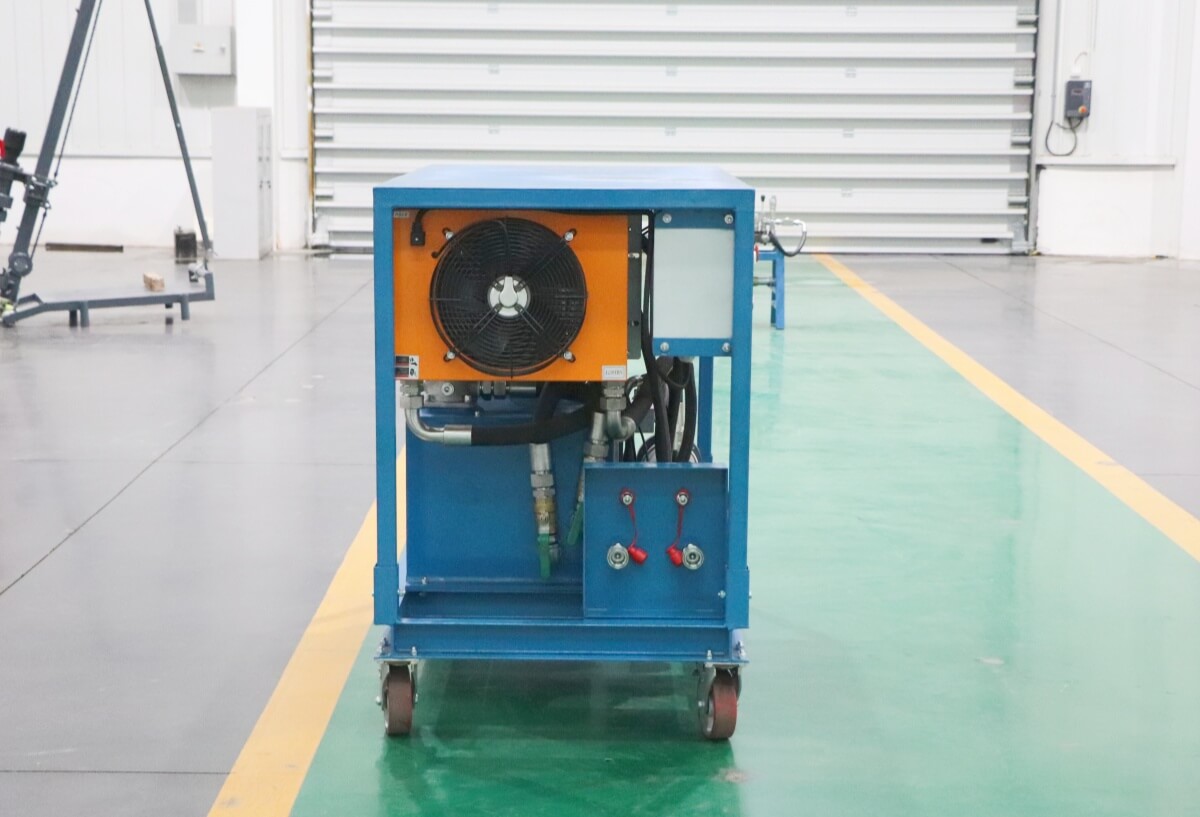

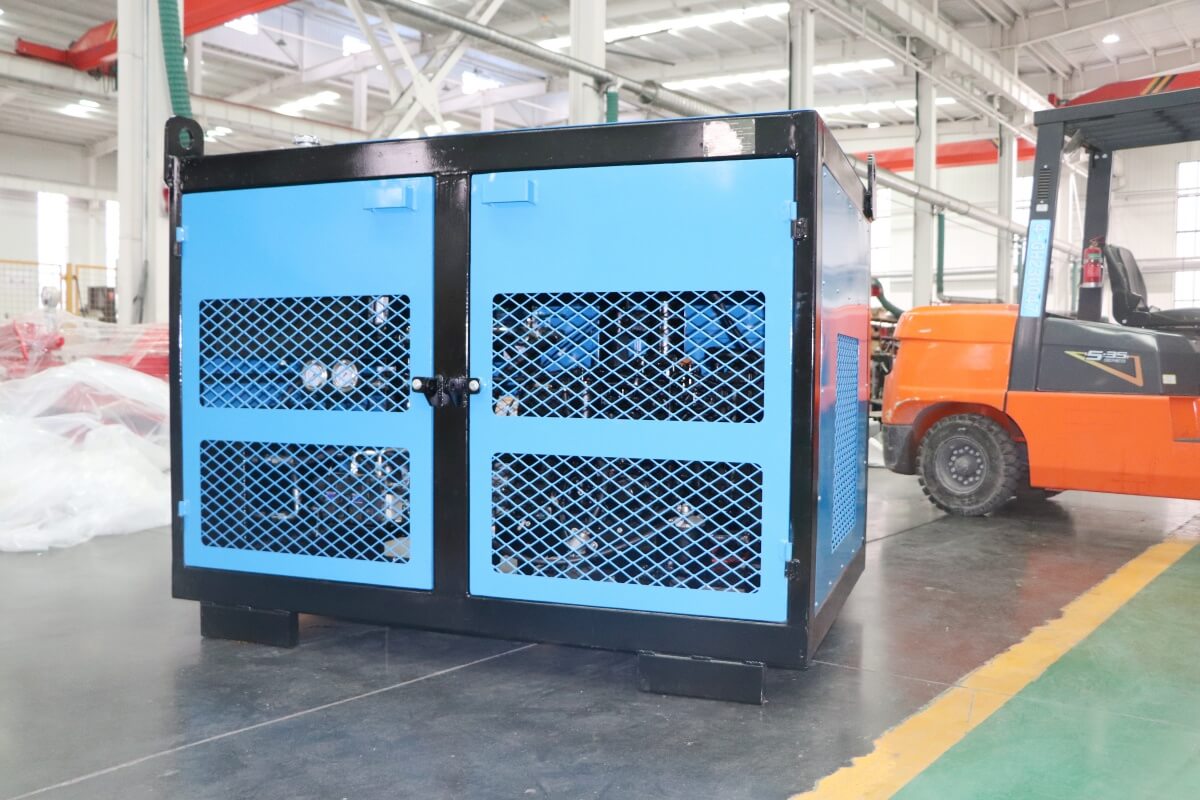

Hydraulic power unit -

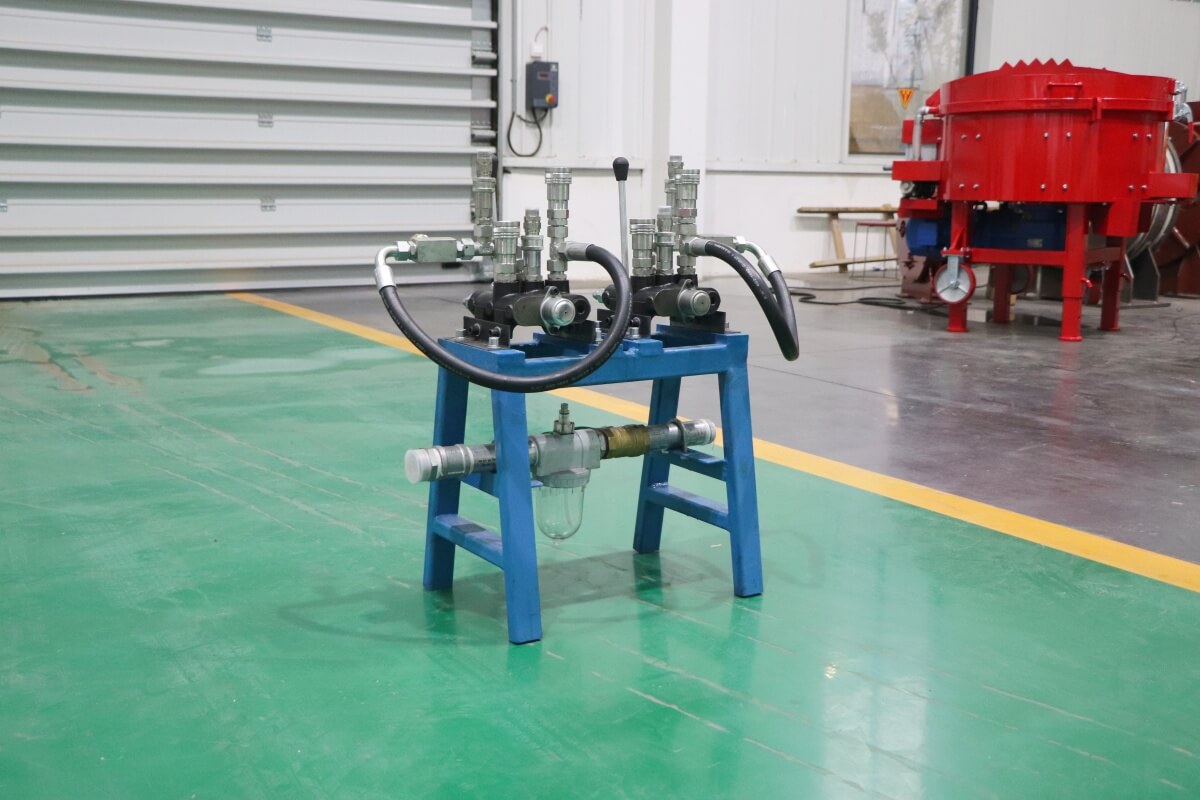

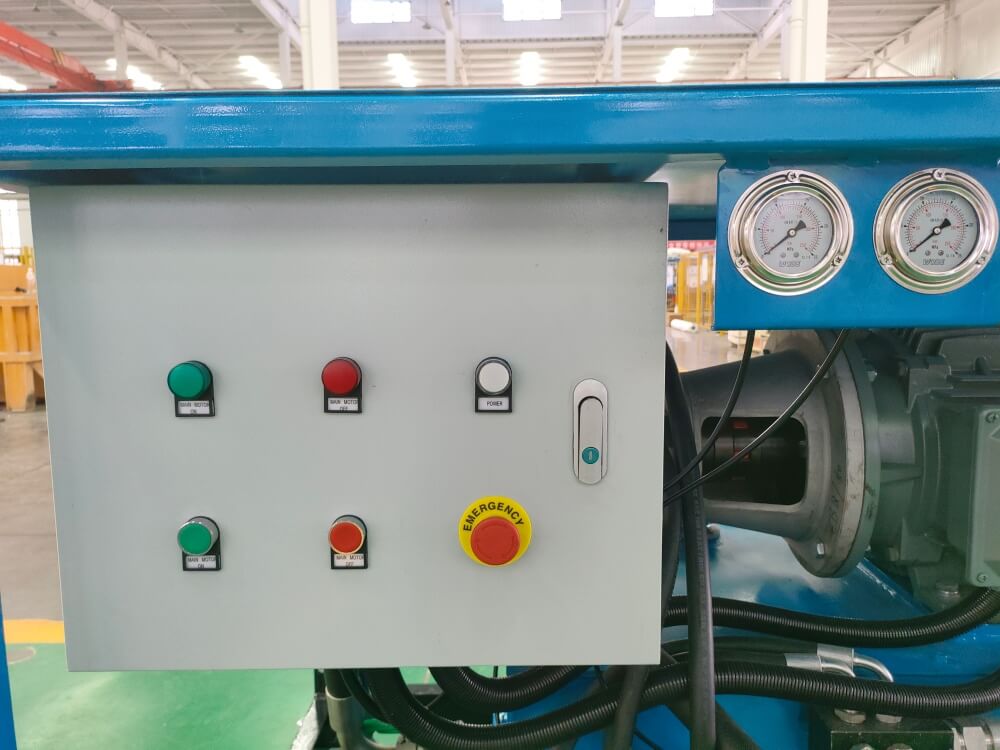

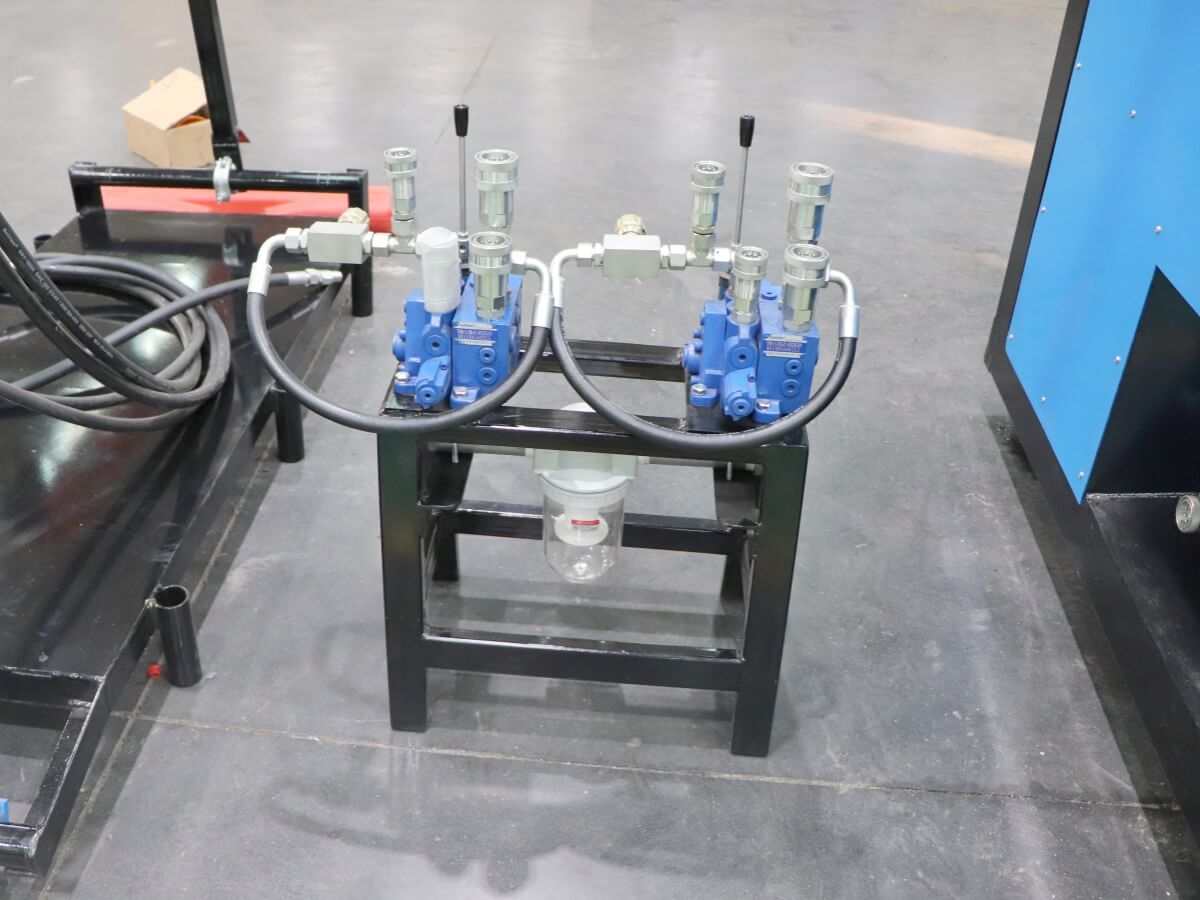

Hydraulic console of DTH drilling rig -
Console of DTH drilling rig
Technical Parameters
Technical Data
| Model | LPD100H-D/E DTH drilling rig | |
| Hole Diameter | 60~80mm | 80~120mm |
| Hole Depth | 25m | |
| Feed Force | 12KN | |
| Rotate Speed | 90~120rpm | |
| Torque | 1000NM | |
| Air Pressure | 0.5~0.7Mpa | |
| Air consumption | 3.5m3/min | 7~8m3/min |
| Drill Rod size | Φ42x1000mm | Φ60x1000mm |
| Single feeding distance | 1m | |
| Drilling Direction | Any Angle | |
| Weight | 105Kg (Only drill machine) | |
| Dimension | 2230x560x415mm | |
Construction and dimensions of LPD100H-D/E hydraulic drive borehole drilling rig:
| Type | BHPP15/55X2-30D |
| Output capacity | 2x55L/min |
| Outlet pressure | 15MPa |
| Diesel power | Weichai 2110 26KW |
| Dimensions | 1630x1050x1550mm |
| Weight | 795kg |
Electric motor drive hydraulic station technical data:
| Type | BHPP15/46X2-30E |
| Output capacity | 2x46L/min |
| Outlet pressure | 15MPa |
| Motor power | 30KW |
| Dimensions | 1650x800x1200mm |
| Weight | 615kg |
