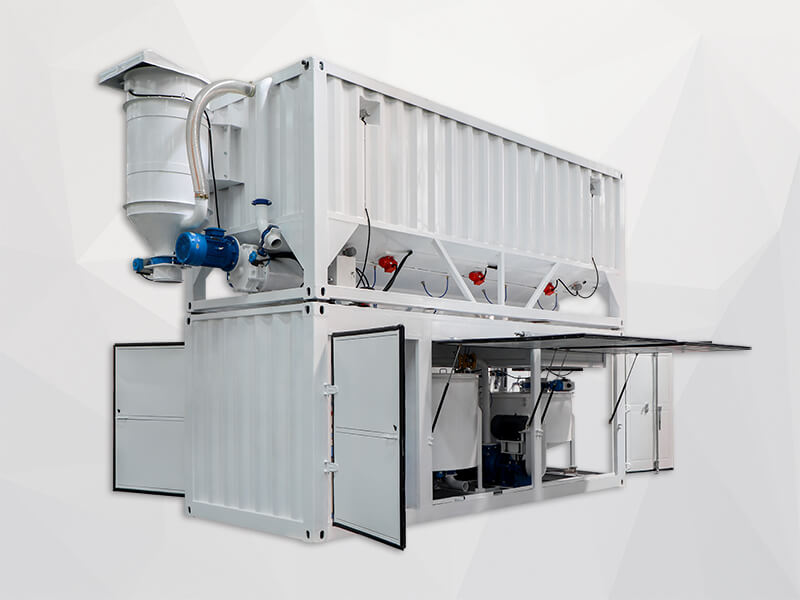

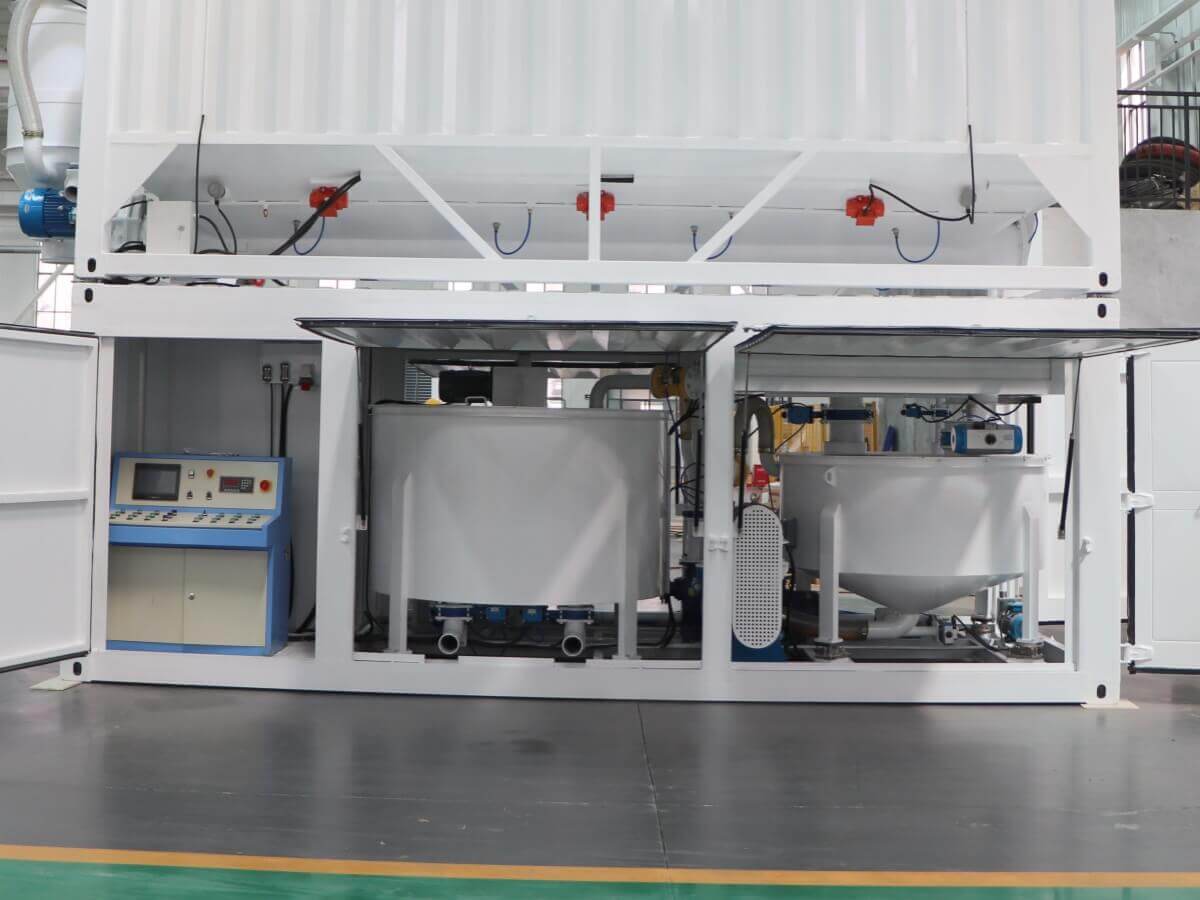

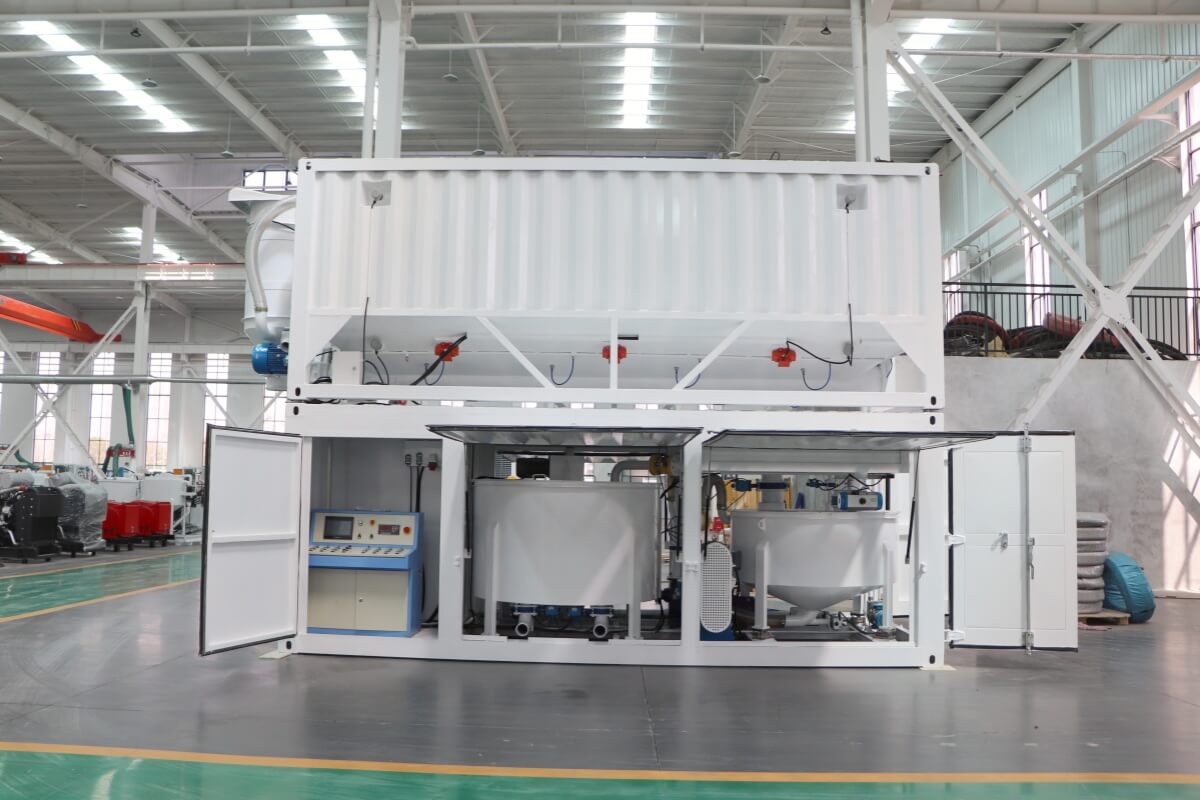

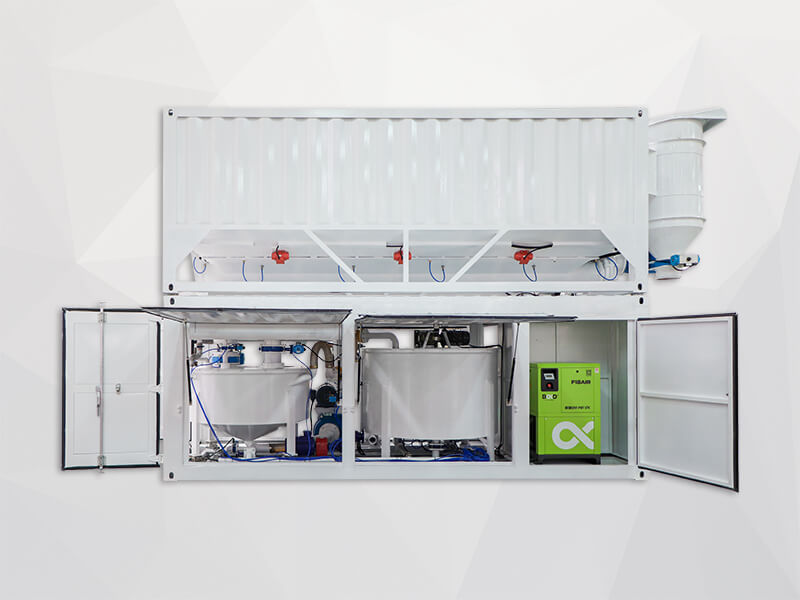

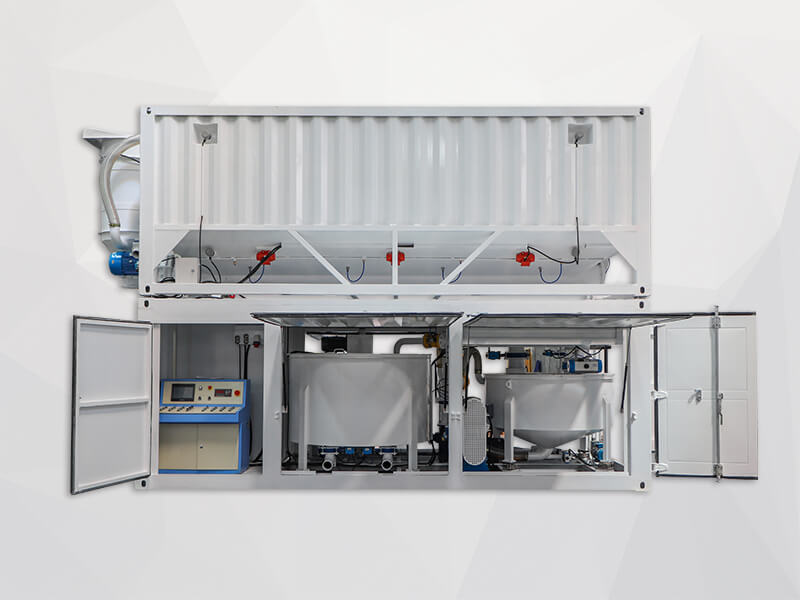

LMA30 Container type automatic cement grout mixer with cement silo is mainly conceived to obtain, through a high turbulence mixing of water and cement powder, a cement mixture (cement grout), or, by using water and bentonite powder, a bentonite slurry for plastic mud. Also the preparing of ternary or quaternary compound mixing is possible, with either one or two liquid components and one solid components (for every screw conveyor). The cement mixture or the bentonite slurry is then transferred to the other units, according to the type of foreseen geotechnical machines.

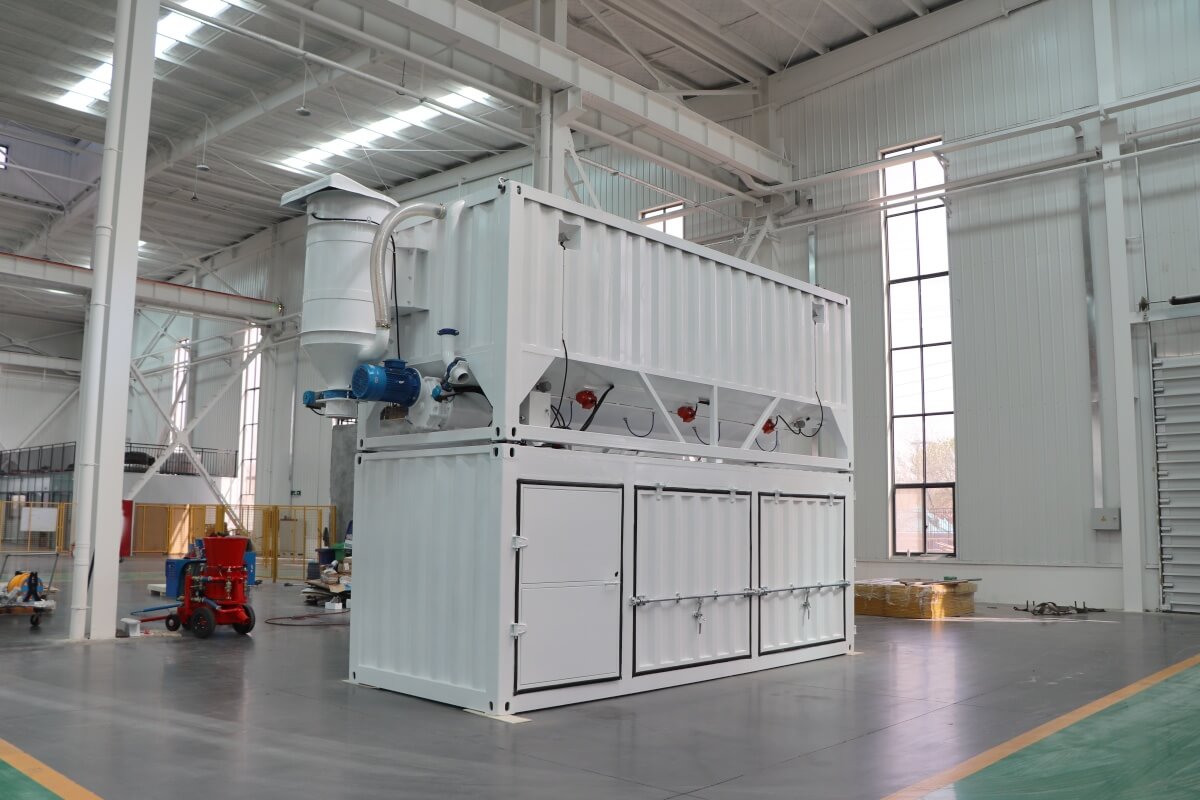

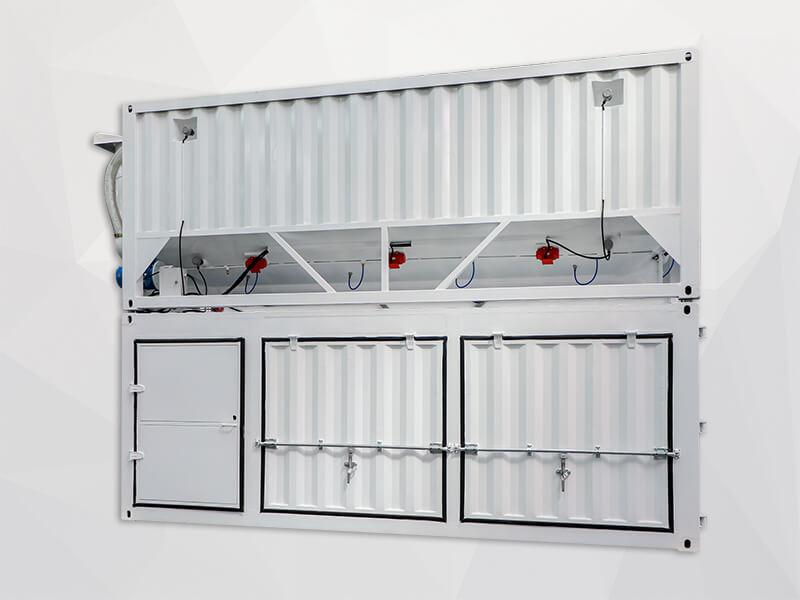

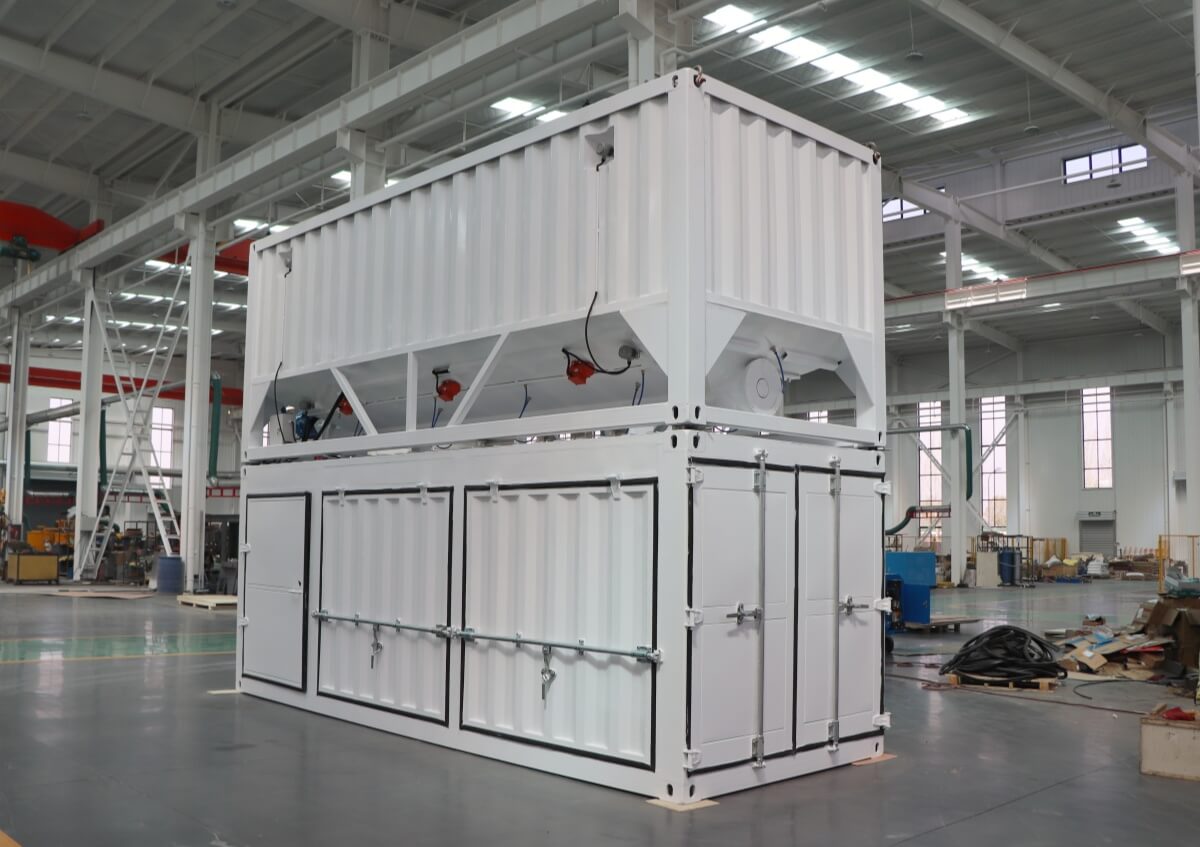

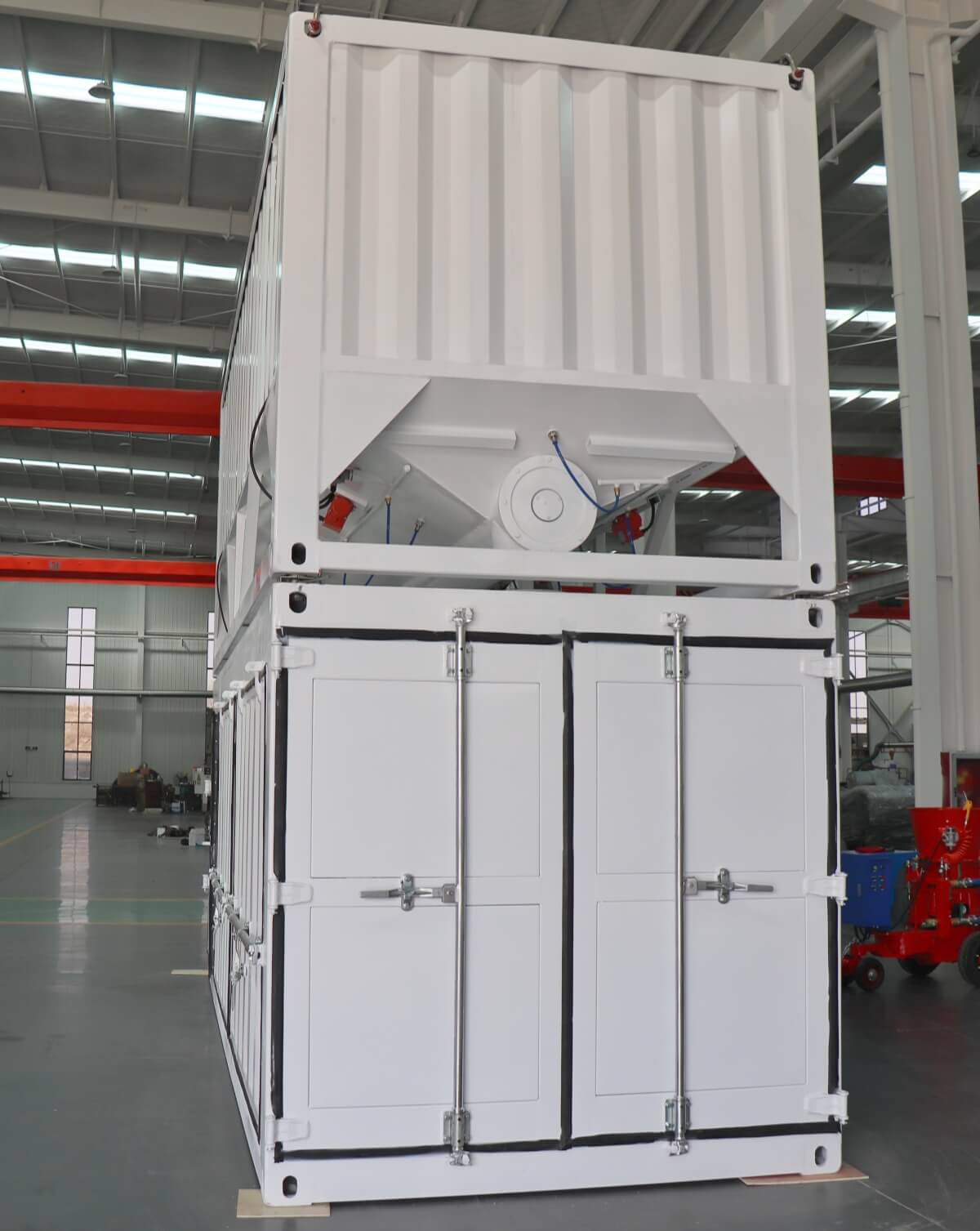

HCS17B Horizontal cement silo is designed based on 20ft container size. It can be stored directly in a standard container. Save shipping costs. More container silos can be stacked together to work.

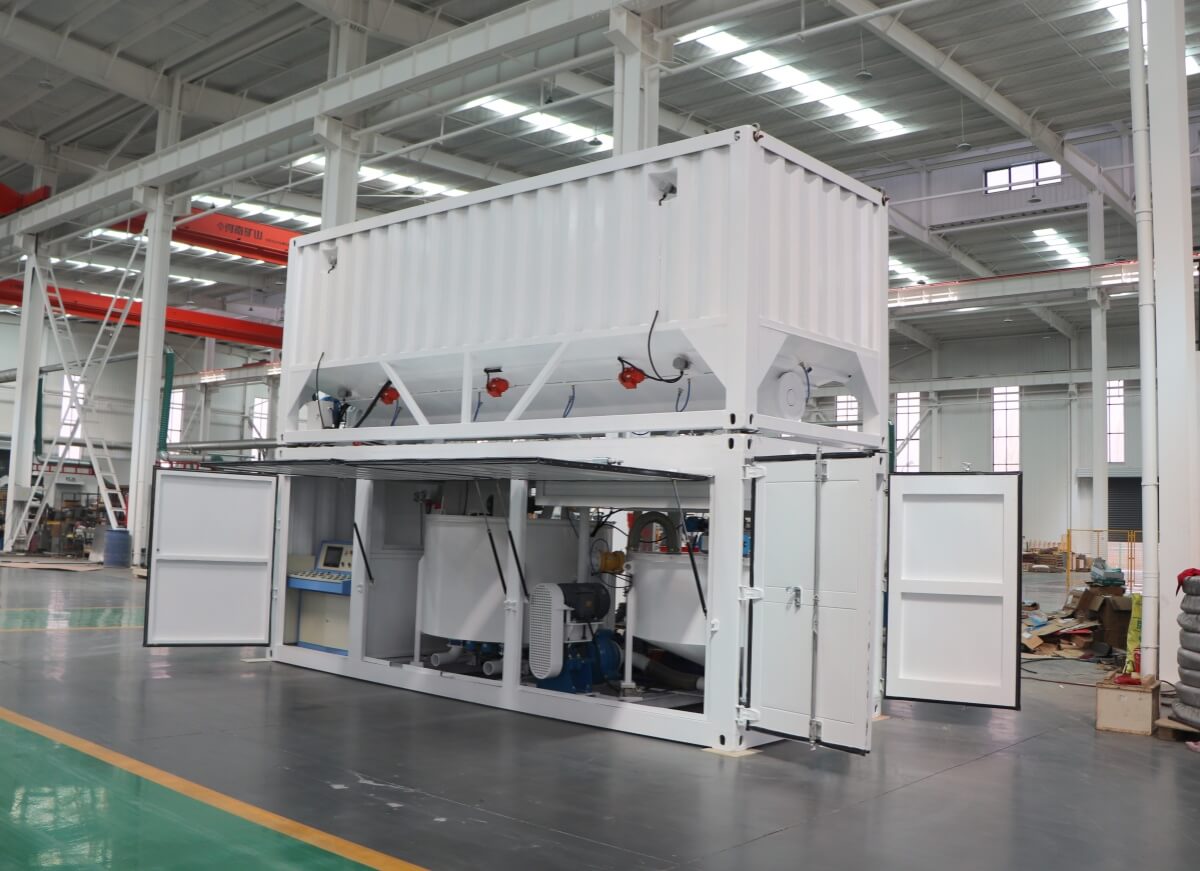

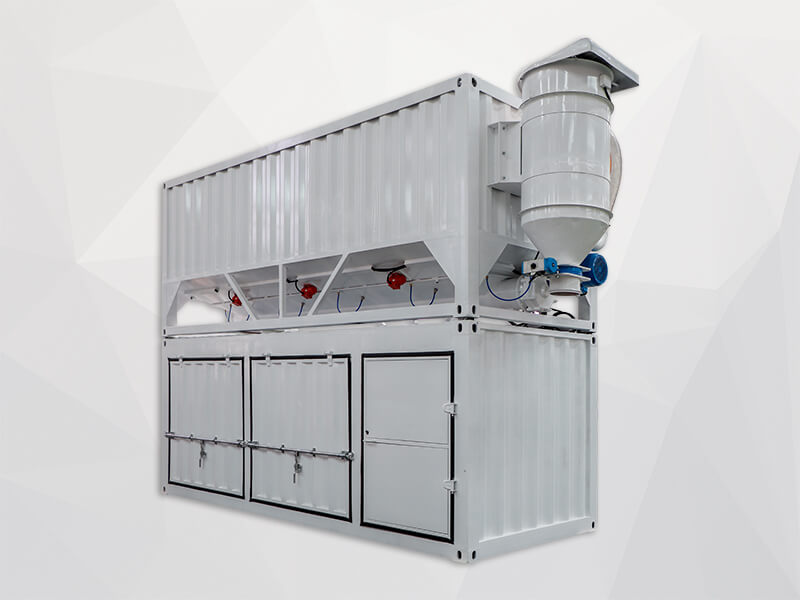

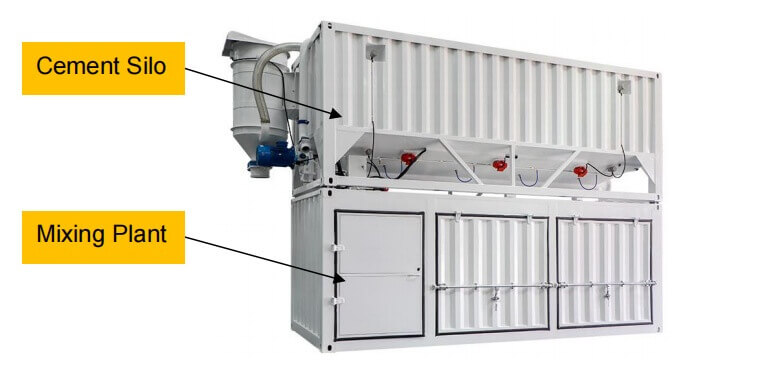

Automatic cement motar mixing plant can be work under Container Silo. 20ft and 40ft container silo both are provided.


1. Soil Stabilization & Ground Improvement
2. Tunneling & Mining (Grouting for Rock Reinforcement)
3. Foundation Underpinning & Anchoring
4. Dam & Reservoir Construction (Seepage Control)
5. Precast Concrete Production

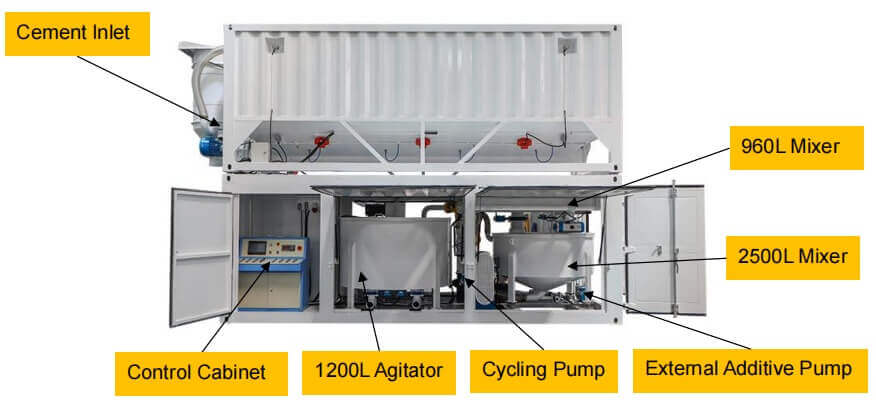

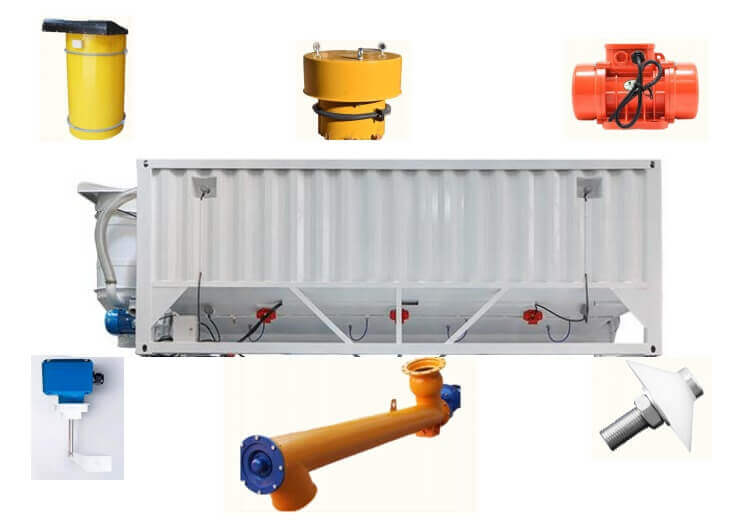

Cement Silo Composition and Quantity:

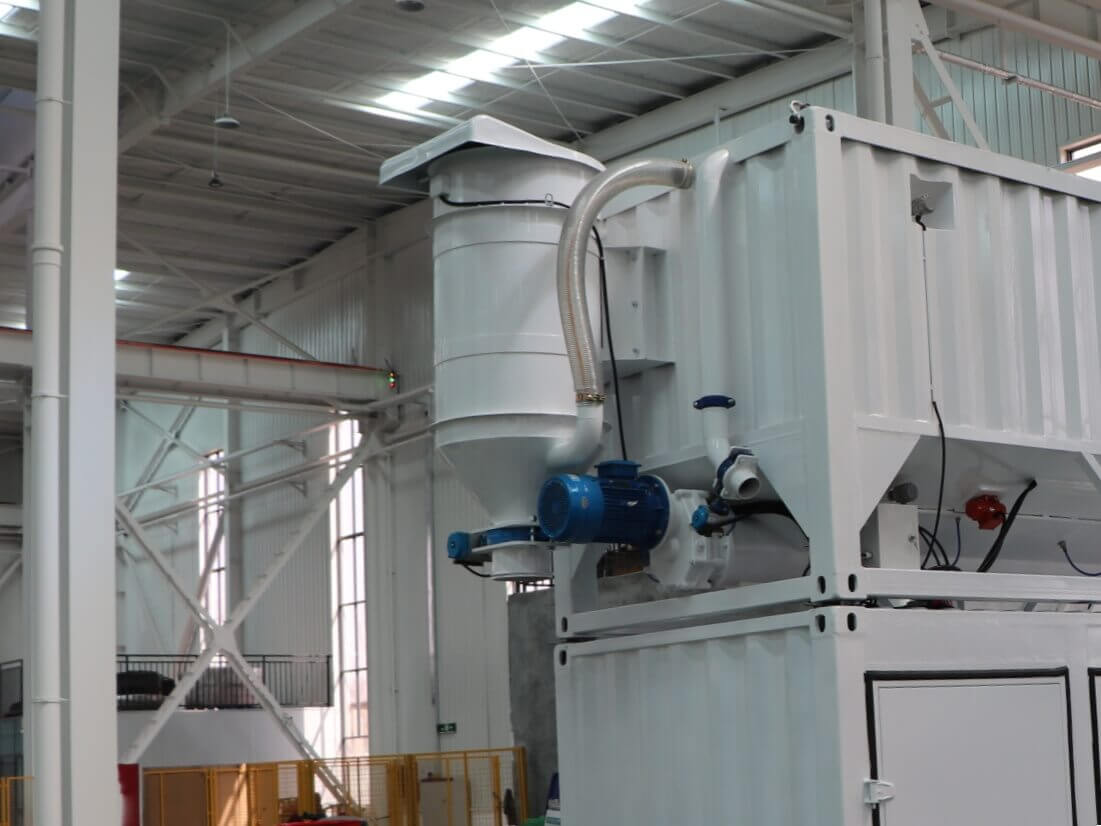

Dust removal (1)
Screw Conveyer-11Kw (1)
Upper recalling dipstick-damped rotation controller (2) and lower recalling dipstick-damped rotation controller (2)
Pressure relief valve (2)
OLI-WOLONG Vibrator-1.3Kw (6)
Air disc-vibrational fluidization and jet fluidization(10)

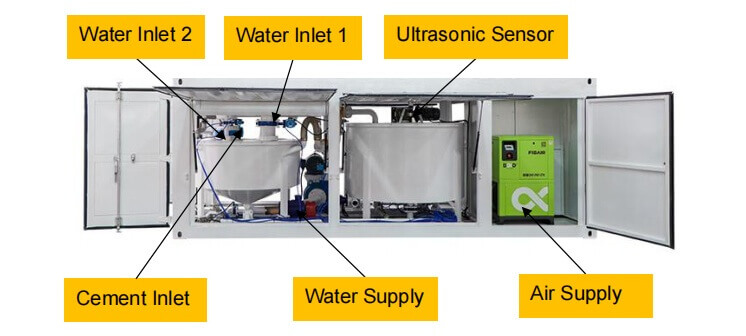

Automatic Mixing Plant Features:

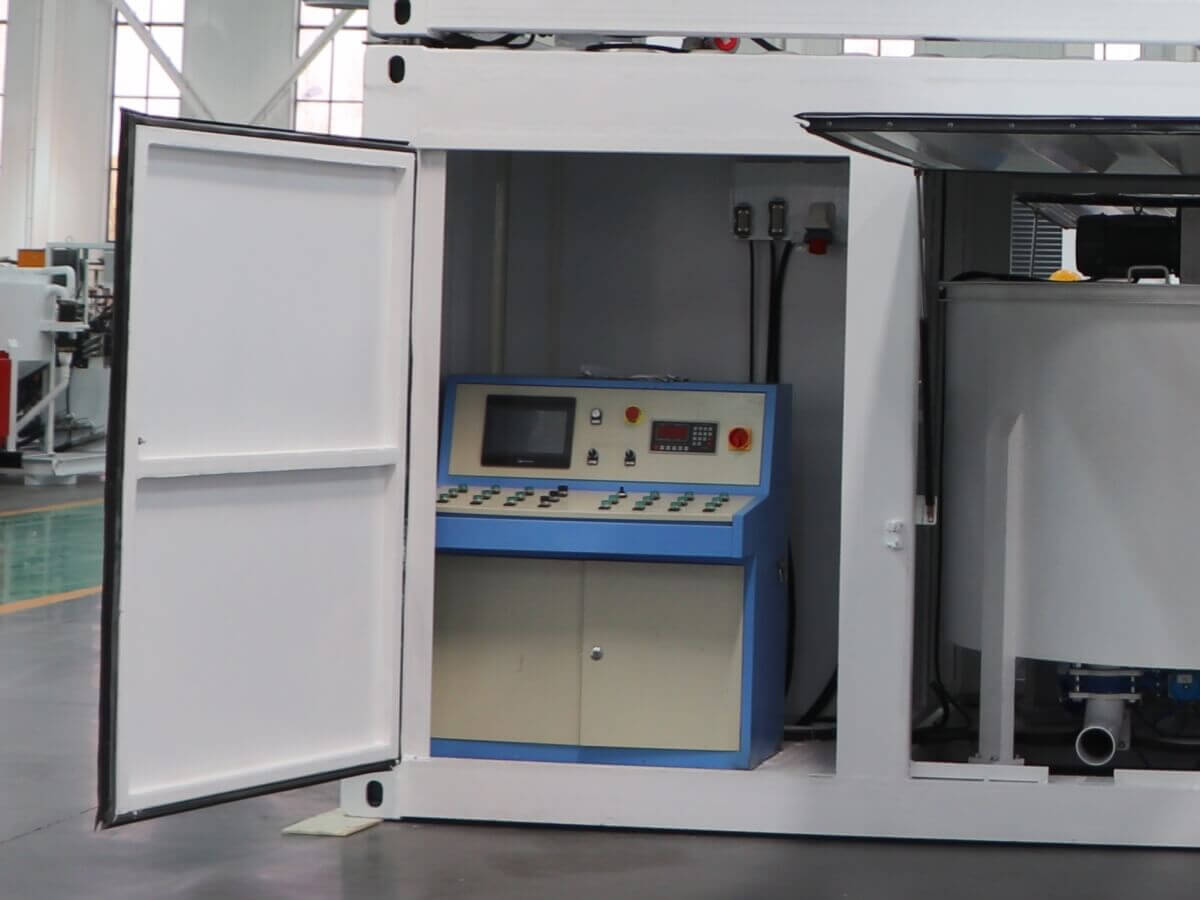

1. Two modes of operation: fully automatic mode and manual mode

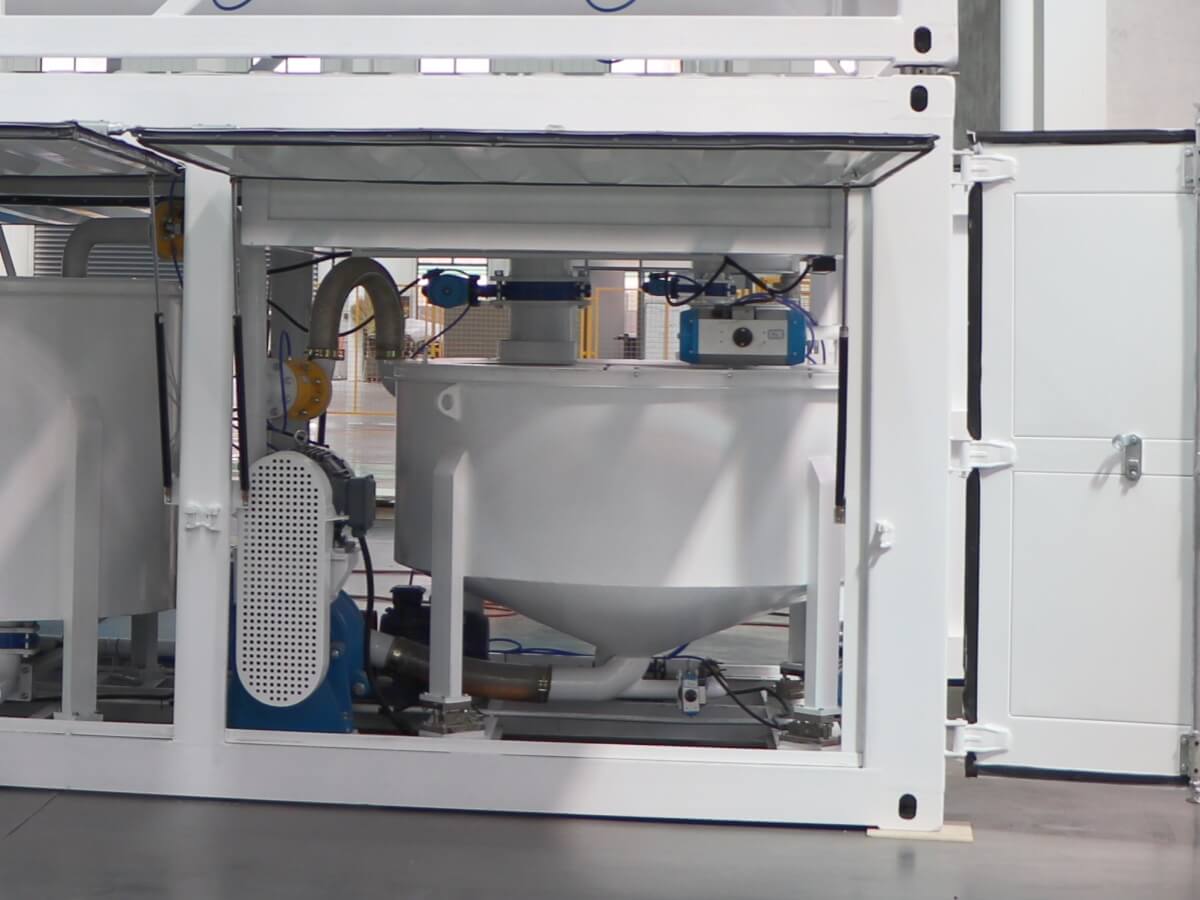

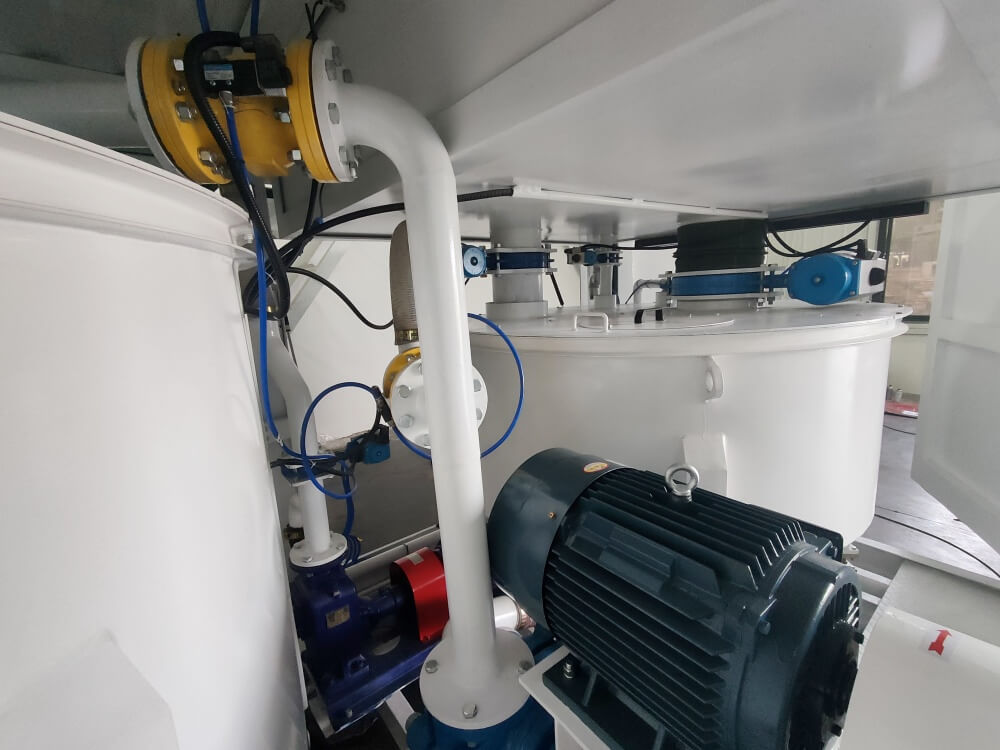

2. High-speed colloidal grout mixer

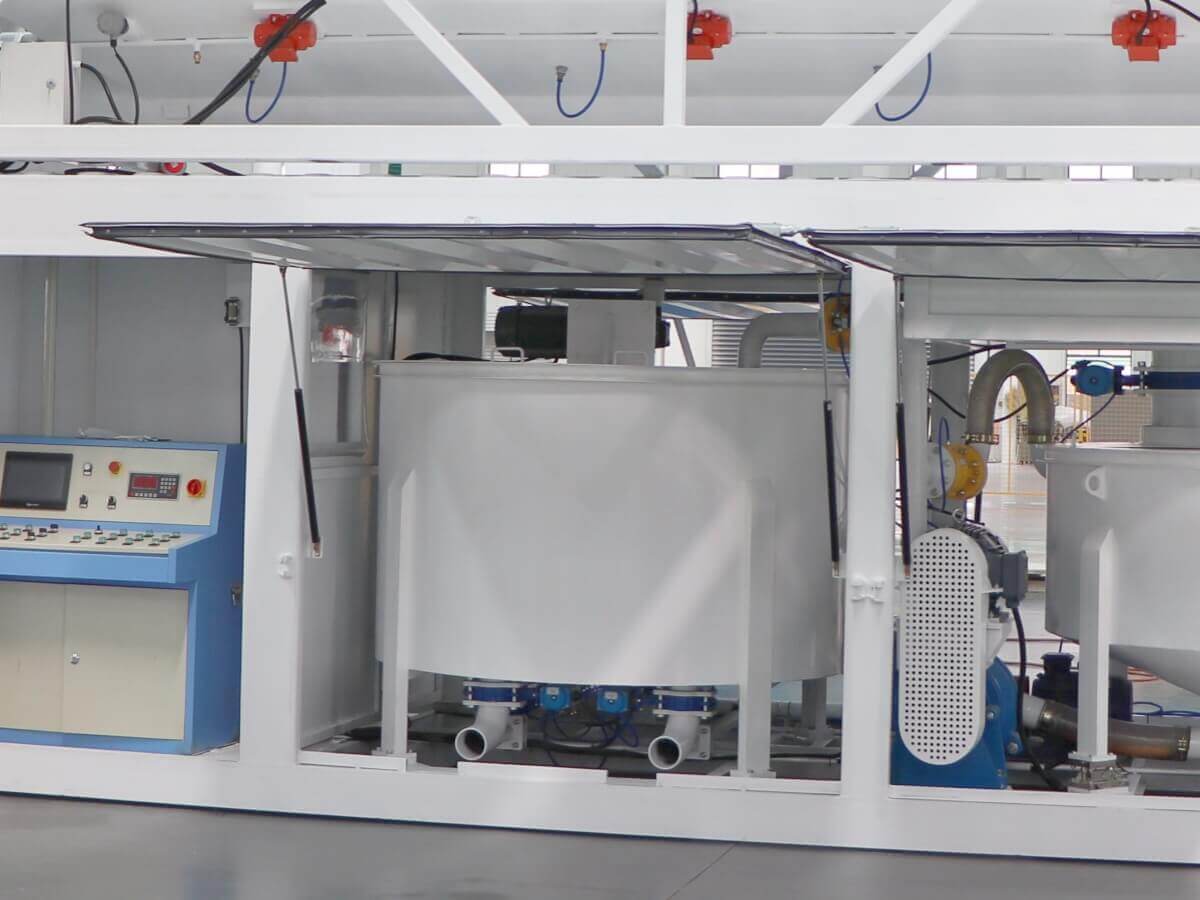

3. Mixture, cycling pump and agitator have an automatic cleaning function
4. The preparation of ternary or quaternary compound mixing is possible, with either one or two liquid components and one solid component
5. Equipped with some ceiling lamp, for illuminating the different working areas

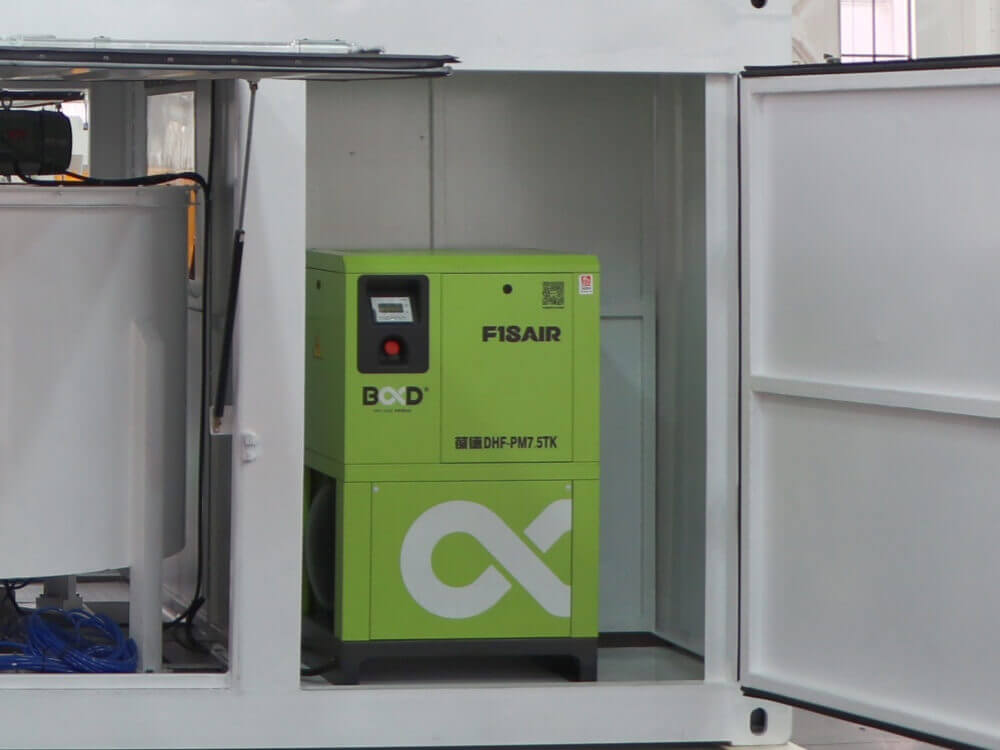

6. Main pipeline valves are all pneumatic valves
7. Up to 5mm particle size
8. Cement can be added by cement silo or screw feeder automatically
9. Can be placed directly in the 20ft cabinet
10. Easy to operate and maintain
