LMA400-700AW Automatic grout mixer
LMA400-700AW automatic grout mixer can also work with the agitator. The agitator has two functions, one is to avoid precipitation, and the other is to store the mixed cement slurry. In this case, stirring work and continuous grouting can be carried out.
400L
10m³/h
7.5Kw
1450r/min
1400l/min
700L
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description
LMA400-700AW Automatic grout mixer is a combination of screw feeder, grout mixer, grout agitator and Auto weighing system based on PLC in one base frame.
It is mainly used to mix the water, cement, bentonite, sand and other additives rapidly in the engineering department of water resource and electric power, coal, railway, traffic, construction, mine etc. construction applications.
It is mainly used to mix the water, cement, bentonite, sand and other additives rapidly in the engineering department of water resource and electric power, coal, railway, traffic, construction, mine etc. construction applications.
Application
LMA400-700AW Automatic high shear grout mixer mixes cement, bentonite, water and its additives quickly forms to an evenly slurry.
Automatic grout mixer is widely in building construction, building construction- post tension, highway, highway- slab raising, municipal, municipal- slab rasing.
Compact size and it is easy to operate. Automatic colloidal grout mixer also takes up a small space.
Automatic grout mixer is widely in building construction, building construction- post tension, highway, highway- slab raising, municipal, municipal- slab rasing.
Compact size and it is easy to operate. Automatic colloidal grout mixer also takes up a small space.
Features
LMA400-700AW automatic high speed grout mixer with agitator is a fully automatic grouting machine.
1. High-speed colloidal auto grout mixer.
2. Smoothly outflow slurry through the pneumatic pinch valve.
3. Simple operation interface.
4. Visualization interface.
5. Lower charging material height for the mixer.
6. Manual mode and fully automatic mode.
7. Auto high speed automatic grout mixer has remote control of the hose pump.
8. Multiple formulations can be set up.
9. Auto high shear grout mixer is with PLC machine control.
10. Variable Output with the variable-frequency drive of all motors.
11. 3 sets of stable weighing modules auto mixing plant.
12. Precision of the ultrasonic liquid level meter.
1. High-speed colloidal auto grout mixer.
2. Smoothly outflow slurry through the pneumatic pinch valve.
3. Simple operation interface.
4. Visualization interface.
5. Lower charging material height for the mixer.
6. Manual mode and fully automatic mode.
7. Auto high speed automatic grout mixer has remote control of the hose pump.
8. Multiple formulations can be set up.
9. Auto high shear grout mixer is with PLC machine control.
10. Variable Output with the variable-frequency drive of all motors.
11. 3 sets of stable weighing modules auto mixing plant.
12. Precision of the ultrasonic liquid level meter.
Product Details
-
Electric control cabinet of Automatic grout mixer -
Pneumatic pinch valve of Automatic grout mixer -

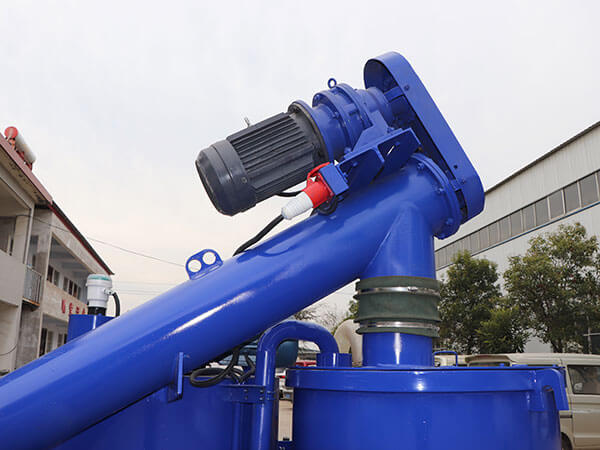

Screw feeder Automatic grout mixer -
Water supply system Automatic grout mixer -
Weighing sensor Automatic grout mixer -
Centrifugal pump of Automatic grout mixer
Technical Parameters
Technical Data
| LMA400-700AW Automatic grout mixer specification (with electric motor drive): | ||
| 1. Pneumatic pinch valve: the slurry flows more smoothly. | ||
| 2. Ultrasound fluid level meter: height of agitator can be accurately measured. | ||
| 3. Variable-frequency drive: all motor can be output with variable-frequency. | ||

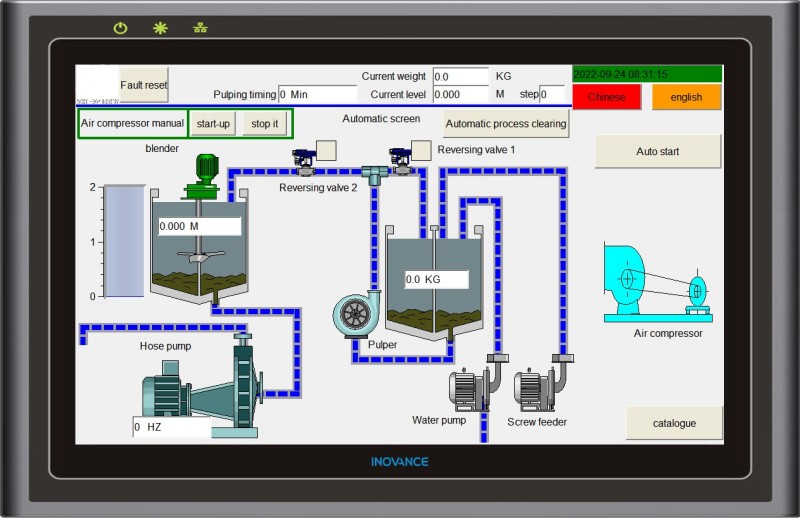

| 4. PLC+touch screen : manual mode and fully automatic mode. | ||
| 5. Remote control : control hose pump: start, stop, accelerate, deceleration. | ||
| Mixer | Effective volume | 400L |
| Max.mixing capacity | 10m³/h | |
| Centrifugal pump | Motor power | 7.5Kw |
| Rotating speed | 1450r/min | |
| Circulation capacity | 1400l/min | |
| Agitator | Effective volume | 700L |
| Motor power | 2.2Kw | |
| Water supply system | Motor power | 1.5Kw |
| Displacement | 8.8m³/h | |
| Head | 21.5m | |
| Air supply system | Motor power | 1.5Kw |
| Displacement | 0.15m³/h | |
| Control system | Mode | PLC |
| Power | DC 24V | |
| Dimension(L×W×H) without screw @Weight | 2500×2100×1900mm@1000Kg | |
| Dimension(L×W×H) with screw @Weight | 3800×2100×2720mm@1280Kg | |
| Leadcrete Equipment can customize high speed high shear grout mixer by your needs. | ||
