Hydraulic Synchronous Lifting Jack
Hydraulic synchronous lifting jack is powered by ZB series of high pressure electric oil pump, the function for oil pressure rebound, overflow, hydraulic synchronous lifting jack is designed a safe protect pressurizer, it can protect emergent overpressure, especial construction can protect the cylinder.  Hydraulic synchronous lifting jack can bear partial loading is 5% of rated pressure. High pressure alloy cylinder is very durable, especially in the larger project, it is easy to be operated and control.
STQ100-100
100
100
250
350
180
Introduction
Product Details
Technical data
Cases
Inquiry
Description
Hydraulic synchronous lifting jack is powered by ZB series of high pressure electric oil pump, the function for oil pressure rebound, overflow, hydraulic synchronous lifting jack is designed a safe protect pressurizer, it can protect emergent overpressure, especial construction can protect the cylinder.

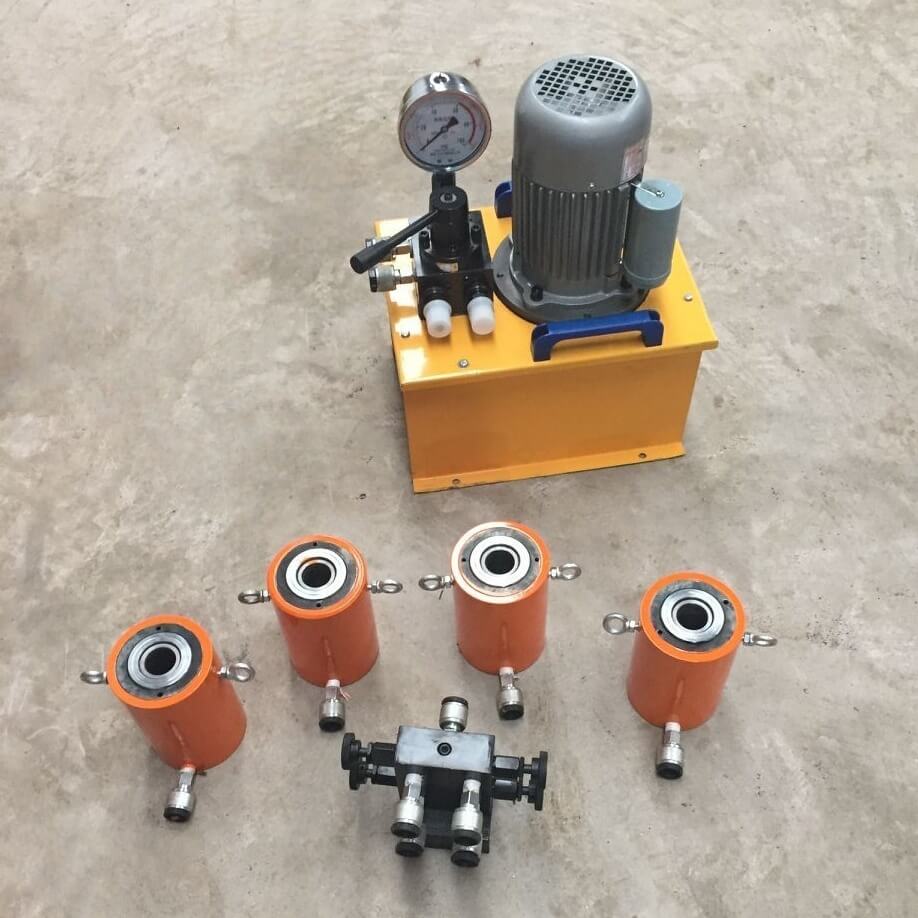

4 sets synchronous lifting jack with one pump

Hydraulic synchronous lifting jack can bear partial loading is 5% of rated pressure. High pressure alloy cylinder is very durable, especially in the larger project, it is easy to be operated and control.
Hydraulic synchronous lifting jack can be used for lifting heavy machines, bridge project, hydraulic engineering, harbour construction and other equipment. Hydraulic synchronous lifting jack has a large output, light weight, remote control and other advantages, it can match with our high pressure oil pump, it can reach jack, push, pull and extrusion and kinds of work.

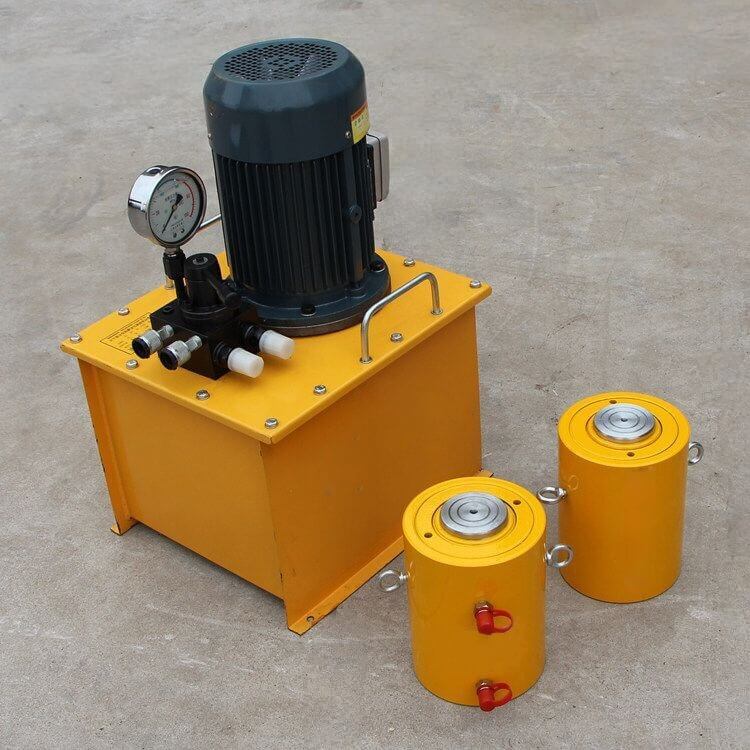

2pcs of synchronous hydraulic jack with one pump

Specification: one pump with two jacks, one pump with four jacks, one pump with six jacks, one pump with eight jacks, one pump with ten jacks, one pump with twelve jacks, one pump with fourteen jacks, one pump with sixteen jacks;

Tonnage: 10tons、20 tons、30 tons、50 tons、100 tons、150 tons、200 tons、320 tons、500 tons、630 tons、800 tons、1000 tons;

Power of pump station: 1.5kw、3kw、4kw、5.5kw、7.5kw、11kw、13kw.

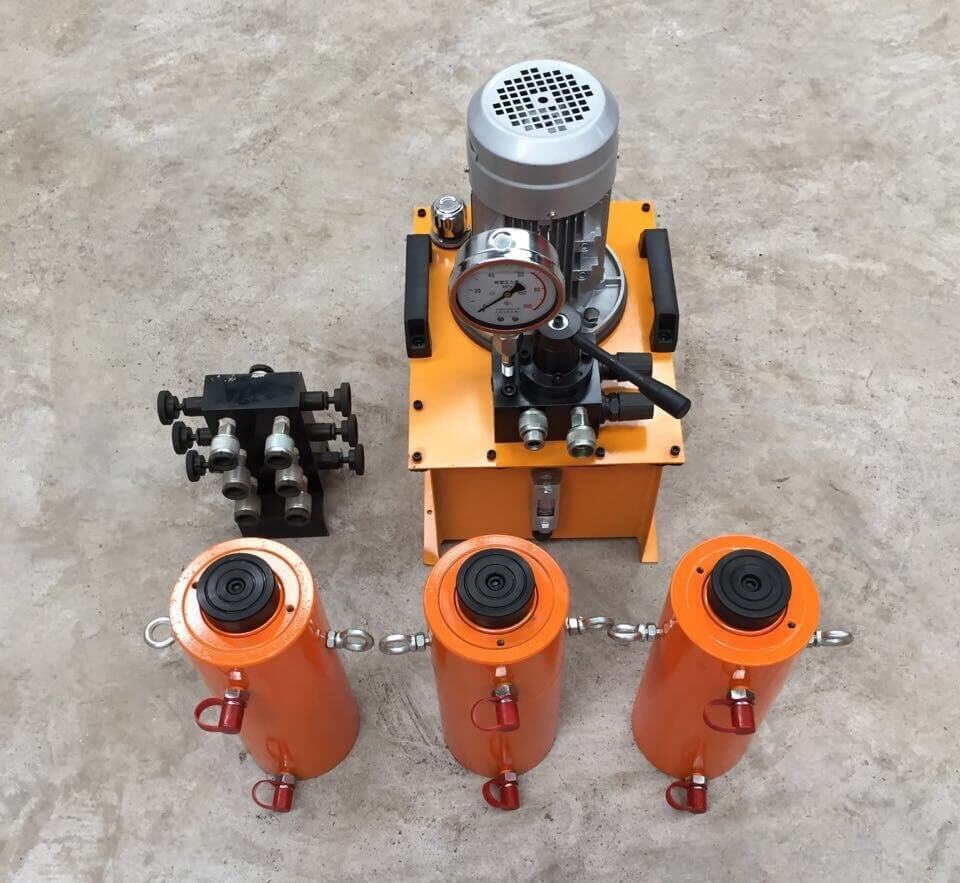

synchronous hydraulic jack with hydraulic pump station
Application
Hydraulic synchronous lifting jack is mainly used for rising, topping, tear downing in electric power, building, machine manufacturing, mining, railway, bridge, shipbuilding and many industrial. Hydraulic synchronous lifting jack has the following specific applications:
1. Lifting Bridge, pushing tunnel;
2. Installing and debugging heavy equipment;
3. Lifting ship body, install or disassemble propeller, and install main machine;

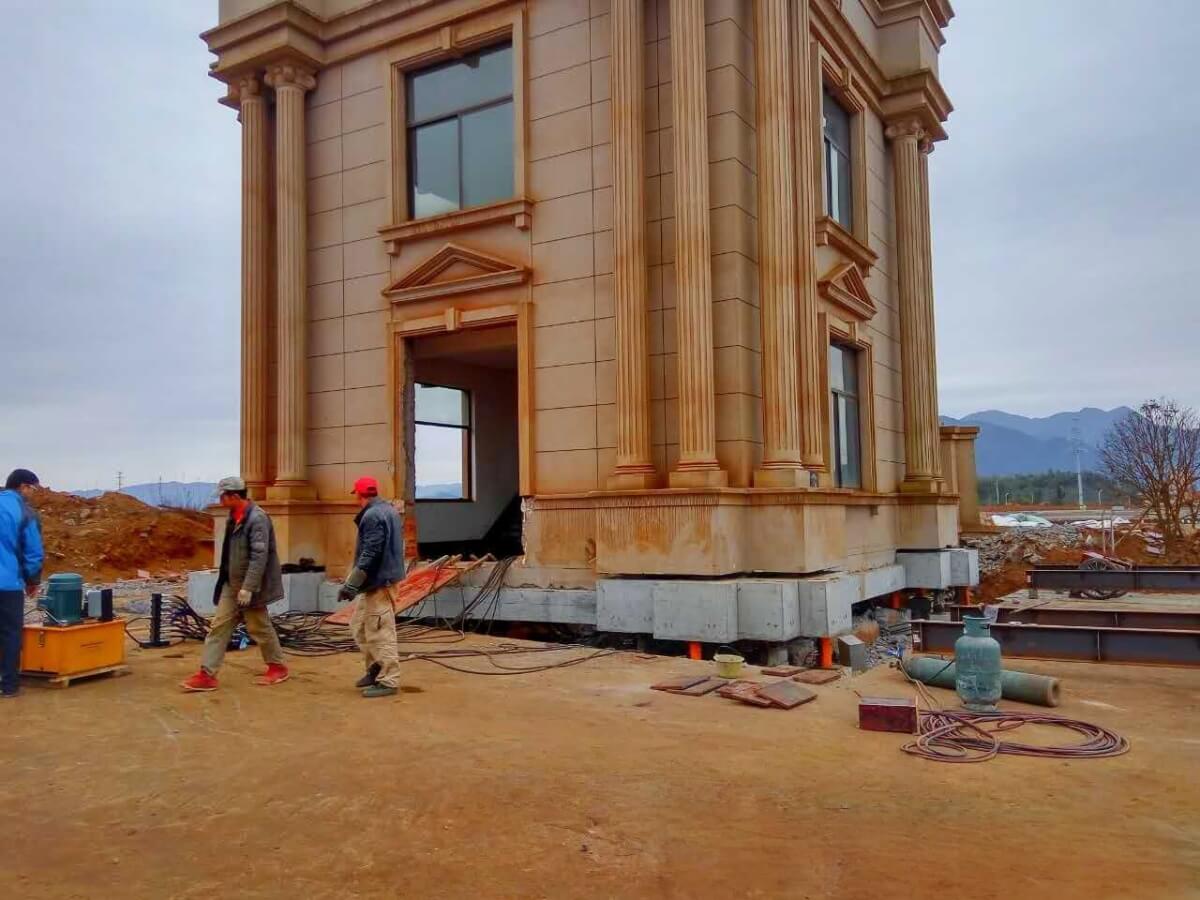

4. Lifting or moving existing buildings;
5. Lifting and measuring drilling platform;
6. The synchronous press machine, horizontally move load etc.

synchronous hydraulic jack for shipbuilding

synchronous hydraulic jack cases

synchronous hydraulic jack cases
Features
1. Hydraulic synchronous lifting jack is easy to be operated and control.
2. Hydraulic lifting jack can be used for liting heavy machines, bridge projects, hydraulic engineering, harbor construction and other equipment.
3. Synchronous hydraulic lifting jack has a large output, light weight, remote control, and other advantages, special seals to ensure sealing performance and extend service life.
4. Hydraulic synchronous lifting jackcan match with our high pressure oil pump, it can reach jack, push, pull and extrusion and kinds of work.
Product Details

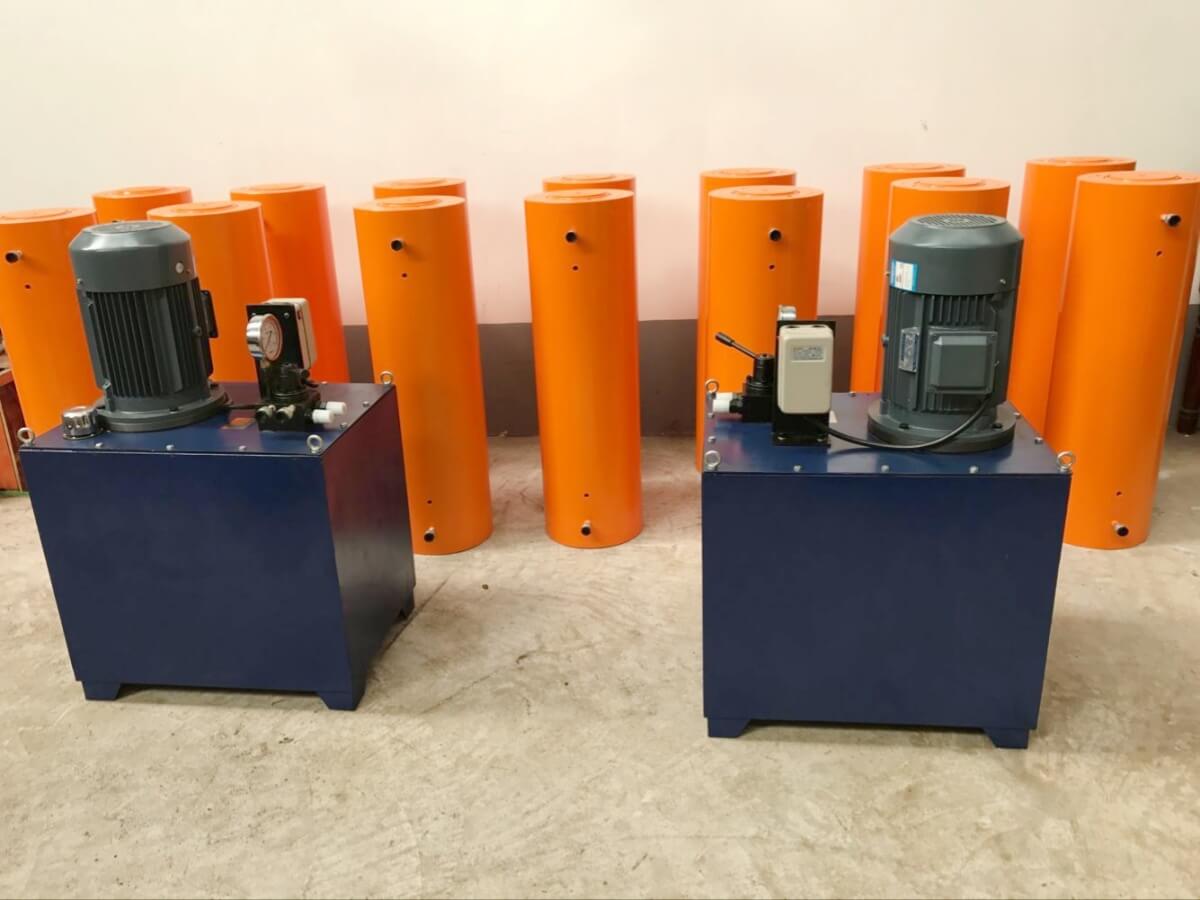

Hydraulic Synchronous Lifting Jack
16sets hydraulic jack with one electric pump together working
Lifting Bridge, pushing tunnel hydraulic lifting jack
Technical Parameters
Technical Data
Model Tonnage T Stroke mm Closed height mm Extend height mm OD of oil cylinder mm Dia. of piston ID Weight kg Pressure
STQ100-100 100 100 250 350 180 100 140 58 63MPA
STQ100-160 160 310 470 63
STQ100-200 200 350 550 78
STQ100-300 300 450 750 96
STQ100-500 500 650 1150 130
STQ150-100 150 100 260 360 219 125 180 58 63MPA
STQ150-160 160 320 480 69
STQ150-200 200 360 560 86
STQ150-300 300 460 760 103
STQ150-500 500 660 1160 255
STQ200-100 200 100 285 385 240 150 200 96 63MPA
STQ200-160 160 345 505 103
STQ200-200 200 385 585 116
STQ200-300 300 485 785 161
STQ200-500 500 685 1185 221
STQ320-100 320 100 310 410 330 180 250 196 63MPA
STQ320-160 160 370 530 240
STQ320-200 200 410 610 258
STQ320-300 300 510 810 311
STQ320-500 500 710 1210 456
STQ400-100 400 100 355 455 380 200 290 198 63MPA
STQ400-160 160 415 575 231
STQ400-200 200 460 660 264
STQ400-300 300 555 855 367
STQ400-500 500 755 1255 456
STQ500-100 500 100 360 460 430 200 320 323 63MPA
STQ500-160 160 420 580 330
STQ500-200 200 460 660 420
STQ500-300 300 560 860 581
STQ500-500 500 760 1260 599

Hydraulic lifting jack package:

synchronous lifting jack package
