Prestressing Hydraulic Tension Jack
1. Prestressing hydraulic tension jack is suitable for the tension of group anchors with 1860-2000 sizes, 1524, D12.7 strands
2. Prestressing hydraulic tension jack can be used in the working of pushing, jacking and transforming, used for jacking, stretching, rolling and other operations in construction, shipbuilding, metallurgy, mining, petrochemical, railway engineering and other industries.
3. Prestressing hydraulic tension jack is stable performance, very durable and long life easy to operate and used widely.
YDC60
6OKN
54mpa
150mm
1119mm2
30mm
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description
1. Prestressing hydraulic tension jack is suitable for the tension of group anchors with 1860-2000 sizes, 1524, D12.7 strands
2. Prestressing hydraulic tension jack can be used in the working of pushing, jacking and transforming, used for jacking, stretching, rolling and other operations in construction, shipbuilding, metallurgy, mining, petrochemical, railway engineering and other industries.
3. Prestressing hydraulic tension jack is stable performance, very durable and long life easy to operate and used widely.
2. Prestressing hydraulic tension jack can be used in the working of pushing, jacking and transforming, used for jacking, stretching, rolling and other operations in construction, shipbuilding, metallurgy, mining, petrochemical, railway engineering and other industries.
3. Prestressing hydraulic tension jack is stable performance, very durable and long life easy to operate and used widely.
Application
Prestressing hydraulic tension jack is matched with prestressed anchorage has the characteristics of large output force, light weight, long working distance, etc., and can realize a variety of operation methods such as pushing, pushing, pulling, squeezing. Prestressing hydraulic tension jack is widely used in bridge construction, railway and subway water conservancy and hydropower engineering, shipbuilding, metallurgy, mining, petrochemical, railway engineering and other industries for jacking, stretching, rolling and other operations, foundation settlement tests and static piles.
Features
Prestressing hydraulic tension jack are the new designed products in our company, are the upgrades of the primary jacks.
1. Prestressing hydraulic tension jack using new seals, to synchronous strengthen the seal-ability under great pressure
2. Prestressing hydraulic tension jack using special alloy steel with heat treatment process, reducing the cylinders expansion ratio in the tensioning process. So the life of seals and sealing performance can be improved about 20%
3. In the tensioning and operating process jacks is easily damaged under overpressure because of the jack-based pullback cylinder so we added the overpressure valve on the prestressing hydraulic tension jack to pressure production. Meanwhile, we improved the original of the commonly used structure by wire disc and flanged disc to make the bearing capacity for oil pressure strengthen. So enormously reduce the possibility of mechanical damage due to improper operation.
1. Prestressing hydraulic tension jack using new seals, to synchronous strengthen the seal-ability under great pressure
2. Prestressing hydraulic tension jack using special alloy steel with heat treatment process, reducing the cylinders expansion ratio in the tensioning process. So the life of seals and sealing performance can be improved about 20%
3. In the tensioning and operating process jacks is easily damaged under overpressure because of the jack-based pullback cylinder so we added the overpressure valve on the prestressing hydraulic tension jack to pressure production. Meanwhile, we improved the original of the commonly used structure by wire disc and flanged disc to make the bearing capacity for oil pressure strengthen. So enormously reduce the possibility of mechanical damage due to improper operation.
Product Details
-

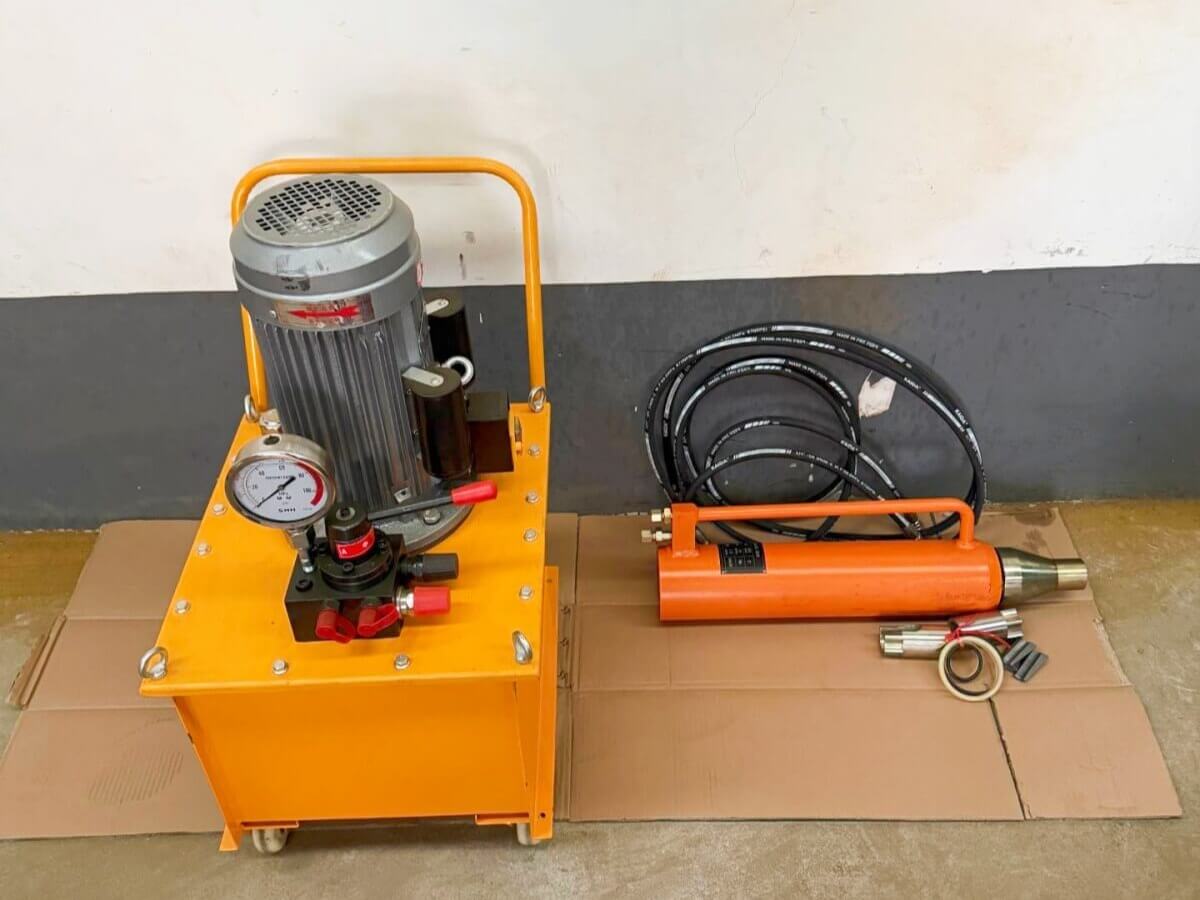

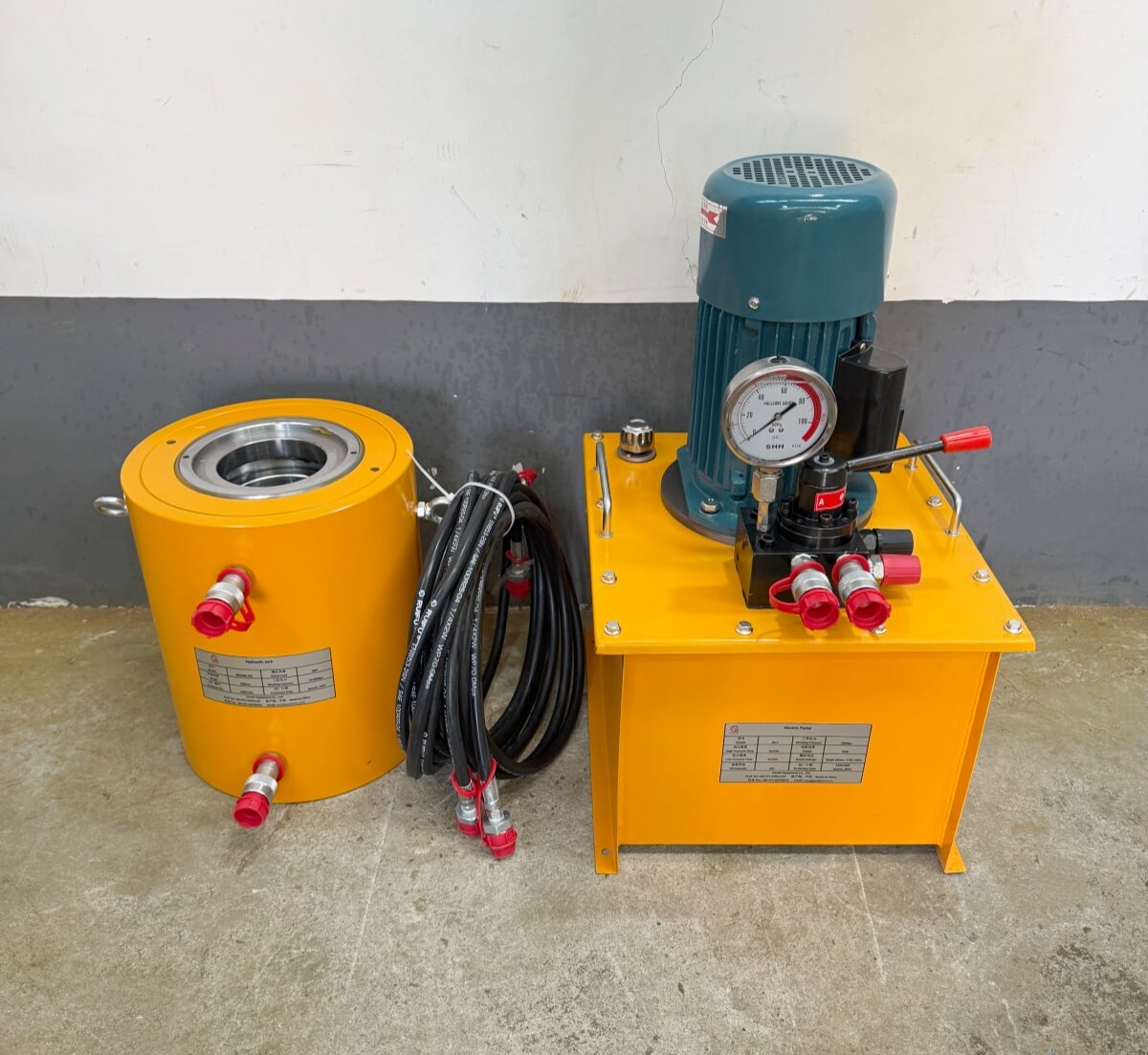

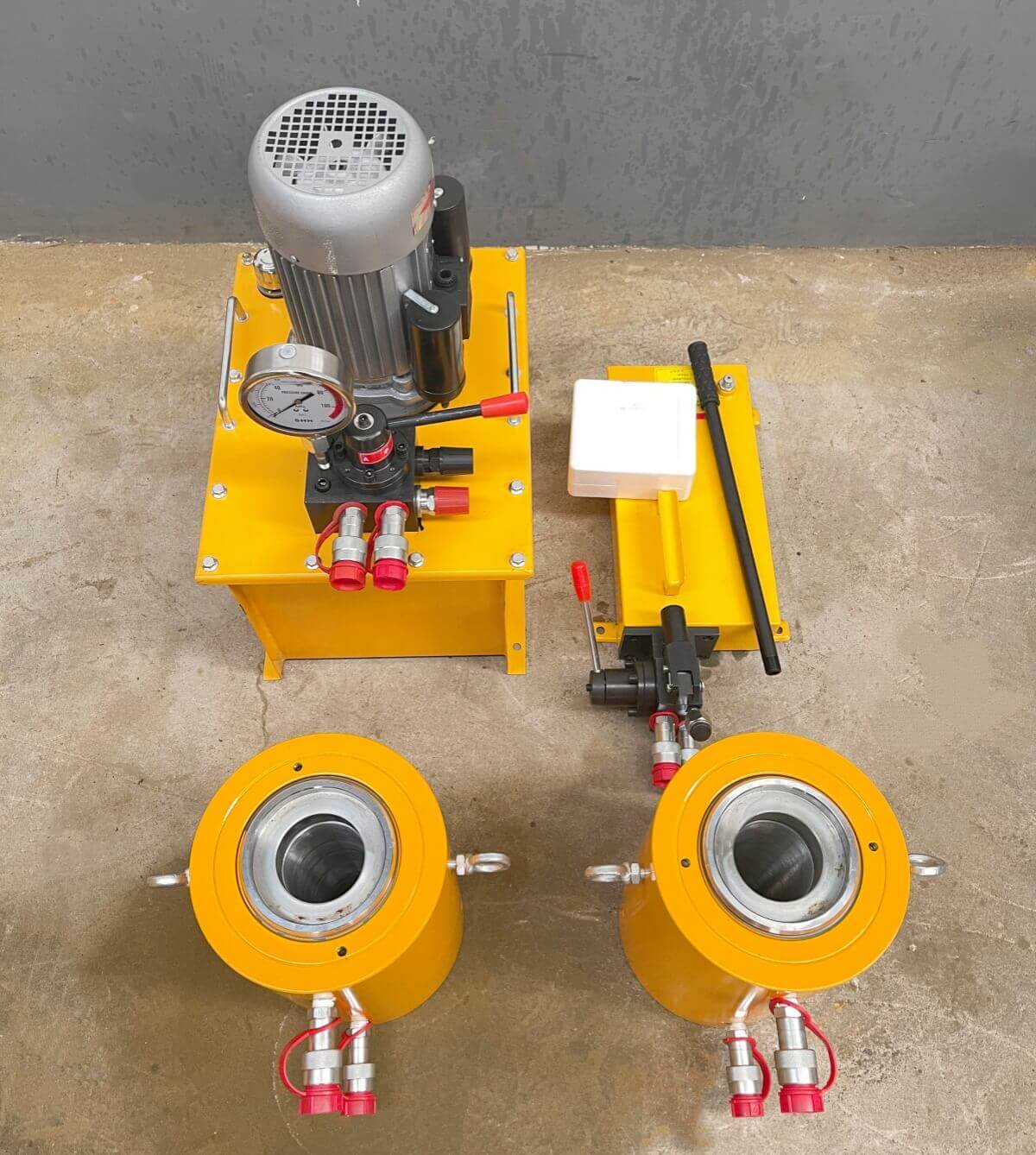

prestressing hydraulic tension jack with electric pump -
104sets 150ton 200mm hydraulic tension jack -

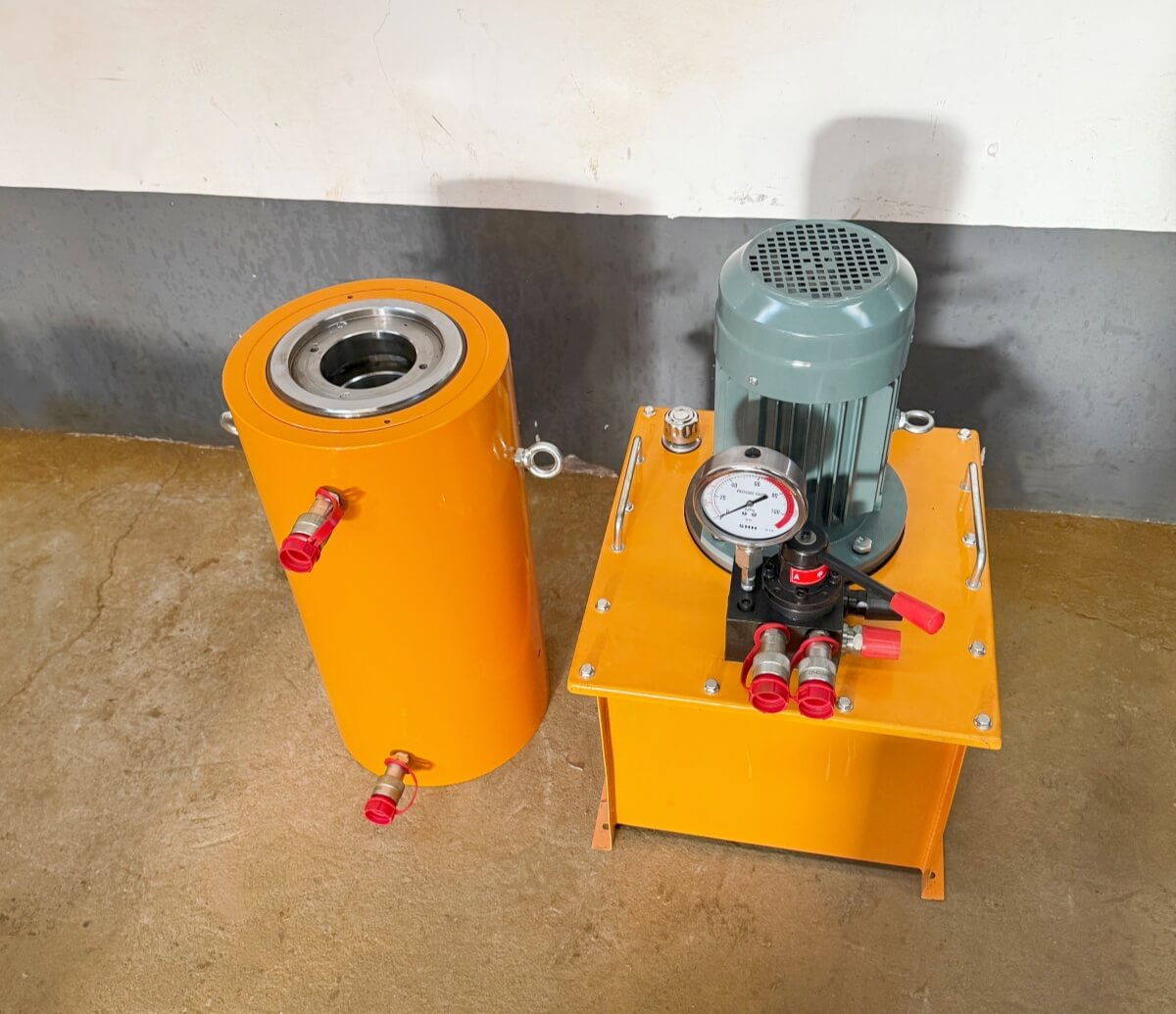

hydraulic tension jack for prestressed anchor
Technical Parameters
Technical Data
| Model | Tonnage | Tension force kN |
Stroke mm |
Central diameter mm |
Dimension mm |
Weight kgs |
Tension area | Rated oil pressure | Number of max. Tension strands |
| QYC250 | 25 | 250 | 200 | φ19 | φ105×500 | 20 | 4415 mm² | 60Mpa | Single strand |
| QYC100B | 10 | 100 | 850 | φ10 | φ1095×777 | 37 | 2230mm² | 43Mpa | Single strand |
| QYC300 | 30 | 300 | 400 | φ19 | φ110×700 | 20 | 6263mm² | 50Mpa | Single strand |
| YDC650 | 65 | 650 | 200 | φ60 | φ190×345 | 58 | 12638mm² | 51Mpa | 3 strands |
| YDC1100 | 110 | 1100 | 200 | φ78 | φ230×356 | 80 | 24048mm² | 54Mpa | 5 strands |
| YDC1500 | 150 | 1500 | 200 | φ90 | φ270×356 | 120 | 30242mm² | 50Mpa | 7 strands |
| YDC2000 | 200 | 2000 | 200 | φ114 | φ296×372 | 135 | 35796mm² | 56Mpa | 9 strands |
| YDC2500 | 250 | 2500 | 200 | φ128 | φ348×373 | 180 | 48358mm² | 52Mpa | 12 strands |
| YDC3000 | 300 | 3000 | 200 | φ142 | φ375×385 | 250 | 57796mm² | 52Mpa | 14 strands |
| YDC3500 | 350 | 3500 | 200 | φ158 | φ416×385 | 280 | 70765mm² | 49Mpa | 17 strands |
| YDC4000 | 400 | 4000 | 200 | φ158 | φ424×385 | 310 | 76308mm² | 53Mpa | 19 strands |
| YDC4600 | 460 | 4600 | 200 | φ190 | φ473×390 | 400 | 86072mm² | 53Mpa | 22 strands |
| YDC5000 | 500 | 5000 | 200 | φ193 | φ480×395 | 430 | 93696mm² | 53Mpa | 24 strands |
| YDC5600 | 560 | 5600 | 200 | φ193 | φ510×400 | 460 | 107156mm² | 52Mpa | 27 strands |
| YDC6500 | 650 | 6500 | 200 | φ205 | φ538×400 | 500 | 124580mm² | 52Mpa | 31 strands |
| Remark | 1. There are available jacks in stock if the tonnage is under 650 tons. 2. It needs to be customized if tonnage is over 650 tons. 3. Standard stroke is 200mm; if there are specific requirements, it needs to be customized. |
||||||||
