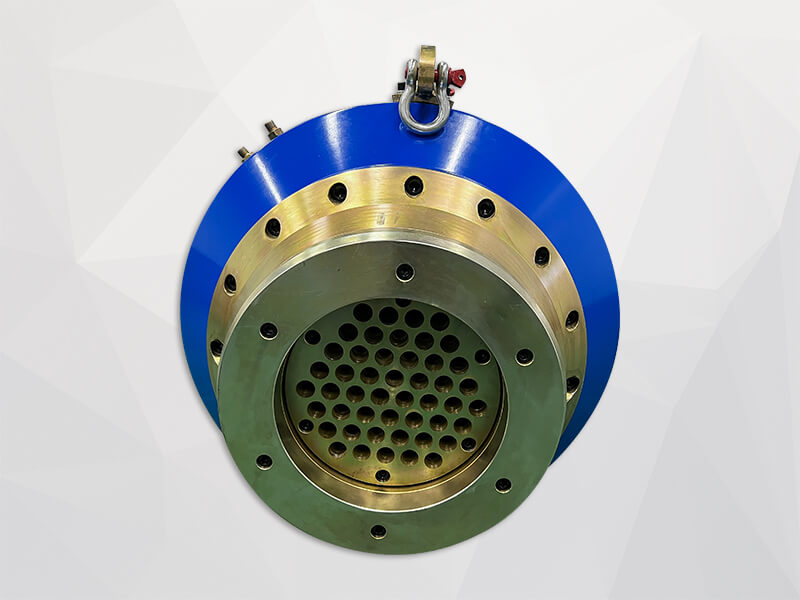

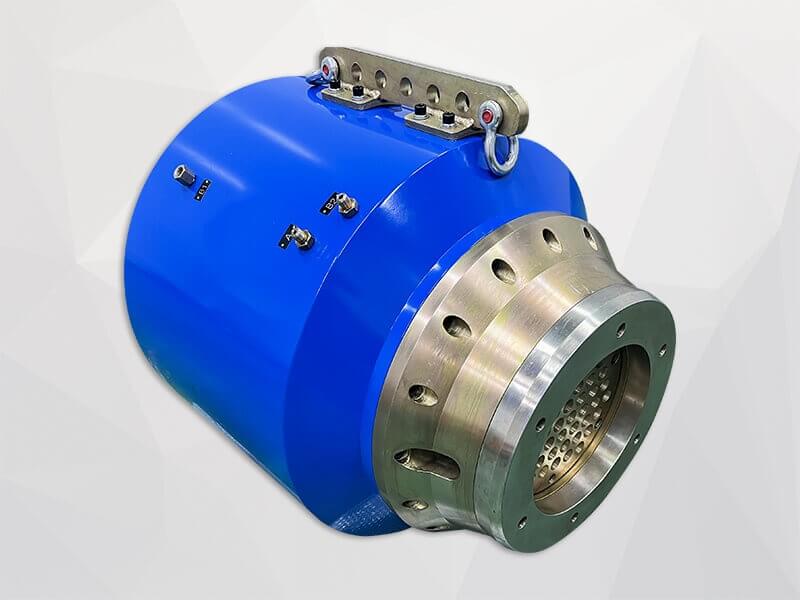

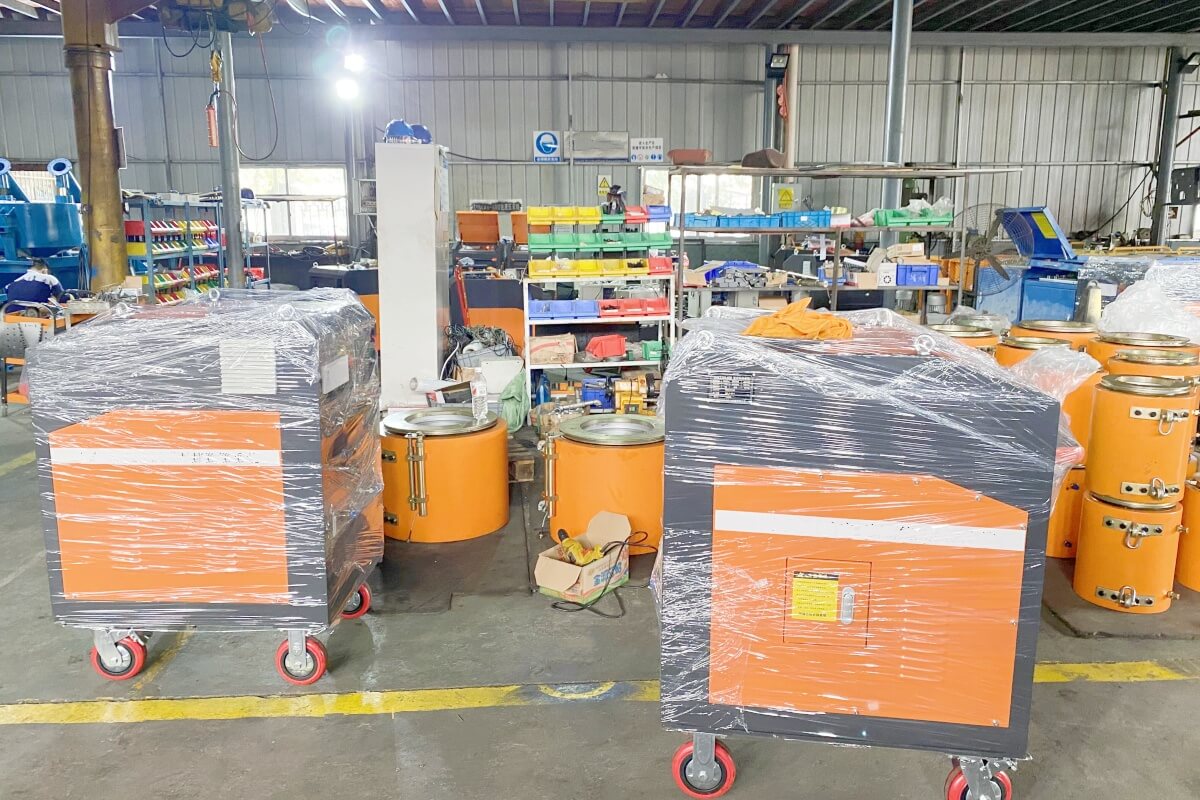

YDC500DY-250A PT Prestressed post tension multi-strand hydraulic jack
YDC500DY-250A PT Prestressed post tension multi-strand hydraulic jack is a specialized hydraulic tool used to simultaneously tension multiple high-strength steel strands in post-tensioned concrete structures (bridges, buildings, railways, etc.). Unlike mono-strand jacks (which tension one strand at a time), multi-strand jacks grip and stress all strands in a tendon bundle in a single operation.
500ton
250mm
56Mpa
894cm2
423.3cm2
φ505x880mm
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description

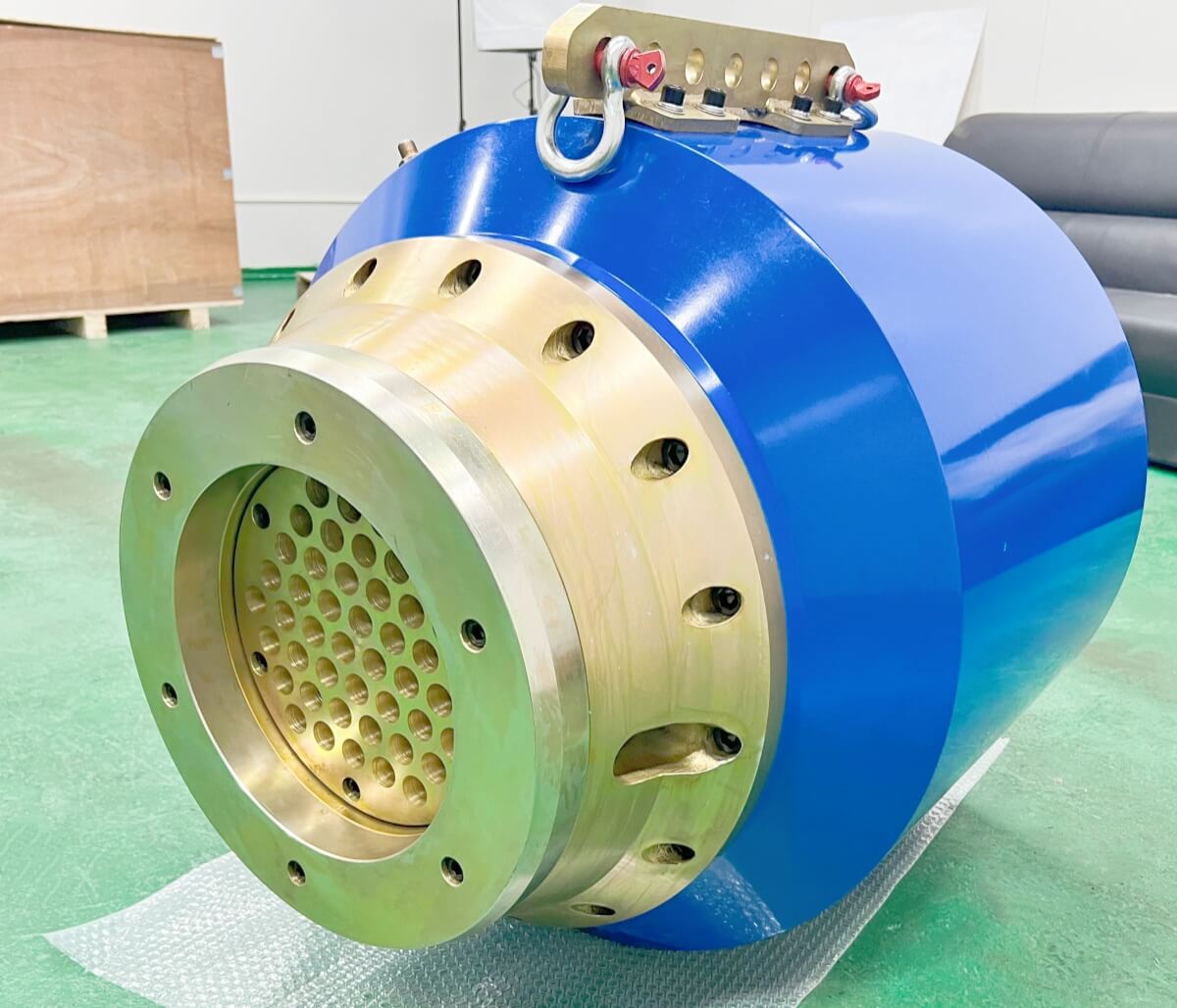

YDC500DY-250A PT Prestressed post tension multi-strand hydraulic jack is a specialized hydraulic jack designed for the automatic post-tensioning of PC strands. Featuring an advanced core-type double-oil circuit, this unit integrates a built-in top-pressing device and an automatic tool-anchor plate.
A key advantage of its design is the ability to drive wedges into the anchor hole via the top-pressure piston while maintaining full tension. This mechanism effectively minimizes strand shrinkage during release, ensuring highly reliable anchoring performance. It is ideally suited for a wide range of applications, including prestressed concrete structures and bridge construction projects.

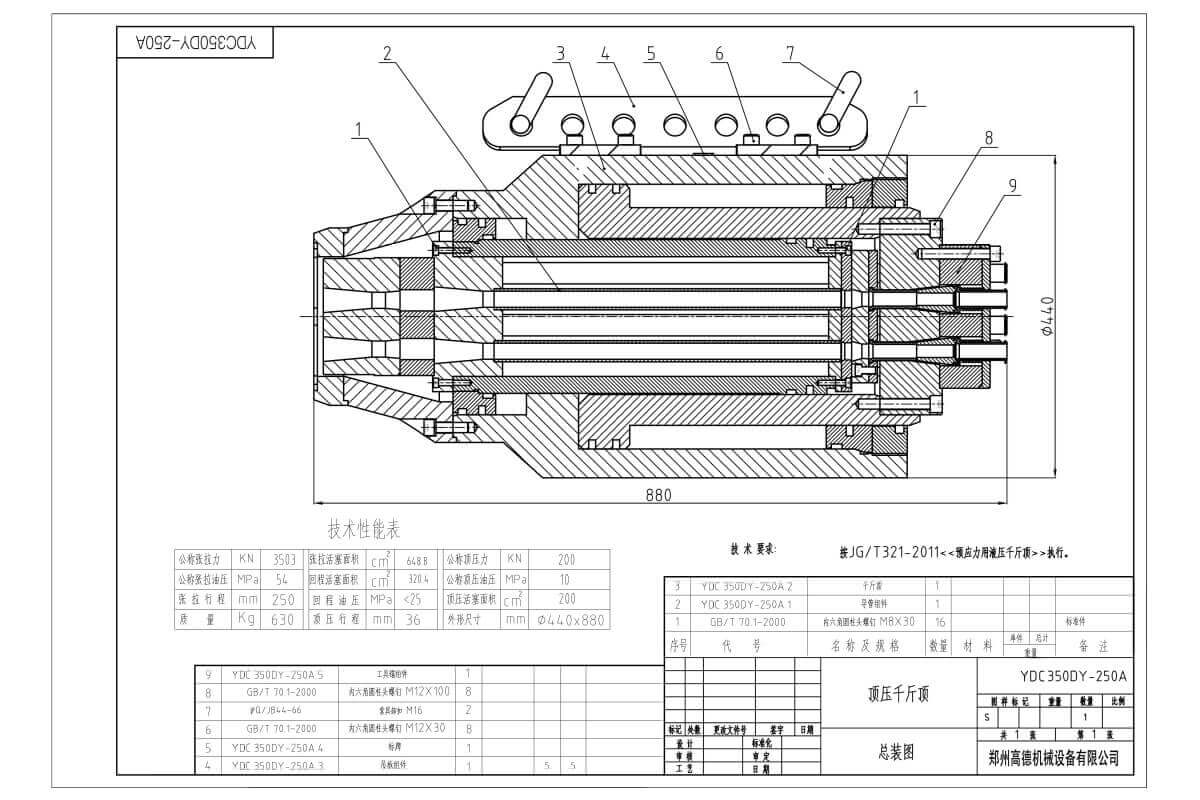

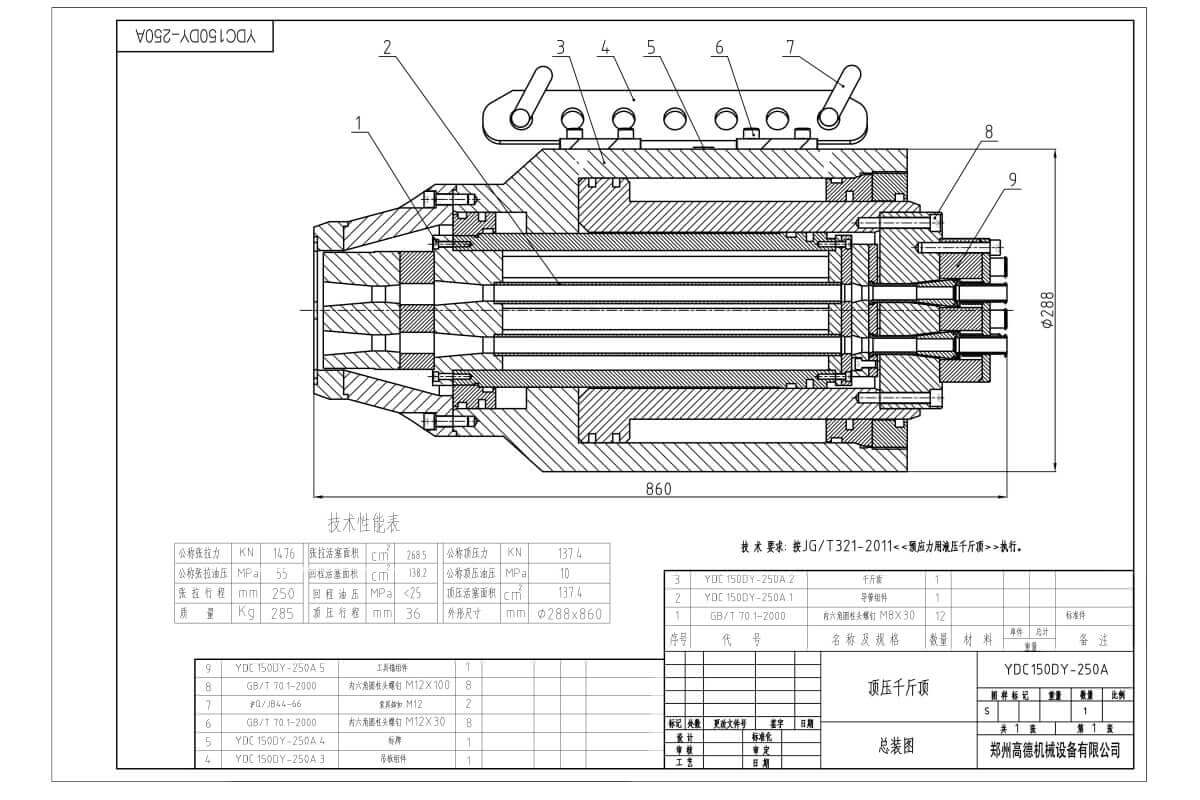

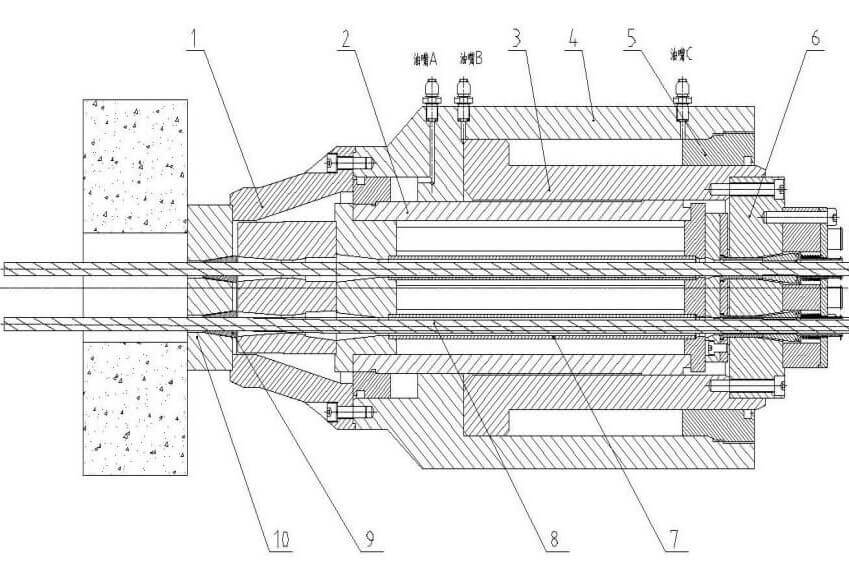

Design drawings for 150ton, 350ton, and 500ton Multi-Strand Prestressed Hydraulic Jacks:
We are a professional manufacturer and supplier of prestressed post tension multi-strand hydraulic jacks.
A key advantage of its design is the ability to drive wedges into the anchor hole via the top-pressure piston while maintaining full tension. This mechanism effectively minimizes strand shrinkage during release, ensuring highly reliable anchoring performance. It is ideally suited for a wide range of applications, including prestressed concrete structures and bridge construction projects.
Design drawings for 150ton, 350ton, and 500ton Multi-Strand Prestressed Hydraulic Jacks:
We are a professional manufacturer and supplier of prestressed post tension multi-strand hydraulic jacks.
Application

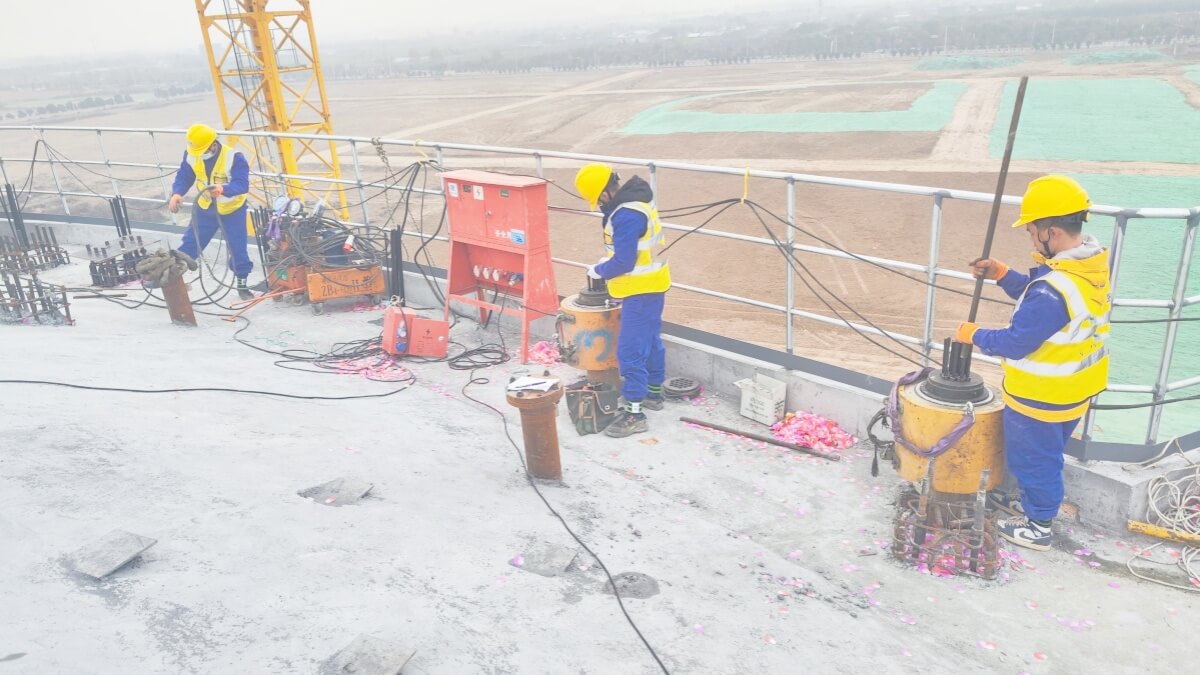

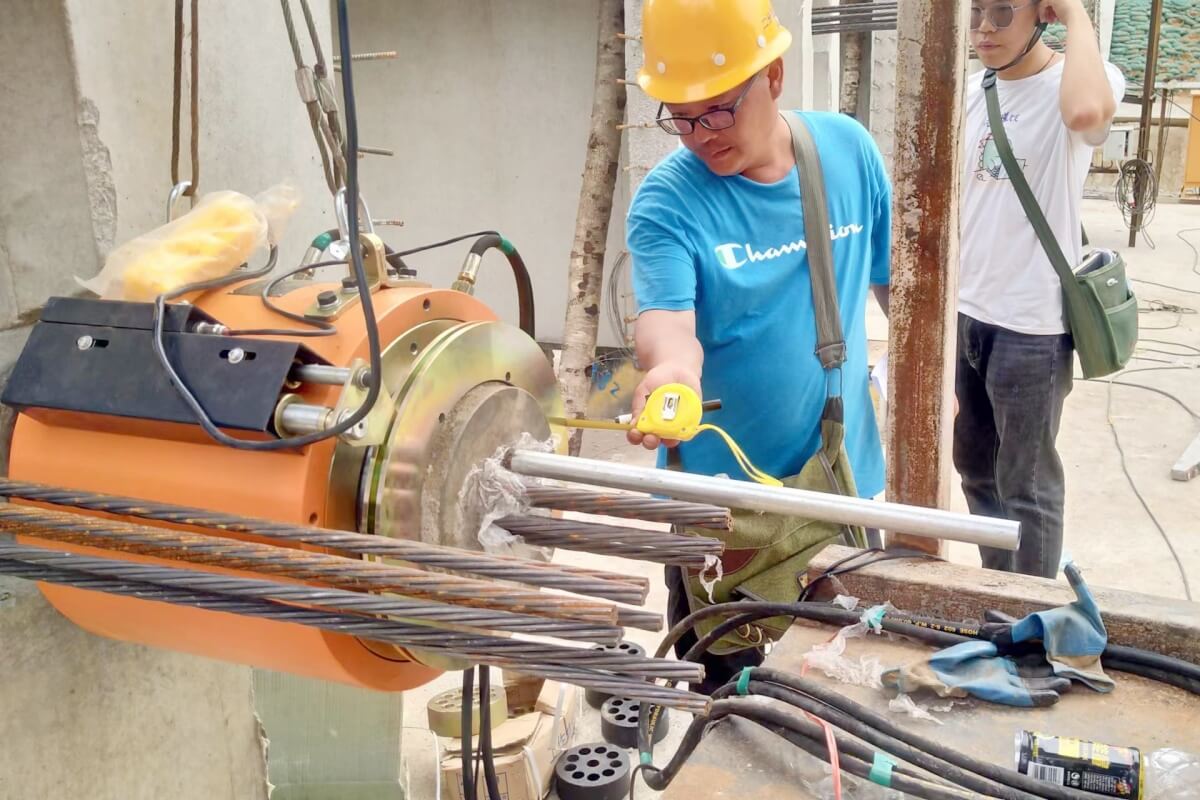

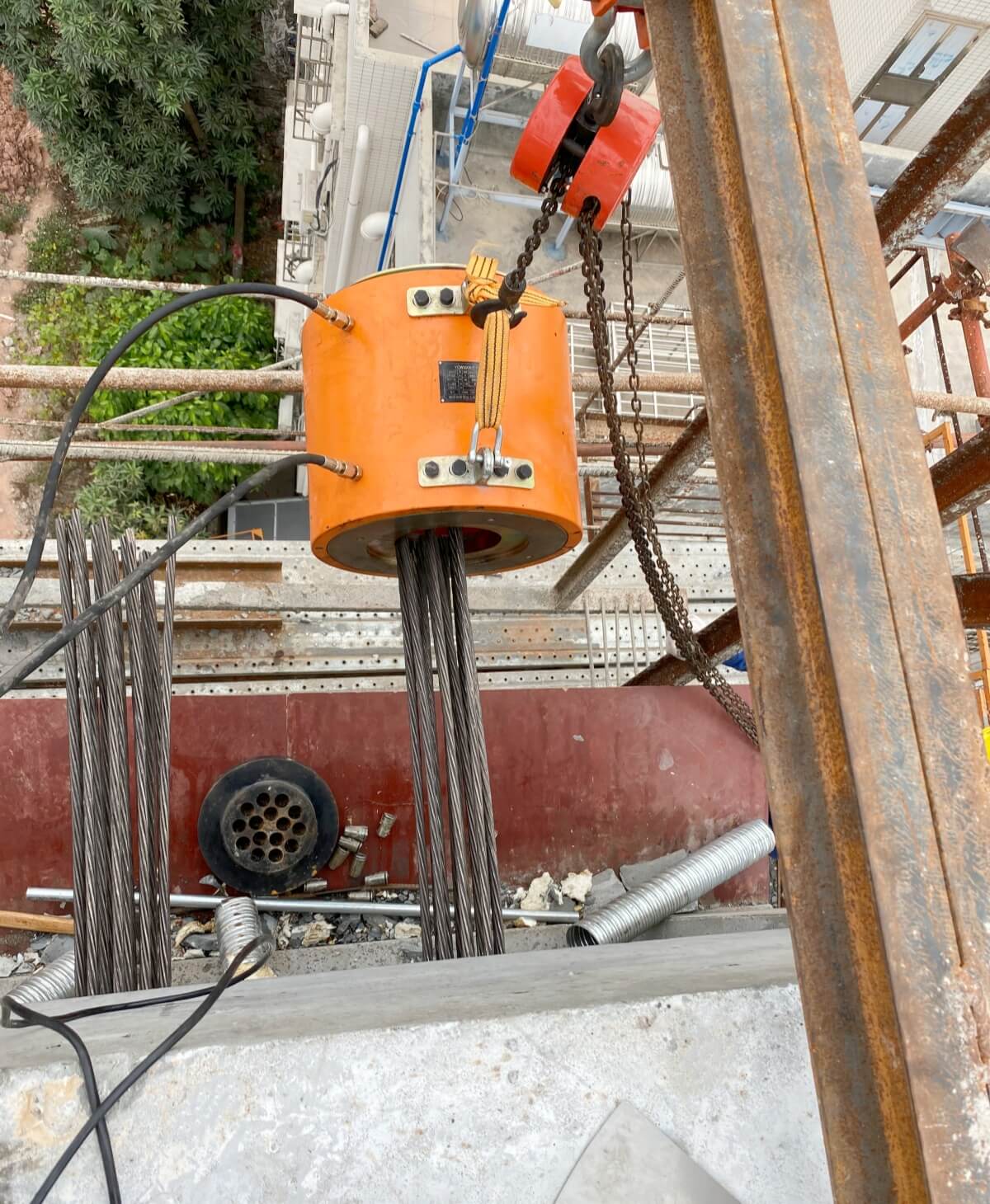

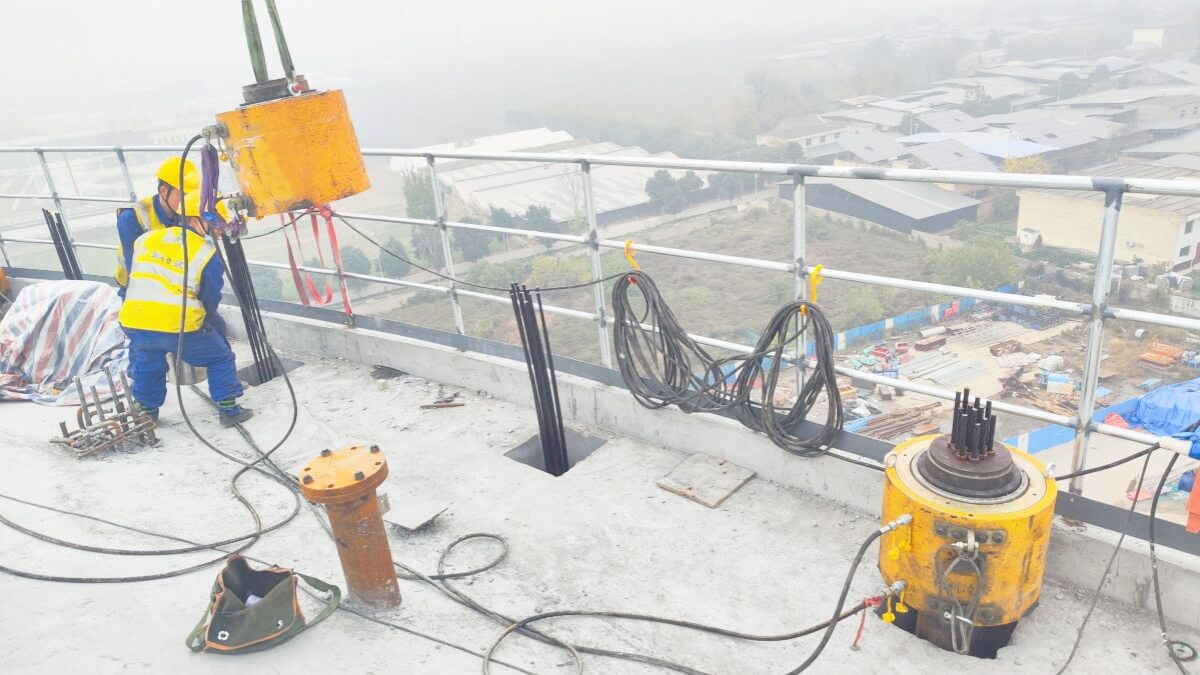

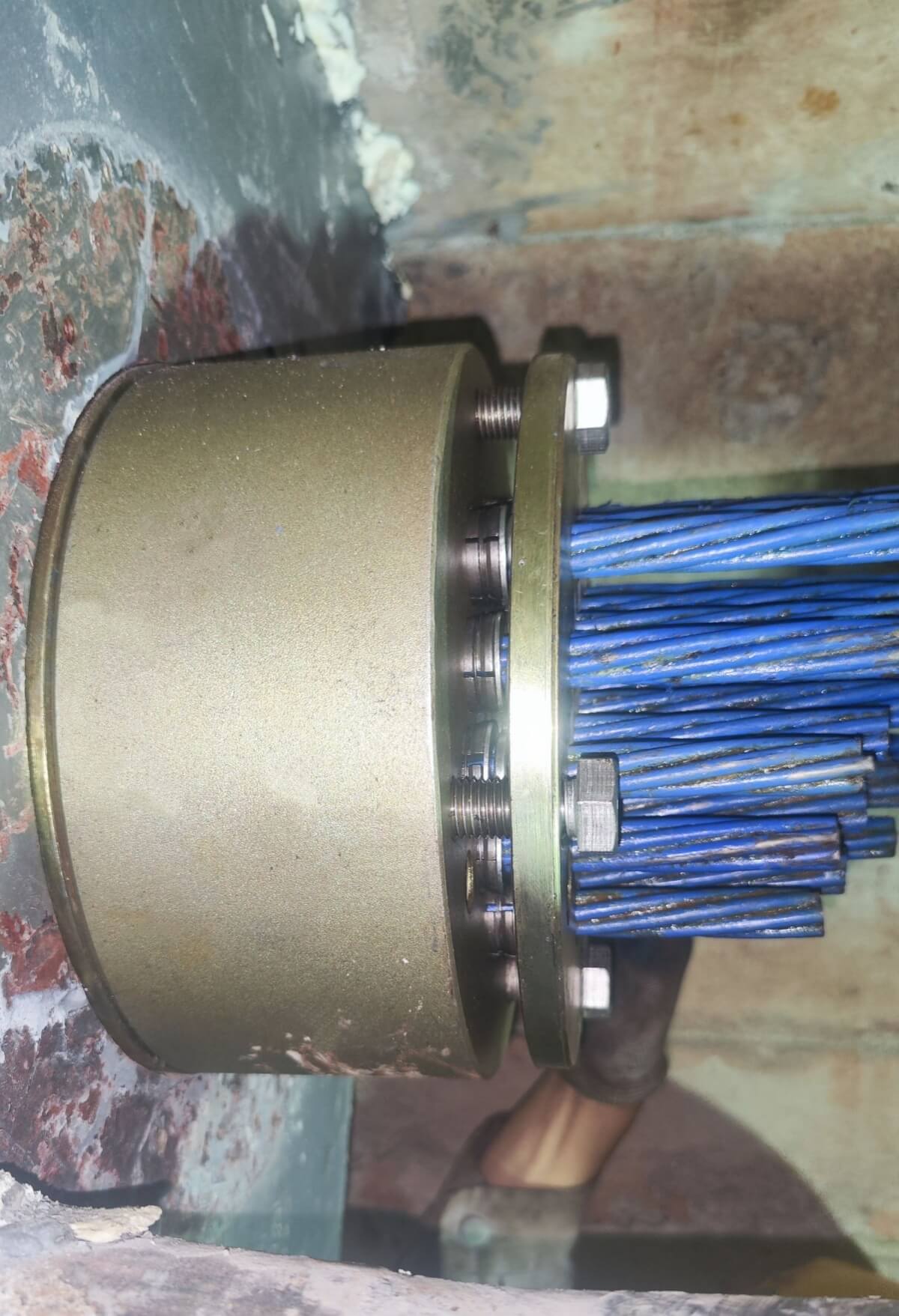

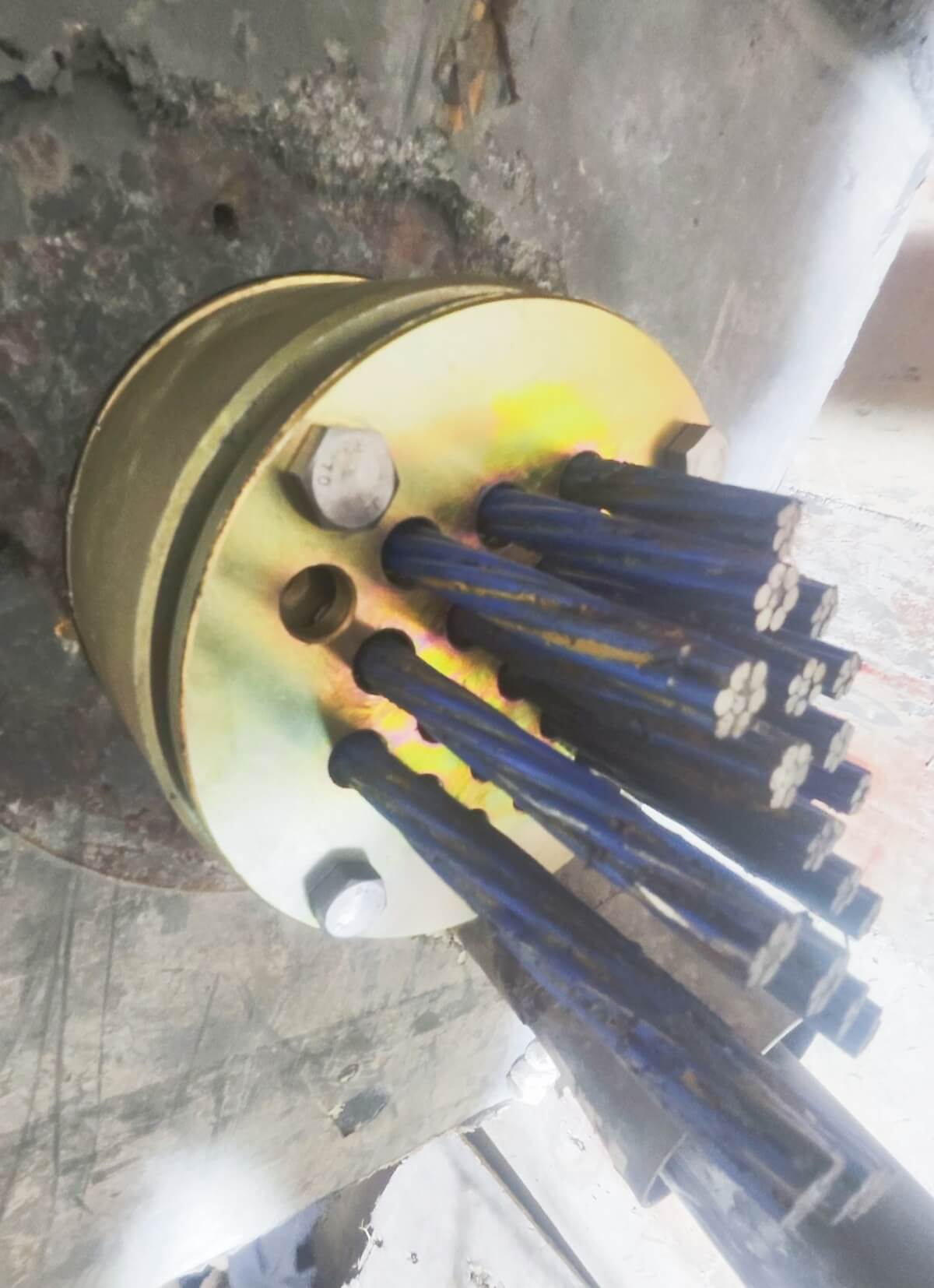

When the jacks' hydraulic matched the prestressed anchorage and strands. It is widely used in the construction of bridges and buildings, railways and subways, water conservancy and hydropower engineering. In certain circumstances, it can be used in the working of pushing, jacking and transforming and so on.
Application of prestressed post-tension hydraulic jack:
1. It is widely used for the construction of bridges and buildings, railways and subways, water conservancy and hydropower engineering, matched with prestressed anchorage and strands.
2. It is suitable for stressing mono strands or multi strands, the specifications are Φ15.24 andΦ12.7.
3. In certain circumstances, it can be used in the working of pushing, jacking and transforming and so on.
4. Easy to use with a reasonable price.
5. Jack is used for the prestressing workshop.
Application scenarios of the multi-strand hydraulic jack:

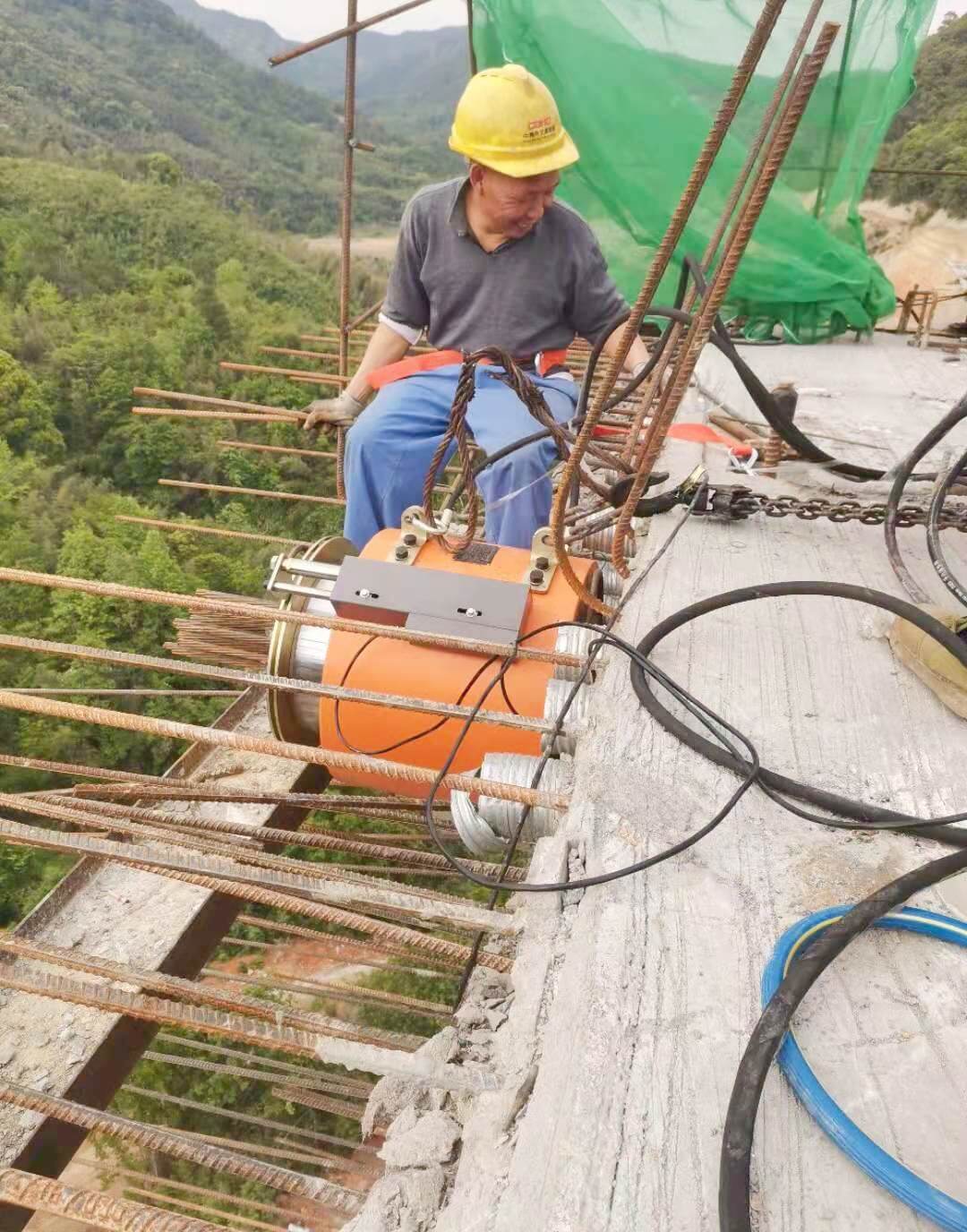

1. Bridges & viaducts (the most common heavy-duty use)
2. High-rise buildings (floor slabs, transfer beams)
3. Railway & subway tunnels
4. Water conservancy & hydropower dams
5. Coal mine support structures
Application of prestressed post-tension hydraulic jack:
1. It is widely used for the construction of bridges and buildings, railways and subways, water conservancy and hydropower engineering, matched with prestressed anchorage and strands.
2. It is suitable for stressing mono strands or multi strands, the specifications are Φ15.24 andΦ12.7.
3. In certain circumstances, it can be used in the working of pushing, jacking and transforming and so on.
4. Easy to use with a reasonable price.
5. Jack is used for the prestressing workshop.
Application scenarios of the multi-strand hydraulic jack:
1. Bridges & viaducts (the most common heavy-duty use)
2. High-rise buildings (floor slabs, transfer beams)
3. Railway & subway tunnels
4. Water conservancy & hydropower dams
5. Coal mine support structures
Features
YDC500DY-250A PT is a lightweight hydraulic jack for prestressed post tension multi-strand tensioning equipment.
1. Used for group anchors with 1860-2000 sizes, Φ15.24, Φ12.7 strands.
2. Matched with different accessories, it can be used for different anchors in the pre-tension or post-tension prestressed project.
3. Advanced technology and qualitative advantages.
4. Designed through computer analysis and optimization grouping, repeated trials.
5. Cylinder adopt prestressed advanced processes, making it lighter.
1. Used for group anchors with 1860-2000 sizes, Φ15.24, Φ12.7 strands.
2. Matched with different accessories, it can be used for different anchors in the pre-tension or post-tension prestressed project.
3. Advanced technology and qualitative advantages.
4. Designed through computer analysis and optimization grouping, repeated trials.
5. Cylinder adopt prestressed advanced processes, making it lighter.
Product Details
-

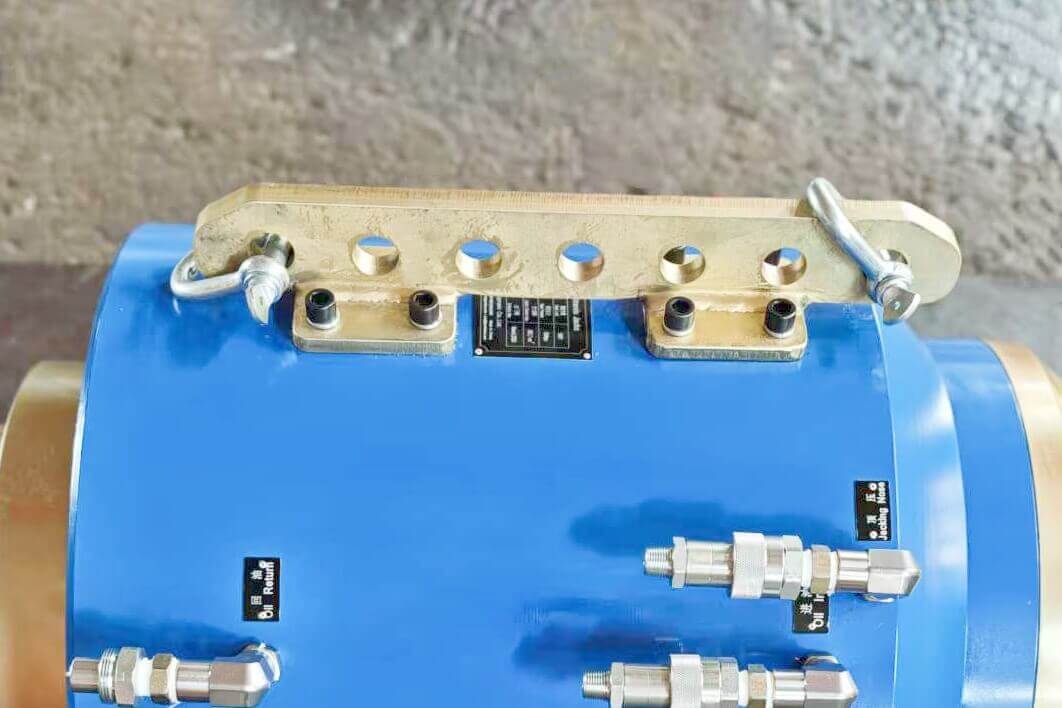

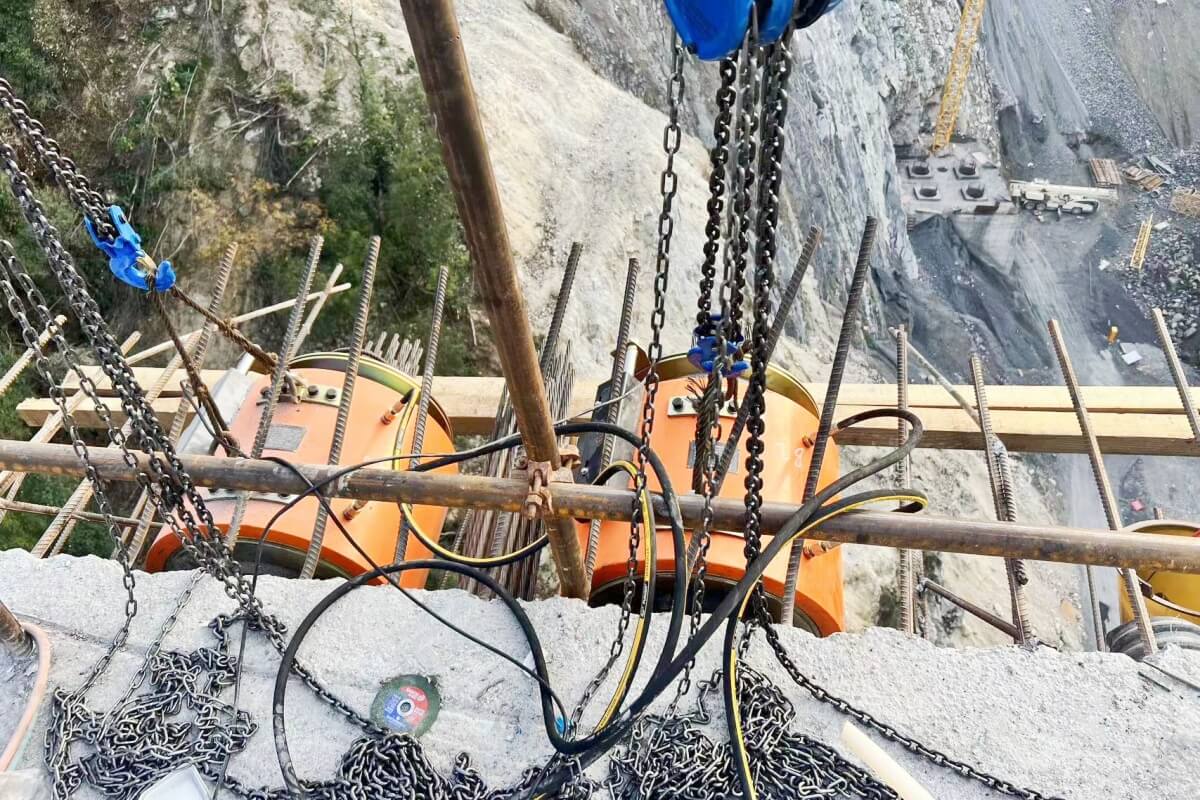

Double Acting Hanging Platform Assembly -

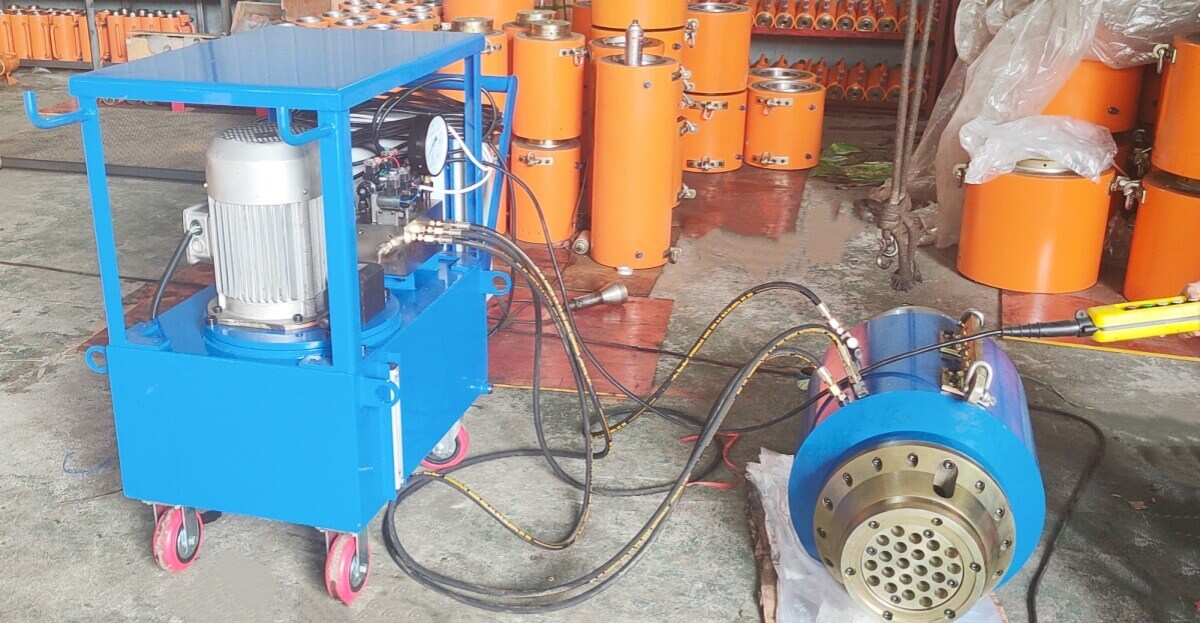

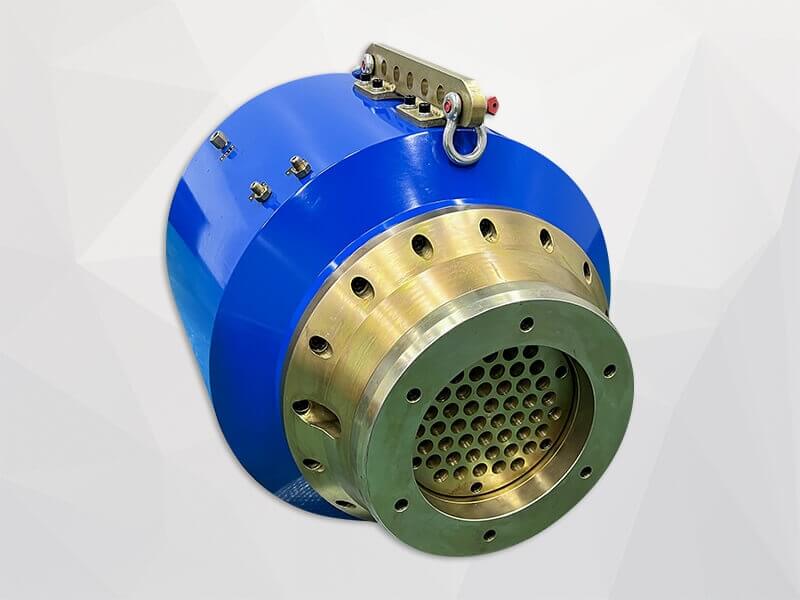

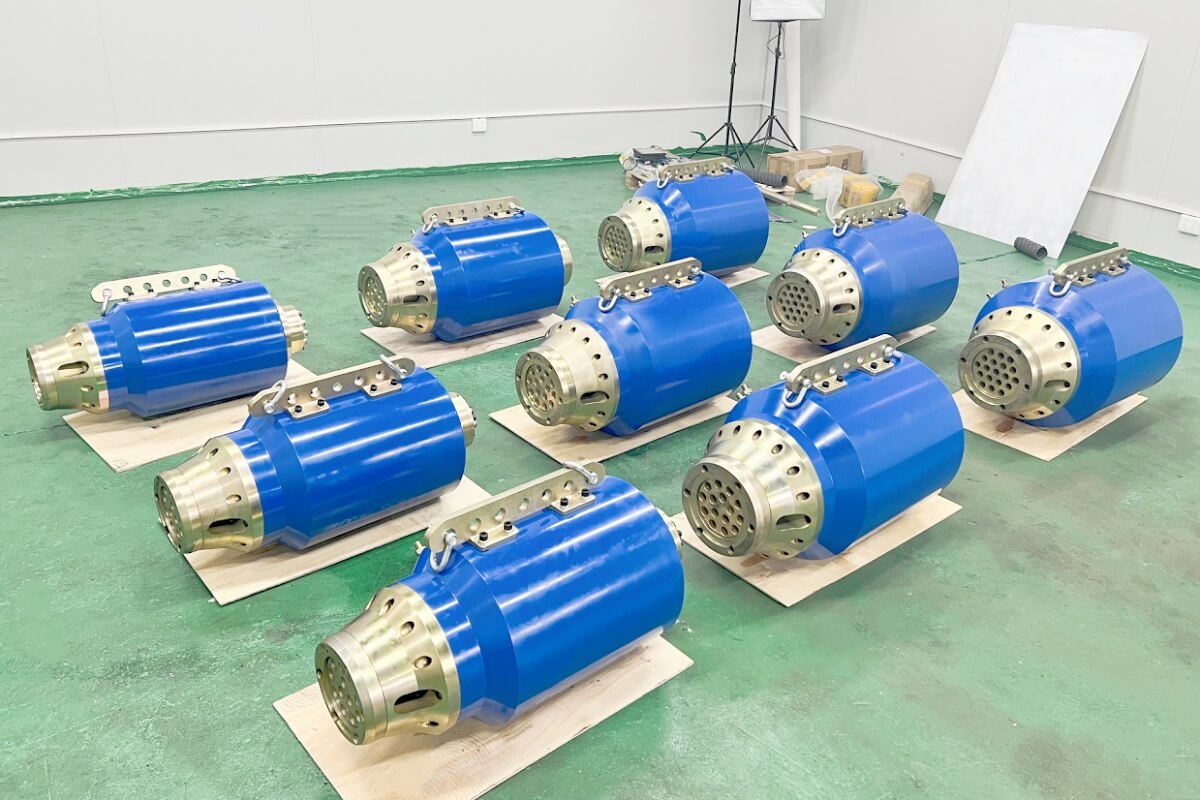

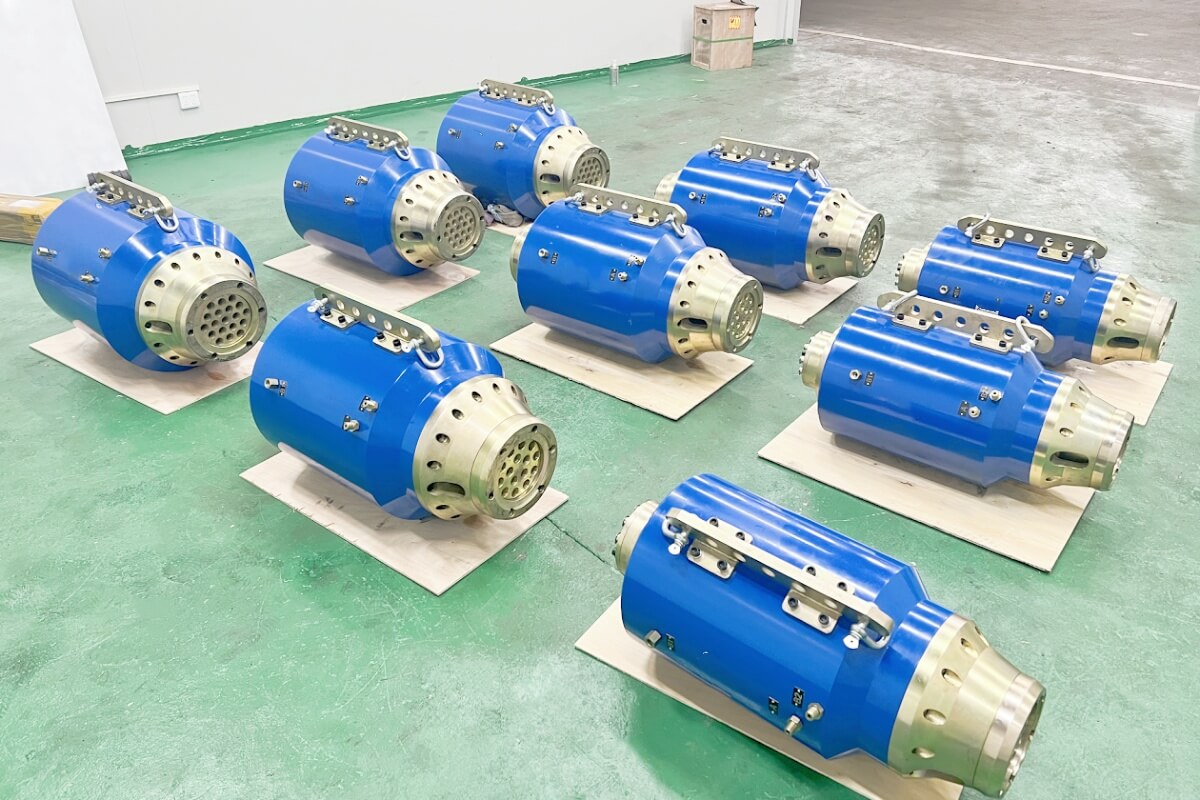

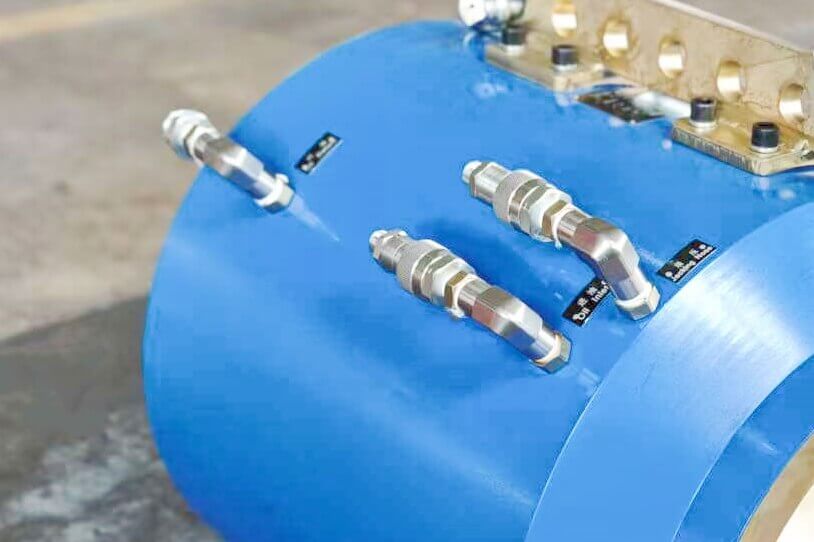

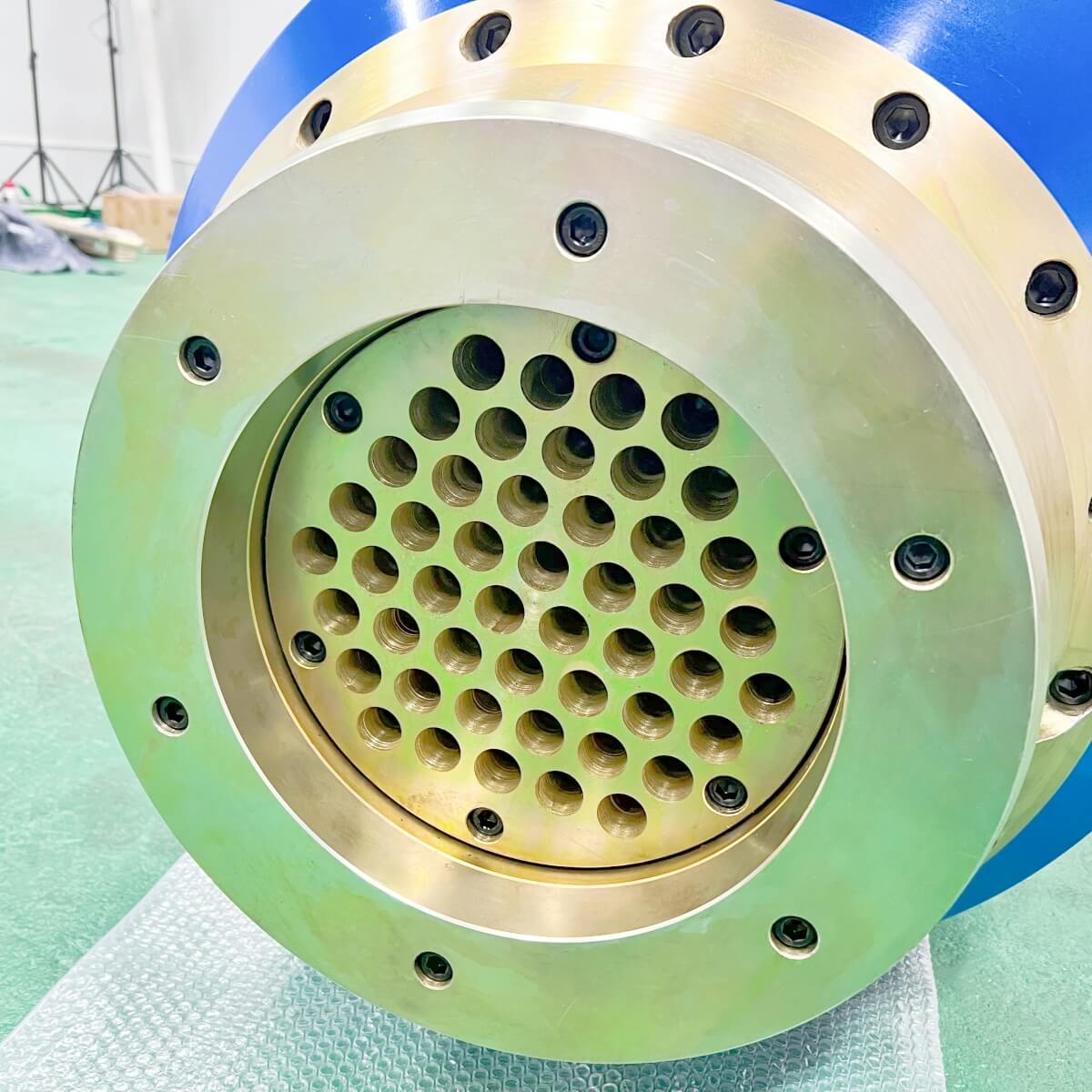

Double Acting Multi Strands 500ton Hydraulic Jack -

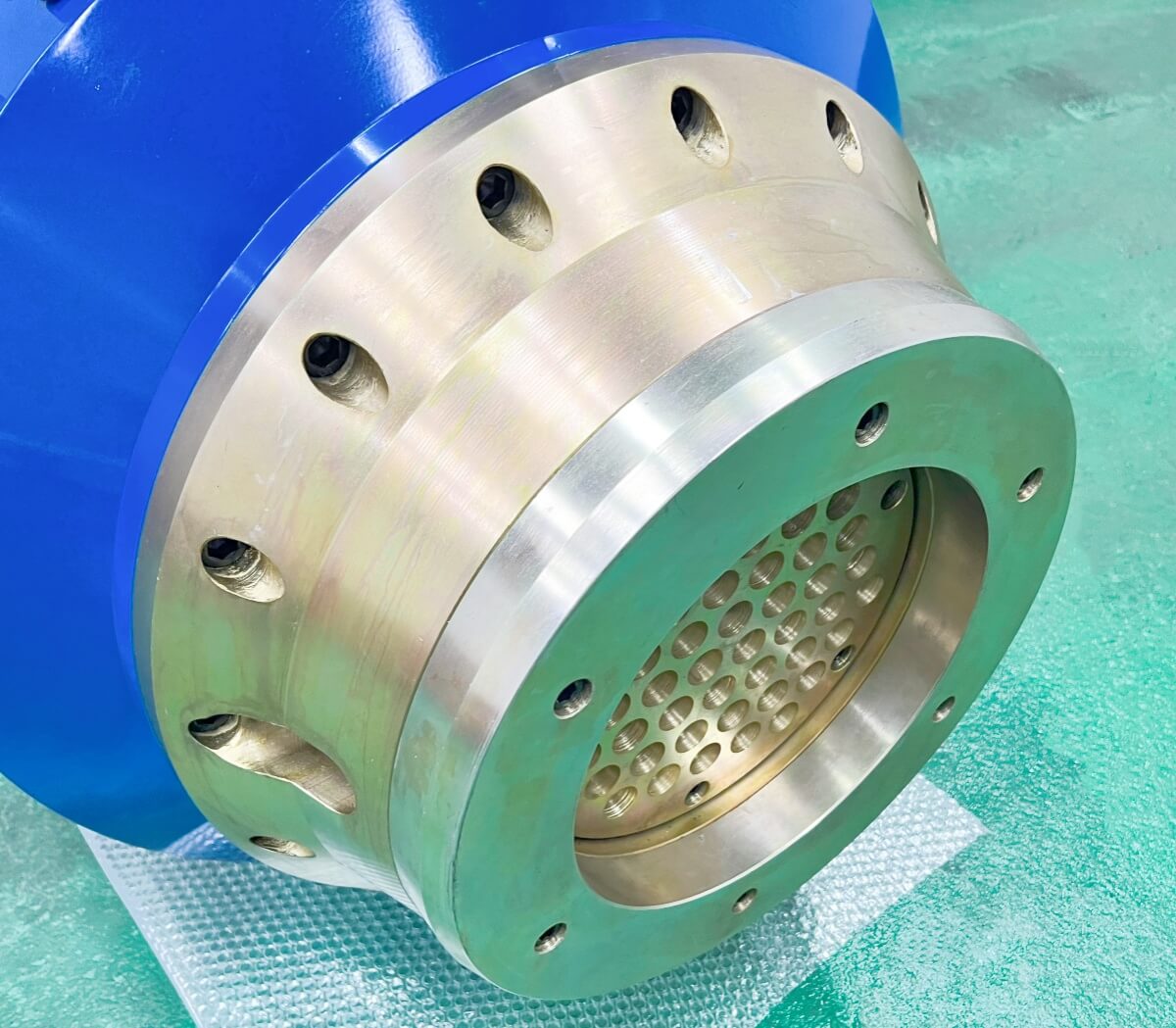

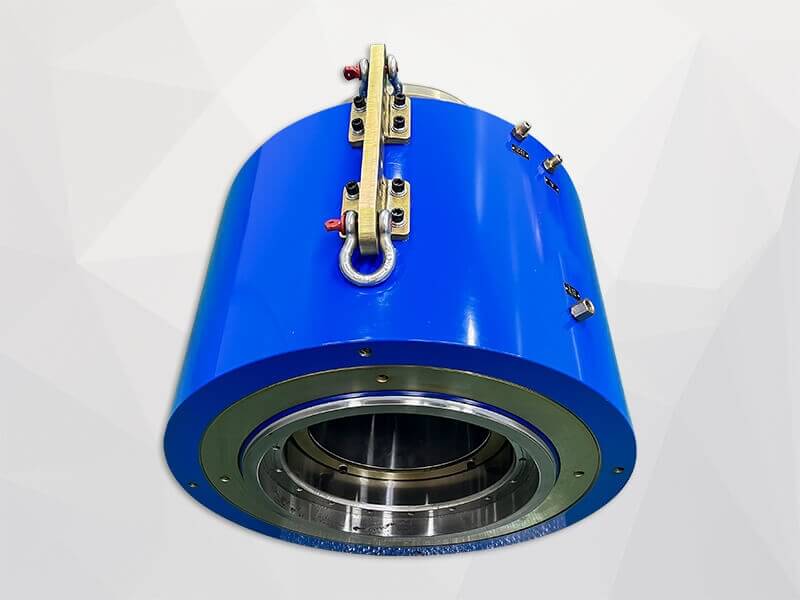

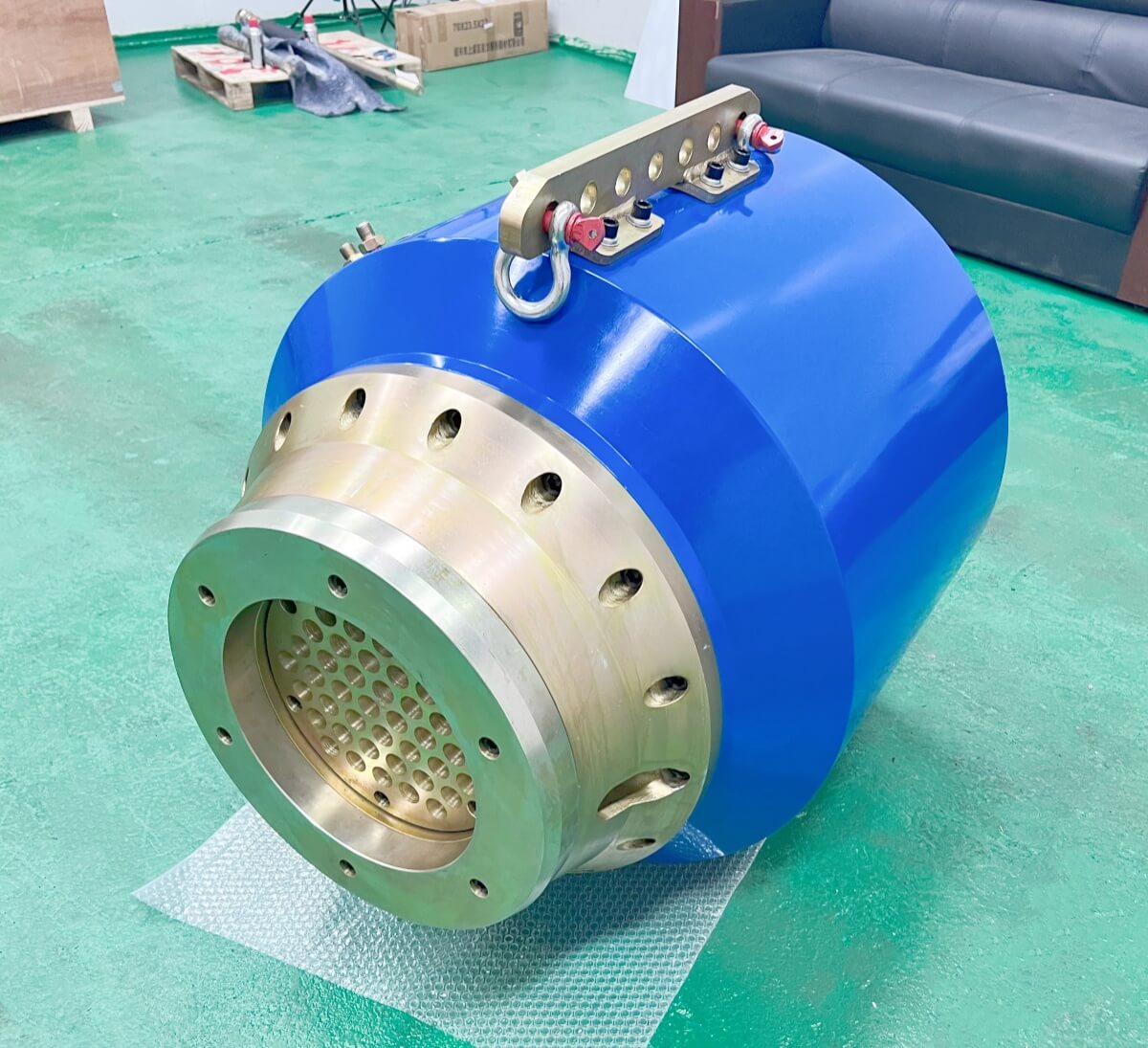

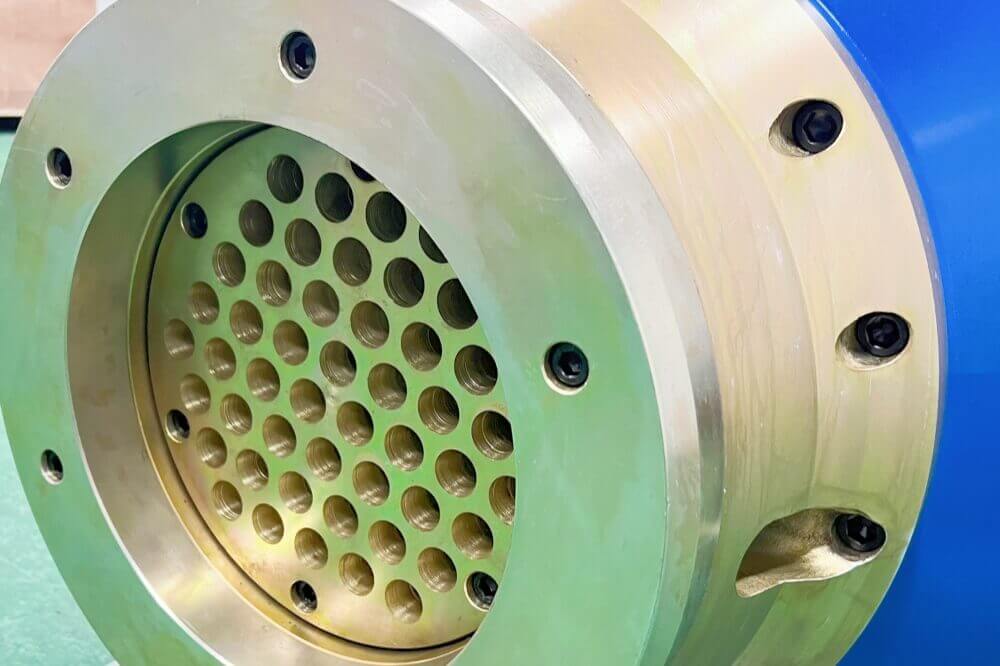

Multi Strands Post Tension Hollow Cylinder
Technical Parameters
Technical Data
Technical parameters of YDC500DY-250A PT prestressed post tension multi-strand hydraulic jack:

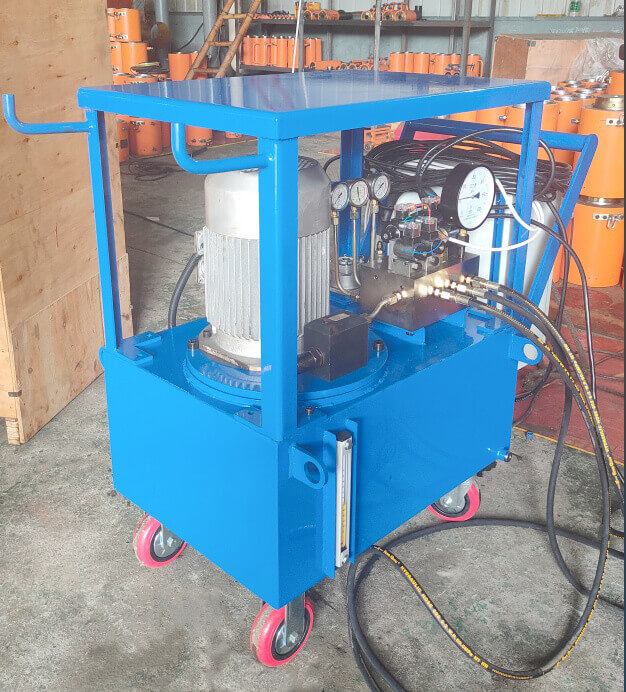

Technical parameters of ZB-10 electric oil pump station:
| Nominal Tension Force | 5009KN |
| Stroke For Tension | 250mm |
| Nominal Oil Pressure | 56mpa |
| Tension Piston Area | 894cm2 |
| Return Oil Pressure | 423.3cm2 |
| Overall Size | φ505x880mm |
| Nominal Top Pressure | 216KN |
| Nominal Top Oil Pressure | 10mpa |
| Top Piston Area | 216cm2 |
| Weight | 782kgs |
| Number Of Tension Strands | 19pcs, not provide |
| PC Strand Diameter | 15.7mm |
Technical parameters of ZB-10 electric oil pump station:
| Power | 10kw |
| Oil Capacity | 155L |
| Pressure Flow | 10/5L/min |
| Working Pressure | 63/20mpa |
| Voltage | 3phase 380v 50hz |
| Hydraulic Oil | 46#or 36# |
| Weight | 270kgs |
