LH89-610C Industrial Hose Squeeze Pump for Sale
LH89-610C industrial hose squeeze pump for sale is a kind of peristaltic pump. An elastomeric tube is squeezed along a length by rollers that push the fluid contained within. The tube’s restitution after squeezing produces a vacuum that draws fluid continuously into the tube. This creates a gentle pumping action that doesn’t cause any damage to the product. Contaminations are avoided because the fluid is contained within the tube.
240L/min
45RPM
89mm
1.0mpa
3 phase, 380V, 50HZ
22KW
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description
LH89-610C industrial hose squeeze pump for sale is a kind of peristaltic pump. An elastomeric tube is squeezed along a length by rollers that push the fluid contained within. The tube’s restitution after squeezing produces a vacuum that draws fluid continuously into the tube. This creates a gentle pumping action that doesn’t cause any damage to the product. Contaminations are avoided because the fluid is contained within the tube.
LH89-610C industrial hose squeeze pump for sale employs a rotor with rollers mounted on it that continually compress and occlude some portion of the tube. This action moves the fluid through the tube with a constant rate of displacement for each revolution of the rotor, enabling a precise measurement of the volume of fluid pumped through the tube.
LH89-610C industrial hose squeeze pump for sale employs a rotor with rollers mounted on it that continually compress and occlude some portion of the tube. This action moves the fluid through the tube with a constant rate of displacement for each revolution of the rotor, enabling a precise measurement of the volume of fluid pumped through the tube.
Application
LH89-610C industrial hose squeeze pump for sale can be used in the following fields: construction, pharmaceutical, textile, dye manufacturing, water treatment, paper making, mining, ceramics, beer and beverage, underground engineering, etc.
Features
1. LH89-610C industrial hose squeeze pump no seals
2. No valves
3. Self - priming
4. Only tube to replace
5. Dry - running without damage
6. Reversible
7. No contact between product and mechanical parts
8. Able to pump products with solid parts inside
9. Easy maintenance, low-cost, short down time
2. No valves
3. Self - priming
4. Only tube to replace
5. Dry - running without damage
6. Reversible
7. No contact between product and mechanical parts
8. Able to pump products with solid parts inside
9. Easy maintenance, low-cost, short down time

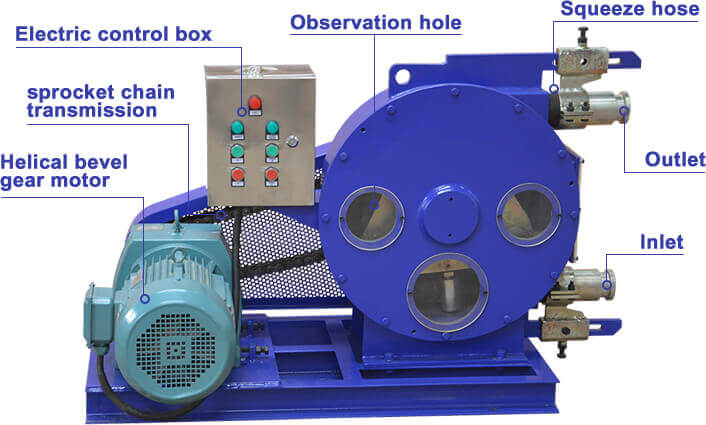

Product Details
-
industrial hose squeeze pump -

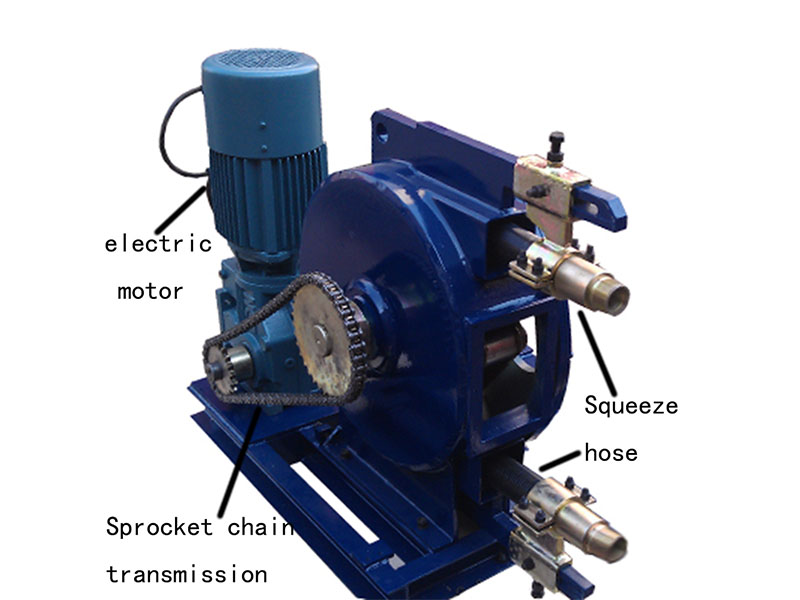

industrial hose pump -
LEC hose squeeze pump core
Technical Parameters
| Type | LH89-610C |
| Max.output | 240L/min |
| Rotation | 45RPM |
| Squeeze hose ID | 89mm |
| Voltage | 3 phase, 380V,50HZ |
| Power | 22KW |
| Max. pressure | 10Mpa |
Inquiry
Please feel free to submit your inquiry information to us. We will contact with you as soon as possible.
