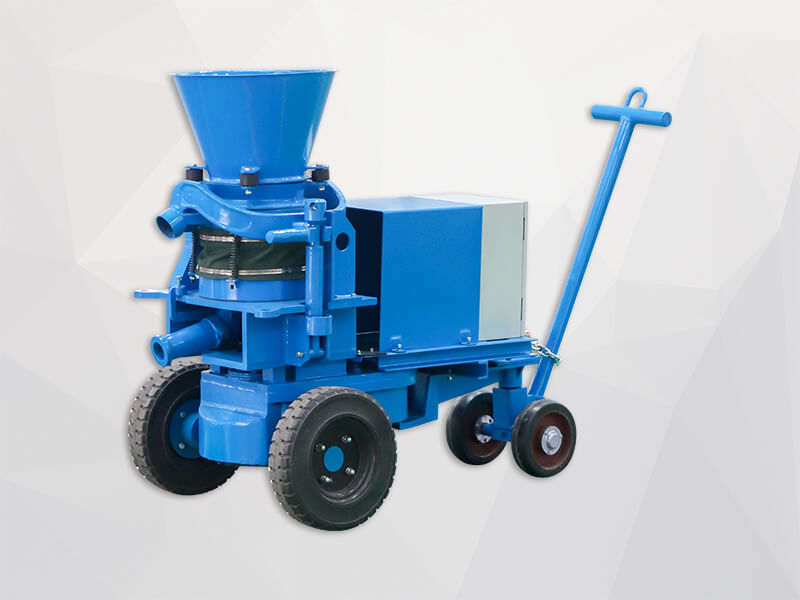

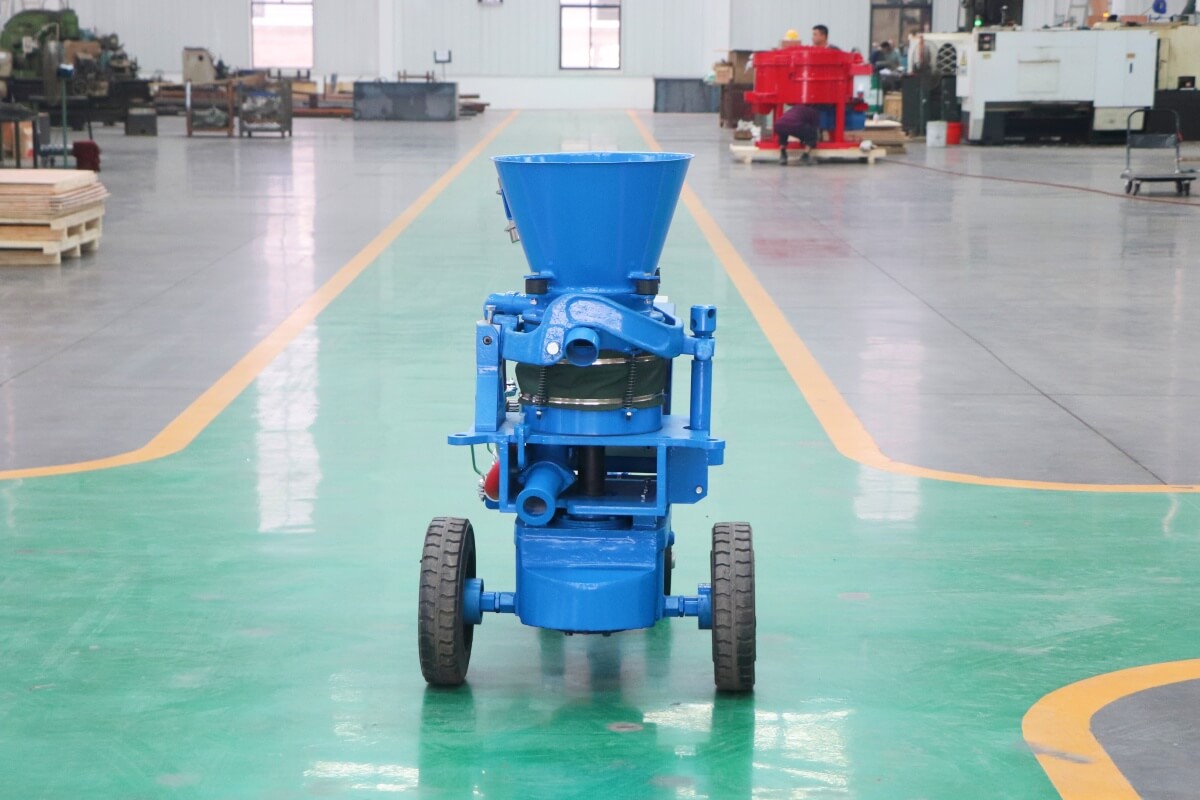

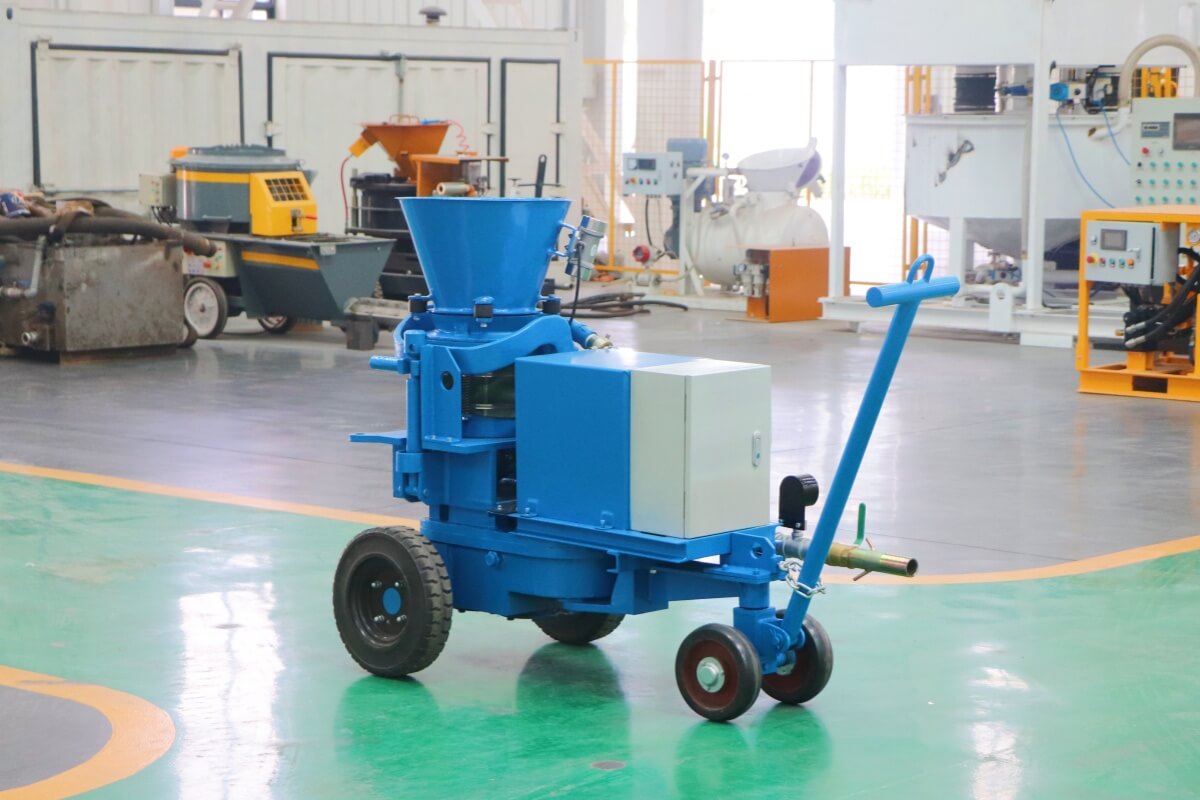

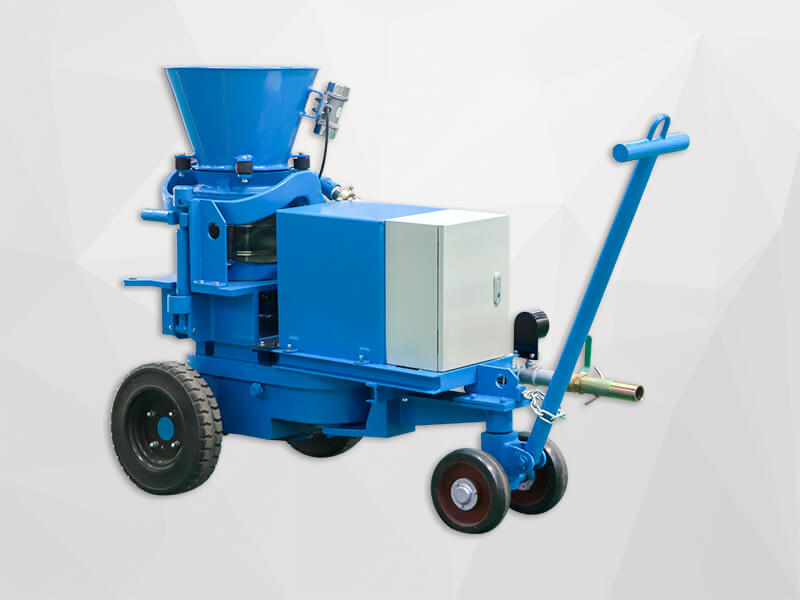

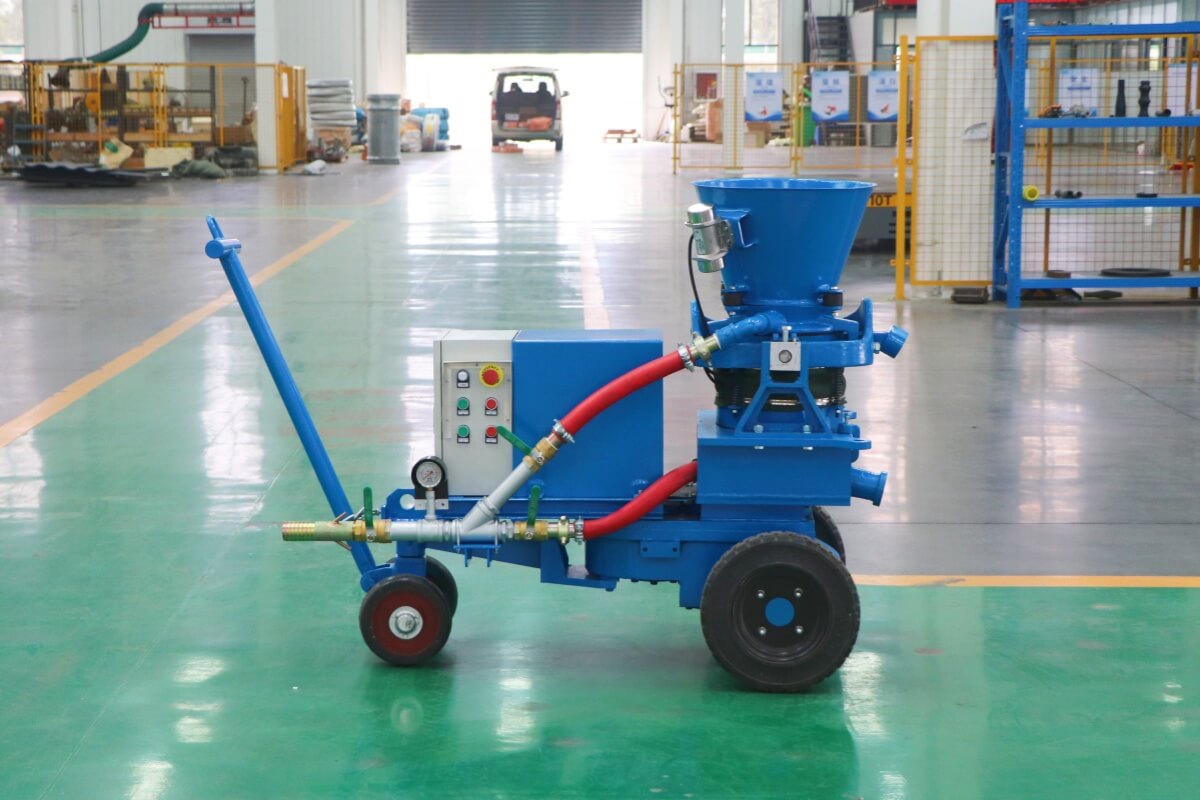

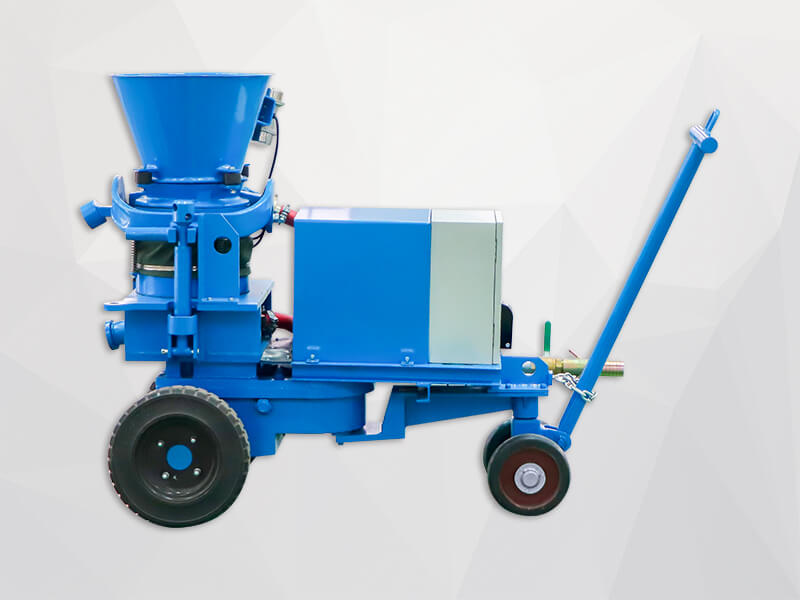

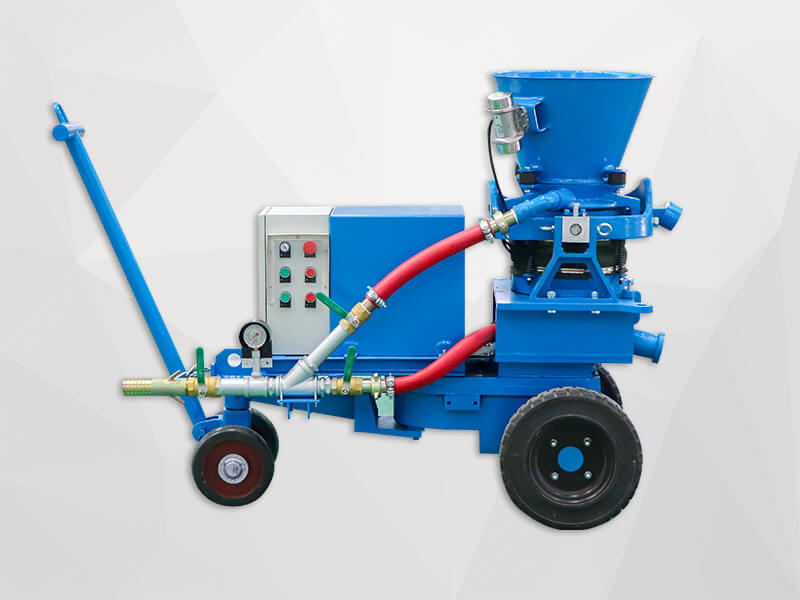

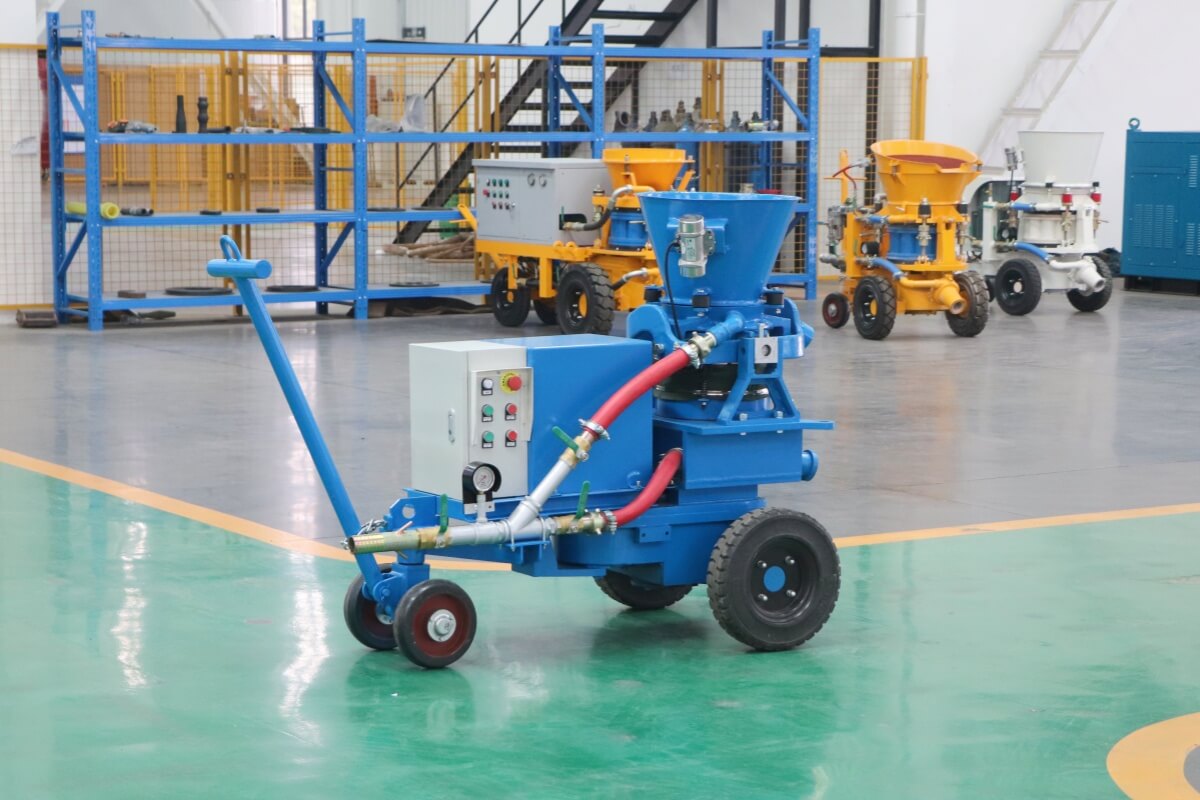

LZ-3ER/SC Piccola rotary refractory gunning machine
LZ-3ER/SC Piccola rotary refractory gunning machine is widely used in the repair of kiln linings in the steel, cement, glass and other industries. Its precise output and efficient sealing design ensure uniform coverage of refractory materials and extend the service life of the kiln.
LZ-3ER/SC
0~3m3/h (0~6tons)
200m
Φ10 mm
38mm
0.2-0.4MPa
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description
LZ-3ER/SC Piccola rotary refractory gunning machine is used in refractory dry-mix shotcrete operations, utilizing the rotor mechanism as its foundation.

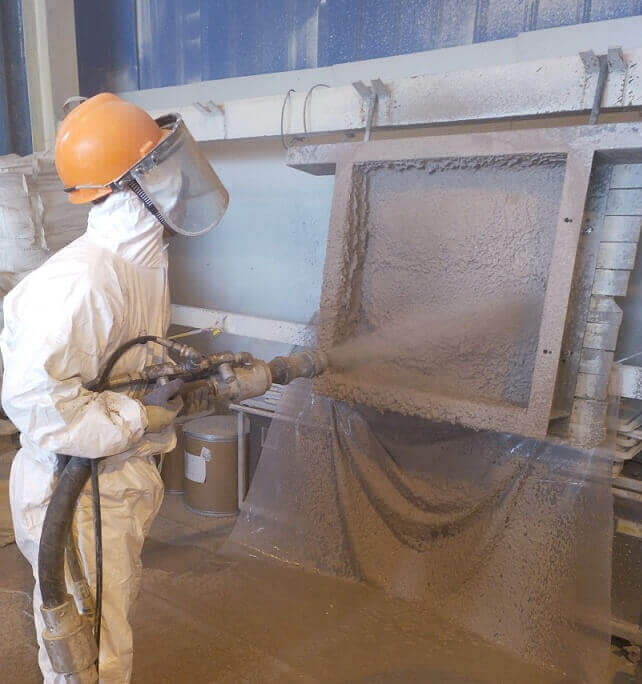

By employing the LZ-3ER/SC, operators can achieve a spraying flow at the nozzle that combines minimal dust generation with exceptional performance.
By employing the LZ-3ER/SC, operators can achieve a spraying flow at the nozzle that combines minimal dust generation with exceptional performance.
Application
The LZ-3ER/SC Piccola rotary refractory gunning machine's proven construction ensures exceptional durability, simple installation, effortless operation, and cost-effective performance, making it a safe choice for refractory spraying applications. Its extensive configuration options make it the ideal choice for small to medium-sized projects.
LZ-3ER/SC Piccola refractory gunning machine common applications:
Repair and relining of blast furnaces, boilers, and incinerators.
Lining of cement kilns, steel ladles, and reheating furnaces.
Emergency repairs in high-temperature environments.
LZ-3ER/SC Piccola refractory gunning machine common applications:
Repair and relining of blast furnaces, boilers, and incinerators.
Lining of cement kilns, steel ladles, and reheating furnaces.
Emergency repairs in high-temperature environments.
Features
LZ-3ER/SC Piccola rotary refractory gunning machine features:

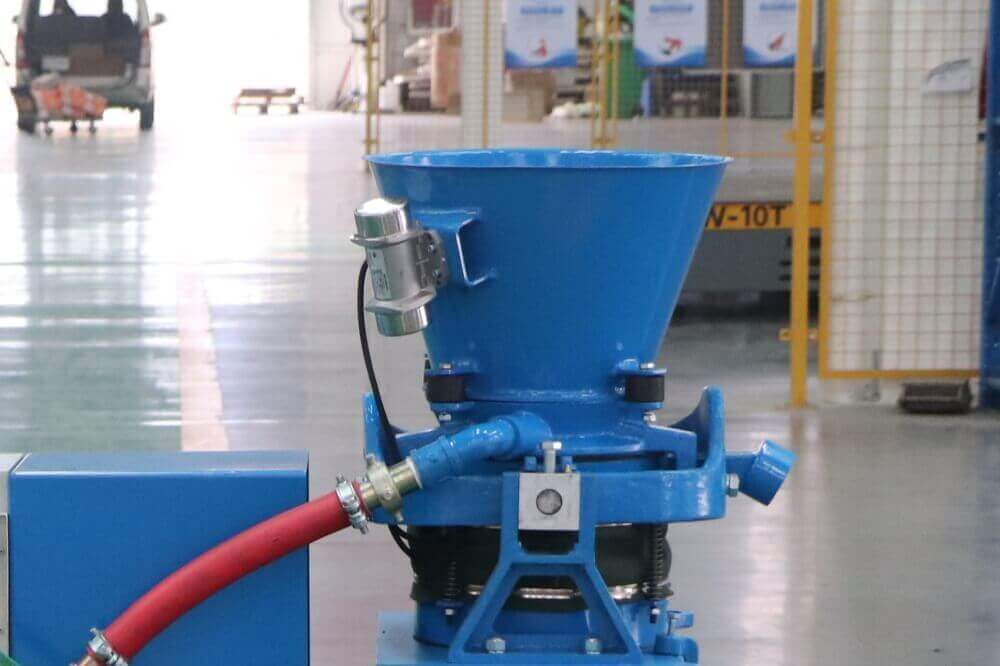

1. High hopper with electric vibrator, high hopper with electric vibrator, high excitation force, easy to feed materials

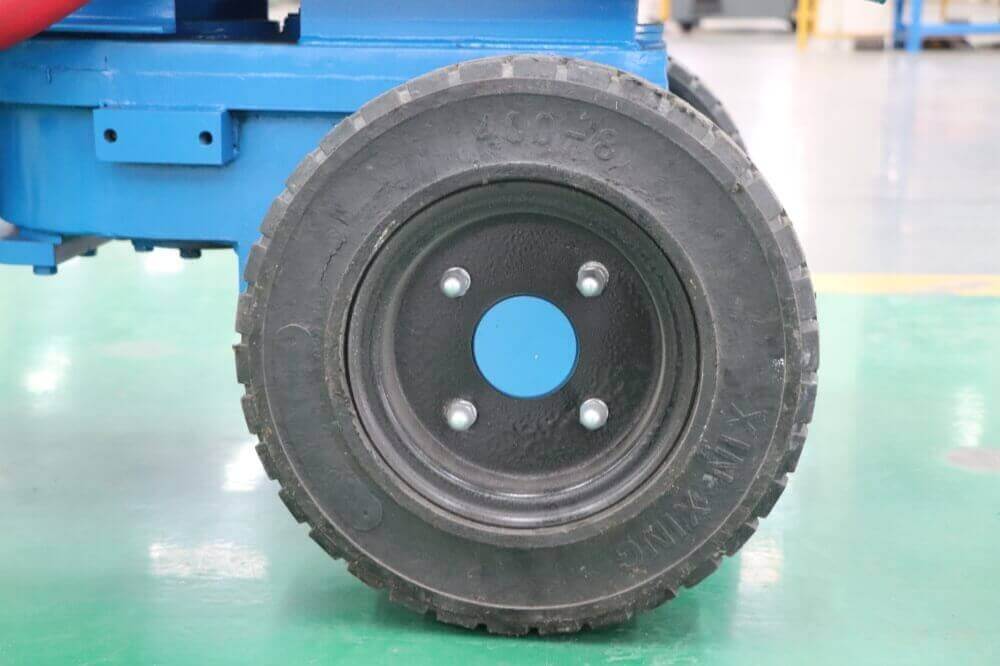

2. Heavy-duty solid wheel

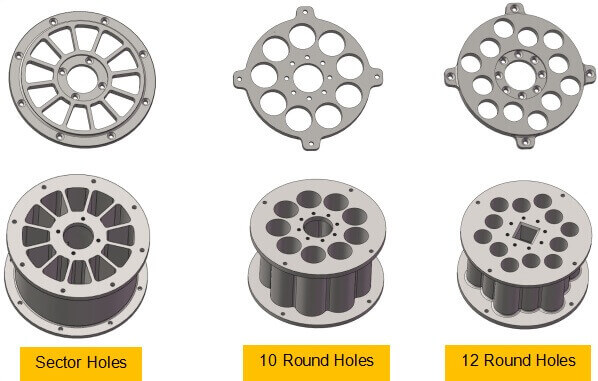

3. Different rotor body and steel rotor plate for option

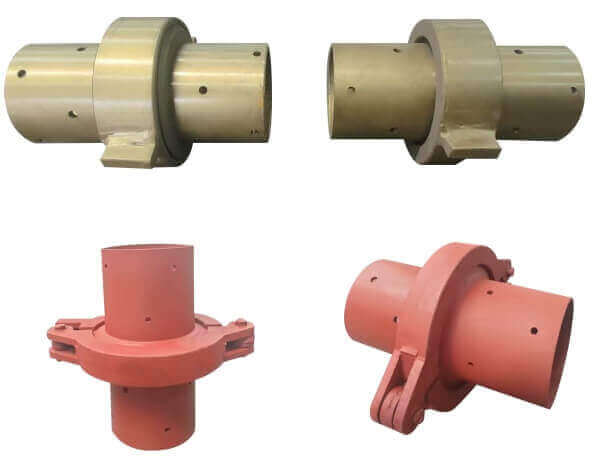

4. Coupling and clamp, two kinds of different couplings and clamps are optional as follows:

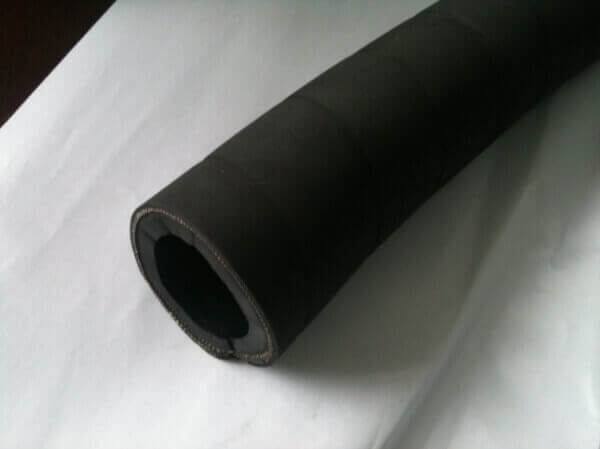

5. Blast rubber hose, premium grade blast hose ID38mm
6. Variable output with a variable-frequency drive to get precise material output control

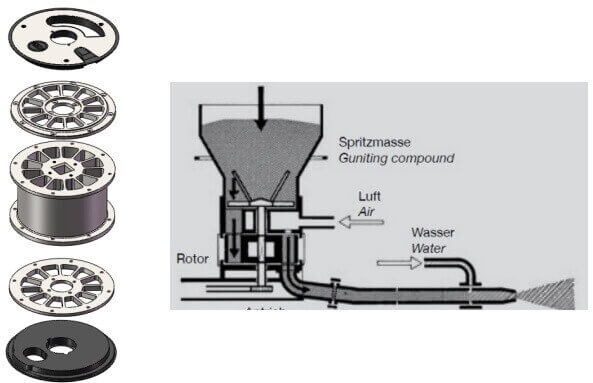

7. Straight chamber rotor type refractory gunning machine

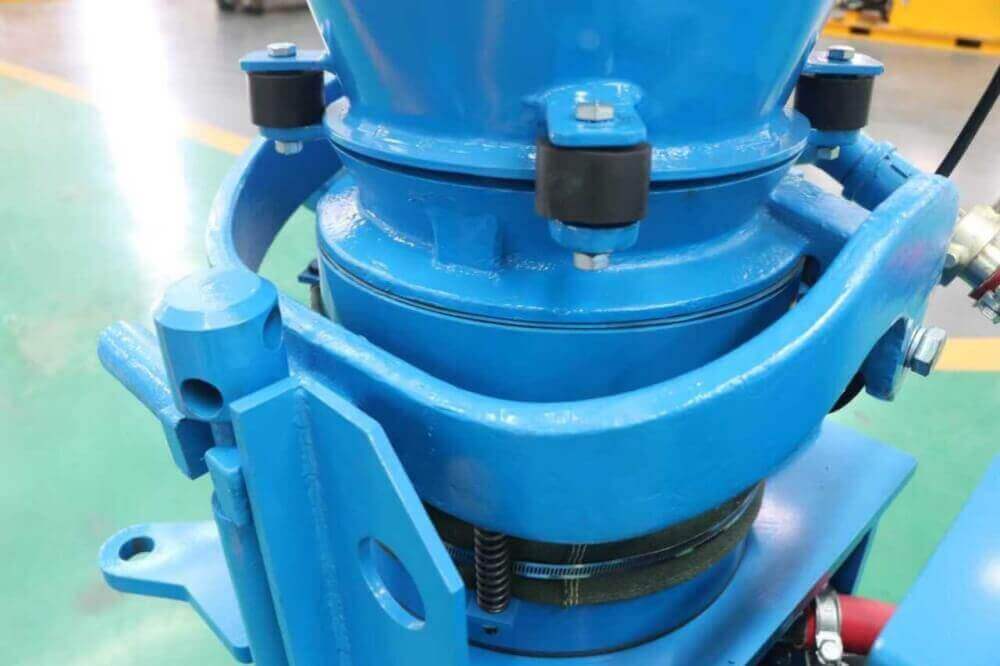

8. Single bolt clamping system, special self-leveling, single bolt clamping system for uniform pressure to all sealing surfaces

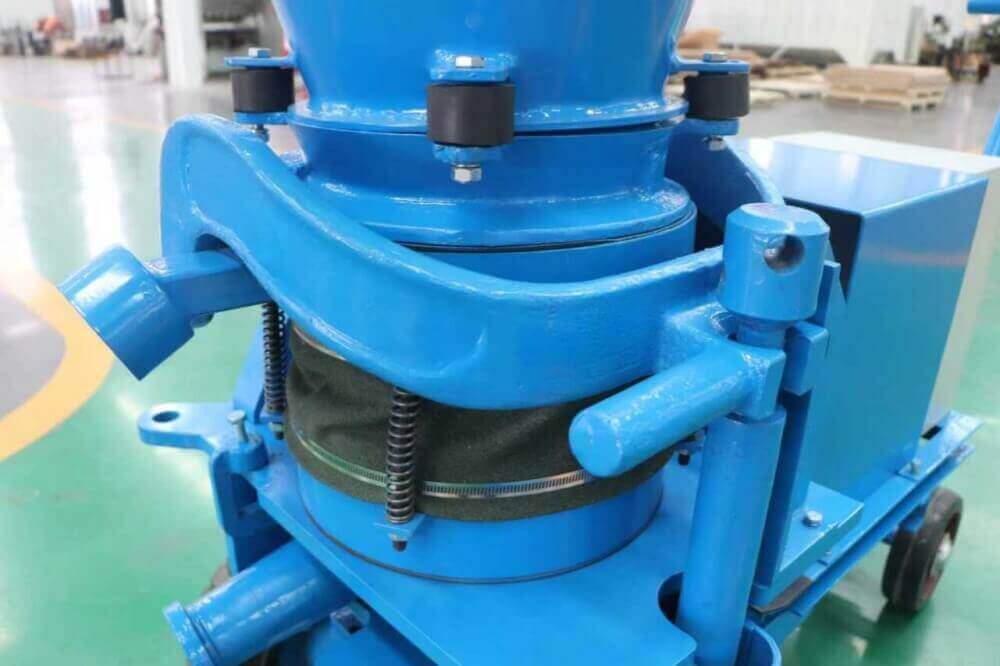

9. Dust protective cover, a dust protective cover reduces the dust during the operation of the gunning machine
10. Different lightweight pre-dampening nozzle assembly for the option
Low rebound, low dust
Reduce the amount of water added
Improve refractory compactness and strength

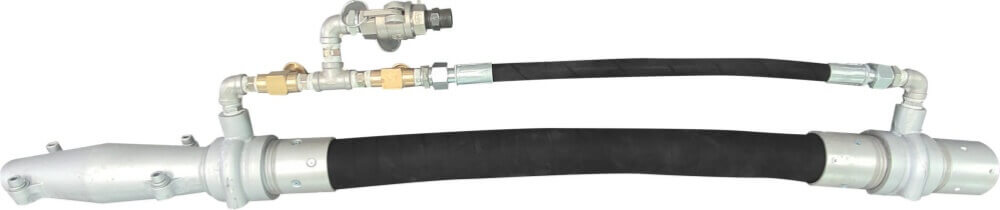

Torpedo nozzle assembly with two water way

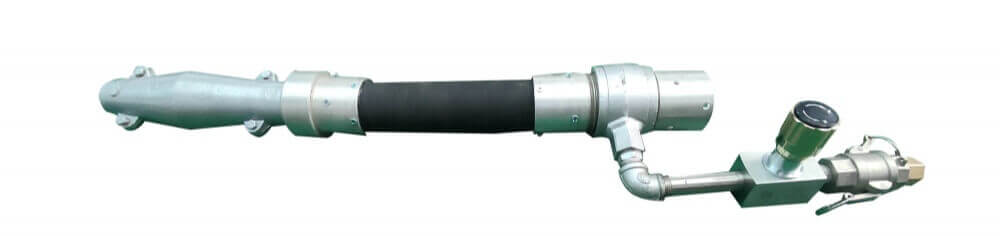

Torpedo nozzle assembly with single water way, lighter

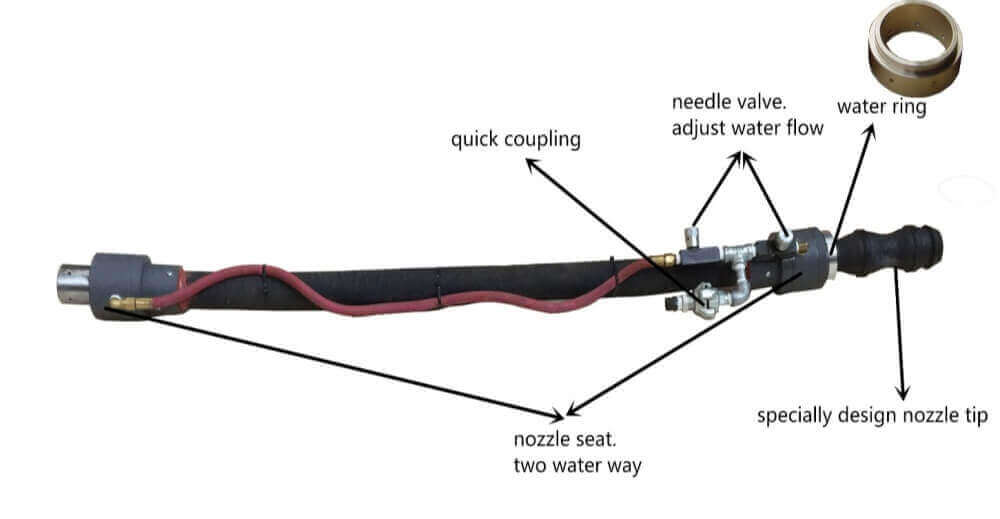

Double bubble nozzle assembly with two water way

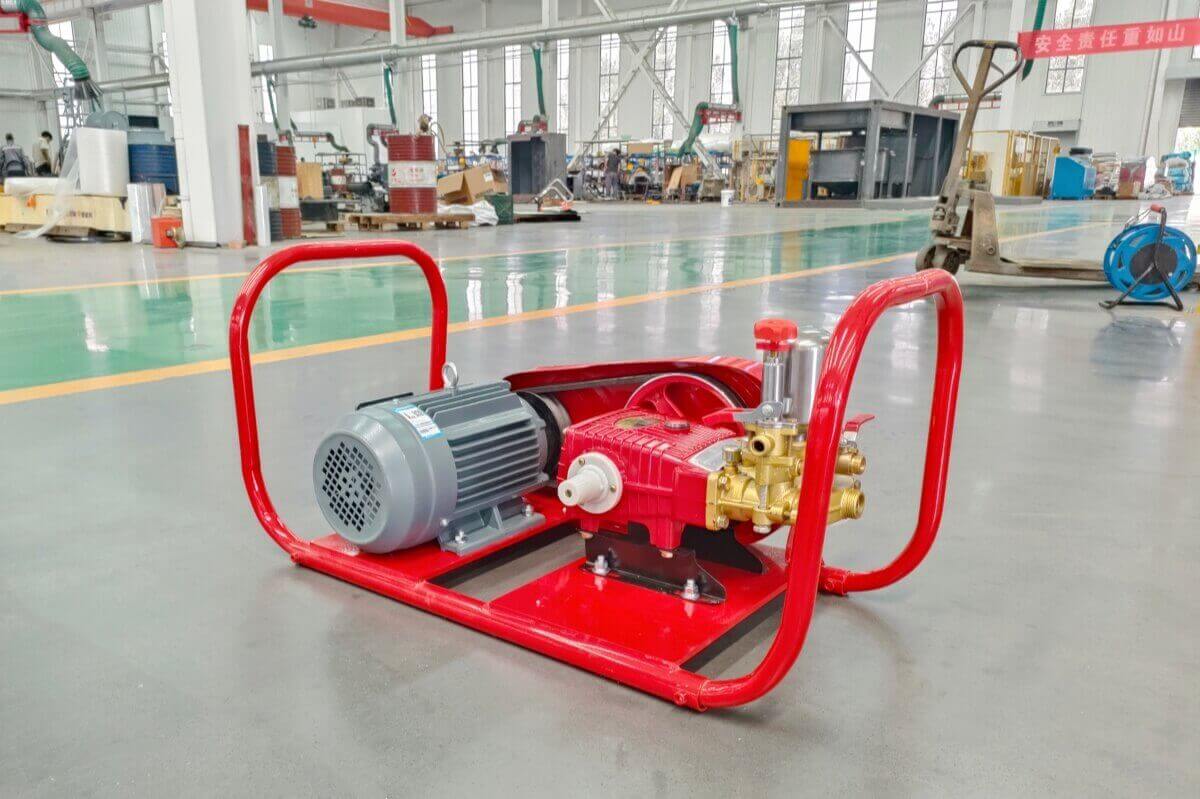

11. High pressure water pump, 30bar pressure, make sure to add water fully atomize, mix evenly
Product Details
-

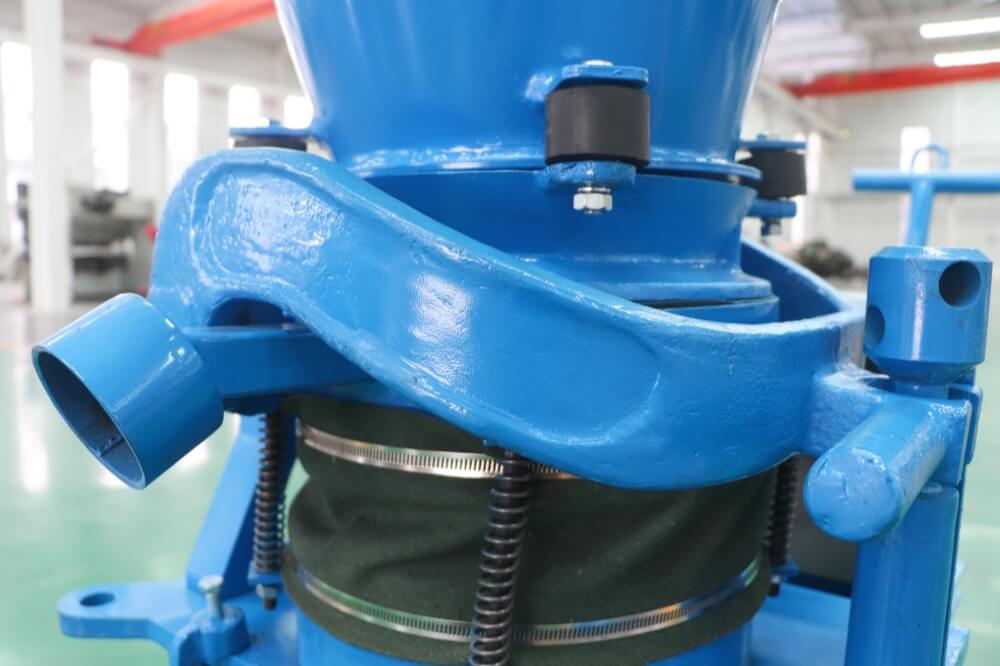

Dust protective cover -

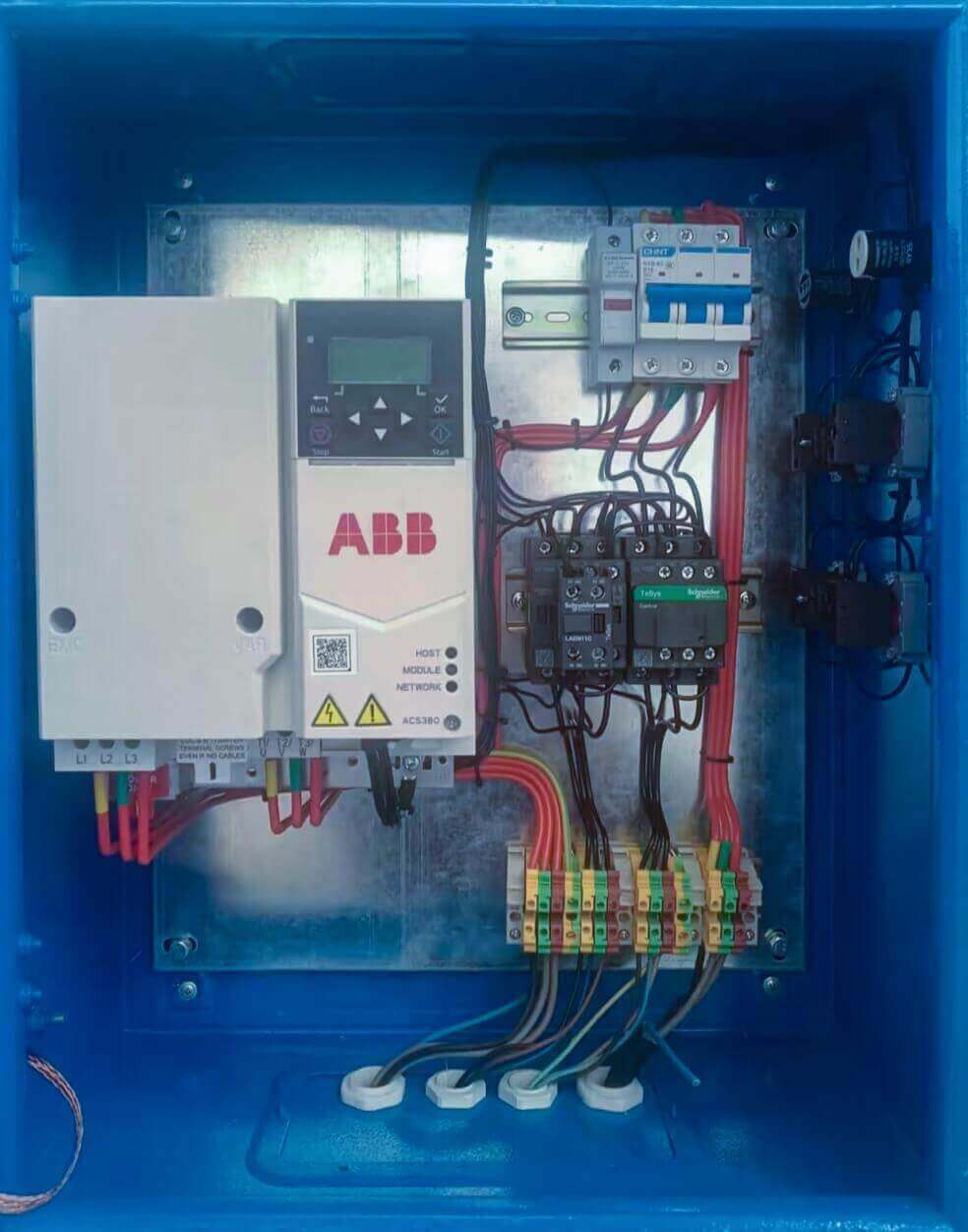

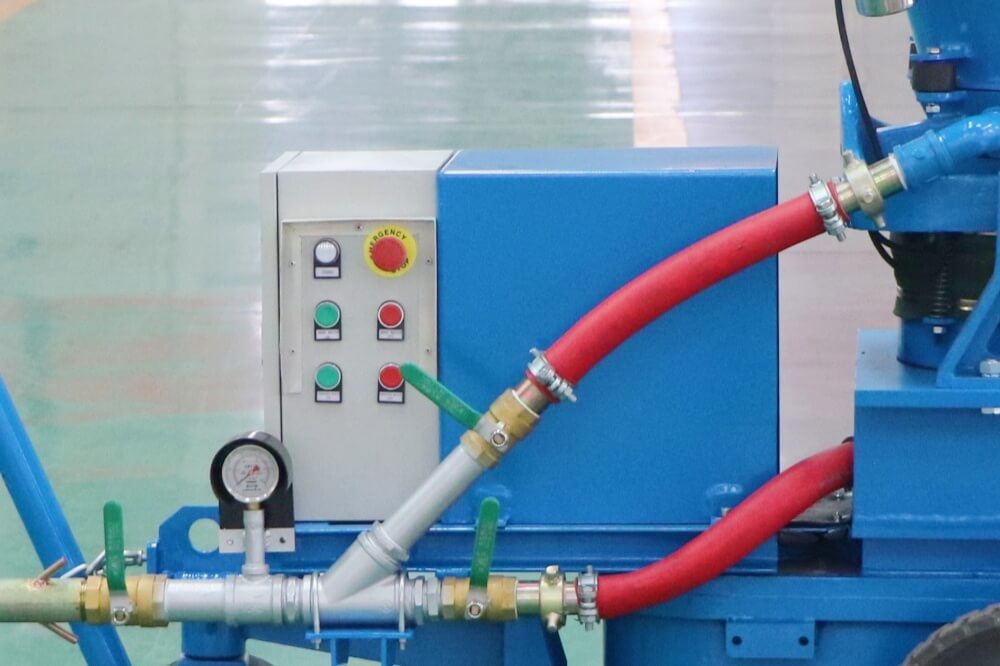

Electric control box -

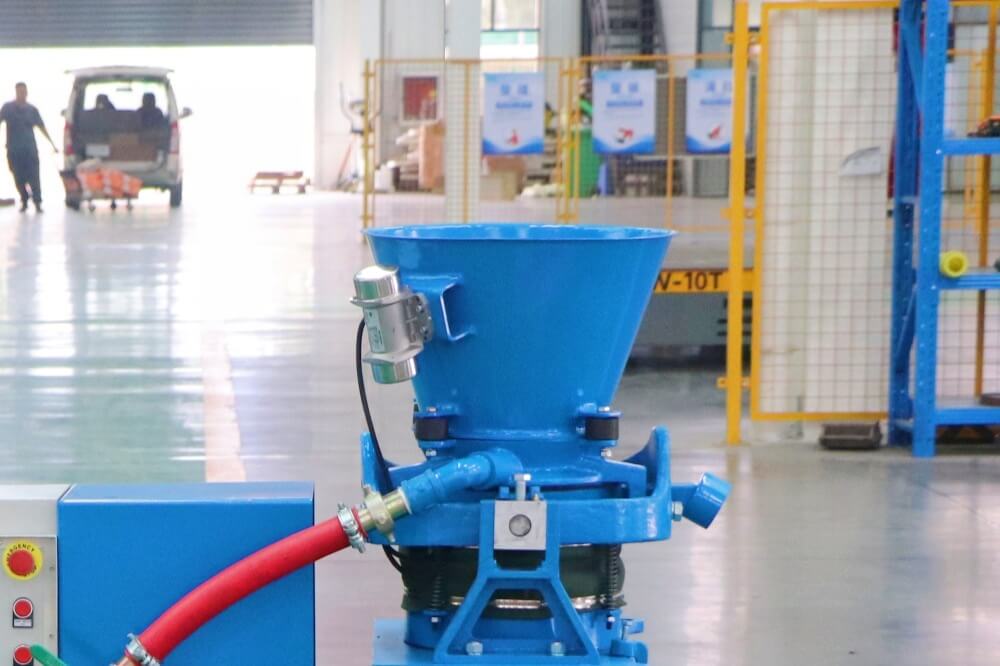

High hopper with electric vibrator -

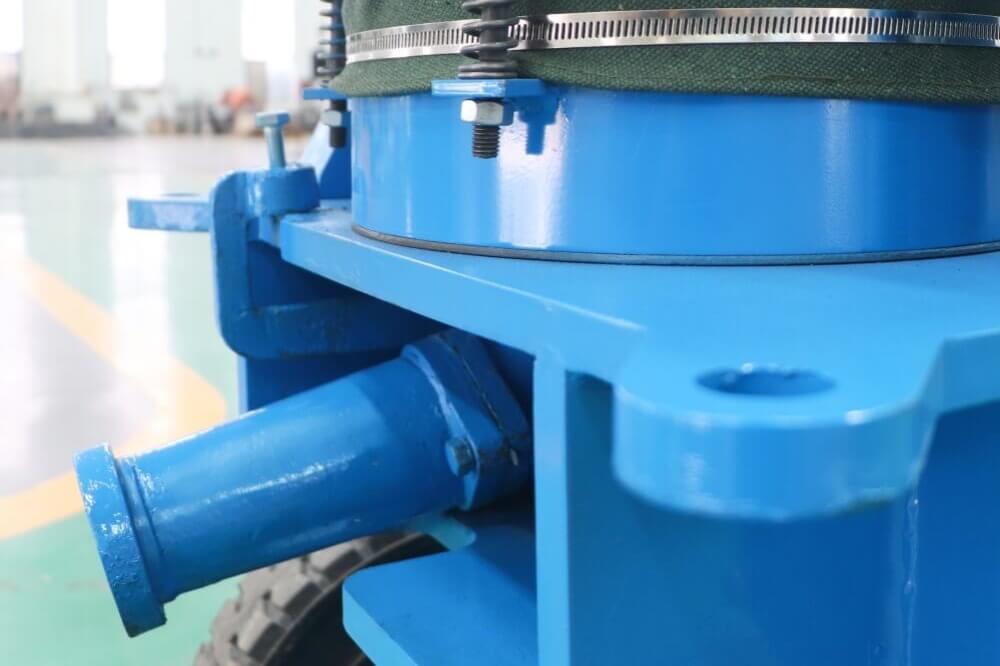

Outlet -

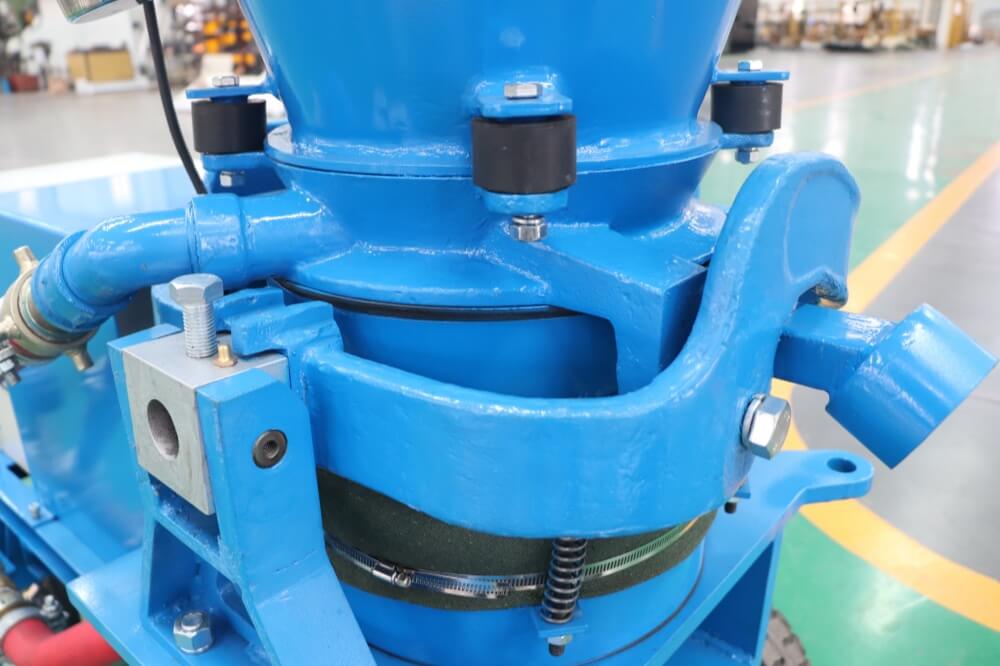

Single bolt clamping system -

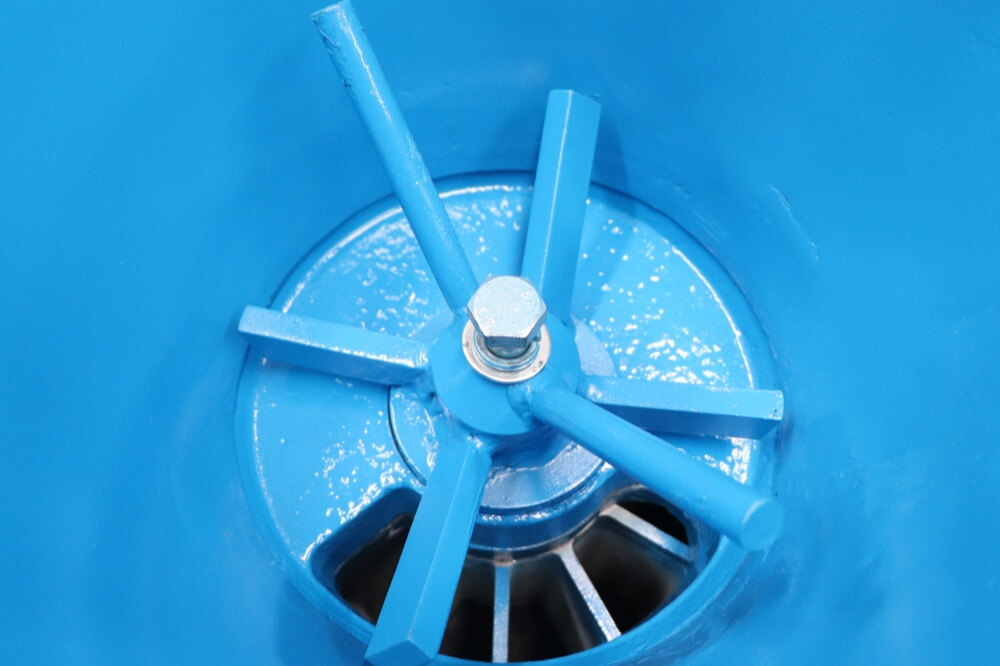

Steel rotor plate
Technical Parameters
Technical Data
| Model | LZ-3ER/SC Piccola rotary refractory gunning machine |
| Rated Output | 0~3m3/h (0~6tons) |
| Max. Horizontal Conveying Distance | 200m |
| Max. Aggregate Size | Φ10 mm |
| Conveying Hose Inner Diameter | 38mm |
| Operating Air Pressure | 0.2-0.4MPa |
| Air Consumption | 5~6m3/min |
| Motor Power | 4kw |
| Voltage | 3 phase, 380V, 50Hz |
| Material Charging Height | 1.2m |
| Rotor Speed | 0-13.2r/min |

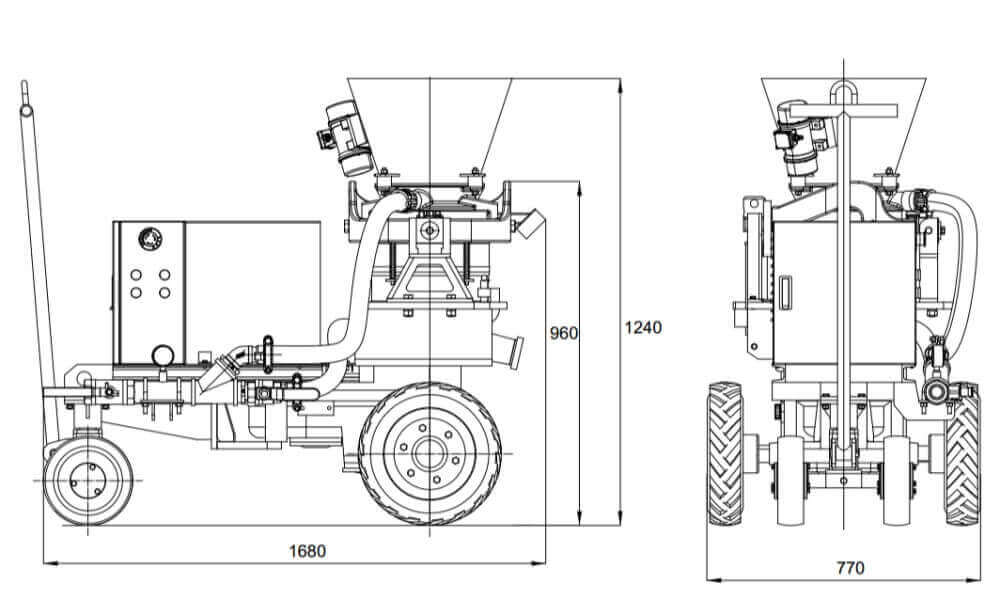

| Overall Dimension | 1680×770×1240mm |
| Weight | 530kg |
