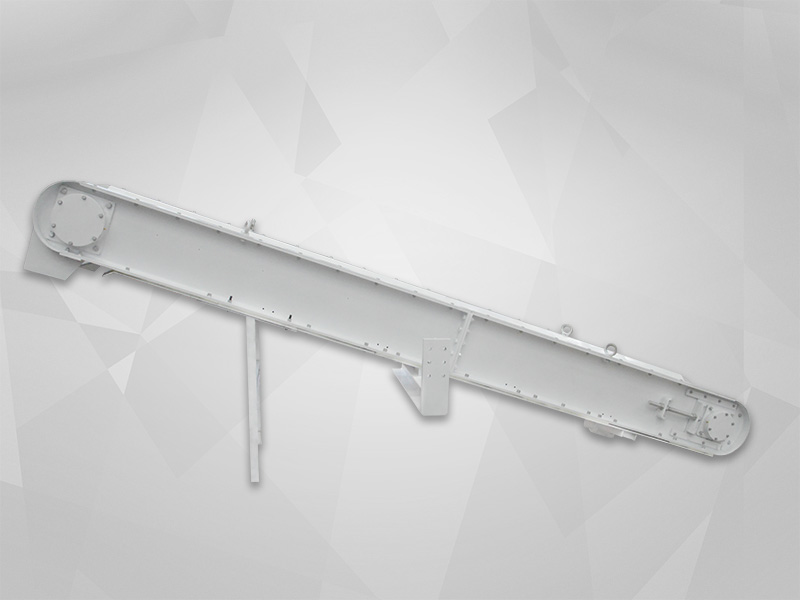

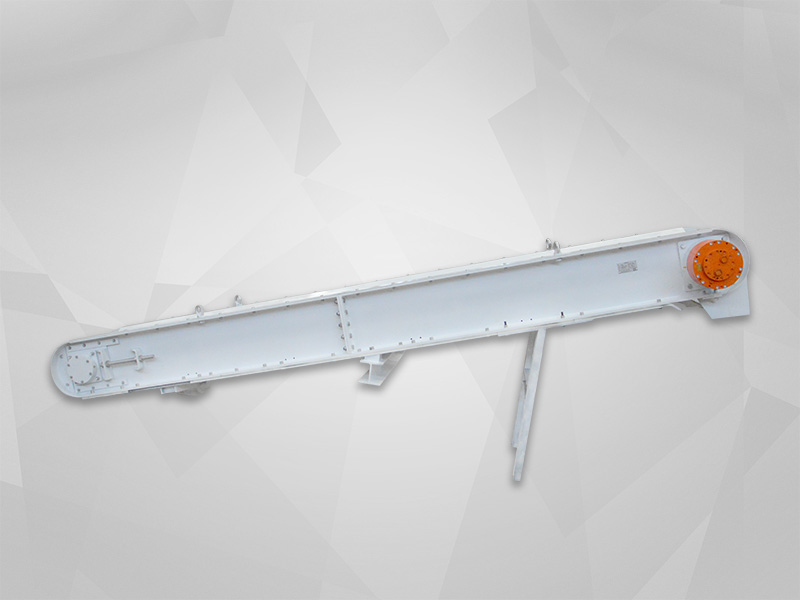

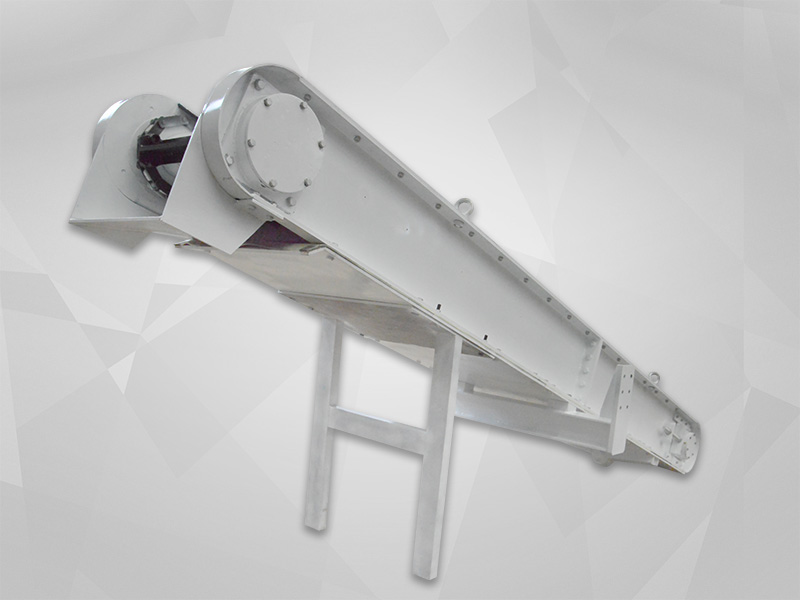

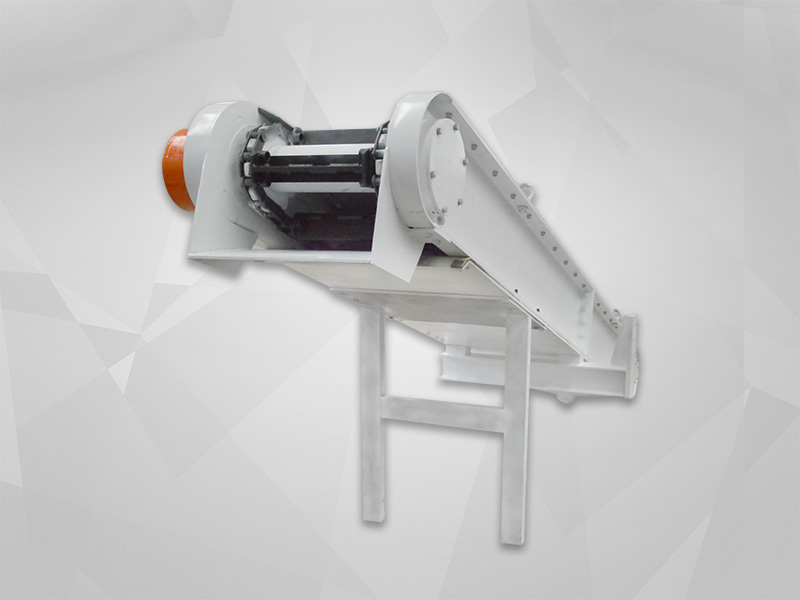

LSC500H Scraper Conveyor for Sale
LSC500H scraper conveyor for sale is a heavy duty scraper conveyor driven by hydraulic motor. We are specially designing it to follow our years' experiences, it is for bulk material conveying equipment.
Scraper conveyor for sale is suitable for the transportation of broken materials, ores, slag, stone, slag, and other granular and small blocks. It is widely used in mining, construction, tunnel building, underground engineering, water conservancy, and hydropower engineering.
LSC500H
10~60m3/h
0-0.7m/s
25°
500mm
340mm
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description
LSC500H scraper conveyor for sale is a heavy duty scraper conveyor driven by hydraulic motor. We are specially designing it to follow our years' experiences, it is for bulk material conveying equipment.
Scraper conveyor for sale is suitable for the transportation of broken materials, ores, slag, stone, slag, and other granular and small blocks. It is widely used in mining, construction, tunnel building, underground engineering, water conservancy, and hydropower engineering.
Scraper conveyor for sale is suitable for the transportation of broken materials, ores, slag, stone, slag, and other granular and small blocks. It is widely used in mining, construction, tunnel building, underground engineering, water conservancy, and hydropower engineering.
Application
Scraper conveyor for sale is suitable for the transportation of broken materials, ores, slag, stone, slag, and other granular and small blocks.
Scraper conveyor for sale is widely used in mining, construction, tunnel building, underground engineering, water conservancy, and hydropower engineering.
Scraper conveyor for sale is widely used in mining, construction, tunnel building, underground engineering, water conservancy, and hydropower engineering.
Features
1. LSC500H scraper conveyor with solid structure, to withstand the shocking, impacting, pounding of the stone, soil, coal, muck, etc.
2. Scraper conveyor for sale with compact size, to be installed in a small room.
3. To be conveyed with a large tilt angle.
4. To insert the conveyor into the material, scraper conveyor can work without the loader Reverse run.
2. Scraper conveyor for sale with compact size, to be installed in a small room.
3. To be conveyed with a large tilt angle.
4. To insert the conveyor into the material, scraper conveyor can work without the loader Reverse run.
Product Details
-

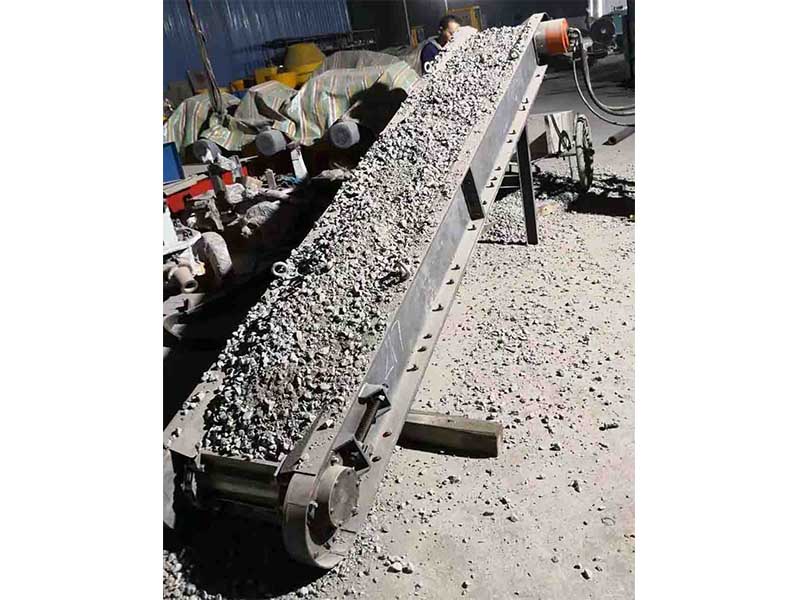

Scraper conveyor application -

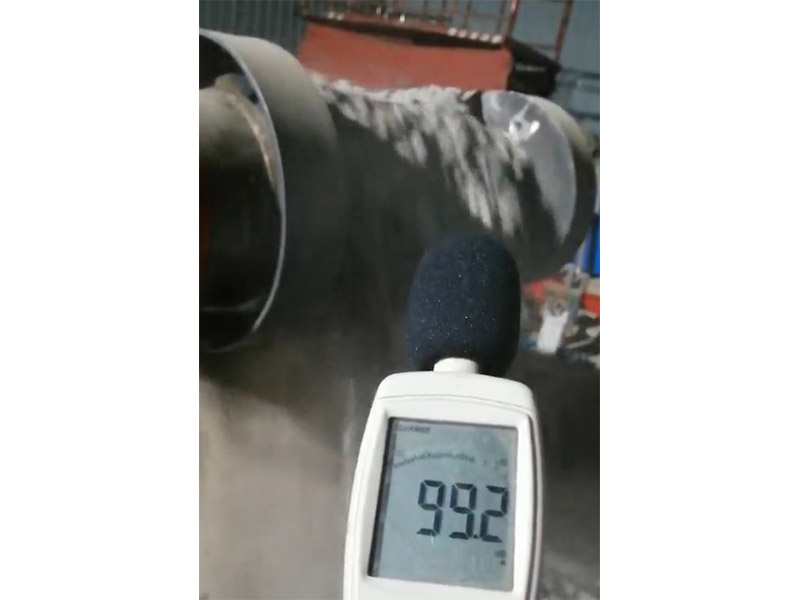

Low noise with full loading -

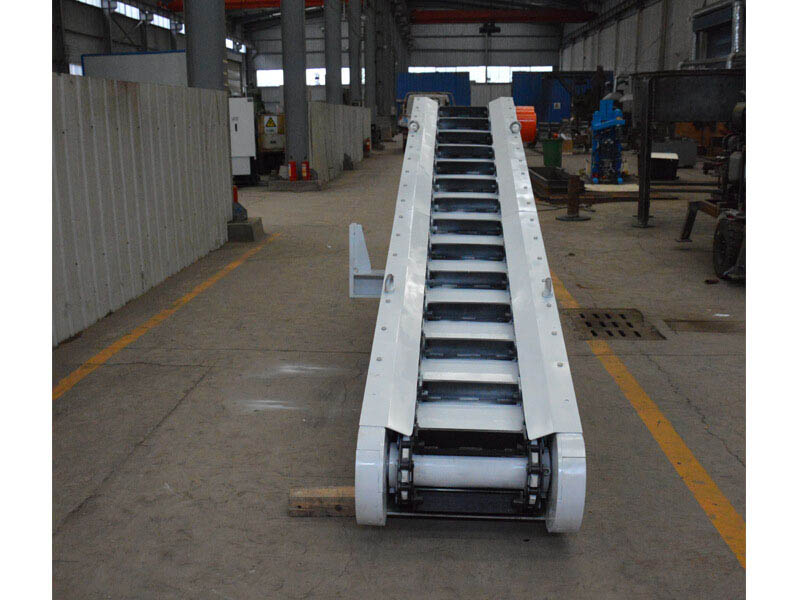

Scraper conveyor factory -

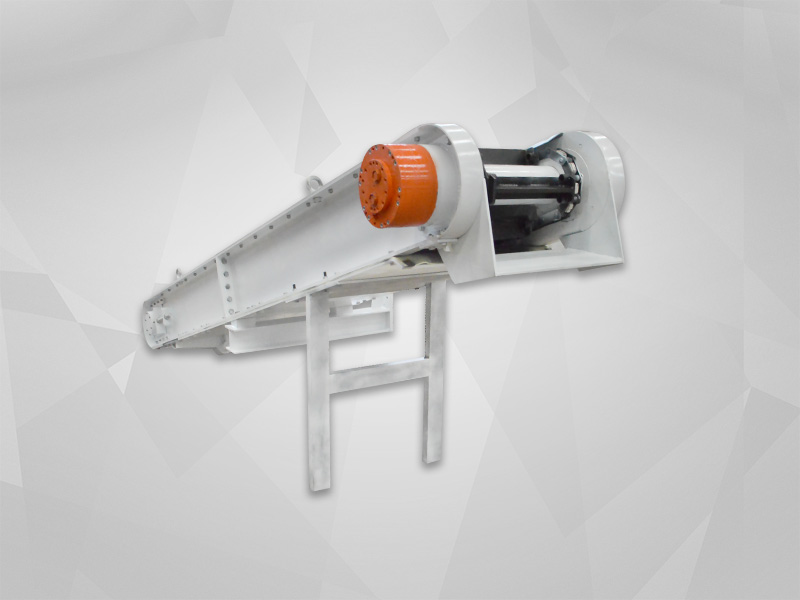

Scraper conveyor -

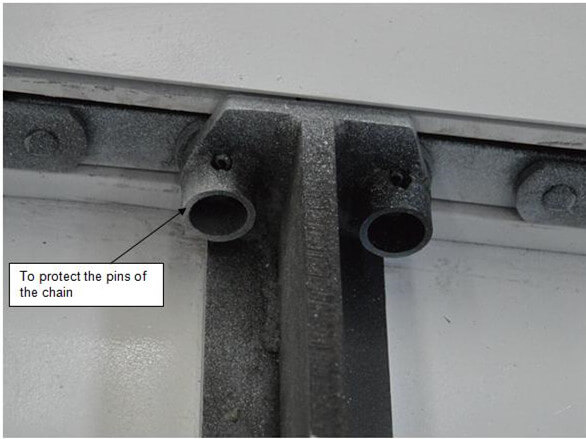

To protect the pins of the chain -

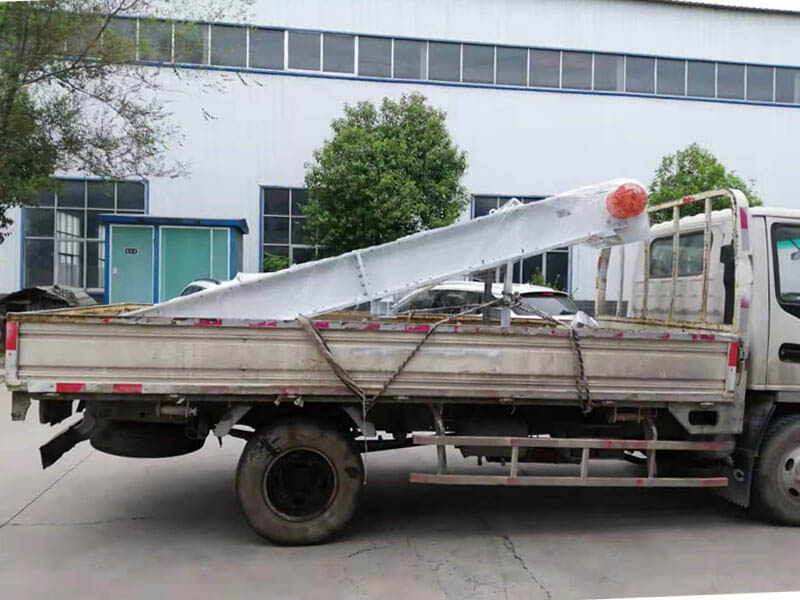

Scraper conveyor for sale

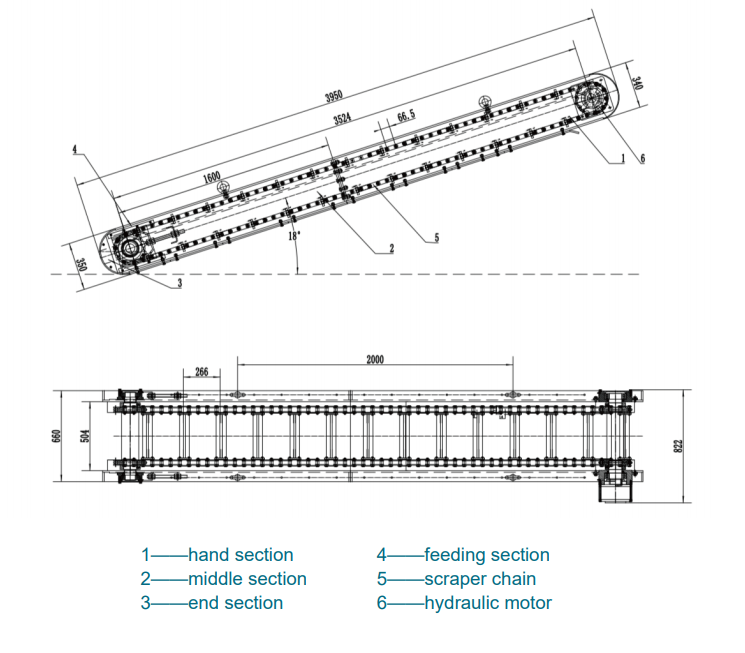

Technical Parameters
| Model | LSC500H |
| Output | 10~60m3/h |
| Chain speed | 0-0.7m/s |
| Max.tilt angle | 25° |
| Slot width | 500mm |
| Slot height | 340mm |
| Scraper type | T |
| Scraper space | 266mm |
| Hydraulic powerpack for motor | 80L/min,10MPa |
| Weight | 960KG |
| We reserve the right to change technical specifications without prior notice. | |
