LMA850-1500E Grout mixer for sale
LMA850-1500E grout mixer for sale is a skid mounted, colloidal grout unit. This system is designed to provide a continuous mixing operation. It is a combination consists of a steel sheet cylindrical mixer tank, heavy-duty slurry pump, and agitator tank set-up on a strong base frame.
11~14m3/h
850L
1500L
700L/min
11+3 Kw
2200*2750*1600mm
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description
LMA850-1500E grout mixer for sale is a skid mounted, colloidal grout unit. This system is designed to provide a continuous mixing operation. It is a combination consists of a steel sheet cylindrical mixer tank, heavy-duty slurry pump, and agitator tank set-up on a strong base frame.
We are grout mixer supplier and grout mixer manufacturer for 20 years, if you want to get grout mixer price and grout mixer cost, you can tell us freely.
We are grout mixer supplier and grout mixer manufacturer for 20 years, if you want to get grout mixer price and grout mixer cost, you can tell us freely.
Application
The water, cement and bentonite are mixed through a high speed vortex produced by a special pump. As soon as the mixing process is over, the mixing is transferred into the agitator. The slow stirring paddle prevents the grout from settling out of suspension and removes any air bubbles from the mix. Mixer and agitator is switch by using butterfly valve For the power, also there is diesel engine motor for option.
Features
1. Simple structure, easy assemble.
2. Extremely fast mixing, mixing time just about 1-2 minutes.
3. Less spare parts low maintenance Lower using cost.
4. Mixer and agitator switch by using butterfly valve, simple to operate.
2. Extremely fast mixing, mixing time just about 1-2 minutes.
3. Less spare parts low maintenance Lower using cost.
4. Mixer and agitator switch by using butterfly valve, simple to operate.
Product Details
-

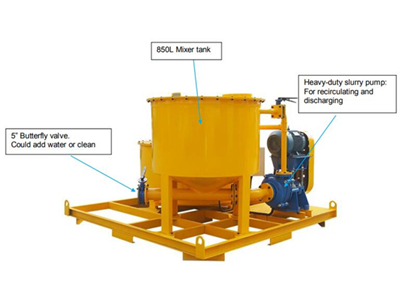

Grout mixer details -
Grout mixer structure -
Details of grout mixer
Technical Parameters
Technical Data
| Model | LMA850/1500E |
| Output | 11~14m3/h |
| Mixer volume | 850L |
| Agitator volume | 1500L |
| Pump delivery | 700L/min |
| Motor power | 11+3Kw |
| Overall dimension | 2200*2750*1600mm |
| Weight | 1600KG |
Inquiry
Please feel free to submit your inquiry information to us. We will contact with you as soon as possible.
