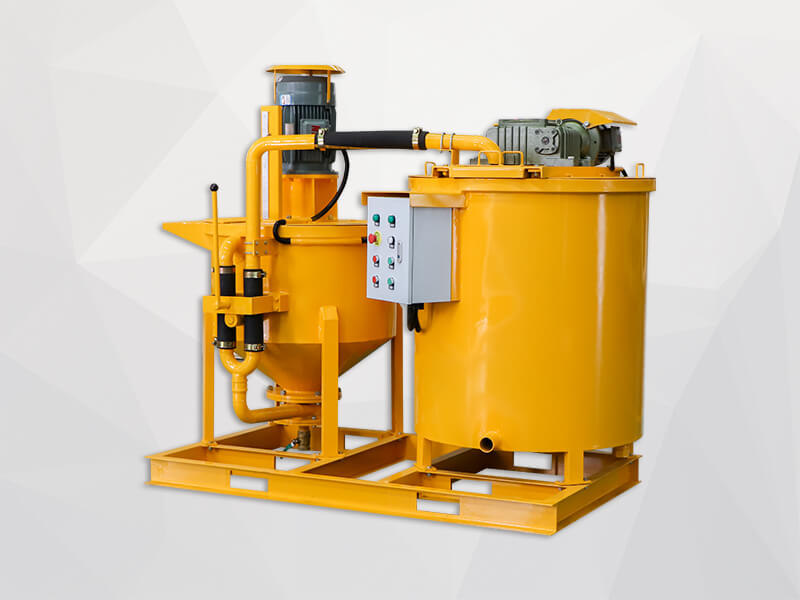

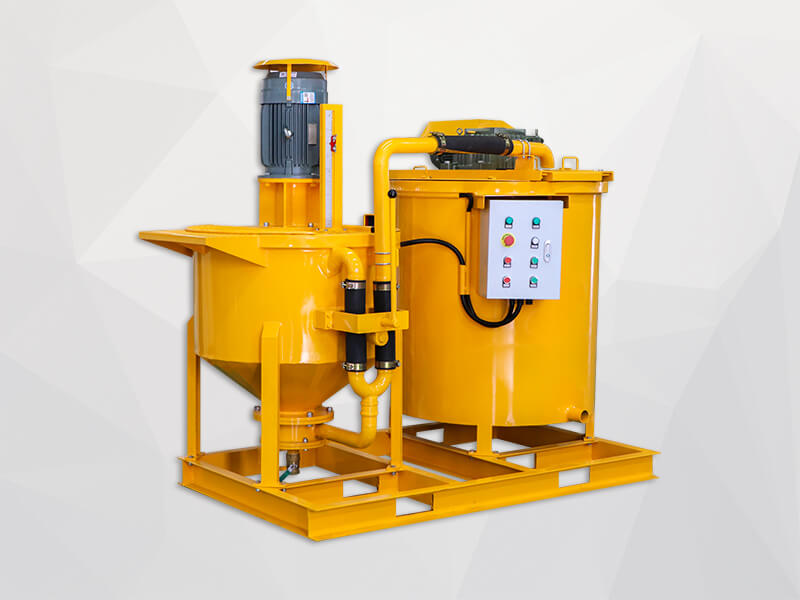

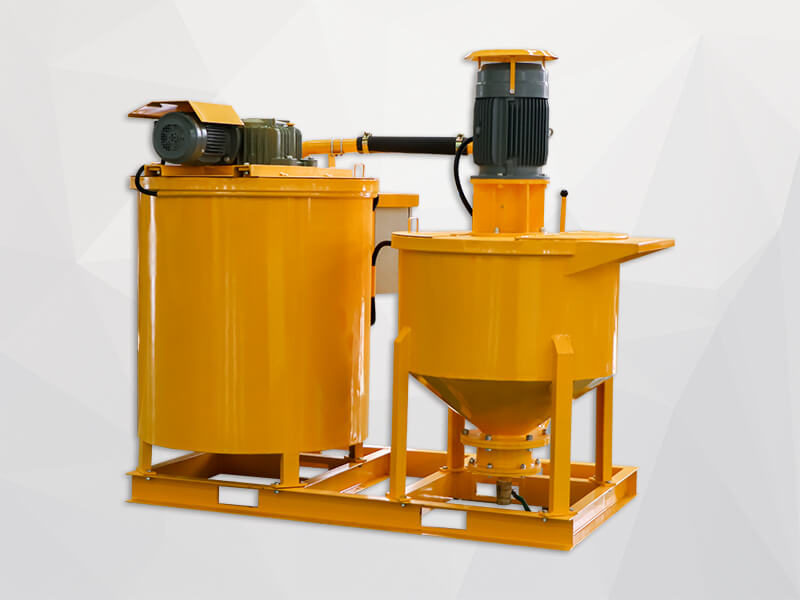

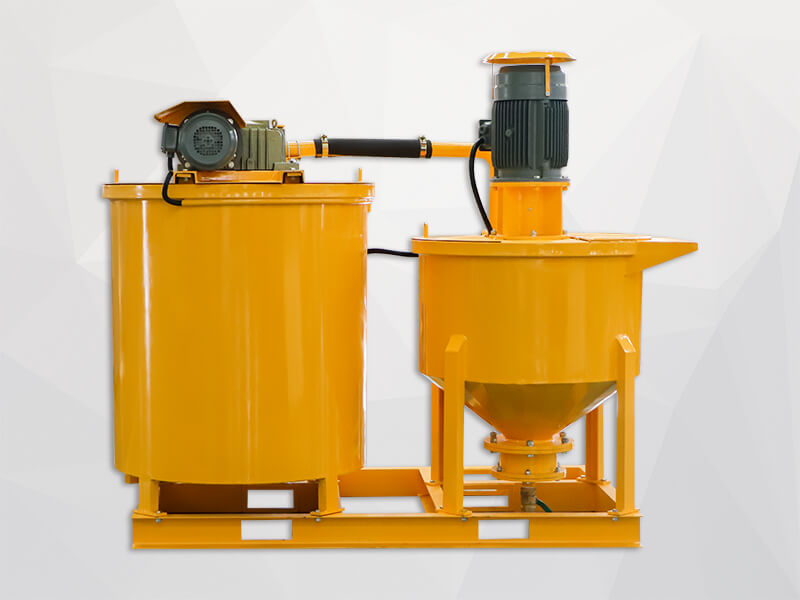

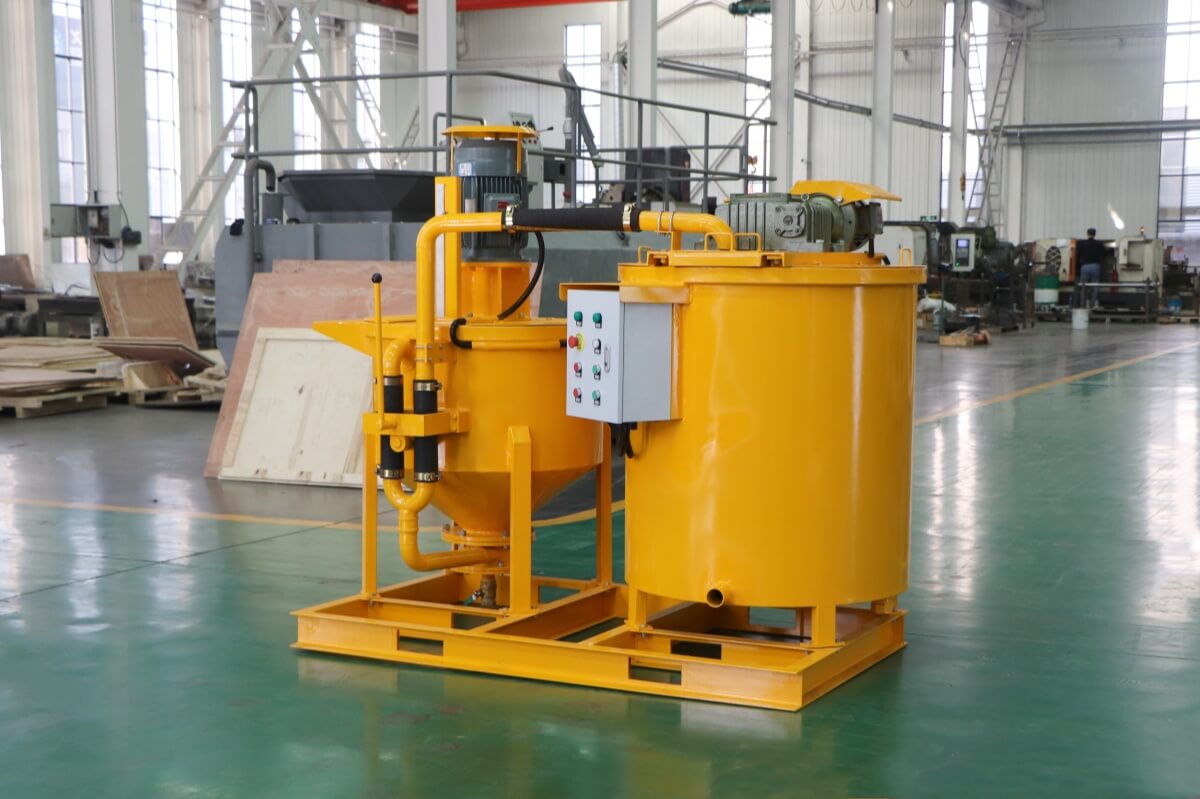

LMA250-700 Cement grout mixer machine for drilling project
LMA250-700 Cement grout mixer machine helps reduce cement lumps, slurry separation and sedimentation, supporting stable grout quality during continuous drilling and injection work. It can operate as an independent mixer or be combined with an agitator and grout pump to form a complete borehole grouting system.
250(L)
700(L)
1500(r/min)
33(r/min)
7.5(kw)
2.2(kw)
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description
LMA250-700 cement grout mixer is a combination of mixer and agitator, it is specially design for continuous cement mixing and grouting in ground/underground engineering. Cement grout mixer machine for drill can fast mix water, cement and additive, then the mixed slurry can be stored into a 700 liters agitator, thus the mixing work can continuously be done.
Application

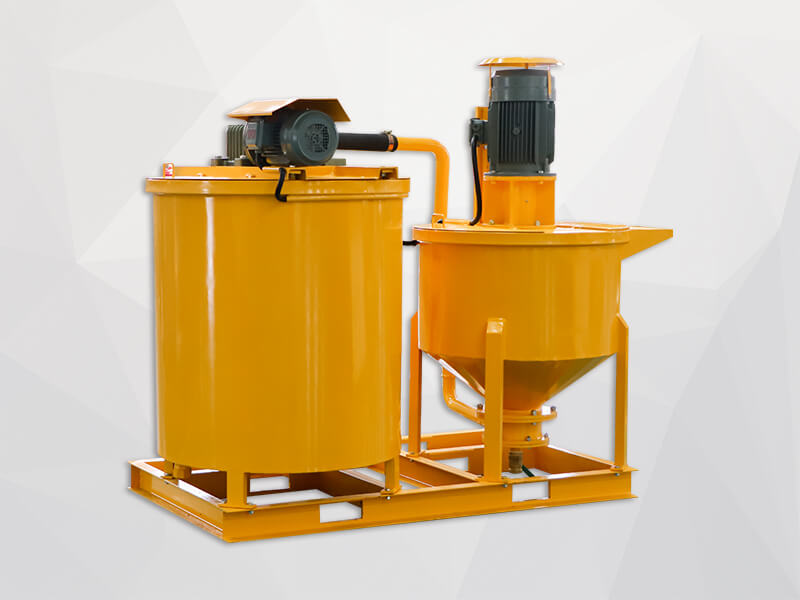

LMA250-700 drill rig used grout mixer is specially design for continuous cement mixing and grouting in ground/underground engineering.
Application:
Borehole grouting
Geological drilling
Rock anchoring
Micropile construction
Soil nailing
Foundation reinforcement
Tunnel drilling and grouting
Mine exploration and stabilization
Dam foundation drilling
Ground improvement projects
Application:
Borehole grouting
Geological drilling
Rock anchoring
Micropile construction
Soil nailing
Foundation reinforcement
Tunnel drilling and grouting
Mine exploration and stabilization
Dam foundation drilling
Ground improvement projects
Features
- Fast and uniform preparation of cement grout
- Suitable for cement, bentonite and additive-based slurry
- Consistent grout quality for borehole injection
- Compact and jobsite-friendly structure
- Easy operation, cleaning and maintenance
- Compatible with different types of grout pumps
- Available with electric, diesel or hydraulic power
- Customized configurations for different drilling projects
Product Details
-

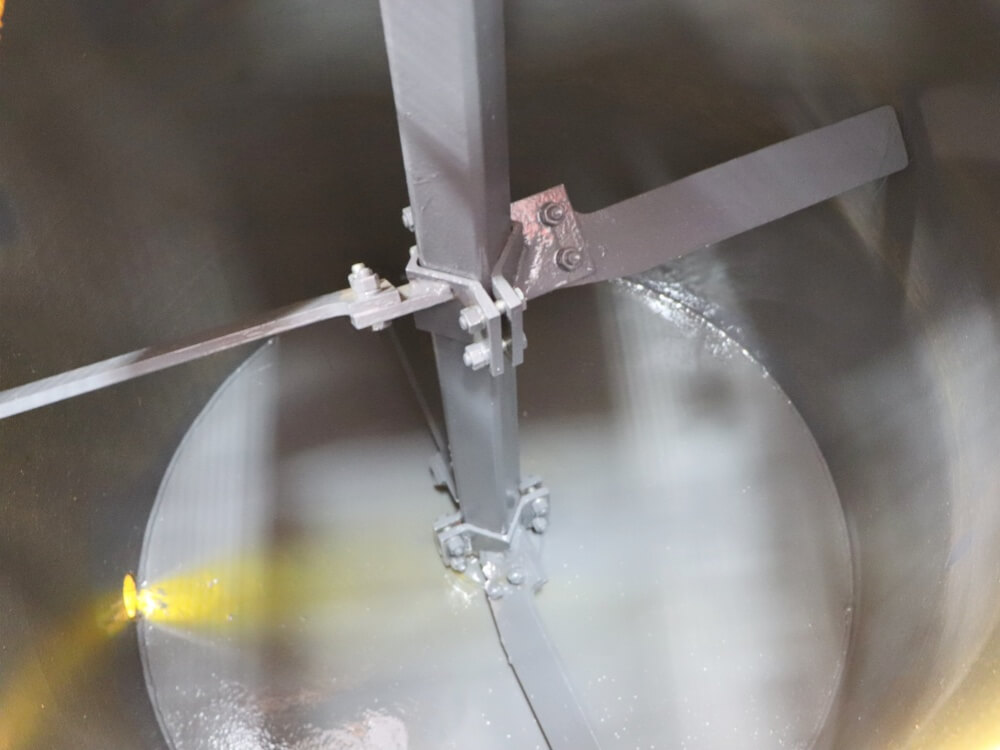

Agitator -

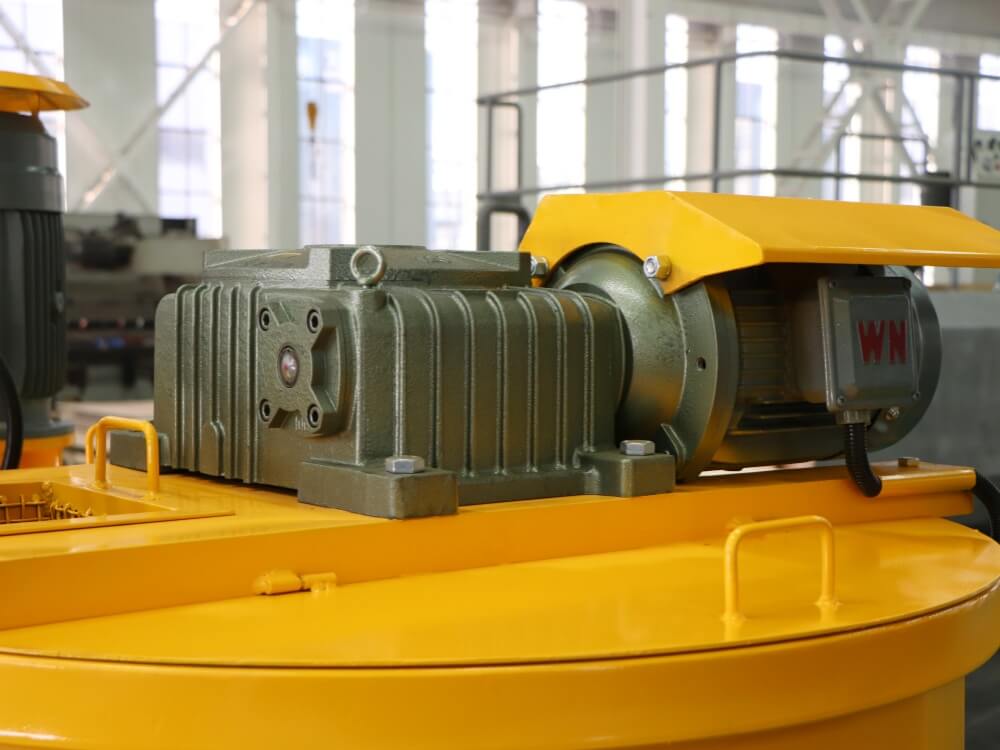

Agitor power motor -

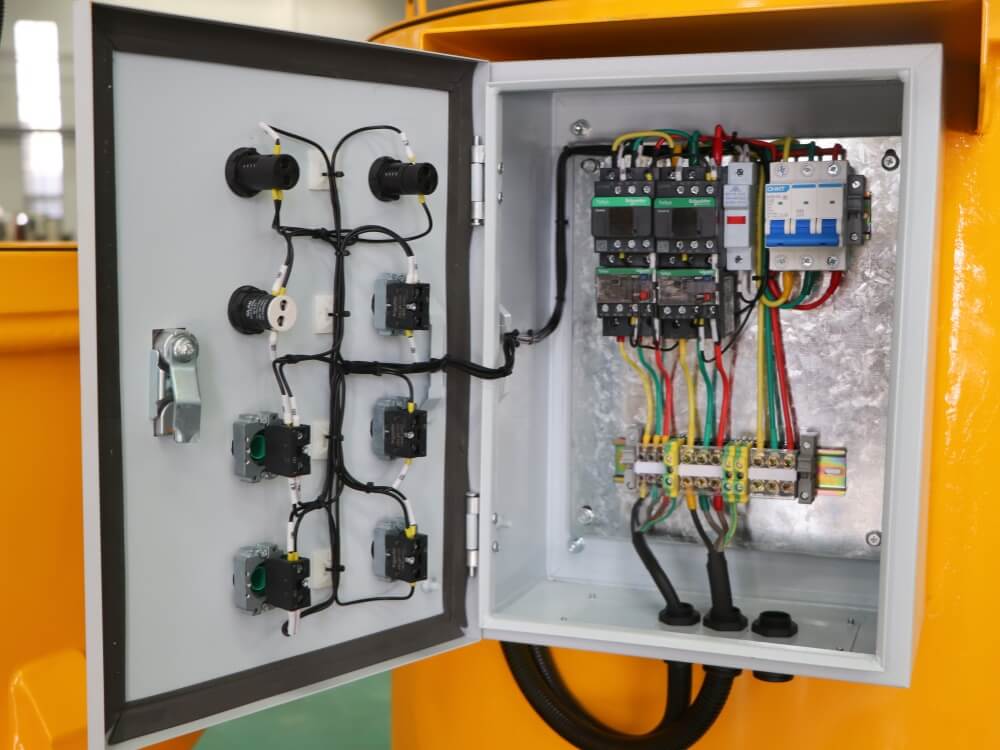

Electric control box -

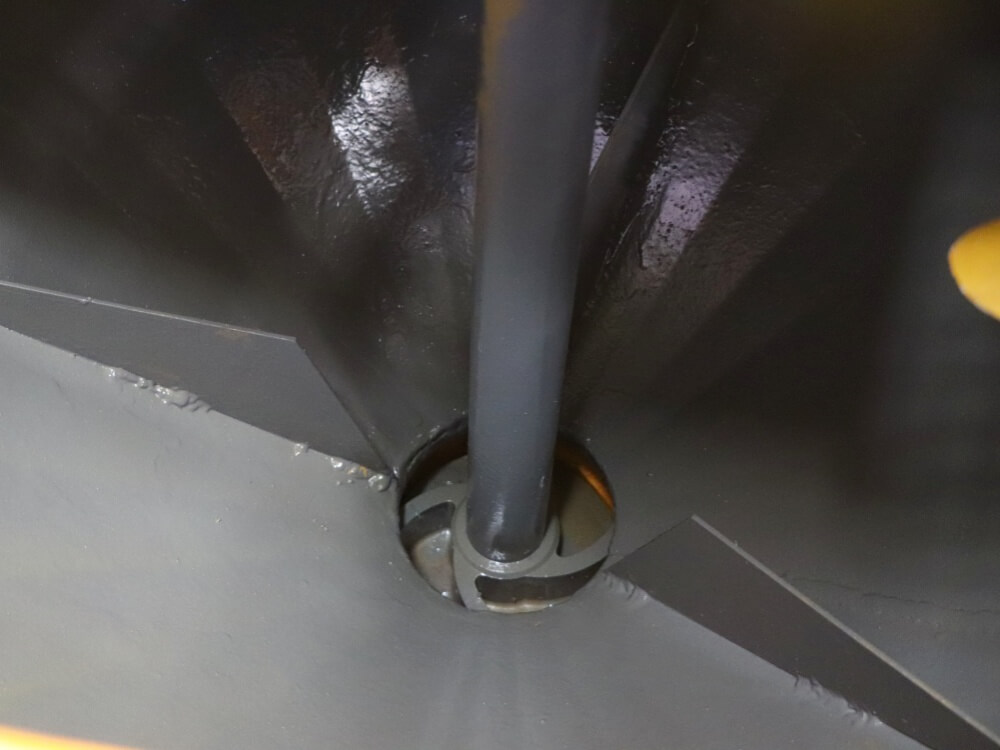

High speed mixer -

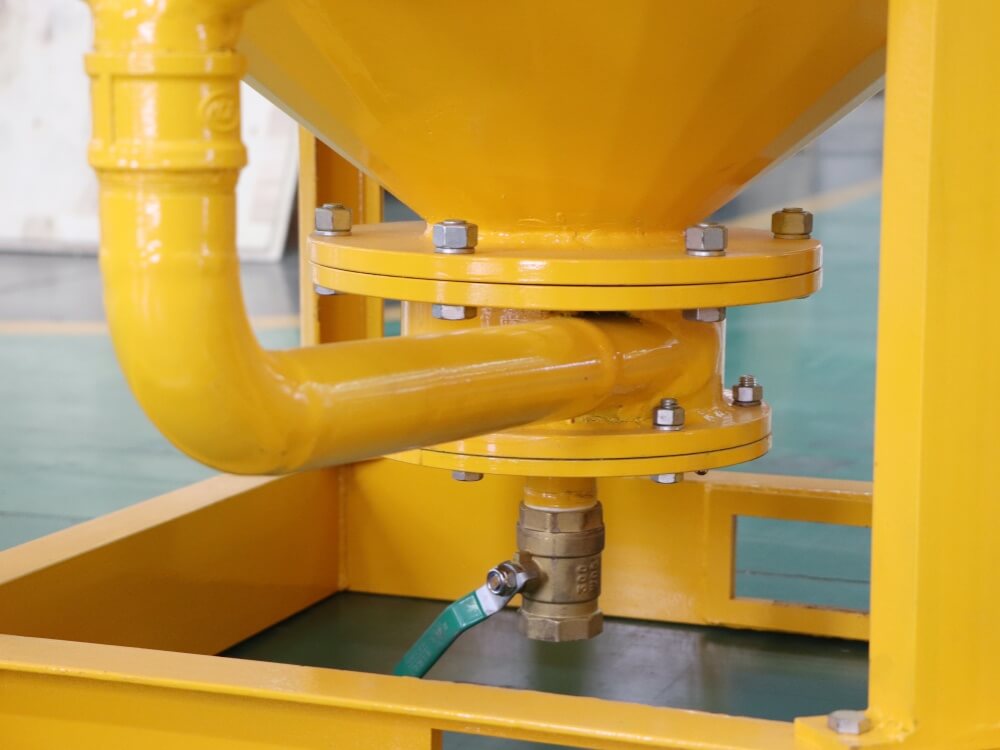

Mixing syestem -

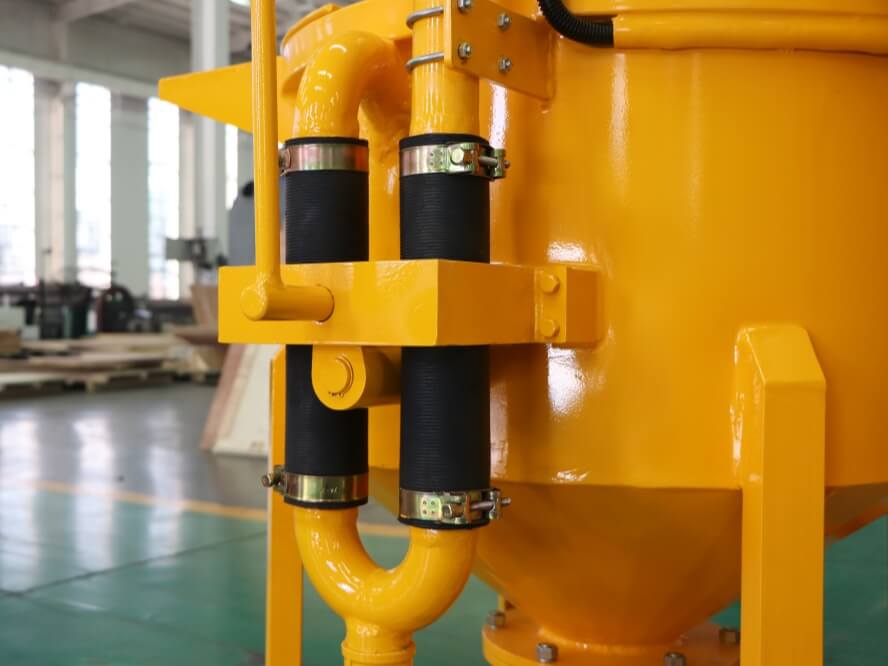

Squeeze handle
Technical Parameters
Technical Data
| Mixing tank | 250L |
| Agitating tank | 700L |
| Mixing tank speed | 1500r/min |
| Agitating tank speed | 33r/min |
| Mixer motor power | 7.5kw |
| Agitator motor power | 2.2kw |
| Dimension | 2650*1000*2150mm |
| Weight | 560kg |
