LM500E Colloidal grout mixer
LM500E colloidal grout mixer is a high speed grout mixer. LM500E colloidal grout mixer machine has been designed for use either in conjunction with a conventional paddle mixer and pump or by virtue of its own built in impeller pump, as a stand-alone mix and place machine. The colloidal grout mixer for sale will rapidly and efficiently mix various types of grout which can include cement bentonite and sand. It is specially design for cement mixing and grouting in ground and underground engineering. We also can design the mixer with agitator, to make the mixing work can continuously be done.
500 liter
≥0.5:1
3 min
7.5 KW
420 kgs
1730*1630*1970mm
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description
LM500E colloidal grout mixer is a high speed grout mixer. LM500E colloidal grout mixer machine has been designed for use either in conjunction with a conventional paddle mixer and pump or by virtue of its own built in impeller pump, as a stand-alone mix and place machine. The colloidal grout mixer for sale will rapidly and efficiently mix various types of grout which can include cement bentonite and sand. It is specially design for cement mixing and grouting in ground and underground engineering. We also can design the mixer with agitator, to make the mixing work can continuously be done.

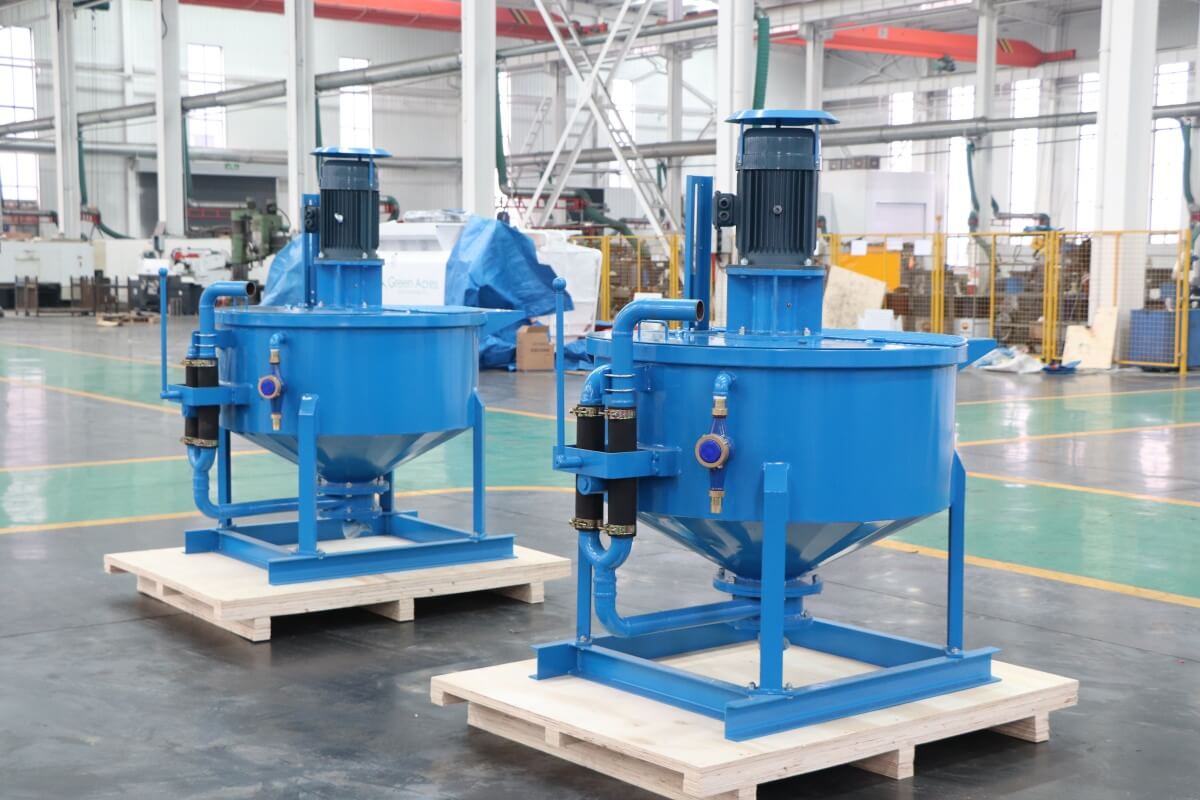

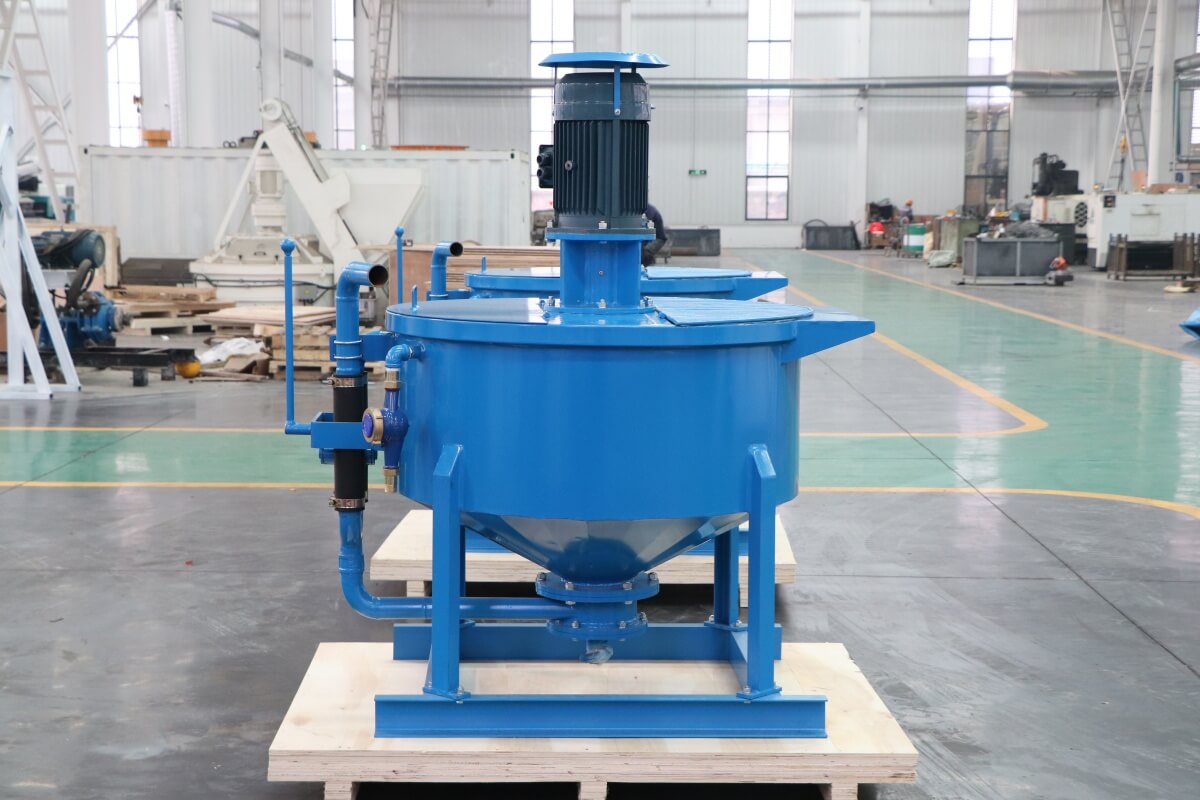

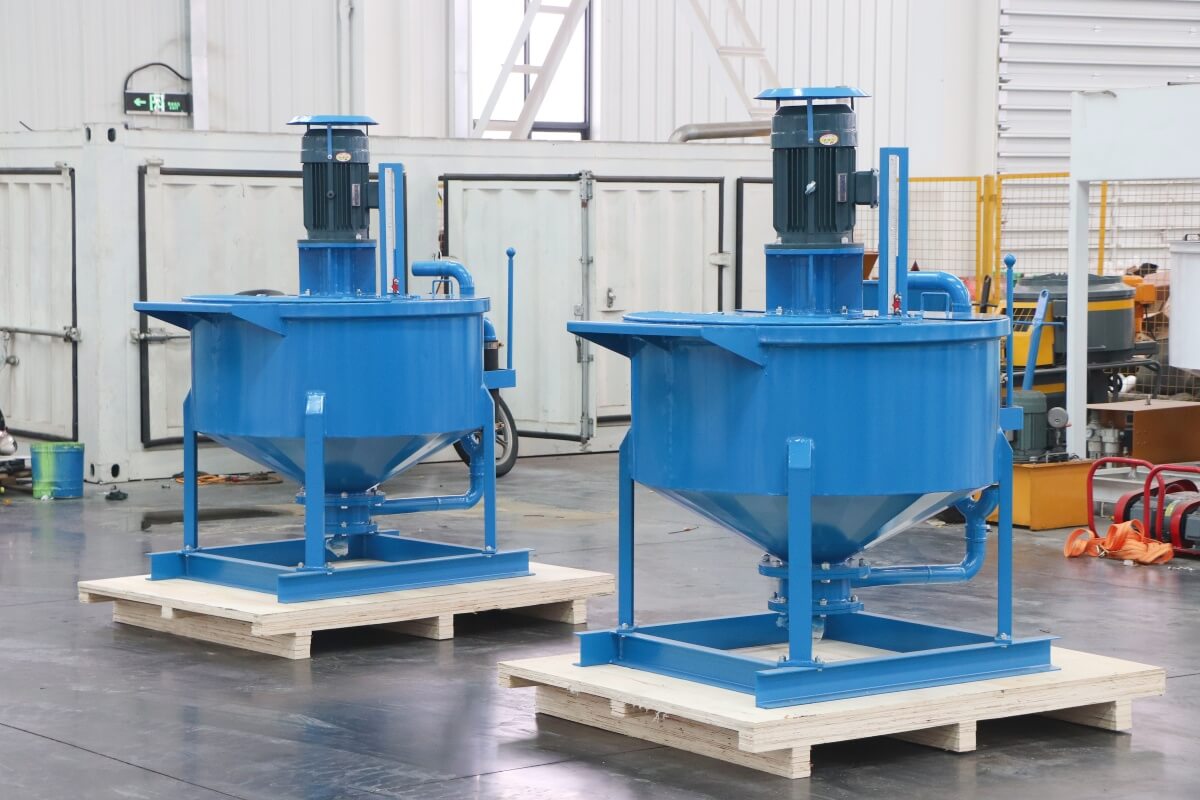

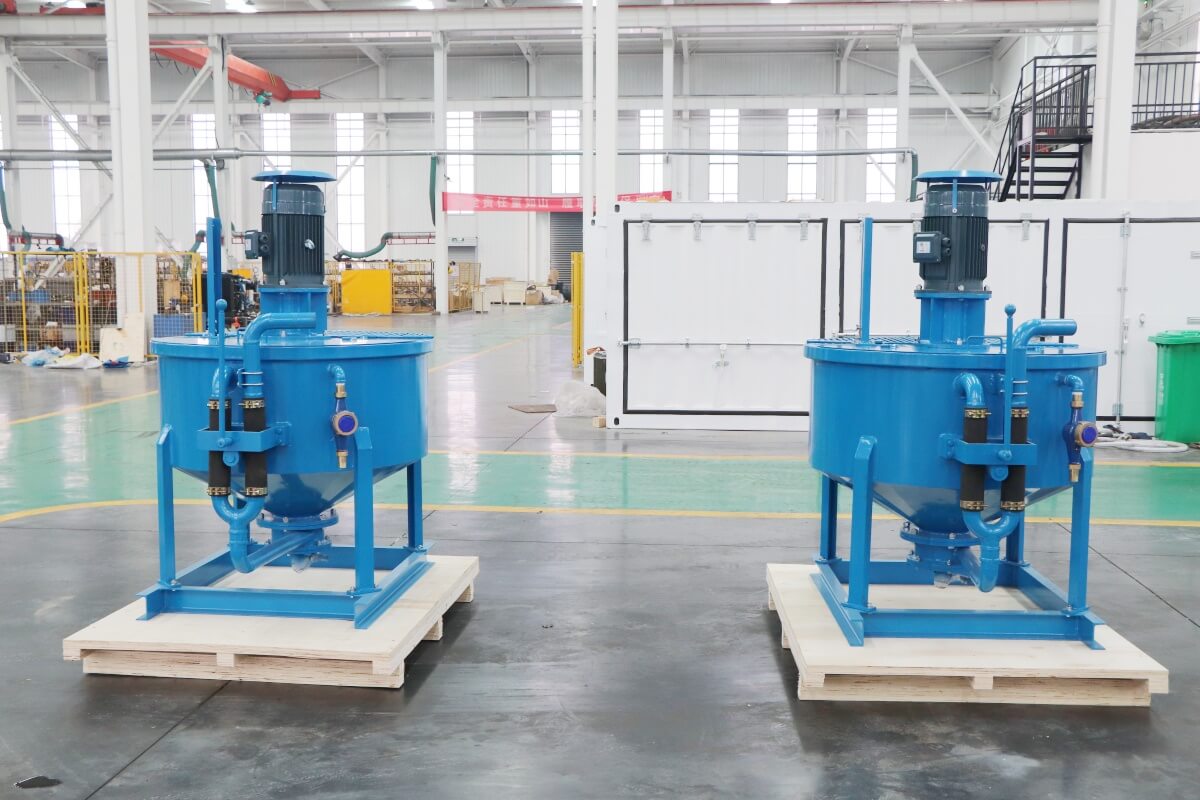

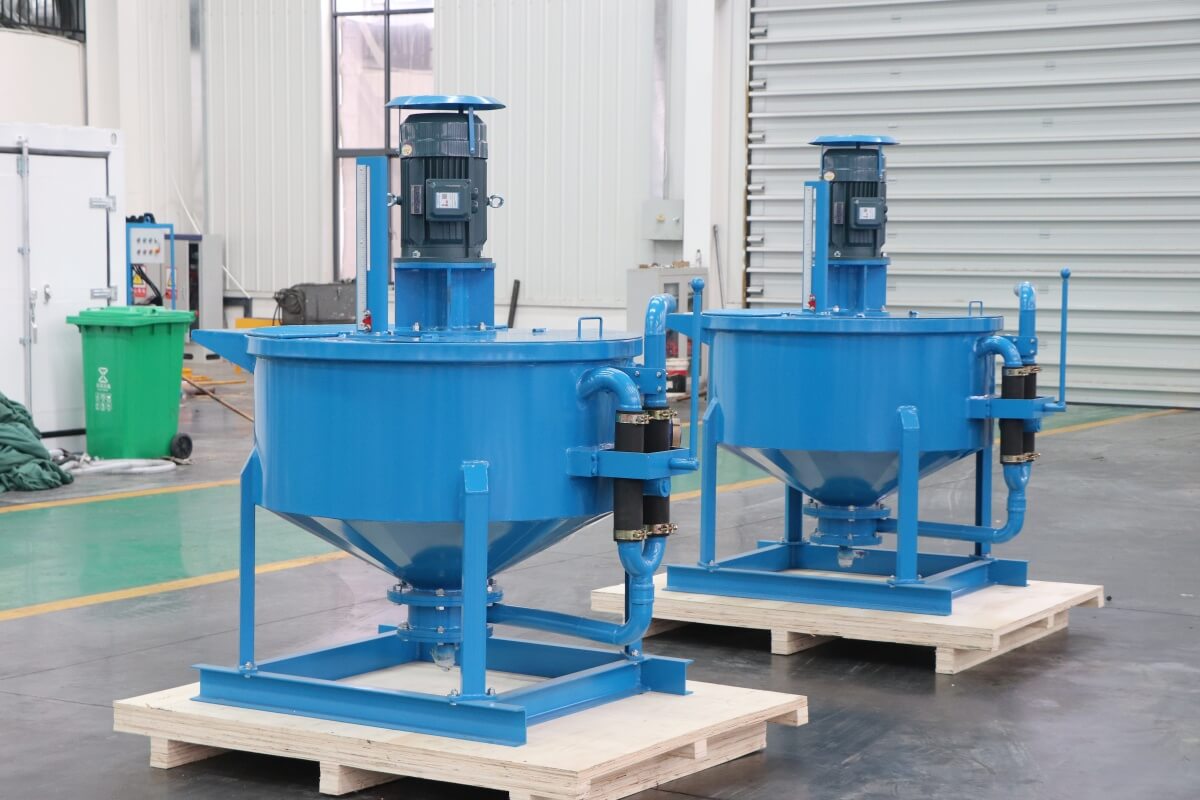

High quality high shear high speed colloidal cement grout mixer factory display pictures:
High quality high shear high speed colloidal cement grout mixer factory display pictures:
Application
LM500E colloidal grout mixer is specially designed for cement mixing and grouting in ground/underground engineering. We also can design the mixer with agitator separately, to make the mixing work continuously.
Features
1. No wearing parts.
2. High speed mixing.
3. High-efficiency(3min).
4. Colloidal grout mixer machine is simple structure, lightweight, easy maintenance.
5. High speed mixer and agitator with diesel engine drive.
2. High speed mixing.
3. High-efficiency(3min).
4. Colloidal grout mixer machine is simple structure, lightweight, easy maintenance.
5. High speed mixer and agitator with diesel engine drive.
Product Details
-
Electric motor grout mixer -
High quality electric control box -
High speed impeller grout mixer -
Impeller inside of grout mixer -
Liquid level gauge of colloidal mixer -

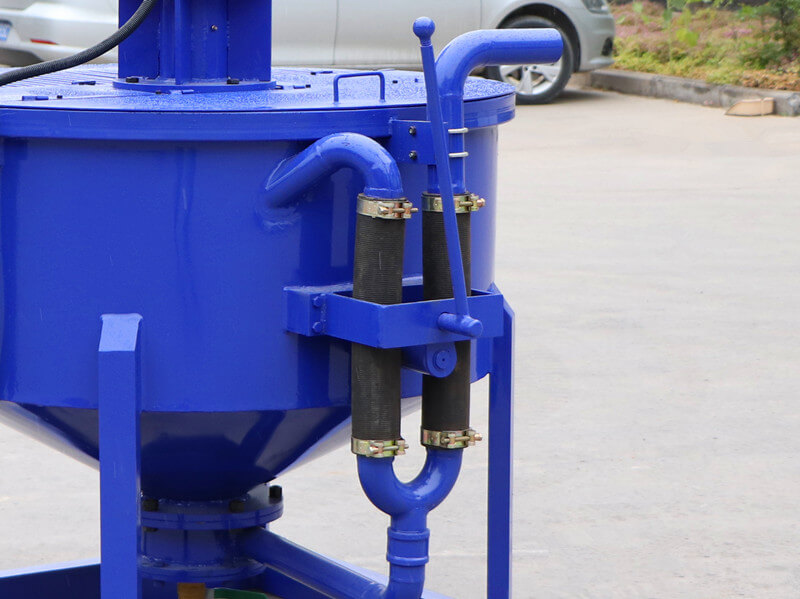

Squeeze hose handle of grout mixer
Technical Parameters
Technical Data
| Item | Technical data |
| Tank Capacity | 500L Colloidal grout mixer |
| W/C Ratio | ≥0.5:1 |
| Mixing time | 3min |
| Impeller speed | 1500rpm |
| Power | 7.5kw |
| Dimension | 1730*1630*1970mm |
| Weight | 420kg |
