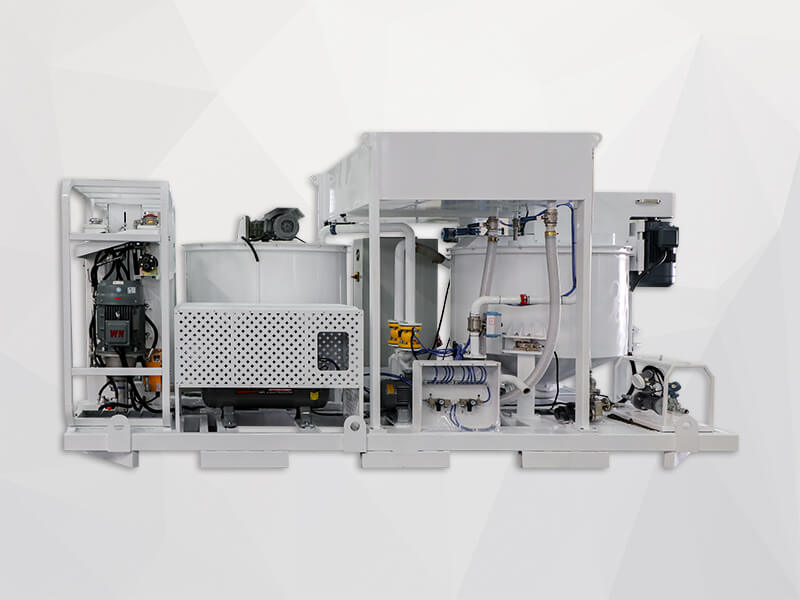

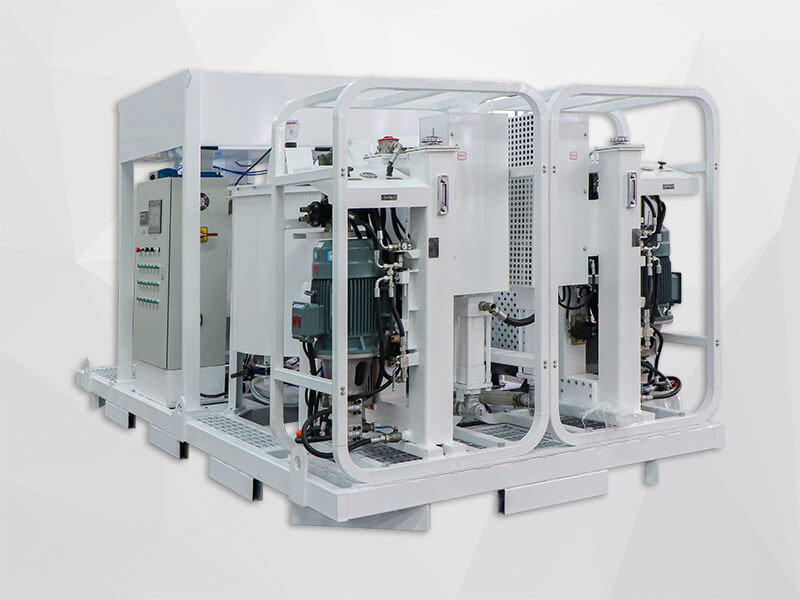

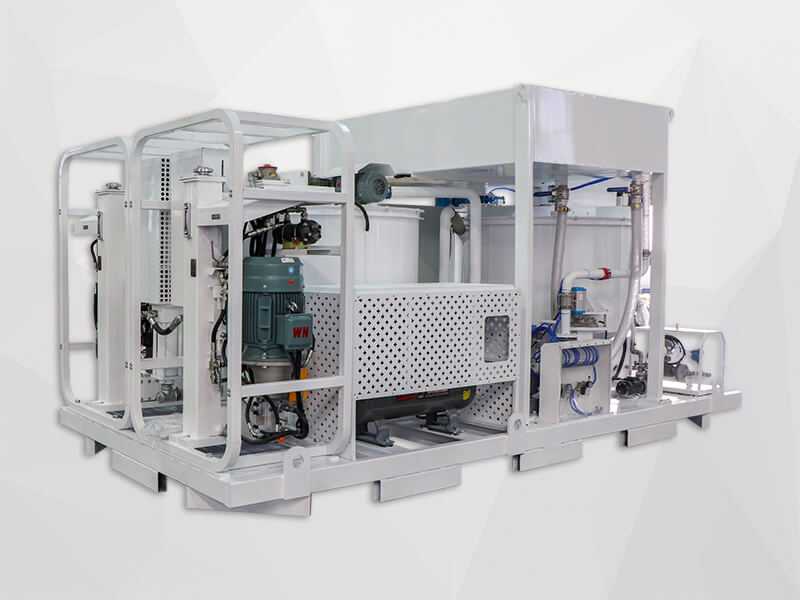

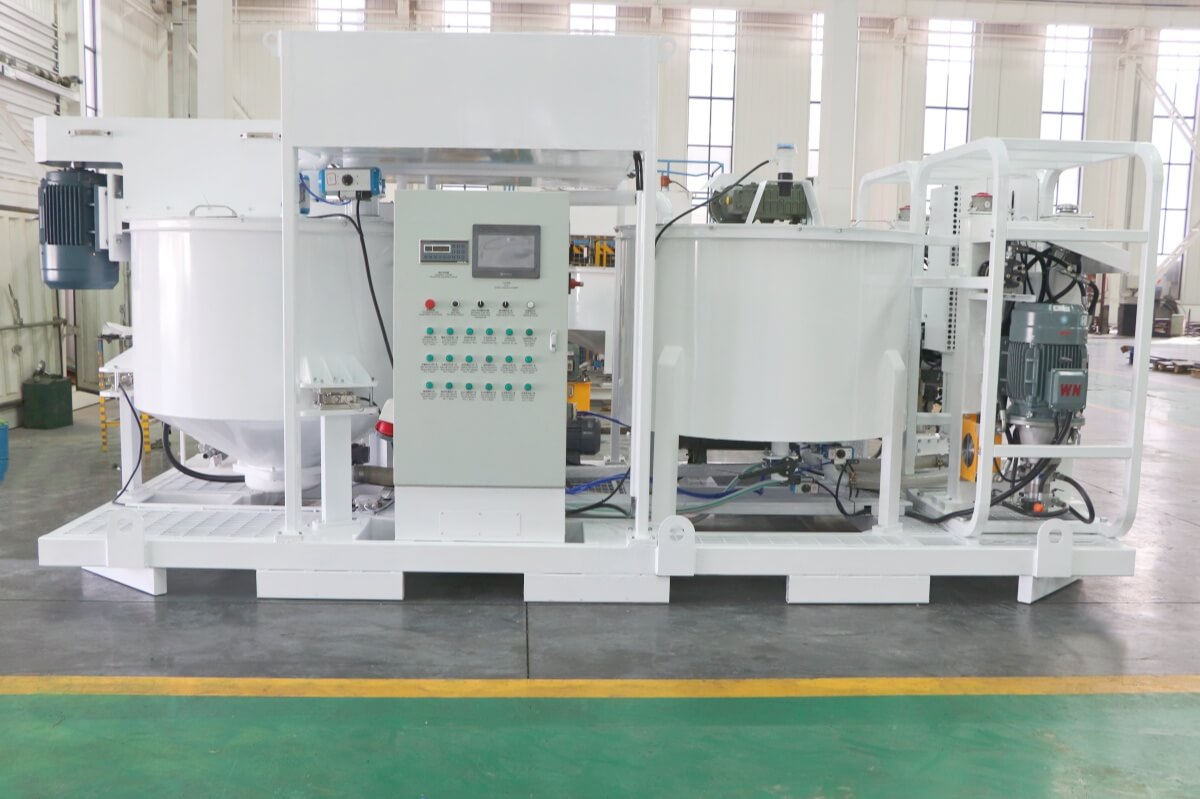

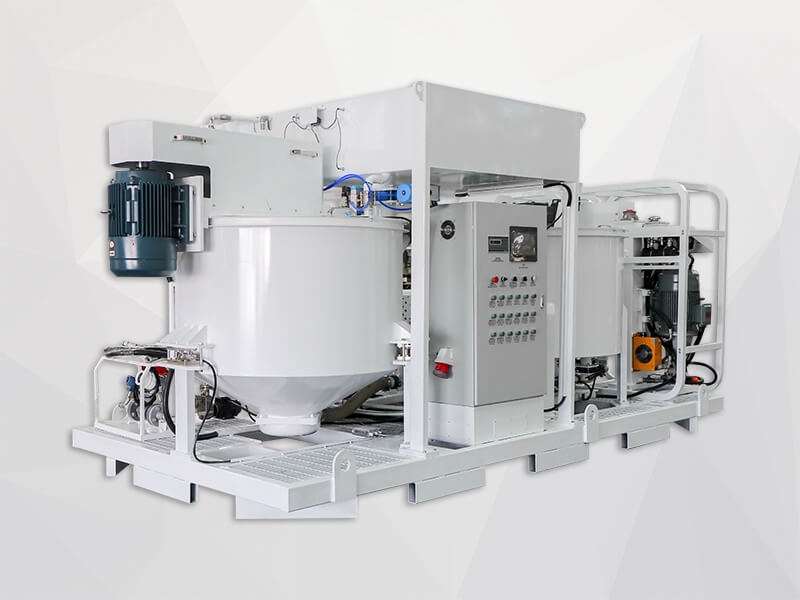

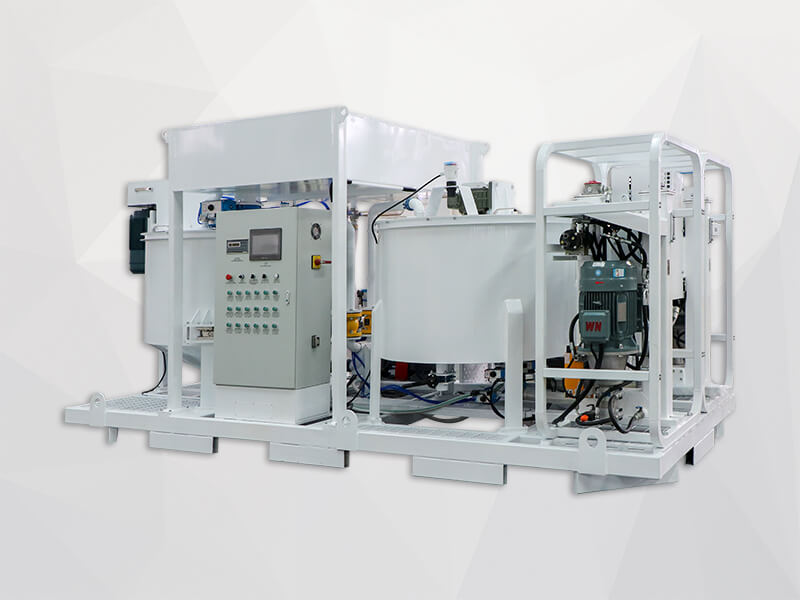

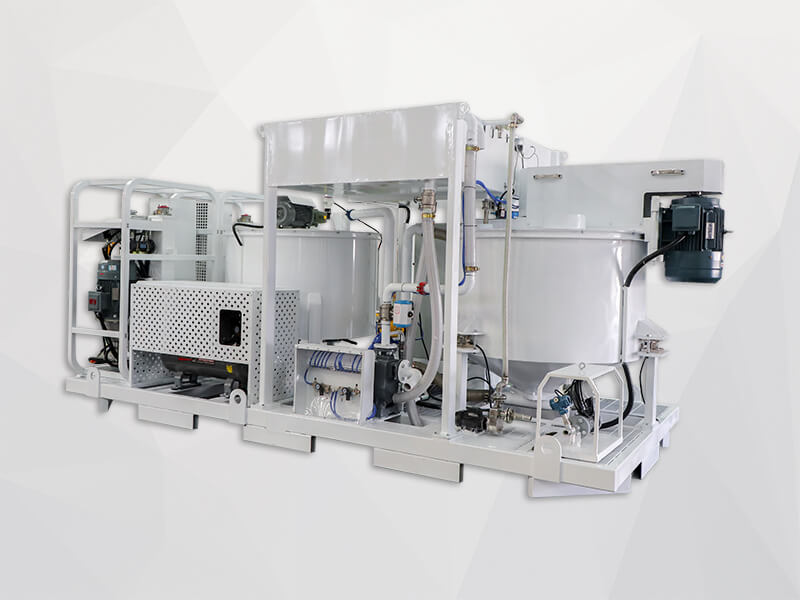

LGP1200/1200/2×75/100PL-E Automatic grout pump station is an all-in-one automated grouting system that integrates a high-speed vortex mixer, a circulation agitator pump, and a hydraulic plunger grouting pump on a single skid-mounted platform. Primarily engineered for producing cement-based slurry and bentonite grout, it serves a wide range of above-ground and underground construction projects — including highways, railways, hydropower dams, building foundations, and mining operations.



At the heart of the system lies a high-velocity eddy current mixer that blends water and dry cement (or bentonite powder) rapidly and uniformly, delivering a consistent slurry in seconds. The mixed grout is then continuously circulated through the agitator pump, preventing any settlement or separation before being fed directly into the grouting pump for injection. This closed-loop design guarantees uninterrupted mixing and pumping — no batch downtime, no manual intervention.



The entire unit is governed by a PLC-based control panel with a built-in material distributor and S-type load cell, allowing operators to freely program water-to-cement ratios, additive dosages, and material formulas. Simply input your mix design, and the station automatically meters every component — water, cement, and chemicals — with precision. This fully automated batching process dramatically cuts labor costs and boosts on-site productivity compared to traditional manual grouting setups.

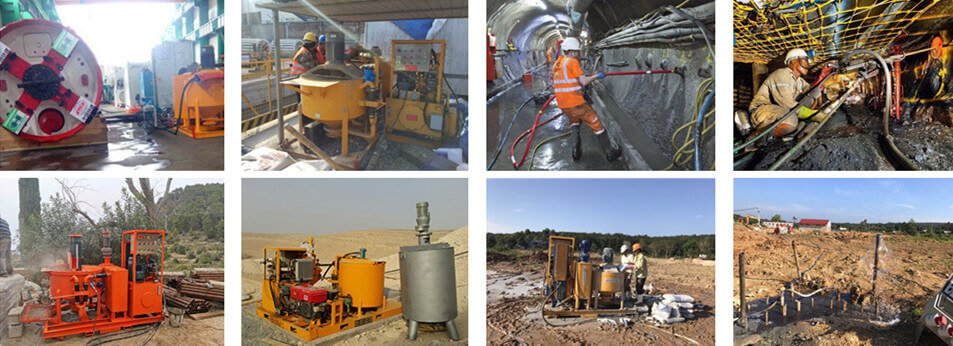

1. Civil Engineering: Dam grouting, tunnel & subway construction, curtain grouting, cable trench filling.
2. Geotechnical: Soil nailing walls, slope support, anchor & tieback grouting, micropiles.
3. Mining: Roadway reinforcement, backfill grouting, and waterproof grouting.
4. Building & Infrastructure: Foundation reinforcement, bridge repair, building underpinning.
5. Hydropower: Underwater foundation grouting, offshore platform stabilization.
6. TBM / Pipe Jacking: Acts as the grouting plant for tunnel boring machines and pipe jacking operations.

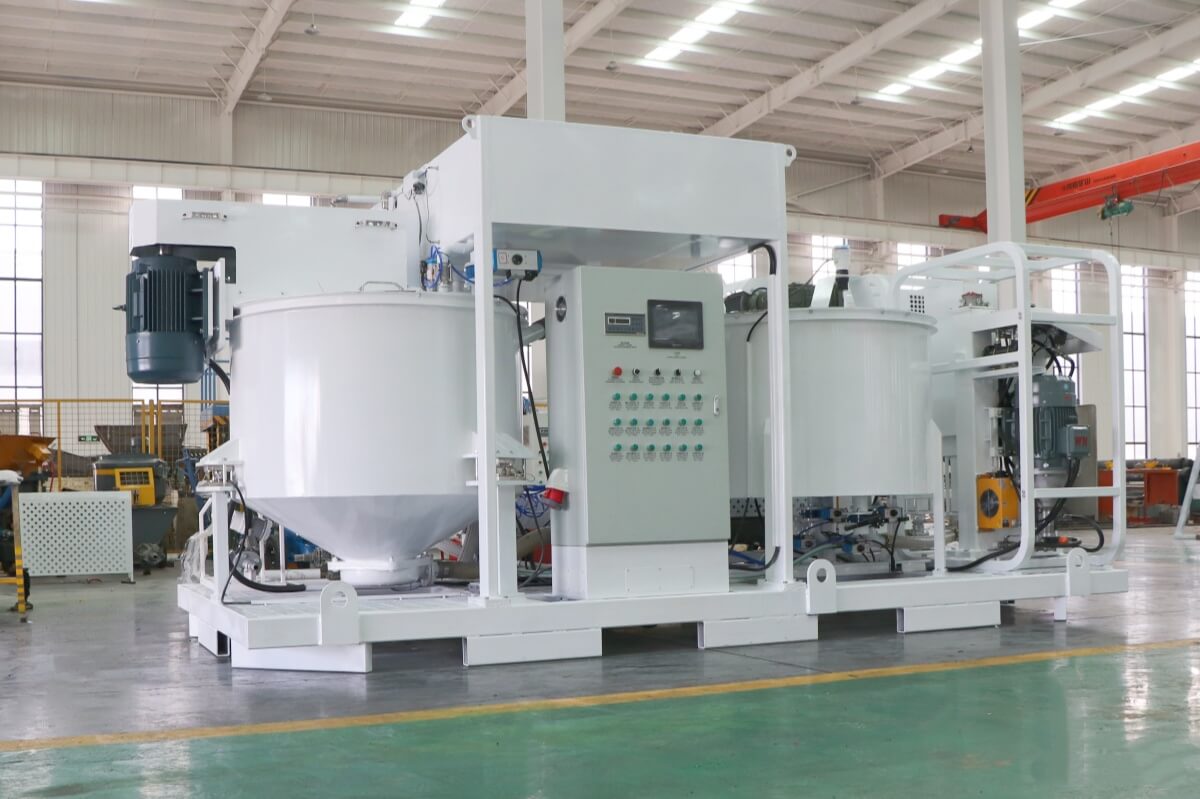

1. Command and control panel
Easy to operate and maintain
Two modes of operation: fully automatic mode and manual mode
The proportion of materials in the formula can be adjusted freely
Realize automatic configuration and replenishment of materials
Flameproof electric cabinet, protection grade IP56

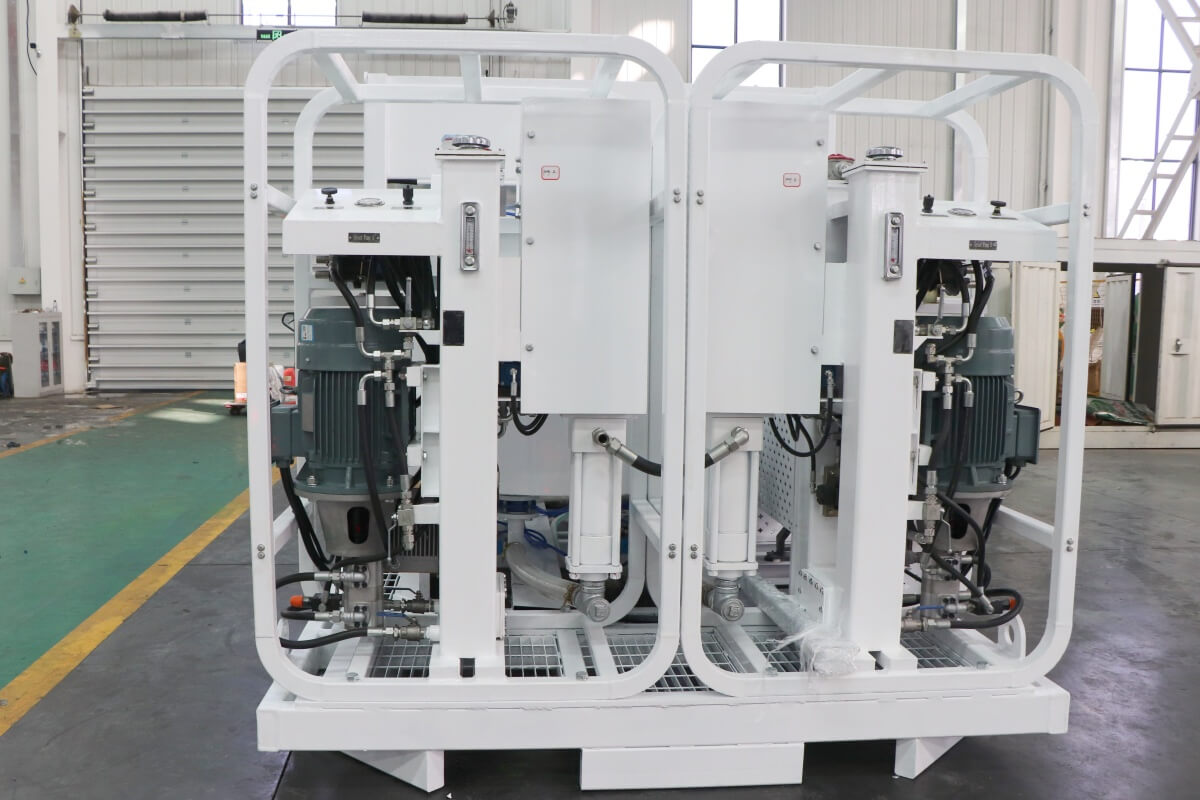

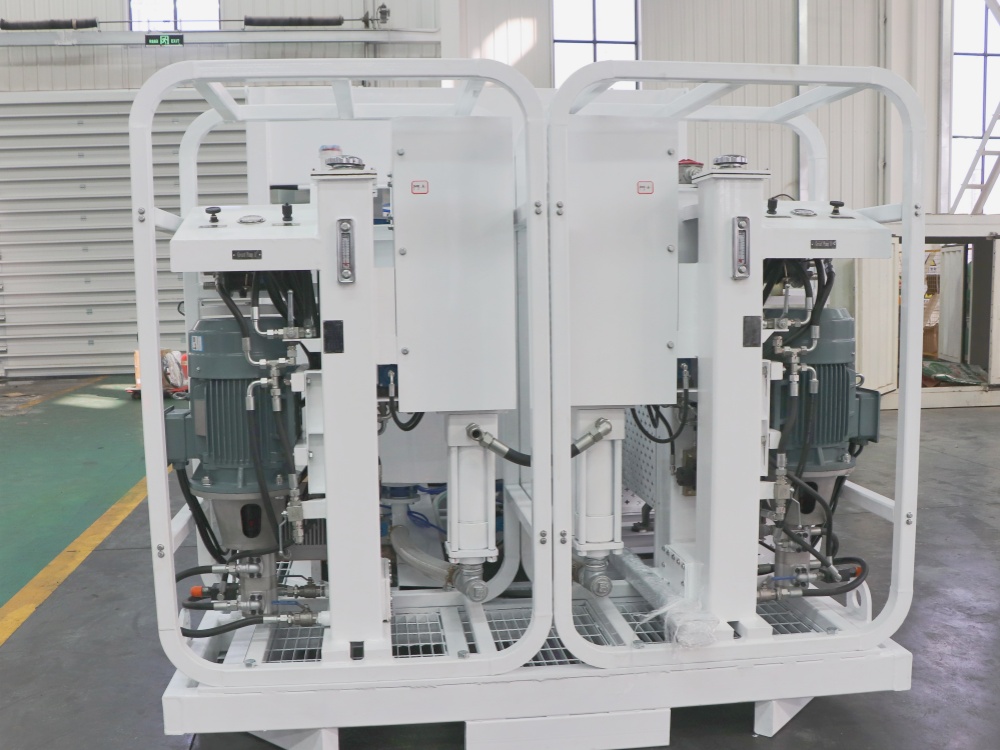

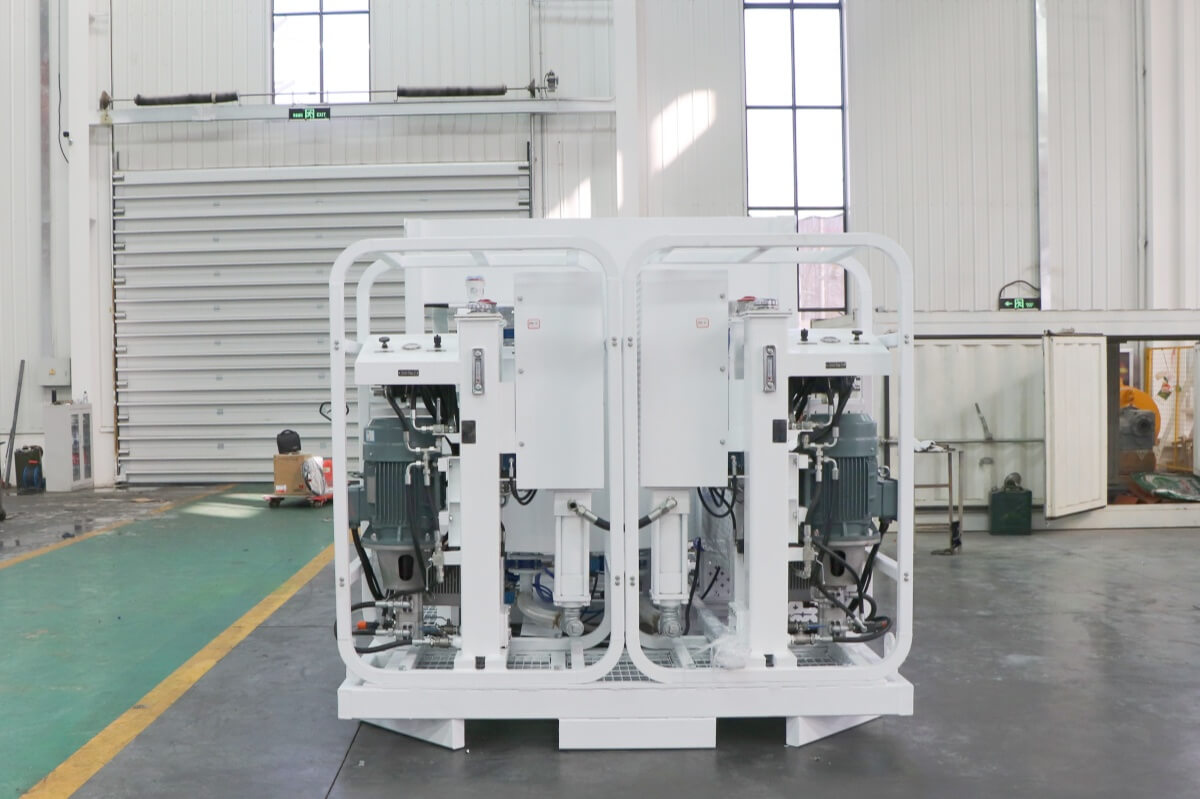

2. Grout Pump

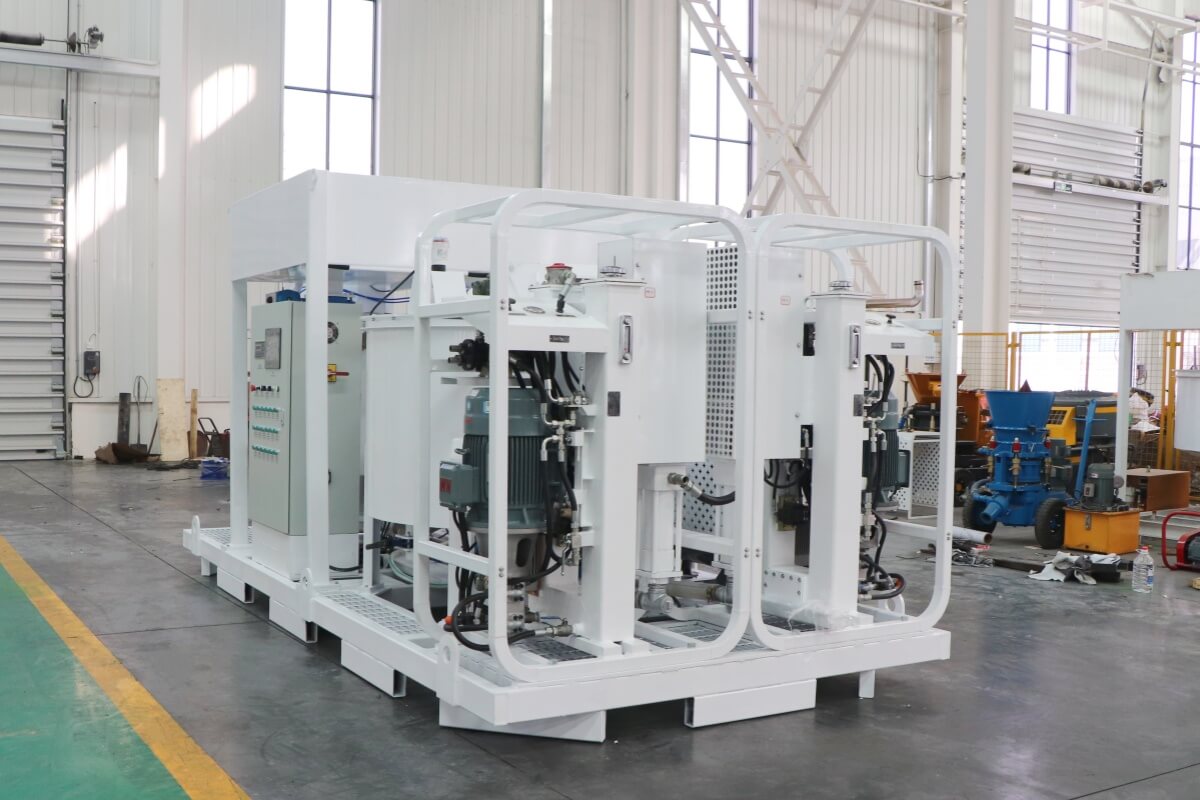

Compact structure
Single cylinder and double acting type, with continuous pumping and small pressure fluctuation, Uniform slurry
Fewer spare parts ensure low maintenance costs

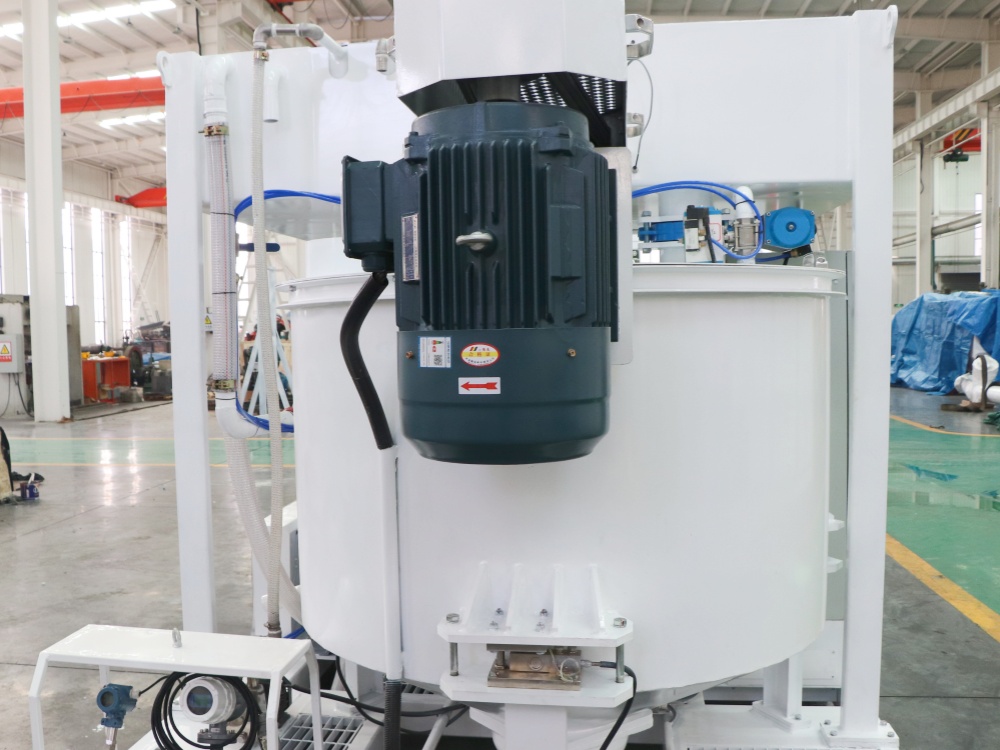

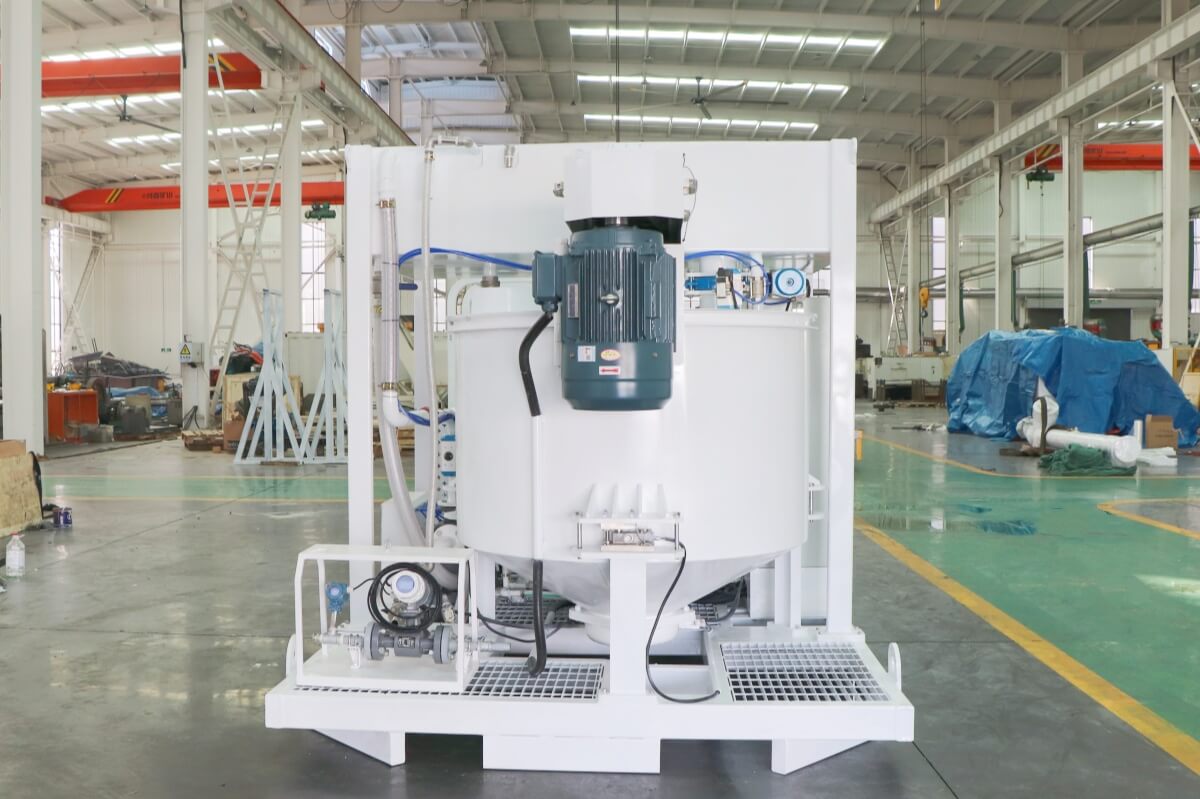

3. 1200L Mixer
3 sets of weighting units, enabling quantitative feeding of different materials
High-speed Colloidal Grout Mixer
Add an auxiliary impeller to achieve three-dimensional stirring, making material mixing more uniform and efficient

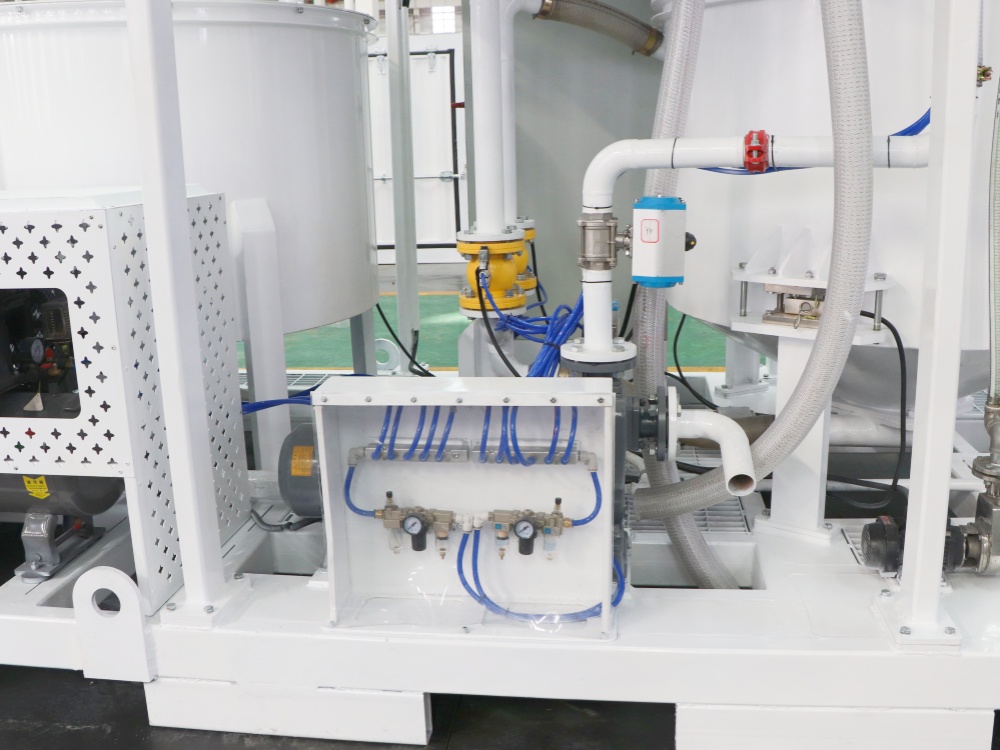

Main pipeline valves are all pneumatic valves

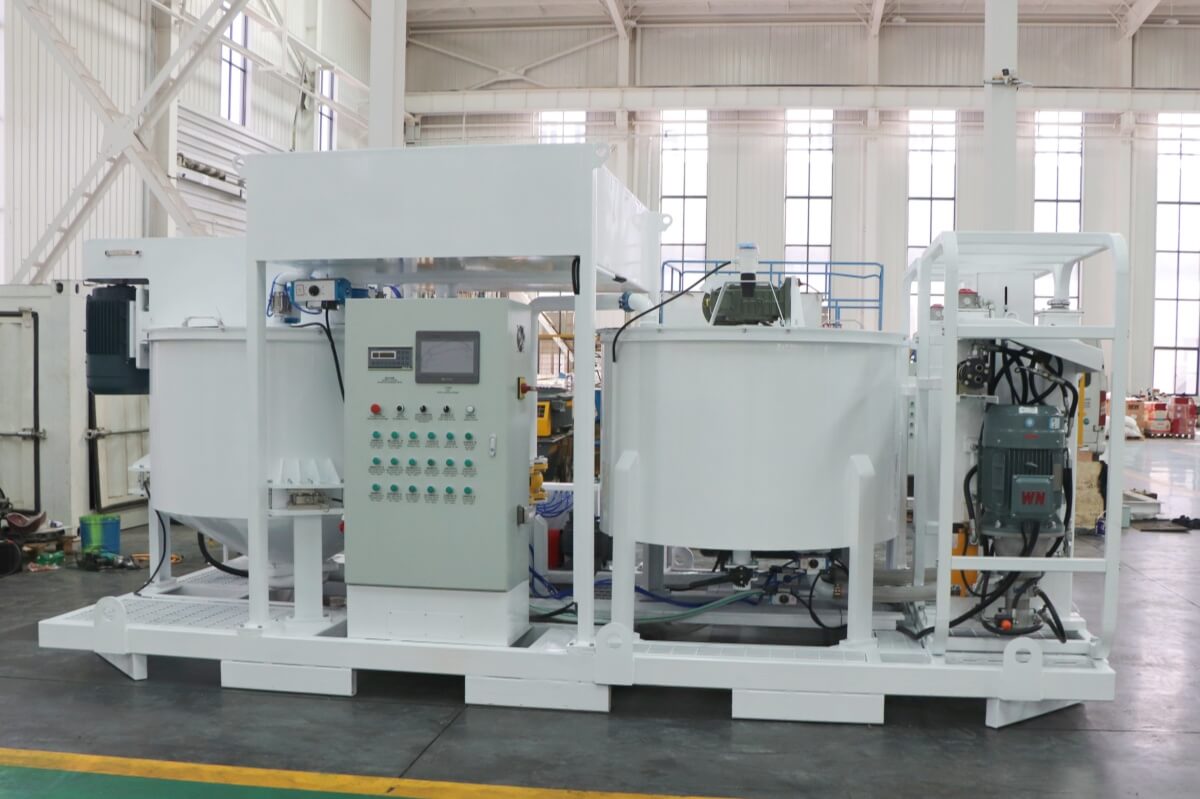

4. 1200L Agitator
Low-speed stirring to prevent the slurry from settling and solidifying
Agitator has an automatic cleaning function
Two slurry outlets can be selected as needed

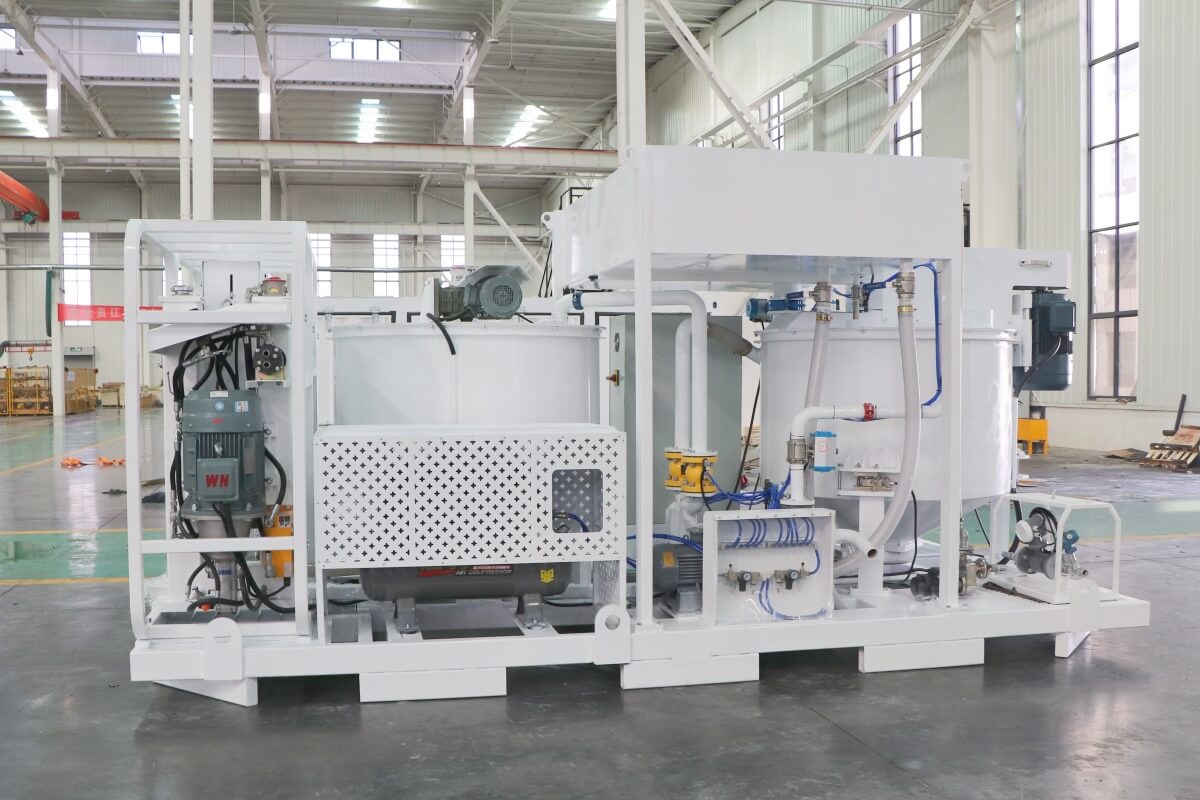

5. Water tank
High and low-level sensors for automatic water addition
Two-time water addition to achieve a more accurate water dosage
Bulit-in external additive tank for mixing 3 materials

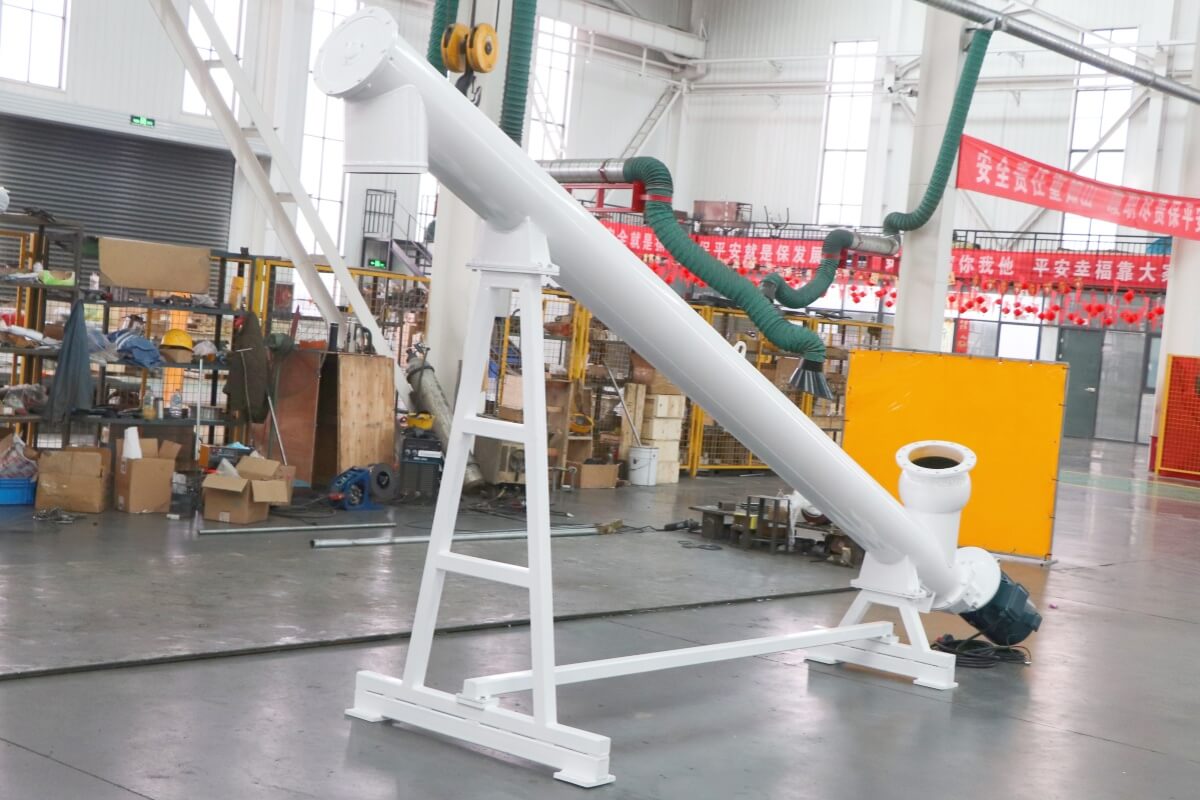

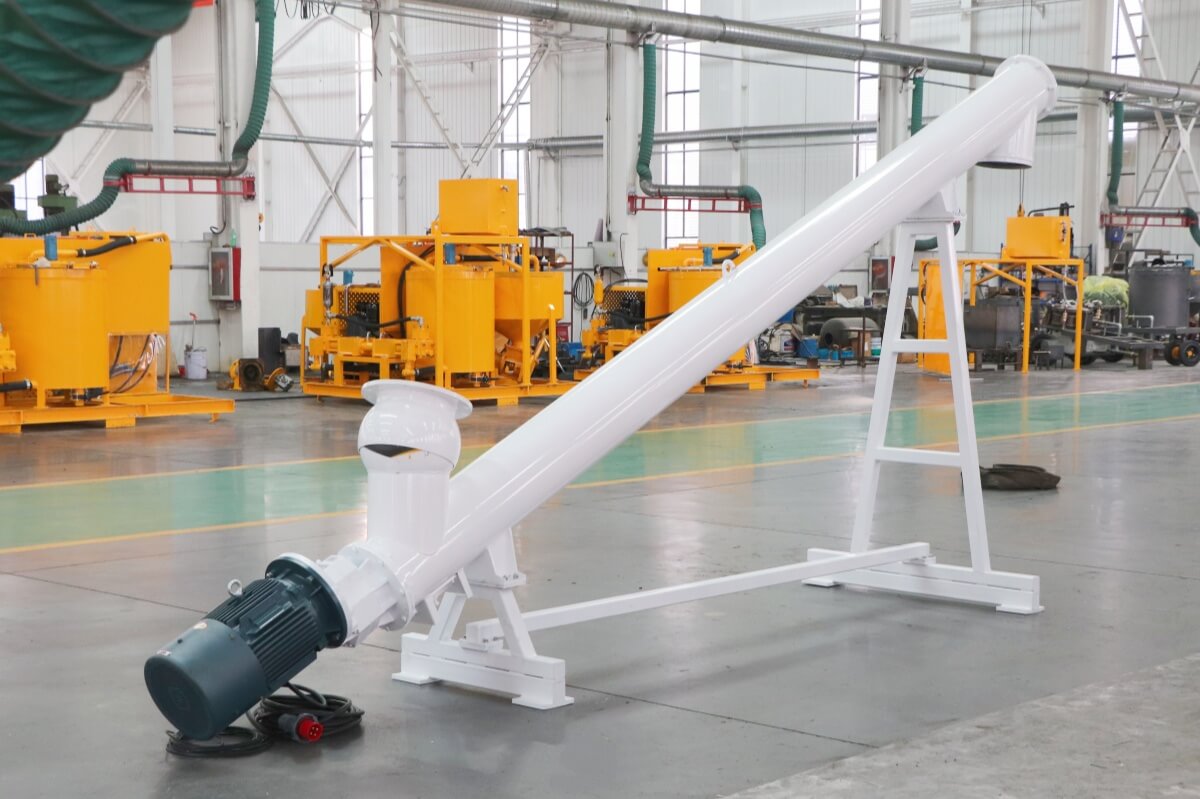

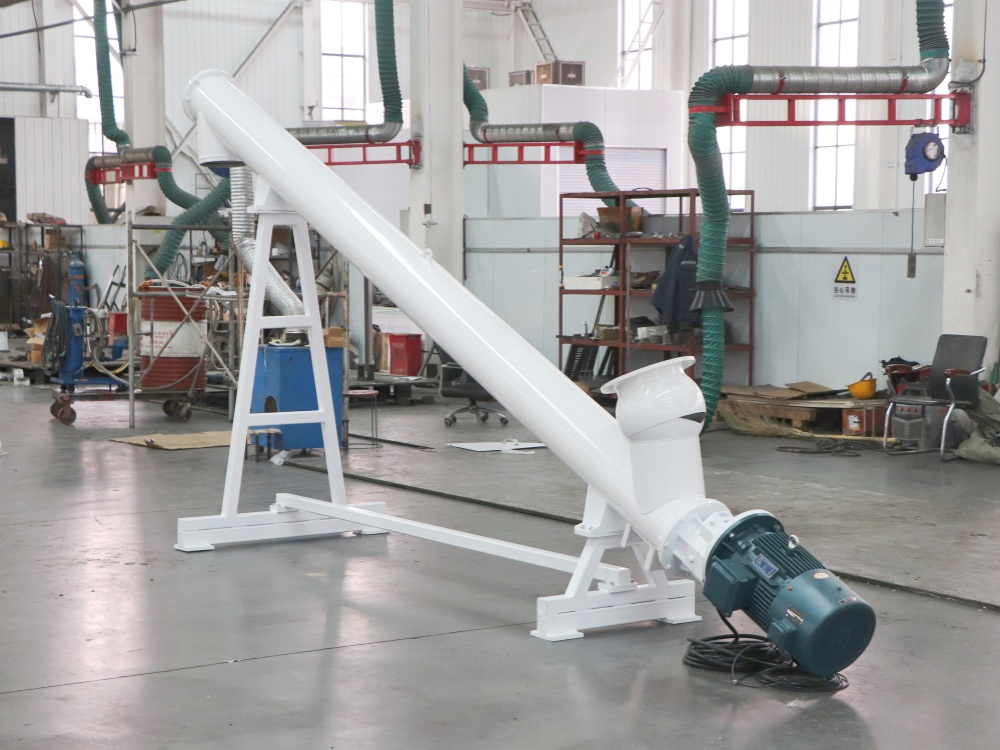

6. Automatic grout pump station with screw feeder
