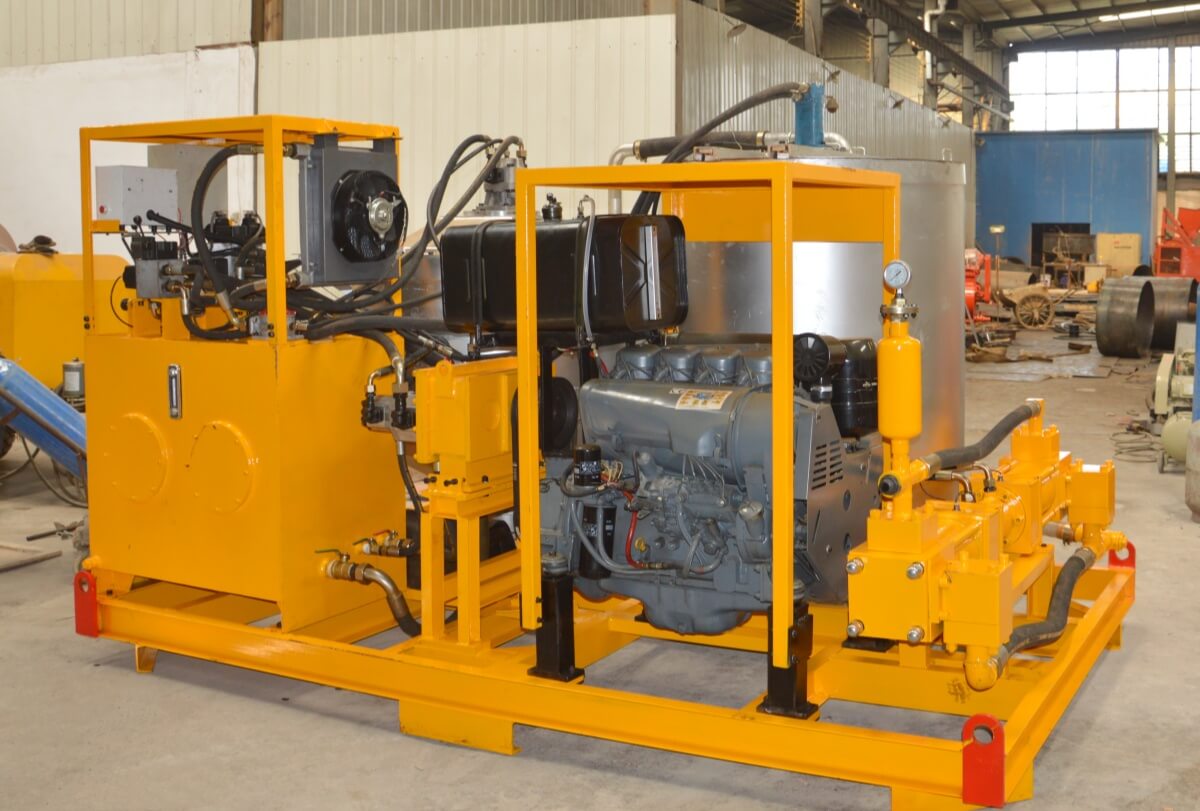

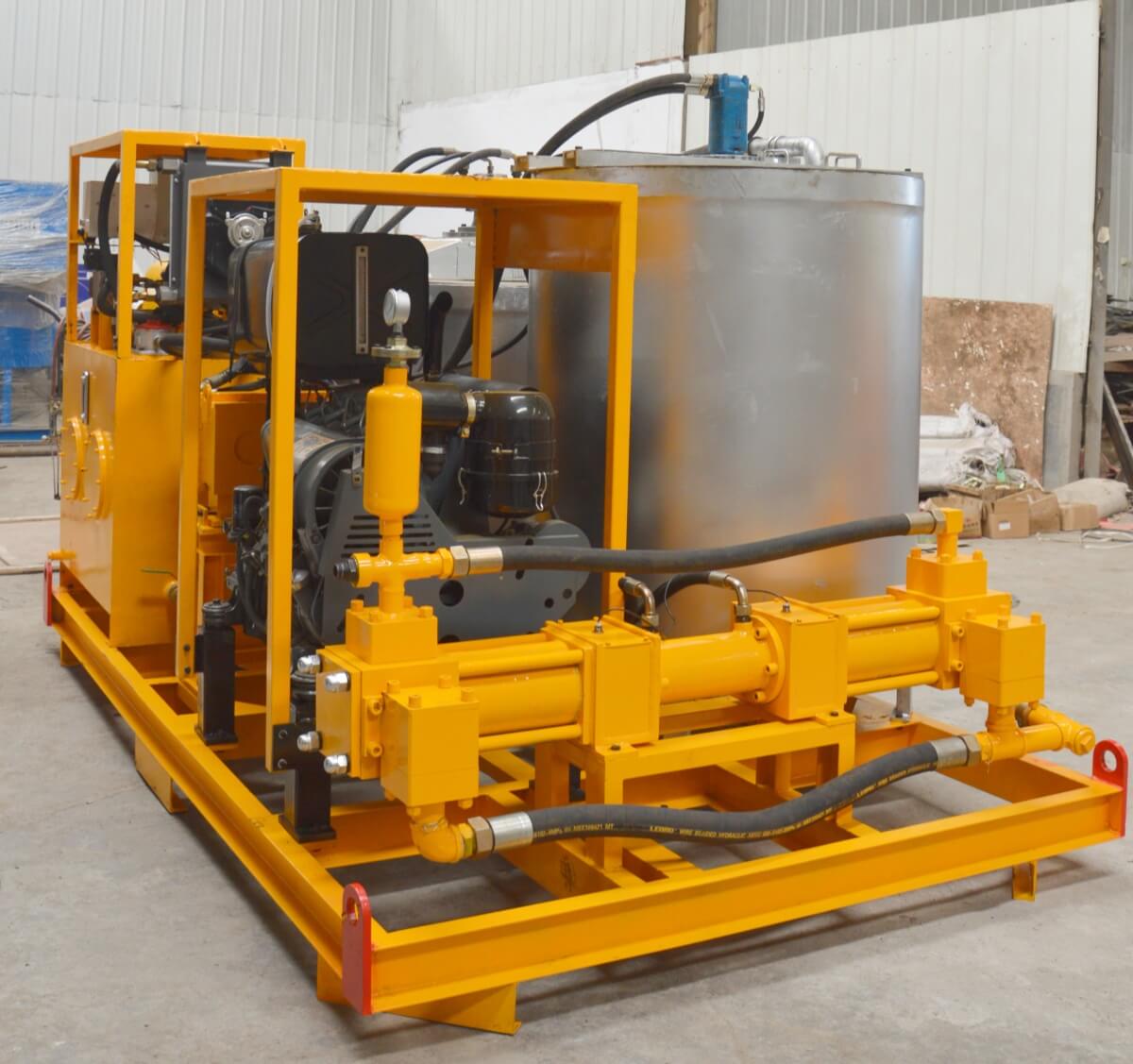

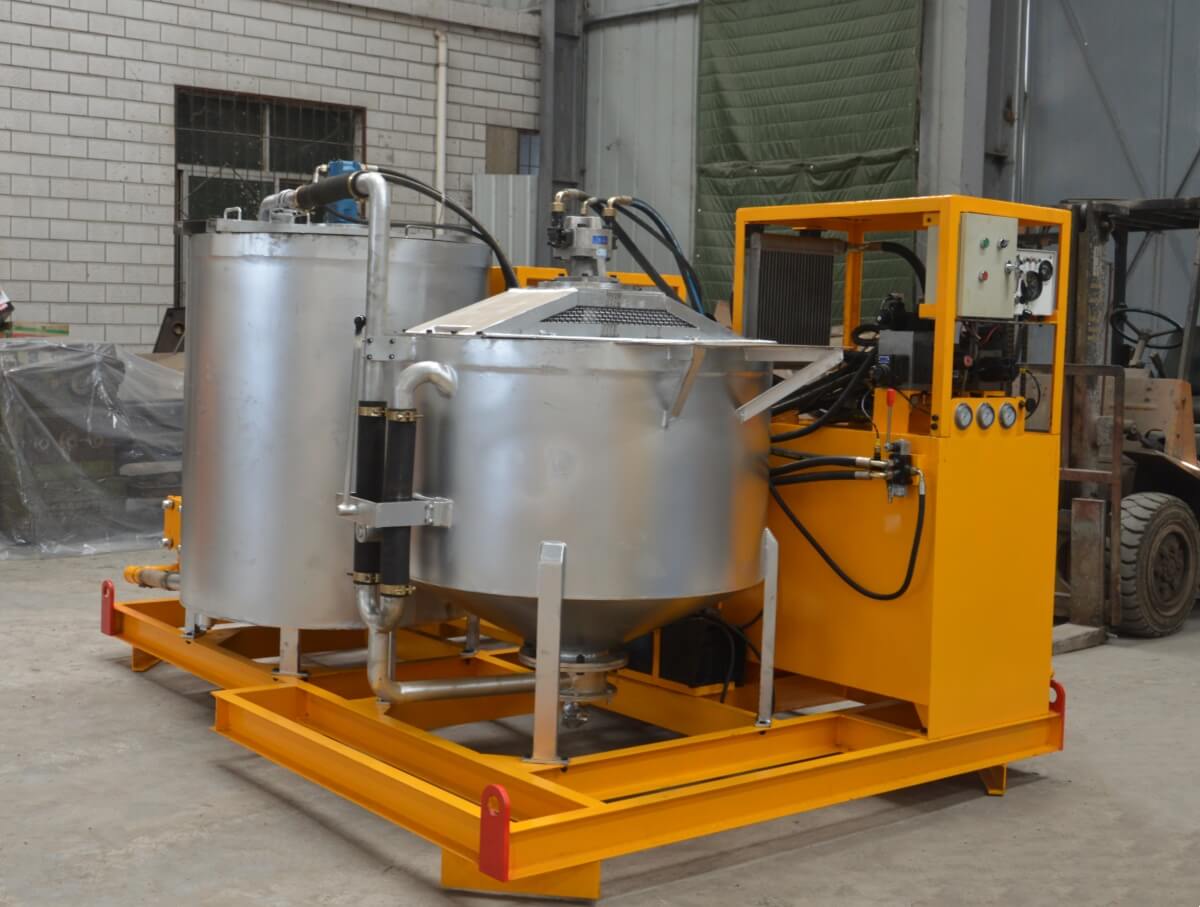

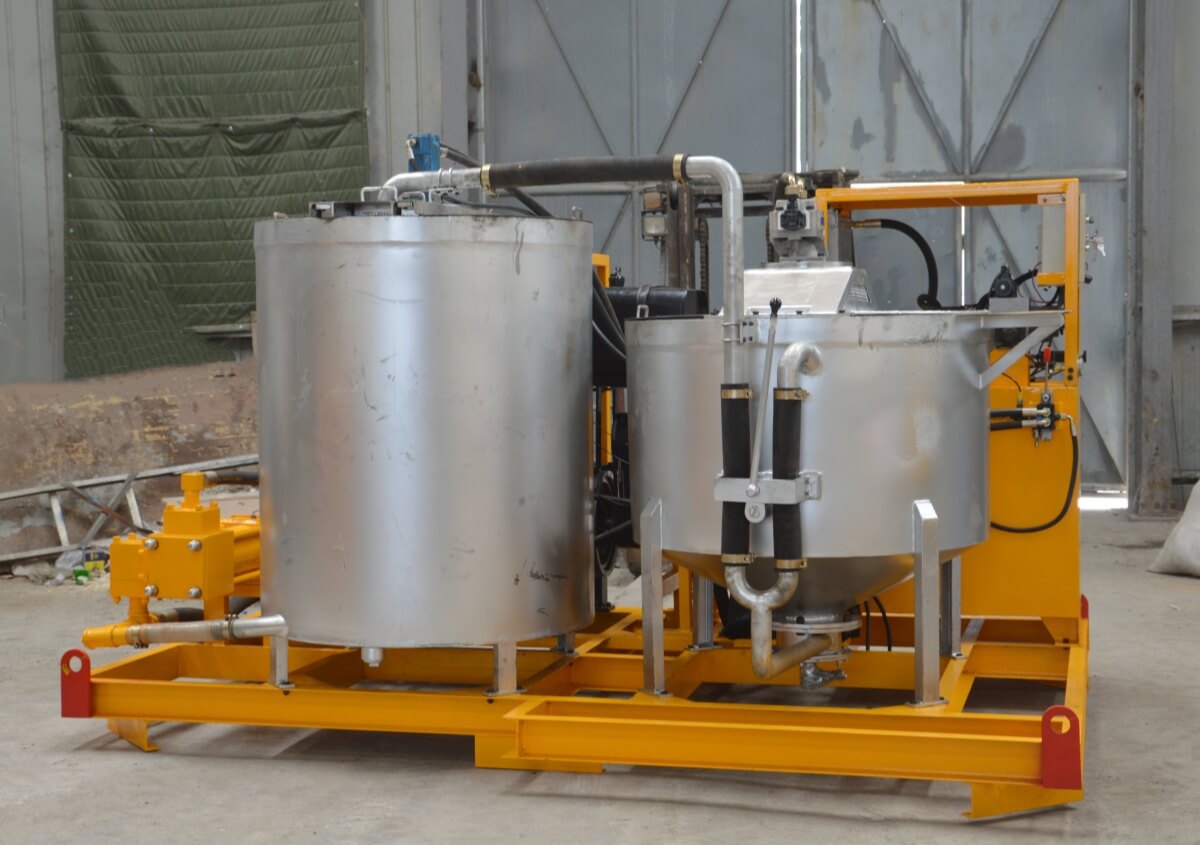

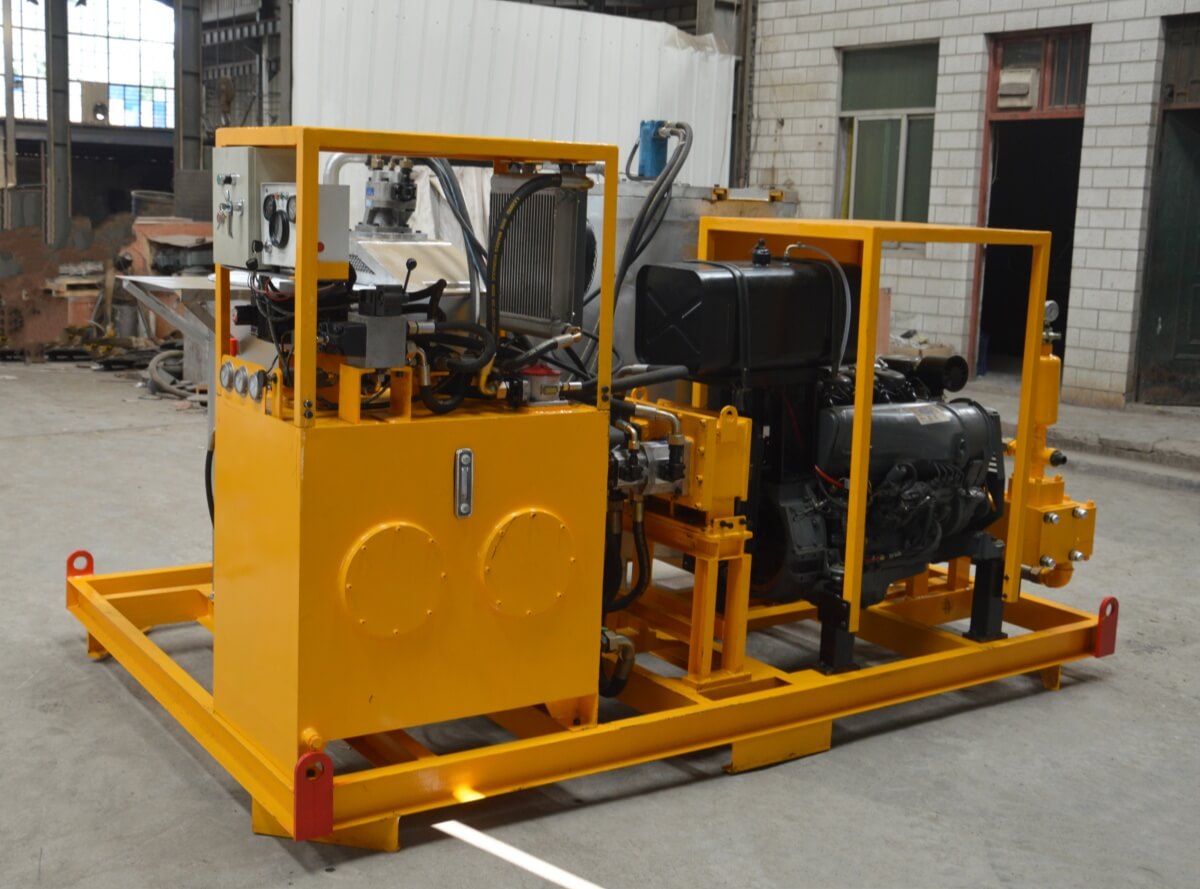

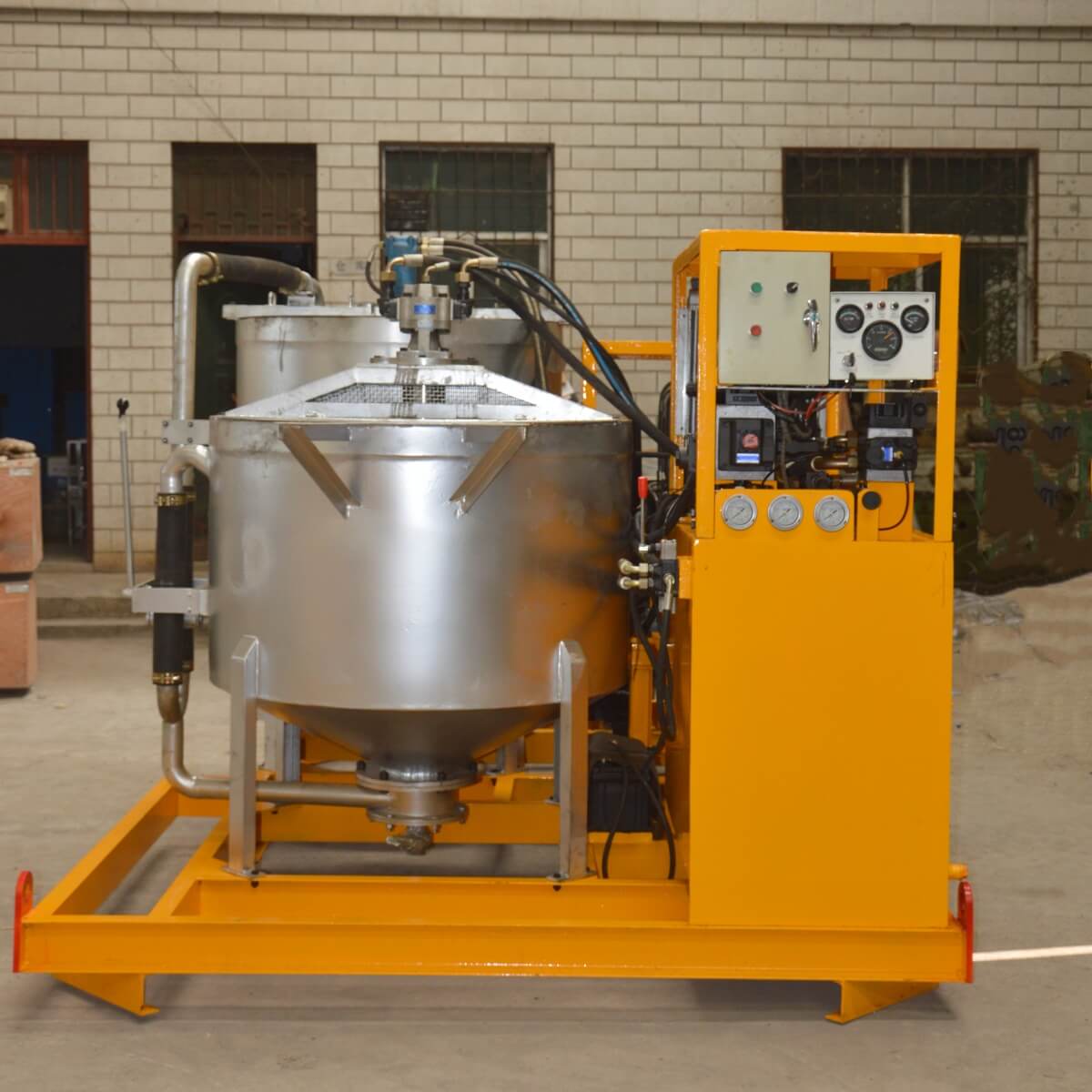

LGP800/1200/200PI-D compact grout plant unit is a combination of mixer, agitator and grout pump in one plant unit. The grout unit is mainly used in hydropower, construction, mining, highway, railway and other ground and underground construction.




High-speed vortex grout mixer ensures mix quickly and evenly. Water, cement or bentonite is quickly mixed into a homogeneous slurry. Then the mixed slurry is delivered to the grout agitator. Grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations. The grouting unit is full hydraulic drive with a diesel engine. Grouting pressure and displacement can be step-less adjustable. Compact size of the grout plant is easy to operate and takes up a small space.

1. Grout plant unit is used for civil engineering - dam, tunnel, subway, mine, soil nailing wall, curtain, anchor, cable trench and anchor grouting.
2. Grout unit is used for building structure - building and bridge repair, foundation reinforcement, slope support, soil compaction, rock grouting.
3. Grout plant is used for engineering - underwater foundation, offshore platform, coast foundation grouting reinforcement.
4. Grout plant is used for mining projects - roadway reinforcement, backfill, waterproof grouting.
5. Grout plant unit is also acted as a grouting plant in the Pipe Jacking Machine.

1. Grout mixer and agitator use stainless steel material, tank body manufactured by the thicker plate for more reliable work and longer use life.
2. The whole stamping structure for the tank bottom.
3. Special weld handling.
4. Standard seal parts to ensure the excellent seal quality.
5. Grout unit simple structure, light weight, easy maintenance.
6. Grout pump of the grout unit output is 0-200L/min. Pump pressure is 0-5Mpa. All step-less adjustable.
7. The latest improvement design of valve chamber.
8. The grout plant unit is quickly convenient cleaning.
9. Less spare parts ensure low maintenance costs.
10. High speed vortex mixer ensures mix quickly and evenly.
11. Mixer and agitator of the grout plant switch by using squeeze handle, it is safe, reliable and easy to operate.
12. 55KW air cooling diesel engine as the power, it is suitable for field construction.
13. Grouting pump outlet is equipped with buffer. This can further reduce the grouting pressure fluctuations.
14. Delivery with special tools. This can ensure change the pistons rapidly, reduce the time of replacing.
15. Double-cylinder and single-acting grouting pump: grouting continuous and pulse small.
