LGP1200/3000/300H-E Grout plant unit
LGP1200/3000/300H-E Grout plant unit is a simple grout plant, also called mixing and grouting plant, it is used for grouting and backfilling in ground and underground construction or TBM project.
It consists of colloidal grout mixer, agitator tank, continuously variable hose pump in one frame.
LGP1200/3000/300H-E
1200L
3000L
300L/min
220V(380V, 415V Multiple choices)
4150×2100×2750mm
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description
LGP1200/3000/300H-E Grout plant unit is a simple grout plant, also called mixing and grouting plant, it is used for grouting and backfilling in ground and underground construction or TBM project.
It consists of colloidal grout mixer, agitator tank, continuously variable hose pump in one frame. This grout unit is equipped the automatically batching weight system and PLC control system to automate operations. We are grout plant unit supplier and manufacturer for many years, if you want to get more details about our grout plant or grout plant unit price, grout plant quote, you can tell us freely. Our email address: sales1@leadcrete.com
It consists of colloidal grout mixer, agitator tank, continuously variable hose pump in one frame. This grout unit is equipped the automatically batching weight system and PLC control system to automate operations. We are grout plant unit supplier and manufacturer for many years, if you want to get more details about our grout plant or grout plant unit price, grout plant quote, you can tell us freely. Our email address: sales1@leadcrete.com
Application
LGP1200/3000/300H-E Grout plant unit is mainly used to mix cement, bentonite slurry for ground and underground project, such as highways, railways, water and electricity, construction, mining etc.
Features
1. This grout plant unit is compact size and it is easy to operate. It also takes up a small space.
2. PLC control system, operation mode can be operated automatically and manually.
3. Automatically batching and automatically mixing system.
4. Mixer, agitator, hose pump in one frame base, compact size.
5. High turbulence mixing.
6. Grout unit is with heavy duty industrial hose pump.
2. PLC control system, operation mode can be operated automatically and manually.
3. Automatically batching and automatically mixing system.
4. Mixer, agitator, hose pump in one frame base, compact size.
5. High turbulence mixing.
6. Grout unit is with heavy duty industrial hose pump.
Product Details
-
Grout plant unit for sale -
Grout plant unit -
Grout unit manufacturer -
Grout unit -
Grout plant unit details -
Grout unit details
Technical Parameters
Technical Data
| Name | Data | |
| Type | LGP1200/3000/300H-E Grout plant unit | |
| Weighting | Sensor | S-type tension pressure sensor |
| Load | 800Kg | |
| Output Signal | Current signal | |
| Vibration Motor | 24V, 4KN, 0.37Kw | |
| Mixer | Volume | 1200L |
| Slurry Pump Power | 11Kw | |
| Output | 80m3/h | |
| Agitator | Volume | 3000L |
| Geared Motor Power | 3Kw | |
| Speed | 45rpm | |
| Hose pump | Output | 300L/min |
| Pressure | 1.6MPa | |
| Power | 18.5Kw | |
| Air compressor | 2.2Kw | |
| Power supply | 220V(380V, 415V Multiple choices) | |
| Dimension | 4150×2100×2750mm | |
| Weight | 4000Kg | |
| We could also customize grout plant unit according to your demands. | ||
Inquiry
Please feel free to submit your inquiry information to us. We will contact with you as soon as possible.
Related products
-
Colloidal grout mixer pump unit is a combination of grout mixer, grout agitator and double cylinders piston pump with single acting in one base frame. It makes a very versatile and efficient piece of the grout equipment. Each colloidal grout mixer pump unit incorporates mixers and pumps of matched volume capacity which together with an agitated storage tank enable virtually continuous operation once work has commenced. Grouting pressure and displacement is adjustable.LGP400/700/80/100DPI-D Colloidal grout mixer pump unit -

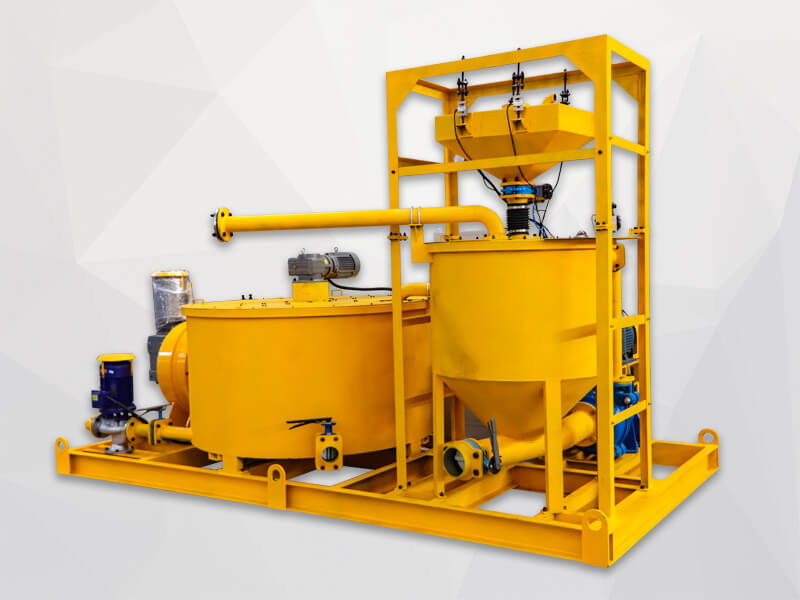

Cement grout mixing plant is a combination of 500L mixer, 2000L agitator, 165L/min hose pump and weighing modules and PLC control system in one plant, it is used for for mixing and pumping water, cement, bentonite, silicates and other additives. LGP500/2000/165H-E is specially customized for our Mongolian customersLGP500/2000/165H-E Cement grout plant -
