LGH70&LGH90 Bentonite grout pump supplier in uae
Bentonite high pressure grout pump in uae are a universal high-pressure grouting pump and is used for grouting in soil, earth foundation stabilization, waterproofing, tunnel lining, underwater foundations, bridge decks, deep well casing, slope line grouting, etc.
LGH70
0-70 L/Min
10MPa(1450PSI)
110mm
31
38mm
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description
Our LGH70&LGH90 high pressure bentonite grout piston pump in uae are a universal high-pressure grouting pump and is used for underground foundation, grouting in soil, earth foundation stabilization, waterproofing, tunnel lining, underwater foundations, bridge decks, deep well casing, slope line grouting, etc.
Application
Our LGH70&LGH90 bentonite grout pumps for sale are a universal high-pressure grouting pump and is used for grouting in soil, earth foundation stabilization, waterproofing, tunnel lining, underwater foundations, bridge decks, deep well casing, slope line grouting, etc.
Features
1)Single piston with double-acting.
2)Hydraulic drive.
3)Compact structure.
4)Ball valve.
2)Hydraulic drive.
3)Compact structure.
4)Ball valve.
Product Details
-
Grouting pump details -

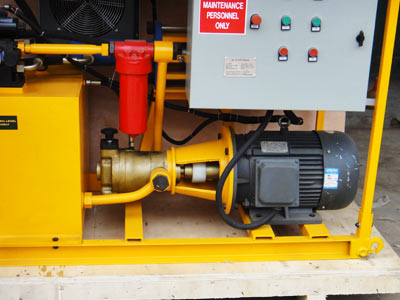

High Pressure Grouting Pump Details -
High Pressure Grouting Pump -
Bentonite grout pump details -
Bentonite grout pump supplier -
bentonite grout pump spare part
Technical Parameters
Technical Data
| Specification : | ||
| Item | LGH70 grout piston pump | LGH90 high pressure grout pump |
| Rated Output | 0-70 L/Min | 0-100 L/Min |
| Rated Pressure | 10MPa(1450PSI) | 10MPa(1450PSI) |
| Cylinder Dia. | 110mm | 110mm |
| Stroke/Minute | 31 | 45 |
| Inlet Dia. | 38mm | 38mm |
| Outlet Dia. | 32mm | 32mm |
| Power Unit | 7.5kW | 11kW |
| Transmission | Hydraulic drive | Hydraulic drive |
| Chassis | Skid | Skid |
| Weight | 450Kg | 580Kg |
| Overall Dimension | 1505x770x1110mm | 1505x770x1110mm |
| Note: Single or Double Passageway are optional; Chassis: Skid or Tyre | ||
