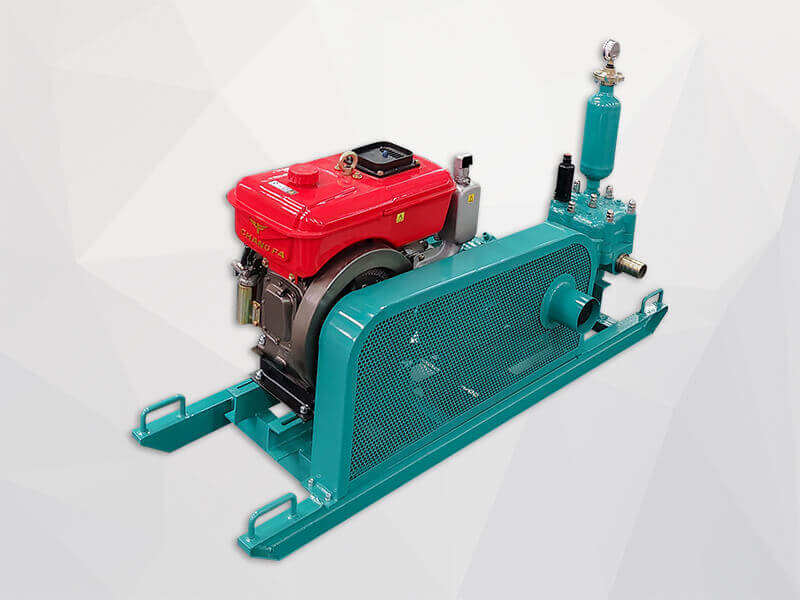

LDM130/20 diesel grout pump for cement grouting
LDM130/20 diesel grout pump for cement grouting is used for grouting in soil nails, earth anchors, cable and rock bolts, void fillings, dam foundations, foundation stabilization, tunnel lining, slope line grouting. The grouting pump is ideal for grouting-process in underground and civil applications.
130L/min
2MPa(20bar/290psi)
75mm
85mm
180/min
51mm
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description
LDM130/20 diesel grout pump for cement grouting is a single piston double-acting grouting pump with gear reducer driven by a diesel engine, which is a universal medium-pressure grouting pump.
Grout pump with diesel engine is used for grouting in soil nails, earth anchors, cable and rock bolts, void fillings, dam foundations, foundation stabilization, tunnel lining, slope line grouting. The grouting pump is ideal for grouting-process in underground and civil applications.
Grout pump with diesel engine is used for grouting in soil nails, earth anchors, cable and rock bolts, void fillings, dam foundations, foundation stabilization, tunnel lining, slope line grouting. The grouting pump is ideal for grouting-process in underground and civil applications.
Application

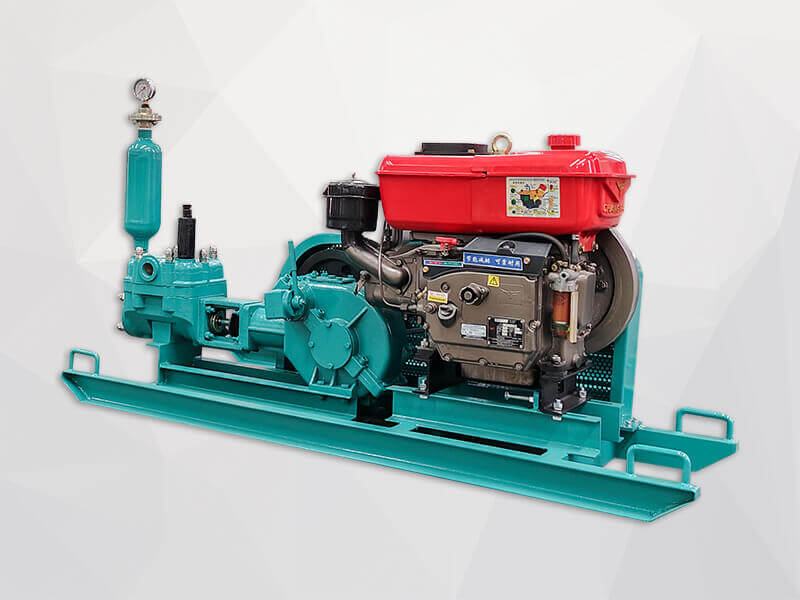

LDM130/20 diesel-driven grout pump for cement grouting is ideal for grouting process in underground and civil applications. It is applied for the processing of medium-pressure grouting. This cement grouting pump is suitable for the grouting with single cement slurry or other similar slurries.
Medium-pressure grouting the cement slurry or similar slurry to do the sealing, strengthening and stabilizing of rock and soil in Tunneling, Mining, Hydro-power Project, Slope Stabilizing and underground projects, etc
Features
1) Single piston double-acting.
2) Gear&Vee belt transmission makes this pump high mechanical efficiency and working reliability.
3) Integrated valve house and ball valve, together with compact structure.
4) Body of diesel engine grout pump is made of aluminum casting, low weight is an advantage for transport.
2) Gear&Vee belt transmission makes this pump high mechanical efficiency and working reliability.
3) Integrated valve house and ball valve, together with compact structure.
4) Body of diesel engine grout pump is made of aluminum casting, low weight is an advantage for transport.
Product Details
-

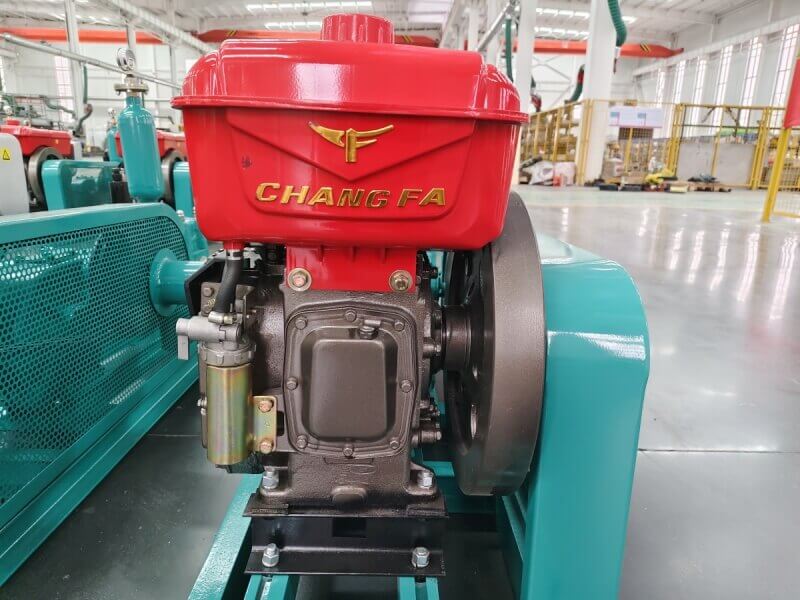

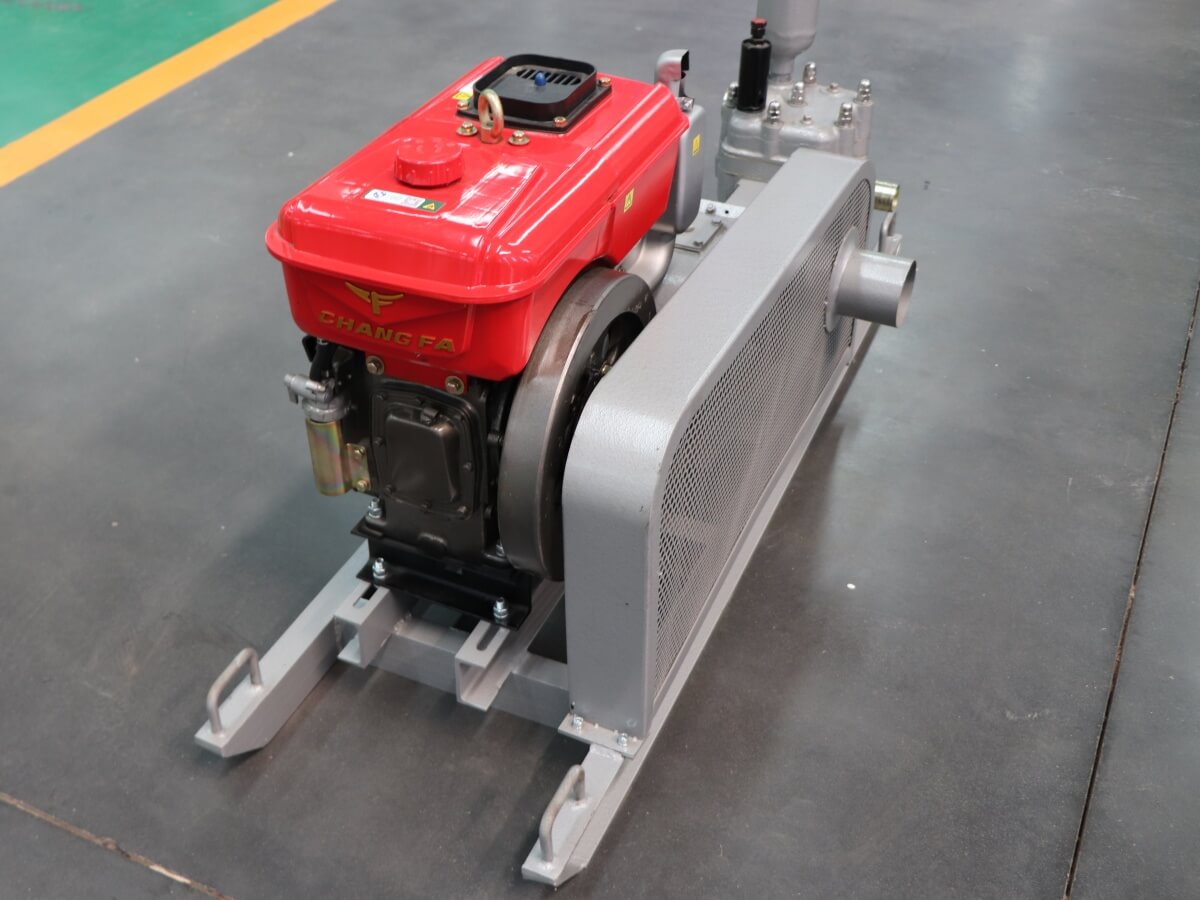

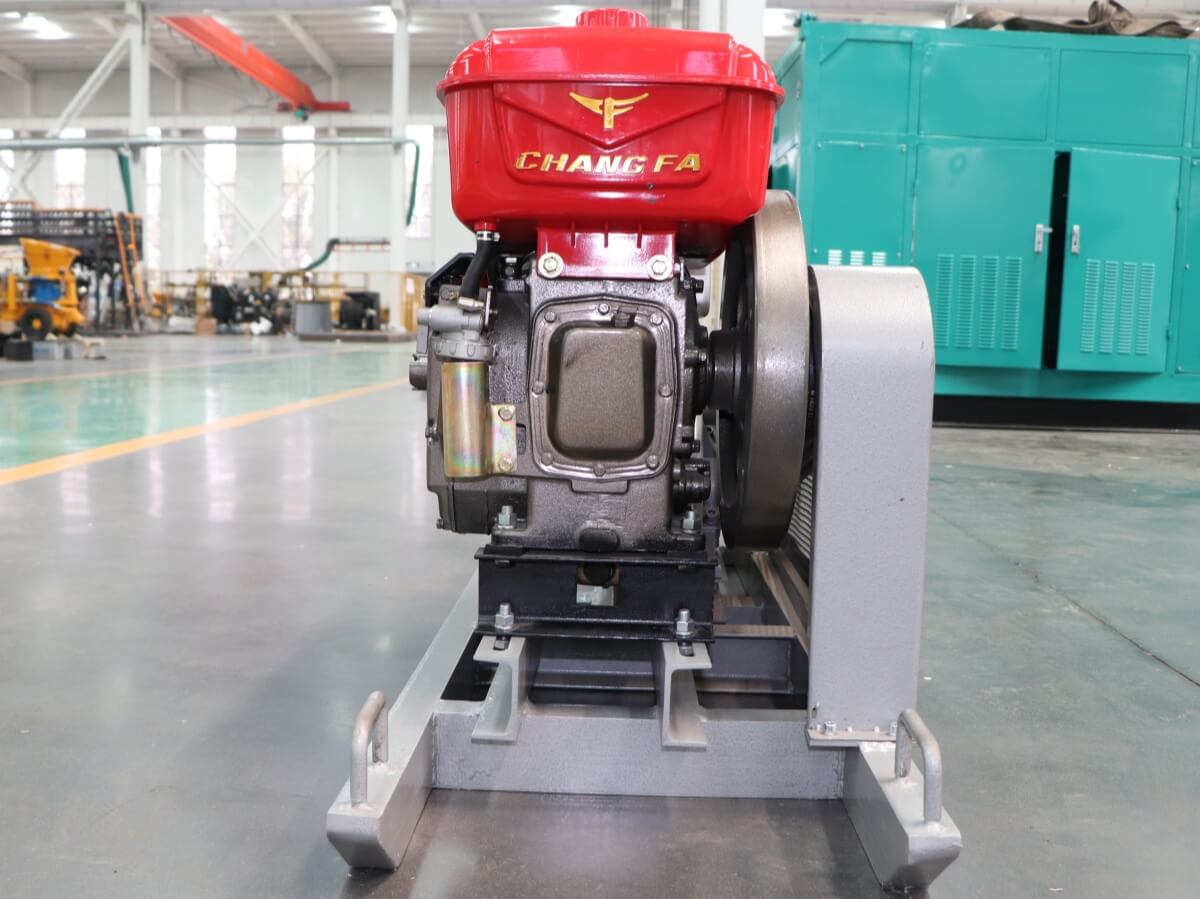

Chang Fa diesel engine -

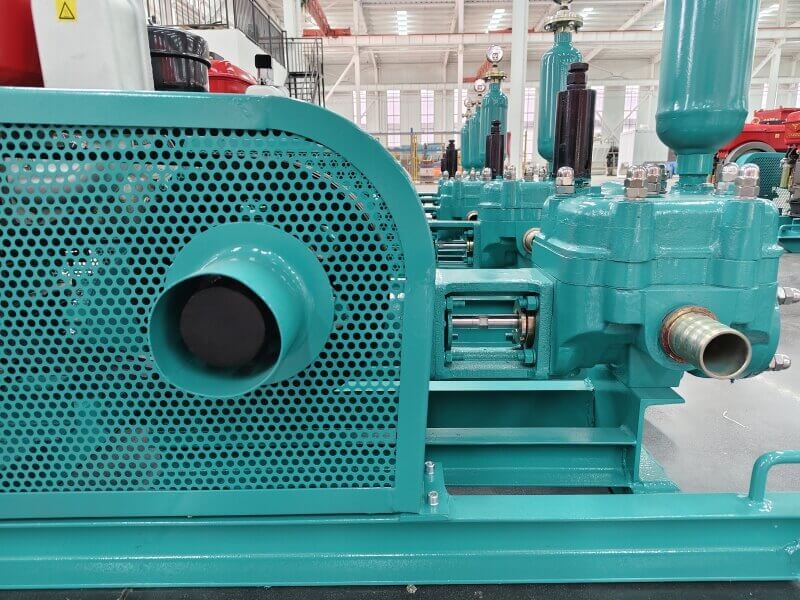

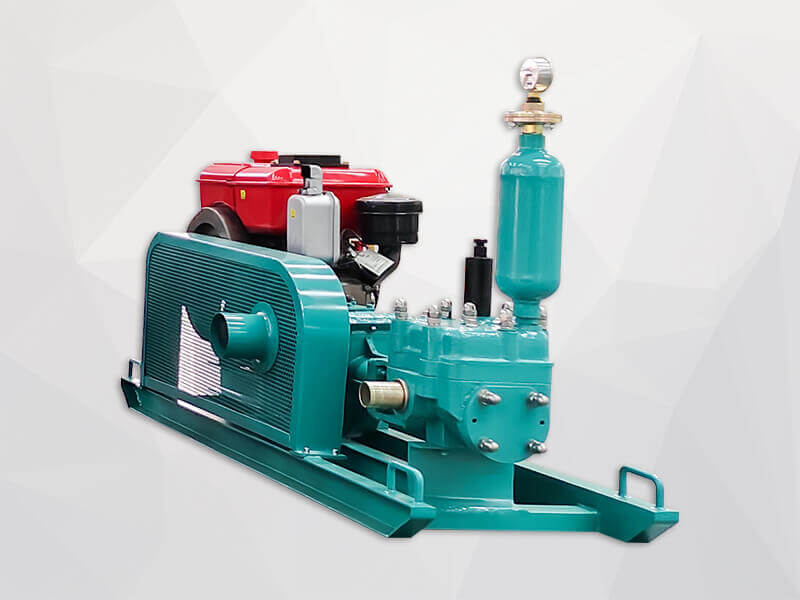

Diesel grout pump details -

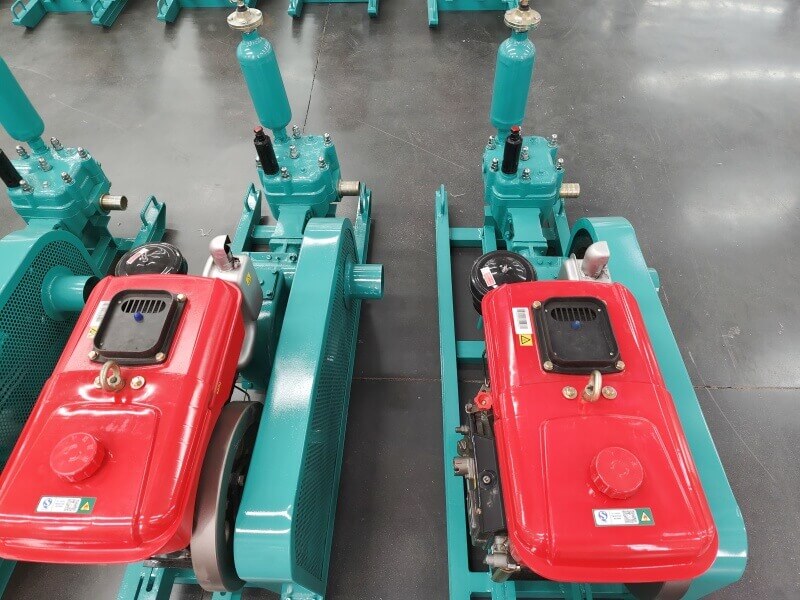

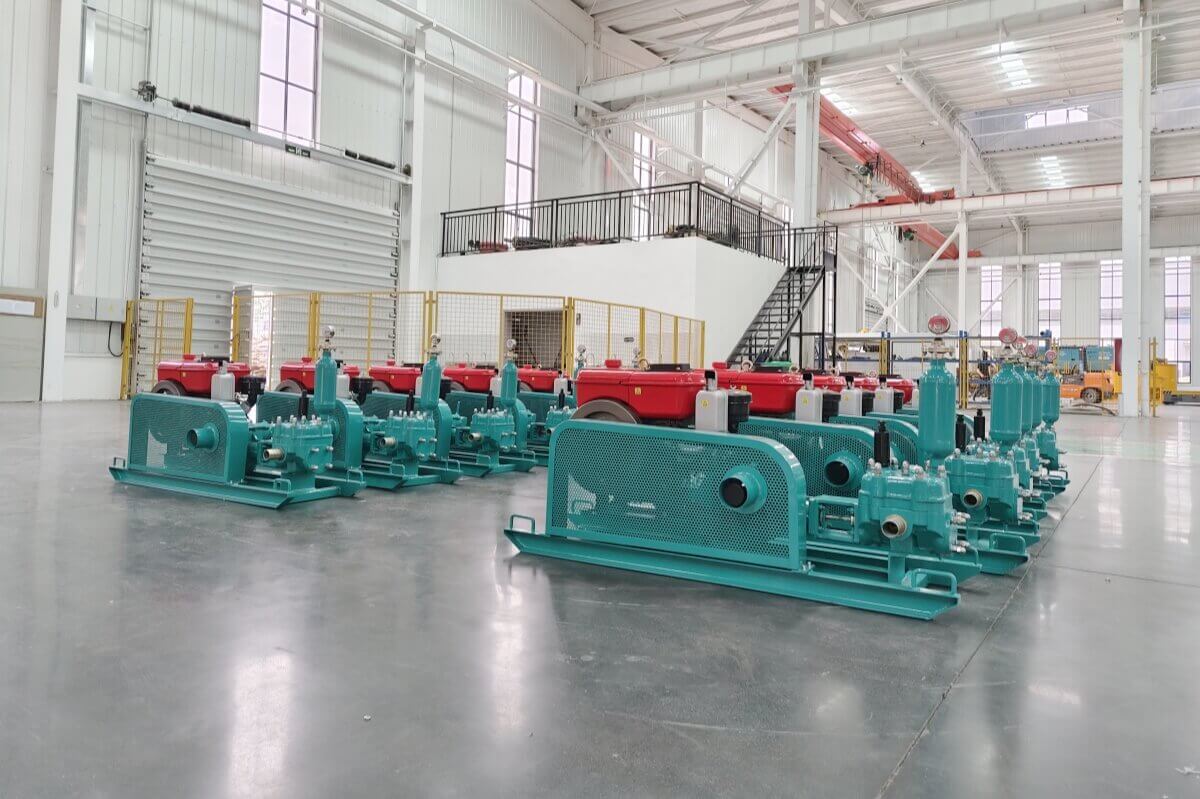

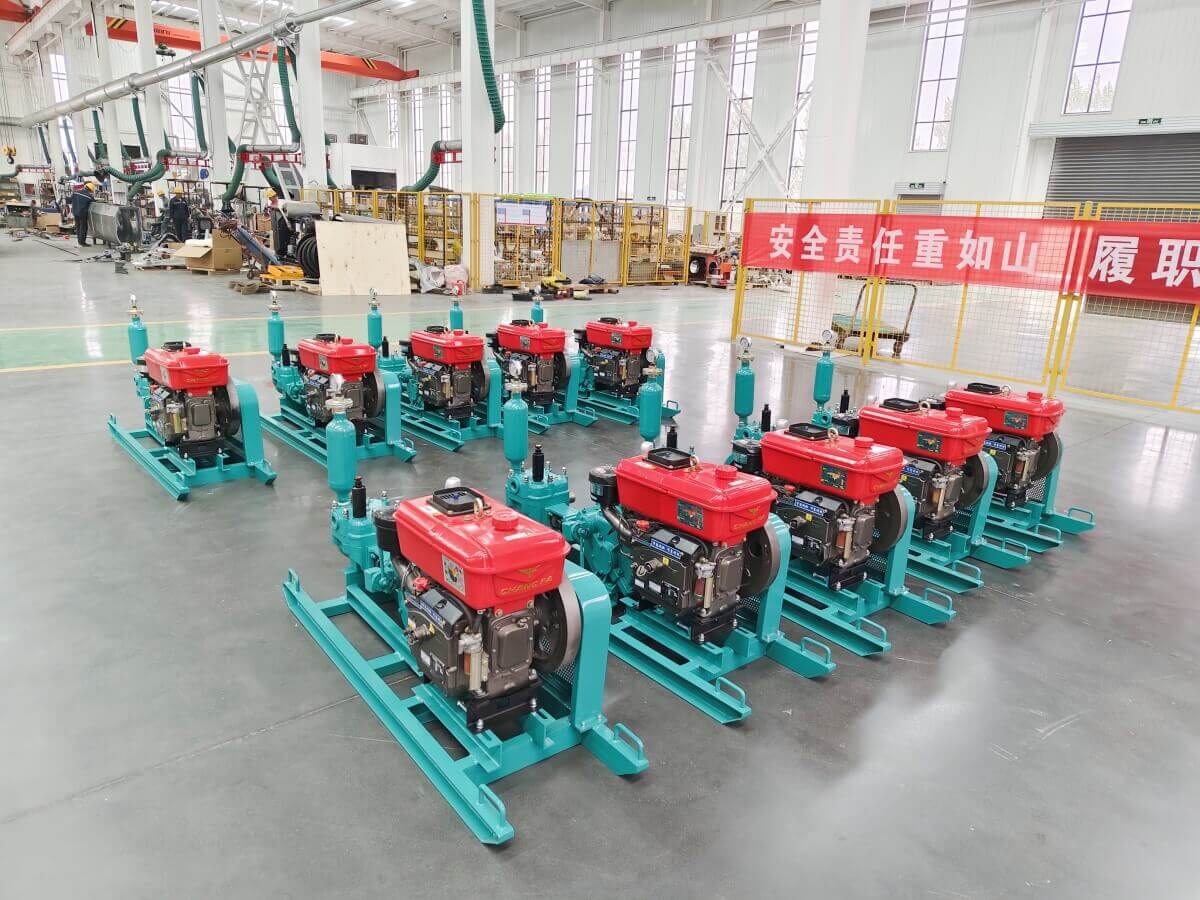

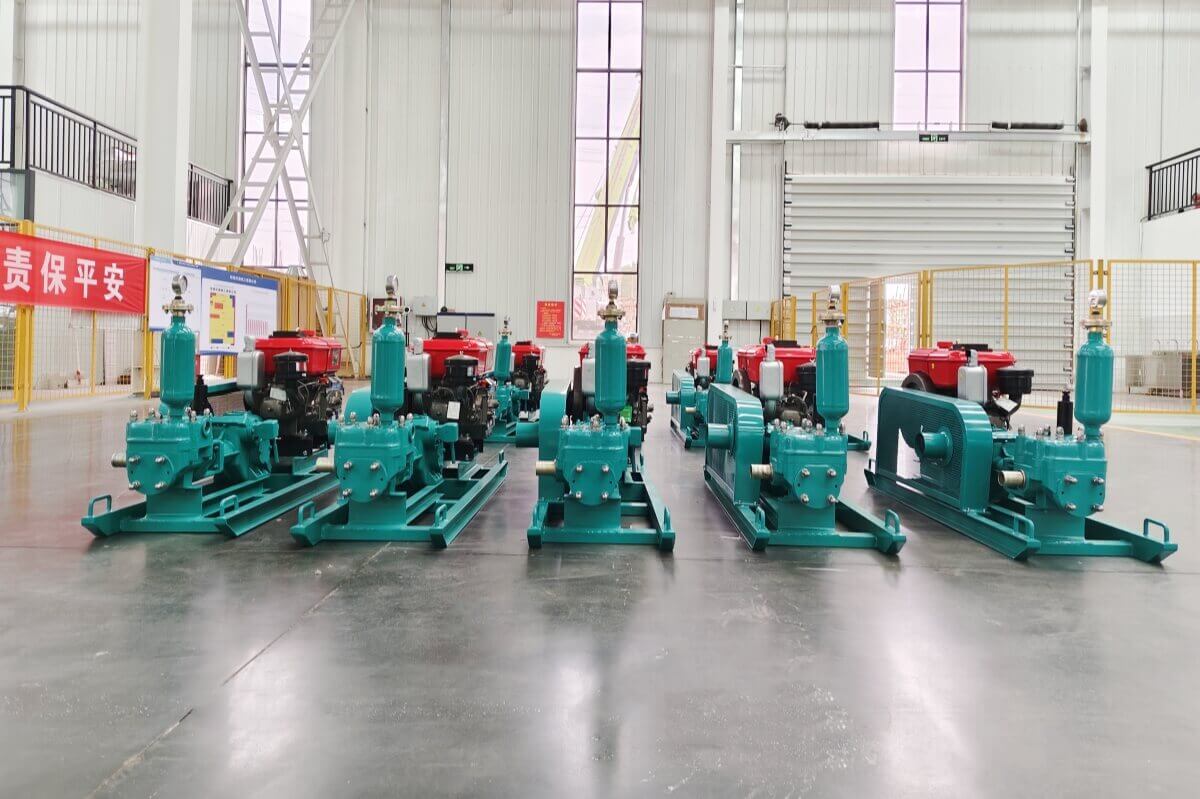

Diesel grout pump factory -

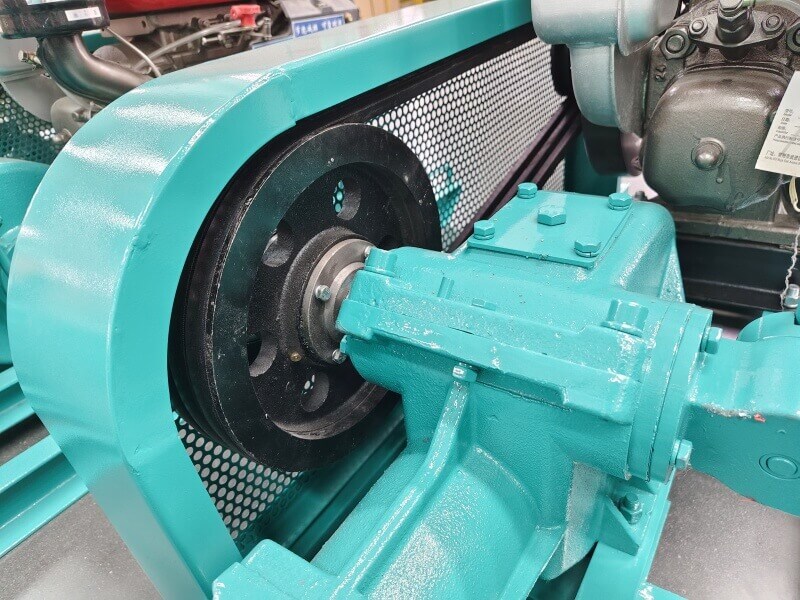

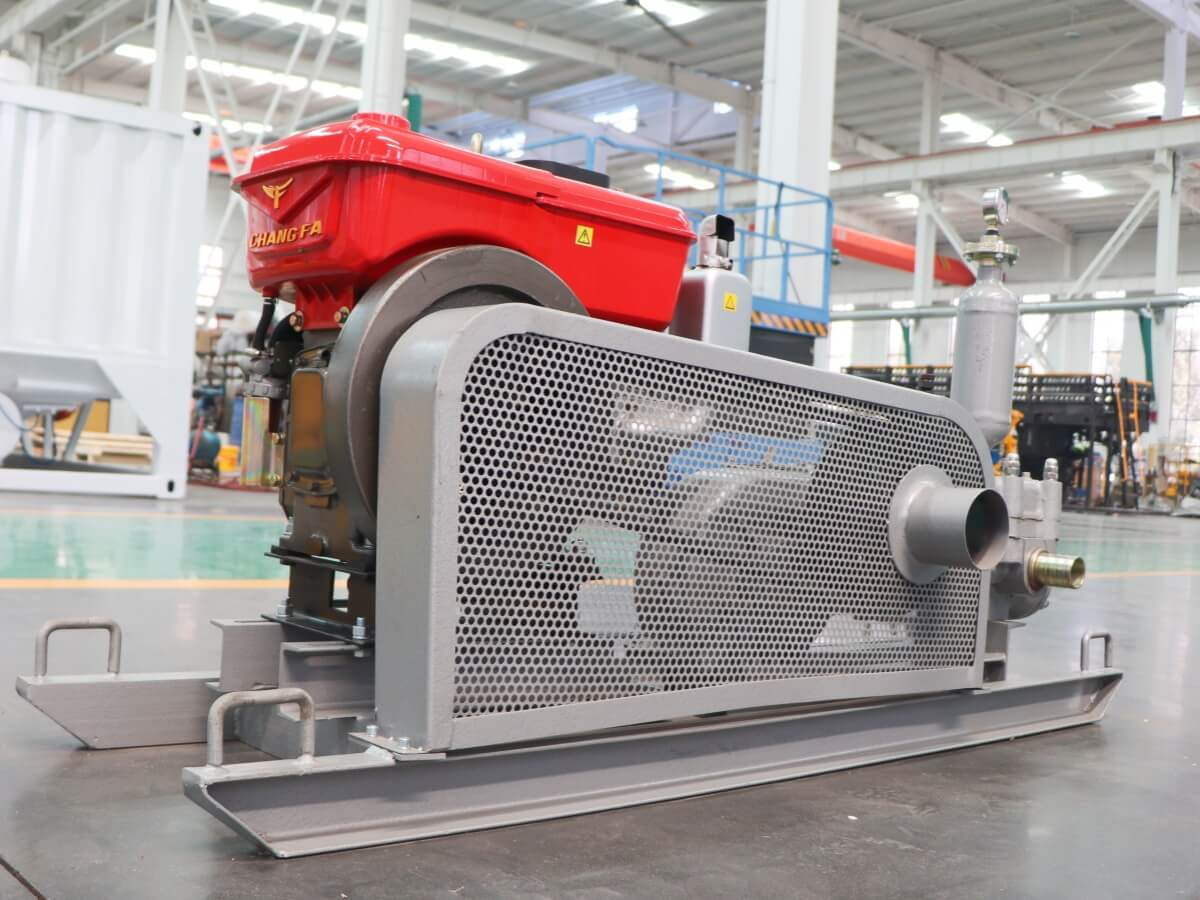

Gear&Vee belt transmission -

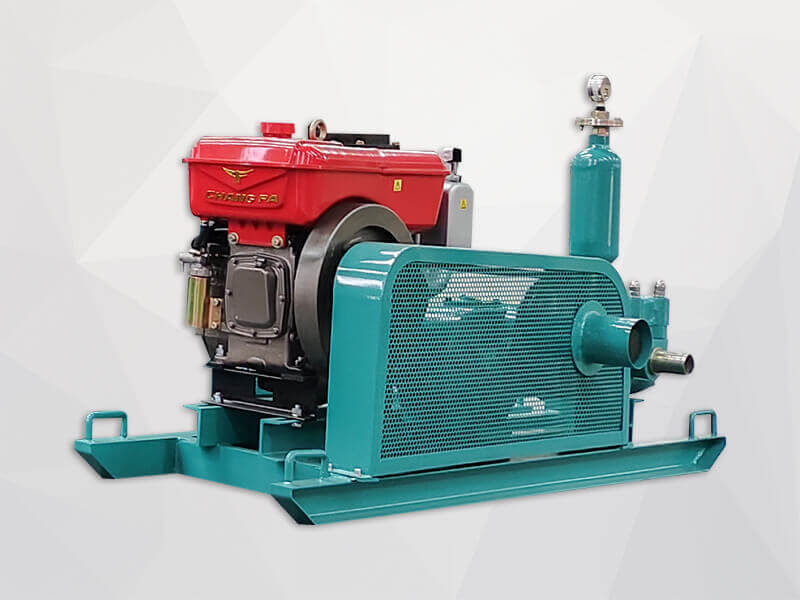

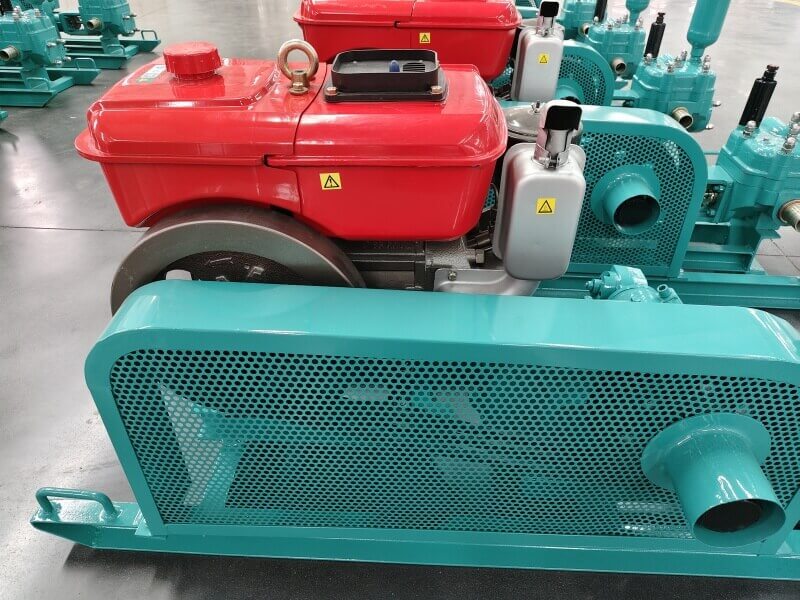

Grout pump with diesel engine -

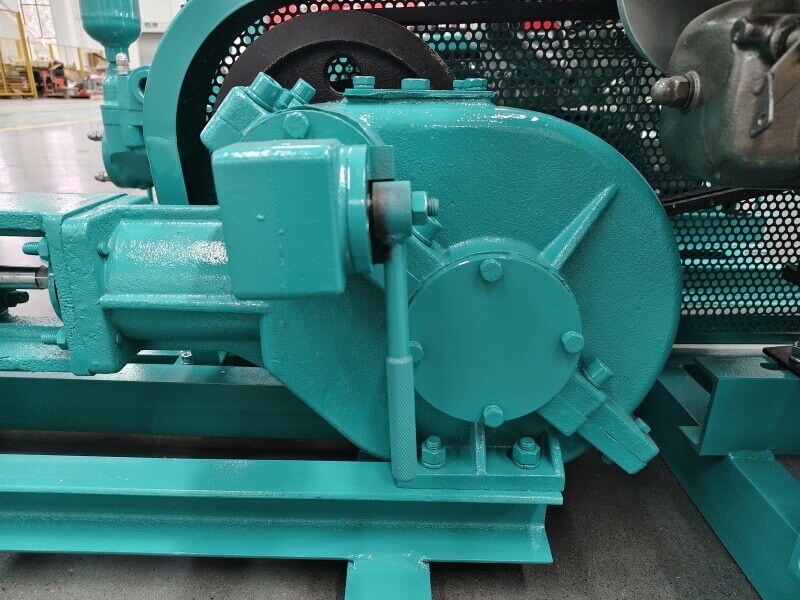

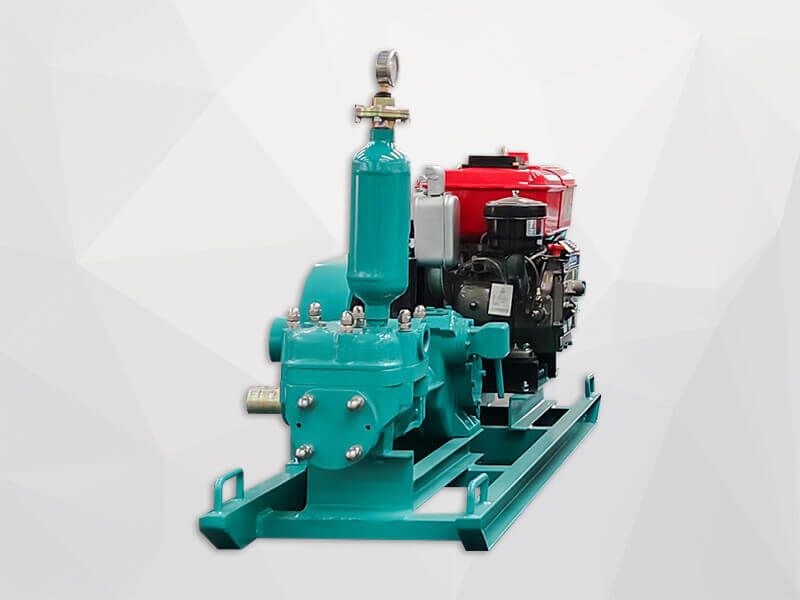

Single piston double-acting pump
Technical Parameters
Technical Data
| Rated Output | 130L/min |
| Rated Pressure | 2MPa(20bar/290psi) |
| Cylinder Dia. | 75mm |
| Piston Stroke | 85mm |
| Stroke/Minute | 180/min |
| Inlet diameter | 51mm |
| Outlet diameter | 38mm |
| Power unit | 5.5KW(Electric) 10hp(Diesel) |
| Transmission | V-belt+gearbox |
| Chassis | Skid |
| Weight | 260kg |
| Overall Dimensions | 1400x600x1000(mm) |
