LDH75/100PI-E injection vertical grout pump
China injection vertical grout pump is designed and made for permeation grouting, compaction grouting, backfilling grouting, curtain grouting, high pressure split grouting etc., grouting methods.
LDH75/100 PI-E grout pump
100mm
150mm
G2’’
7.5kW
Skid
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description
The LDH75/100PI-E China injection vertical high pressure grout pump is designed and made for permeation grouting, compaction grouting, backfilling grouting, curtain grouting, high pressure split grouting etc., grouting methods. Grouting material: cement mixture, mortar/plaster, bentonite and other additive.
Application
1）Civil Engineering - dam foundations, tunnels, mining, soil nails, tiebacks, earth anchors, cable and rock bolts.
2）Structural – building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting; soil & rock grouting.
3）Construction - pavement under sealing, slab jacking and slab raising.
4）Marine - underwater foundations, piers, breakers, shoreline foundations.
5）Mining - tunnel lining, contact grouting, shaft waterproofing.
6）Utilities - encasements, waterproofing, slope line grouting.
7）Geotechnical - deep well casing, monitor wells, well sealing and abandonment.
2）Structural – building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting; soil & rock grouting.
3）Construction - pavement under sealing, slab jacking and slab raising.
4）Marine - underwater foundations, piers, breakers, shoreline foundations.
5）Mining - tunnel lining, contact grouting, shaft waterproofing.
6）Utilities - encasements, waterproofing, slope line grouting.
7）Geotechnical - deep well casing, monitor wells, well sealing and abandonment.
Features
1）High pressure grout pump has compact structure, light weight, easy operate, low maintenance cost;
2）With digital display counter: it can display at any time, and can accumulate work times;
3）Flow and pressure can be adjusted step-less;
4）Equipped with emergency unloading valve: in case of an emergency, it can be load-off instantly;
5）In low pressure, it will be flow-converging of two pumps; In high pressure, there is only one pump work. Low pressure and large flow, high pressure and low output;
6）With full-hydraulic shaft device, stable and reliable operation;
7）Cooling type: water-cooling and air cooling; Suitable for hot and cold areas.
2）With digital display counter: it can display at any time, and can accumulate work times;
3）Flow and pressure can be adjusted step-less;
4）Equipped with emergency unloading valve: in case of an emergency, it can be load-off instantly;
5）In low pressure, it will be flow-converging of two pumps; In high pressure, there is only one pump work. Low pressure and large flow, high pressure and low output;
6）With full-hydraulic shaft device, stable and reliable operation;
7）Cooling type: water-cooling and air cooling; Suitable for hot and cold areas.
Product Details
-
With full hydraulic shaft device -
With digital display counter -

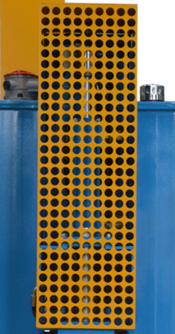

Water cooling and air cooling -
Equipped with emergency unloading valve -
Flow converging of two pumps -

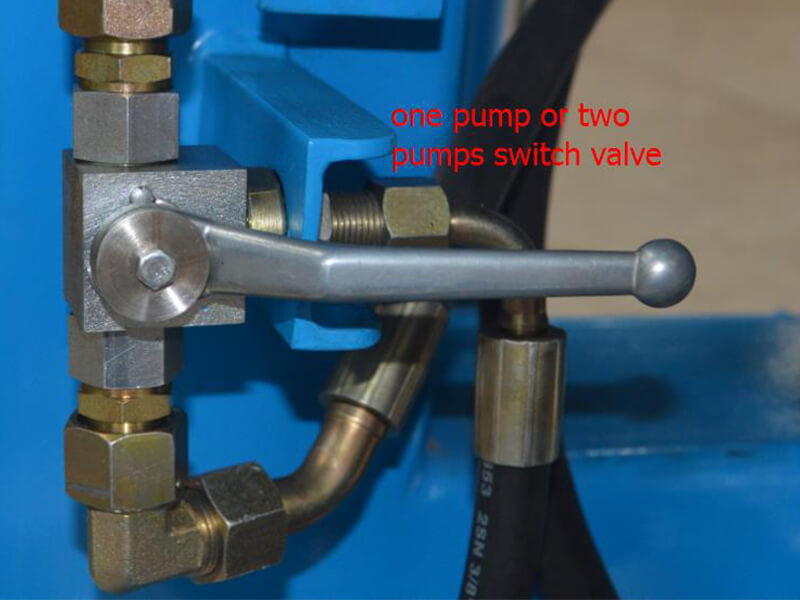

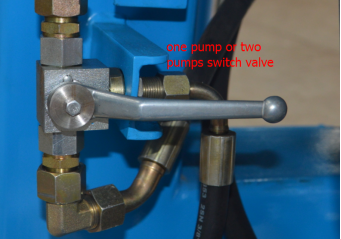

One pump or two pumps switch valve
Technical Parameters
Technical Data
| Item | LDH75/100 PI-E grout pump |
| Piston diameter | 100mm |
| Piston stroke | 150mm |
| Adjustable pressure ( low pressure) | 0-50Bar/725psi |
| Adjustable flow rate( low pressure) | 0-75L/min |
| Adjustable pressure ( high pressure) | 0-100Bar/1450psi |
| Adjustable flow rate ( high pressure) | 0-40L/min |
| Discharge pipe size | M27x2 |
| Inlet pipe size | G2’’ |
| Power unit | 7.5kW |
| Chassis | Skid |
| Weight | 390Kg |
| Overall Dimension | 1040x550x1650mm |
| Note: Chassis: Skid or Tyre We also could according to your demands to customize grout pump. |
|
