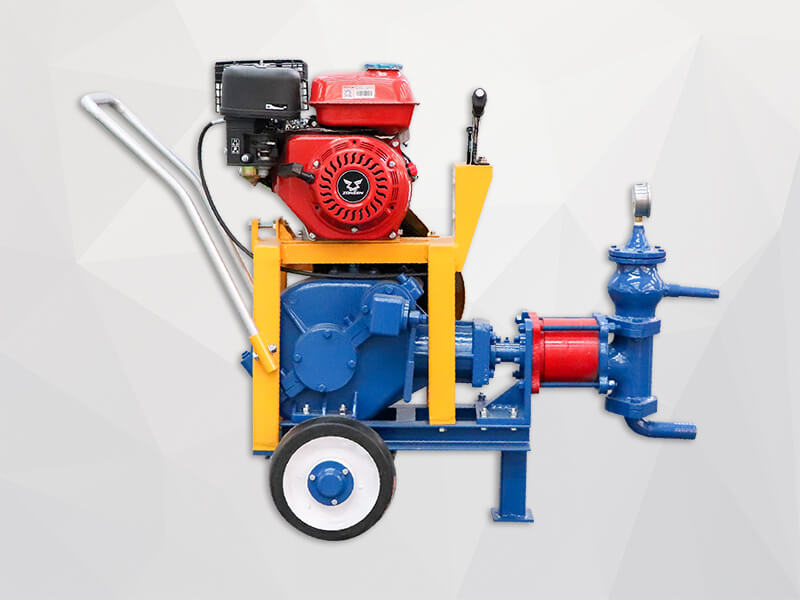

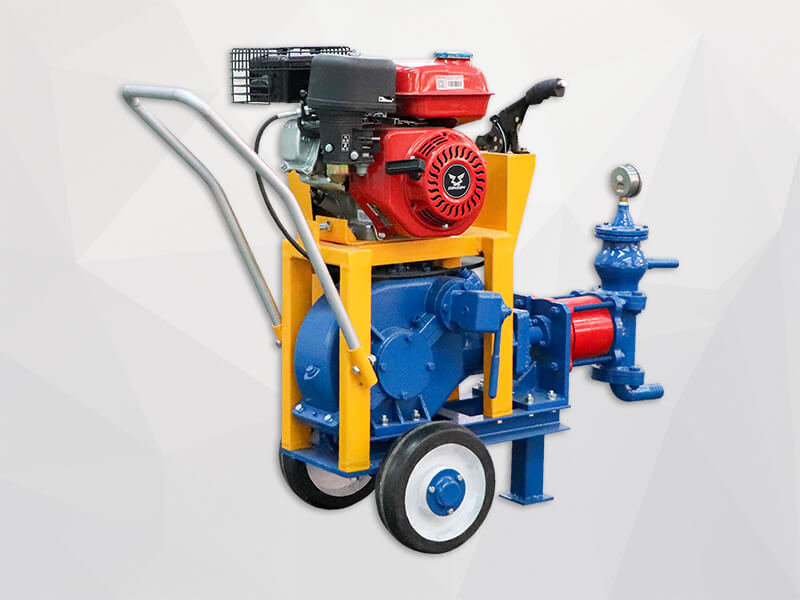

LGP25/15 Small cement grout pump
We can supply you with high quality small type gasoline engine cement grout pump for sale with factory price.
25L/min
15bar
110mm
42mm
90/time
4.8Kw
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description
LGP25/15 is small type gasoline engine cement grout pump. The piston is driven by the gasoline engine to produce reciprocating motion, and the cement slurry is sucked into the air chamber by the suction valve, and discharged through the pump cylinder. It has a wide range of applications, can be grouted various low-viscosity slurry materials with good fluidity, such as cement slurry and chemical slurry.
Application
LGP25/15 small grout pump for sale is mainly used for bridges, houses small areas of seepage prevention, leakage prevention, plugging and repair; tunnels, mines, highways and other area without electric power supply etc.
Features

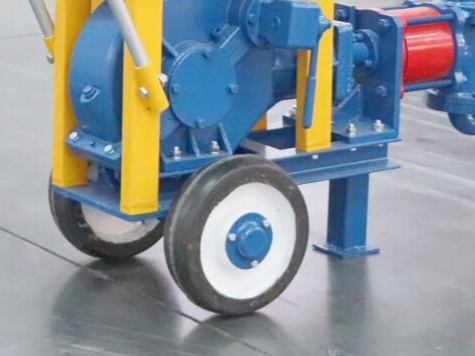

1. Small size, light weight, easy to move cement grout pump;

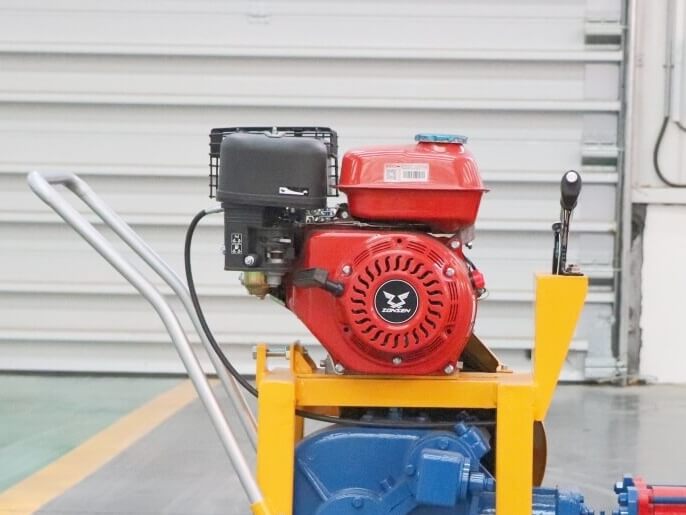

2. Gasoline engine, don't need electric supply;
3. Simple structure, durable;
4. Small gasoline engine grout pump used for grouting cement slurry and chemical slurry.
2. Gasoline engine, don't need electric supply;
3. Simple structure, durable;
4. Small gasoline engine grout pump used for grouting cement slurry and chemical slurry.
Product Details
-

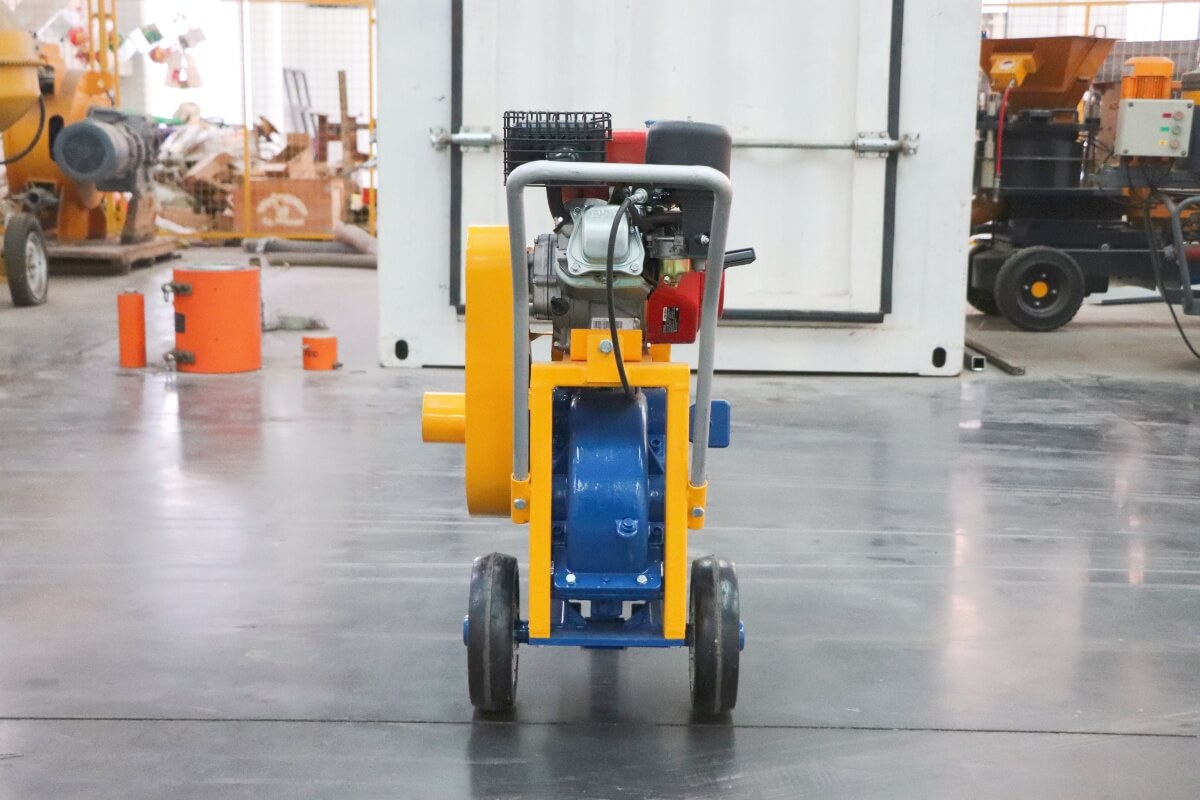

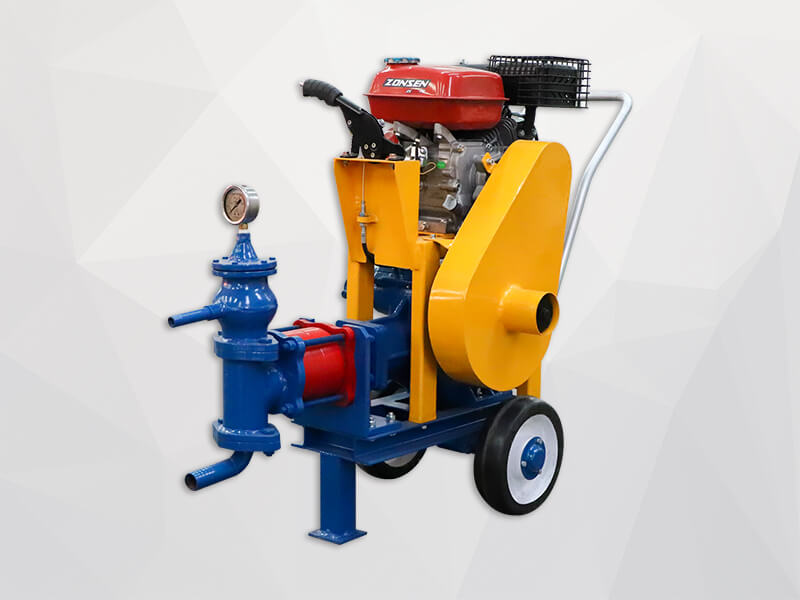

Small cement grout pump construction and dimension -

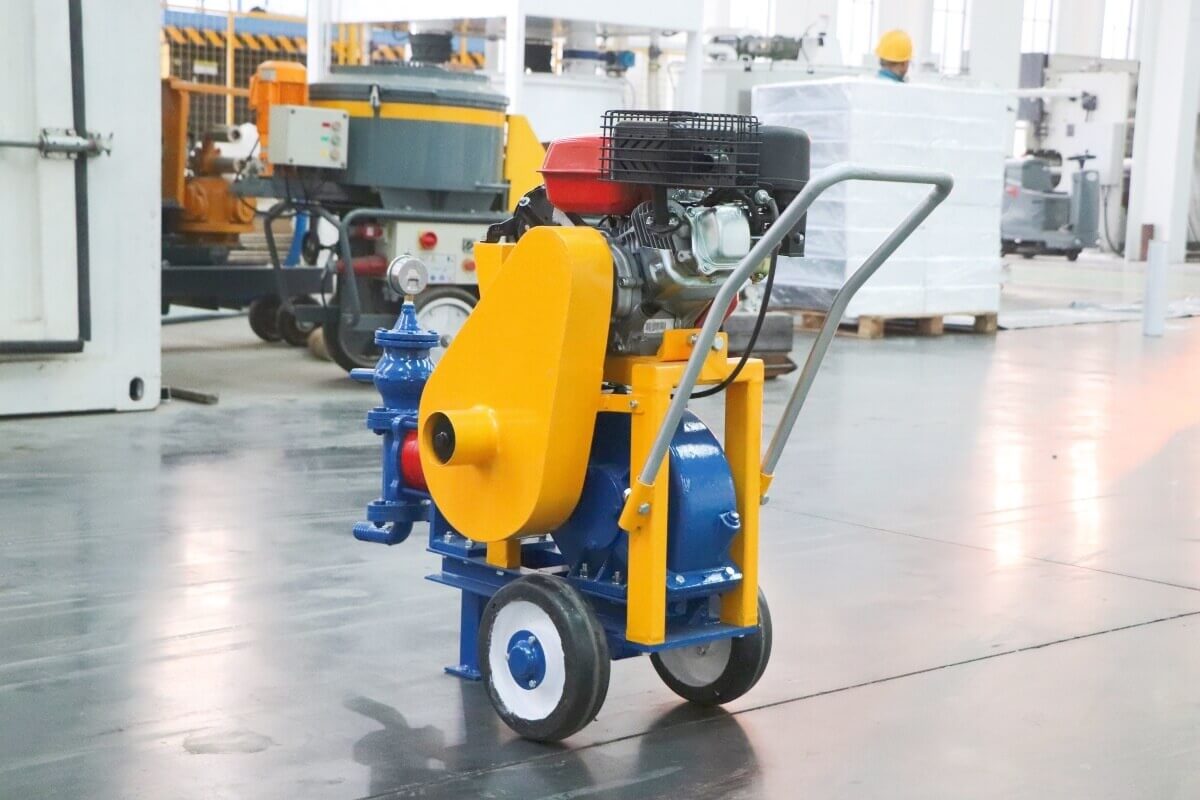

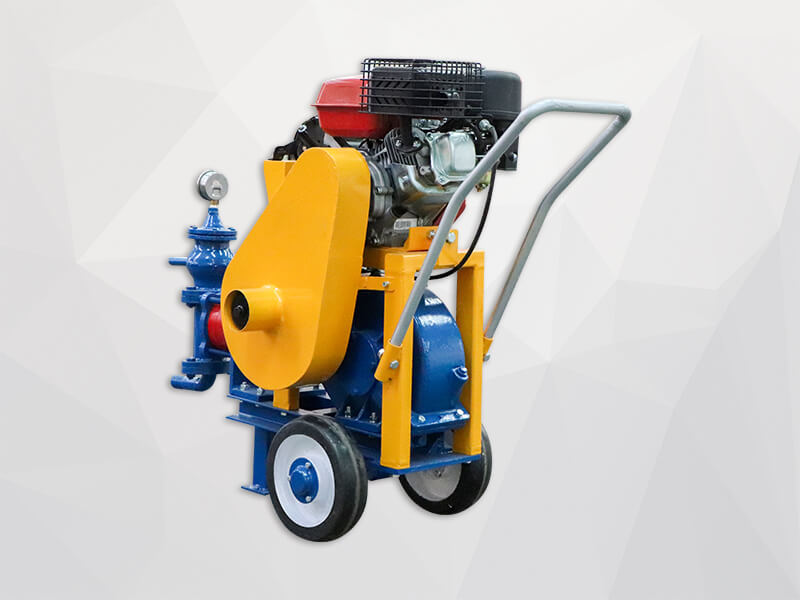

Small grout pump construction and dimension -

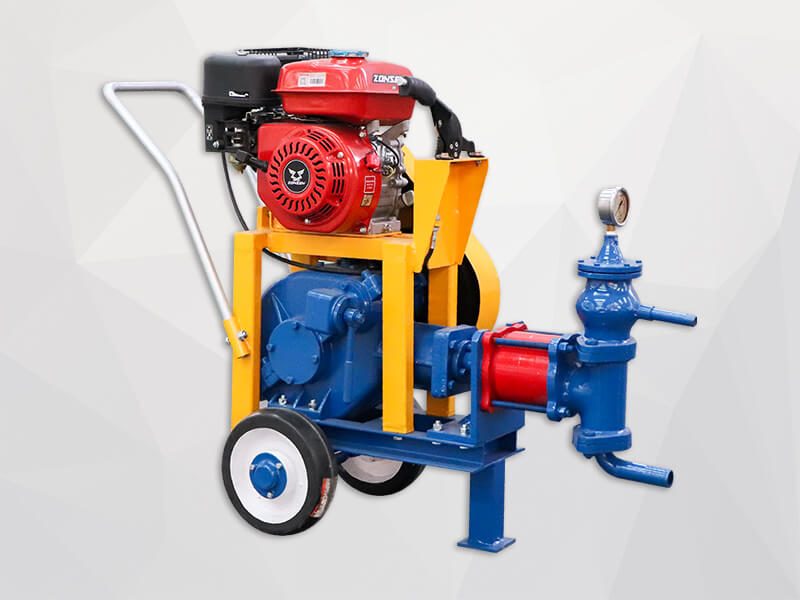

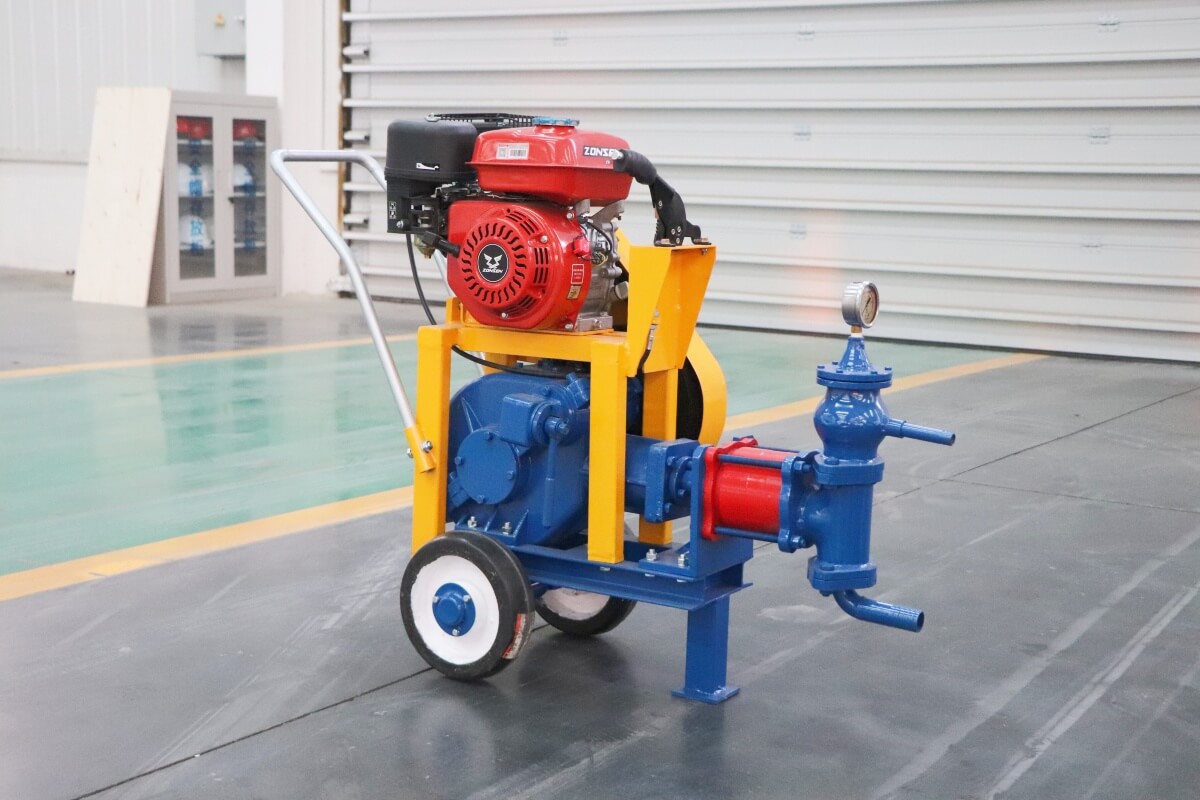

Small type gasoline engine cement grout pump construction and dimension
Technical Parameters
Technical Data
| Model | LGP25/15 gasoline engine grout pump |
| Output Capacity | 25L/min |
| Working Pressure | 15bar |
| Piston Diameter | 110mm |
| Piston Stroke | 42mm |
| Cycle | 90/time |
| Gasoline Engine Power | 4.8Kw |
| Outlet Diameter | 25/32mm |
| Inlet Diameter | 19/25mm |
| Weight | 120Kg |
| Dimension | 1135x525x890mm |
Inquiry
Please feel free to submit your inquiry information to us. We will contact with you as soon as possible.
