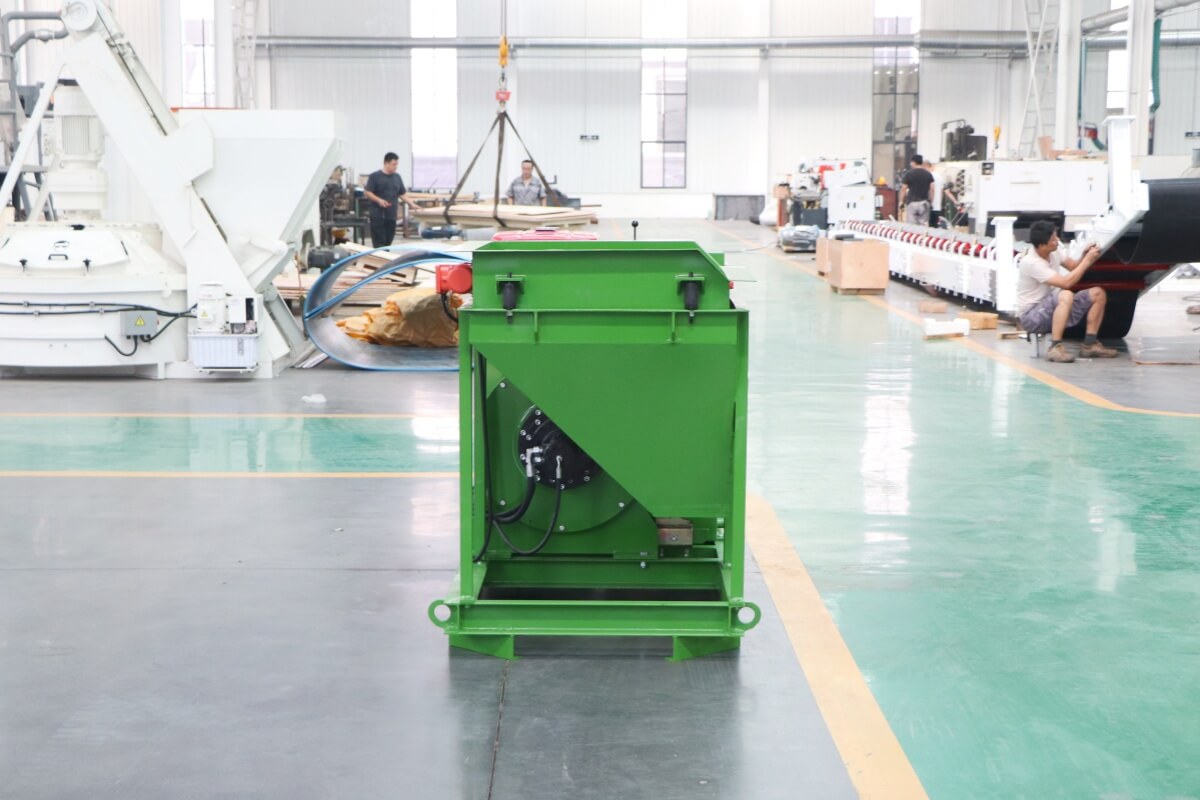

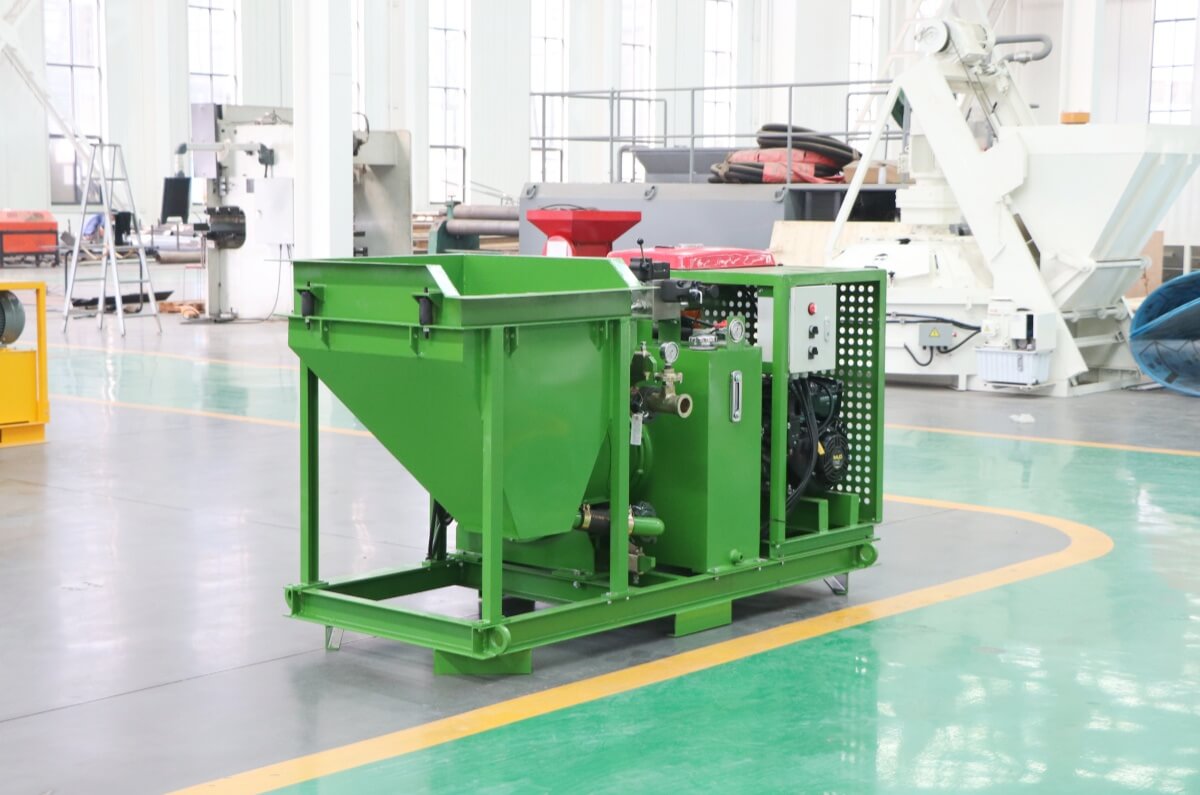

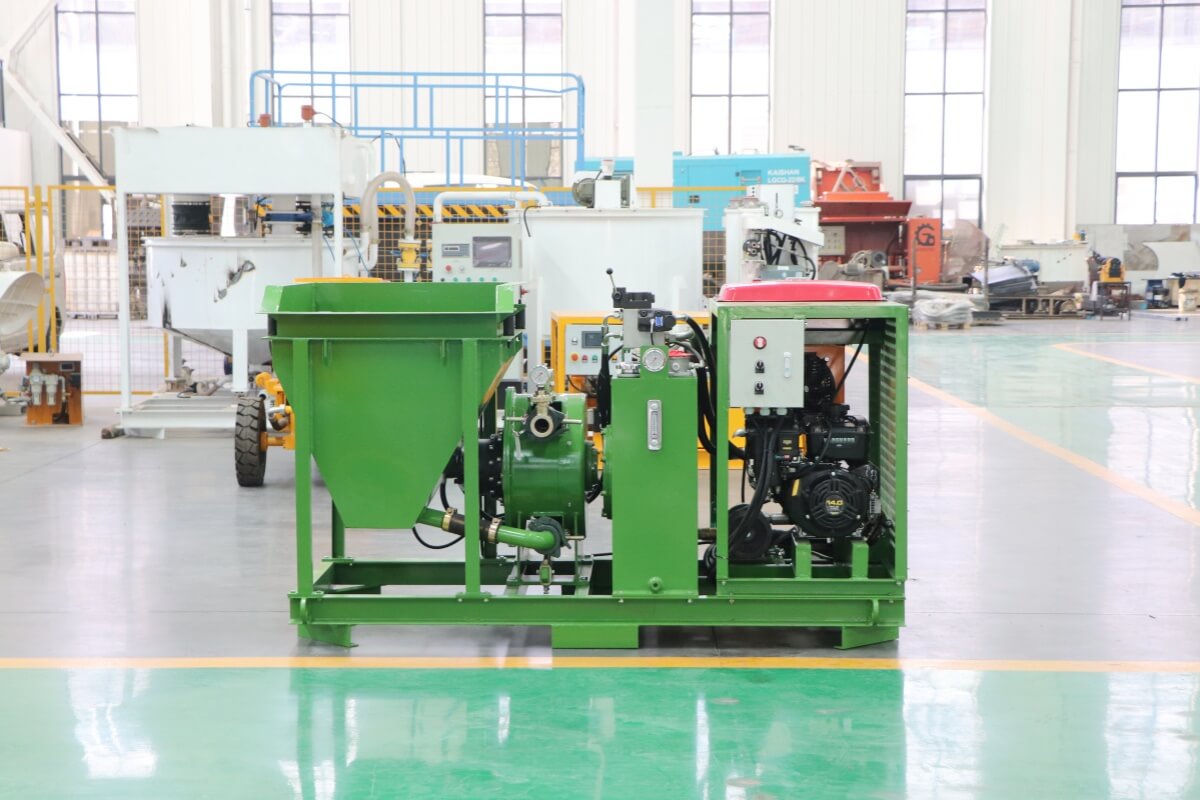

LDS1500 Wet Mix Concrete Spraying Machine
LDS1500 concrete spraying machine for sale run by a highly-reliable direct drive planetary gearbox and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel.
Electric motor
1.5-3m3/h
10mm
50mm
38mm
LH50-455
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description
LDS1500 wet mix concrete spraying machine runs by a highly-reliable direct drive planetary gearbox and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel.
LDS1500 concrete spraying machine for sale is used to pump mud, mortar, concrete, etc. in the construction of domes, swimming pools, etc.
LDS1500 concrete spraying machine for sale is used to pump mud, mortar, concrete, etc. in the construction of domes, swimming pools, etc.
Application

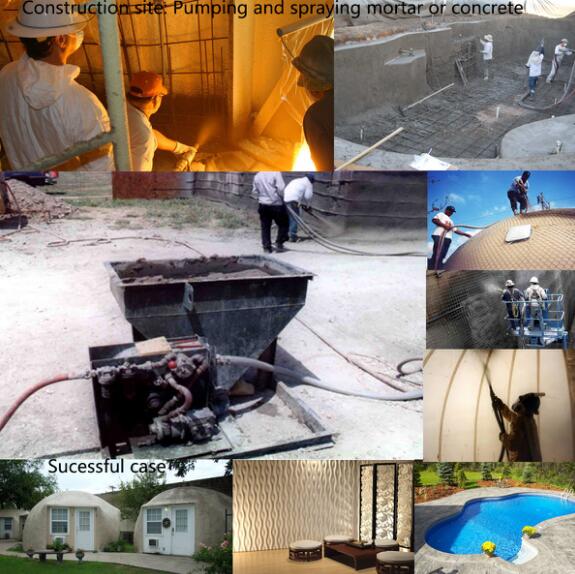

LDS1500 Concrete spraying pump is usually widely used in dome works, swimming pool works, artificial stone works, etc. Due to the good quality and competitive price, the LDS1500 concrete spraying machine for sale has received better feedback from customers.
Features
LDS1500 concrete spraying machine for sale in worldwide, and it has the performance advantage due to the same type of concrete spraying machine
1. Planetary gearbox and highly reliable direct drive;
2. Skid-mounted, transportable on a trailer;
3. Easily operating on the worksite;
4. LDS1500 concrete spraying machine can achieve infinite speed variation;
5. Power, compact and reliable.
1. Planetary gearbox and highly reliable direct drive;
2. Skid-mounted, transportable on a trailer;
3. Easily operating on the worksite;
4. LDS1500 concrete spraying machine can achieve infinite speed variation;
5. Power, compact and reliable.
Product Details
-

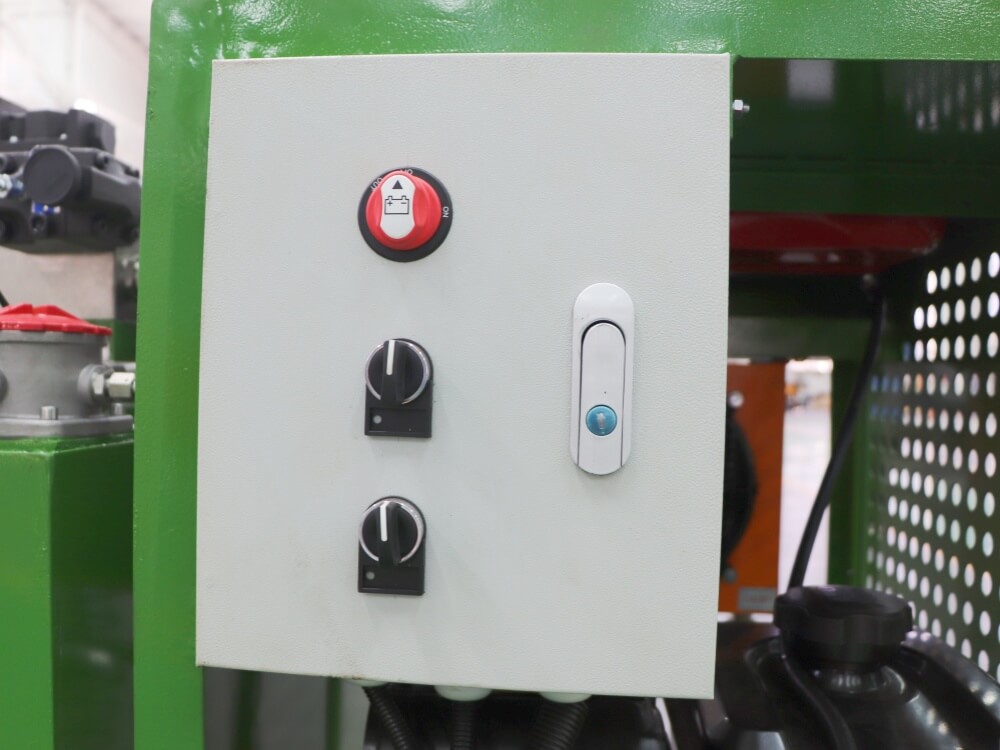

Control cabinet -

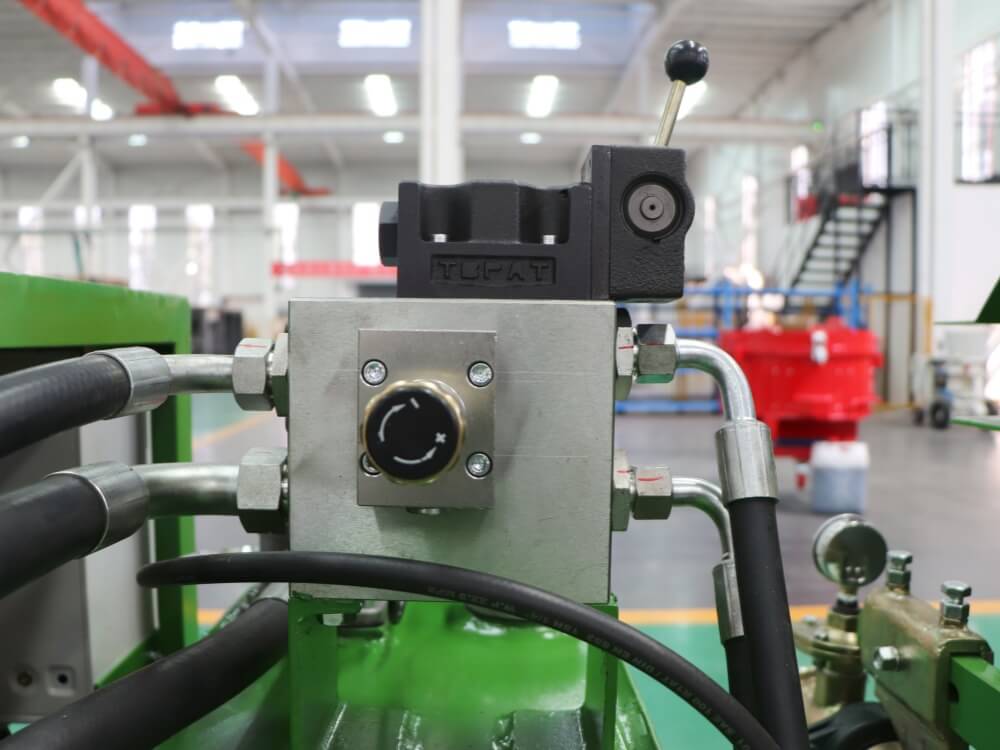

Control valve -

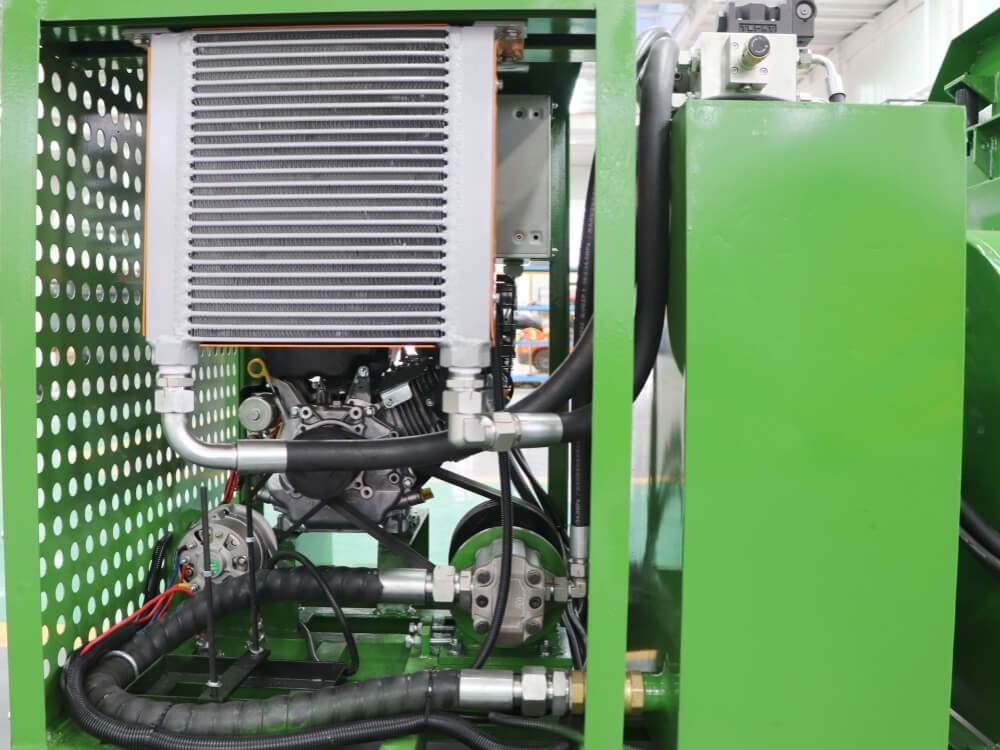

Cooler -

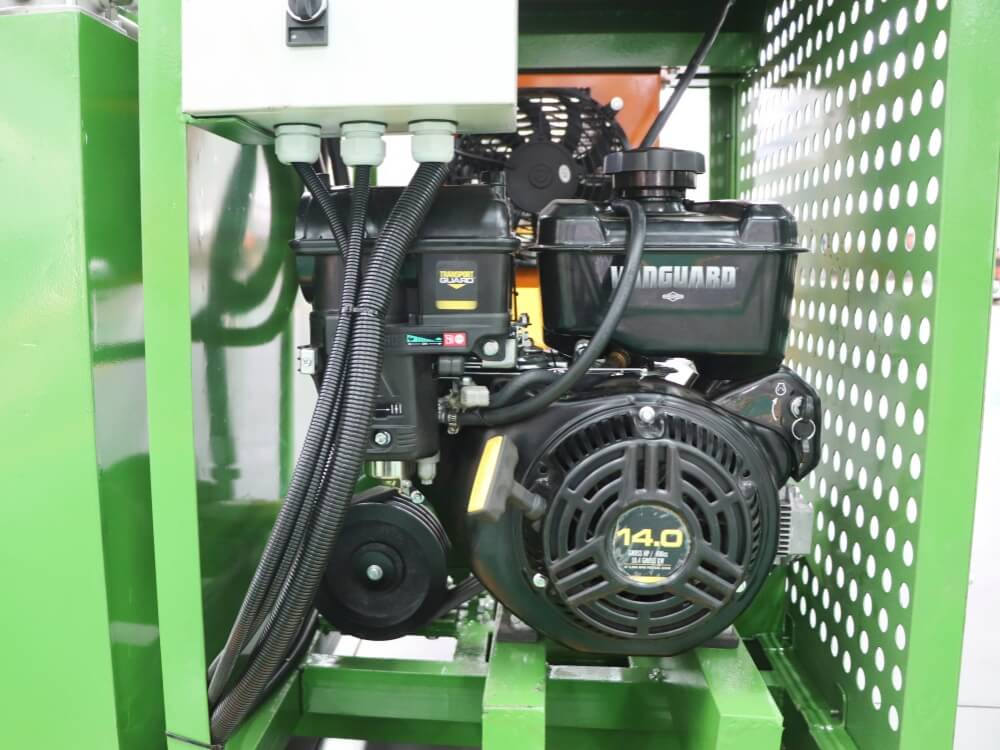

Gasoline engine -

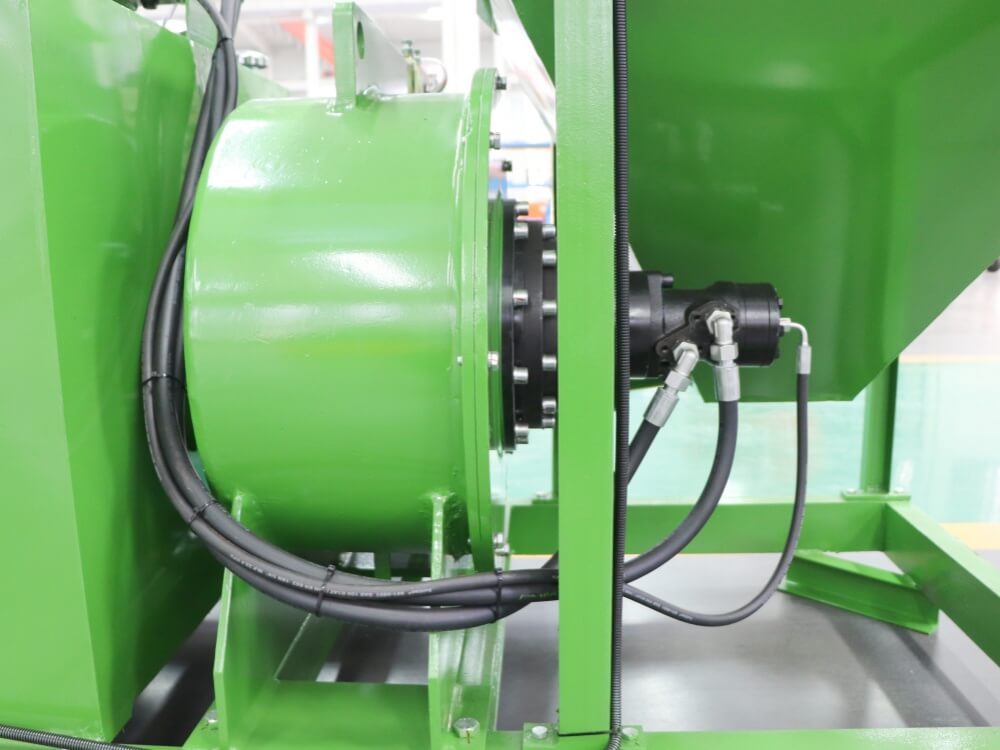

Hose pump -

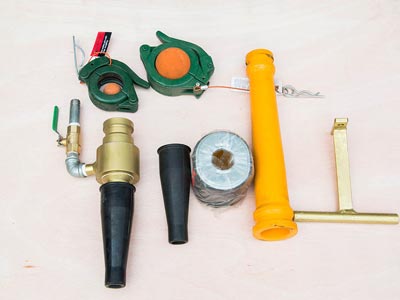

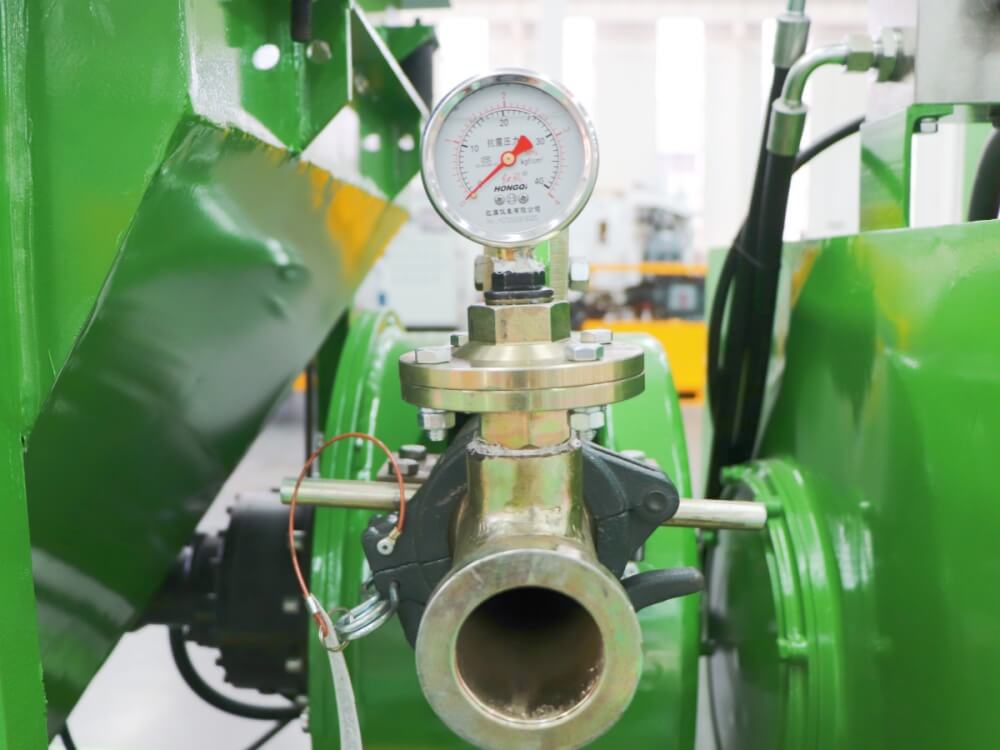

Quick coupling
Technical Parameters
LDS1500G Gasoline Engine Wet Mix Concrete Spraying Machine:
LDS1500D Diesel Engine Wet Mix Concrete Spraying Machine:
LDS1500E Electric Motor Wet Mix Concrete Spraying Machine:
| Item | Description |
| Pressure | 1.5 Mpa ( Chinese squeeze hose )/3.5Mpa ( Trelleborg squeeze hose ) |
| Output | 1.5-3m3/h |
| Max. Aggregate | 10mm |
| The Squeeze Hose | ID 50mm |
| Conveying Hose | ID 38mm |
| Pump head | LH50-455 |
| Power | Honda GX390 Gasoline engine |
| Overall Dimension | 1900x850x1250mm |
| Hopper volume: | 200 Liter |
| Oil tank | 120 Liter |
| Weight | 610kg |
| Requested air compressor | 3m3/min, 0.5Mpa Pressure |
| Vertical Conveying Distance | 15 m ( Chinese squeeze hose )/30 m ( Trelleborg squeeze hose ) |
| Horizontal Conveying Distance | 40 m ( Chinese squeeze hose )/80 m ( Trelleborg squeeze hose ) |
LDS1500D Diesel Engine Wet Mix Concrete Spraying Machine:
| Item | Description |
| Pressure | 1.5 Mpa (Chinese squeeze hose)/3.5 Mpa (Trelleborg squeeze hose) |
| Output | 1.5-3m3/h |
| Max. Aggregate | 10mm |
| The Squeeze Hose | ID 50mm |
| Conveying Hose | ID 38mm |
| Pump head | LH50-455 |
| Power | CFZ12 Diesel Engine, 10hp |
| Overall Dimension | 2150x1100x1150mm |
| Hopper volume: | 130 Liter |
| Weight | 660kg |
| Requested air compressor | 3m3/min, 0.5Mpa Pressure |
| Vertical Conveying Distance | 15 m (Chinese squeeze hose)/30 m (Trelleborg Hose) |
| Horizontal Conveying Distance | 40 m (Chinese squeeze hose)/80 m (Trelleborg squeeze hose) |
LDS1500E Electric Motor Wet Mix Concrete Spraying Machine:
| Pressure | 1.5 Mpa (Chinese squeeze hose)/ 3.5 Mpa (Trelleborg squeeze hose) |
| Output | 1.5-3m3/h |
| Max. Aggregate | 10mm |
| The Squeeze Hose/Conveying Hose | ID 50mm/ID 38mm |
| Pump head | LH50-455 |
| Power | 5.5kw, electric motor |
| Overall Dimension | 1900x850x1250mm |
| Hopper volume: | 200 Liter |
| Weight | 610kg |
| Requested air compressor: | 3m3/min, 0.5Mpa Pressure |
| Vertical Conveying Distance | 15 m (Chinese squeeze hose)/30 m (Trelleborg squeeze hose) |
| Horizontal Conveying Distance | 40 m (Chinese squeeze hose)/80 m (Trelleborg squeeze hose) |
