LZ-9 Shotcrete Machine
LZ-9 9m3/h shotcrete machine is a large pneumatic shotcrete machine. The output can reach 9m3 / h, the maximum transmission distance can reach 200m, stable performance, simple operation, and reasonable price, so it is widely used in large-section tunnels, mining operations, hydropower projects and hillside protection.
9m3/h
200m
0.2-0.4MPa
11r/min
7.5kW, IP55
900kg
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description:
LZ-9 dry mix shotcrete machine is a large pneumatic shotcrete machine. The output can reach 9m3/h, the maximum transmission distance can reach 200m, stable performance, simple operation, and reasonable price, so it is widely used in large-section tunnels, mining operations, hydropower projects and hillside protection.
LZ-9 dry mix shotcrete machine available Looks:
Basic: electric drive can be used in combination with tires;
Extension (optional): Combination of air motor drive or diesel drive with skid or roller.
We can also provide customized services to customize the most suitable models and the most reasonable prices for customers.
LZ-9D dry mix shotcrete machine display images:
LZ-9 dry mix shotcrete machine available Looks:
Basic: electric drive can be used in combination with tires;
Extension (optional): Combination of air motor drive or diesel drive with skid or roller.
We can also provide customized services to customize the most suitable models and the most reasonable prices for customers.

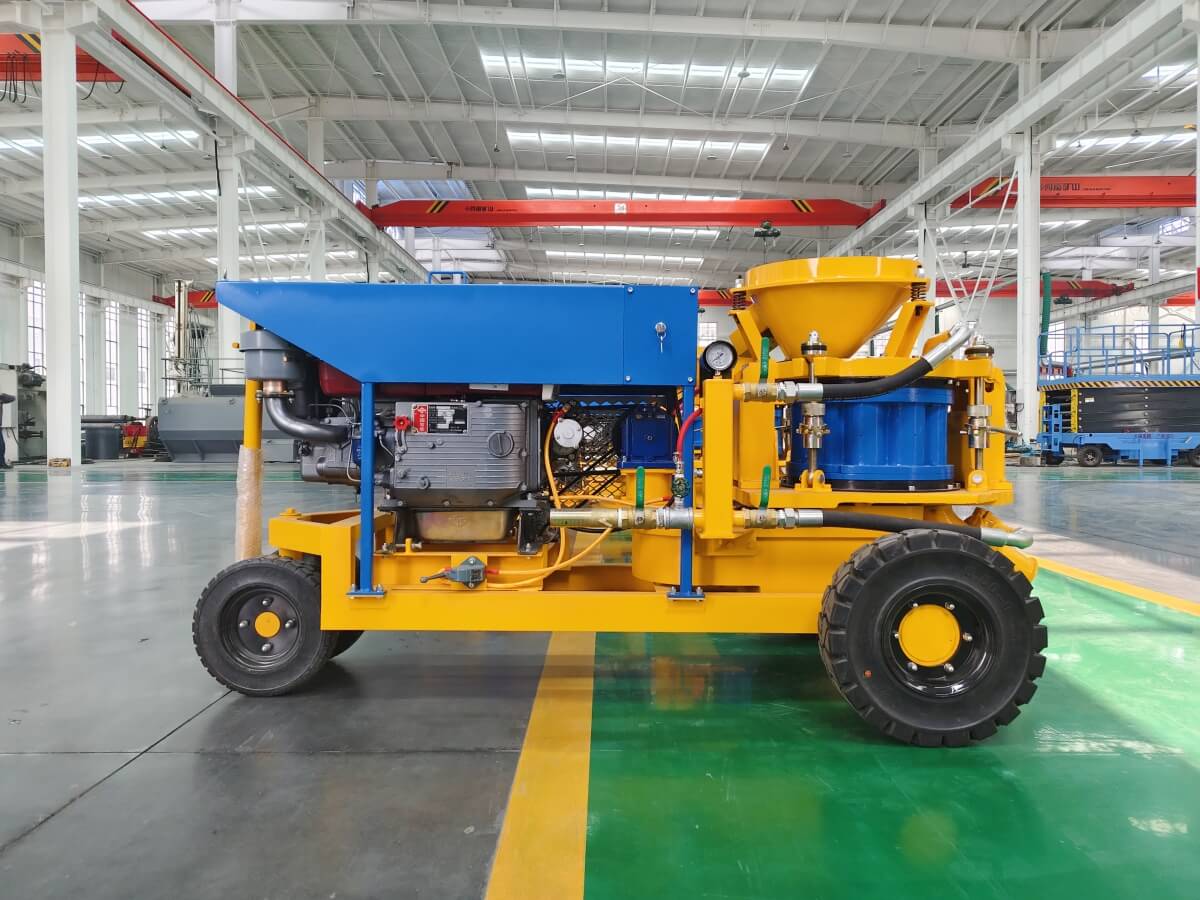

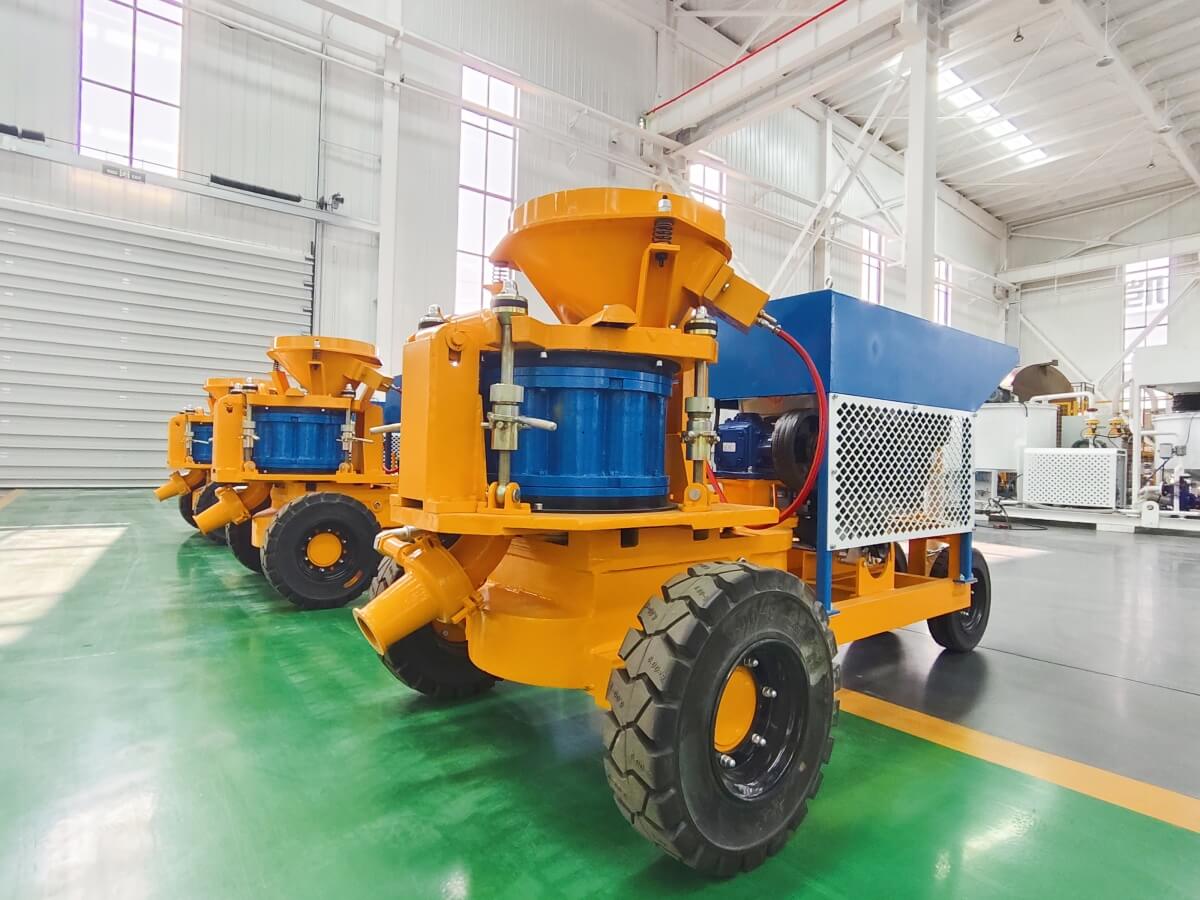

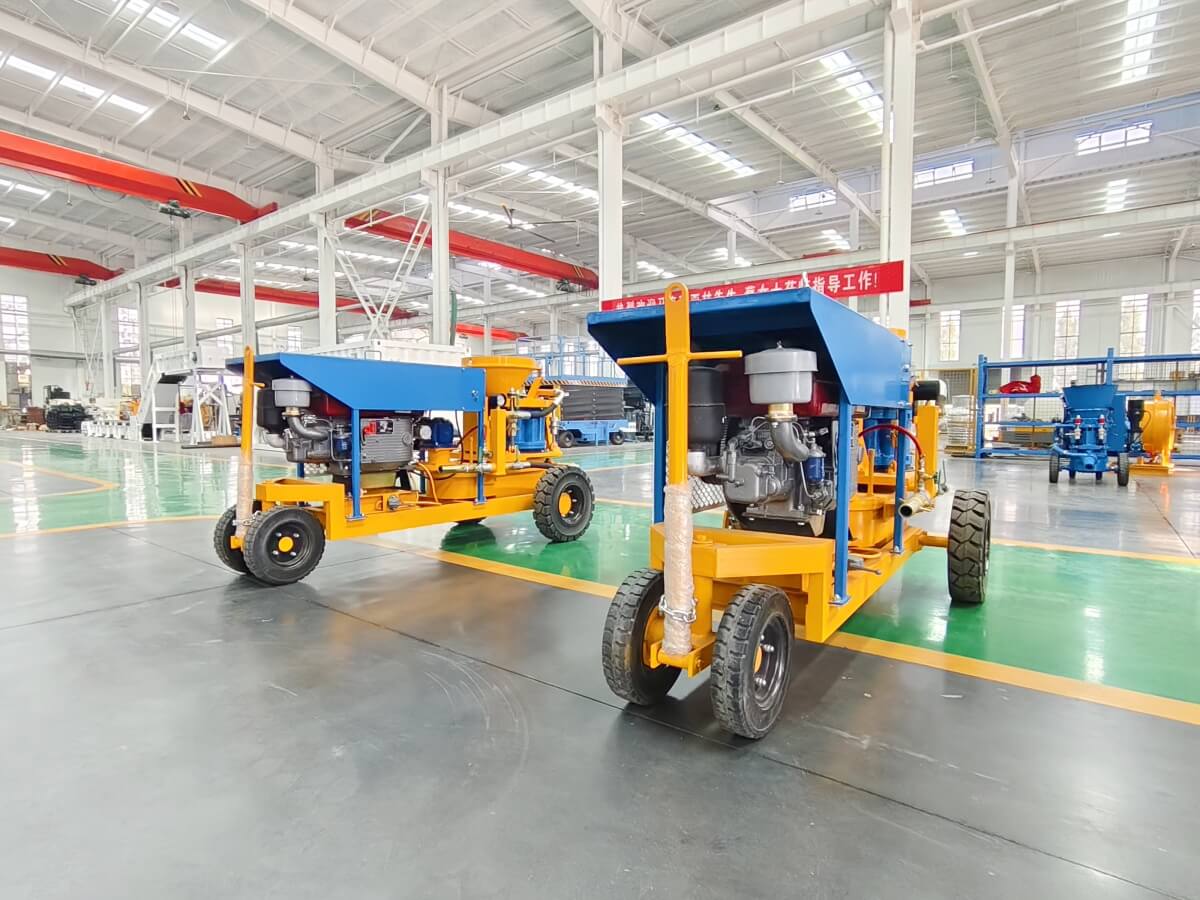

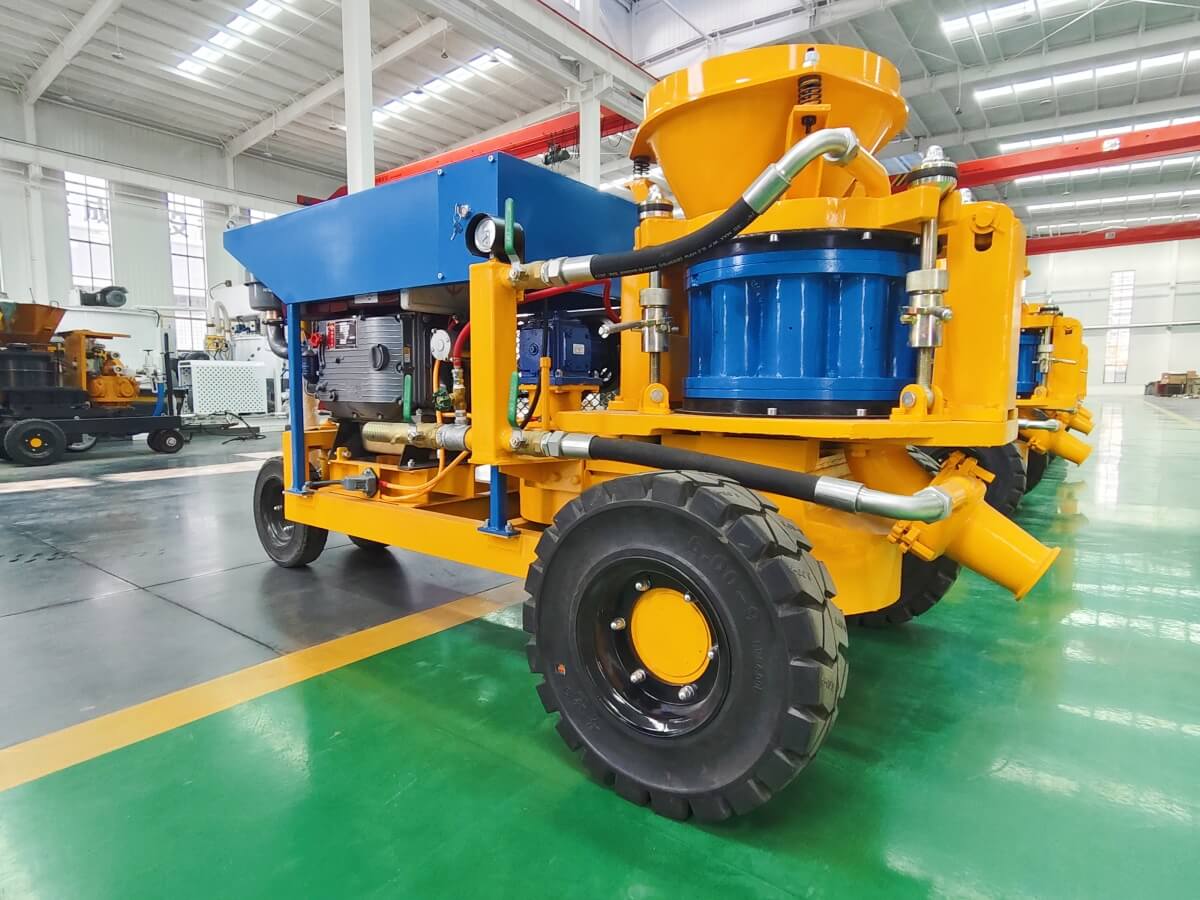

LZ-9D dry mix shotcrete machine display images:
Application:
LZ-9 shotcrete machine has stable performance, long life, and affordable price. It is widely used in swimming, tunneling, mining, hydropower projects, engineering buildings, culverts, subways, hydropower projects, underground projects, and coal gangue mine roadways. Various types of industrial furnaces, linings, refractory materials are spray-formed or repaired.
Features:
1. LZ-9 pneumatic shotcrete machine has a non-adhesion going-through rotor with the new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period
2. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
3. Four-point clamping device makes it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
4. LZ-9 pneumatic shotcrete machine particularly used for dry damp mix and steel(polymer) fiber-reinforced shotcrete.
2. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
3. Four-point clamping device makes it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
4. LZ-9 pneumatic shotcrete machine particularly used for dry damp mix and steel(polymer) fiber-reinforced shotcrete.
Product Details
-

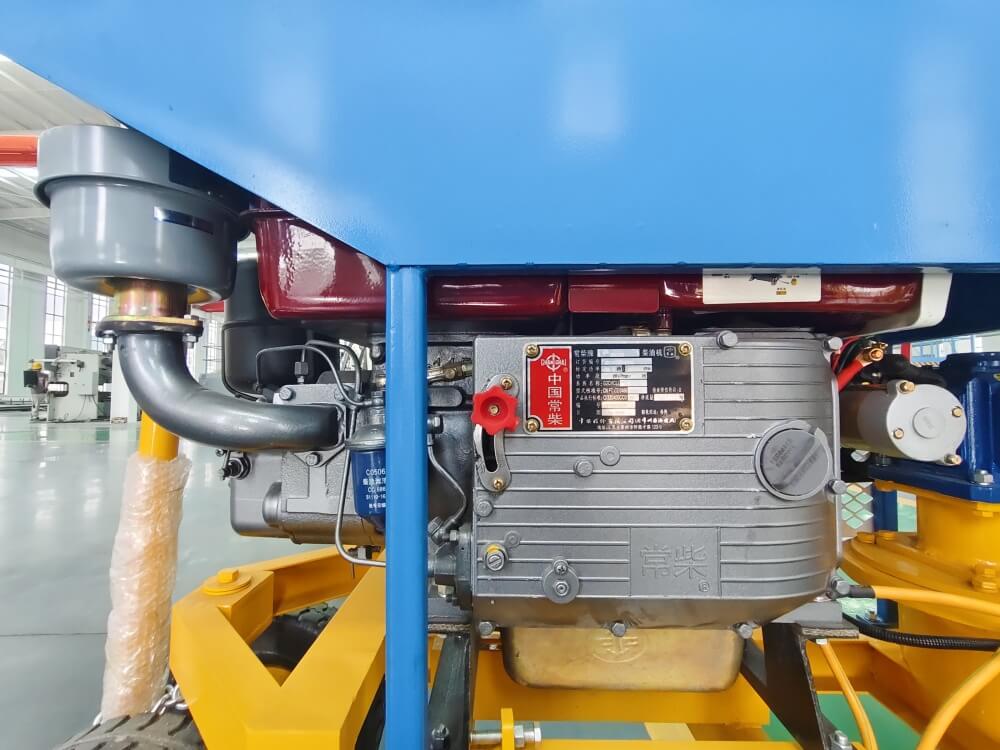

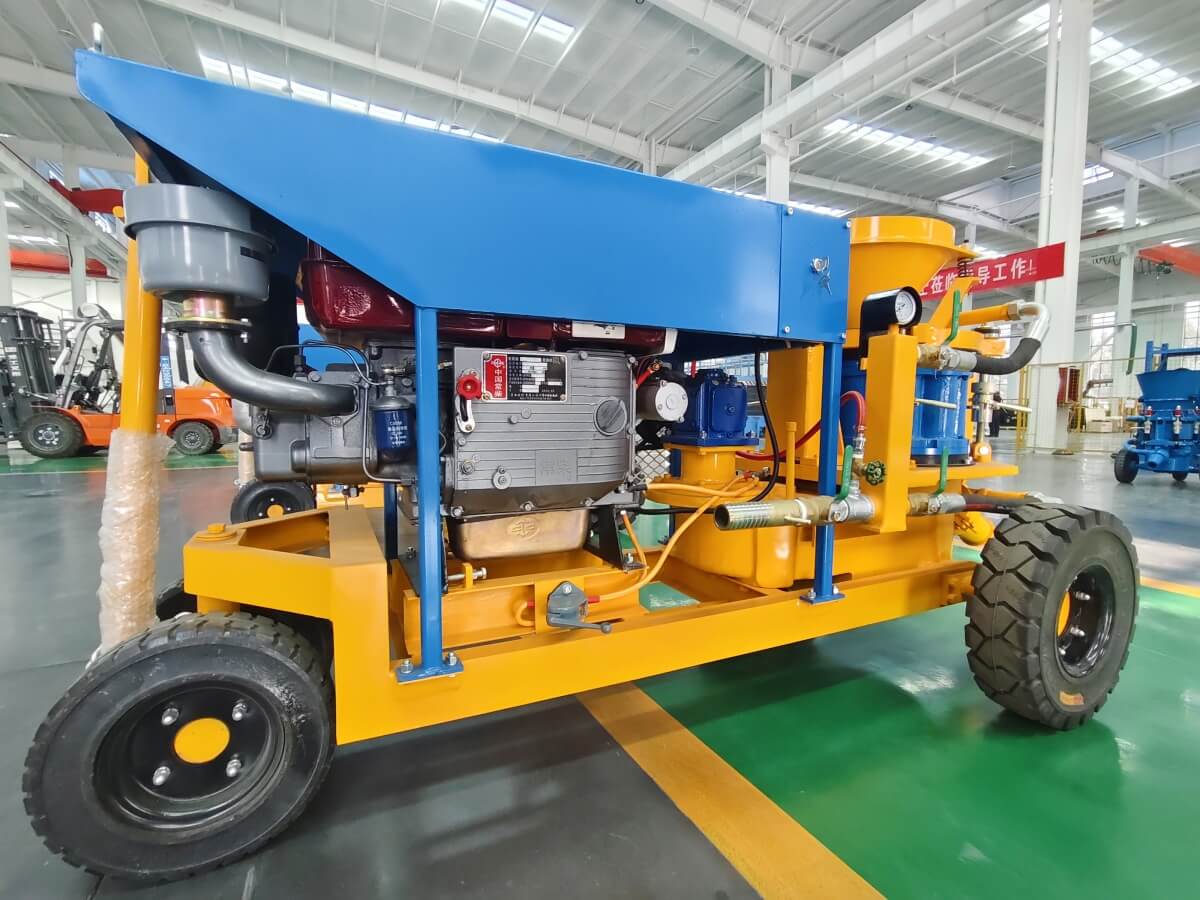

20hp, 2200rpm, radiator cooling diesel engine -

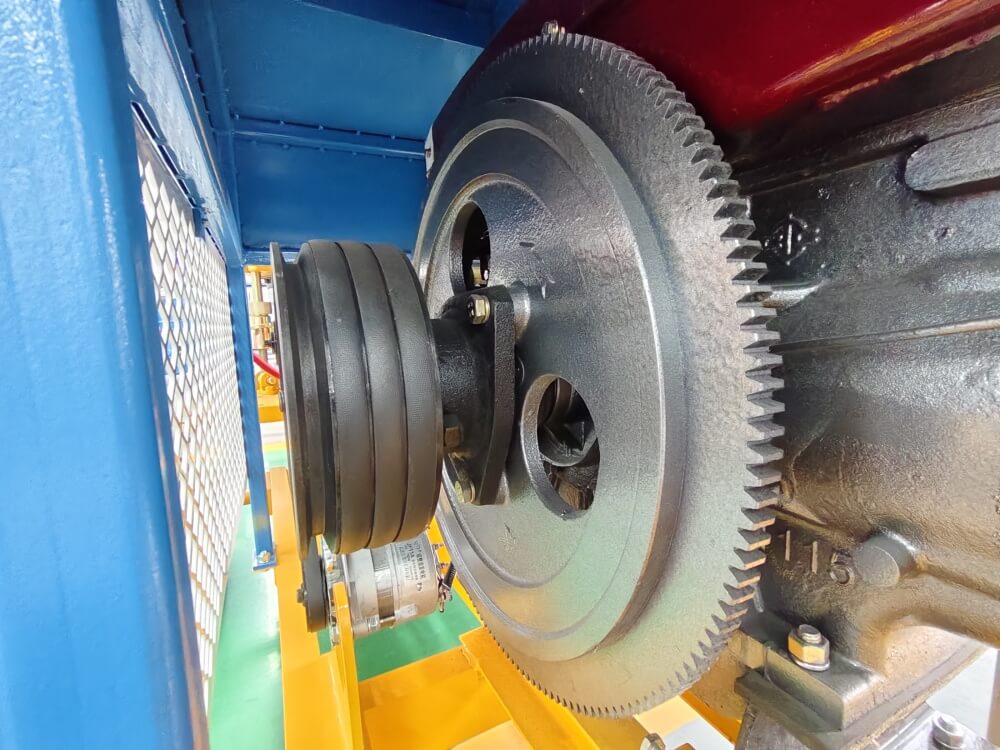

Auto clutch -

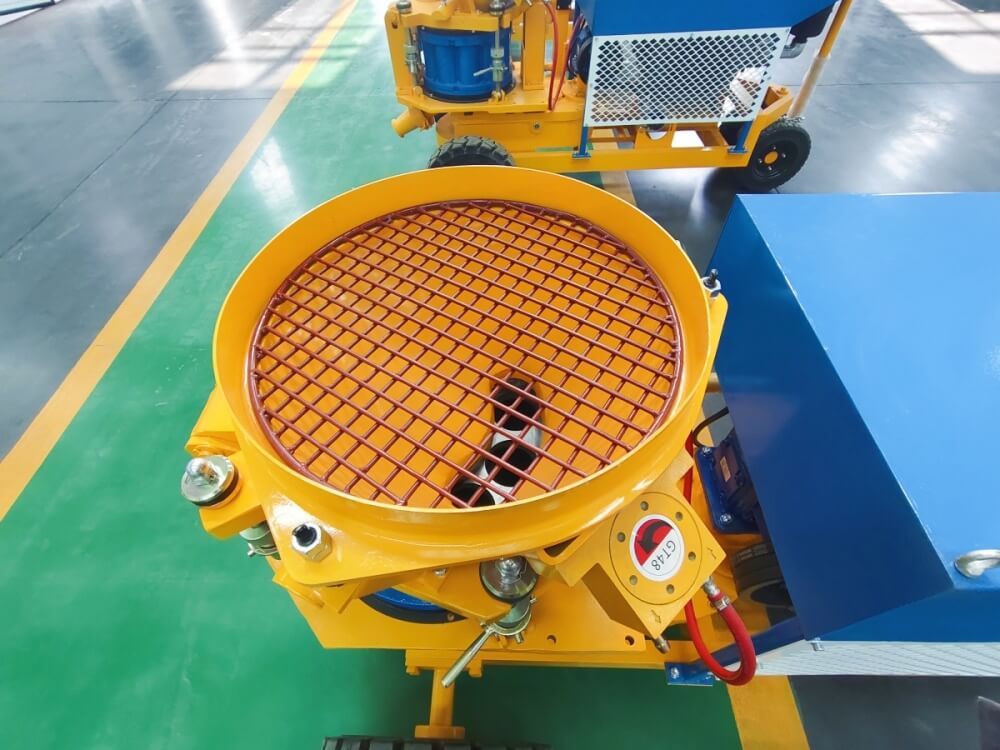

Hopper -

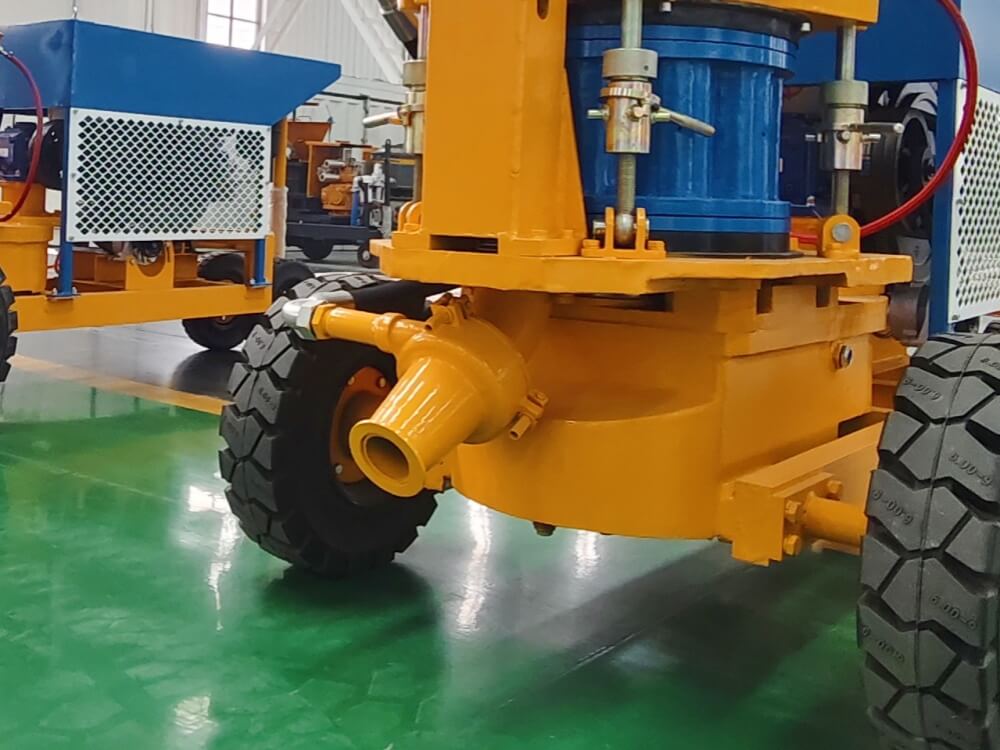

Outlet -

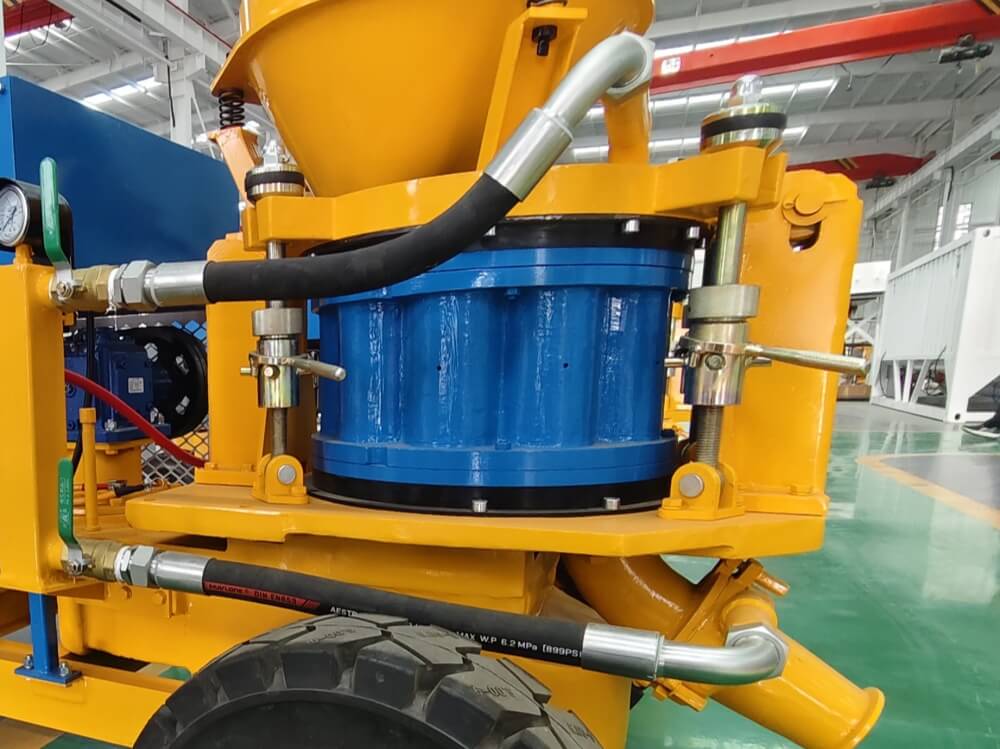

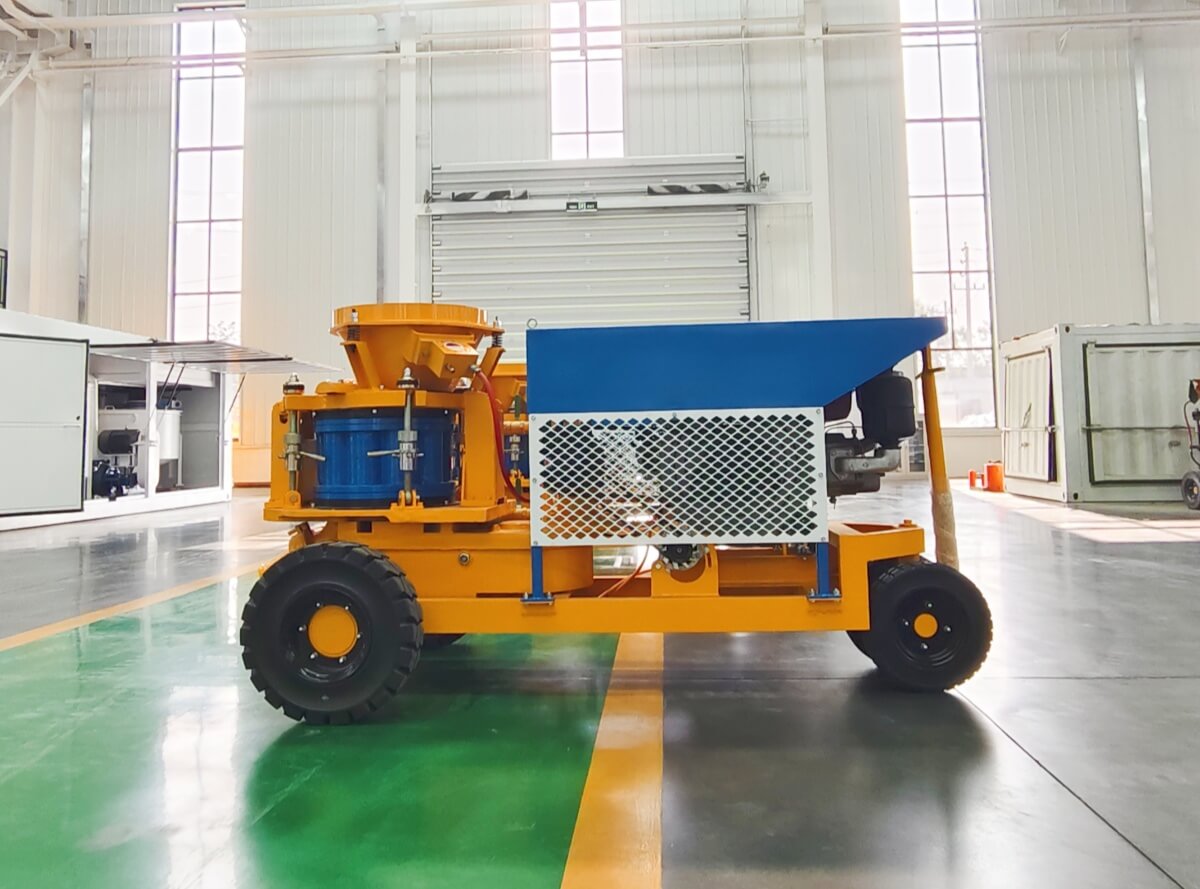

Rotor type shotcrete machine -

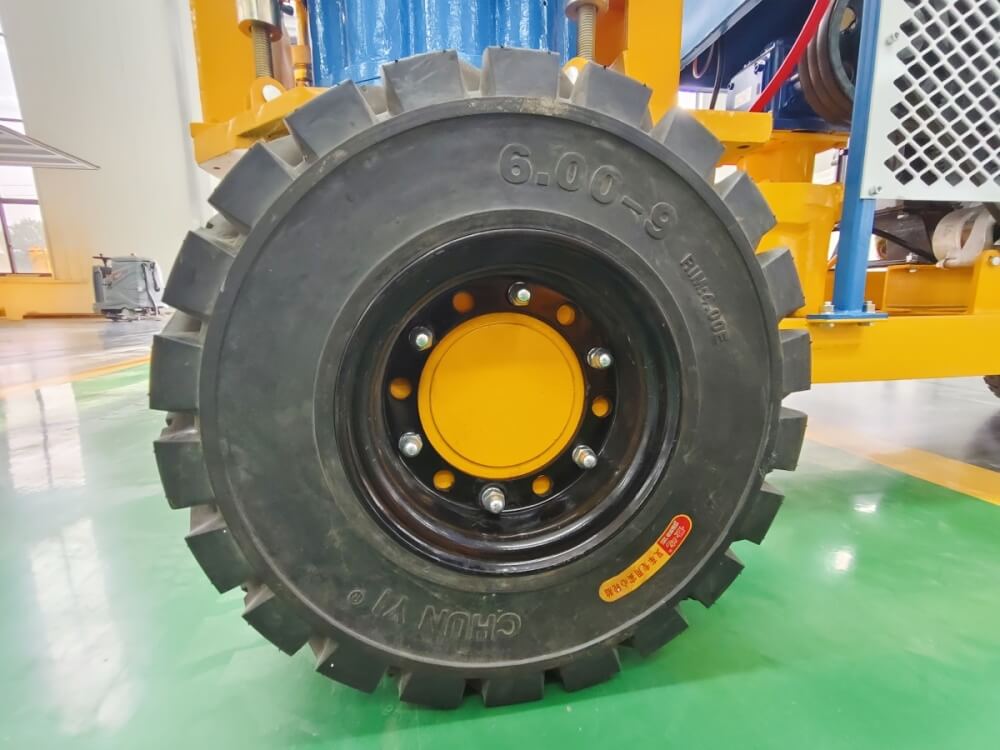

Shotcrete machine with solid wheel
Technical Parameters
Technical Data
Electric motor dry-mix shotcrete machine:
Pneumatic motor dry-mix shotcrete machine:
Diesel drive dry-mix shotcrete machine:
| Output Capacity | 9m3 /h |
| Max. Horizontal Conveying Distance | 200m |
| Suitable Mix Ratio(Cement/Sand) | ≤1:4~5 |
| Max. Aggregate Size | Dia.20 mm |
| Conveying Hose Inner Diameter | Dia.64 mm |
| Conveying Pressure | 0.2-0.4MPa(29-58PSI) |
| Air Consumption | 10~12m3/min(357-430CFM) |
| Material Charging Height | 1.1m |
| Rotor Speed | 11r/min |
| Electric Motor | 7.5kW,Y132M-4,IP55 |
| Vibrator Electric Motor | 0.15kW,XVM-A1.5-2 |
| Available Voltage | 220V,380V, 440V,660V 50Hz/60Hz |
| Overall Dimension(length×width×height) | 1.65×0.9×1.25m |
| Net Weight | 900kg |
Pneumatic motor dry-mix shotcrete machine:
| Output Capacity | 5-9m3 /h |
| Max. Horizontal Conveying Distance | 200m |
| Suitable Mix Ratio(Cement/Sand) | ≤1:4~5 |
| Max. Aggregate Size | Dia.20 mm |
| Conveying Hose Inner Diameter | Dia.64 mm |
| Conveying Pressure | 0.2-0.4MPa(29-58PSI) |
| Air Consumption for conveying material | 10~12m3/min(357-430CFM) |
| Material Charging Height | 1.1m |
| Rotor Speed | 6-11r/min |
| Air Motor | TMH8A |
| Air pressure for air motor | 0.5Mpa |
| Air consumption for air motor | 10 m3 /min/357CFM |
| Vibrator | OR100,oil |
| Overall Dimension(length×width×height) | 1.65×0.9×1.25m |
| Net Weight | 900kg |
Diesel drive dry-mix shotcrete machine:
| Output Capacity | 6-9m3 /h |
| Max. Horizontal Conveying Distance | 200m |
| Suitable Mix Ratio(Cement/Sand) | ≤1:4~5 |
| Max. Aggregate Size | Dia.20 mm |
| Conveying Hose Inner Diameter | Dia.64 mm |
| Conveying Pressure | 0.2-0.4MPa(29-58PSI) |
| Air Consumption | 10~12m3/min(357-430CFM) |
| Material Charging Height | 1.1m |
| Rotor Speed | 7.5-11r/min |
| Diesel Engine | 20hp, 2200rpm, Radiator Cooling |
| Diesel Engine Starting | Electric start |
| Clutch Type in Diesel Engine | Automatic Clutch |
| Air Vibrator | OR100,Oli |
| Overall Dimension(length×width×height) | 2.66×1.11×1.50m |
| Net Weight | 950kg |
