Ultra Thin Hydraulic Jack / Cylinder
Leadcrete Equipment is a high quality ultra-thin hydraulic jack cylinder supplier and manufacturer from China, if you want to buy a 50ton-200ton ultra-thin hydraulic jack cylinder, you can contact us freely.
RSM-1530
150Ton
30mm
140mm
170mm
216x191mm
Share With:
Introduction
Product Details
Technical data
Cases
Inquiry
Description
The plunger of ultra-thin hydraulic jack cylinder is welding copper, the facial of plunger rod is plated hard chrome, the kinds of hydraulic jack is never falling off, abrasion resistance is very strong, high temperature paint, its facial is corrosion resistant and strike. Scraper seal of hydraulic cylinder can extend its life. Single acting design, spring return. We can supply you with the best price super thin type hydraulic cylinder jack 5 tons to 250tons.

high quality small hydraulic lifting jacks

Single acting low height ultra-thin hydraulic lifting jack raises the object to its maximum extent with its own small height. Compact and low-profile for use in confined spaces.

mini hydraulic cylinder with manual oil pump

ultra thin mechanical hydraulic cylinder

Contact us for ultra-thin hydraulic jack cylinder price:

single acting ultra thin hydraulic cylinder

Before we send the hydraulic jack cylinder quotation, please let me know the following question:
1. What is the tonnage and stroke of the ultra-thin hydraulic jack do you need? We could customize as per your requirement.
2. Do you need electric pump for the jack? If you need, what's your local voltage?

ultra-thin micro telescopic hydraulic jack

ultra-thin hydraulic cylinder from china

ultra-thin single acting hydraulic lifting jack
Application
The thin hydraulic flat jack/cylinder/ram is a separate jack. It mainly adopts a thin, single-acting design, which is spring-returned and easy to use. The painted surface makes the corrosion resistance stronger. The installation hole design makes it easier to fix. Ultra low profile hydraulic jack is used in small working spaces and is used in tunnel jacking, bridges, heavy equipment installation, heavy equipment commissioning, bridge jacking, bridge support, shipbuilding hull jacking, propeller loading, and unloading, or main engine installation.

mini ultra high pressure ultra hydraulic lifting ram

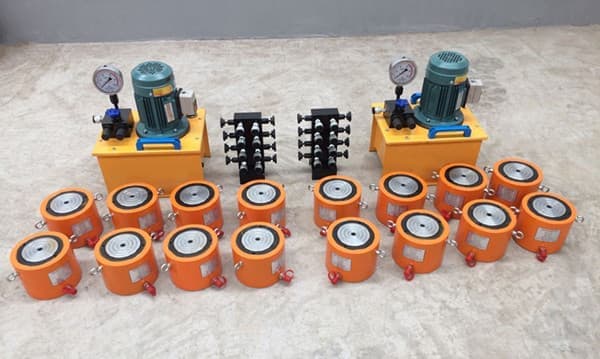

In terms of use, if several thin jacks are needed to lift at the same time, in addition to the correct placement of the jacks, multiple diverter valves should be used, and a load of each jack should be balanced, and attention should be paid to keep the lifting speed synchronized. It is also necessary to consider the situation that the ground may sag due to uneven weight, so as to prevent the danger of tilting the weight being lifted.

mini ultra high pressure ultra hydraulic lifting ram

When using the ultra low height hydraulic jack, first connect the quick connector of the manual hydraulic oil pump to the jack, then select the position, and tighten the oil drain screw on the oil pump to work. The direction is slightly loosened, the cylinder is unloaded, and the piston rod gradually descends. Otherwise, it will be dangerous to descend too fast.

mini lifting jacks small hydraulic cylinders

The ultra-thin hydraulic jack cylinder is a spring-return structure. After lifting, it can be quickly taken out. However, the connection hose cannot be used to pull the jack. Because the lifting stroke of the jack is small, the user must not exceed the rated stroke when using it to avoid damage.

super low-height hydraulic flat jack cylinder
Features
1. Light weight and compact design mini hydraulic jack is suitable for working in narrow space.
2. Baked enamel finished for increased corrosion resistance.
3. CR-400 coupler and dustcap included on all models
4. Hard chrome plated high quality steel plunger.
5. Single acting, load return mini hydraulic lifting ram.
6. Easy to carry,and the cylinder plane is provided with two holes for fixed use.
7. Seal scraper of hydraulic jack can extend its life.

ultra-thin hydraulic jack cylinder manufacturers

lightweight slim single acting hydraulic jack

small ultra low height hydraulic cylinder
Product Details
Ultra-thin hydraulic flat jack cylinder
Welding copper design on the piston
Surface finish is less than Ra0.4

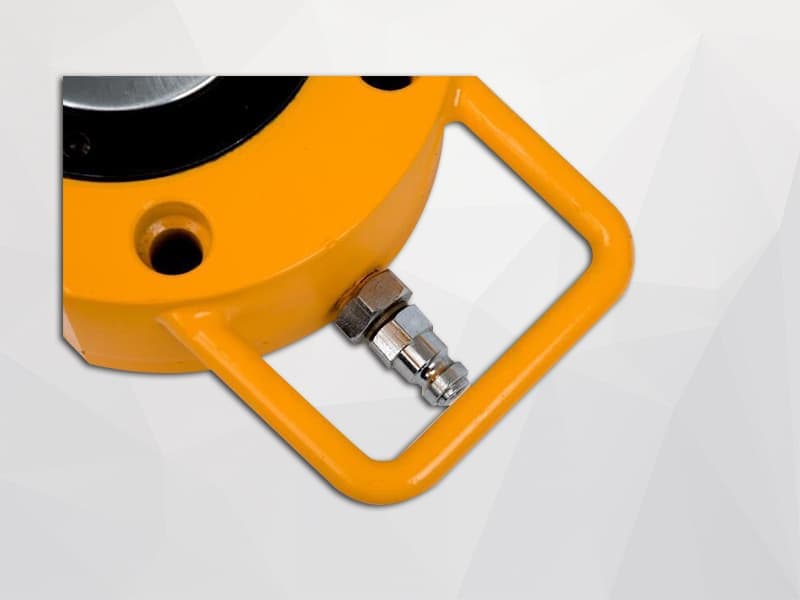

M 16*1.5mm and 3/8" quick coupler
70Mpa high pressure oil hose
Imported seal kits
Technical Parameters
Technical Data
 Model Tonnage Stroke Closed height Extend height Cylinder in diameter Outer diameter Weight
Ton mm mm mm mm mm KGS
RCS-101 10 38 88 126 45 70 4.1
RCS-201 20 44 99 143 63 80 5
RCS-302 30 62 118 180 80 95 6.8
RCS-502 50 60 122 182 100 127 10.9
RCS-1001 100 45 120 165 140 180 20
RCS-1002 100 57 141 198 140 180 22.7
RCS-1530 150 30 120 150 180 230 30
RCS-1545 150 45 140 185 180 230 35
RCS-2002 200 60 162 222 200 250 55

Model Tonnage Stroke Closed height Extend height Outer diameter Weight
Ton mm mm mm mm KGS
RSM-50 5 6 33 39 59x41 1
RSM-100 10 11 43 54 83×56 1.4
RSM-200 20 11 52 63 102×76 3.1
RSM-300 30 13 59 72 118×95 4.5
RSM-500 50 16 67 83 140×114 6.8
RSM-750 75 16 80 96 165×139 11.4
RSM-1000 100 16 86 102 178×152 14.5
RSM-1500 150 16 100 116 216×191 26.3
RSM-1530 150 30 140 170 216x191 35
