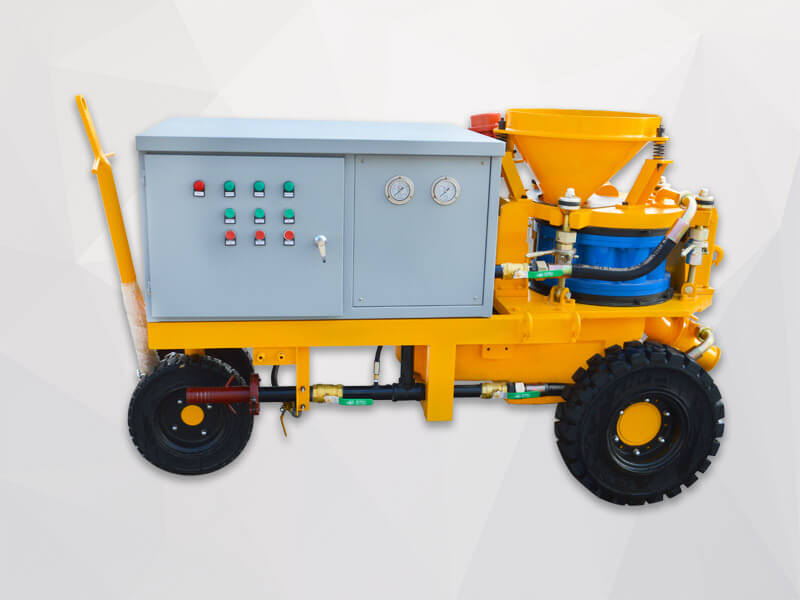

LSZ-10S Dry wet type concrete spraying machine
LSZ-10S Dry wet type concrete spraying machine for sale made in China has a series of models, a variety of choices, according to specific requirements, can be flexibly selected, saving more money for your project!
Rotary machine LSZ-10S
Thin-stream
TMH8A
8 kw
650rpm
12.3rpm
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description
LSZ-10S Dry wet type concrete spraying machine is a multifunctional rotor type shotcrete machine for wet and dry spraying and conveying.
LSZ-10S Dry wet type concrete spraying machine standard configuration:
1. Frequency convertor.
2. Automatic lubrication system.
3. Vibrating hopper.

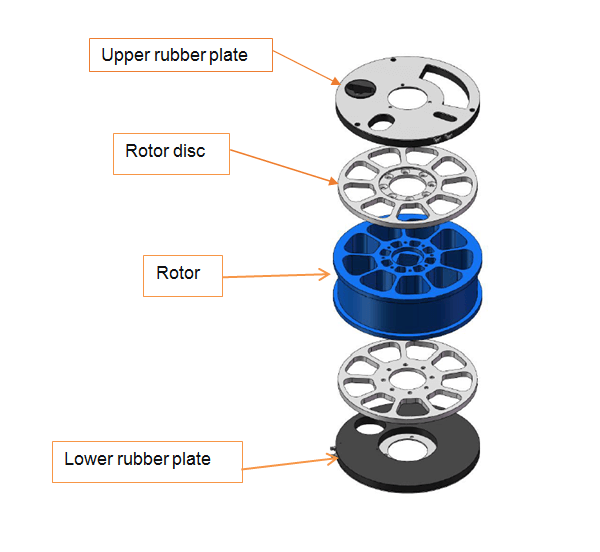

Rubber and steel sealing plates:
The materials which can be sprayed and conveyed are concrete, mortar, refractory, sand, pea gravel and crushed stone.
Compared with traditional concrete spraying machines, LSZ-10S Dry wet type concrete spraying machine has the advantages of being lighter and more compact. LSZ-10S Dry wet type concrete spraying machine is equipped with a rubber sealing plate lubrication system, which can effectively reduce the wear of the rubber plate, with longer service life and better sealing effect.
LSZ-10S Dry wet type concrete spraying machine standard configuration:
1. Frequency convertor.
2. Automatic lubrication system.
3. Vibrating hopper.
Rubber and steel sealing plates:
The materials which can be sprayed and conveyed are concrete, mortar, refractory, sand, pea gravel and crushed stone.
Compared with traditional concrete spraying machines, LSZ-10S Dry wet type concrete spraying machine has the advantages of being lighter and more compact. LSZ-10S Dry wet type concrete spraying machine is equipped with a rubber sealing plate lubrication system, which can effectively reduce the wear of the rubber plate, with longer service life and better sealing effect.
Application
LSZ-10S Dry wet type concrete spraying machine is the ideal equipment for concrete anchor shotcrete construction.
Concrete spraying machine is widely applicable in tunnels, underground engineering, coal mining, mine shaft, water conservancy, power engineering, slope protection, soil nail wall project and anchor shotcrete support construction.
Concrete spraying machine is widely applicable in tunnels, underground engineering, coal mining, mine shaft, water conservancy, power engineering, slope protection, soil nail wall project and anchor shotcrete support construction.
Features
1. Theoretical displacement can be adjusted.
2. Easily overcome obstacles of long or high conveying distances (dry mix).
3. Less dust development.
4. Reduced rebound.
5. LSZ-10S Dry wet type concrete spraying machine is ued for concrete repair, slope stabilization, excavation support or in mining.
6. Light and compact machine design concrete spraying machine.
Other related concrete spraying machine with spare parts:
2. Easily overcome obstacles of long or high conveying distances (dry mix).
3. Less dust development.
4. Reduced rebound.
5. LSZ-10S Dry wet type concrete spraying machine is ued for concrete repair, slope stabilization, excavation support or in mining.
6. Light and compact machine design concrete spraying machine.
Other related concrete spraying machine with spare parts:
Product Details
-
Air motor -
Cleaning tools -
Outlet -
Pneumatic lubrication pump -
Rotor -
Vibrating hopper with oscillator
Technical Parameters
Technical Data
| Name | Data | |
| Machine type | LSZ-10S Dry wet type concrete spraying machine | |
| Process | Thin-stream | |
| Air motor type | TMH8A | |
| Air motor power | 8 kw | |
| Air consumption | Machine | 10 m³/min |
| Air motor | 9 m³/min | |
| Air pressure | Machine | 0.2Mpa |
| Air Motor | 0.63Mpa | |
| Air motor speed | 650rpm | |
| Rotor speed | 12.3rpm | |
| Rotor size in liters | 14.5 | |
| Theoretical output in m3/h ① | 10 | |
| Recommended hose sizes(mm) | D64 | |
| Max. aggregate size（mm） | 20 | |
| Max. conveying distance in m horizontal/vertical | Dry: 300/100 | |
| Wet: 40/15 | ||
| Dimensions in mm | Length | 1940 |
| Height | 1375 | |
| Width | 856 | |
| Weight in kg | 1040 Kg | |
| ① Based on a theoretical filling level of 100%. Prior to use or processing, always consult the current product data sheet of the products used | ||
The main structure of LSZ-10S Dry wet type concrete spraying machine:
| 1 | Modify clamp |
| 2 | Rotor |
| 3 | Upper rubber plate |
| 4 | Hopper seat |
| 5 | Lower rubber plate |
| 6 | Clamp |
.jpg)
