LSZ3000 Wet Shotcrete Machine for Sale
LSZ3000 shotcrete machine for sale is a universal concrete spraying machine for the processing of wet or dry mix. LSZ3000 shotcrete machine for sale due to its full pneumatic driven unit. for the required anti-explosion applications, such as coal mining, tunnel and underground engineering. This unit is specially equipped for LSZ3000 shotcrete machine, which is powerful and versatile.
5m3/h
35m(wet)/200m(dry)
15mm
8-15cm
51/64mm
0.3-0.6MPa(43-86PSI)
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data

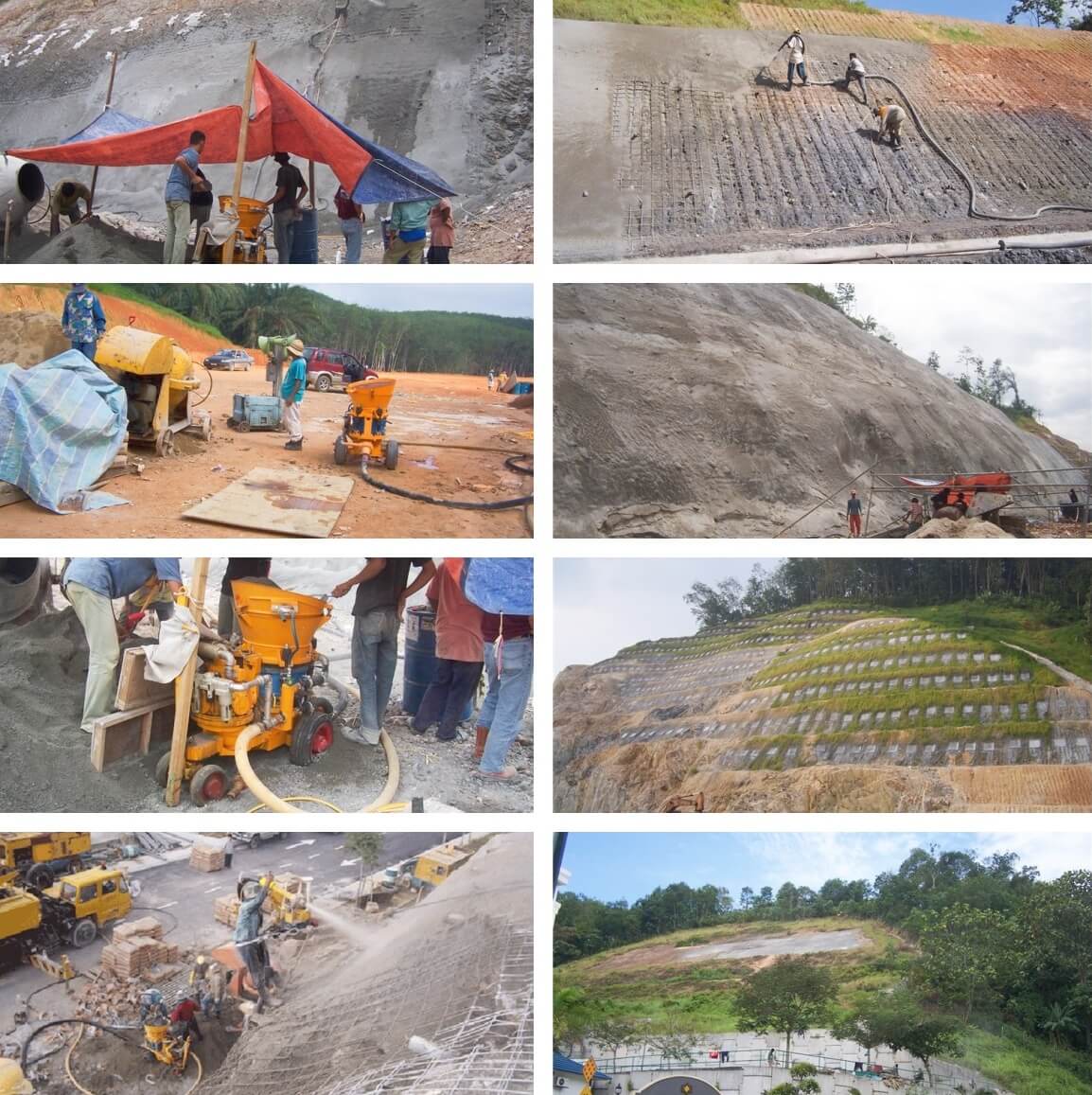

Cases
Inquiry
Description
LSZ3000 shotcrete machine for sale is a universal concrete spraying machine for the processing of wet or dry mix. LSZ3000 shotcrete machine for sale due to its full pneumatic driven unit. for the required anti-explosion applications, such as coal mining, tunnel and underground engineering. This unit is specially equipped for LSZ3000 shotcrete machine, which is powerful and versatile.
LSZ3000 shotcrete machine for sale is suitable either for manual spraying or by means of a robotic arm.
Basic: Electric drive can be combined with tyre chassis.
Extended(optional). Air motor drive or diesel drive combined with Skid or Rail-wheel.

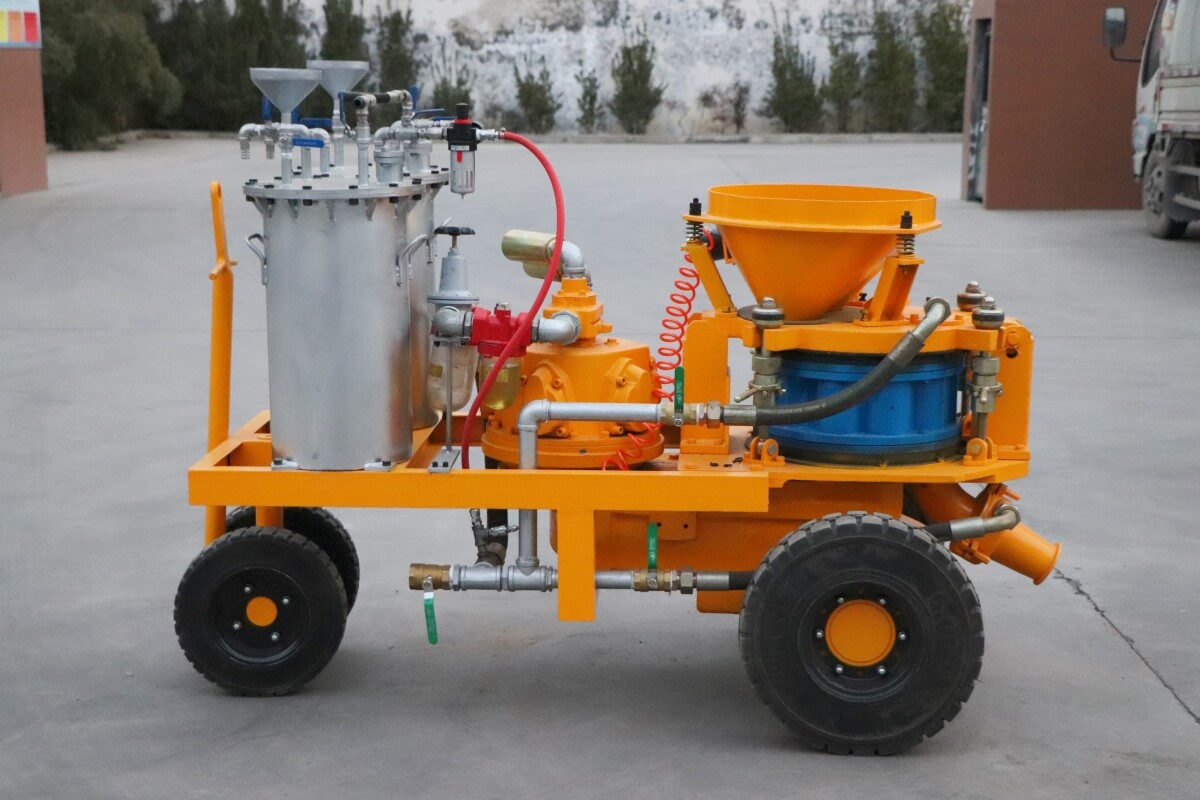

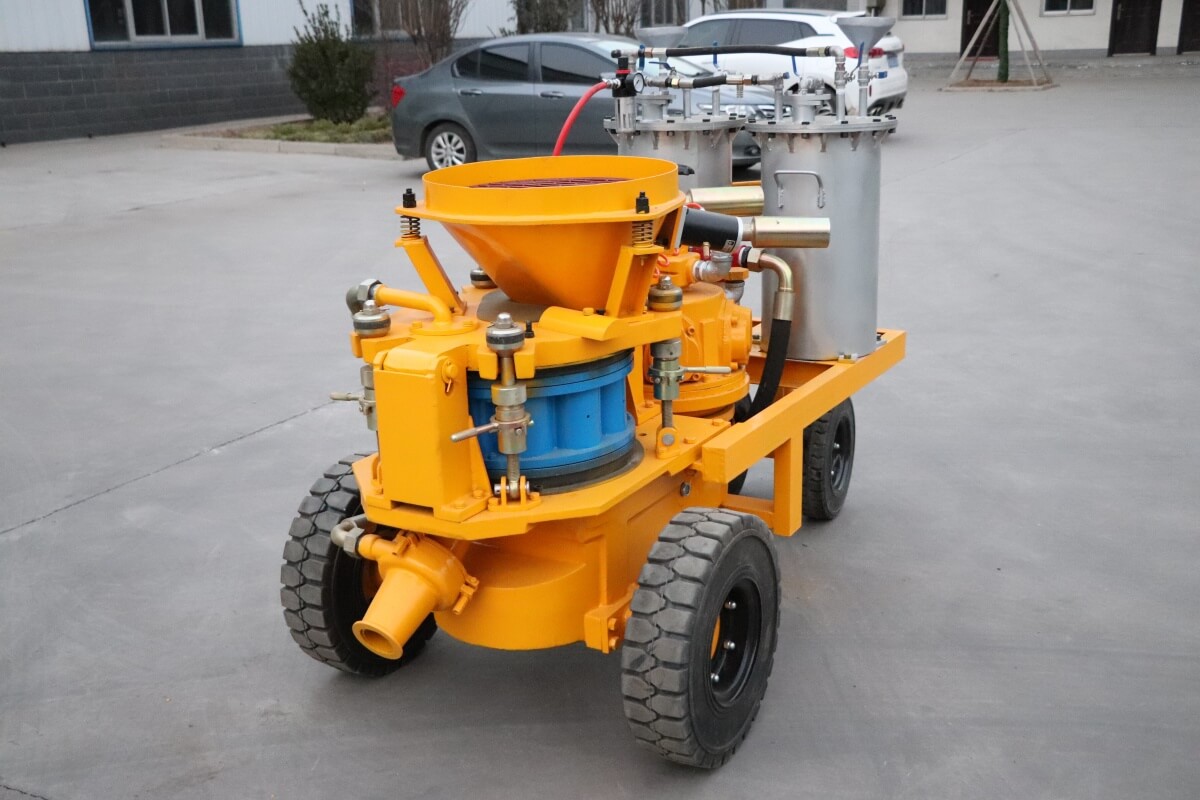

Pneumatic motor shotcrete machine:

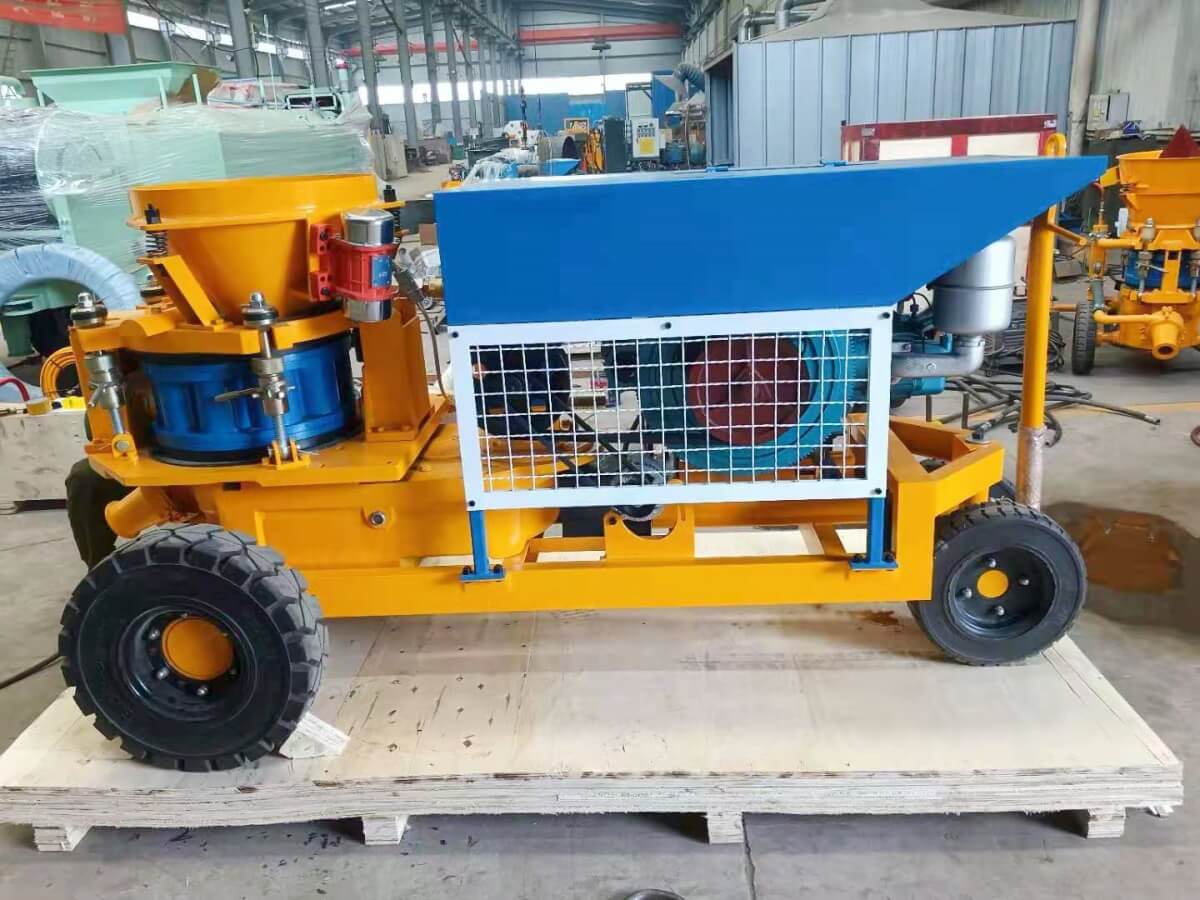

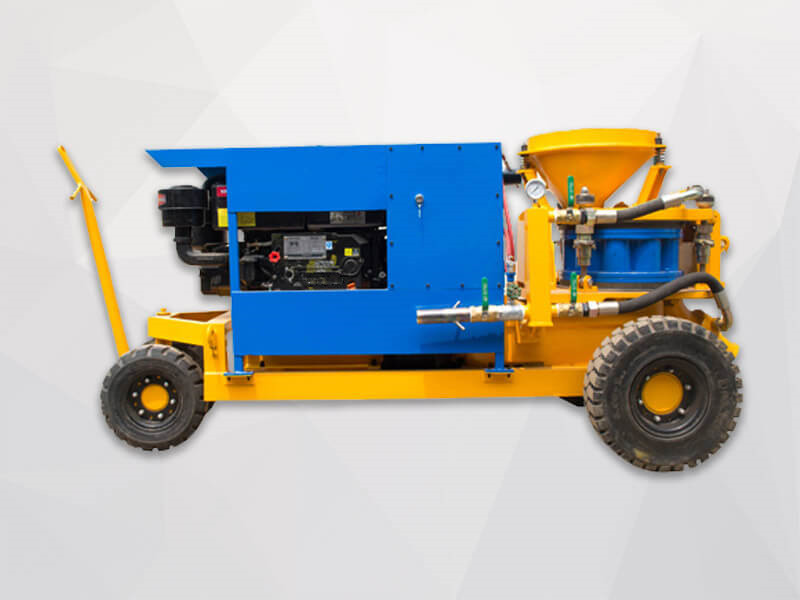

Diesel driven shotcrete machine:

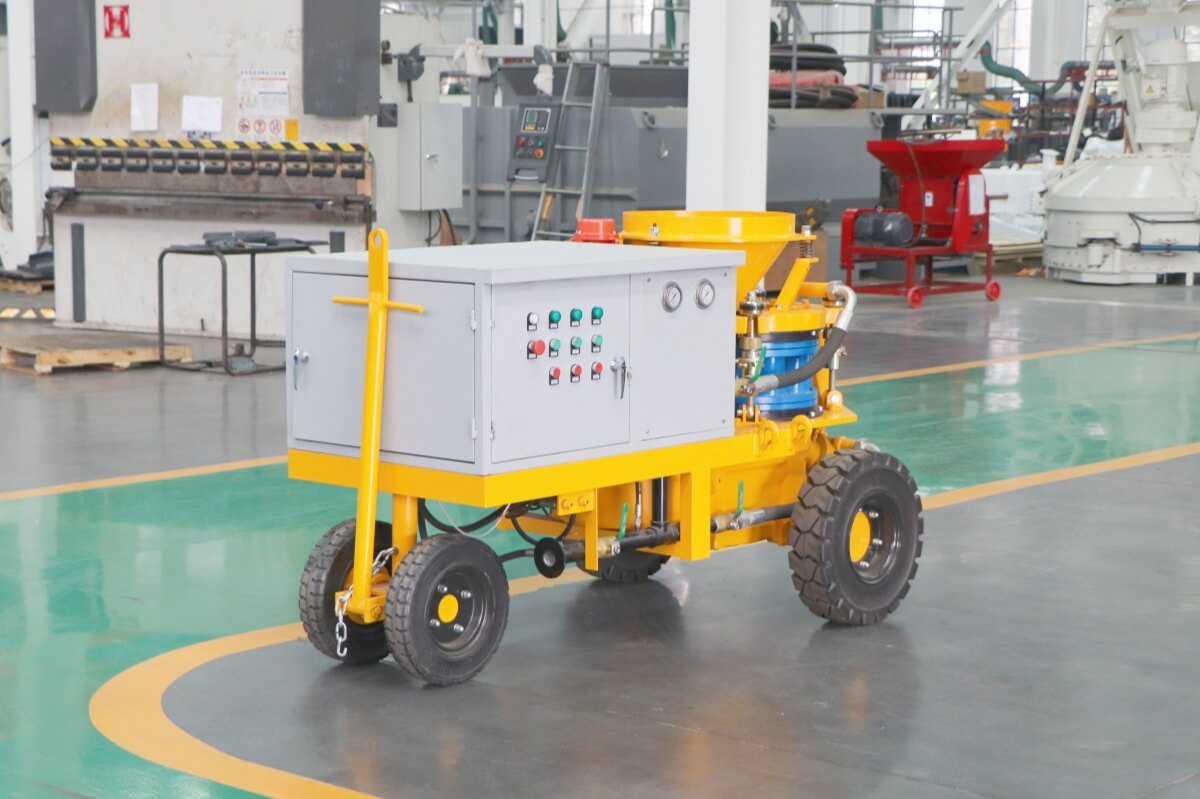

Electric motor shotcrete machine:
LSZ3000 shotcrete machine for sale is suitable either for manual spraying or by means of a robotic arm.
Basic: Electric drive can be combined with tyre chassis.
Extended(optional). Air motor drive or diesel drive combined with Skid or Rail-wheel.

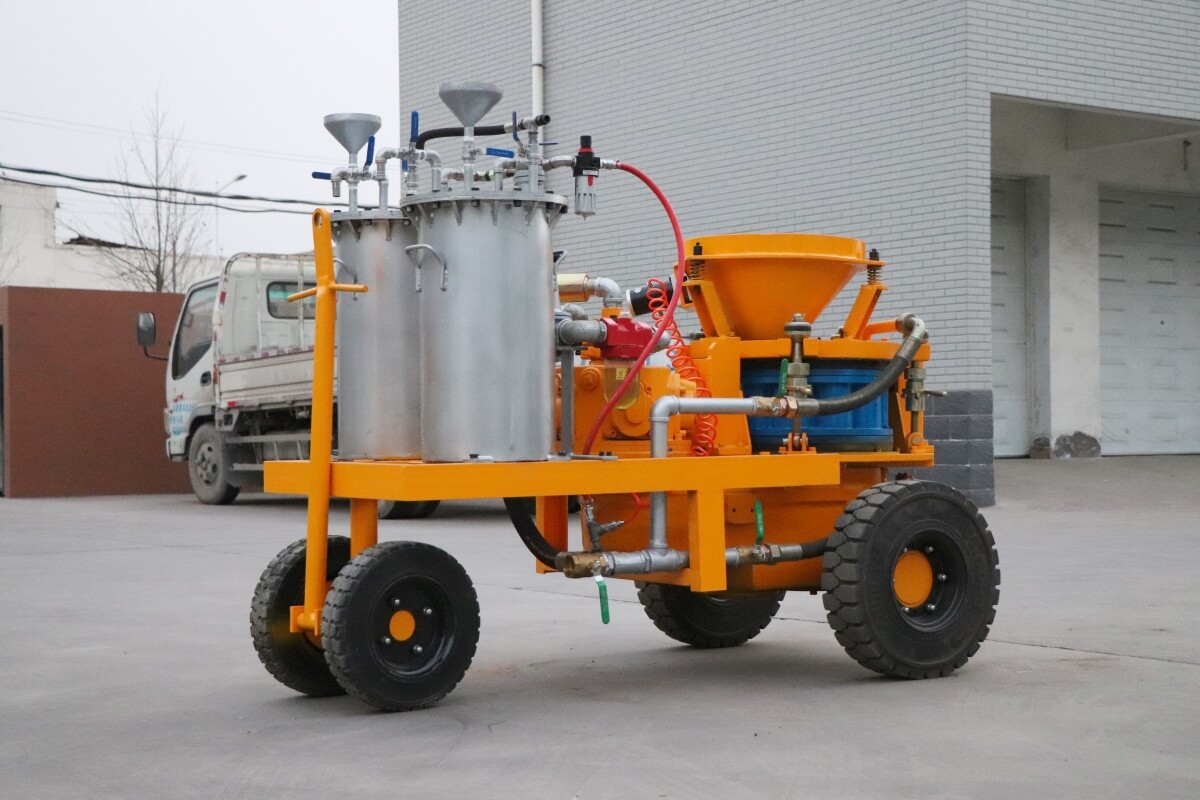

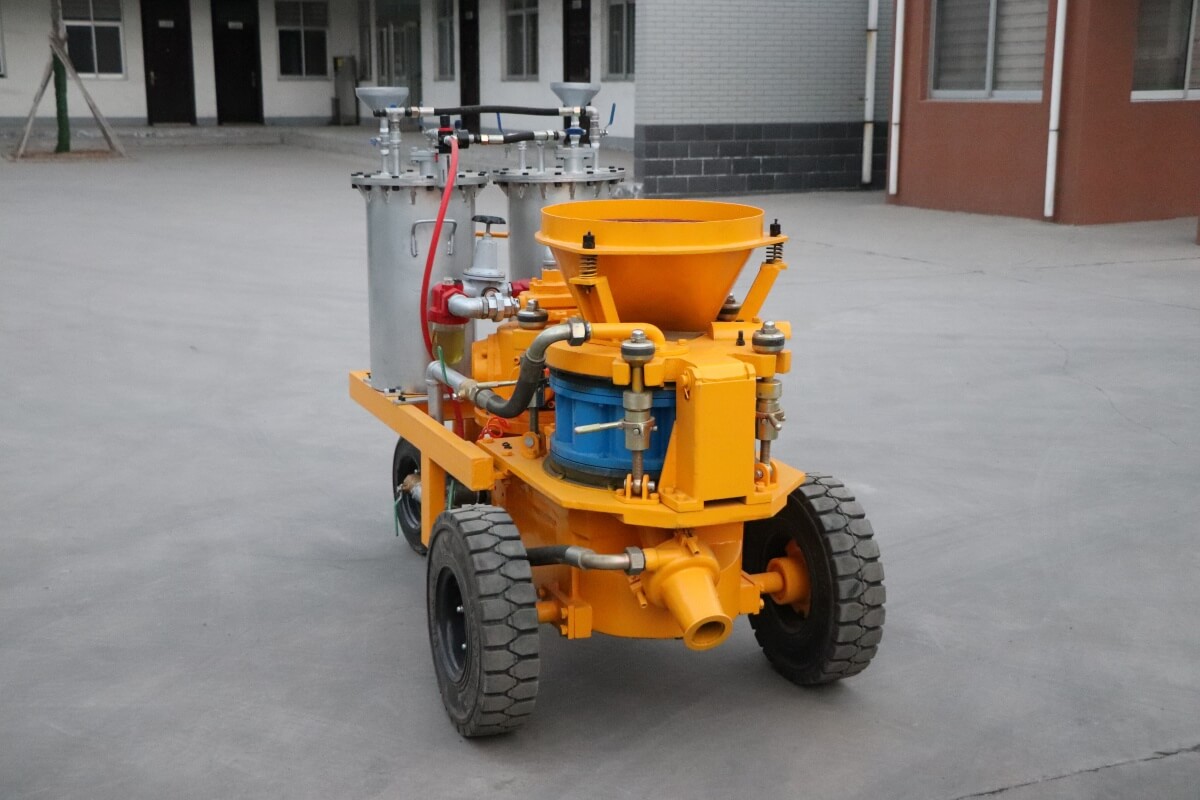

Pneumatic motor shotcrete machine:

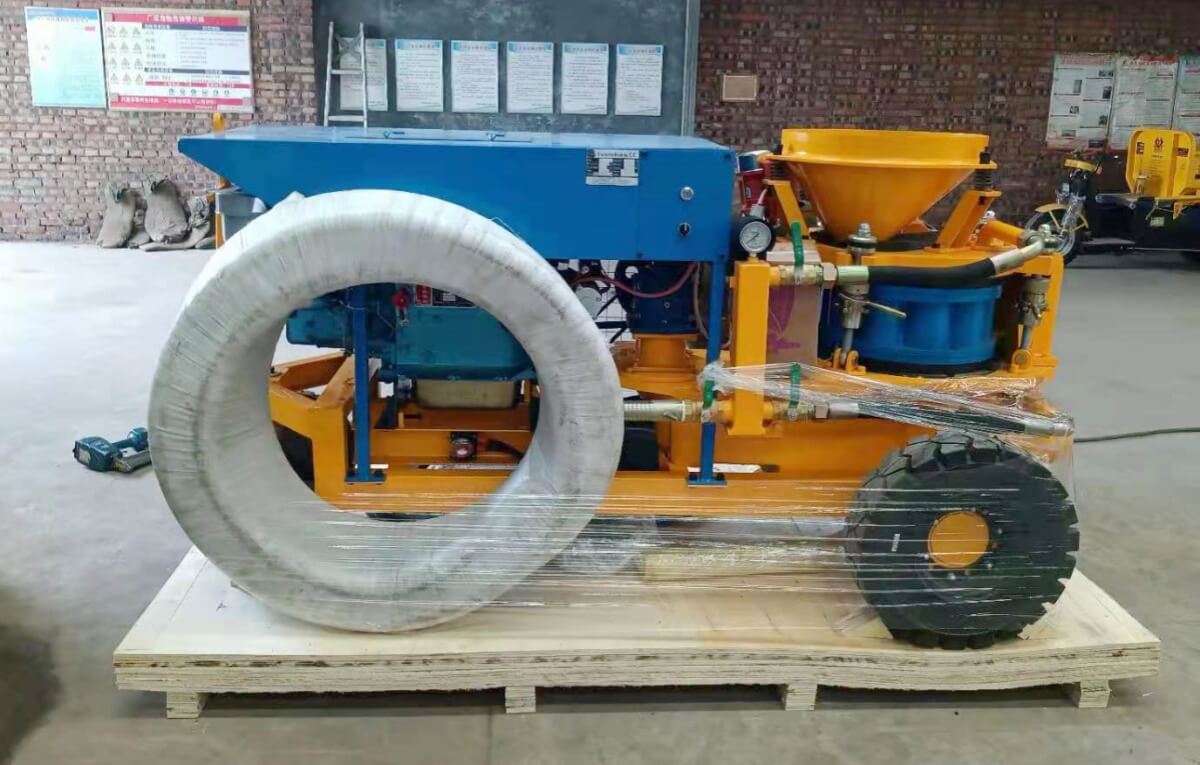

Diesel driven shotcrete machine:
Electric motor shotcrete machine:
Application
LSZ3000 shotcrete machine for sale mines, tunnels, culverts, subways, hydropower projects, underground projects, and shotcrete mine roadways in coal mines. Simple operation, stable performance and long life.
Features
1. The thin flow wet-mix concrete shotcrete.
2. LSZ3000 shotcrete machine for sale with very low equipment cost, to get wet-mix concrete shotcrete.
3. Within the 30 meters conveying distance, LSZ3000 shotcrete machine is a perfect wet-mix concrete shotcrete machine.
4. Shotcrete material flow is even and continuous.
5. Both dry-mix and wet-mix concrete spraying.
2. LSZ3000 shotcrete machine for sale with very low equipment cost, to get wet-mix concrete shotcrete.
3. Within the 30 meters conveying distance, LSZ3000 shotcrete machine is a perfect wet-mix concrete shotcrete machine.
4. Shotcrete material flow is even and continuous.
5. Both dry-mix and wet-mix concrete spraying.
Product Details
-
Electric control box -

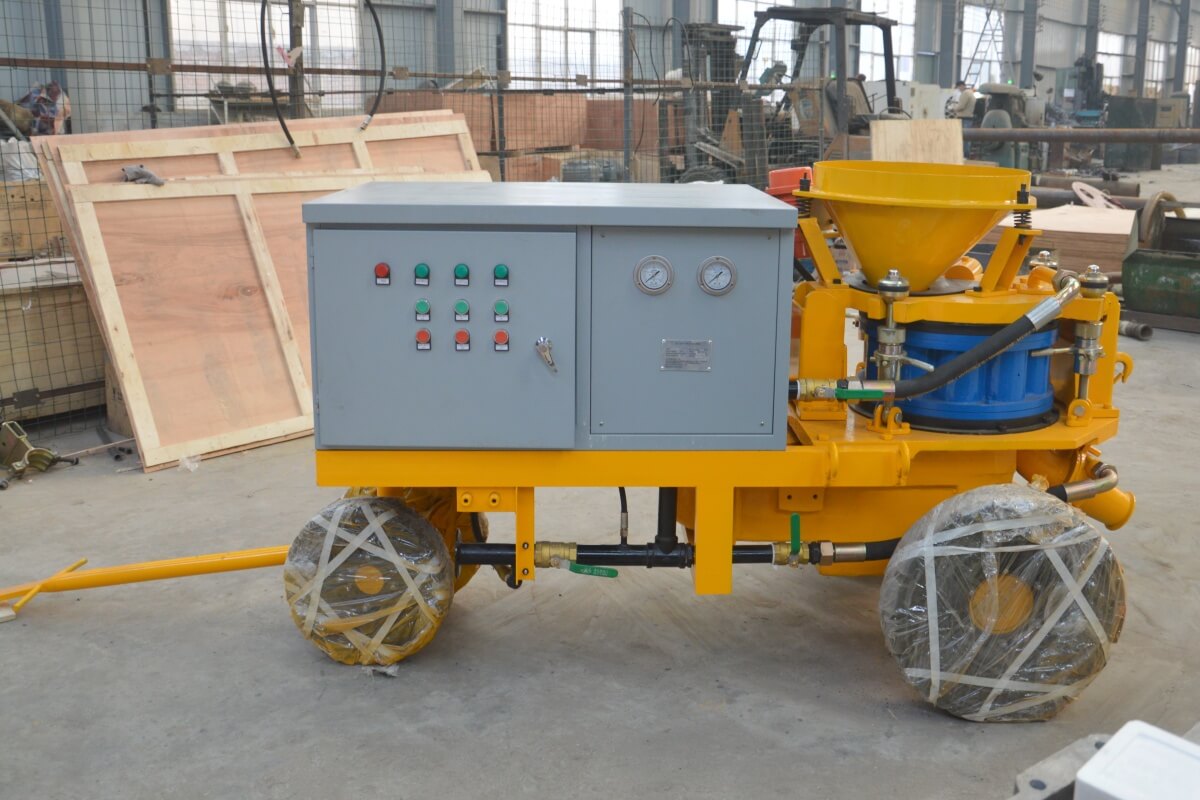

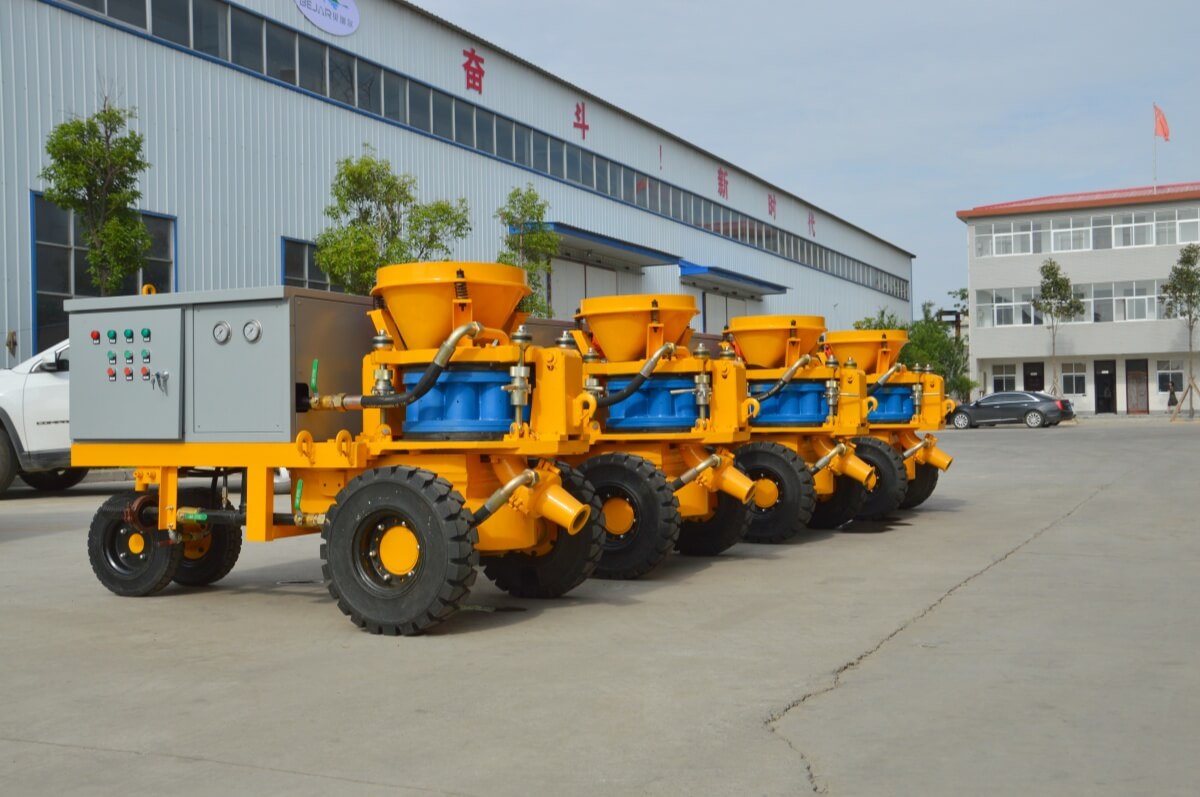

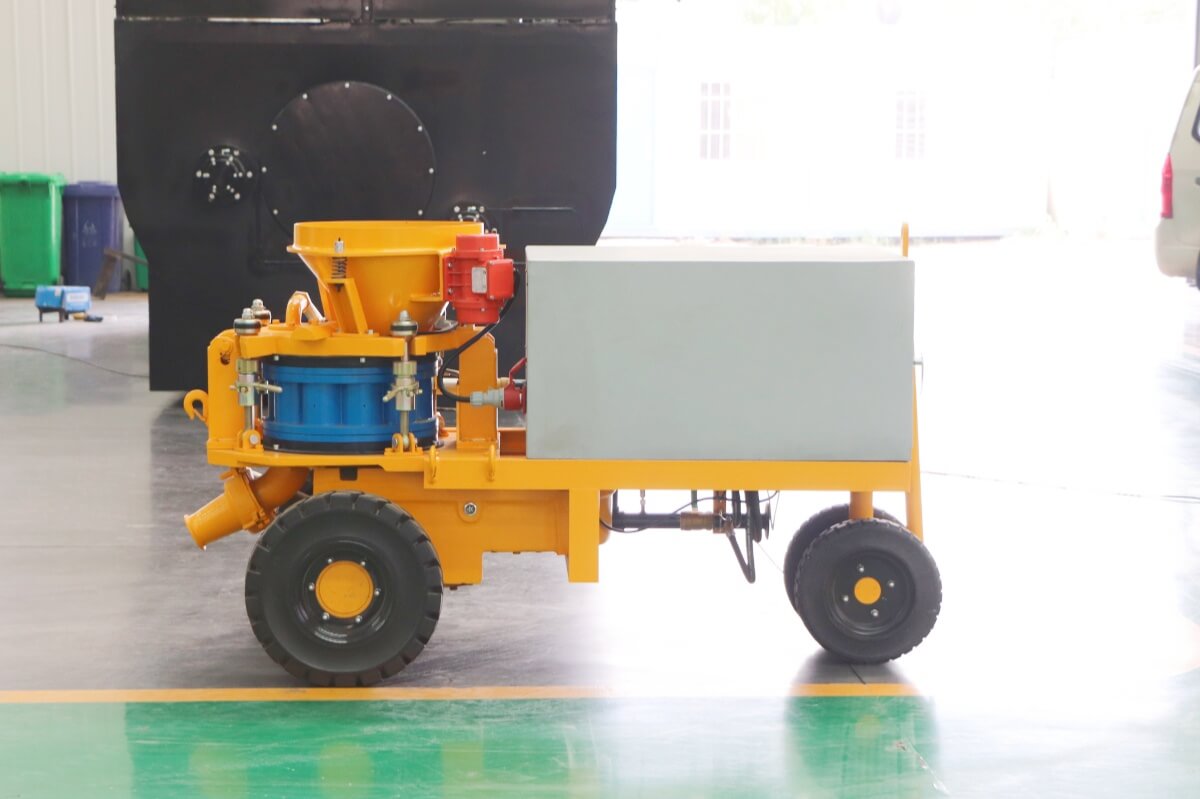

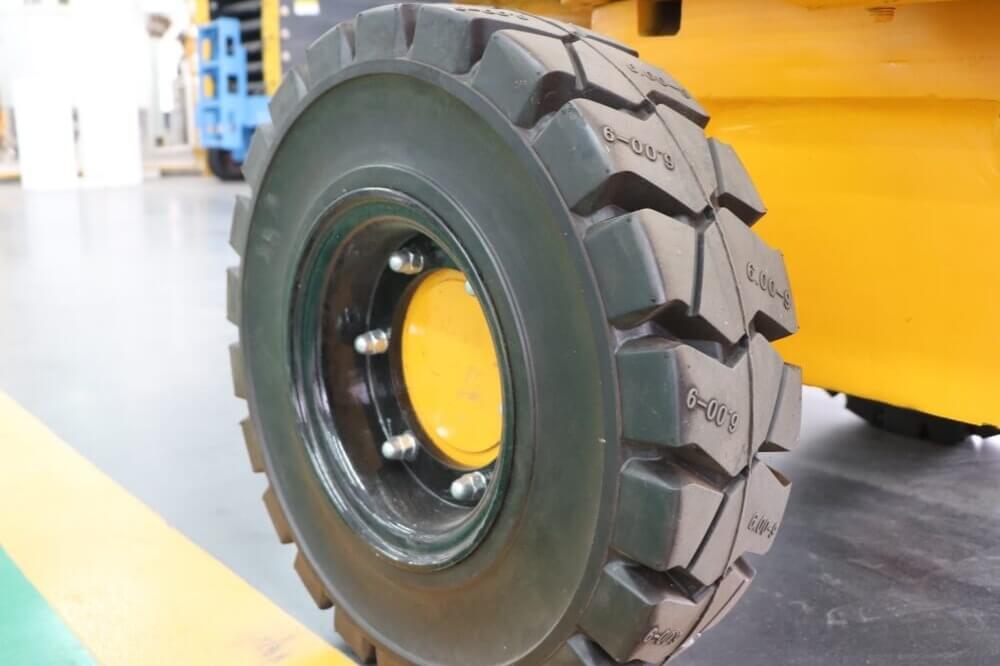

Wet shotcrete machine with solid wheels -

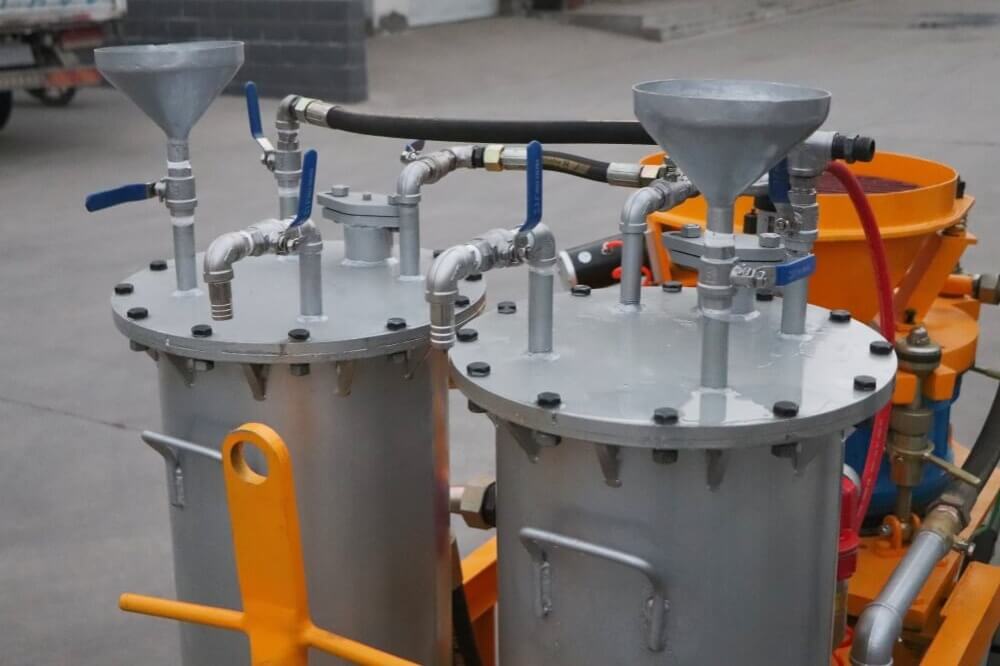

Dosing pump -

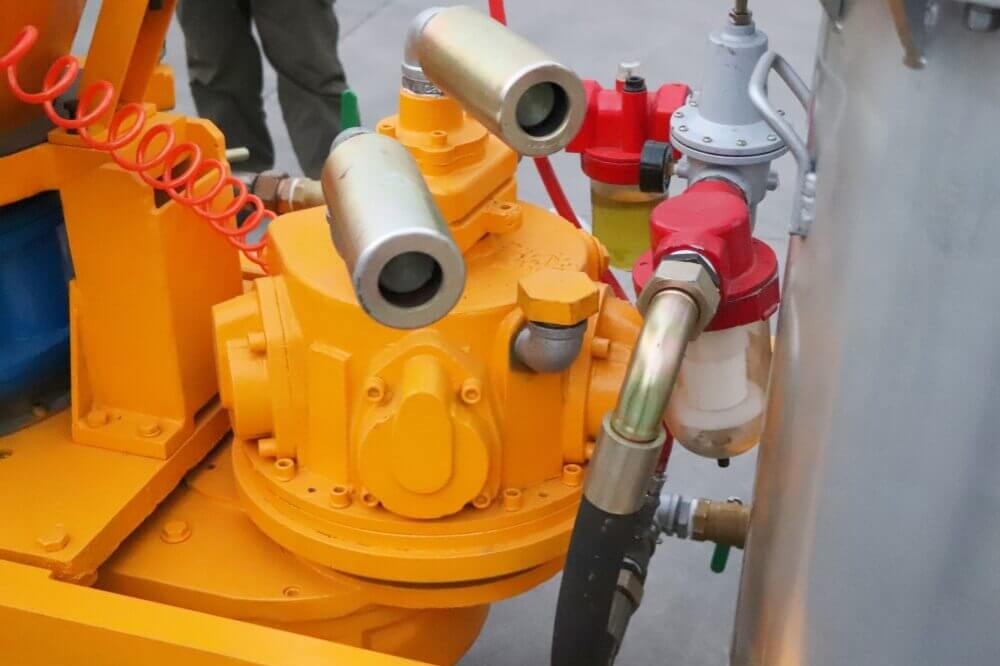

Air motor -

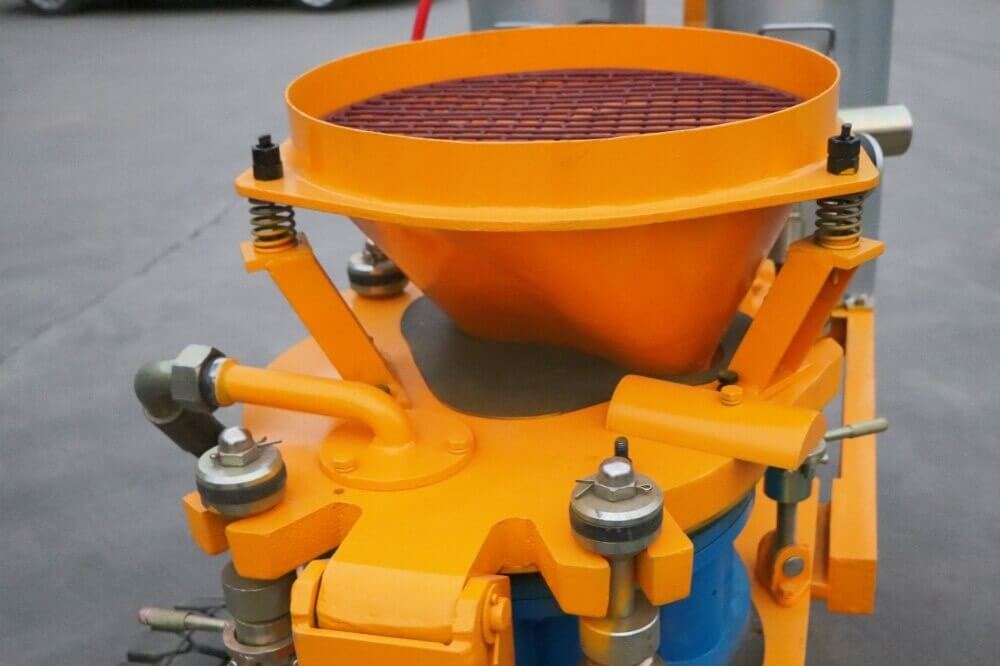

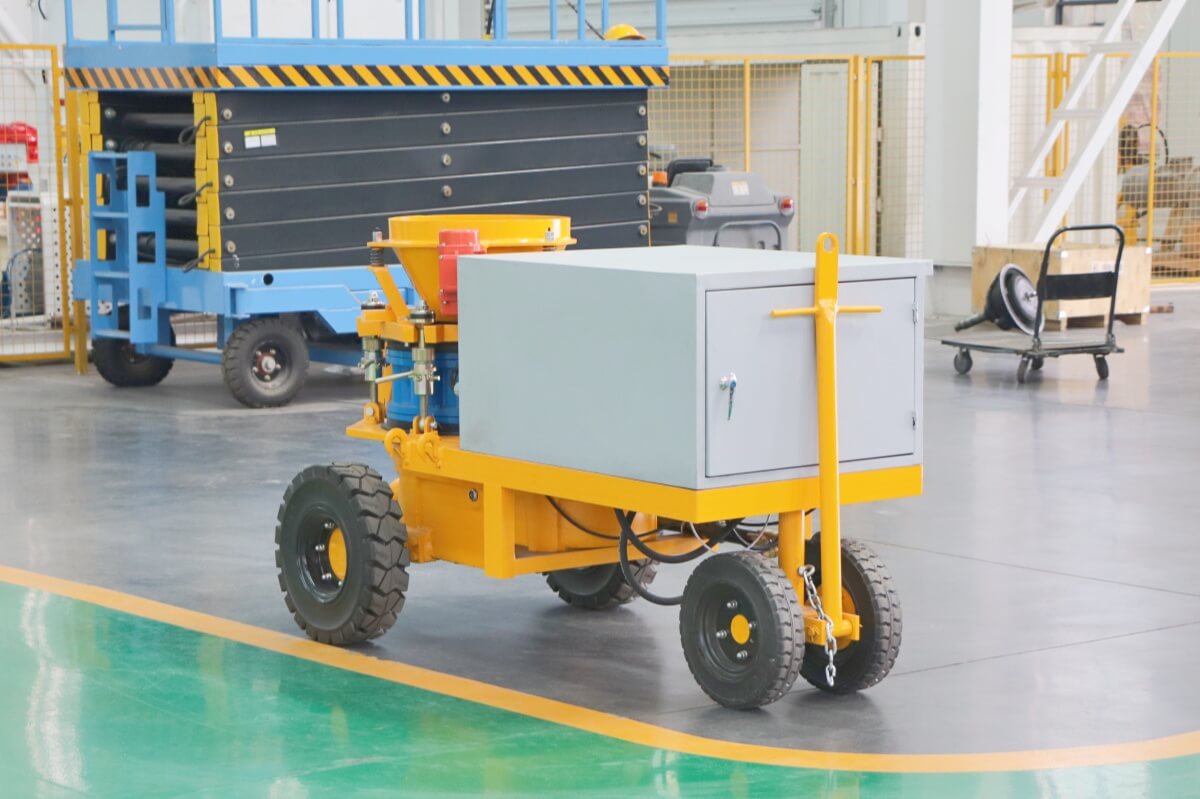

Wet mix shotcrete machine details -

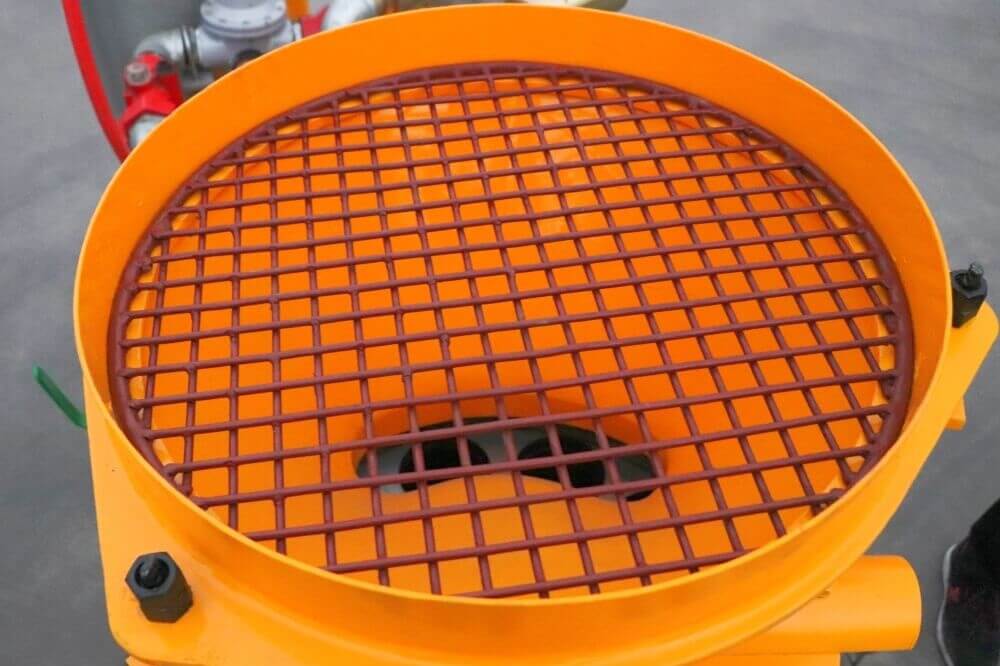

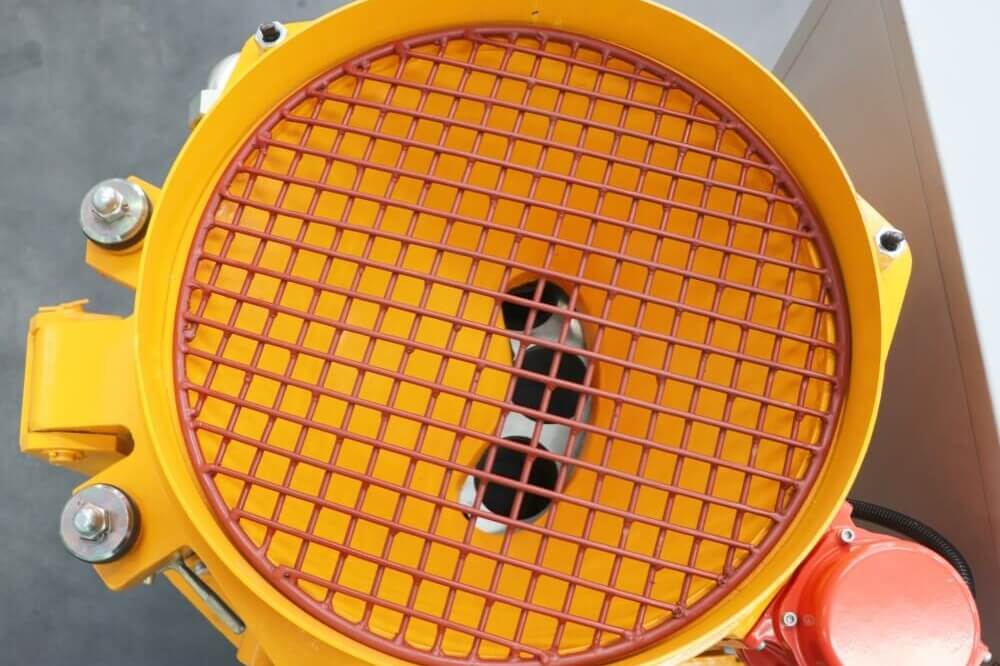

High hopper
Technical Parameters
Technical Data
Electric drive shotcrete machine:
Air motor drive shotcrete machine:
Diesel drive shotcrete machine:
| Rated Output | 5m3/h Shotcrete Machine For Sale |
| Max. Horizontal Conveying Distance | 35m(wet)/200m(dry) |
| Max Aggregate Size | 15mm |
| Concrete Slump | 8-15cm |
| Conveying Hose Inner Diameter | 51/64mm |
| Operating air Pressure | 0.3-0.6mpa(43-86PSI) |
| Air Consumption | 10~12m3/min(357-430CFM) |
| Main Motor Power | 7.5kw(10hp) |
| Dosing Pump | TH15 |
| Dosing Pump Rated Pressure | 0.8MPa(116PSI) |
| Dosing Pump Outout | 28-130L/h |
| Voltage | 220V,380V,440V,660V,50Hz/60Hz |
| Materiai Charging Height | 1.17m |
| Rotor Speed | 11r/min |
| Overal Dimension(L×W ×H) | 2.05×0.95×1.18m |
| Net Weight | 1200kg |
Air motor drive shotcrete machine:
| Rated output | 5m3/h Shotcrete Machine For Sale |
| Max. horizontal conveying distance | 35m(wet)/200m(dry) |
| Max aggregate size | Dia.15mm |
| Concrete slump | 8~15cm |
| Conveying hose | Dia.50/65mm |
| Operating air pressure | 0.2-0.6MPa |
| Air consumption | 22m3/min(12+10) |
| Loading height | 1.17m |
| Rotor Rev. | 11r/min |
| Rebound | ≤10 |
| Air motor power | 8kw |
| Dosing pump model | BHA530 Dosing pump |
| Dosing pump rated pressure | 0.5mpa |
| Dosng pump out put | 0-100L/h |
| Overall dimension( L×W×H) | 1950×1050×1360mm1950×1050×1360mm |
| weight | 1200Kg |
Diesel drive shotcrete machine:
| Output Capacity | 3-5m3/h Shotcrete Machine For Sale |
| Max. Horizontal Conveying | 35m(wet)/200m(dry) |
| Suitable Mix Ratio(Cement/Sand) | ≤1:4~5 |
| Max. Aggregate Size | 15mm |
| Conveying Hose Inner Diameter | Dia.64 mm |
| Conveying Pressure | 0.2-0.4mpa(29-58ps) |
| Air Consumption | 10~12m3/min(357-430CfM) |
| Materal Charging Height | 1.1m |
| Rotor Speed | 7.5-1r/min |
| Diese Engine | 22hp, 2200rpm |
| Diesel Engine Starting | Electric start |
| Clutch Type in Dlesel Engine | Automatic Clutch |
| Airvibator | OR100,Oli |
| Overal Dimension(ength x width x heigit) | 2.55×1.05×125m |
| Dosing pump mode | BHA530 Dosing tank |
| Net weght | 1300kg |
