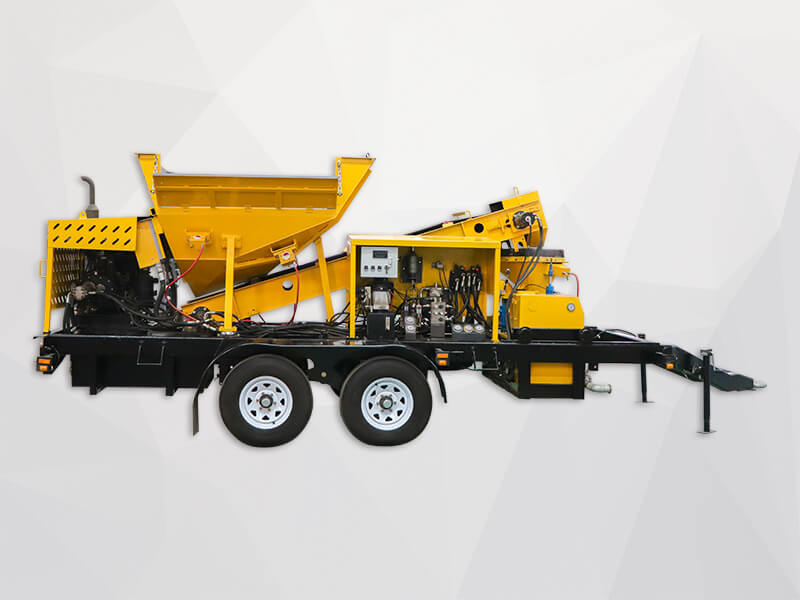

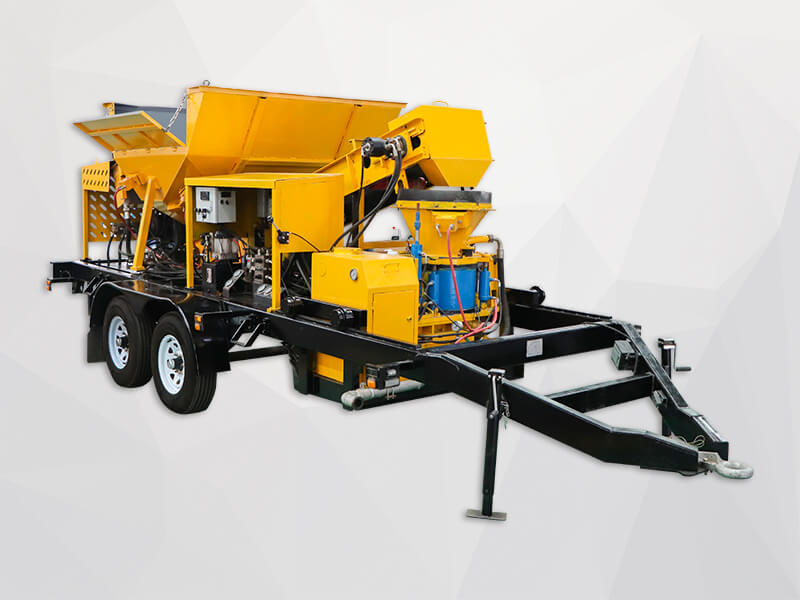

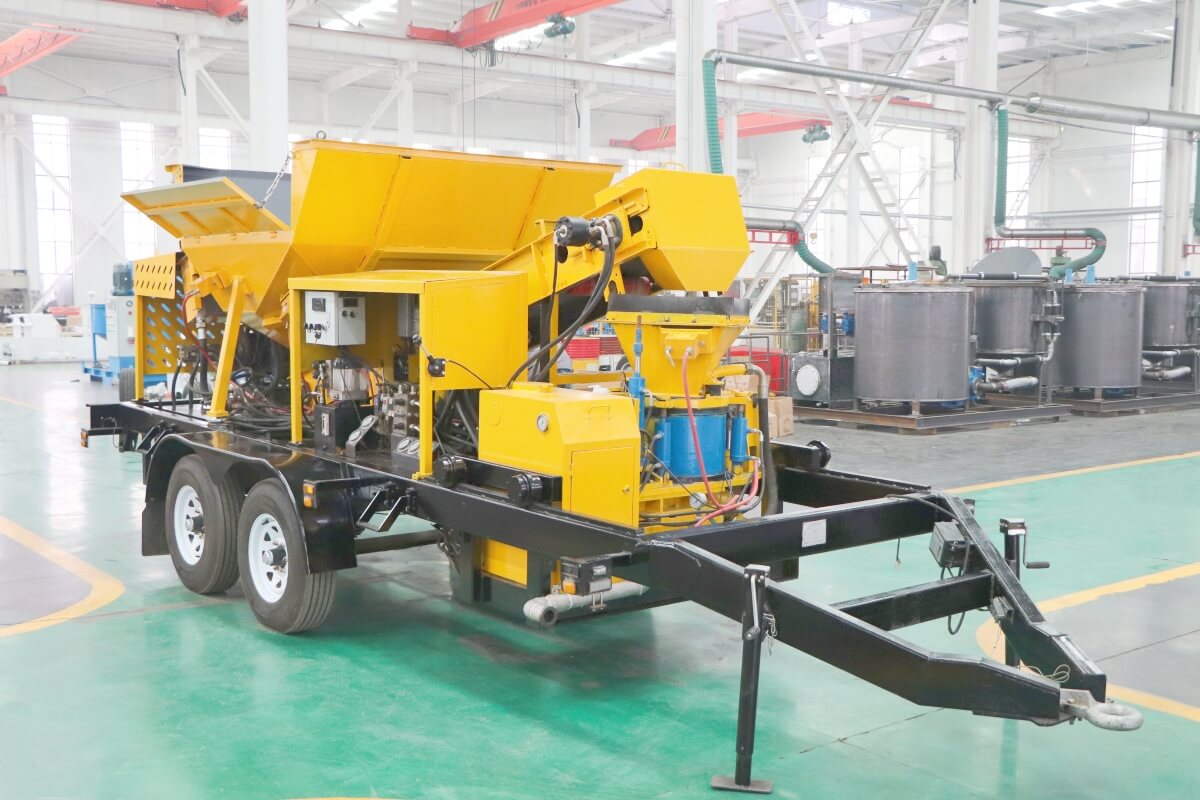

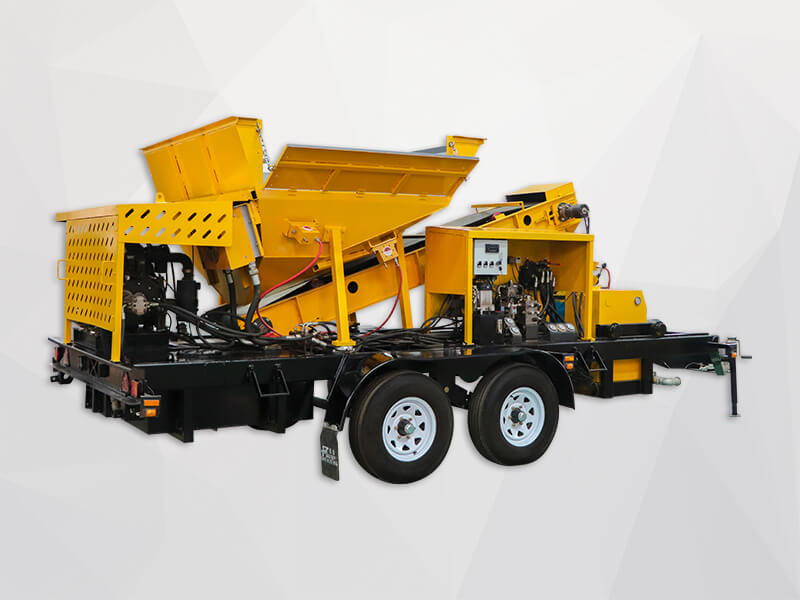

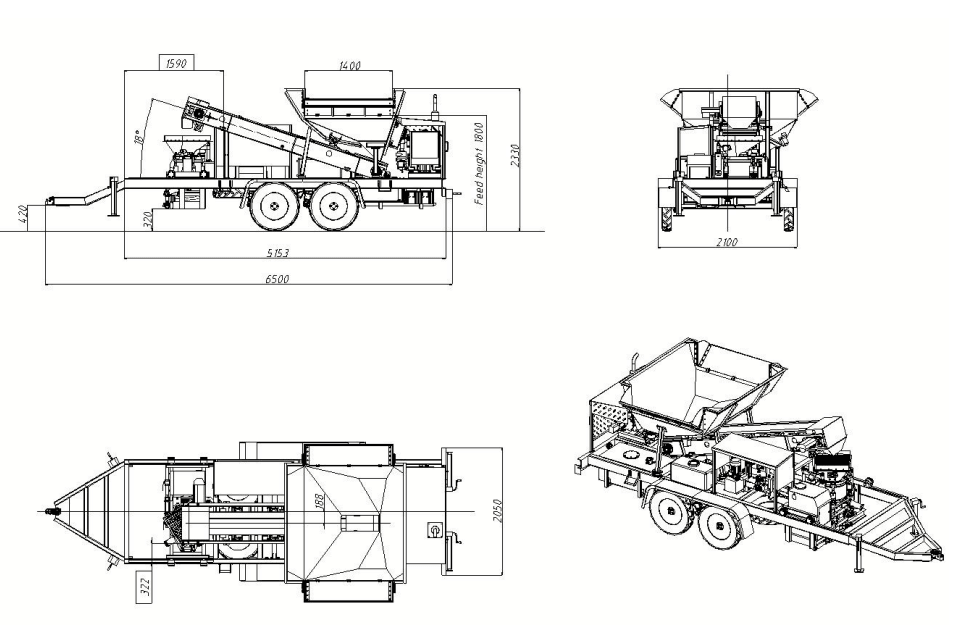

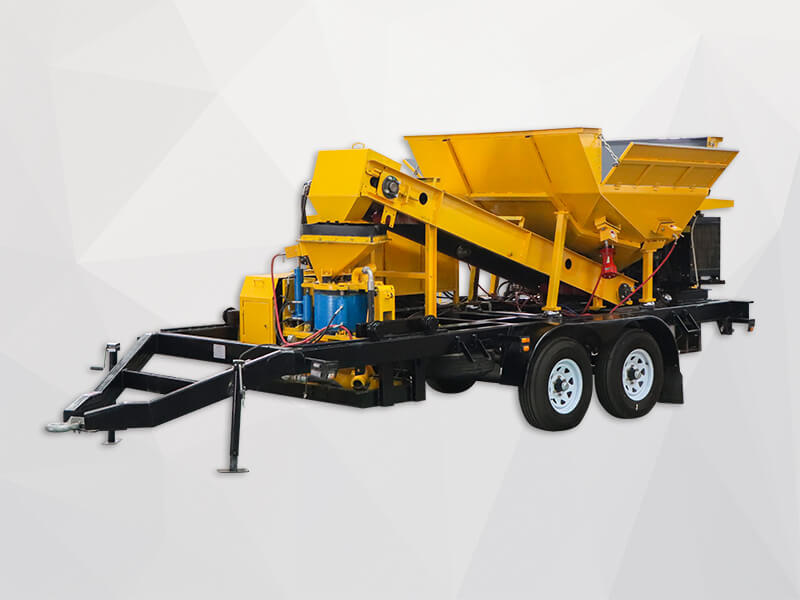

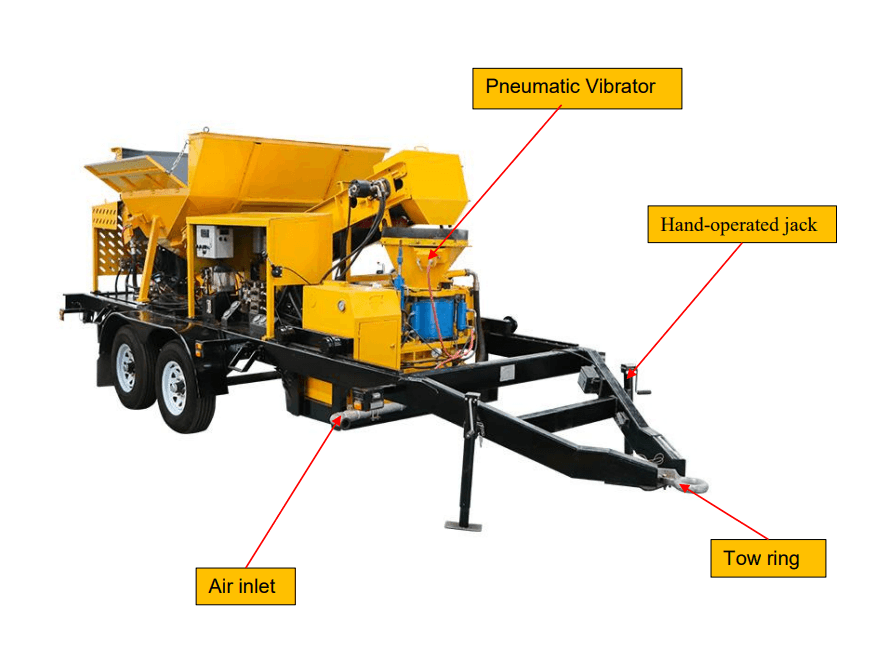

LZC-15/D High-capacity mobile shotcrete equipment is a fully integrated, trailer-mounted wet shotcrete system purpose-built for tunnel and underground construction. It combines a 15 m³/h shotcrete pump, a 2.5 m³ mixing hopper, and a 26.9 kW YANMAR 3TNV88-BDTYC diesel engine on a single-wheeled chassis — enabling fast, self-powered, on-site mobility.







Designed for high-speed concrete spraying onto rock walls, the LZC-15/D delivers consistent, mechanized shotcrete application with low rebound (<10%), reduced dust (>60%), and minimal manpower (2–3 operators) — replacing traditional manual spraying with a faster, cleaner, and more cost-effective solution for railway tunnels, highway tunnels, metro stations, mine shafts, and underground engineering projects.

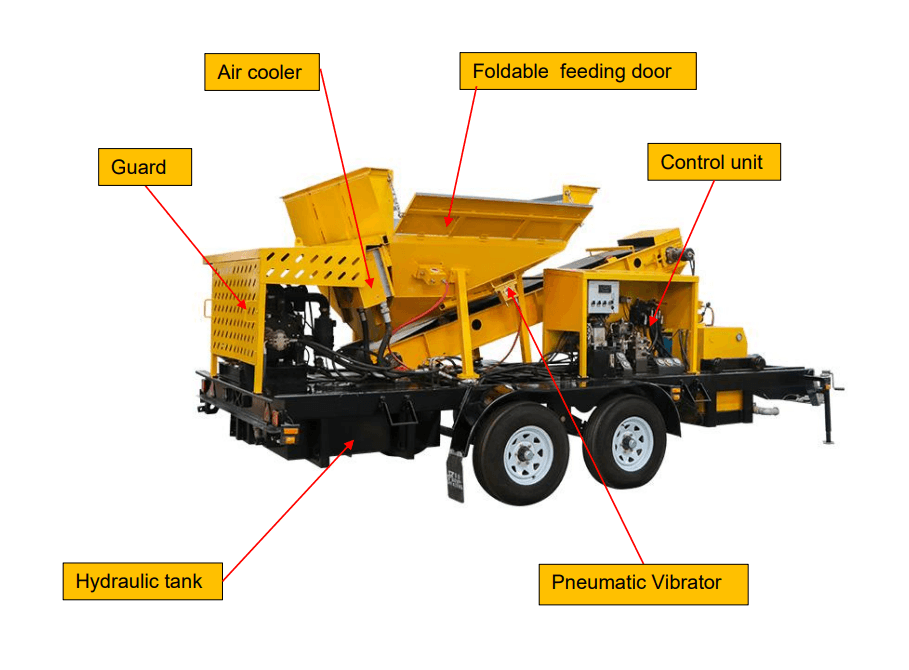

1. Railway Tunnels: Initial support and secondary lining of tunnels, used for shotcrete sealing of surrounding rock to prevent collapse.

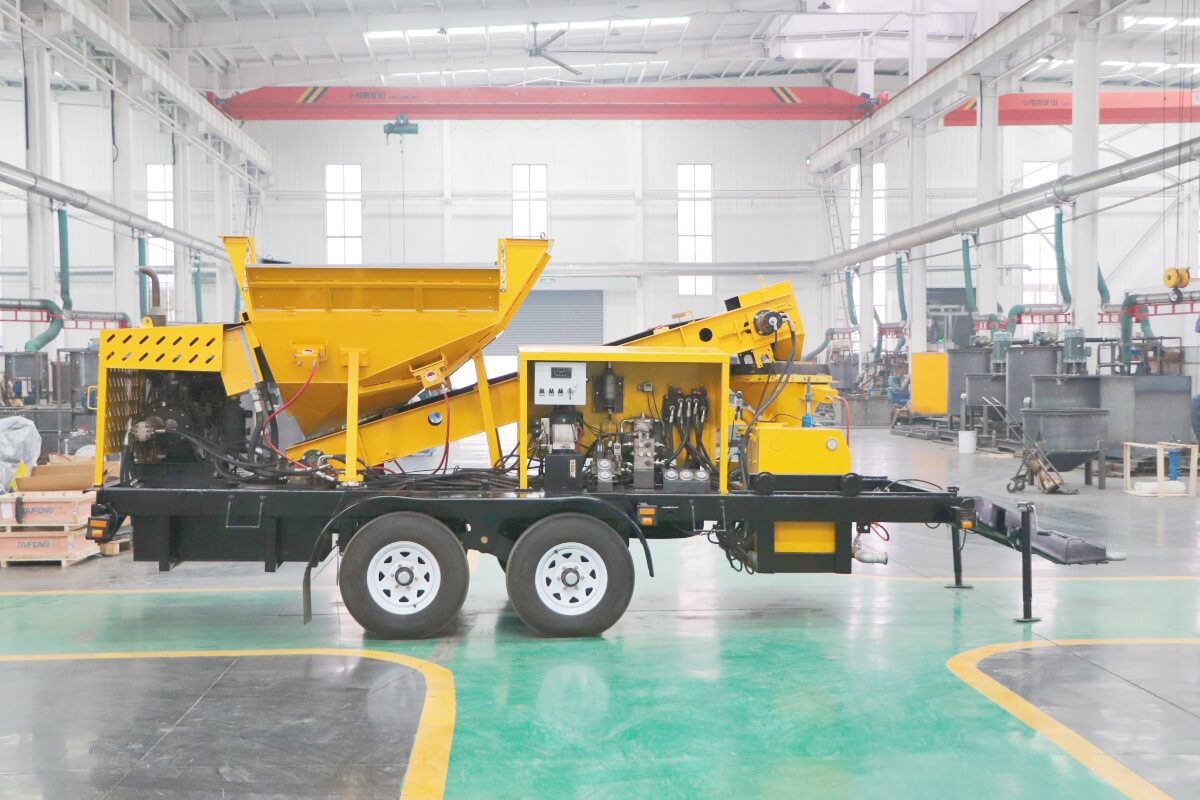

2. Highway Tunnels: Excavation face support, used for immediate shotcrete stabilization of the tunnel face after excavation.
3. Subway/Underground Stations: Platform and passageway lining, used for shotcrete application to walls and roofs of underground spaces.

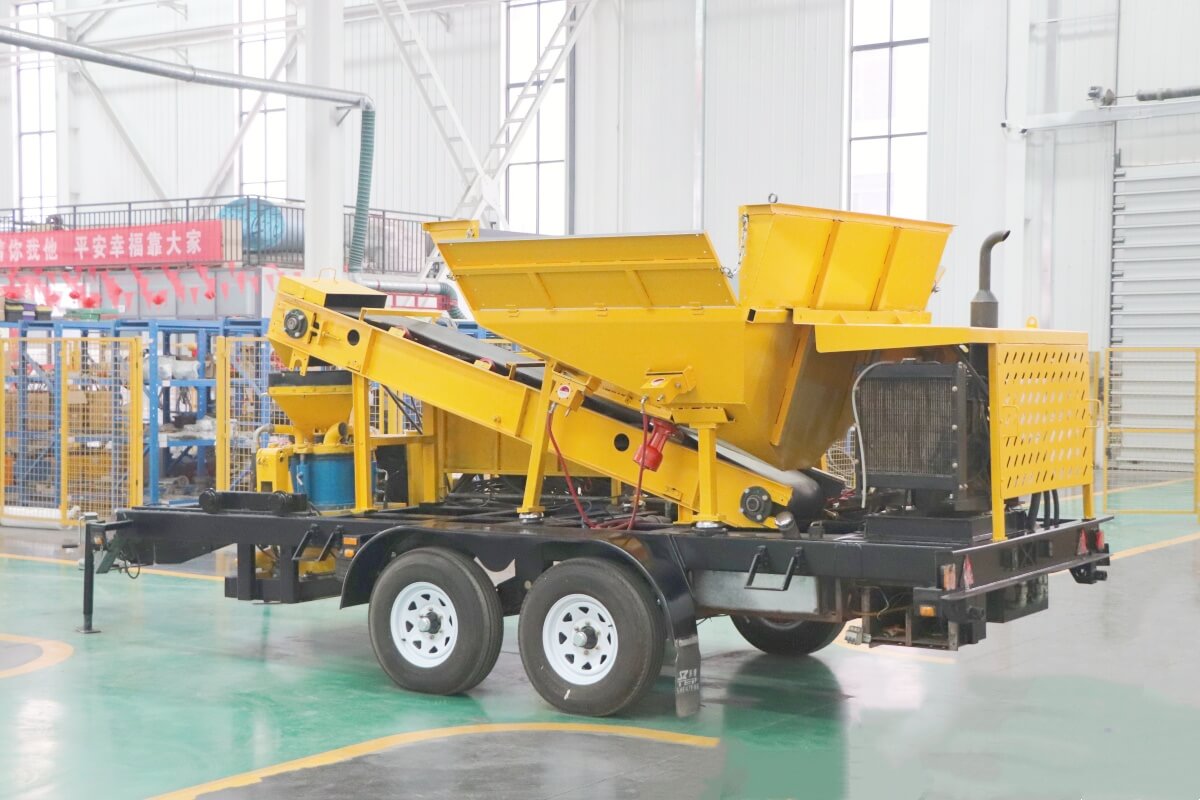

4. Mining Roadways: Roadway support, used for reinforcement of mine roadway walls.
5. Hydropower and Water Conservancy: Water diversion tunnels and powerhouse caverns, used for lining and reinforcement of underground caverns.
6. Slopes/Foundation Pit: Slope protection and foundation pit reinforcement, used for shotcrete slope protection to prevent landslides.
7. Military/Civil Defense: Protective works and bunkers, used for rapid construction of protective structures.

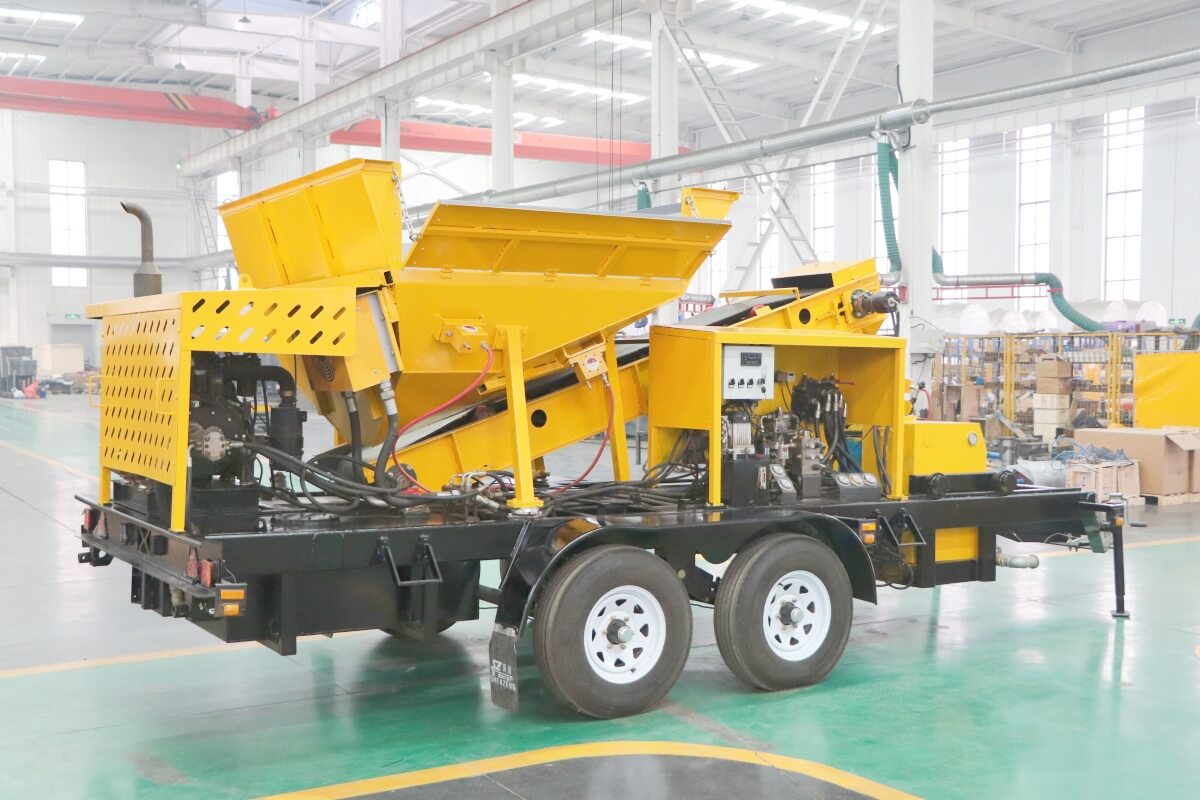

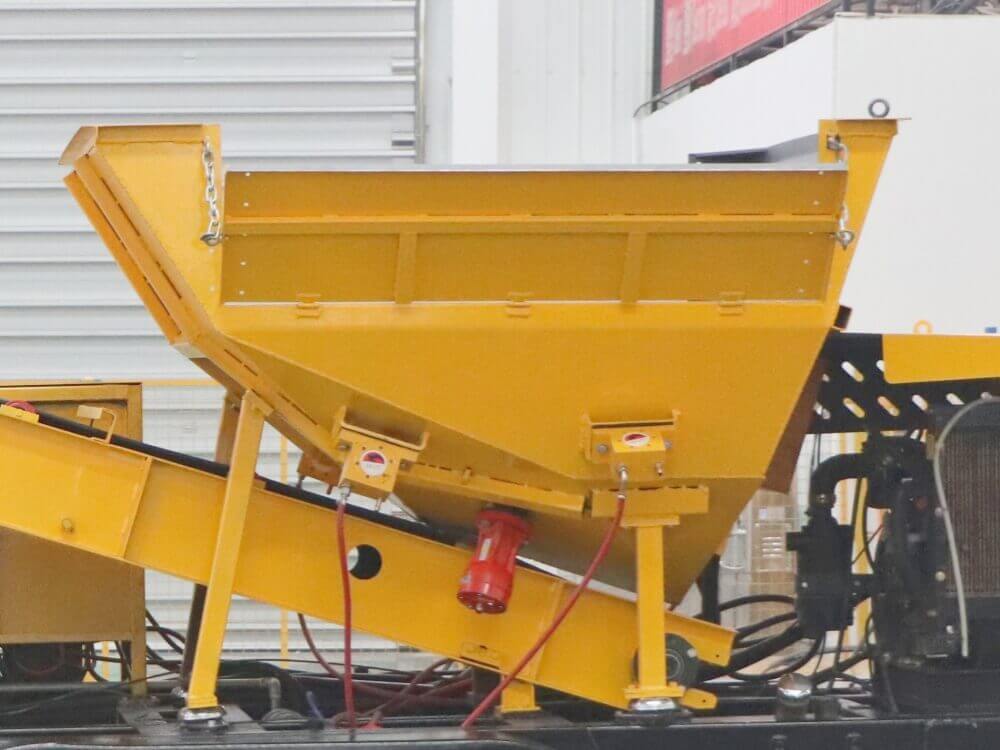

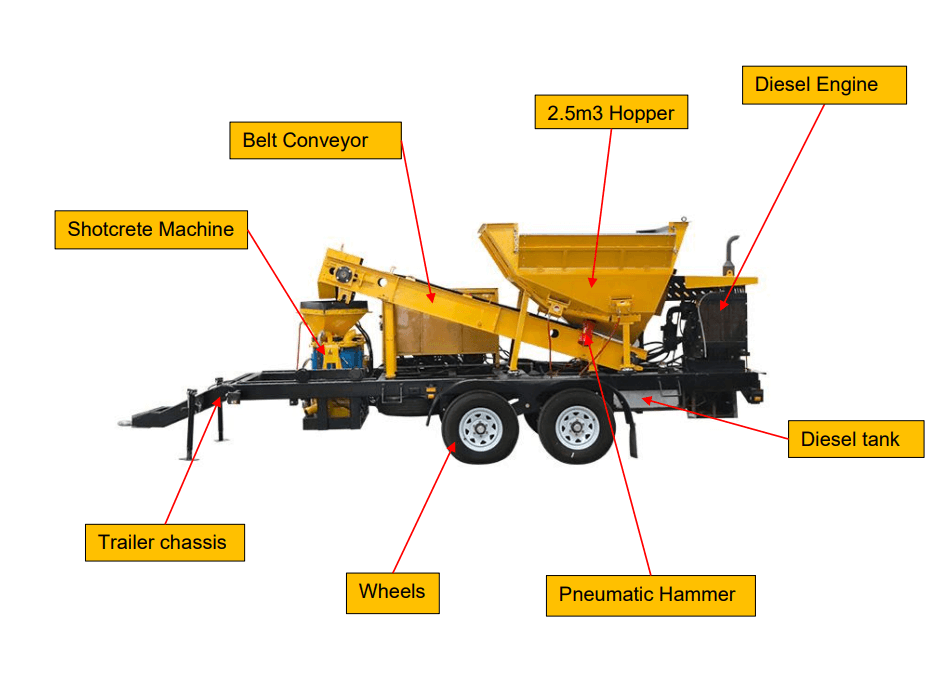

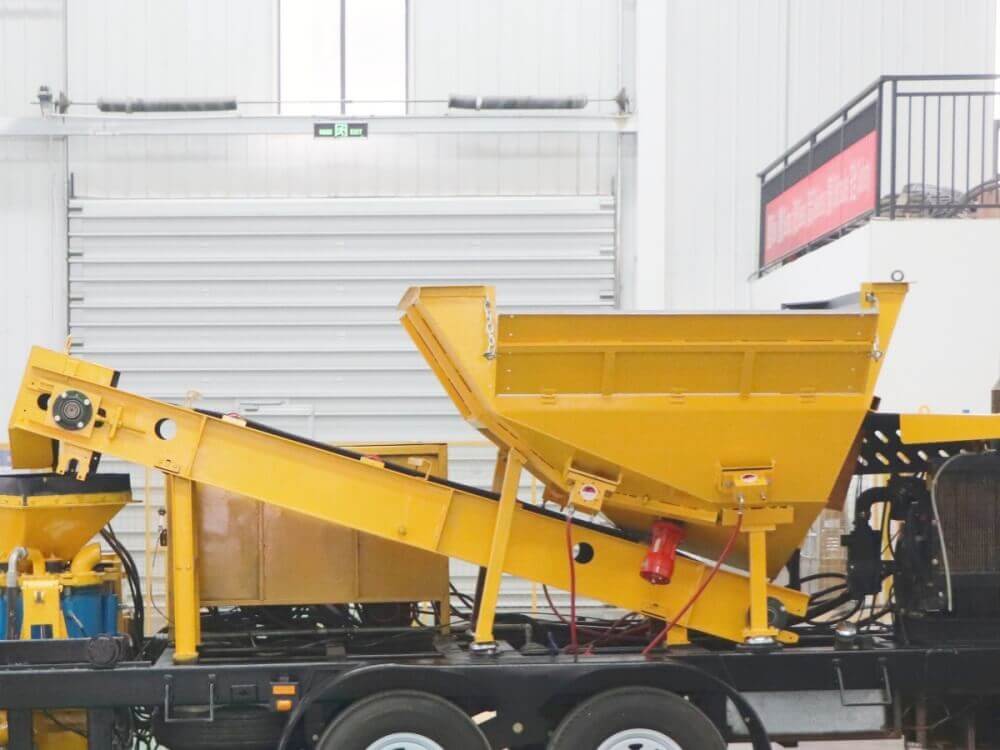

1. Large-Capacity Hopper
Fitted with a 2.5 m³ mixing hopper to boost throughput and lower overall operating expenses.
2. User-Friendly Controls
A streamlined control panel allows intuitive operation, fast onboarding of operators, and dependable day-to-day performance.
3. Simplified Unit Architecture
The compact, modular design maximizes uptime while making routine servicing and fault diagnosis quick and hassle-free.

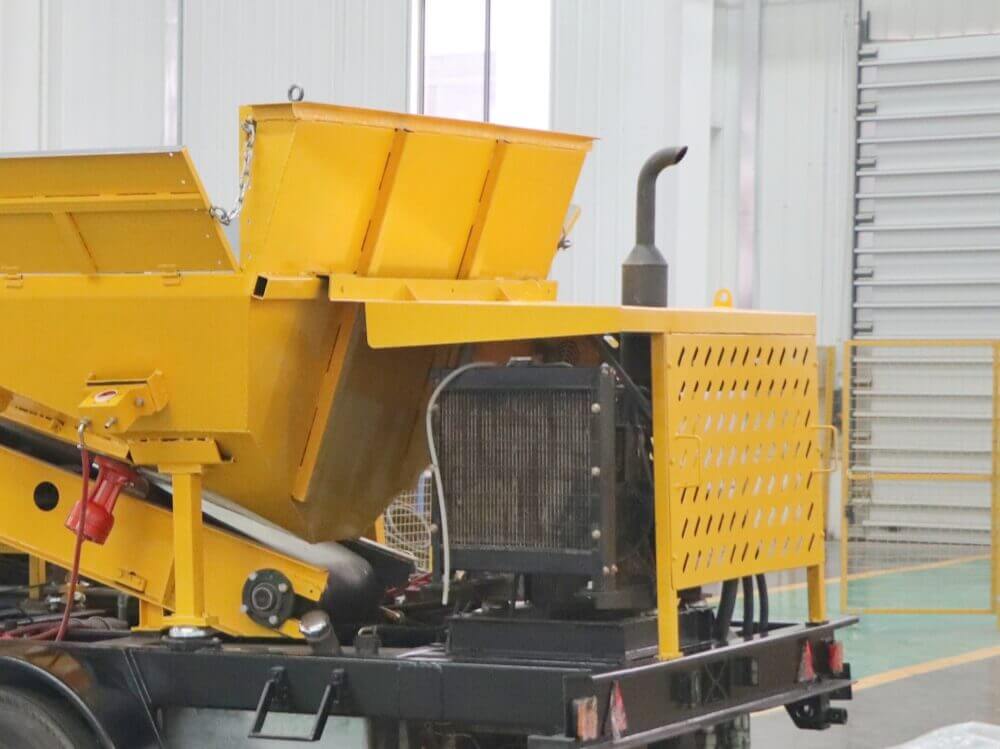

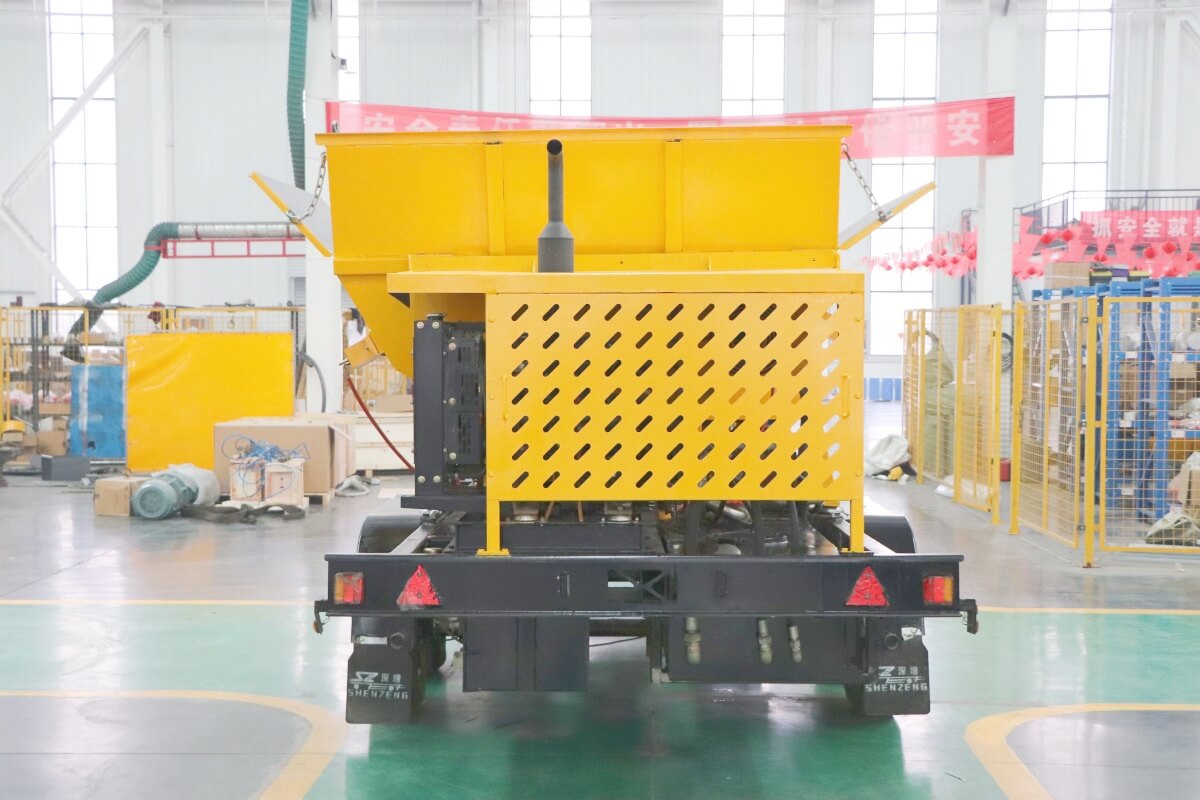

4. Accessible Rear-Mounted Engine
An open-layout engine compartment at the rear provides unobstructed access for inspections and repairs.

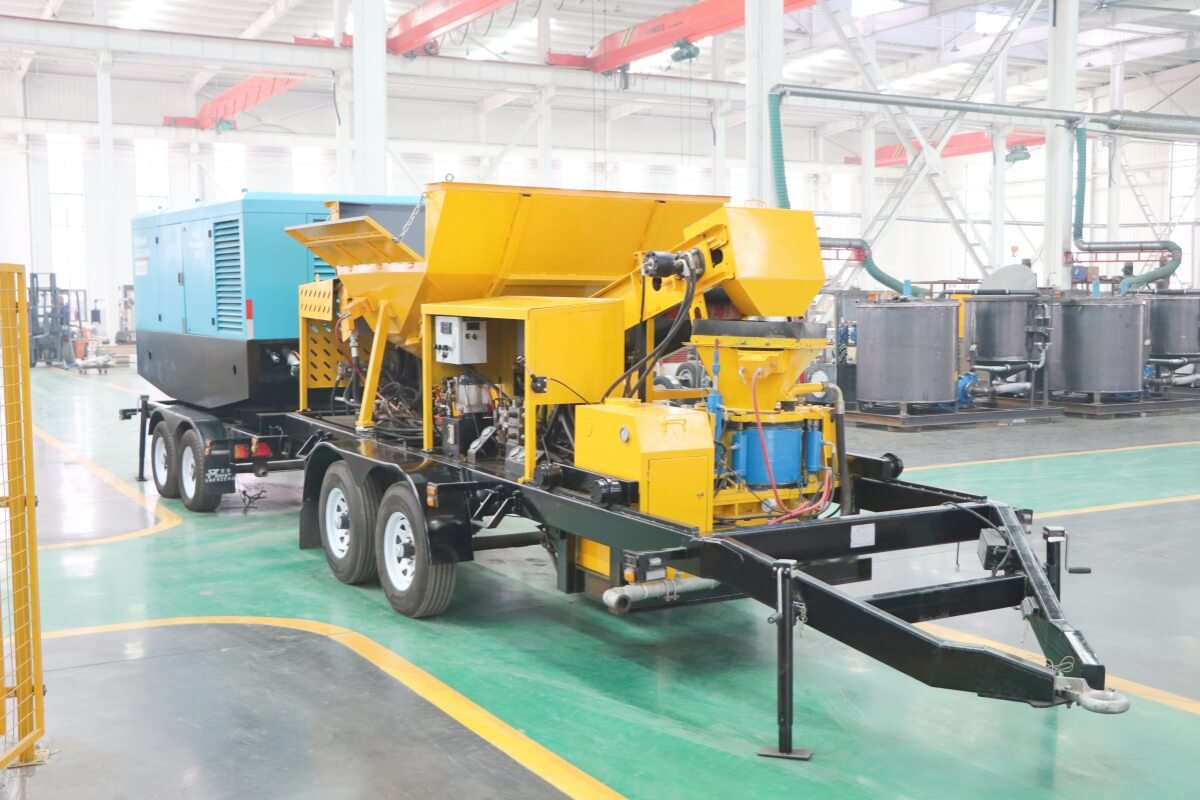

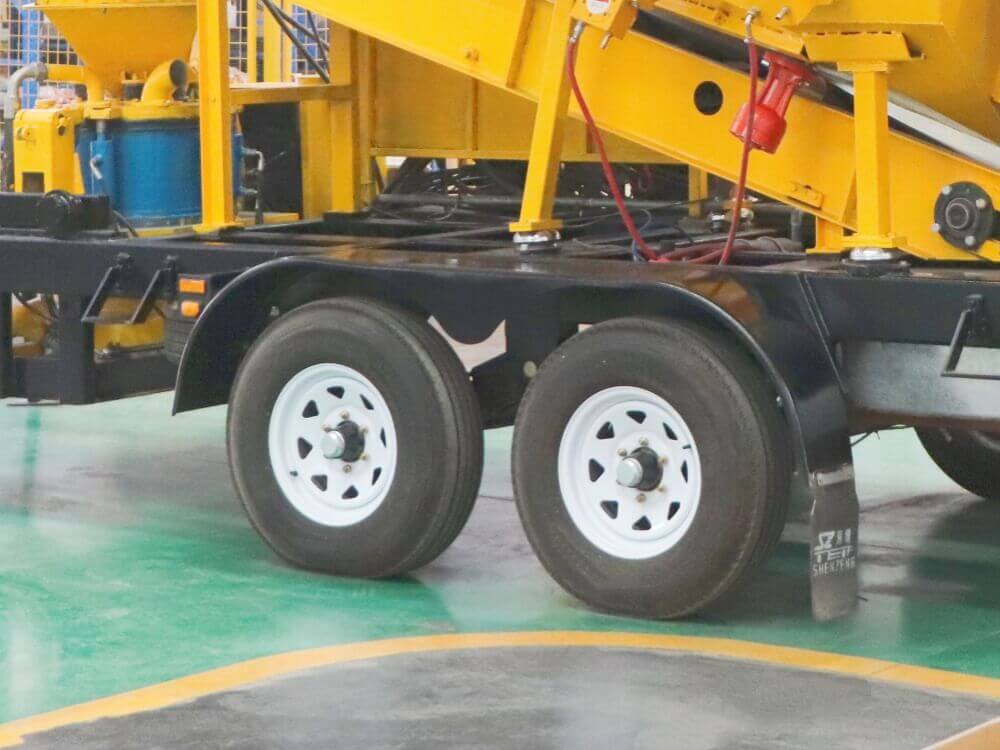

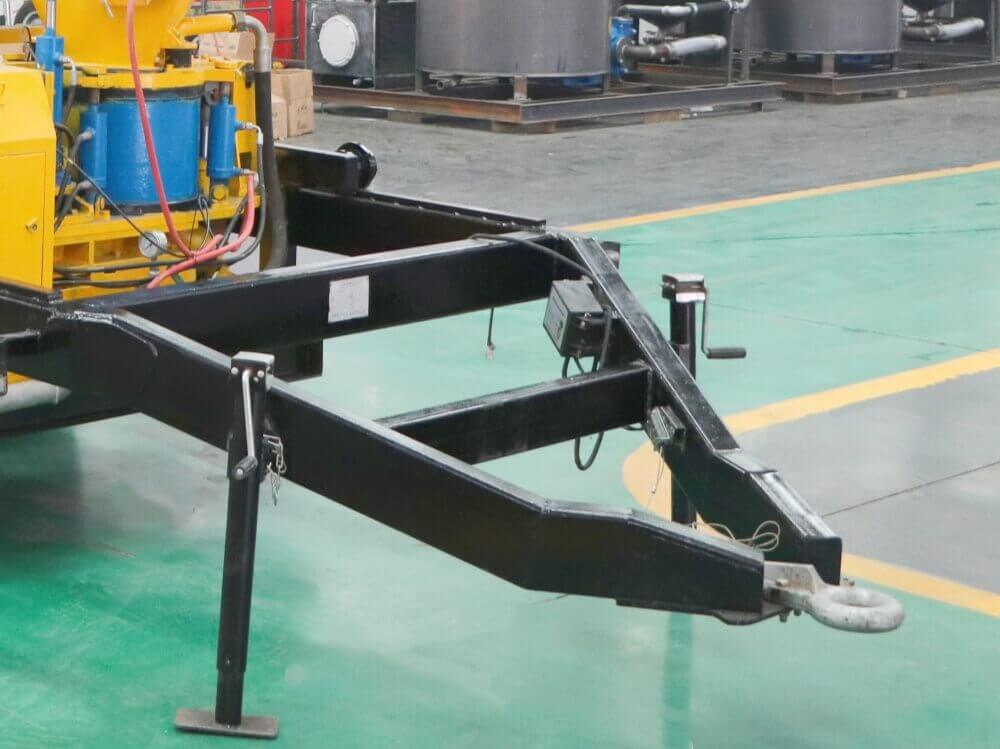

5. Fully Integrated Trailer Platform
All components are mounted on a single trailer chassis, allowing the entire unit to be transported to site with ease.
6. Centralized Lubrication System
Strategically placed grease points across the machine simplify maintenance routines and extend component life.
7. Built-In Water Spray for Dust Suppression
An onboard water misting system effectively controls dust in arid conditions or when processing particularly dry shotcrete mixes.
8. Road-Legal Lighting Package
The trailer is equipped with brake lights, marker lights, turn signals, license plate illumination, and reflectors — fully compliant for safe nighttime transport and operation.
