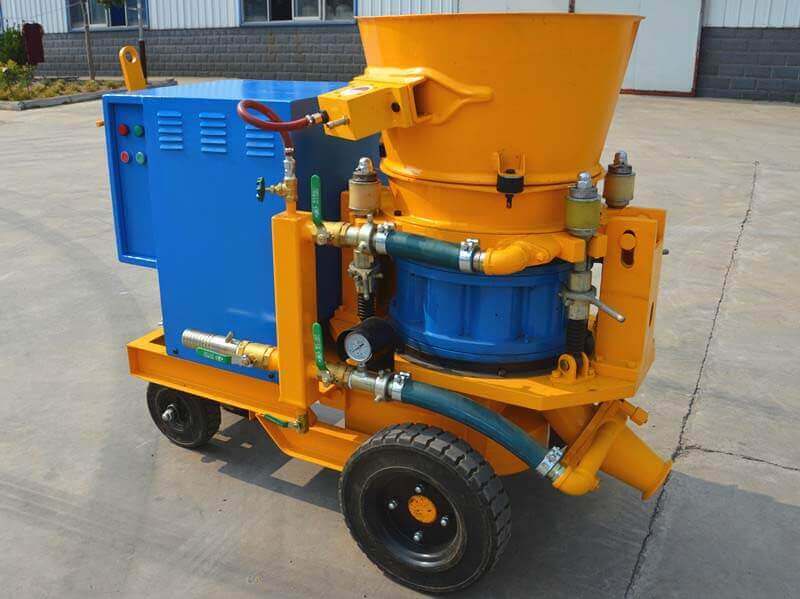

LZ-7 Dry Mix Shotcrete Machine
LZ-7 dry mix shotcrete machine is a general-purpose medium-sized dry jet machine, which has been widely used in tunnels, mining, dams, slope reinforcement and other projects.
7m3/h
200m
20mm
57/64mm
0.2-0.4Mpa
7.5kw
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description
LZ-7 dry mix shotcrete machine is a general-purpose medium-sized dry jet machine, which has been widely used in tunnels, mining, dams, slope reinforcement and other projects.
LZ-7 dry mix shotcrete machine is produced by the shotcrete machine supplier Lead Equipment Co., Ltd. after years of dedicated graduate students. shotcrete machine supplier also provides a variety of matching options to meet the different needs of customers:
LZ-7 dry mix shotcrete machine is available in the following versions: air motor drive or diesel drive, combined with skid or roller. Basic functions: electric drive can be used in combination with the tire chassis. Expansion (optional): electric drive with variable speed gearbox, air motor drive or diesel drive combined with skid or roller
LZ-7 dry mix shotcrete machine is produced by the shotcrete machine supplier Lead Equipment Co., Ltd. after years of dedicated graduate students. shotcrete machine supplier also provides a variety of matching options to meet the different needs of customers:
LZ-7 dry mix shotcrete machine is available in the following versions: air motor drive or diesel drive, combined with skid or roller. Basic functions: electric drive can be used in combination with the tire chassis. Expansion (optional): electric drive with variable speed gearbox, air motor drive or diesel drive combined with skid or roller
Application
LZ-7 dry mix shotcrete machine is widely used in the moorland of engineering and construction, mines, tunnels, culverts, subway, hydropower engineering, underground engineering, and coal mine tunnel shotcrete construction operations: various types of industrial furnaces, the lining refractory spray molding or patch.
Features
LZ-7 dry mix shotcrete machine is a hot product of shotcrete machine supplier Lead Equipment, which has the following unique performance characteristics:
1. Thin flow conveying method with vortex flow, so the spraying flow is even continuous and steady, to improve the shotcrete quality.
2. LZ-7 dry mix shotcrete machine has a four-point clamping device that make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
3. Non-adhesion going-through rotor with the new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
1. Thin flow conveying method with vortex flow, so the spraying flow is even continuous and steady, to improve the shotcrete quality.
2. LZ-7 dry mix shotcrete machine has a four-point clamping device that make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
3. Non-adhesion going-through rotor with the new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
Product Details
-
dry mix shotcrete machine
-
dry mix shotcrete machine china
-
spare parts
Technical Parameters
electric motor drive:
Air motor drive
| Rated Output | 7m3/h |
| Max. Horizontal Conveying Distance | 200m |
| Max Aggregate Size | 20mm |
| Conveying Hose Inner Diameter | 51/64mm |
| Operating air Pressure | 0.2-0.4MPa |
| Air Consumption | 12~15m3/min |
| Motor Power | 7.5kw |
| Voltage | 3phase,380V,50HZ |
| Overall Dimension(L×W×H) | 1550C760×1200mm |
| Weight | 730kg |
Air motor drive
| Rated Output | 5-7m3/h |
| Max. Horizontal Conveying Distance | 200m |
| Max Aggregate Size | 20mm |
| Conveying Hose Inner Diameter | 51/64mm |
| Operating air Pressure | 0.2-0.4MPa |
| Air Consumption | 12+10m3/min |
| Air Motor Power | 8kw |
| The work air pressure of air motor | 0.5Mpa |
| Overall Dimension(L×W×H) | 1550×800×1150mm |
| Weight | 760kg |
