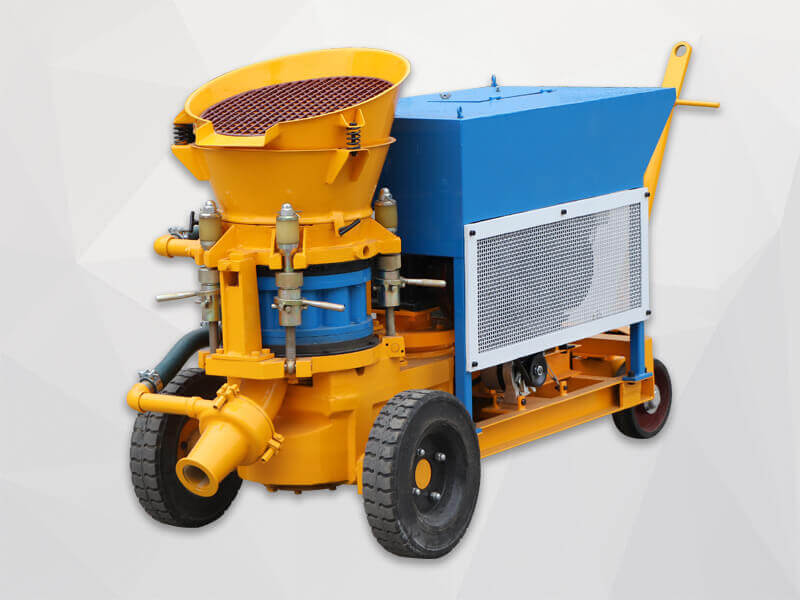

LZ-3 Gunite Spraying Machine
LZ-3 gunite spraying machine is a small gunite spraying machine produced by Lead Equipment Co., Ltd. spraying machine manufacturer. It uses dry spraying processes and can be used in a variety of projects such as caulking, slope reinforcement, swimming pool construction, etc.
3m3/h
200m
≤1:3~5
Φ10 mm
Φ38/Φ50mm
0.2-0.4MPa(29-58PSI)
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description
LZ-3 gunite spraying machine is a small gunite spraying machine produced by Lead Equipment Co., Ltd. spraying machine manufacturer. It uses dry spraying processes and can be used in a variety of projects such as caulking, slope reinforcement, swimming pool construction, etc.
LZ-3 gunite spraying machine is available in the following versions:
Basic: electric drive can be combined with tire chassis
Extended (optional): air motor or diesel drive combined skid or rail-wheel.
Production Process
LZ-3 gunite spraying machine is available in the following versions:
Basic: electric drive can be combined with tire chassis
Extended (optional): air motor or diesel drive combined skid or rail-wheel.
Production Process
Application
Lead Equipment Co., Ltd. is a manufacturer of gunite spraying machine and has extensive experience. LZ-3 gunite spraying machine is our company's best-selling product. With its simple process, unique effect, economic cost and fast construction speed, LZ-3 gunite spraying machine is used in construction, iron highway tunnel construction, mine shaft Widely used in construction, slope reinforcement and other fields.
Features
1. LZ-3 gunite spraying machine has non-adhesion going-through rotor with the new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
2. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
3. Four-point clamping device makes it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
4. Gunite spraying machine particularly used for dry, damp mix and steel(polymer)fiber-reinforced shotcrete.
Packing and Delivery
2. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
3. Four-point clamping device makes it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
4. Gunite spraying machine particularly used for dry, damp mix and steel(polymer)fiber-reinforced shotcrete.
| No. | Description | Quantity | Unit | Remark |
| 1 | LZ-3 Main Machine | 1 | Set | |
| 2 | Nozzle Assy. | 1 | Set | |
| 3 | Conveying Hose, ID38mm, 50ft.Length | 1 | Piece | |
| 4 | Water hose with hose hoop | 1 | Piece | |
| 5 | Rubber Hose Joint(long) | 1 | Piece | Fitting |
| 6 | Rubber Hose Joint(short) | 2 | Piece | Fitting |
| 7 | Quick Coupling | 3 | Piece | |
| 8 | Upper Sealing Plate | 1 | Piece | |
| 9 | Lower Sealing Plate | 1 | Piece |
Packing and Delivery
Product Details
-
air motor -
electric motor -
spare parts
Technical Parameters
| Output Capacity | 3m3/h gunite spraying machine |
| Max. Horizontal Conveying Distance | 200m |
| Suitable Mix Ratio(Cement/Sand) | ≤1:3~5 |
| Max. Aggregate Size | Φ10 mm |
| Conveying Hose Inner Diameter | Φ38/Φ50mm |
| Conveying Pressure | 0.2-0.4MPa(29-58PSI) |
| Air Consumption for conveying material | 5~6m3/min(180-215CFM) |
| Material Charging Height | 0.9m |
| Rotor Speed | 14r/min |
| Motor Power | 3kW(4hp),IP55 |
| Available Voltage | 220V,380V,440V,660V 50Hz/60Hz |
| Overall Dimension(length×width×height) | 1.13×0.54×1.02m |
| Net Weight | 430kg |
