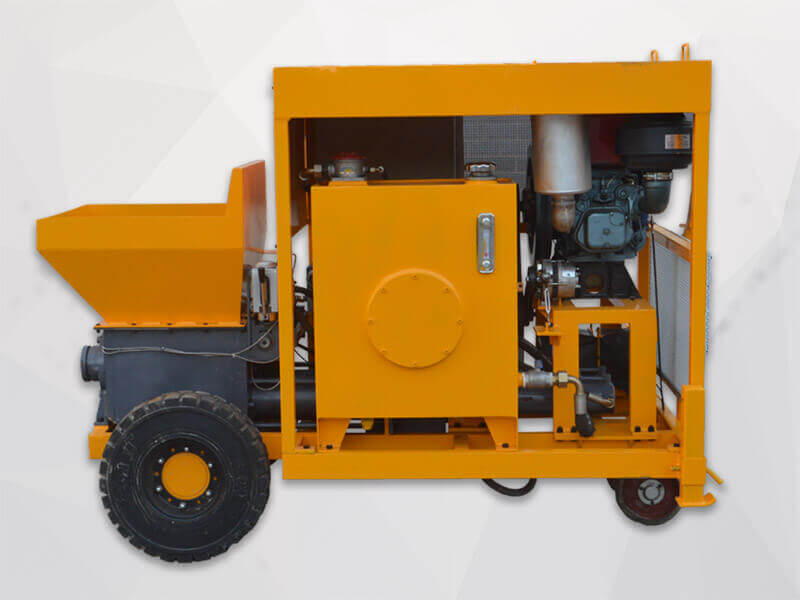

LMP7/35D Mini Concrete Pump For Sale
LMP7 / 35D mini concrete pump for sale is a multifunctional industrial concrete pump developed by absorbing foreign advanced technology. It is driven by a diesel engine. The maximum output can reach 7m3 / h and the working pressure is 35bar. Therefore, it is widely used for concrete pumping or grouting. And spray engineering.
3-7m3/h
35bar
20mm
Φ120mm
360mm
S Valve
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description
LMP7/35D mini concrete pump for sale is a multifunctional industrial concrete pump developed by absorbing foreign advanced technology. It is driven by a diesel engine. The maximum output can reach 7m3/h and the working pressure is 35bar. Therefore, it is widely used for concrete pumping or grouting. And spray engineering.
LMP7/35D mini concrete pump for sale In many countries in the world, it is small in size, compact in structure, high in efficiency and easy to move at the construction site.
LMP7/35D mini concrete pump for sale In many countries in the world, it is small in size, compact in structure, high in efficiency and easy to move at the construction site.
Application
LMP7 / 35D mini concrete pump for sale is a new concrete pump produced by Gaodetec. It has stable performance, compact structure and long life. It has excellent performance in many concrete construction projects.
1. Concrete wall construction;
2. Masonry block filling;
3. Concrete wall grouting;
4. Concrete sidewalk;
5. Patio slab pumping;
6. Low-volume shotcrete;
7. Tunneling construction;
8. Excavation-protection;
9. Swimming pool(sprayed concrete shells);
10. Mining support (sprayed concrete walls and ceilings);
1. Concrete wall construction;
2. Masonry block filling;
3. Concrete wall grouting;
4. Concrete sidewalk;
5. Patio slab pumping;
6. Low-volume shotcrete;
7. Tunneling construction;
8. Excavation-protection;
9. Swimming pool(sprayed concrete shells);
10. Mining support (sprayed concrete walls and ceilings);
Features
1. LMP7 / 35D mini concrete pump for sale has solid tires, feel free to move;
2. Independent electric control cabinet;
3. Mini concrete pump convenient for operation and longevity of service;
4. Changchai L32 diesel engine electric-start, with peed-regulating handle quality guarantee, easy to operate;
5. Output 3-7m3/h, stepless adjustable, more widely application for grouting and spraying work:
6. Mini concrete pump for sale has specially design spraying nozzle, spraying flow is even, continuous and steady;
2. Independent electric control cabinet;
3. Mini concrete pump convenient for operation and longevity of service;
4. Changchai L32 diesel engine electric-start, with peed-regulating handle quality guarantee, easy to operate;
5. Output 3-7m3/h, stepless adjustable, more widely application for grouting and spraying work:
6. Mini concrete pump for sale has specially design spraying nozzle, spraying flow is even, continuous and steady;
Product Details
-
Changchai L32 diesel engine Electric-start -
Automatic lubricating oil -
Convenient throttle control handle
Technical Parameters
| Rated Output | 3-7m3/h |
| Pump Work Pressure | 35bar |
| Acceptable Max Aggregate Size | 20mm |
| cylinder Diameter | Φ120mm |
| Cylinder Stroke | 360mm |
| Pump valve | S Valve |
| Max. Horizontal Conveying Distance | 90m |
| Max. vertical Conveying Distance | 30m |
| Concrete Slump | 15-25cm |
| Conveying Hose Inner Diameter | 80/100mm |
| Diesel | 23kw/2200rpm single cylinder, water cooling |
| Dimension(L×W×H) | 2200*1250*1600mm |
| Net Weight | 1190kg |
