LMP7/35 Portable Concrete Pump For Sale
LMP7 / 35 portable concrete pump for sale is a durable, compact, high-efficiency and versatile rotary pump engineering concrete pump with an output of 7.5 cubic meters per hour. It is compact and has wheels at the bottom for easy movement. Suitable for work at the construction site.
LMP7/35
7. 5m3/h
35bar
15mm
15KW
1950*700*1130mm
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description
LMP7 / 35 portable concrete pump for sale is a durable, compact, high-efficiency and versatile rotary pump engineering concrete pump with an output of 7.5 cubic meters per hour. It is compact and has wheels at the bottom for easy movement. Suitable for work at the construction site.
LMP7 / 35 portable concrete pump for sale is a new multi-purpose industrial pump developed by absorbing foreign advanced technology. Typical applications include, masonry block filling, masonry wall wall grouting and lifting mortar, concrete sidewalk and patio board pumping, small volume sprayed concrete, etc.
LMP7 / 35 portable concrete pump for sale is a new multi-purpose industrial pump developed by absorbing foreign advanced technology. Typical applications include, masonry block filling, masonry wall wall grouting and lifting mortar, concrete sidewalk and patio board pumping, small volume sprayed concrete, etc.
Application
LMP7 / 35 portable concrete pump for sale Fine aggregate concrete conveying equipment that can be continuously conveyed to the pouring site by horizontal or vertical pipes. Widely used for secondary structure column filling, masonry block filling, piling enclosure, refractory, concrete, pressure grouting, weak foundation reinforcement grouting tunnel, subway mine backfill grouting anchor support, soil stabilization foundation treatment.
Features
1. Reduce the weight load of construction materials and greatly reduce manual labor.
2. Improve construction efficiency, cost savings advantages.
3. Portable concrete pump for sale is stable operation, less dust, low noise, easy to clean.
4. Suitable for medium and large grouting works
5. Portable concrete pump with mixing, grouting joint operation function.
6. Fewer wearing parts, long life, low-cost accessories.
2. Improve construction efficiency, cost savings advantages.
3. Portable concrete pump for sale is stable operation, less dust, low noise, easy to clean.
4. Suitable for medium and large grouting works
5. Portable concrete pump with mixing, grouting joint operation function.
6. Fewer wearing parts, long life, low-cost accessories.
Product Details
-

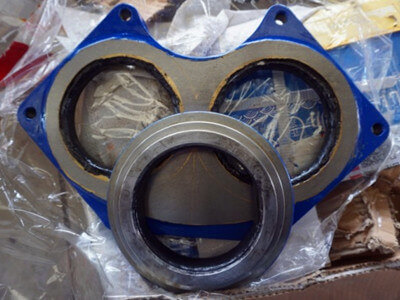

Cemented Carbide Wear PlateRing -
concrete grout pump polyether material piston -
mini concrete pump swing tube valve -
mini masonry concrete pump air cooling system -
portable concrete pump solid tyre -
small protable concrete pump automatic lubricating oil
Technical Parameters
| Name | Mini Masonry concrete pump |
| Model | LMP7/35 |
| Output | 7.5m3/h |
| Pumping Pressure | 35bar |
| Max Aggregate Size | 15mm |
| Cylinder diameter | Φ120mm |
| Cylinderstroke | 360mm |
| Conveying Hose Inner Diameter | 80mm |
| Main Motor Power | 15KW |
| Max Vertical Conveying Distance | 30m |
| Max Horizontal Conveying Distance | 90m |
| Overalldimension | 1950*700*1130mm |
| Weight | 750kg |
