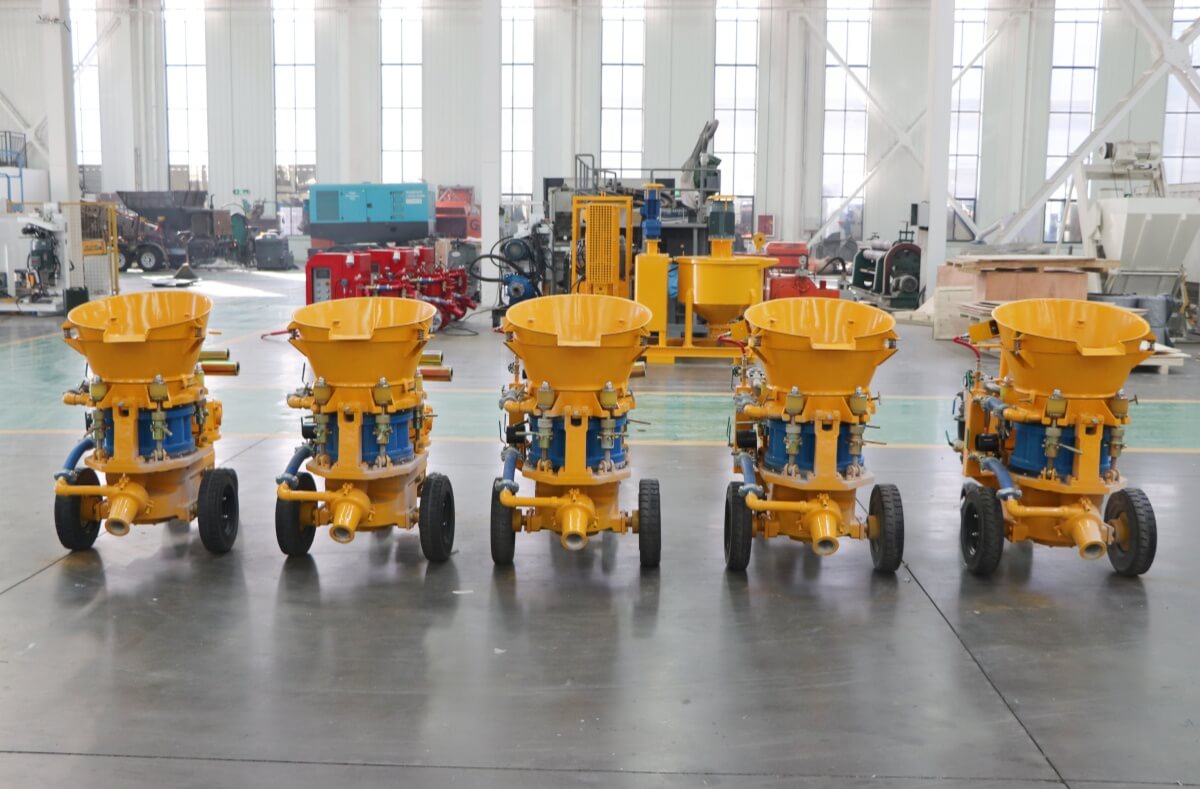

LZ-5 Gunite machine for sale
LZ-5 gunite machine for sale is a dry gunite machine with an output of 5m3 / h and a maximum acceptable size of 15mm. It is widely used in dams, mines, tunnels, culverts, subways, hydropower projects, underground Engineering, slope reinforcement, etc.
5(m3/h)
5.5(KW)
200(m)
≤1.3~5
< 0.4
Φ15(mm)
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description
LZ-5 gunite machine for sale is a dry gunite machine with an output of 5m3 / h and a maximum acceptable size of 15mm. It is widely used in dams, mines, tunnels, culverts, subways, hydropower projects, underground Engineering, slope reinforcement, etc.
LZ-5 gunite machine for sale is available in the following versions:
Air motor driver or diesel drive combined with a skid or rail-wheel Basic: Electric drive can be combined with tyre chassis.
Extended (optional): Electric motor drive with variable speed gearbox, air motor drive or diesel drive combined with Skid or Rail-wheel.
LZ-5 gunite machine for sale is available in the following versions:
Air motor driver or diesel drive combined with a skid or rail-wheel Basic: Electric drive can be combined with tyre chassis.
Extended (optional): Electric motor drive with variable speed gearbox, air motor drive or diesel drive combined with Skid or Rail-wheel.
Application
LZ-5 gunite machine for sale is widely used in engineering construction, mines, tunnels, culverts, subways, hydropower projects, underground engineering and coal gangue mine roadway sprayed concrete construction operations: various types of industrial furnaces, furnace linings, refractory spray coating Or repair: soil conveyance and spraying during various slope protection and greening construction.
Features
LZ-5 gunite machine for sale can show its superior performance and is suitable for a variety of construction conditions. Easy to operate and maintain. Its characteristics are as follows:
1. LZ-5 gunite machine for sale has a non-adhesion going-through rotor with the new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
2. LZ-5 gunite machine adopts a thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady to improve the shotcrete quality.
3. Four-point clamping device makes it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
1. LZ-5 gunite machine for sale has a non-adhesion going-through rotor with the new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
2. LZ-5 gunite machine adopts a thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady to improve the shotcrete quality.
3. Four-point clamping device makes it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
Product Details
-

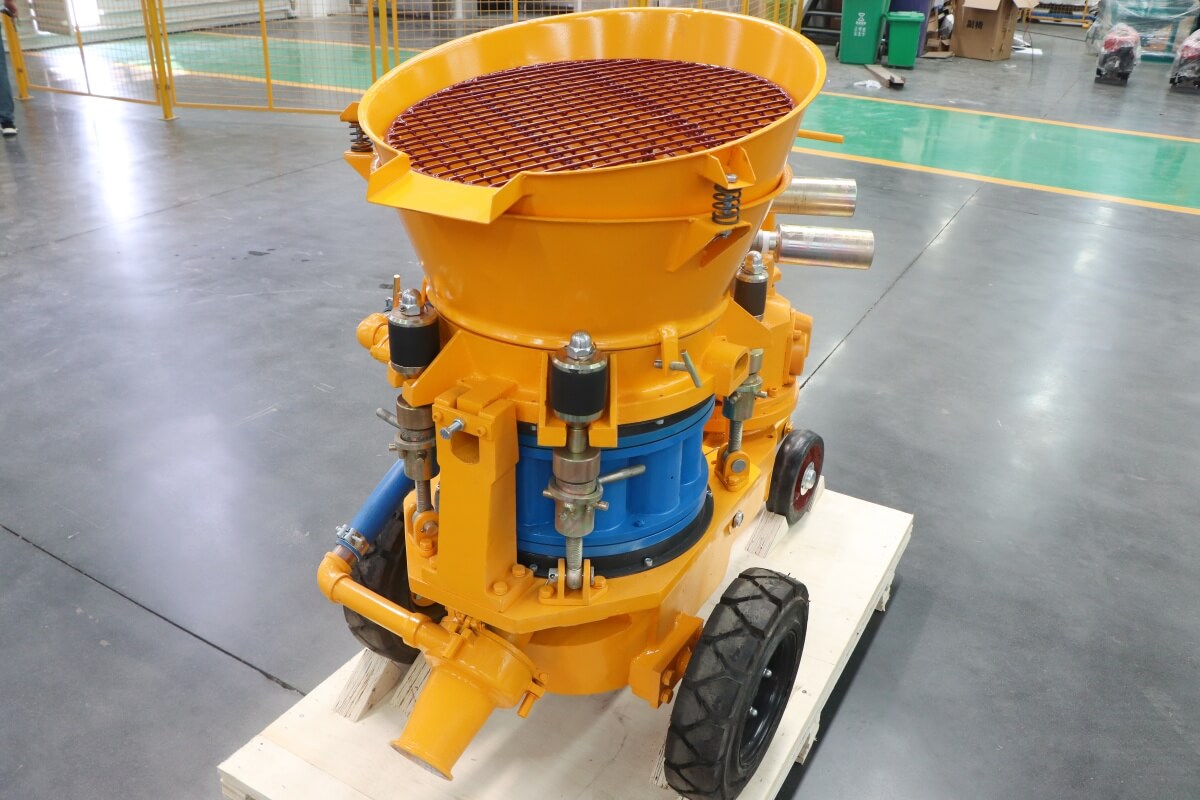

Dry-mix Shotcrete Machine -
Air Motor -

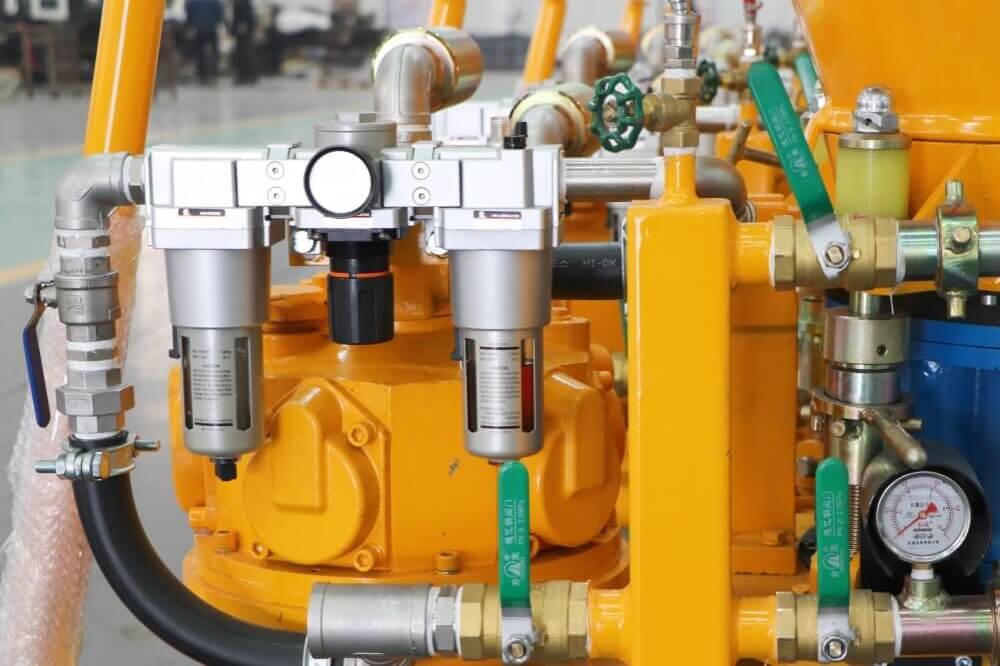

Pneumatic triplet -

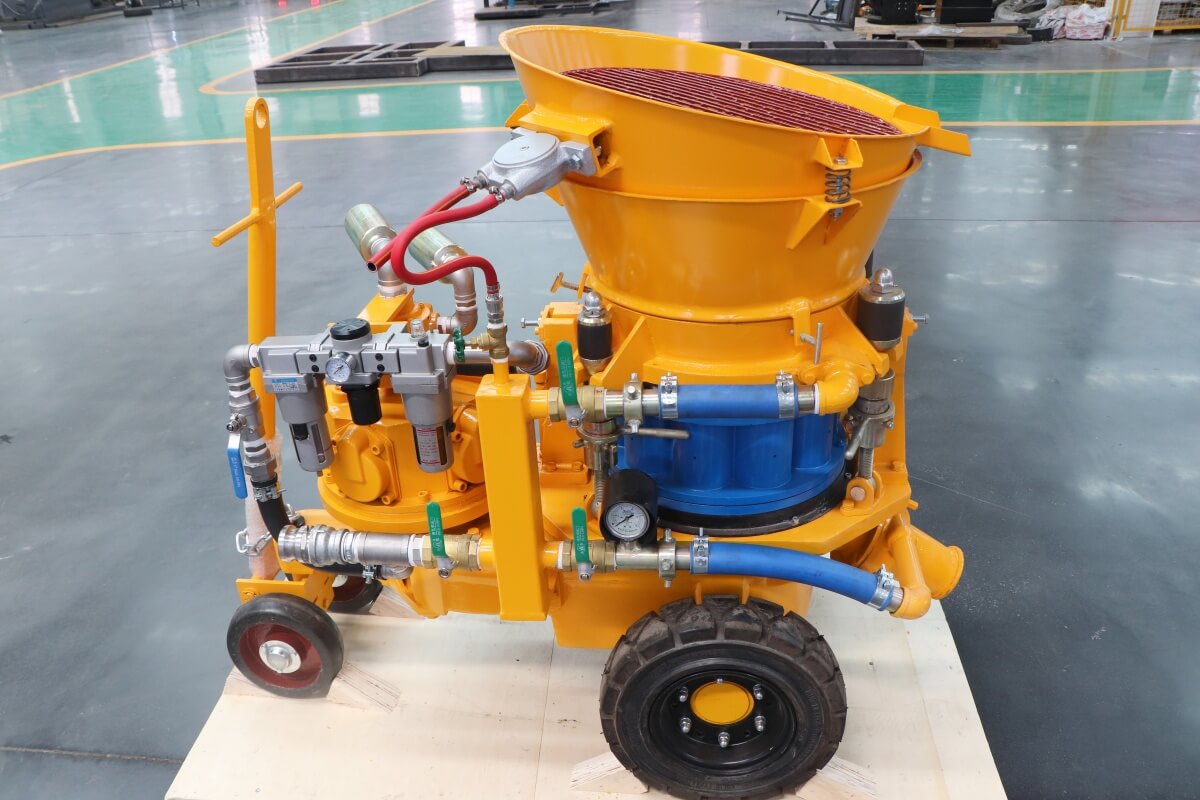

Dry-mix Gunte Machine LZ-5 -
WEG Electric Motor -
shotcrete-machine-spare parts
Technical Parameters

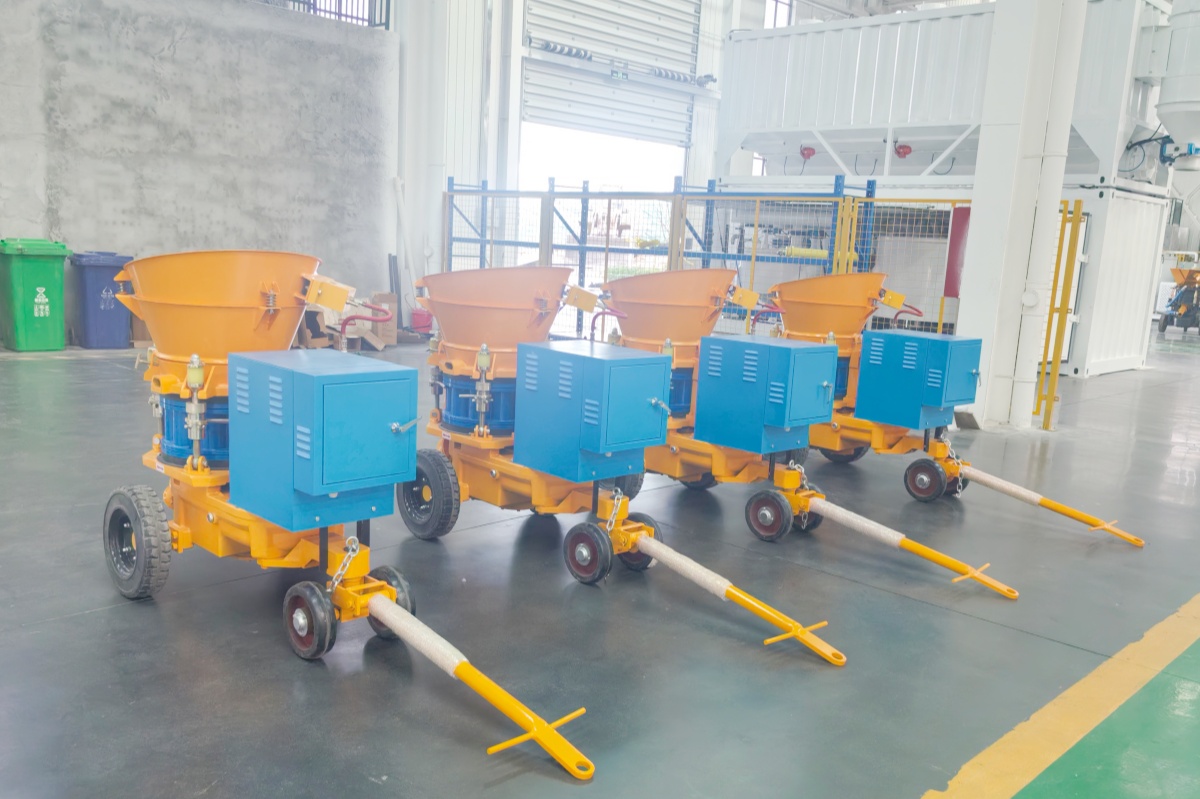

Electric motor drive gunite machine:
Air motor drive gunite machine:
Diesel drive gunite machine:
| Ratedoutput | 5m3/h |
| Max. Horizontal Conveying Distance | 200m |
| Suitable Mix Ratio(Cement/Sand) | ≤1.3~5 |
| Water Cement Ratio | <0.4 |
| Max Aggregate Size | Φ15mm |
| Conveying Hose Inner Diameter | 51mm |
| Operating air Pressure | 0.2-0.4mpa(29-58ps) |
| Air Consumption | 8~9m3/min(285-325CfM) |
| Motor Power | 5.5kw(7.5hp) |
| voltage | 220V,380V,440V,660V,50HZ/60Hz |
| Material Charging Height | 1.1m |
| Rotorspeed | 11r/min |
| overall Dimension(Lx Wx H) | 1.35×0.75×1.2m |
| Net Weght | 720kg |
Air motor drive gunite machine:
| Output Capacity | 2.5-5.5m3/h |
| Max. Horizontal Conveying Distance | 200m |
| Suitable Mix Ratio(Cement/Sand) | ≤1:3~5 |
| Max Aggregate Size | Φ15 mm |
| Conveying Hose Inner Diameter | Φ51 mm |
| Conveying Pressure | 0.2-0.4MPa |
| Air Consumption for conveying material | 7~8m3/min |
| Air Motor Air Pressure | 0.5mpa |
| Material Charging Heigh | 1.1m |
| Rotor Speed | 11rpm |
| Air Motor Type | TMH6A |
| Air Motor Air Consumption | 7.5m3/min |
| Overall Dimension(engthxwiathacheight) | 1.35×0.75×1.2m |
| Net Weight | 720kg |
Diesel drive gunite machine:
| Output Capacity | 3-5.5m3/h |
| Max.Horizontal Conveying Distance | 200m |
| Suitable Mix Ratio(Cement/Sand) | ≤1:4~5 |
| Water cement ratio | <0.4 |
| Max. Aggregate Size | Dia.15 mm |
| Conveying Hose Inner Diameter | Dia.51 mm |
| Operating air Pressure | 0.2-0.4mpa(29-58PSI) |
| Air Consumption | 9m3/min(325CFM) |
| Material Charging Height | 1.1m |
| Rotor Speed | 11r/min |
| Diesel Type | CF1105M |
| Power | 13kw/18hp |
| Overall Dimension(L×W×H) | 2.2×0.96×1.2m |
| Netweignt | 850kg |
