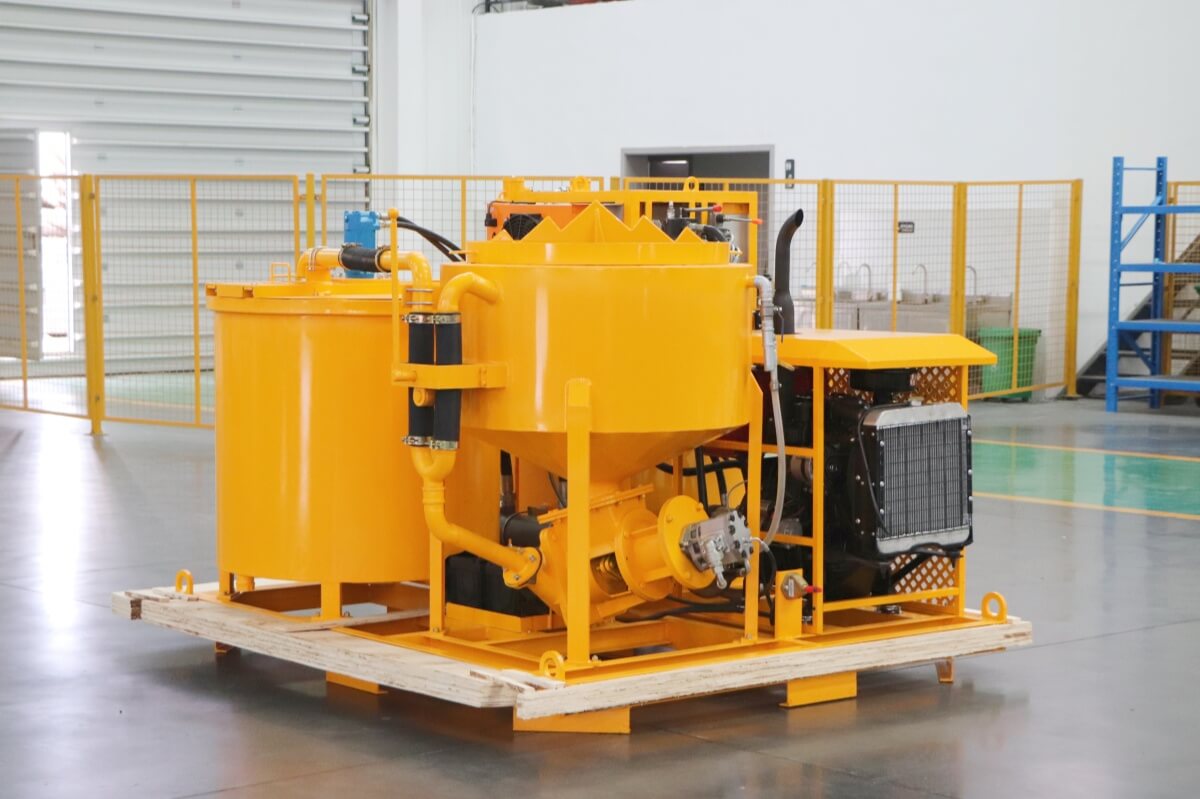

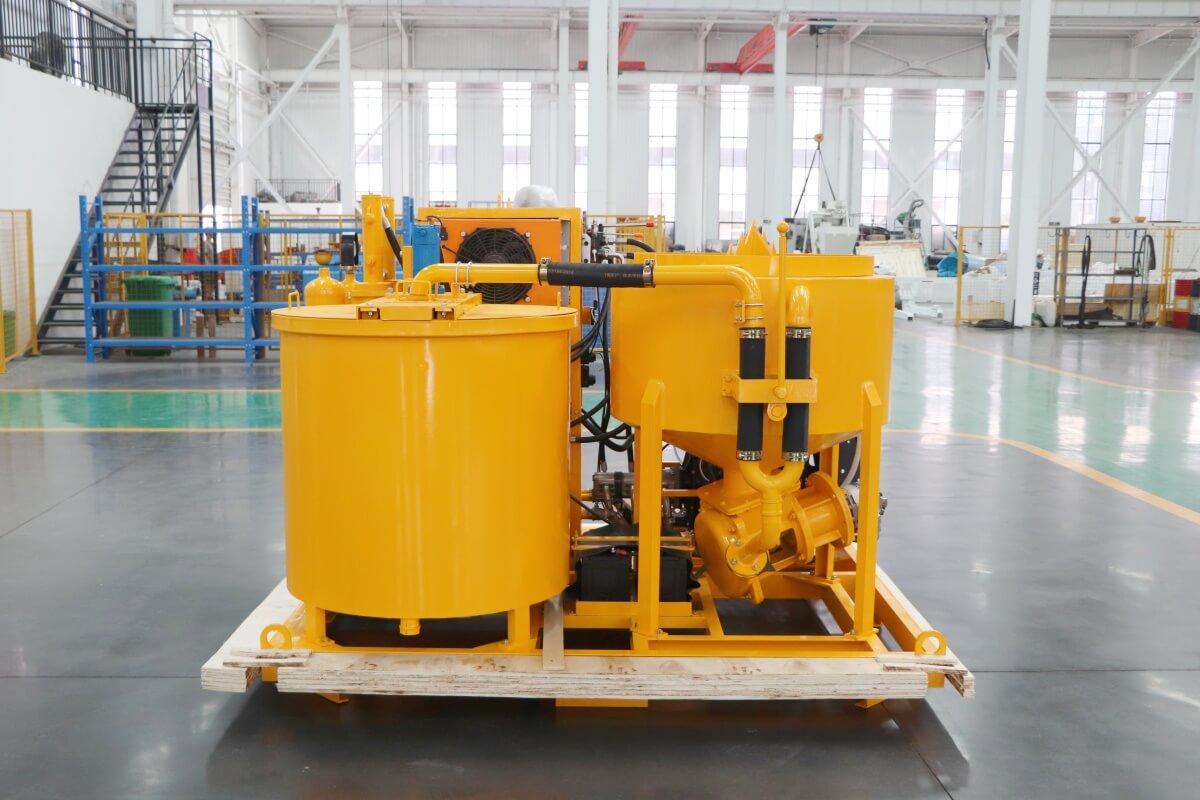

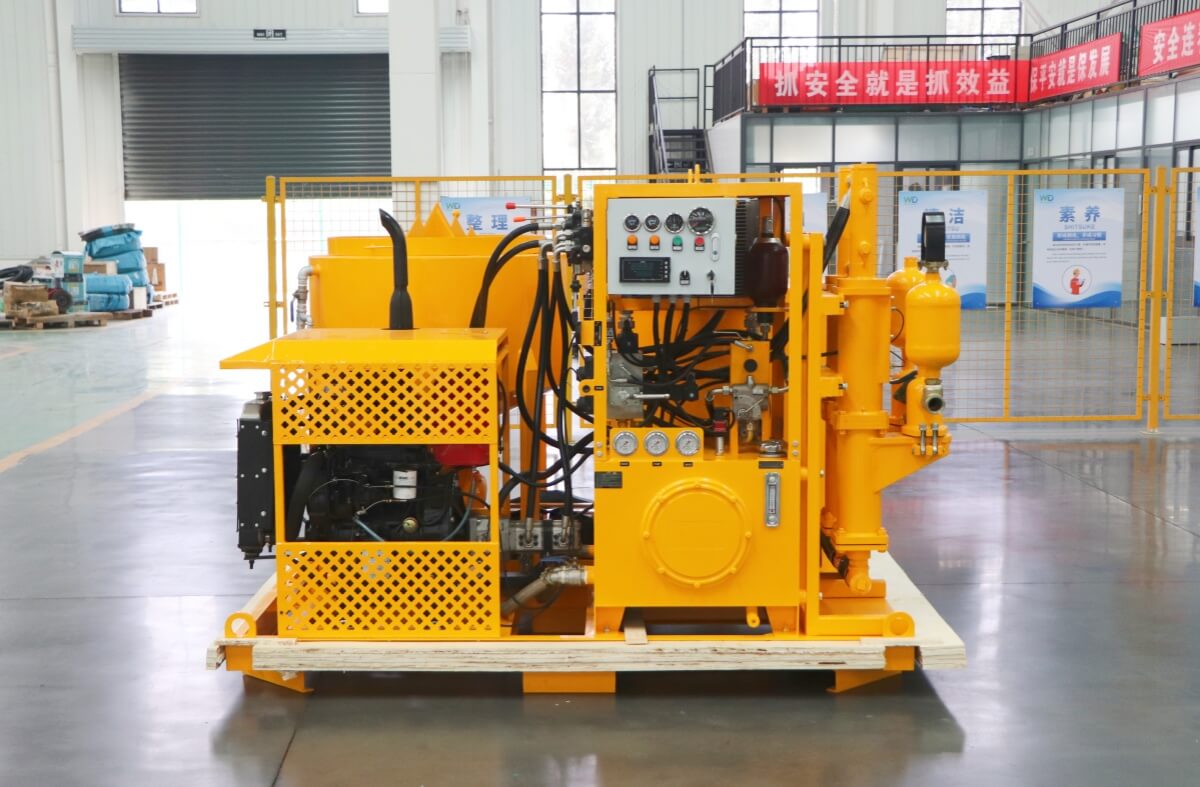

LGP400/700/80DPL-D Diesel engine grout plant for sale
Leadcrete Equipment is one leading diesel engine grout plant manufacturer and supplier from China, if you need our diesel engine grout plant, we would be happy to share price list and details for your reference.
LGP400/700/80DPL-D
2400*2150*1700mm
1820kg
27KW@1800rpm
400L
80L/min@5Mpa
PRODUCTS LIST
HOT products
Inquiry
Introduction
Product Details
Technical data
Cases
Inquiry
Description
LGP400/700/80DPL-D Diesel engine grout plant for sale is a combination of mixer, agitator and grout pump in one base frame. Mixer volume is 400L, it is suitable W/C Ratio of mixer is 0.5-1, only 2-3 minutes is
need to mix. The diesel grouting plant is hydraulic drive. Grouting pressure and displacement can be adjustable.
The operation of the diesel grout plant is safe and easy operation. After mixing, the mixed slurry is transported from the mixer to the mixer by transfering switch, and then the pump sucks the slurry from the mixer to the grouting. At this time, you can mix the slurry again during grouting. It can continuously mix and grout.
More importantly, the double plunger pump is used together with the pressure maintaining system to automatically stop the pump and maintain a very small pressure pulse (1-4bar, 50bar grouting pressure) to ensure that the grouting hole is fully filled.
Our diesel engine grout plants have been exported to many countries for grouting projects, such as France, Germany, Spain, Greece, Norway, United Kingdom, Netherlands, Greece, Finland, Switzerland, Sweden, Belgium, United States, Mexico, Canada, Philippines, Vietnam, Indonesia, Thailand, Singapore, Colombia, Costa Rica, Peru, Bolivia, Mexico, Brazil, Panama, Honduras, Chile, Australia New Zealand, Iraq, Saudi Arabia, United Arab Emirates, Kuwait, Israel, South Africa, Egypt, Ethiopia, Kenya, Tanzania, Russia, Kazakhstan, Belarus, Uzbekistan, Tajikistan, etc.
need to mix. The diesel grouting plant is hydraulic drive. Grouting pressure and displacement can be adjustable.
The operation of the diesel grout plant is safe and easy operation. After mixing, the mixed slurry is transported from the mixer to the mixer by transfering switch, and then the pump sucks the slurry from the mixer to the grouting. At this time, you can mix the slurry again during grouting. It can continuously mix and grout.
More importantly, the double plunger pump is used together with the pressure maintaining system to automatically stop the pump and maintain a very small pressure pulse (1-4bar, 50bar grouting pressure) to ensure that the grouting hole is fully filled.
Our diesel engine grout plants have been exported to many countries for grouting projects, such as France, Germany, Spain, Greece, Norway, United Kingdom, Netherlands, Greece, Finland, Switzerland, Sweden, Belgium, United States, Mexico, Canada, Philippines, Vietnam, Indonesia, Thailand, Singapore, Colombia, Costa Rica, Peru, Bolivia, Mexico, Brazil, Panama, Honduras, Chile, Australia New Zealand, Iraq, Saudi Arabia, United Arab Emirates, Kuwait, Israel, South Africa, Egypt, Ethiopia, Kenya, Tanzania, Russia, Kazakhstan, Belarus, Uzbekistan, Tajikistan, etc.
Application
LGP400/700/80DPL-D Diesel engine grout plant for sale is mainly used to be made bentonite slurry, cement slurry, etc., it can be used for the following application.
1. Building structure - Compact grout plant is used for building and bridge repair, foundation reinforcement, slope support, soil compaction, rock grouting;
2. Engineering - Diese grout mixing plant is used for underwater foundation, offshore platform, coast foundation grouting reinforcement;
3. Civil engineering - Diesel engine grout plant is used for dam, tunnel, subway, mine, soil nailing wall, curtain, anchor, cable trench and anchor grouting;
4. Mine application - Grout unit is used for roadway reinforcement, backfill, waterproof grouting.
Features

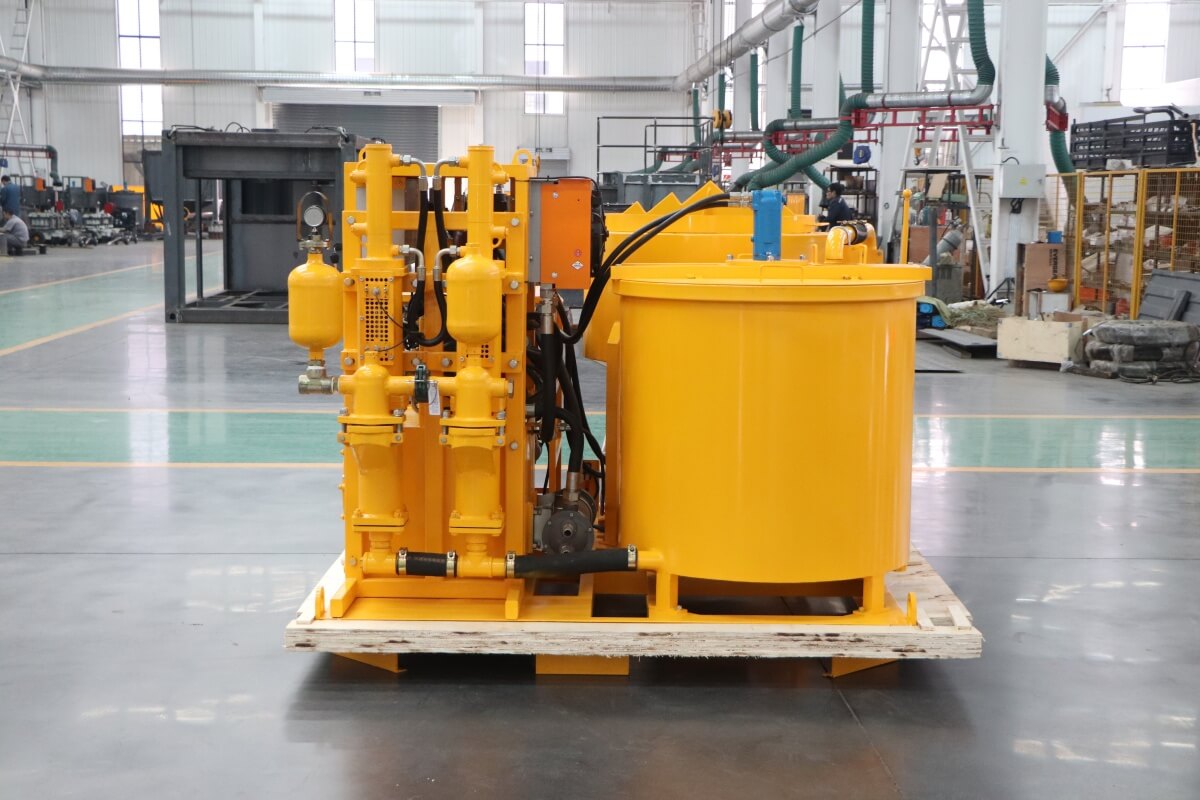

1. Hydraulic drive (safely releasing pressure when pumping block) diesel engine grout unit.
2. This grout plant is with hydraulic system with high temperature warning and protection system, low flow pressure surge system, and pressure holding system.
3. Air cooler and water cooler (suitable for working in tropical and sub-hot areas).
4. Up to 5mm particle size.
5. Compact size and easy to operate.
6. Compact structure grout plant, integrating double vertical type plunger pump, a high-speed colloidal grout mixer, agitator in one base, it also takes up a small space.
7. Simple operation and maintenance.
2. This grout plant is with hydraulic system with high temperature warning and protection system, low flow pressure surge system, and pressure holding system.
3. Air cooler and water cooler (suitable for working in tropical and sub-hot areas).
4. Up to 5mm particle size.
5. Compact size and easy to operate.
6. Compact structure grout plant, integrating double vertical type plunger pump, a high-speed colloidal grout mixer, agitator in one base, it also takes up a small space.
7. Simple operation and maintenance.
Product Details
-

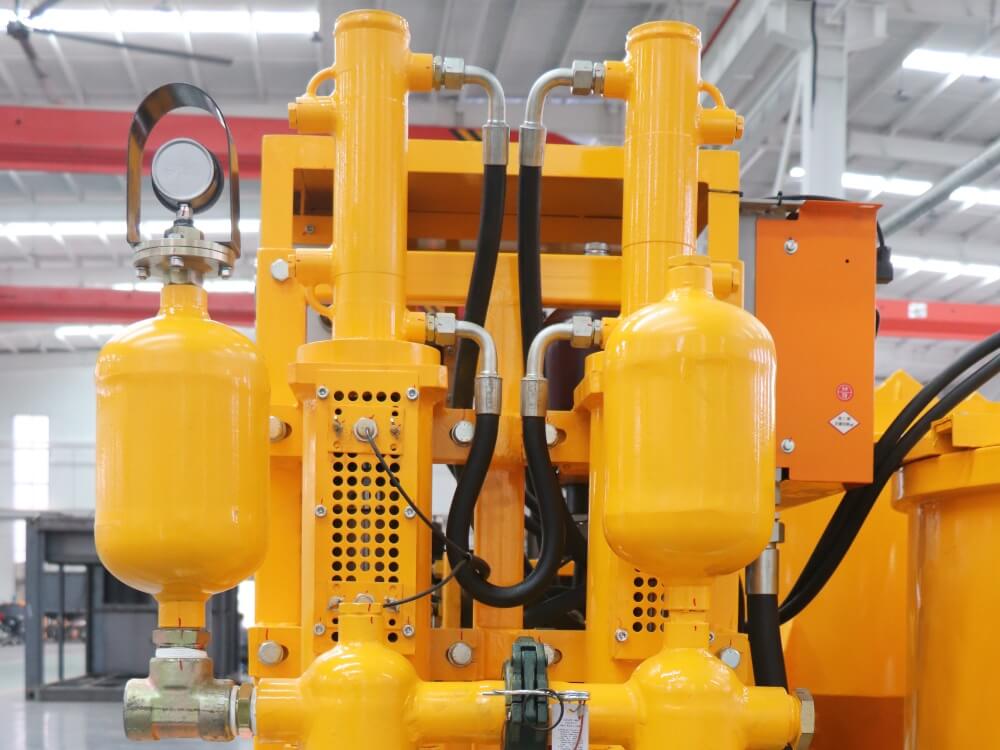

Plunger grout pump plant -
Multi-way valve of grout plant -

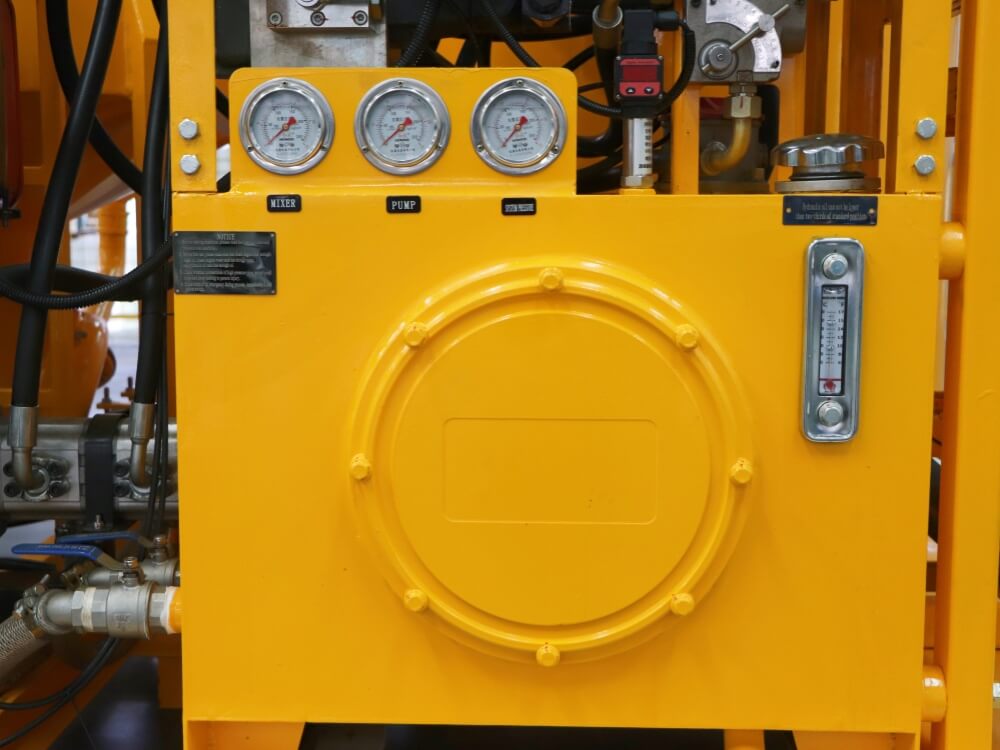

High temperature warning and protection device -

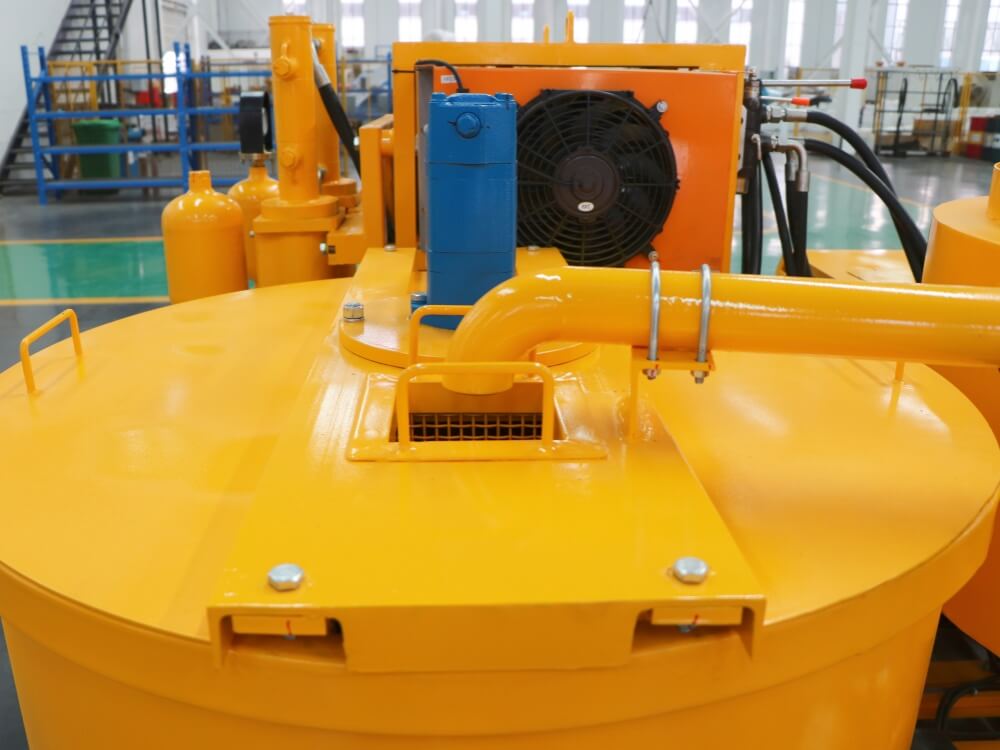

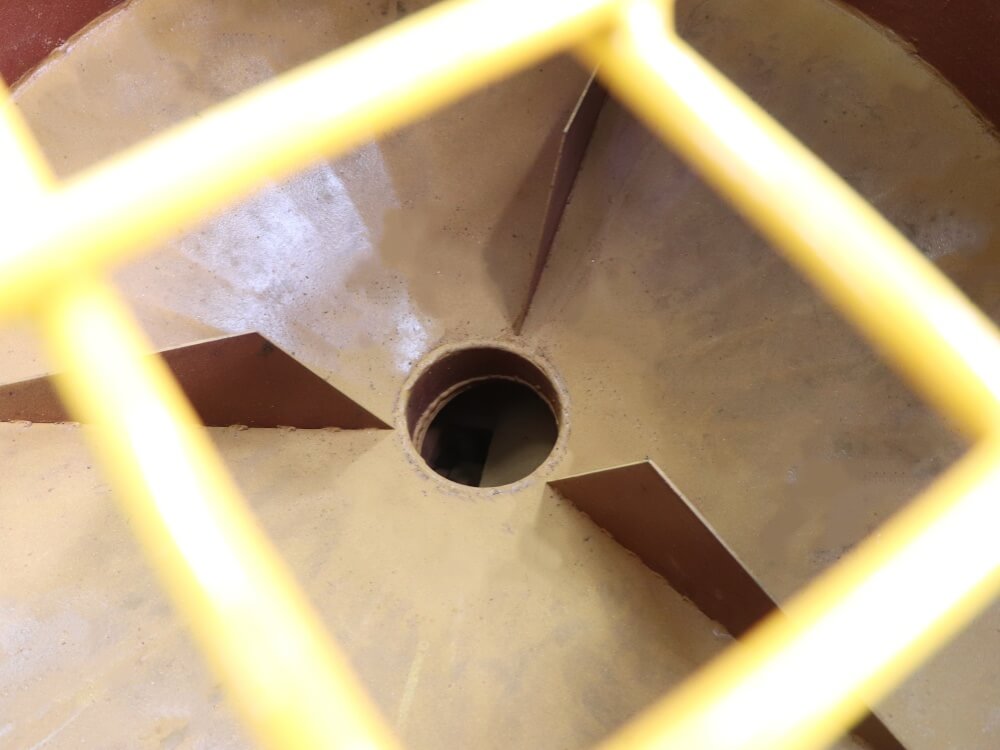

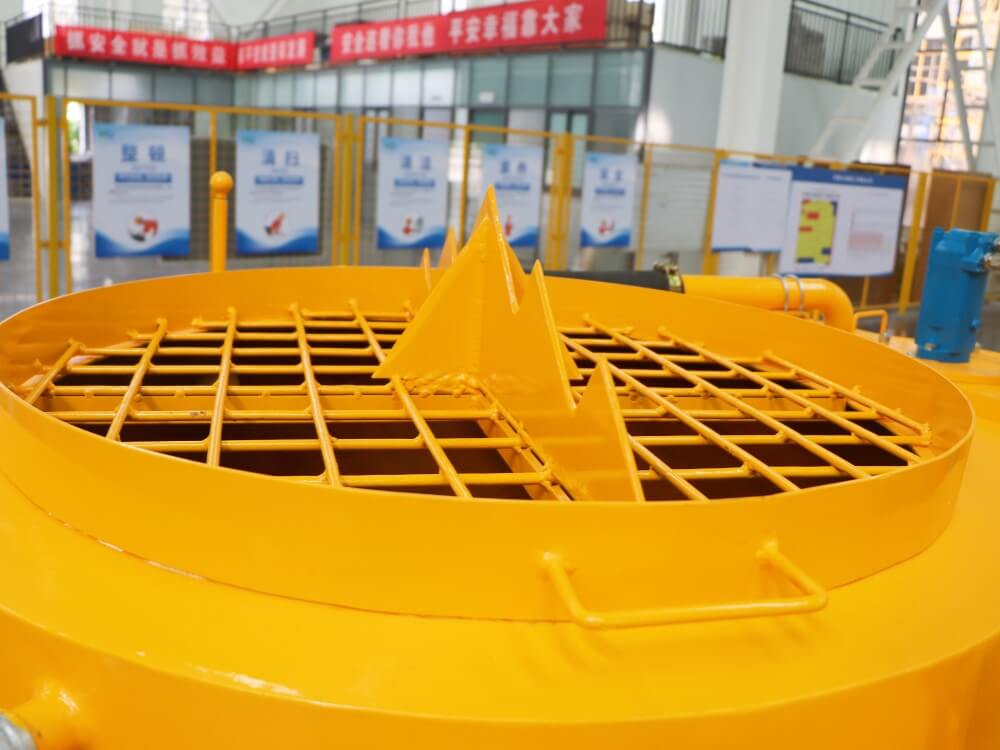

Grout mixing plant details -

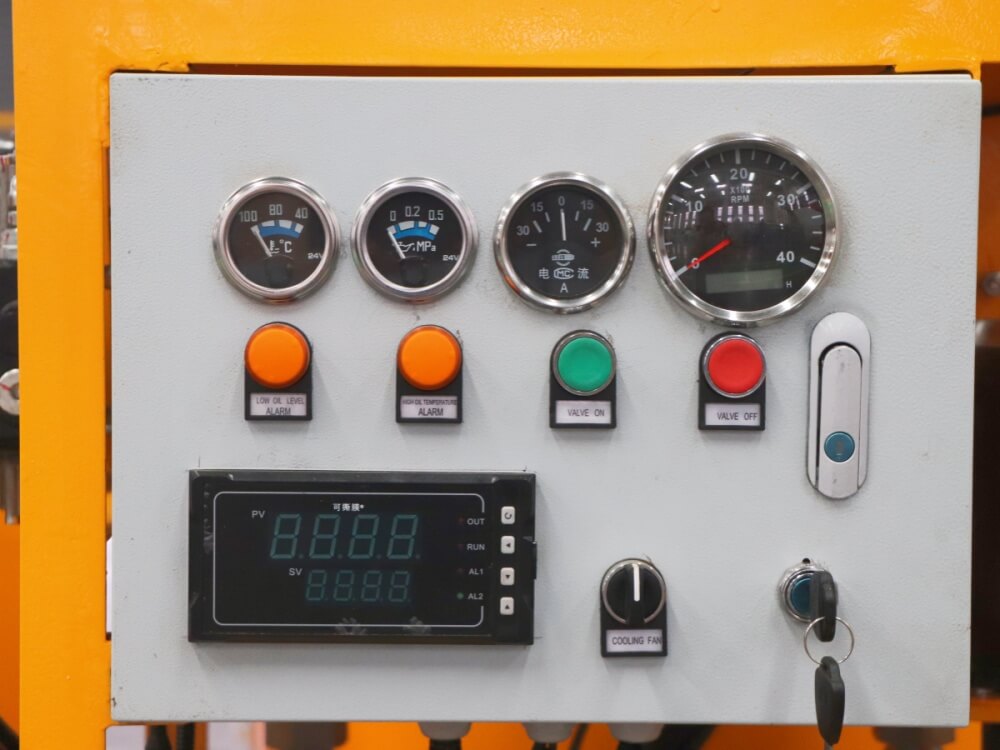

Electric control box of grout plant -
Electric control box internal structure
Technical Parameters
Technical Data
| Description | Data |
| Diesel engine grout mixing plant model | LGP400/700/80DPL-D |
| Dimensions | 2400*2150*1700mm |
| Weight | 1820kg |
| Diesel motor | |
| Power | 27KW@1800rpm |
| High speed grout mixer | |
| Capacity | 400L |
| Recycling discharge | 1100L/min |
| Suitable water/cement ratio | ≥0.5:1 |
| Grout agitator | |
| Capacity | 700L |
| Rated Rev | 36rpm |
| Grout pump(vertical compact hydraulic grout pump) | |
| Output/pressure | 80L/min@5Mpa |
| Diameter | 85mm |
| Stroke | 220mm |
| Cycles | 38 times/min |
| We could also customize electric and diesel motor grout mixing plant according to your demands. | |
